Challenge

Creation of Column Schedule and Drawing Template using AutoCad

Aim:- Create a column schedule as shown in the figure.

Procedure:

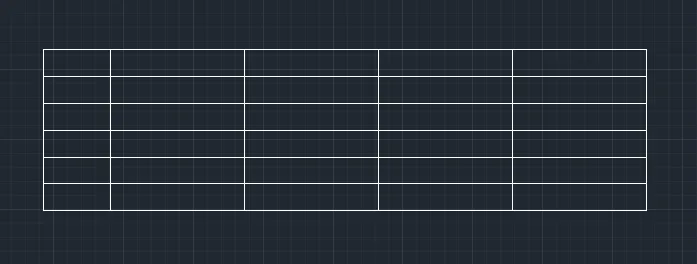

Creating table:

Create the rectangle angle of 60'x20' , explode it.
Divide the 60' column and again divide each 10' to 5' by using offset command
Create raw at top and bottom of 2' and 4' respectively by offset command.
Command offset select the top line and give distance as 2' again command o select the bottom line and give offset distance as 4'.
Trim off the unecessary lines.

Extering text:-

Enter the text in the table by using singeline text from the text drop down menu specify the point of text specify text height as 8" and angle as 0 degree .
"Terrace of mumty" give text angle as 90 degreeand type the text.
after entering the text , right click and select properties- then list of properties will be displayed
ensure the text height is 8" and make justify as left
To change the style of text command "ST" a dialouge box apperas and select the font name as "romans.shx"
Then insert all the text or copy the text created and edit it to the required text in respective rows and columns
Give the healding as column shedule:

Drawing the column section:

Draw a rectangle of sixe 9"x24" by using rec command
Draw the column outline after a cover of 40mm i.e 0.5" by offest command
and draw the circle reinforcement command "c" click on tan tan radius on the command box .
And use the copy command and draw the again column

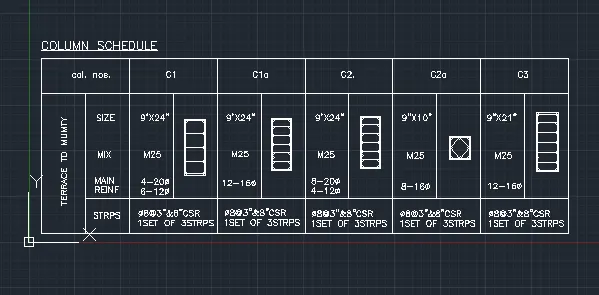

And, Final Result:

2. Window Shedule:

Aim: Create a window schedule as shown in the figures:

Procedure:

Creating table:

Create the rectangle angle of 50'x12' , explode it.
Divide the 50' column and again divide each 10' by using offset command
Create raw at top to bottom of 2' respectively by offset command.
Command offset select the top line and give distance as 2' again command o select the bottom line and give offset distance as 2'.
Trim off the unecessary lines.

inserting text:-

Enter the text in the table by using singeline text from the text drop down menu specify the point of text specify text height as 8" and angle as 0 degree .
after entering the text , right click and select properties- then list of properties will be displayed
ensure the text height is 8" and make justify as left
To change the style of text command "ST" a dialouge box apperas and select the font name as "romans.shx"
Then insert all the text or copy the text created and edit it to the required text in respective rows and columns

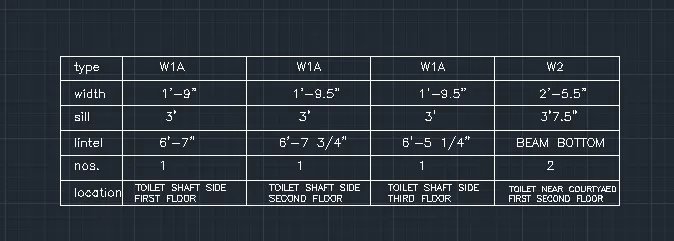

Final result:

Creating template:

Aim: Create the drawing template .

Procedure:

Creating table:

Create the rectangle angle 40'x15' , explode it.
copy this rectangle and plce it next to it with snap on , copy 2 of them.
command co select the object the base point select the point where we need to place the rectangle.
Divide the 2nd column of table into two and the 3rd column into 5
command o offset distabe 3' select the object and creat the row
also divide the 3rd column into 4 each of 10' by command "o" anf trim the unwanted line bt "tr".

inserting text:-

Enter the text in the table by using singeline text from the text drop down menu specify the point of text specify text height as 8" and angle as 0 degree .
after entering the text , right click and select properties- then list of properties will be displayed
ensure the text height is 8" and make justify as left
To change the style of text command "ST" a dialouge box apperas and select the font name as "romans.shx"
Then insert all the text or copy the text created and edit it to the required text in respective rows and columns

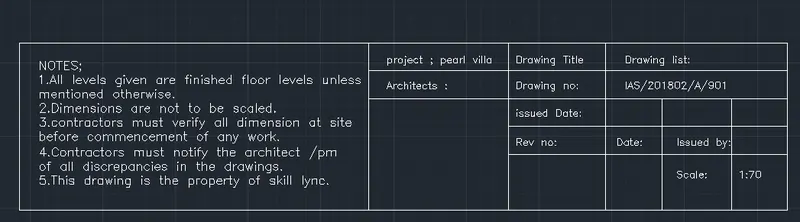

Final Result:

4. List of drawing schedule:

Aim: Create the list of drawing schedule

Procedure:

Creating table:

With line tool draw the outline of the table of 102' x direction with command "l" and 83' in y direction.
Draw the column by offset command "o" with a distance of 10',32',60' respectively from the left side.
Create the row by offseting distance of 3',5' and 3' from the top side for the headings.
Trim off the unecessary lines.

inserting text:-

Enter the text in the table by using singeline text from the text drop down menu specify the point of text specify text height as 8" and angle as 0 degree .
after entering the text , right click and select properties- then list of properties will be displayed
ensure the text height is 8" and make justify as left
To change the style of text command "ST" a dialouge box apperas and select the font name as "romans.shx"
In the 2nd row using multiline text type "List of architectural drawing" with text height of 2'1" and same type
In the 3nd row using multiline text type "no., drawing no, description" with text height of 1'8" and same type
And 4 to 29 raw using multiline text type with text height of 1'8" and same type

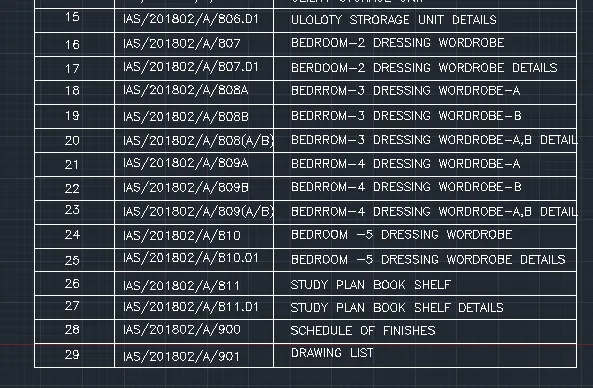

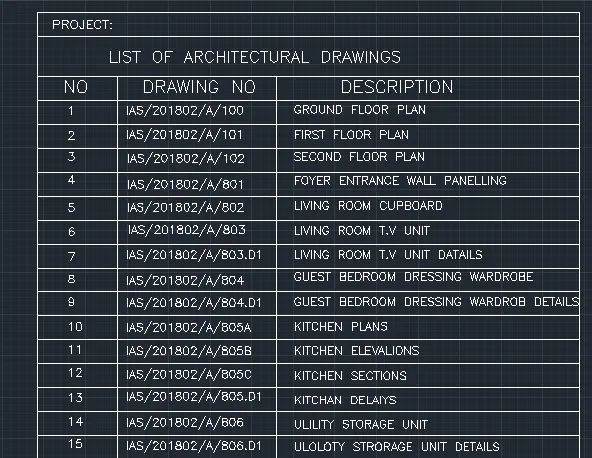

Final result:

5. Beam Details:

Aim: Create the Beam detail

Procedure:

Draw a cross section of beam with height 4' and thickness 9"
with command "l" draw a line of 4' in y direction an 9" in x direction and download and close.
from top give an offset of 9", which marks the ground level, command "o" select the top portion give the offset distance as 9" and extend the groumd level line
then give an offset of 3" from 9" line command "o"
Hatch the portion of brick and concrete and trim off the line of ground level from the cross section of the beam.

inserting text:-

Enter the text in the table by using singeline text from the text drop down menu specify the point of text specify text height as 8" and angle as 0 degree .
after entering the text , right click and select properties- then list of properties will be displayed
ensure the text height is 8" and make justify as left
To change the style of text command "ST" a dialouge box apperas and select the font name as "romans.shx"

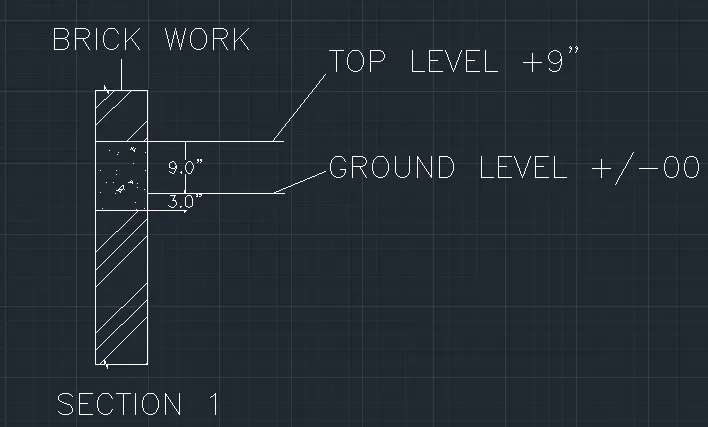

Final result:
