Creation of Column Schedule and Drawing Template using AutoCad

Aim & Introduction:- Creation of Column Schedule and Drawing Template using AutoCad. This project deals with detailing in the drawings of various structures used in the construction industry. In this project, there is a TEXT command, Leader tool, Hatch tool, etc.

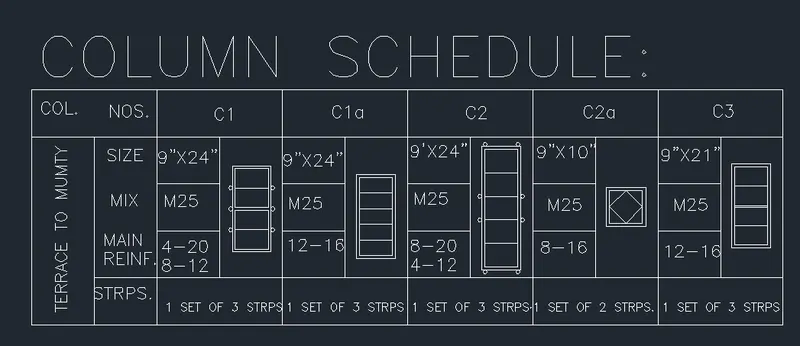

Type L in the command box to select the line tool.
Draw a horizontal line of 24 units and continue with a 15 units vertical line.
Continue the same line again with 24 units horizontally and then type C to form a rectangle.
Type O in the command box to select the offset tool and specify the distance as 2 units.
Offset the vertical line to draw 12 columns.
Again select the offset tool and specify the distance as 3 units.
Offset the horizontal line to draw 5 rows.
Select the trim tool and trim off the non-required lines.
Type DIMSTYLE in the command box to open the dimension style dialogue box.
Go to modify, then Text, and select the font as roman.shx.
Type TEXT in the command box to select the text tool and type all the required detailing.
Again select the line tool and draw all the column detailing in the specified spaces.

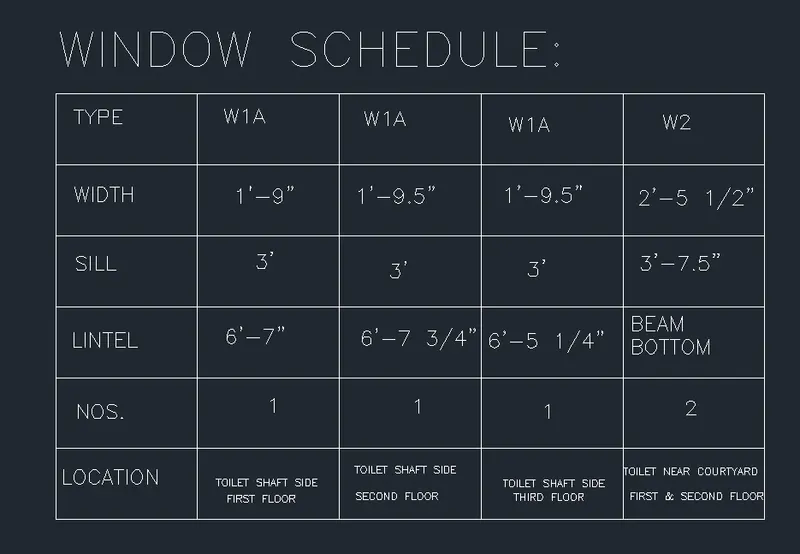

Type L in the command box to select the line tool.
Draw a horizontal line of 10 units and continue with a 12 units vertical line.
Continue the same line again with 10 units horizontally and then type C to form a rectangle.
Type O in the command box to select the offset tool and specify the distance as 2 units.
Offset the vertical and horizontal lines to draw columns and rows respectively.
Type DIMSTYLE in the command box to open the dimension style dialogue box.
Go to modify, then Text, and select the font as roman.shx.
Type TEXT in the command box to select the text tool and type all the required detailing.

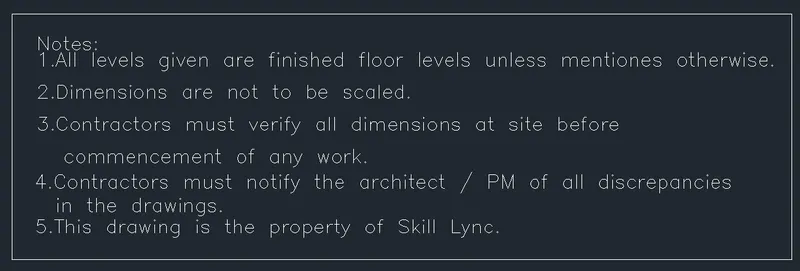

Type DIMSTYLE in the command box to open the dimension style dialogue box.
Go to modify, then Text, and select the font as roman.shx.
Type TEXT in the command box to select the text tool and type all the required detailing.

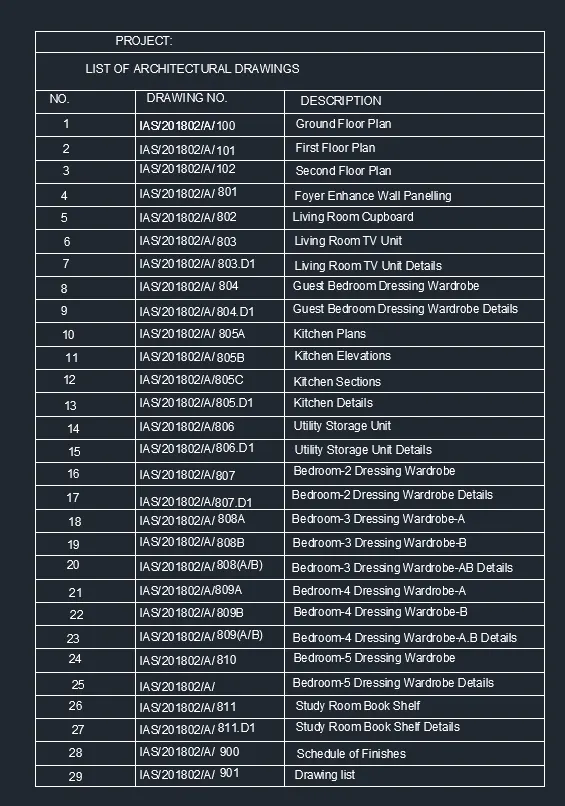

Draw the template with the help of the line tool.

Type L to select the line tool and draw a vertical line of 35 units and a horizontal line of 25 units and continue the line to form a rectangle.
Type O to select the offset tool and specify the distance as 1 unit.
Offset the bottom horizontal line 29 times towards the top.
And the top horizontal line one time downwards.
All the required rows will be drawn.
Again select the offset tool and draw two more vertical lines as required.

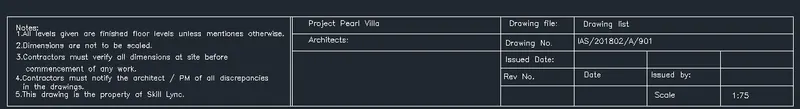

Type DIMSTYLE in the command box to open the dimension style dialogue box.
Go to modify, then Text, and select the font as roman.shx.
Type TEXT in the command box to select the text tool and type all the required detailing.

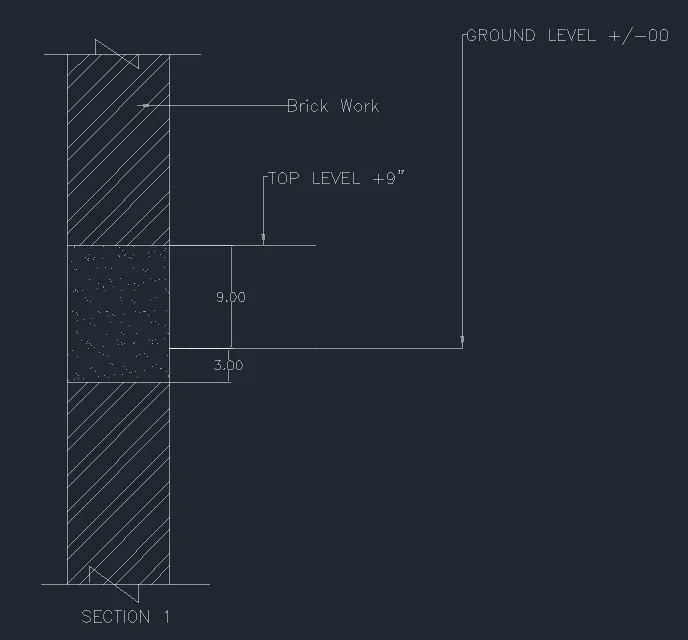

Type L in the command box to select the line tool and draw a vertical tine of 12"
Type O in the command box to select the offset tool and specify the distance as 9".
Again select the line tool and draw all the horizontal lines required.
There will be jogged lines at the top and bottom of the beam to show the continuity of the member.
Select the hatch tool and specify the enclosed space to apply the hatch.
Adjust the scale to 2.
Select the gradient tool and specify the enclosed space to apply the gradient.
Adjust its scale too.
Select the leader tool and mark the drawing.
Specify the dimensions.
