Creation of Column Schedule and Drawing Template using AutoCad

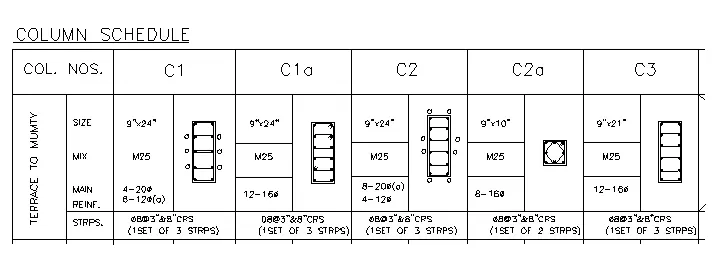

AIM : Create a column schedule as shown in the figure.

Note: Create a column schedule with the help of lines. Also, insert text with the help of Dtext command or Single Line text.

Hint: Use font name: romans.shx; Height: 8”, Justify: Left

PROCEDURE:

STEP-1

1. create new file < select new drawing enter units as a decimals.
2. create annotate settings in ribbon
3.

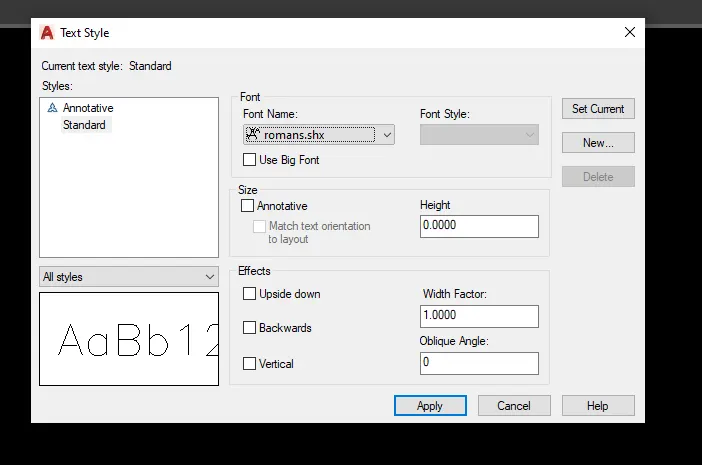

4. fon selected as romans and font size selected as 8".
5. select justify as left.

step-2

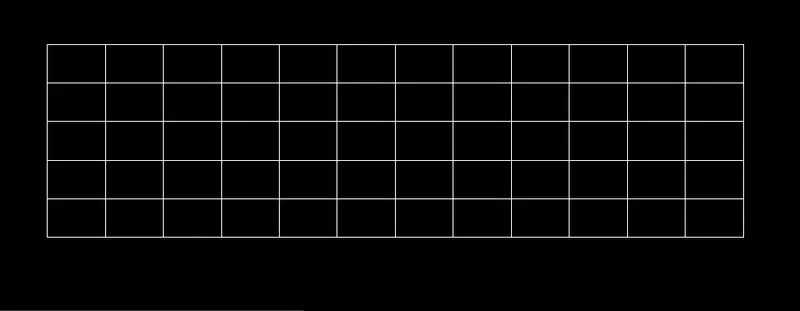

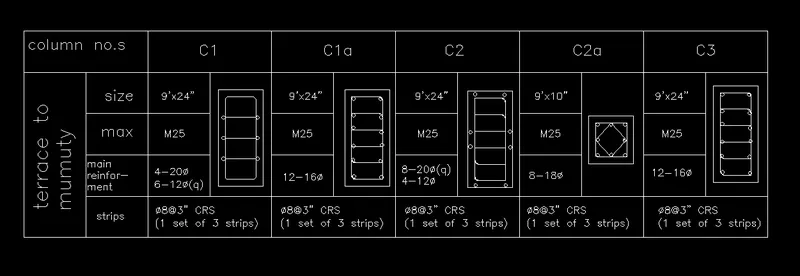

1. use line command draw a tabile 10' x 10' tabile with 12 columns and 5 rows.
2.

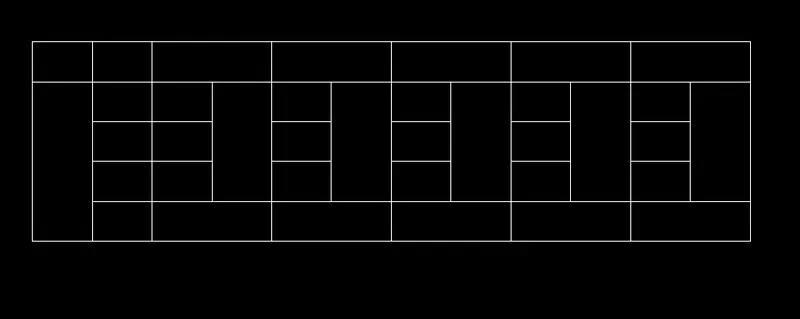

3. use trim and fillet command divide the lines as required shape.
4.
5. use mtext command write the text as required given in drawing
6. and also draw bbs prepared as required autocad software.

RESULTS:

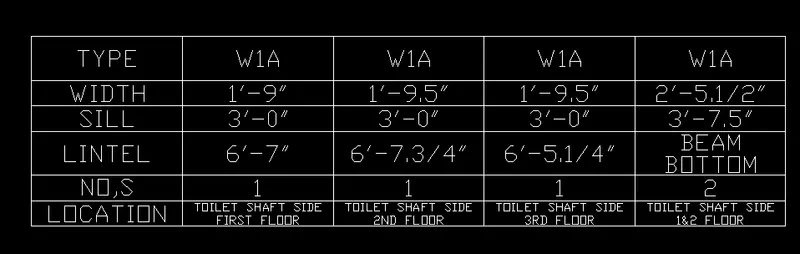

AIM:2 Create a window schedule as shown in the figures:

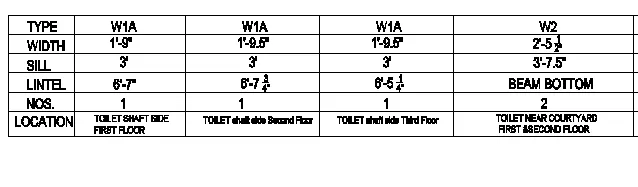

Window Schedule:

STEP-1

1. create new file < select new drawing enter units as a decimals.
2. create annotate settings in ribbon
3.
4. fon selected as romans and font size selected as 8".
5. select justify as left.

step-2

1. Select annotate in ribbon and tabile in command bar
2.
3. in this dailog box we have to select 6 rowa and 5 coloumns.
4. apply text action with useing text command.

RESULTS:

AIM3:

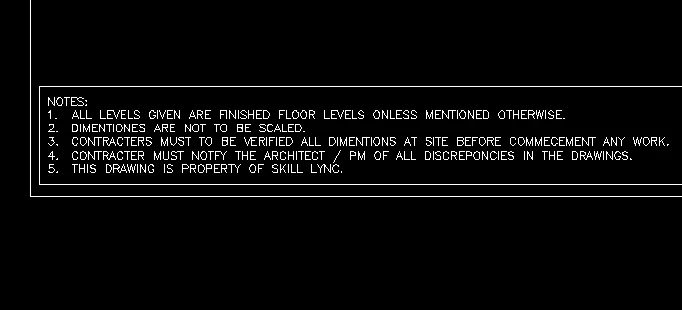

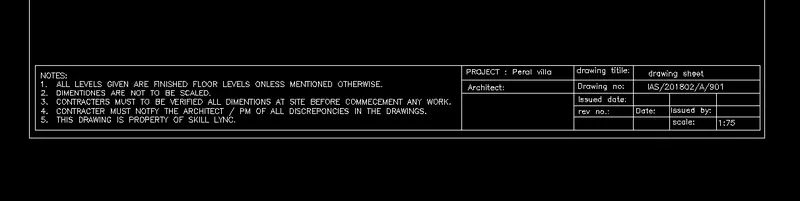

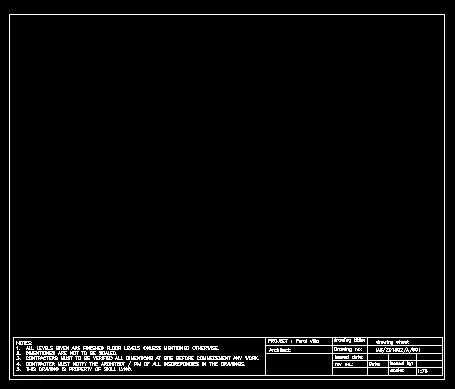

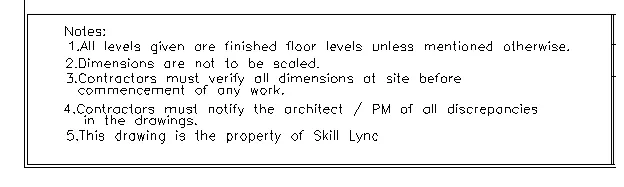

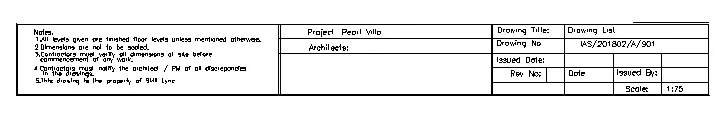

Create the drawing template as shown in the figure:< Use the Notes as in the figure>

STEP-1

1. create new file < select new drawing enter units as a decimals.
2. create annotate settings in ribbon
3.
4. fon selected as romans and font size selected as 8".
5. select justify as left.

STEP-2

1. As useing line command drw a line as required.
2. as useing trim, fillet and extend command design template as required.
3. useing text command write content as we required.

RESULTS:

AIM3:

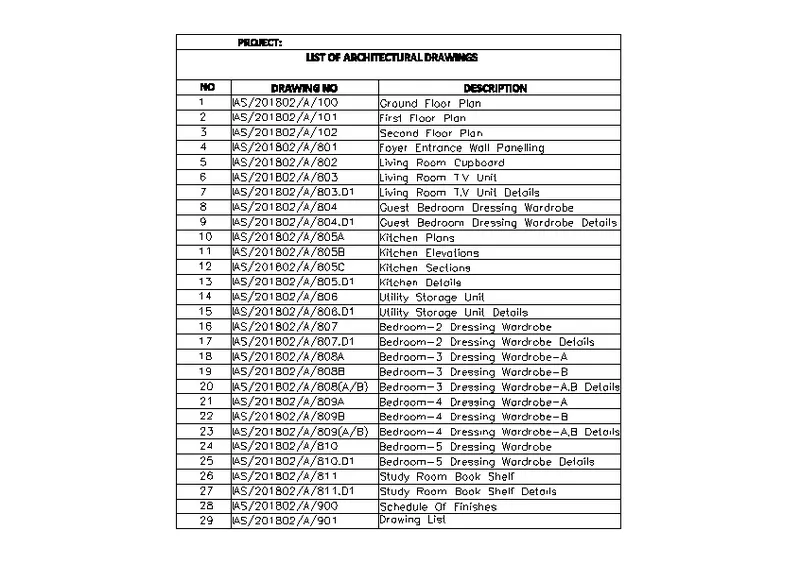

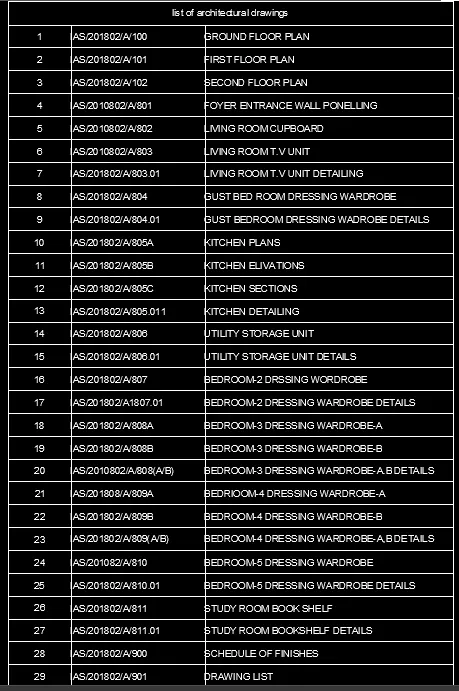

Create the list of drawing schedule as shown in the figure:

PROCEDURE:

STEP-1

1. create new file < select new drawing enter units as a decimals.
2. create annotate settings in ribbon
3.
4. fon selected as romans and font size selected as 8".
5. select justify as left.
6. Select annotate in ribbon and tabile in command bar
7.
8. in this dailog box we have to select 29 rowa and 3 coloumns.
9. apply text action with useing mtext command.

RESULTS:

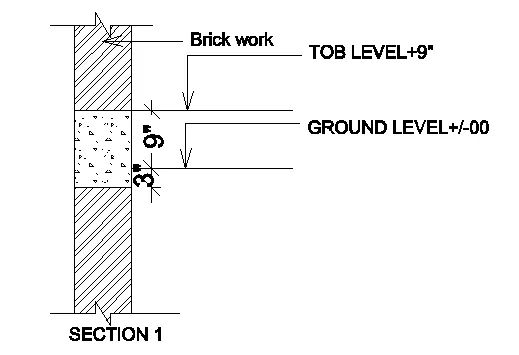

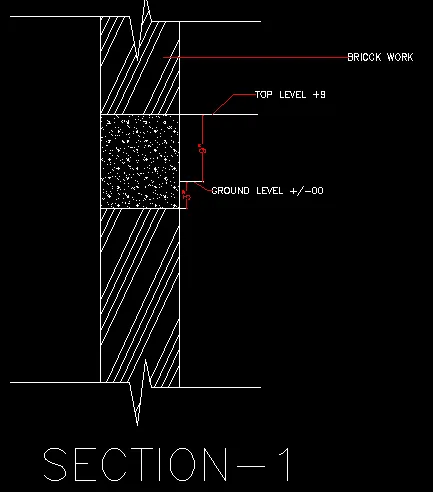

AIM 4: Create the Beam detail as shown in the figure and provide text wherever given.

PROCEDURE:

STEP-1

1. create new file < select new drawing enter units as a decimals.
2. create annotate settings in ribbon
3.
4. fon selected as romans and font size selected as 8".
5. select justify as left.
6. Select annotate in ribbon and tabile in command bar
7.
8. in this dailog box we have to select 29 rowa and 3 coloumns.
9. apply text action with useing mtext command.

STEP-2:

1. useing qleader command draw dimentions and also text.

RESULTS:
