Creation of Column Schedule and Drawing Template using AutoCad

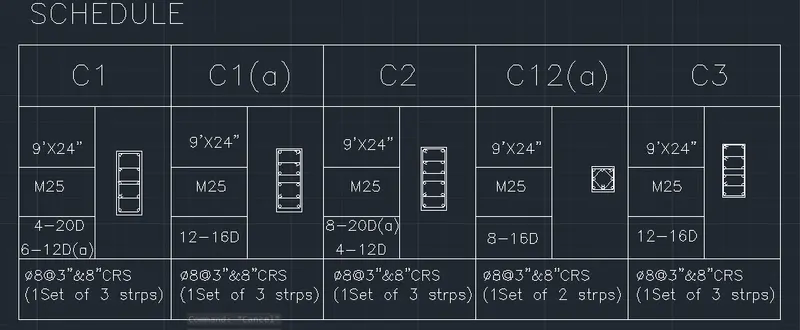

Aim- To create coloumn schedule and give text using dt command

Procedure-

Firsty use line command and create all the table which is shown in the firure

Use the assumed dimensions

First create the main boxes divided into eaual parts using offset commnd

Each and every unit needed to be seperate for column section, steel quantity, size as shown in the drawing

Then draw the coloumn section using rectangle command by @9",24"

And by using circle command give total no main bars

Then with the line command give stirrups as shown in fig and hooks to be provided

Coloumn section is done then detailing is given

Use DT enter to give every detail

DT enter and give height of the text as 8" and angle as 0 OK

Enter the text C1 and copy to all and edit by double clicking

Then give sizes 9"x15" and copy to all and edit

In the same way give all the details using DT command and copy it and edit as you want

If tou want to change font you can select the text and go to properties and you can change the font there

2.

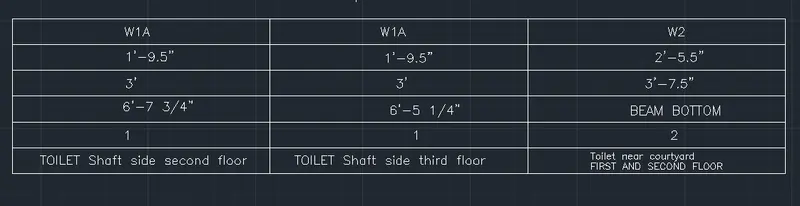

Aim- Create a window schedule as given

Procedure-

First invoke rectangle command and draw size of @15",6"

Then use offset command and divide in three parts of 5' offset

And then divide horizontally with offset of 1' into 6 rows

Then DT enter command to text and give height of 6" / 8"

Write the text as W1A then copy to all boxes

Edit all boxes by double clicking on it

3.

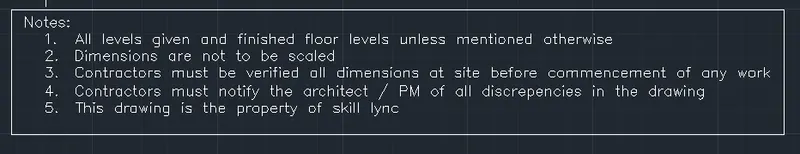

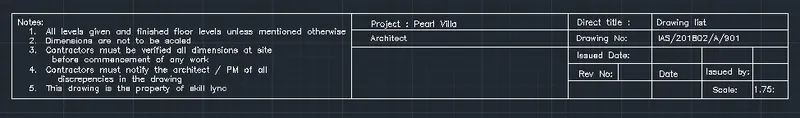

Aim- To create a template as in the drawing

Procedure-

Here in order to write the large texts you have to use multiliner command

Firtly go to annotate in the ribbon

Then go to the multininer at at start and invike it

It shows the box on the screen then drag it and select certain area to write text

Then start writing the text

Use bullets/numbers in the same command

The pragraph is done

Then draw rectangle around it

Then draw another two rectangles assumin the distances to write everything

In second rectangle offset 1' and write project and Architect using DT command

In the second rectangle divide using offset as shown in fig

Write all the given info date,title,list,no....

You can edit text usibg ST command

4.

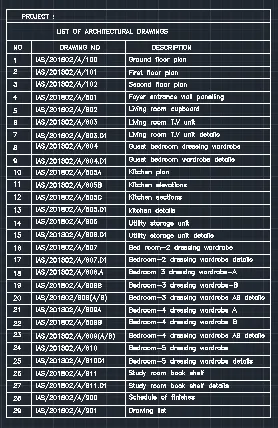

Aim- Create drawing schedule as in the figure

procedure-

Firstly use rectangle command and draw a box of @17',33'

Invoke offset command and offset y axis of 2',5',10'

Then offset of 1' on x axis as shown in fig

Only the second box is offset as 2' since it has more space in fig

Use dt command and give serial numbers 1 to 29

By using the same command write the project , architectural drawing ...all

In the S.No 1 write IAS/201802/A/100 and ground floor plan

Copy the data in all the boxes

Then edit it by double clicking on it

And write the given data in the fig

5.

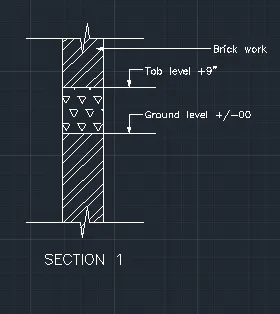

Aim- Beam detail and text as given in fig

Procedure-

Use line command and draw line of 10'

Then offset it of 1'

Then use breakline(continues) at ends of coloumn

Then draw a section in between the coloumn as shown in fig

Using hatch command hatch it with any type

Then using Multileader in the ribbon give indication to all three as shown in fig

Either give text at that time or

Give detailing by using DT enter

As Brick work,tob level and ground level as shown in fig
