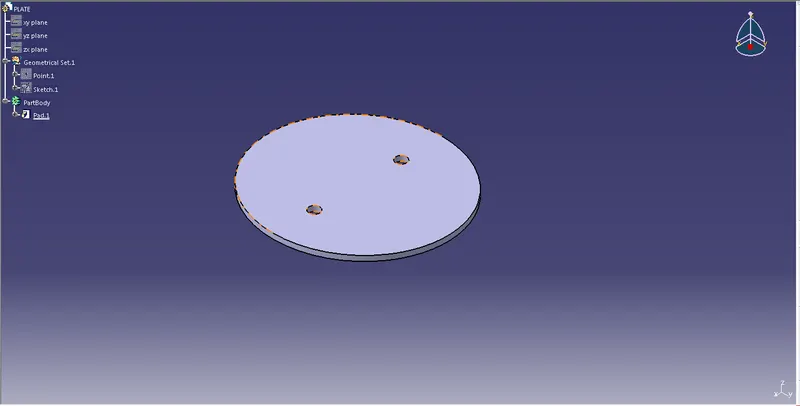

Creation of Butterfly Valve and apply GD&T

Butterfly valves are mainly well-suited for the handling of big flows of liquids or gases at relatively low pressures and for the handling of slurries or liquids with big amounts of suspended solids. Butterfly valves are created on the principle of a pipe damper. The sail temperance element is a disk of roughly similar diameter as the inside diameter of the adjoining pipe, which rotates on either a vertical or horizontal axis. When the disk lies parallel to the piping run, the valve is fully opened. When the disk approaches the perpendicular situation, the valve is close. Intermediate positions, for throttling aims, could be secured in place by handle-locking devices.

GD&T SYMBOLYS

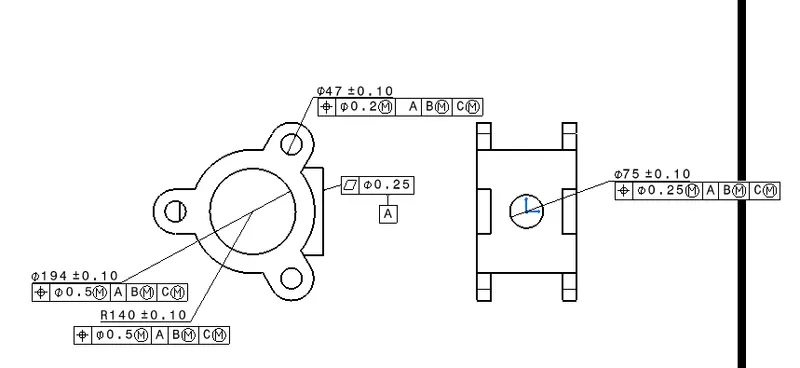

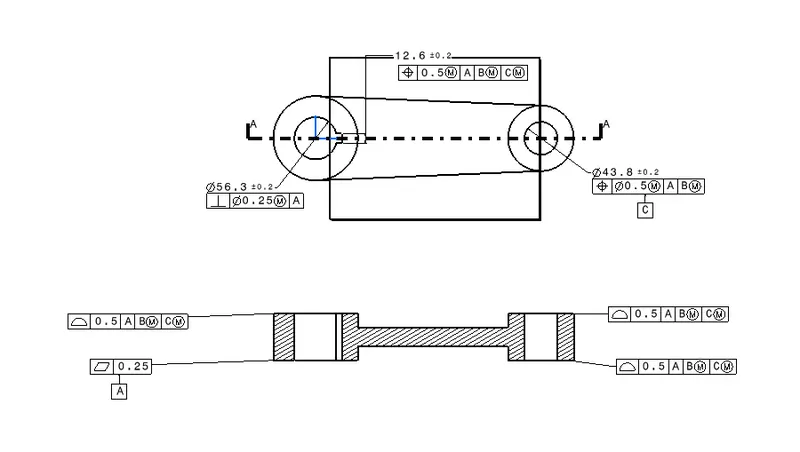

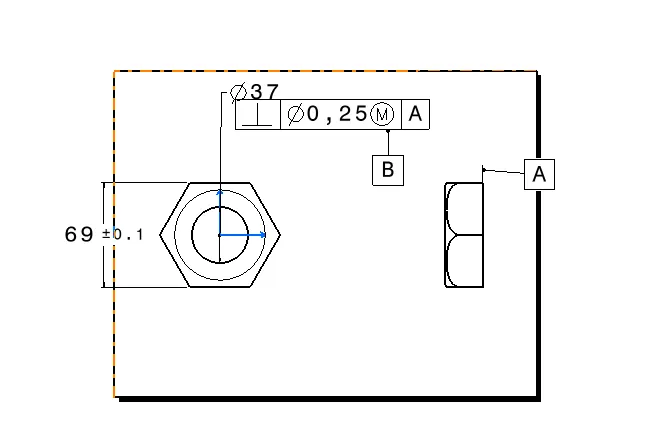

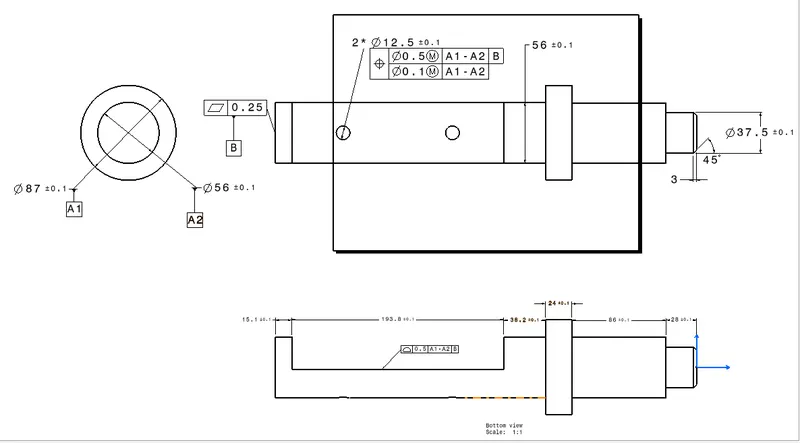

GD&T gives manufacturers a clear understanding of the tolerances for a specific part. It provides the maximum amount of tolerance for the part to function properly, which reduces part complexity so that you aren't overspending for a minimum tolerance that you may not need.

GD&T allows you to convey substantial information about your part’s design using a relatively small amount of letters, numbers, and symbols. No long paragraphs of explanation necessary! The ability to communicate efficiently reduces back and forth between you and the contract manufacturing service you are working with.

Since GD&T is such a precisely articulated system of language, it minimizes ambiguity in the description of a parts design. As a result, you can be confident that your part will be manufactured with the highest degree of accuracy and work as intended in the field
