Creating Walls, Partition walls and Floors for a residential layout using REVIT

1)

Aim - To create a floor plan and need to apply the materials and thickness using the property browser

Procedure -

Step 1 -

• First we select the floor as shown below

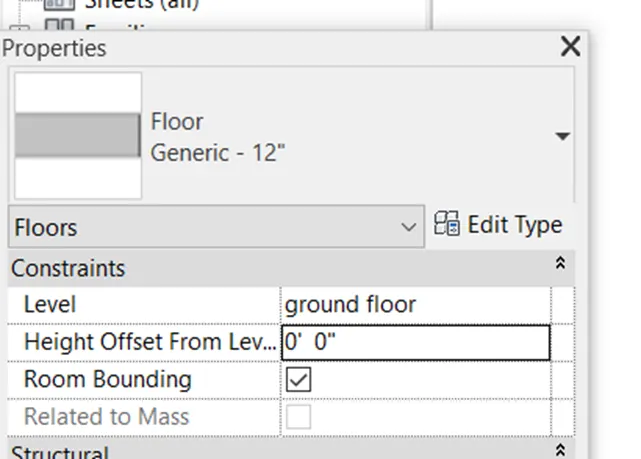

• After selecting the floor,click the edit type from the porperties browser

Step 2 -

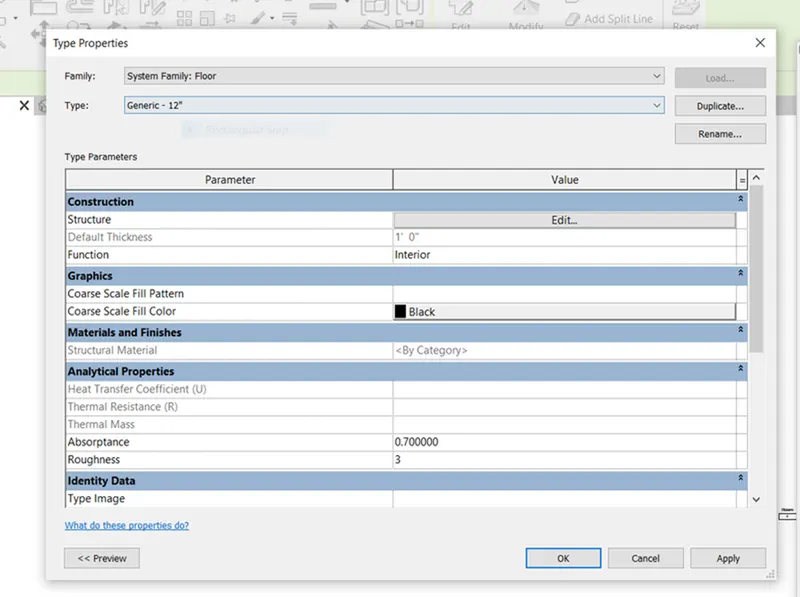

• After clicking edit type,type property tab will be appear on screen
• Next we change the material type by clicking the edit option

Step 3 -

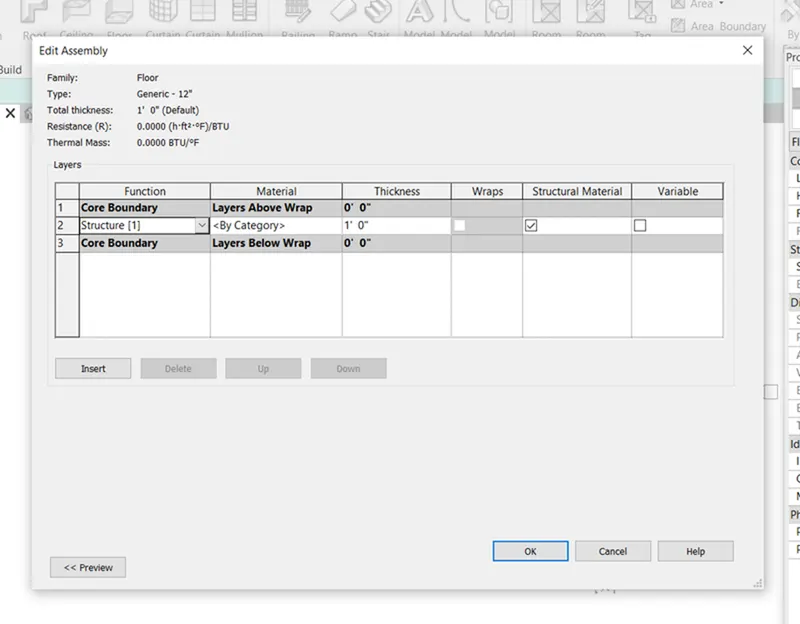

• After clicking edit option,edit assembly tab appear
• We select the material type in 2nd room

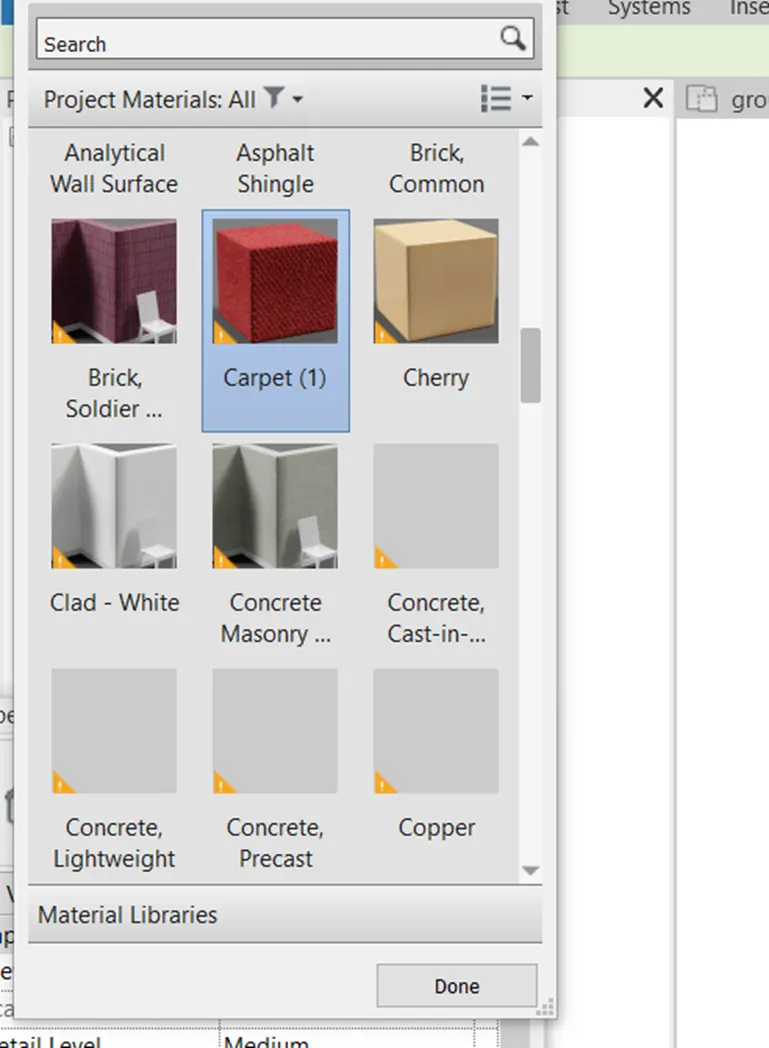

• After clicking that,material browser appear,then select material type as carpet

Step 4 -

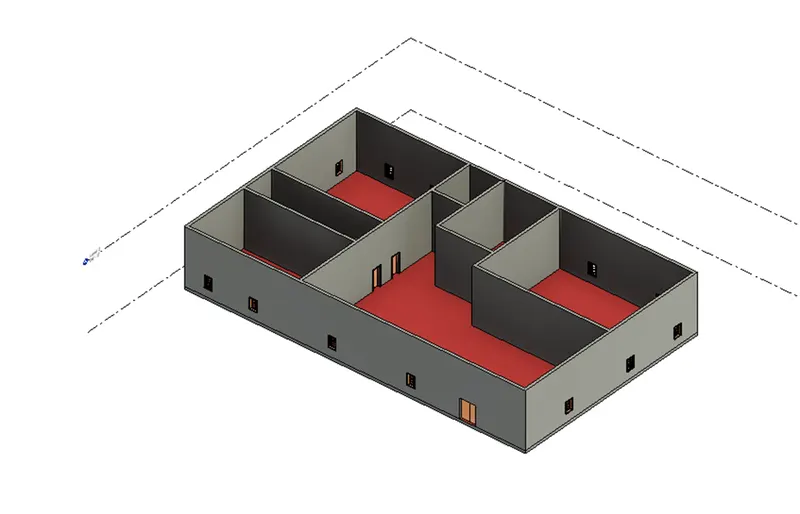

• Finally the material is applied to floor as shown below

Step 5 -

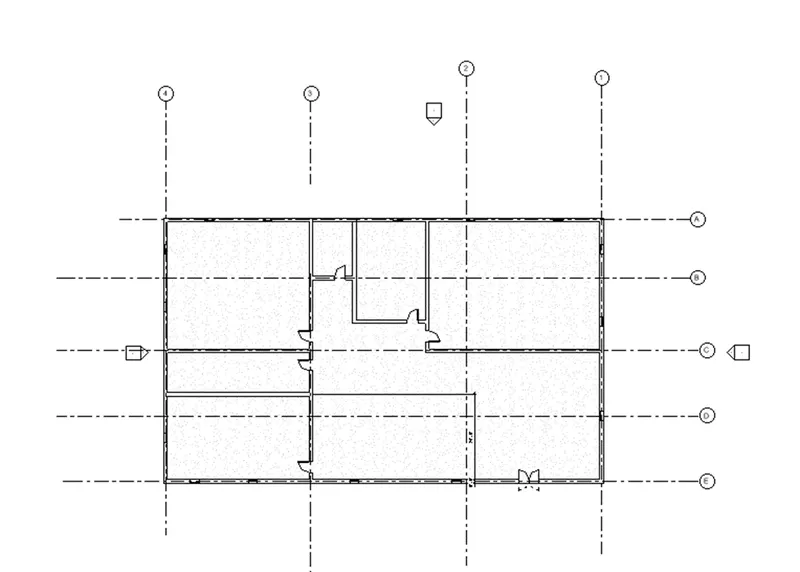

• Floor plan is aligned to grid,as shown below

Result - The materials are applied to floor and floor plan is aligned with grid

2)

Aim - To create a floor plan and need to apply the materials and thickness using property browser for walls

Procedure -

Step 1 -

• First we select the wall
• After selecting wall,click edit type from the property browser

Step 2 -

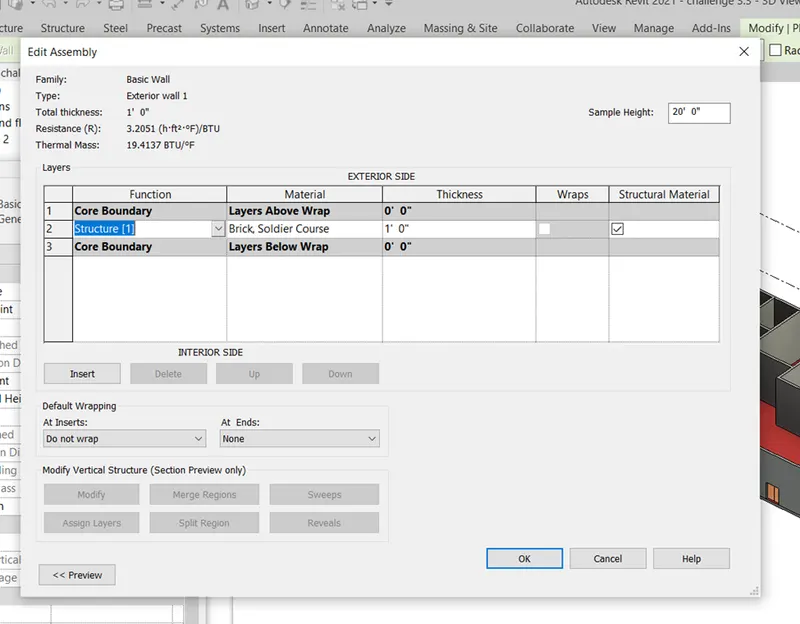

• After clicking edit option,the edit assembly tab appears
• We select material type in 2nd row

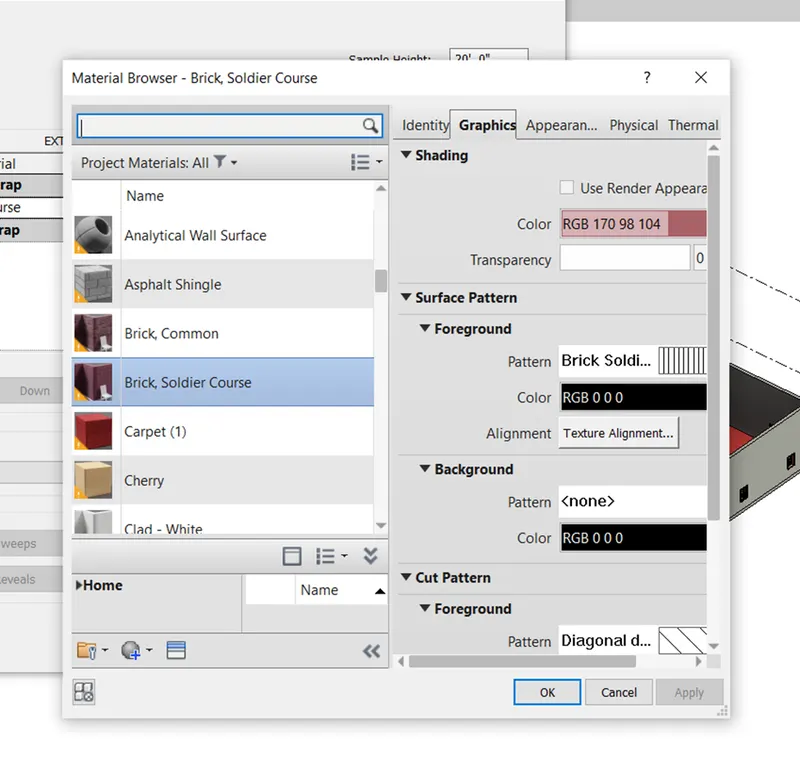

• After clicking that,the material browser appears,then select material type as Brick,solider course

Step 3 -

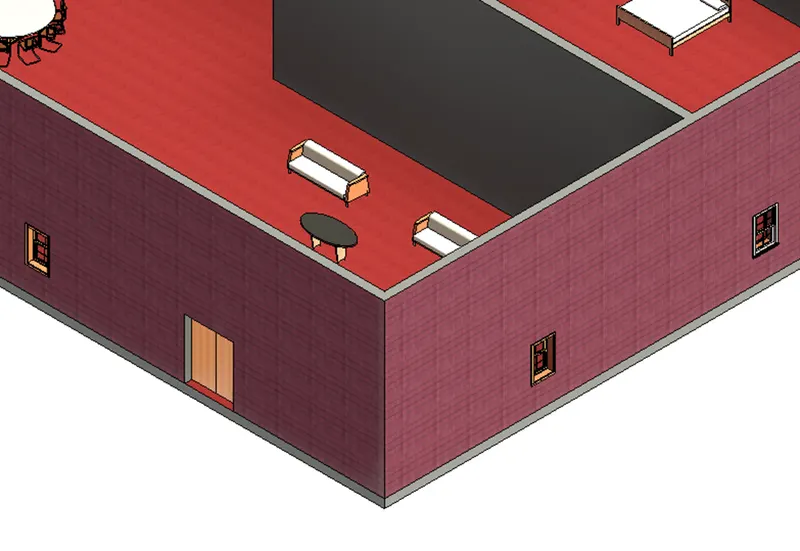

• After applying the material to the walls,we need to zoom the wall to see the material type

Step 4 -

• Finally the materail has been applied to the walls

Step 5 -

1. Based on your observation ,what is beneficial for connecting wall with associated levels rather than being unconnected

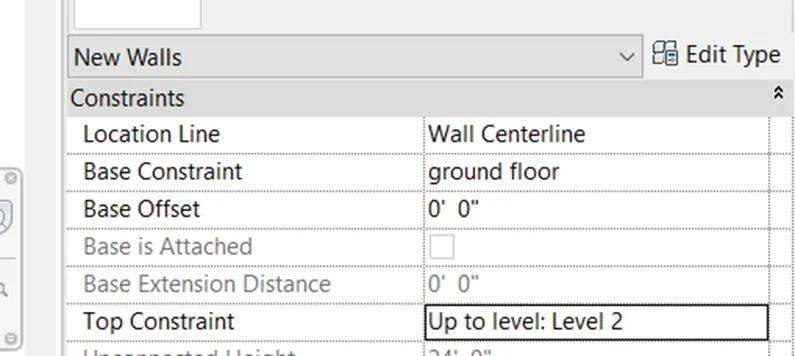

• If we select topcconstraint as Up to level:Level -2 ,the height of wall changes with the levels

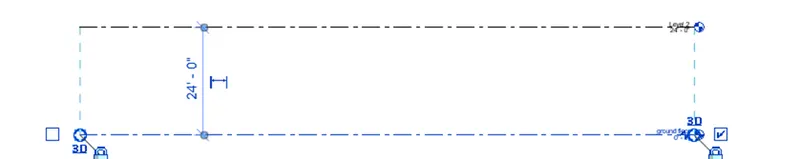

• When we put the level height to 20',then height of wall is also changes to 20'

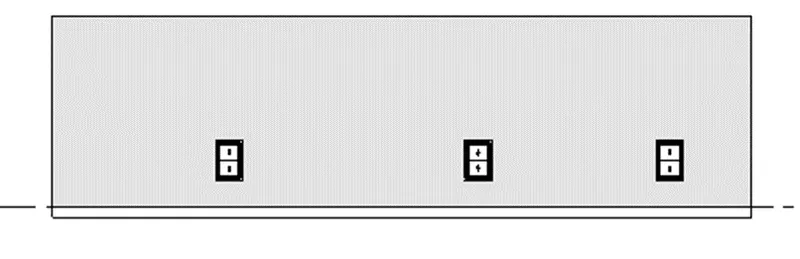

• The height of level is changed and height of wall is also changes,as shown below

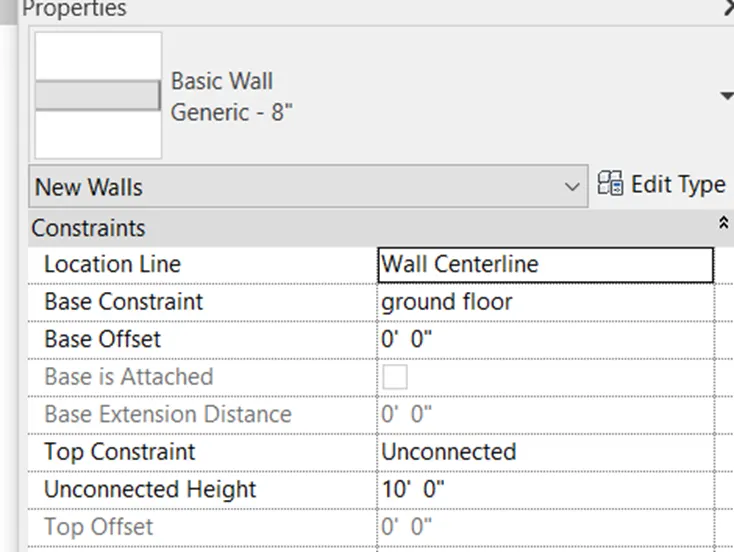

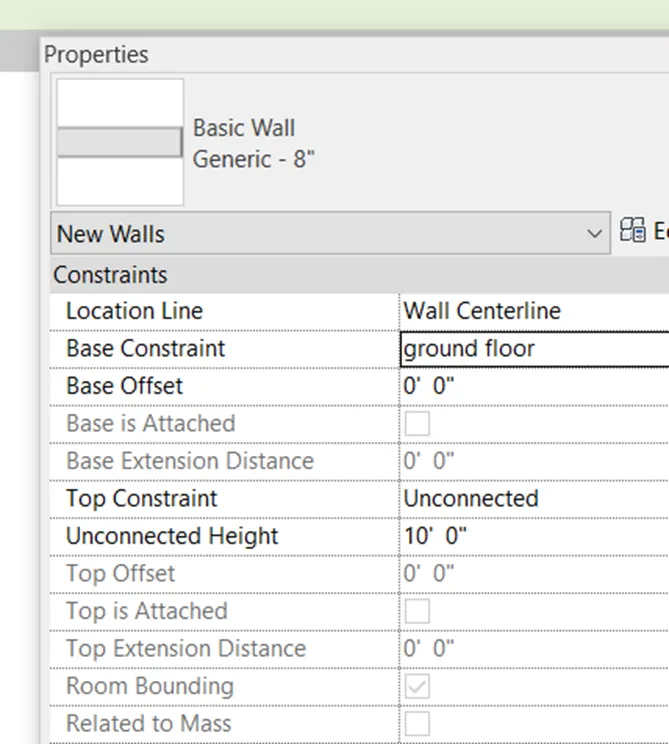

• If we select top constraintas Unconnected,the height of wall doesn't changes with level

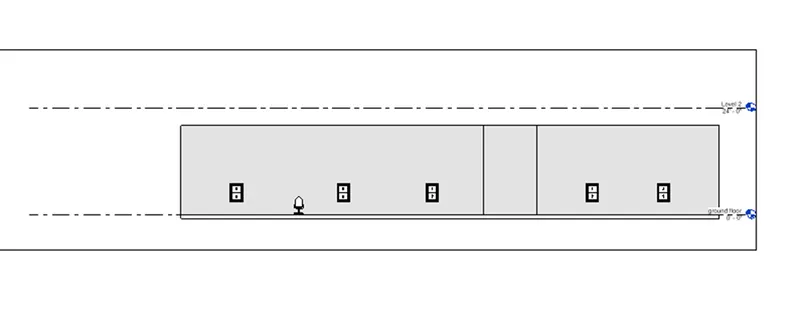

• When we put the level height to 20',the level height is changes,the wall height will not be changed

• The height of level is changed and height of wall will not changes,as shown below

Step 6 -

Which option isconvenient for modeling walls,by height of depth?

• When we select the height option for wall,the wall will be created above the level

Result -

• Successfully applied materials to walls
• Top and bottom walls are constrained
• Height option is convenient for modeling walls

3)

Aim - Use modify tab to utilize copy and paste option to align elements to a different level

Procedure -

Step 1 -

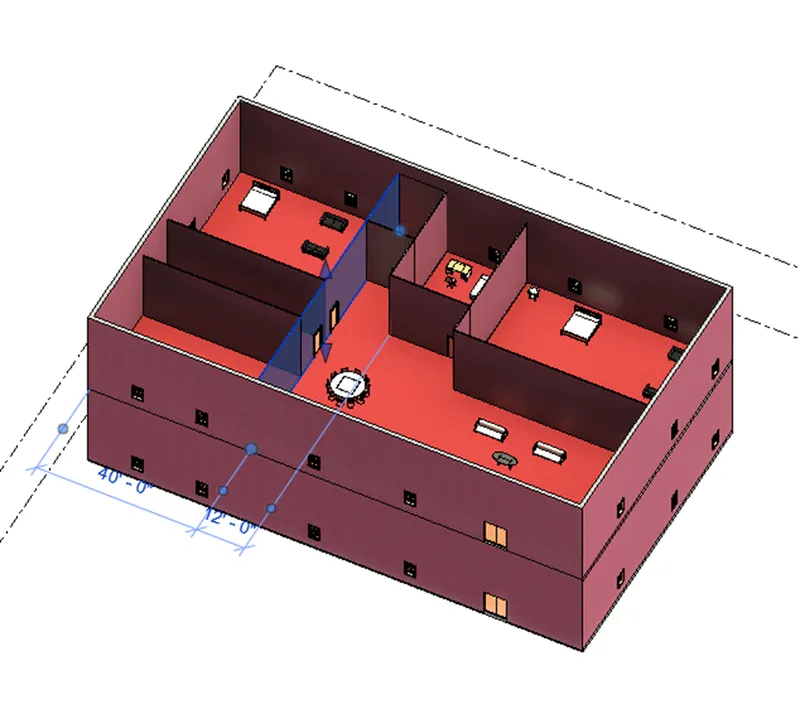

• First we select total ground floor,then we copy the ground floor copied to clipboard
• Thenuse paste option to align elements to a different levels,as shown below

Step 2 -

• Use paste option to align element to a different level

Step 3 -

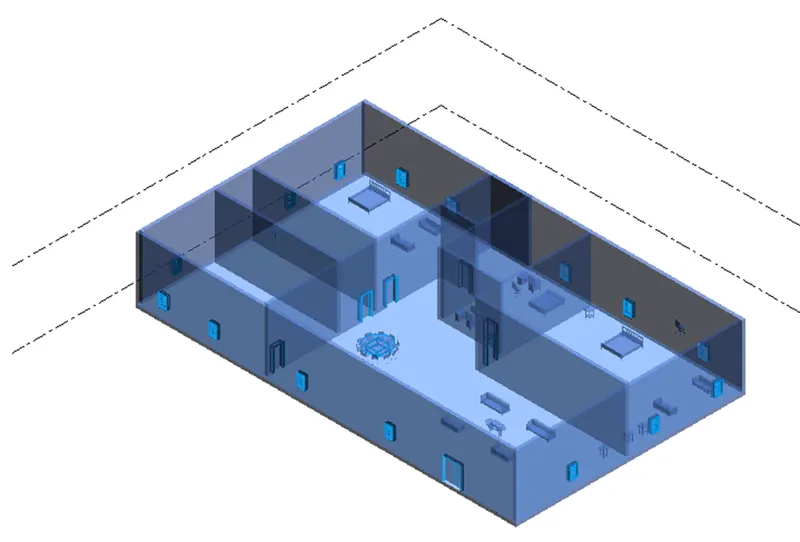

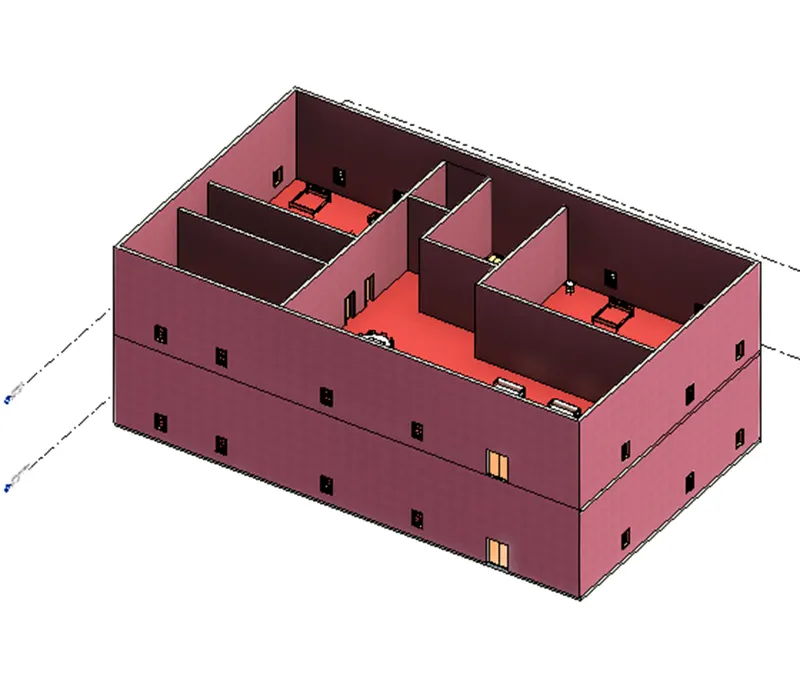

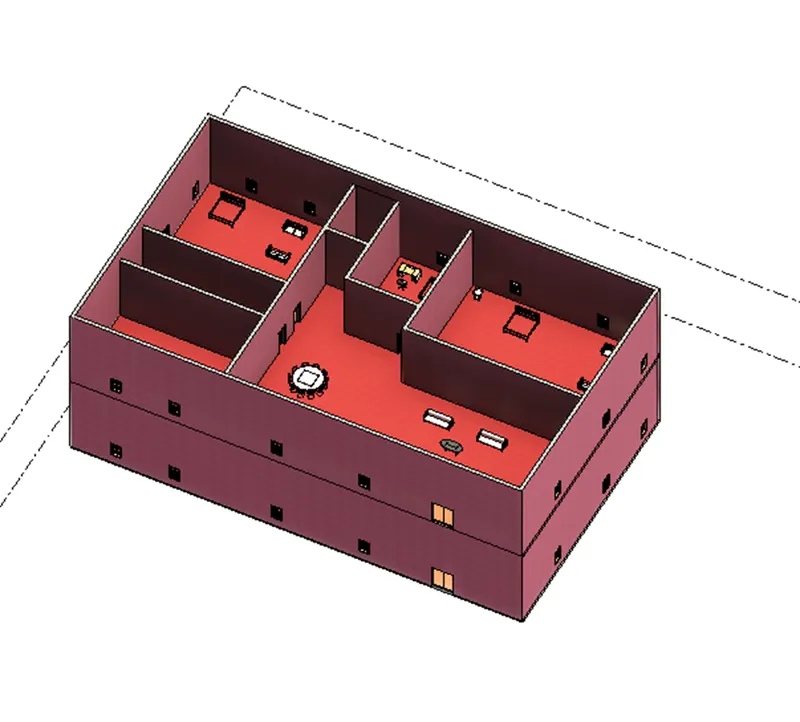

• Finally the element are alignedto different levels

Result - The element are successfully aligned to the different level using the copy and paste option

4)

Aim - To create separate rooms within your residential units using interior partition walls

Procedure -

Step 1 -

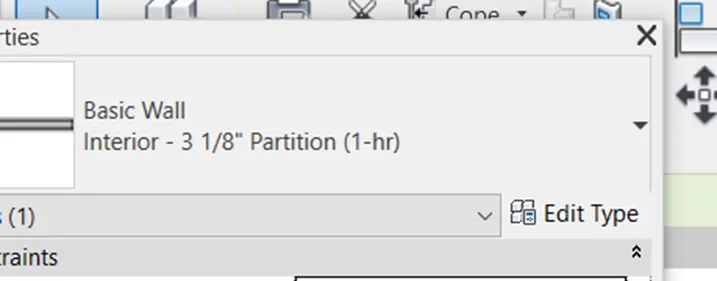

• First select the interior wall ,and change the wall type as partition wall as shown below

Step 2 -

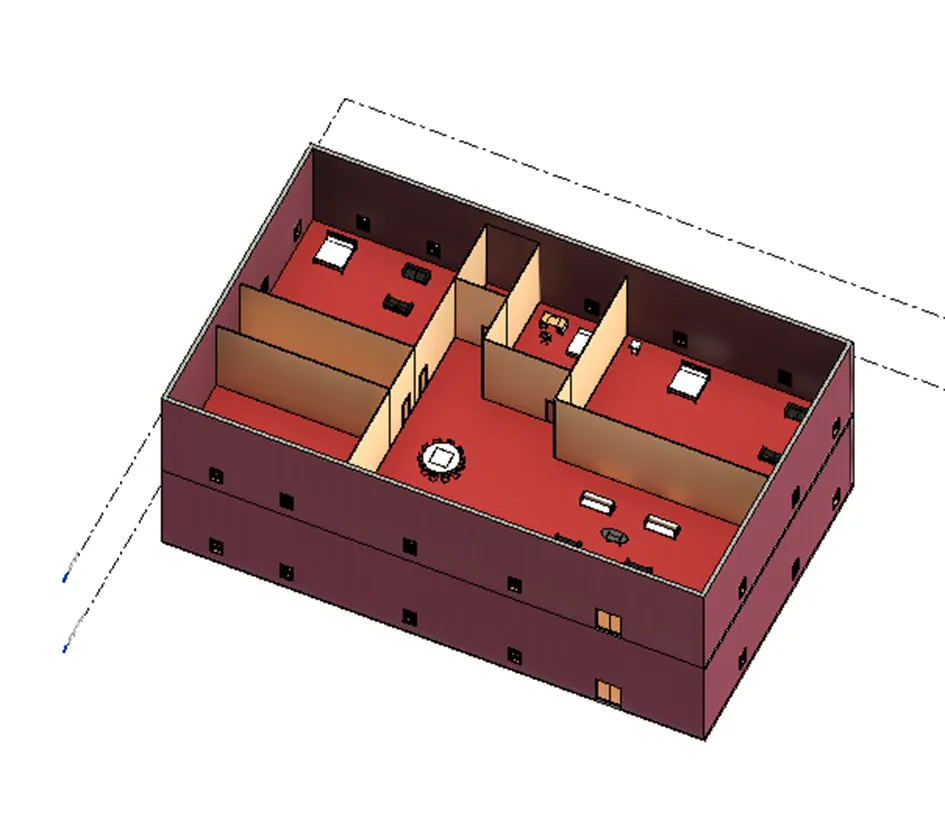

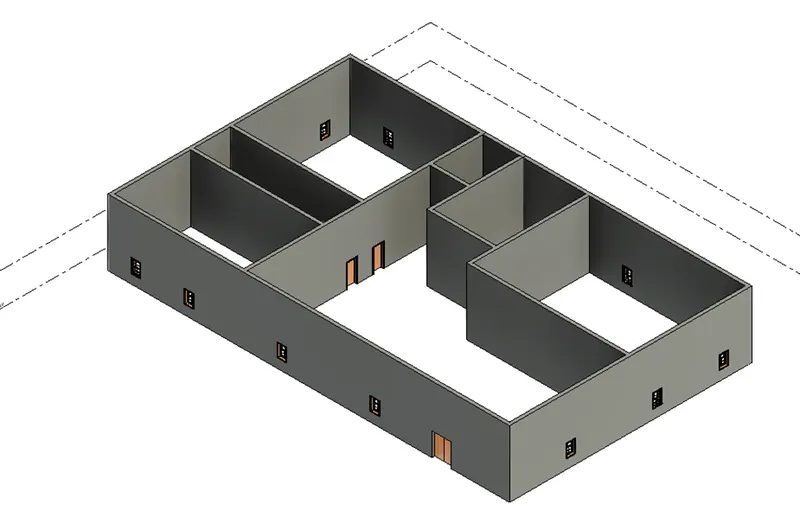

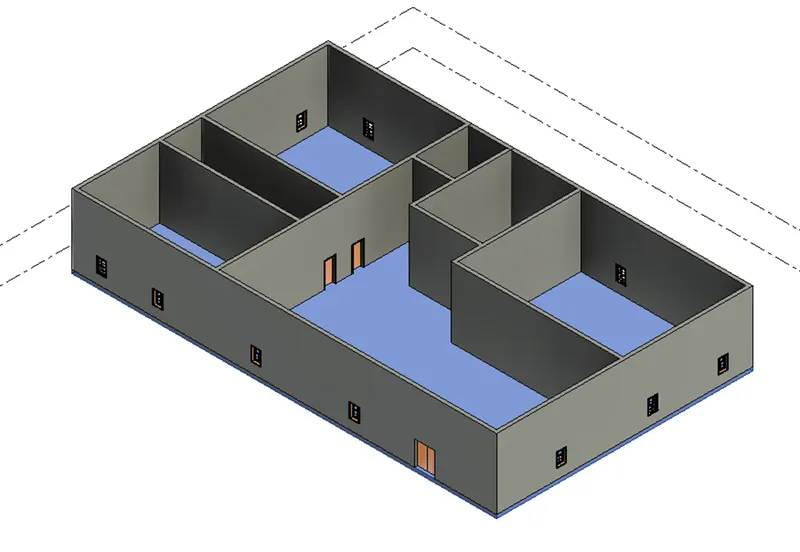

• The interior partition wall are created,as shown below

Result - the interior partition walls are successfully created

5)

Aim - To insert the components in appropriate locations to add details to residential model,based on week 2 assignment

Procedure -

Step 1 -

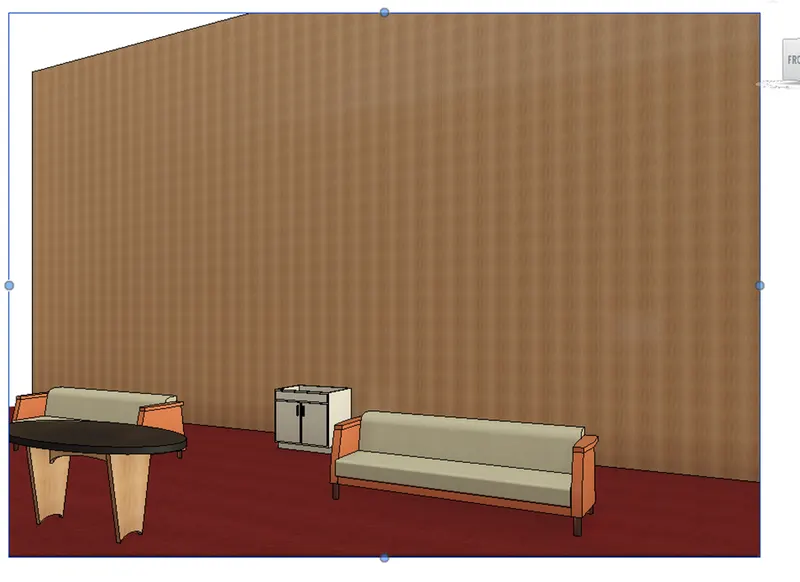

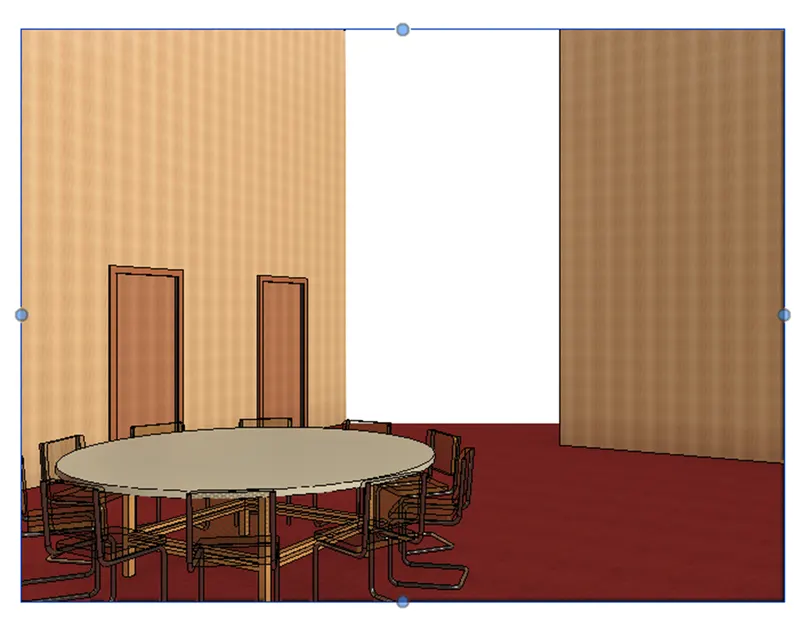

• First we select furniture components in hall as shown below

Step 2 -

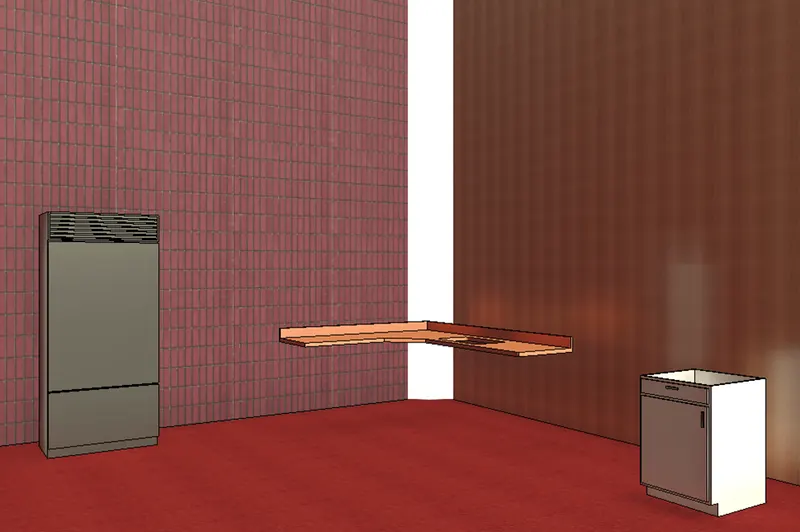

• Next we insert kitchen component from load family

Step 3 -

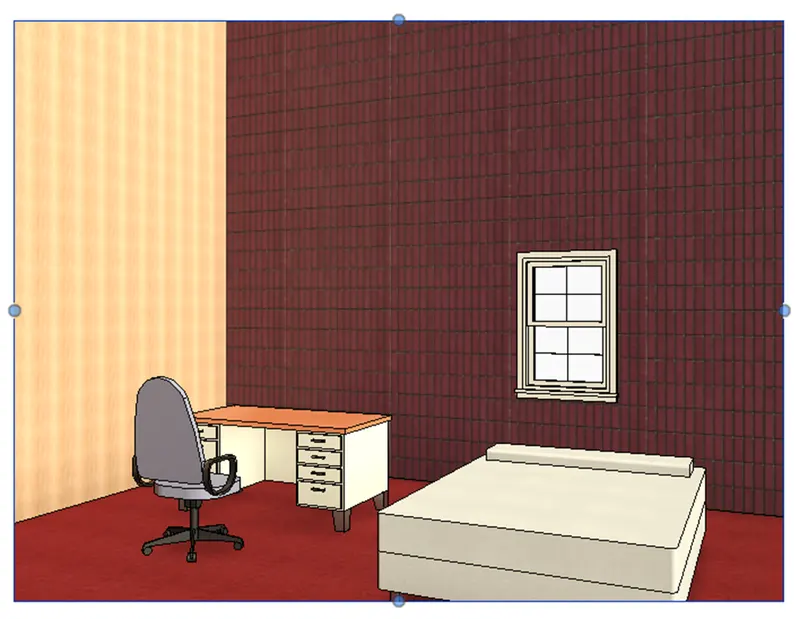

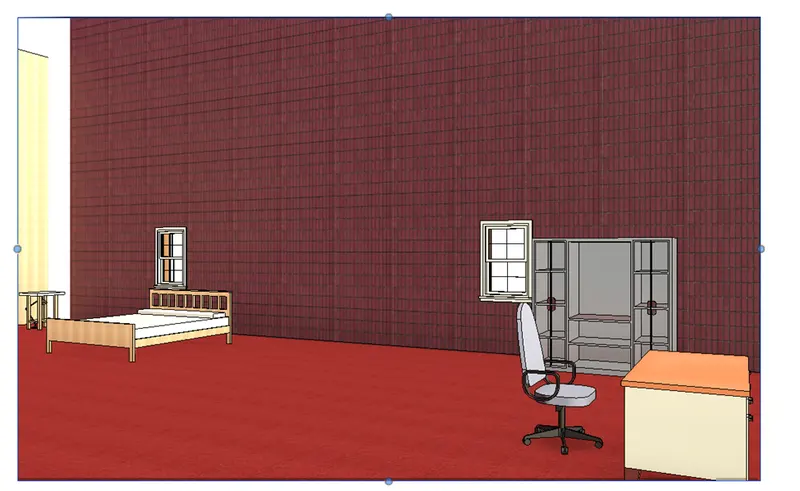

• Next we insert bed room 1 and bed room 2 components from load family

Step 4 -

• Next we insert study room components

Step 5 -

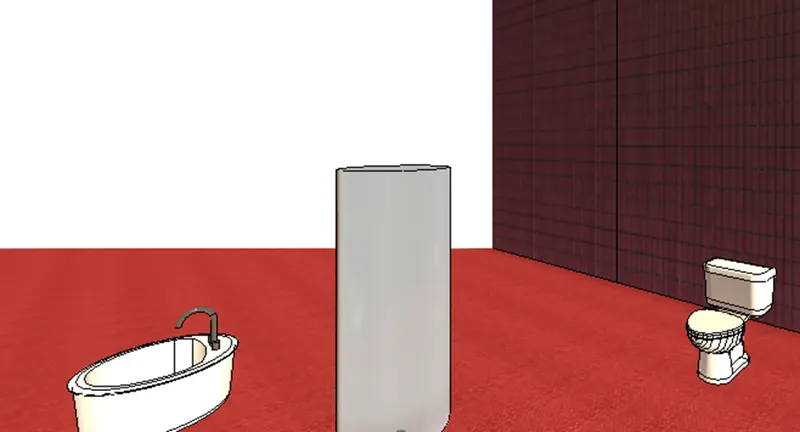

• Next insert Wc/Bath components

Step 6 -

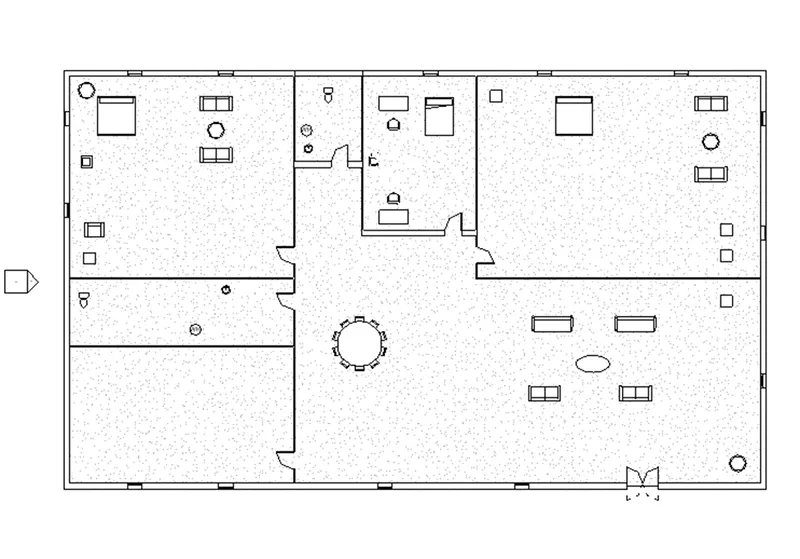

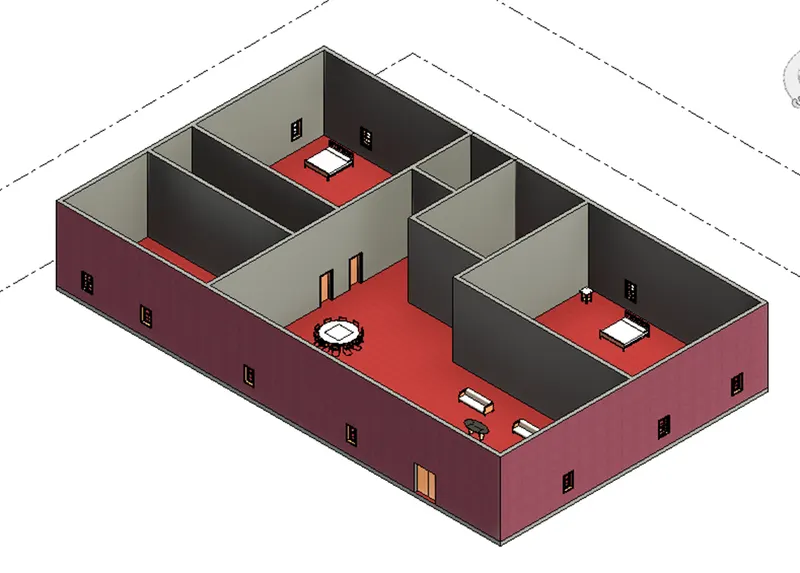

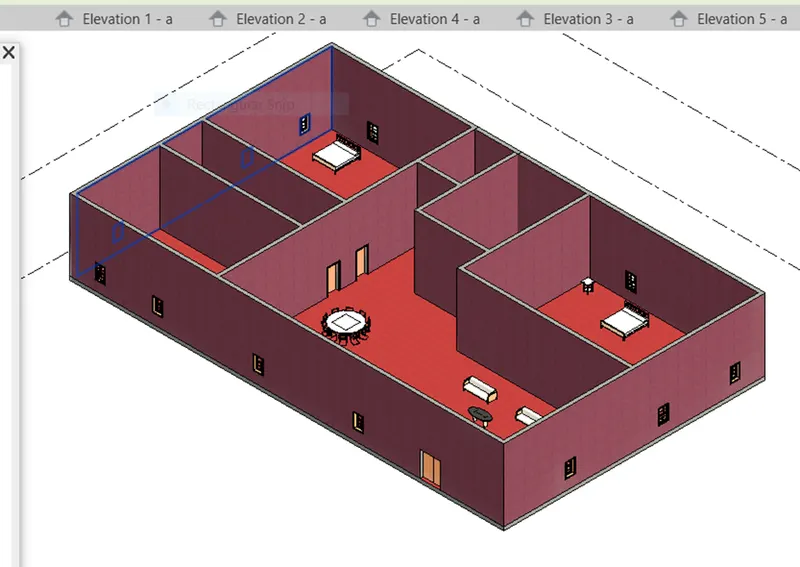

• All components are inserted from library as shown below

Result - All the components are inserted successfully from library
