Creating a Floor plan, Footing detail and Isometric view using AutoCad

Cross section of load bearing wall over spread footing -

Aim - To draw cross section of wall over footing

Procedure -

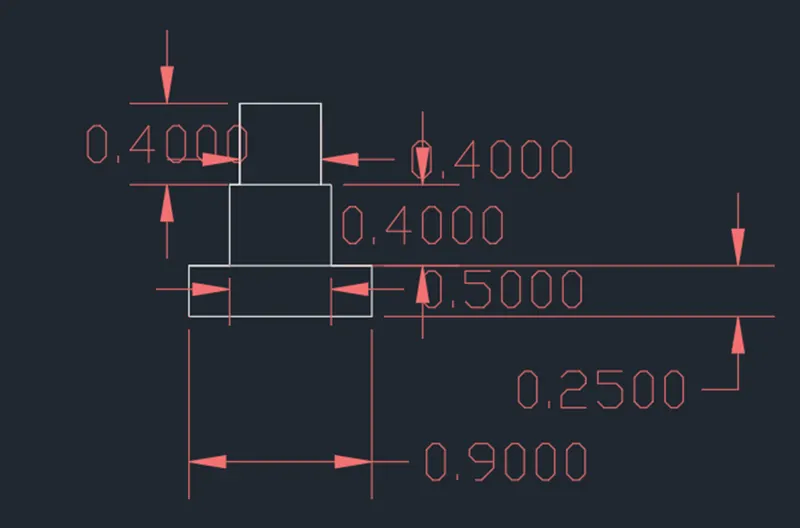

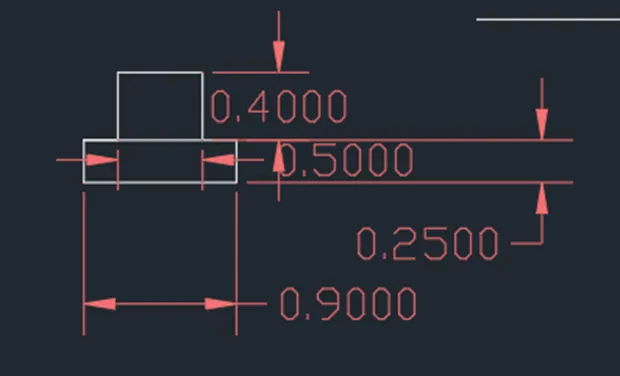

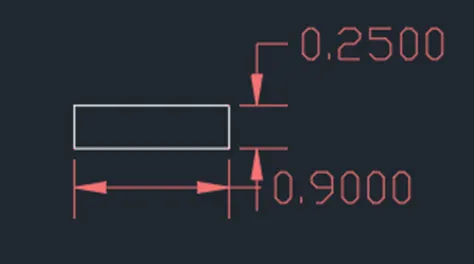

Step 1 - Create rectangle by using "REC" in command box

Origin as 0,0

Specify first corner point as 5,5

Specify length of rectangle as 0.9

Specify width of rectangle as 0.25

Step 2 - Create another rectangle by using "REC" in command box

Specify first corner point which is 0.2 from starting point of first rectangle

Specify lenght of rectangle as 0.5

Specify width of rectangle as 0.4

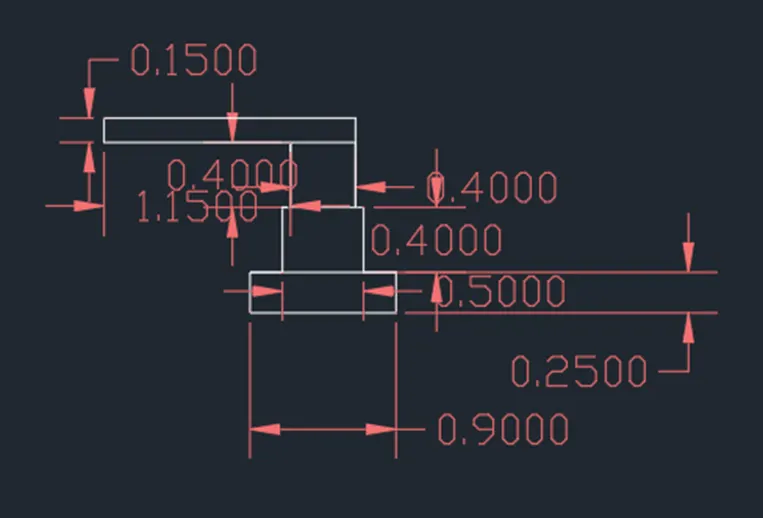

Step 3 - Create third rectangle by using "REC" in command box

Specify first corner point as 0.05 fron starting of second rectangle

Specify length of rectanlge as 0.4

Specify width of rectangle as 0.4

Step 4 -

Line is drawn from corner of third rectangle using command "L"

Specify length as 1.15

Move cursor downwards and put value 0.15 and right and length as 1.15

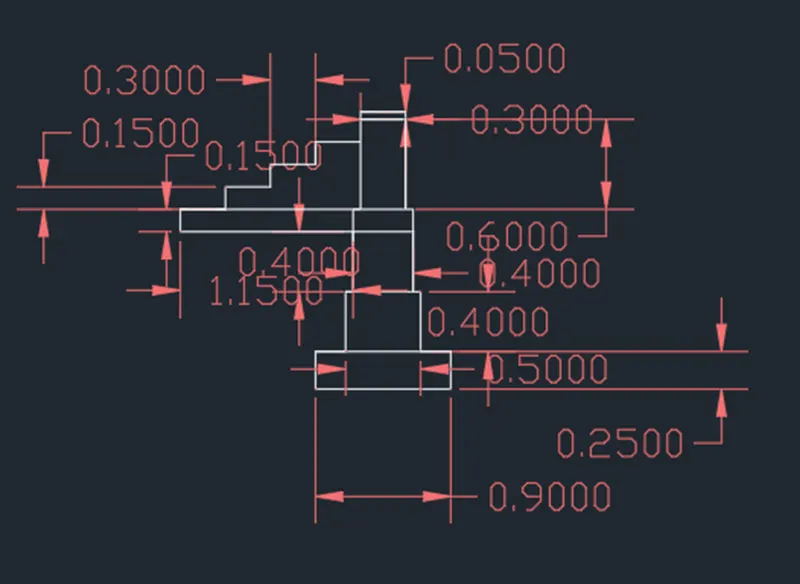

Step 5 - Now draw fourth rectangle by using "REC" in command box

Specify first corner point as 0.05 from third rectangle

Specify length of rectangle as 0.3

Specify width of rectangle as 0.6

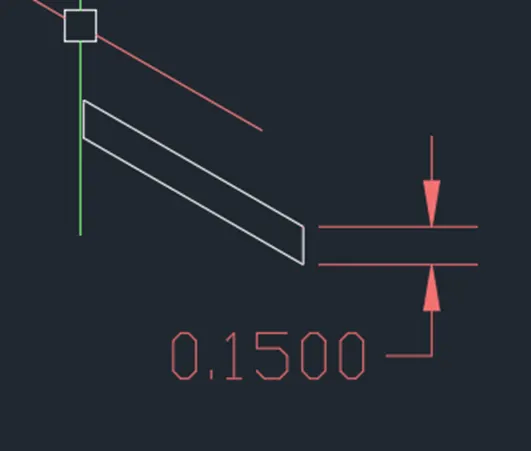

Step 6 - From line drawn in step 4, at a distance of 0.15 vertically and 0.3 horizontally

Continue for two more times,until 3 steps are created.

Step 7 - Draw another rectangle above fourth rectangle by using "REC" in command box

Specify corner point as a corner of fourth rectangle

Click on dimension give length as 0.3 and width as 0.05

Step 8 - Drawn the fifth rectangle by using "REC" in command box

Specify corner point as corner of fourth rectangle

Click on dimension,length as 0.3 and width as 1

and Erase the remaining line by using "trim"

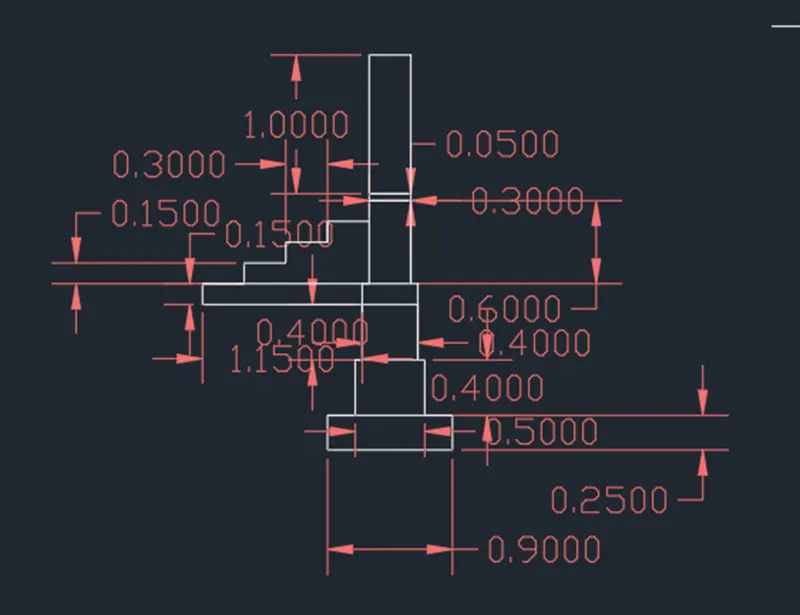

Result -

The cross section of load bearing wall over spread footing is drawn.

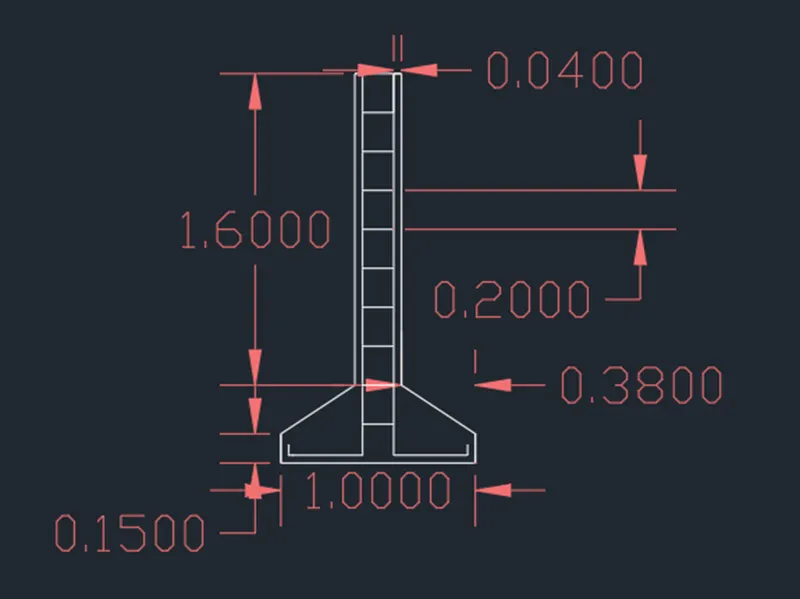

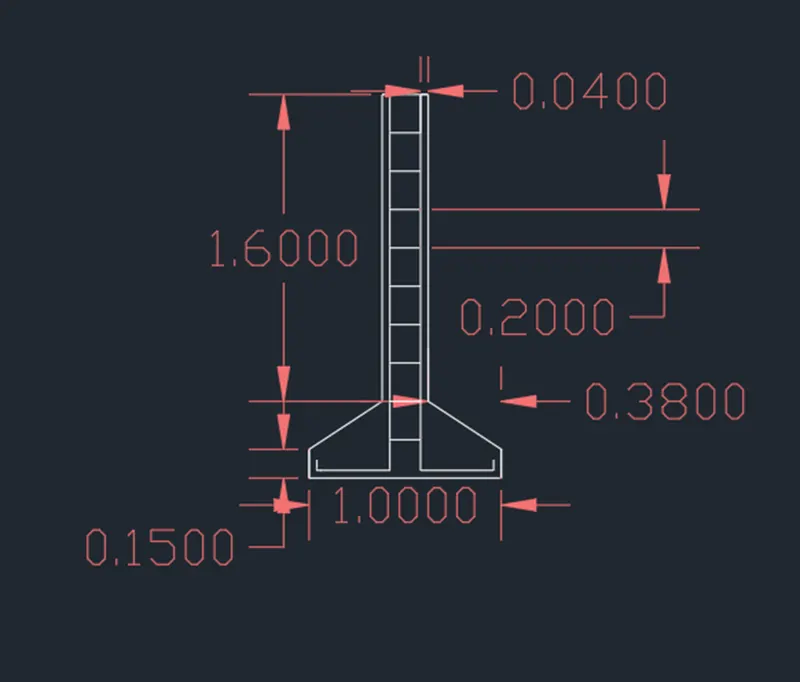

Cross section of an Isolated footing

Aim - To draw cross section of Isolated footing

Procedure -

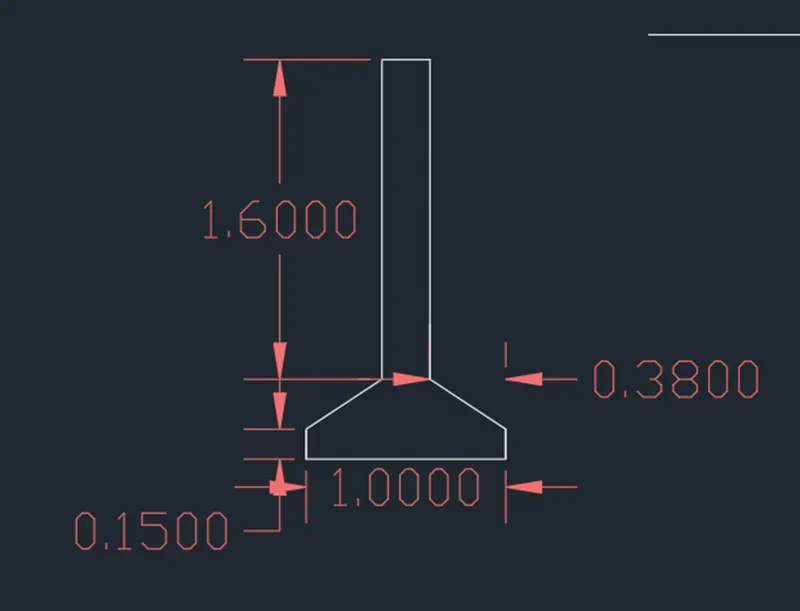

Step 1 -

Draw line command "L" and give 1 unit

Give command "L" and give relative coordinate as @0,0.15

Give the next coordinate as @0.38,0.25

Next coordinate is given as @0,1.6

Give @0.28,0

Next coordinate @0,-1.6

Next coordinate @0.38,-0.25

Next @0,-0.15 or close

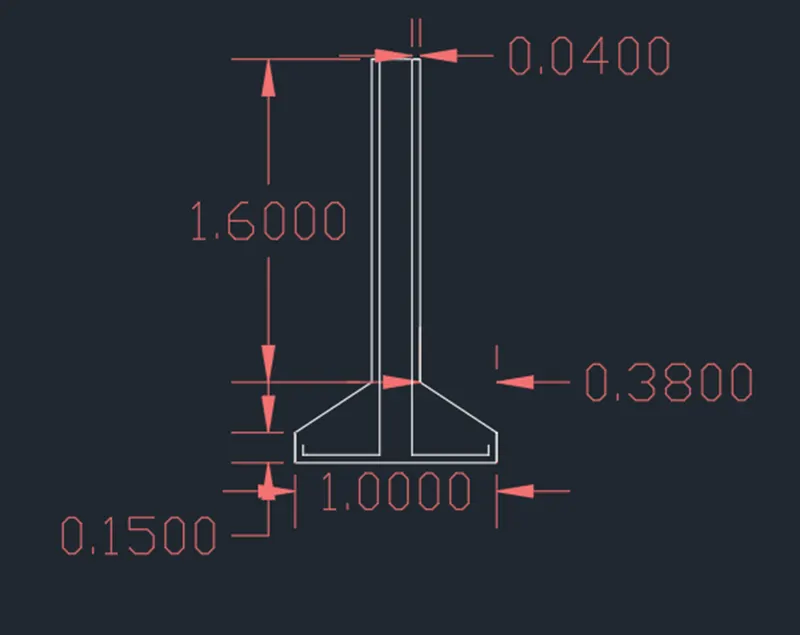

Step 2 - Draw an offset with the command at a distance of 0.04 from bottom line to upward

Give the command "O" and select the object and give offset distance as 0.04

Do the same at right and left bottom end

Trim the remaining line

Step 3 - Give offset from top line with an offset distance of 0.2

Give the command "O" an select the object ,give the offset distance as 0.2 ,and select multiple option 9 such lines

Trim the remaining line

Result - Cross section of Isolated footing is drawn

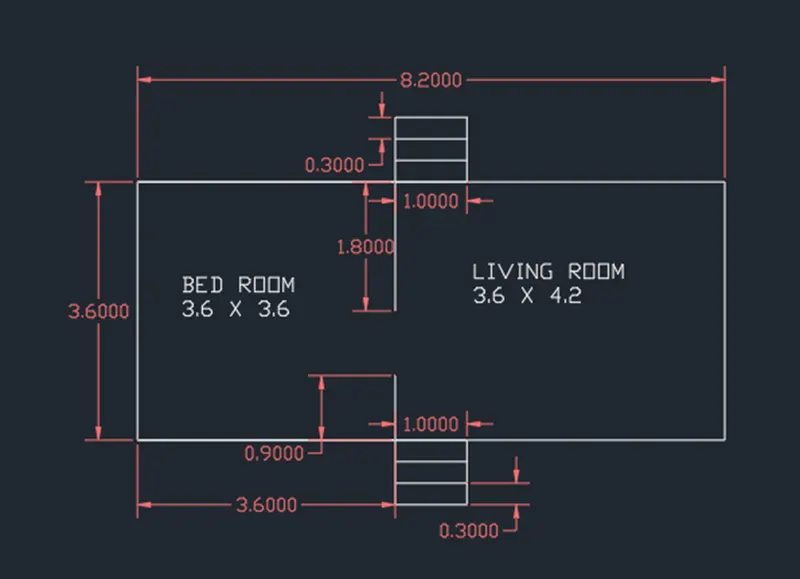

Line diagram of 2 room building

Aim - To draw line diagram of 2 room building

Procedure -

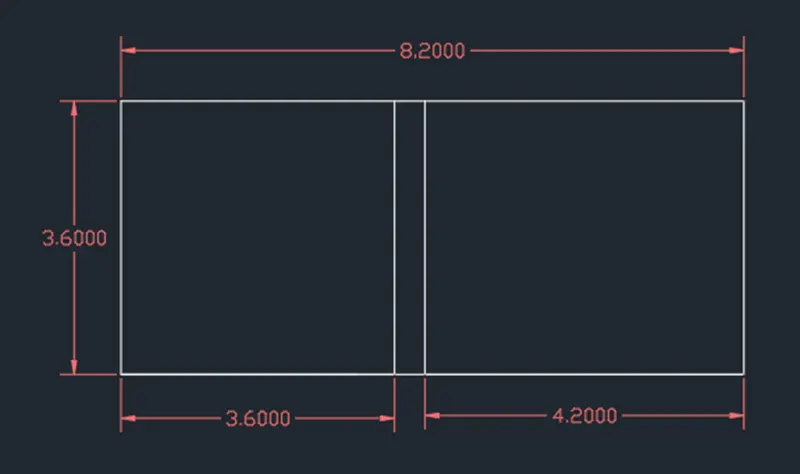

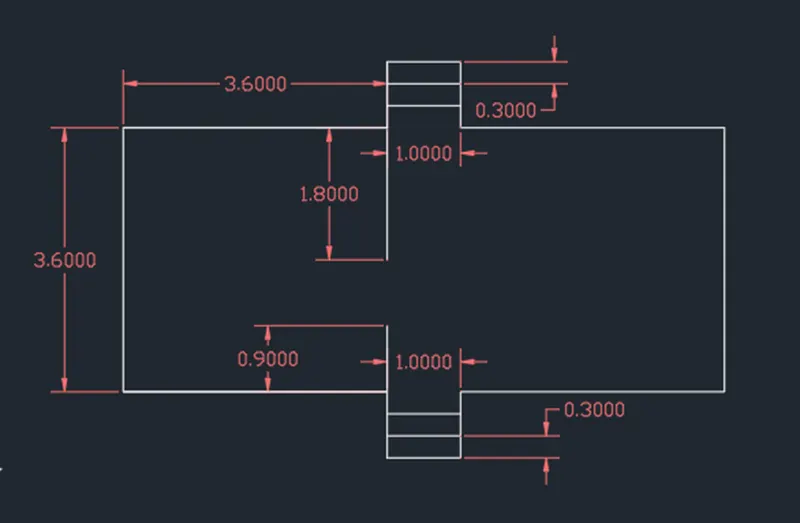

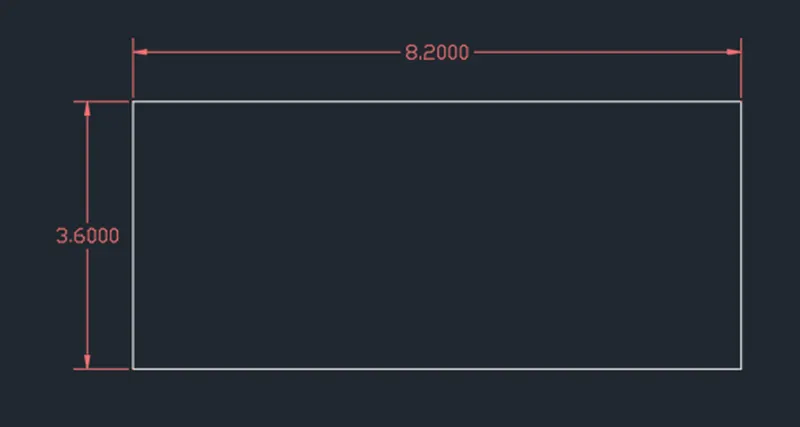

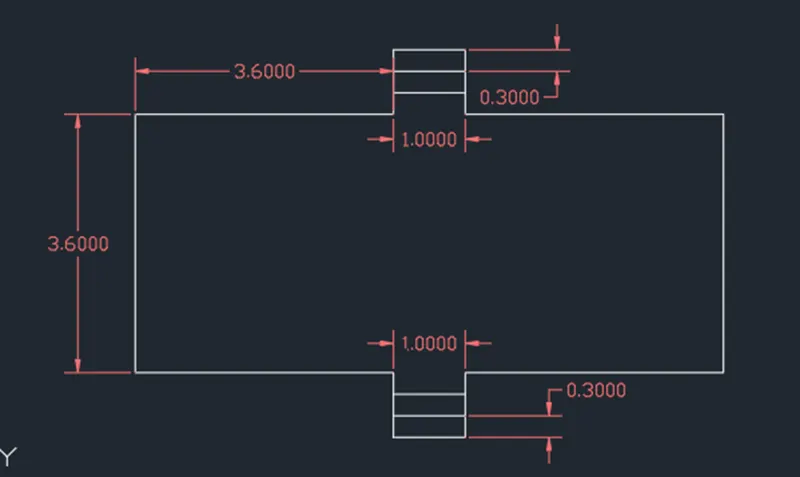

Step 1 - Creating bedroom of size 8.2*3.6 by using rectangle command

Step 2 - Use the command "Explode" and select the rectangle

Draw an offset using command "O"

In the command line enter "O" and specify the distance of 3.6 from left bottom end

Draw an offset using the command "O" at a distance of 4.2 from right bottom end

Step 3 - Extend the two line in the bottom and in top

Draw an offset at a distance of 0.3 between the two line to bottom side

Repeat the same step and create two offset

Do the same process in the top

Trim the remaining line

Step 4 - Using the command draw a line at a distance of 3.6 from the left bottom end to upward 0.9

Using line command draw a line at a distance of 3.6 from left top end to downward 1.8

Result - The line diagram of 2 room building is drawn.

Cross section of load bearing wall showing foundatin details -

Aim - To draw cross section of load bearing wall showing foundation details

Procedure -

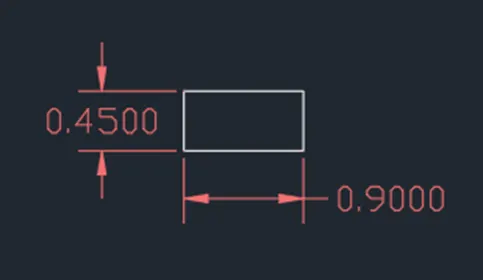

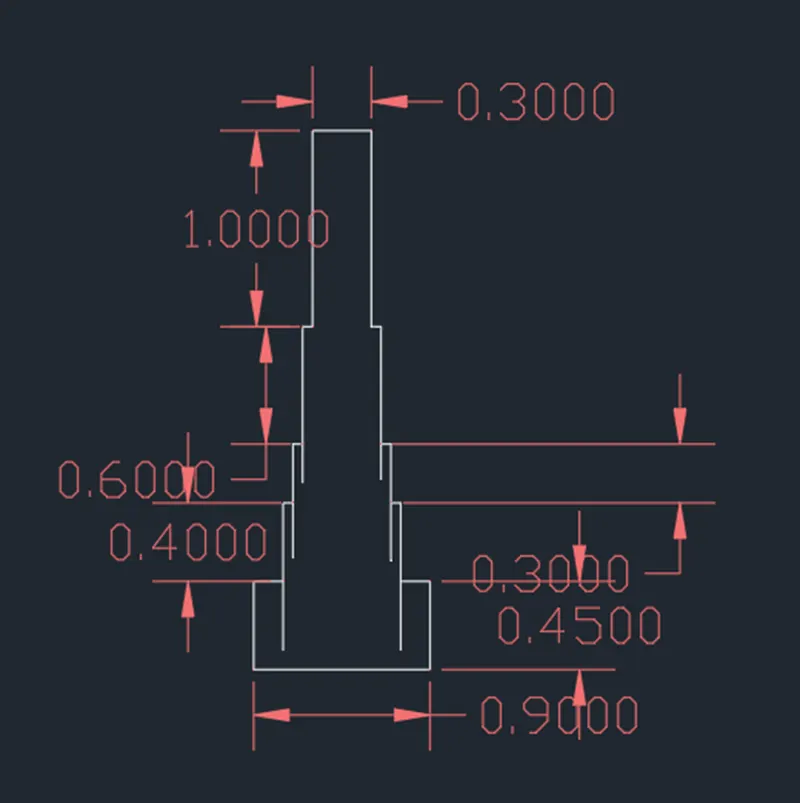

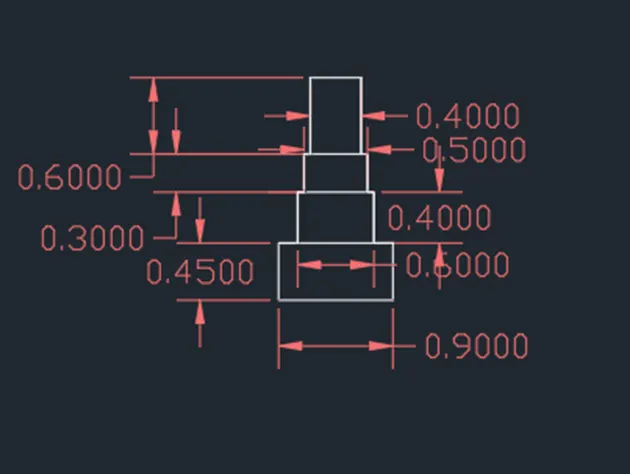

Step 1 - Create rectangle by using "REC" in command box

Specify the first corner point as 5,5

Specify length of rectangle as 0.9

Specify width of rectangle as 0.45

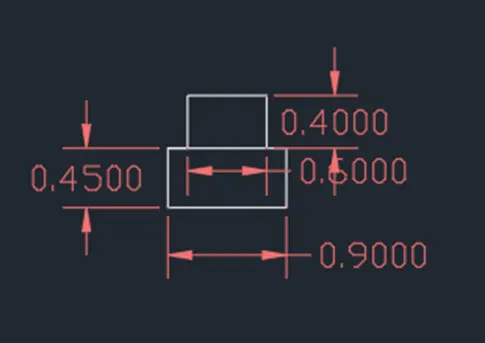

Step 2 - Create another rectangle using "REC"in command box

Specify first corner point which is 0.15 from starting point of first rectangle

Specify length as 0.6 and width as 0.4

Step 3 - Create the third rectangle using "REC" command

Specify first corner point which is 0.05 from starting point of second rectangle

Enter length of rectangle as 0.5 and width as 0.3

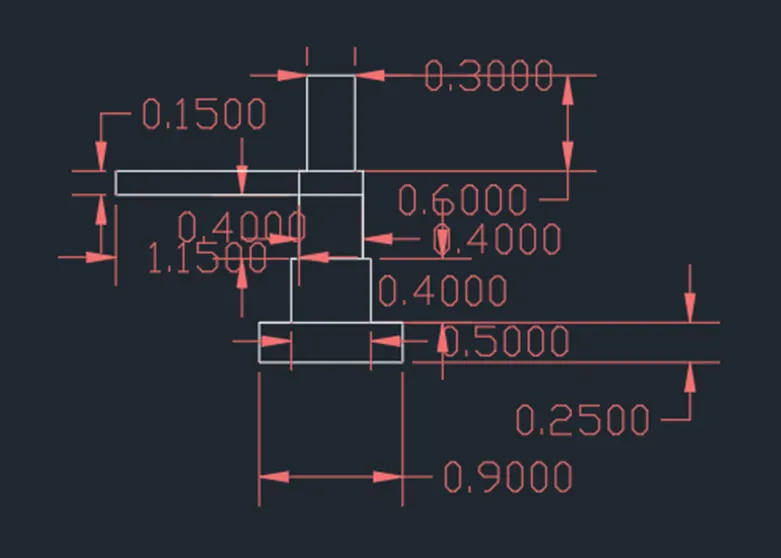

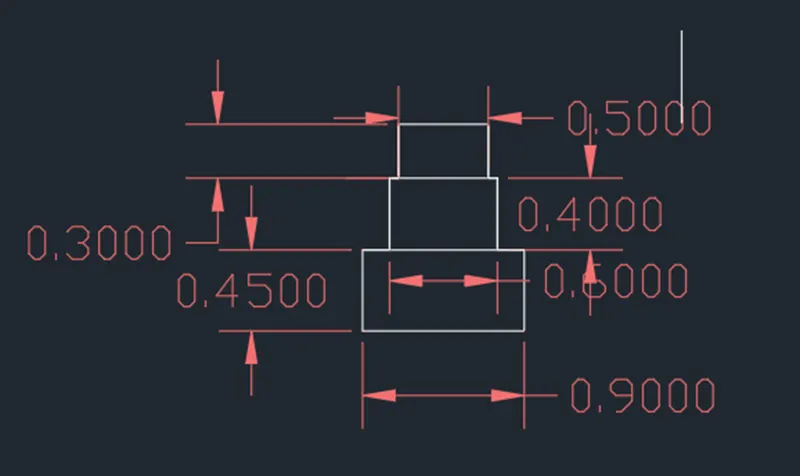

Step 4 - Create fourth rectangle using "REC" command

Specify first corner point which is 0.05 from starting point of second rectangle

Enter length of rectangle as 0.4 and width as 0.6

Step 5 - Draw the fifth rectangle using "REC" command

Specify corner point as corner of fourth rectangle

Click on dimension give length as 0.3 and width as 1

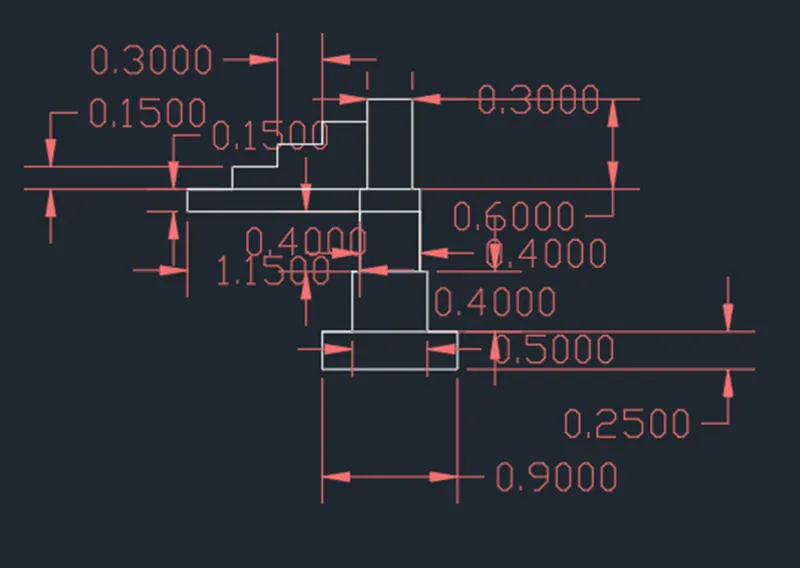

Erase the remaining line by "Trim"

Result - The cross section of load bearing wall foundation details is shown

Isometric view of steps -

Aim - To draw the isometric view of steps

Procedure -

1) To work with isometric view command "ds" snap off and grid off.put isometric snap on

2) Make sure that ortho mode is on

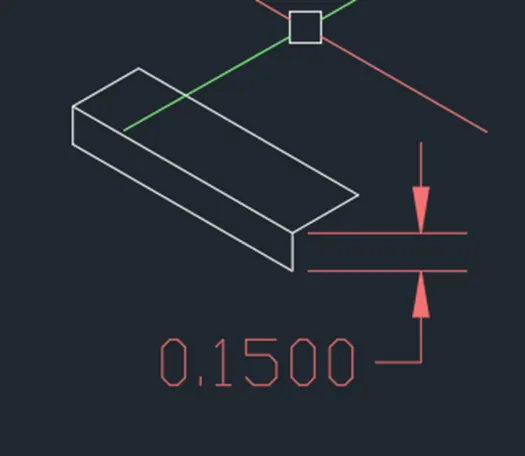

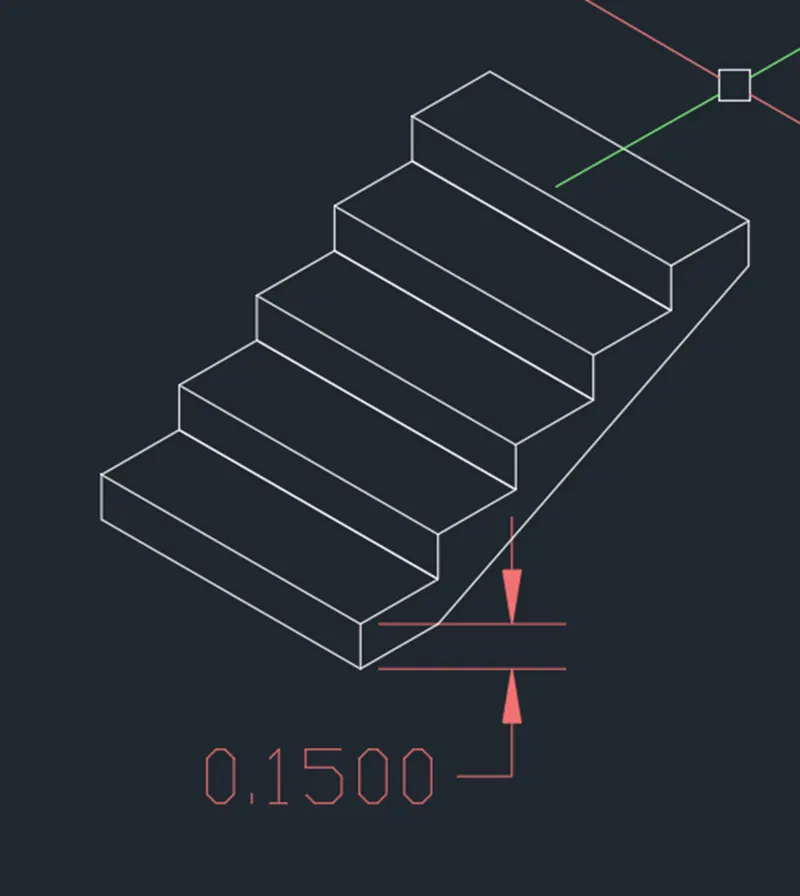

Step 1 - From isometric drafting select iso-plane left.

Give command "l"and moving the cursor to x direction (left) to 1

Moving the cursor to y direction (top) ,give 0.15

Moving the cursor to x direction again give 1 and cursor y direction (downward)give 0.15

Step 2 - Change the isometric drafting to iso plane top

Move the cursor to back and give 0.3 from last drawn point

Move the cursor to front and give 0.3

Step 3 - Change the isometric drafting to iso plane right

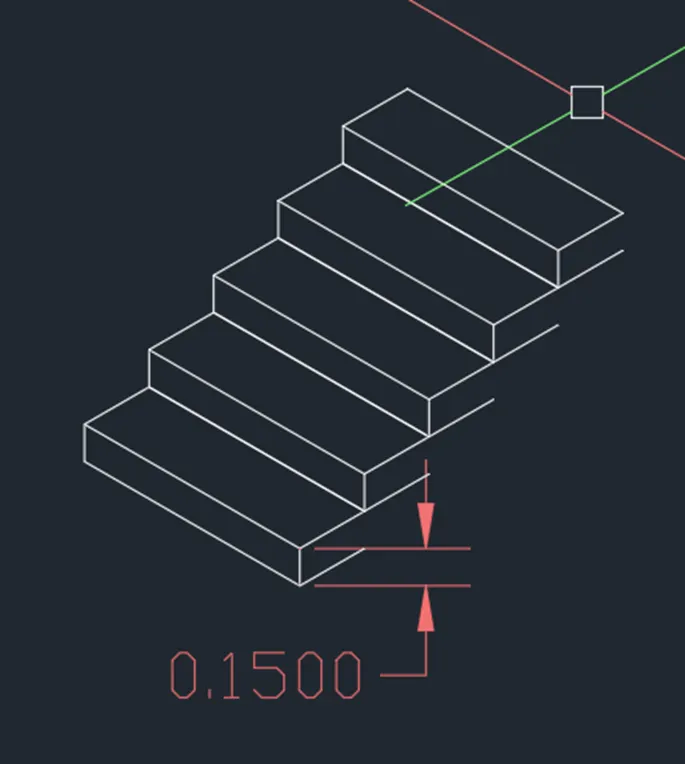

Copy the object drawn,ortho off

Command "co"and specify base point and place it to new point

Repeat it until 4 steps are formed

Step 4 - With iso plane right join the two ends with ortho off

Result - The steps are drawn in isometric view.

Isometric view of gable wall

Aim - To draw the isometric view of gable wall

Procedure -

1) To draw with isometric view command "ds" snap off,grid off.put isometric snap on

2) Make sure that ortho mode is on

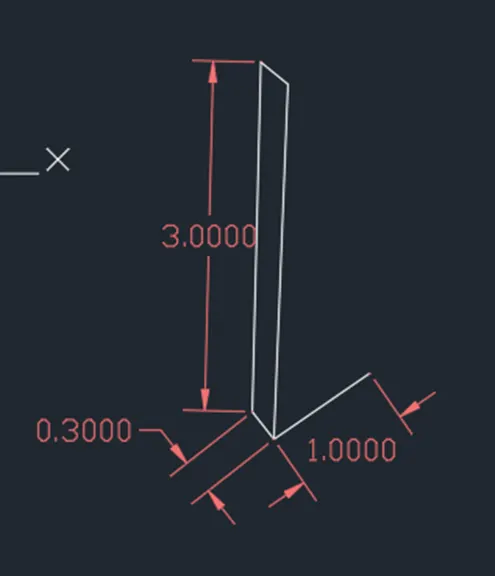

Step 1 - From isometric drafting select iso plane left

Give command "l" and moving the cursor to right give 1

Pointing the cursor upward give 3

Draw 0.3 to left and 3 downward and 0.3 to left

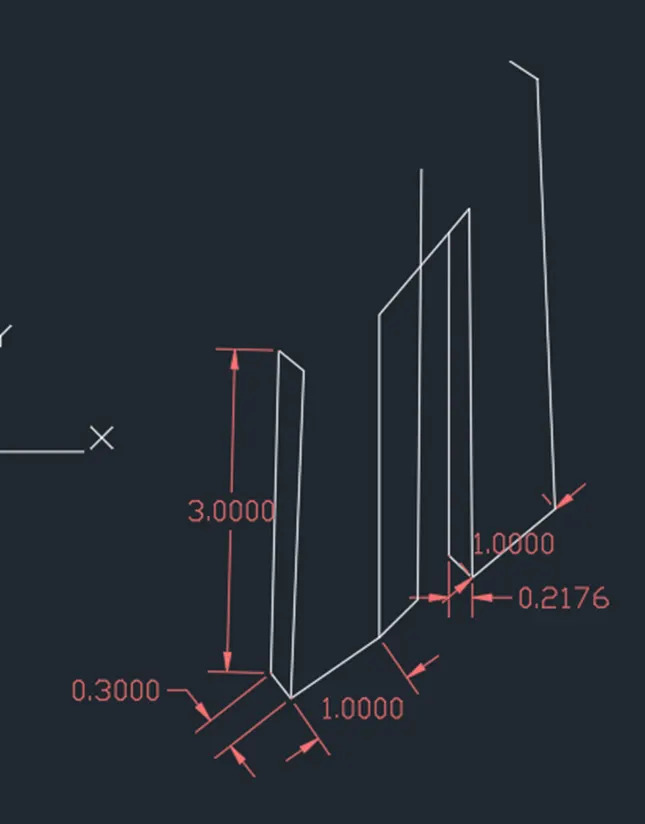

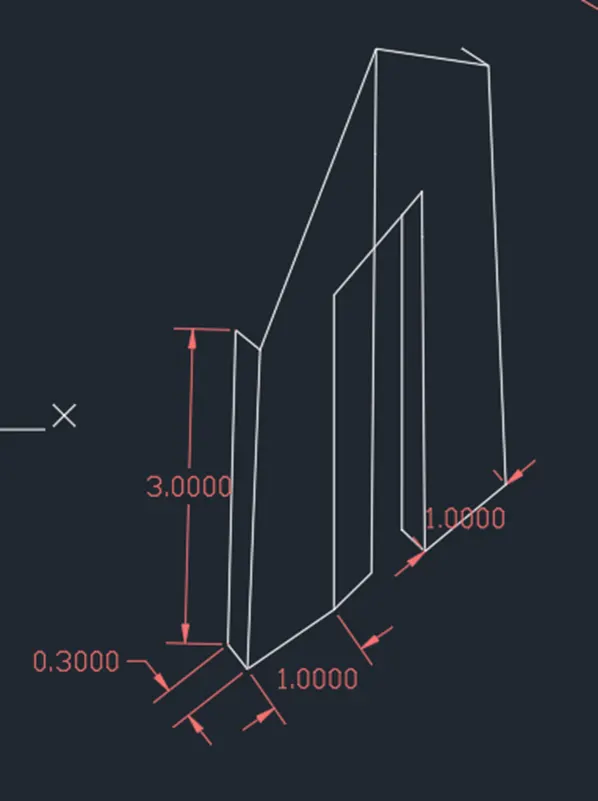

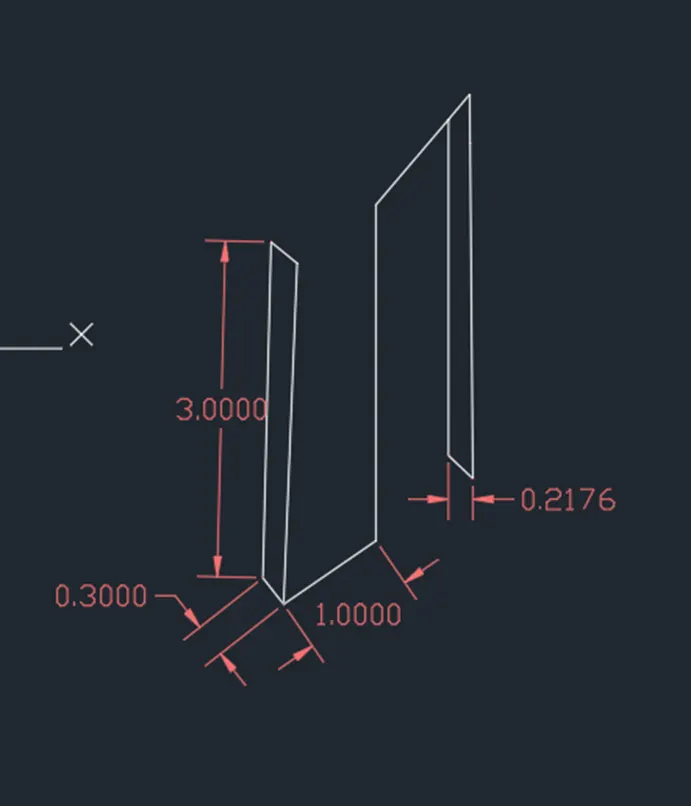

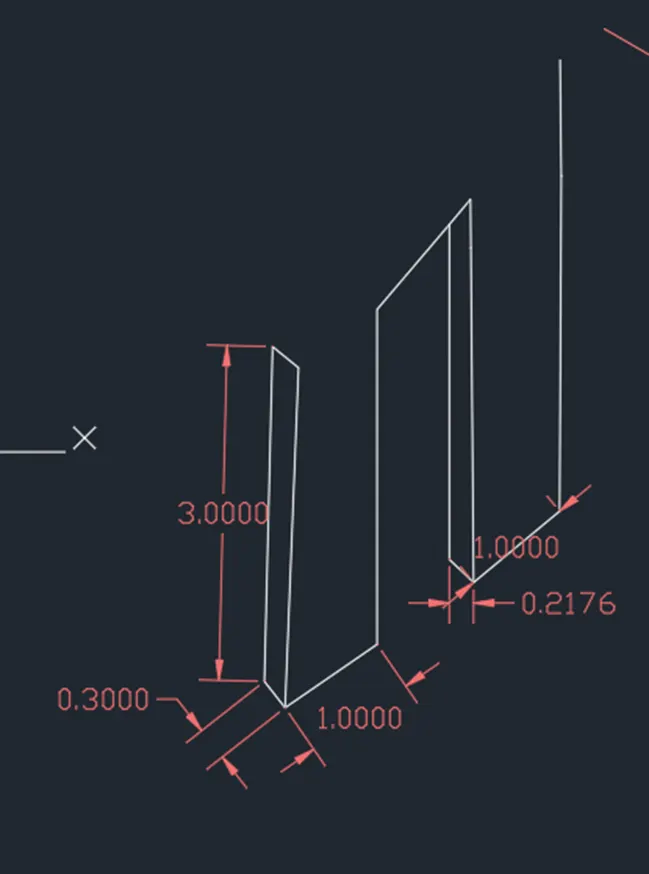

Step 2 - Using isometric right,take line command and draw line upward of 2.42 from the starting point of step 1

Draw 1 unit toward right and 2.42 downward

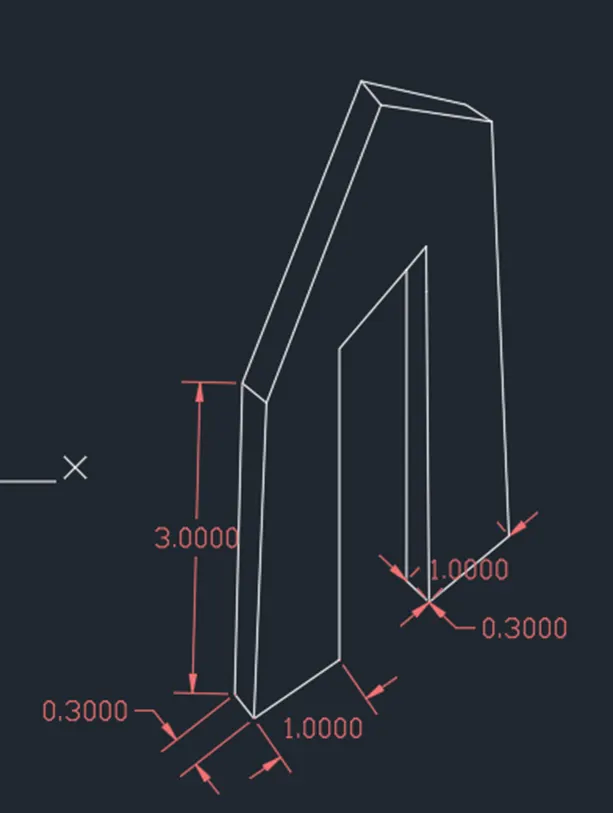

Using isometric left again ,using line command draw 0.3 to left side and draw line which intersect the top line

Step 3 - Using iso metric right with the line command draw 1.0 to right side and 3 to upward

Step 4 - By using line command draw a line from bottom left corner @1.5 and extend line 4 to upward ,total 3.25 from

bottom.

Step 5 - With ortho off ,draw a line between the corner of left side and projected line done in step 4

Draw it to other side also till it meets thr right corner.

Step 6 - Draw the vertical line with ortho on @0.3 and join the vertical line using line from left and right end same as in the

step 5 remove remaining line by using erase.

Result - The isometric view of gable wall is drawn.
