Creating Walls, Partition walls and Floors for a residential layout using REVIT

Q1

AIM:- To create the floor to the layout with the appropriate material for the model created in week 2

• open week 2 file residential model
• go to architecture from the menu bar
• select floor
• select boundary lines
• pick the boundary lines
• go to edit type to change the properties of the floor

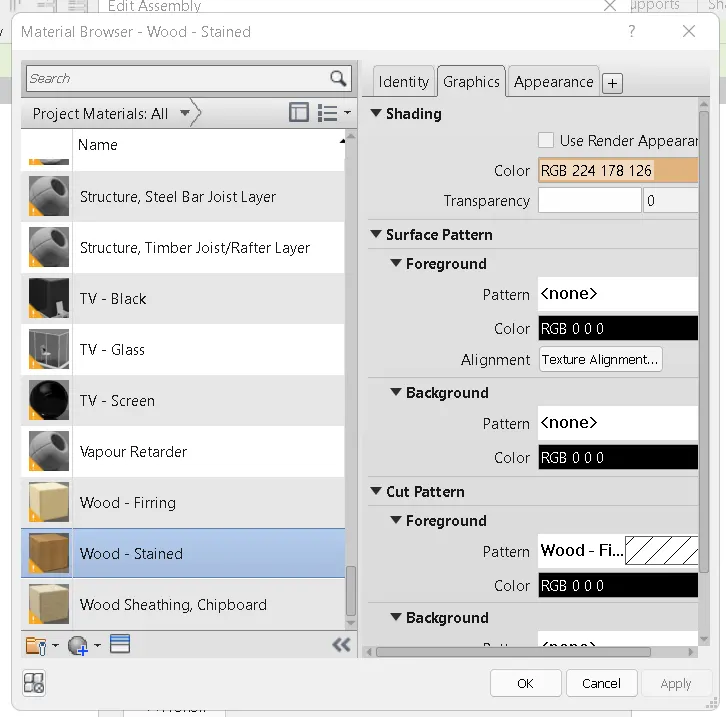

• select the desired flooring from the material browser

• Click on the OK
• change the visual style to realistic to view the flooring assigned

RESULT:- floor type of wood stain is assigned to the residential model of week 2

Q2

AIM:-To create walls using property browser

• Click on the wall

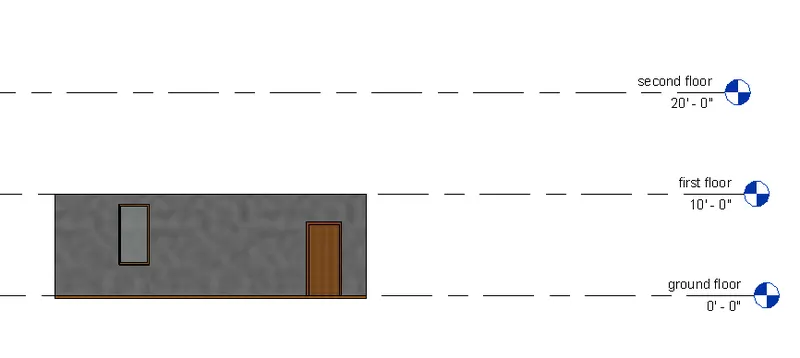

• change the top constraints to level 2 in the properties
• then go to edit type

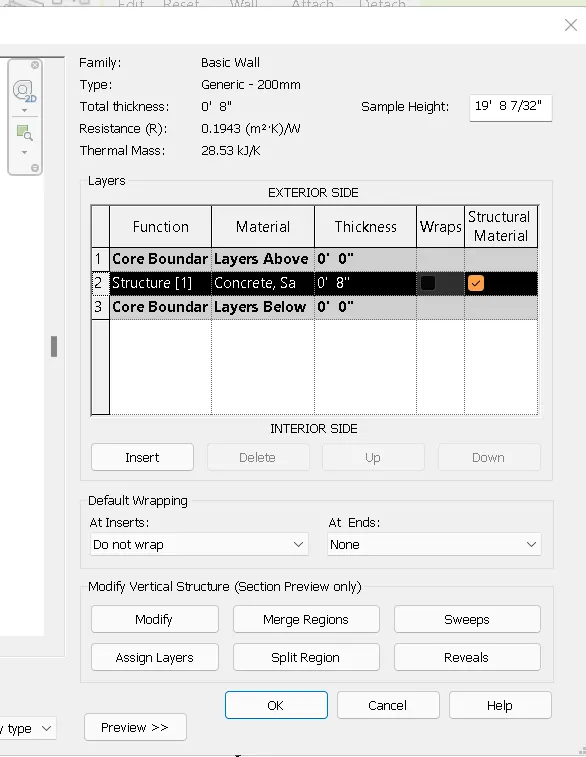

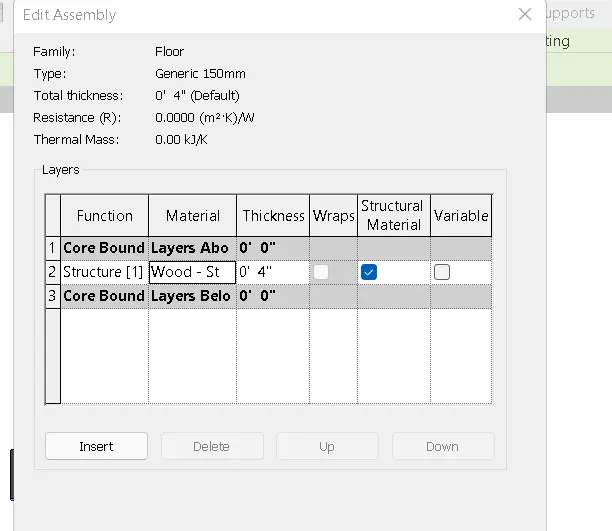

• structure > edit
• select the desired material from the browser
• change the thickness as per the requirement
• Click on apply, then ok

2.(a) as per my observation, connecting the walls with associated levels is necessary because if u ever want to change the height of the level, the height of the wall will be changed automatically

2.(b) I prefer depth since the height can be changed by the constrained method

Q3

AIM:- To create a multi-level of the model

• open the model
• create the next level at the desired height
• select the model
• go to modify from the menu bar
• click on copy
• then select paste> aligned to selected levels
• go to 3d view and paste the model

• paste the model in 3d view

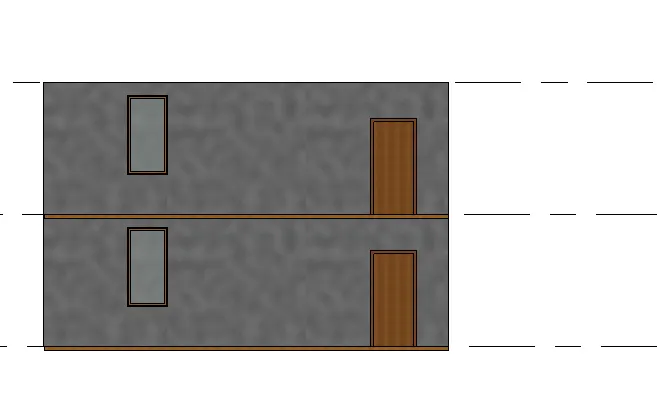

• 3d view of the multi-level model

Q4

AIM:- To create a residential unit with interior walls

• open a new project
• go to the wall from architecture
• select the wall type as interior
• draw the walls as per the desired lengths
• add components >load family>select the category>select element
• place the element at the required position

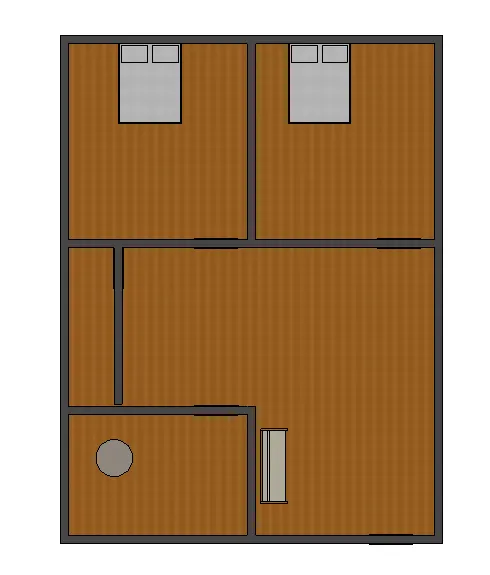

• drawing room(20' x 12')
• living room(20'x 22')
• kitchen and dining(15' x 20')
• restroom(15' x 12')
• bedroom(20' x 14')
• bedroom(14'x14')

Q5

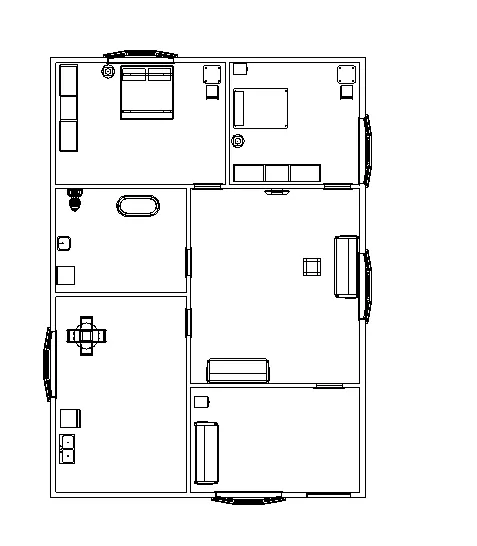

AIM:- To add all components to the residential model

• go to components from architecture
• load family>select category>select element
• place the element at the desired position

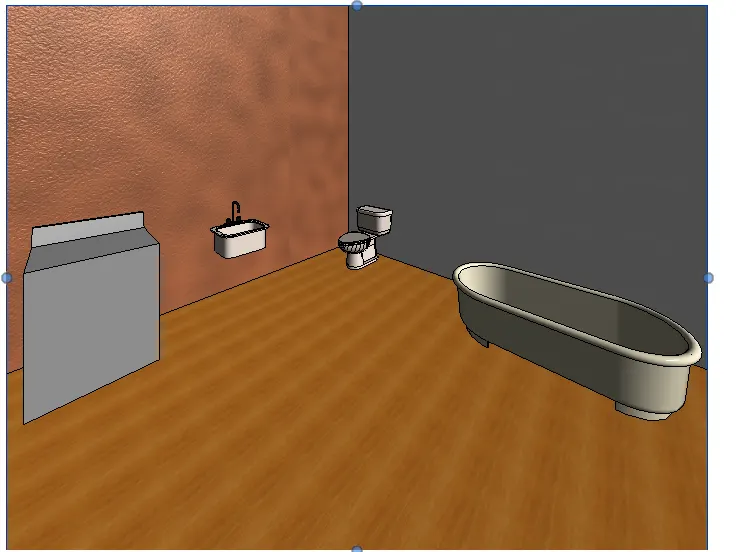

• camera realistic view of the living room with a tv unit, sofa, and table

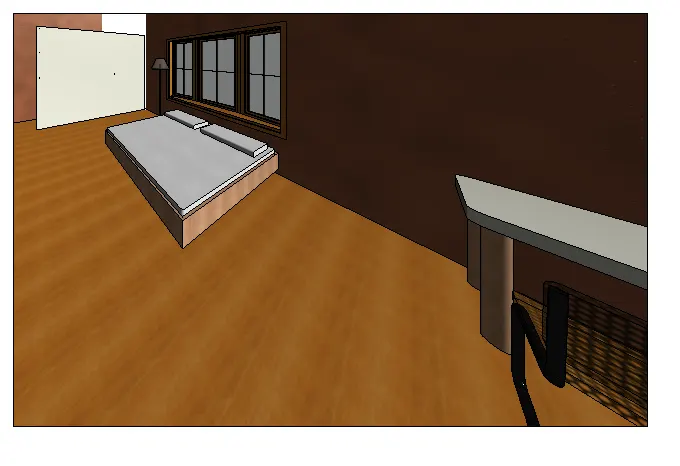

• bedroom realistic view with storage unit, bed, table, lamp
