Creating Walls, Partition walls and Floors for a residential layout using REVIT
1) Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, use the floor tool under the architecture tab and select the floor with appropriate material and thickness using the property browser to create a layout in the Ground floor level. Align the floor plan with grids created from week 2
AIM:
To create the Flooring of the week 2 assignment layout.
PROCEDURE:
Open the Week 2 assignment
Open Ground floor plan

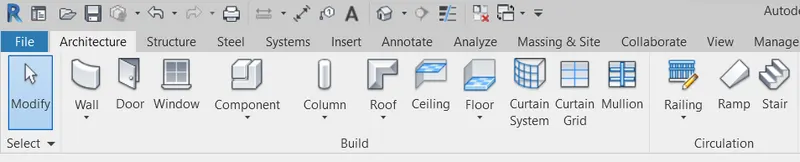

Select the Architecture File tab
Select the Floor tool
Select Architectural floor
Choose the Pick line tool from the Draw toolbar
Select the Inner boundary of the layout
Adjust the line by selecting the corner point, if it extends

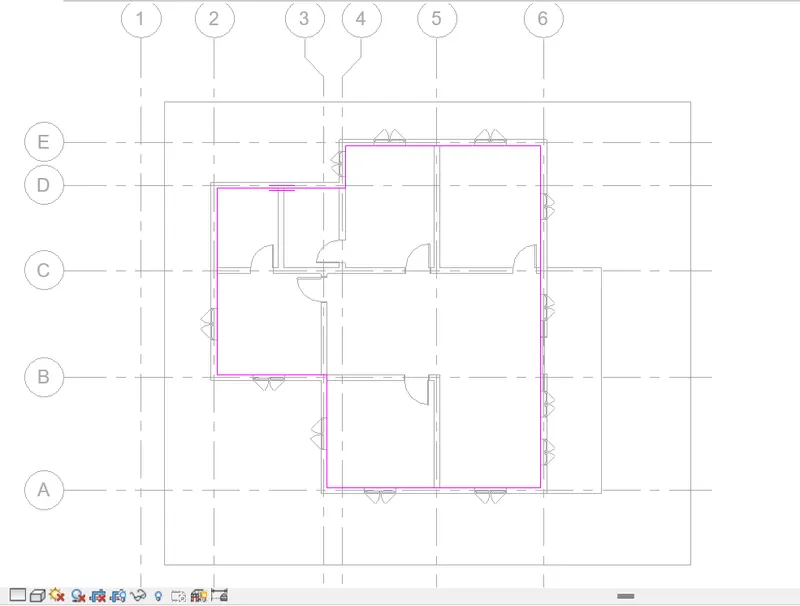

After drawing the Boundary lines
Adjust the levels in the Properties tab, Ground Floor
Select the Height offset from the Level -1" thickness of the flooring

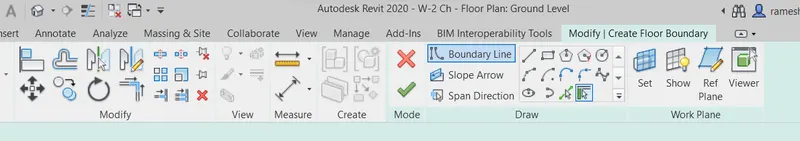

Click the Tick mark as shown in the Mode tab
Change the directions in the view cube for getting a better view appearance.

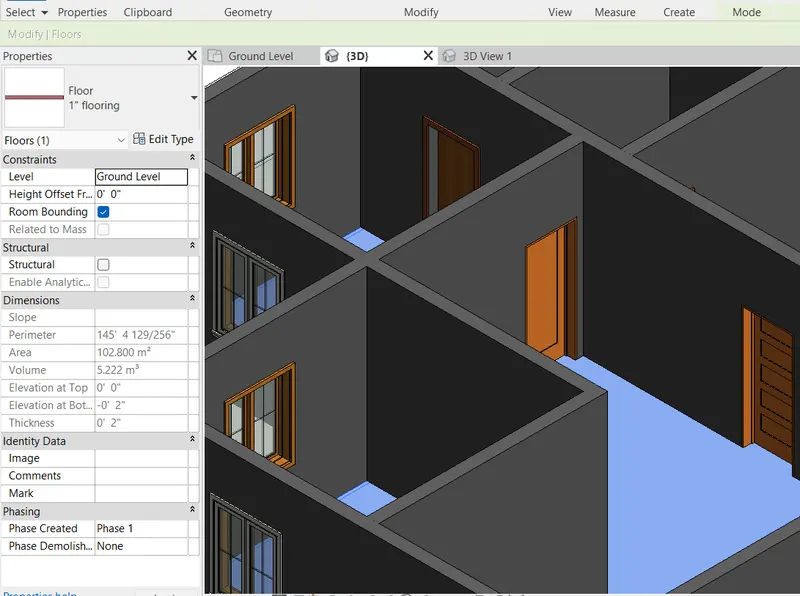

Ground Floor layout 3D view of flooring
Changing the Flooring material:
Select Flooring
Click on the Edit Type option in the Properties Tab
Type Properties Tab will open.
Create the new flooring type

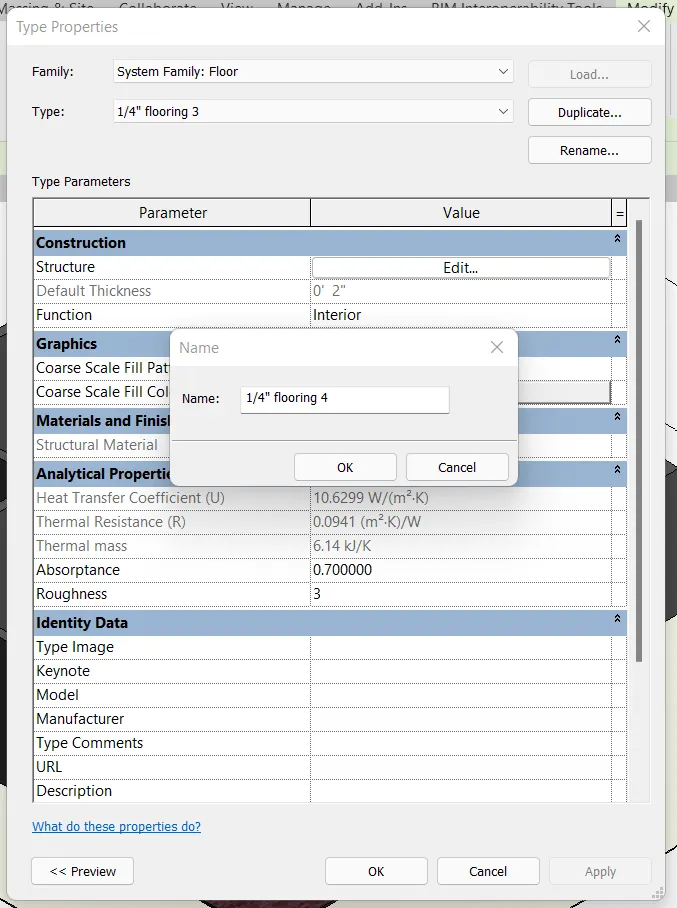

select the Duplicate option in the Type of flooring Tab
Name the type of flooring and click OK

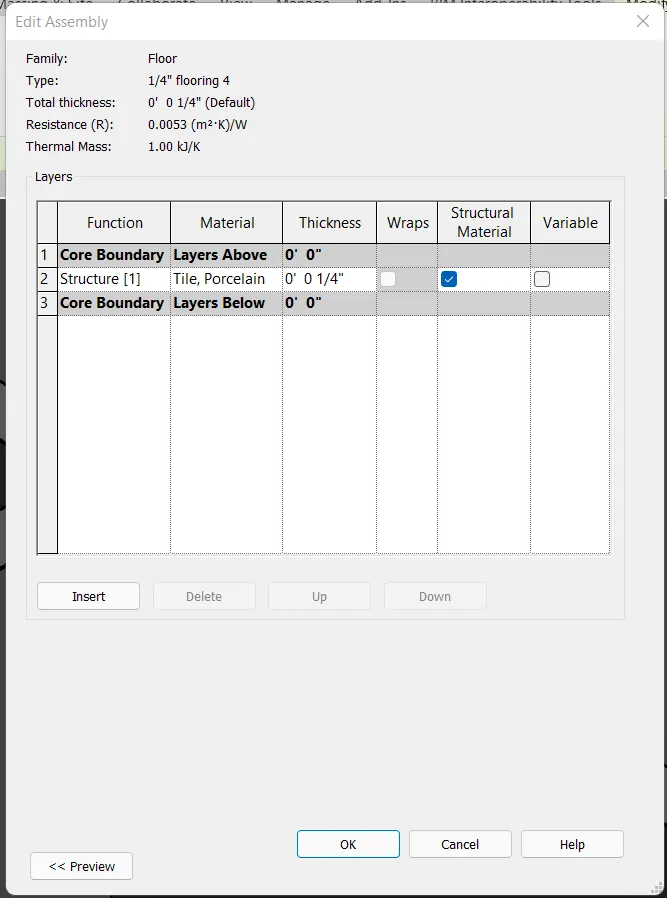

Select the Structure Edit option for changing the material and thickness of the flooring
Edit Assembly Tab will appear,
Change the Thickness of the flooring as per requirements
Click on the Layers option in the material tab

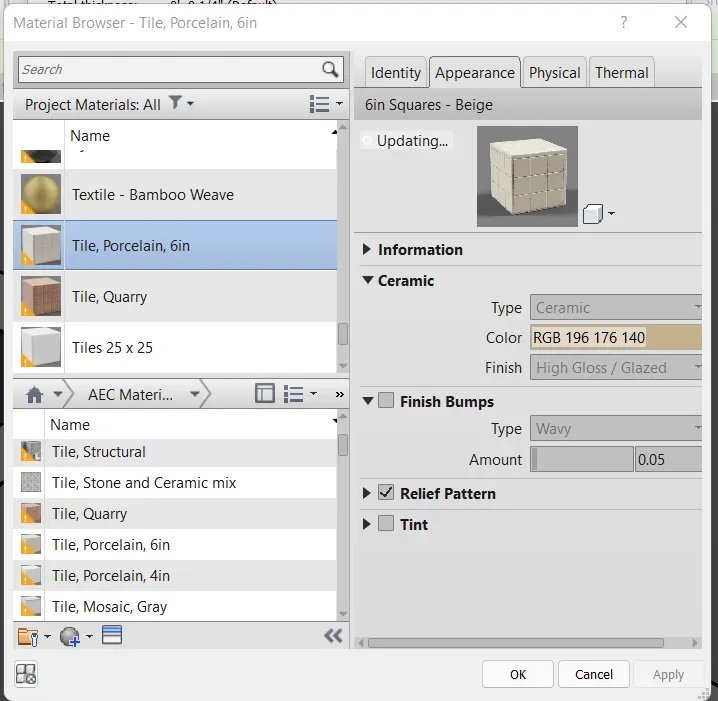

Material Browser tab will open.
In the material browser, tab Click the Change view Icon in the hidden library tab
choose the AEC material option, it displays all the material
Choose the required material and send it up in the Project Material tab by clicking the Topside Arrow mark
Select the material in Project Material Tab
If we want to change the color, edit it then click Apply and press OK.

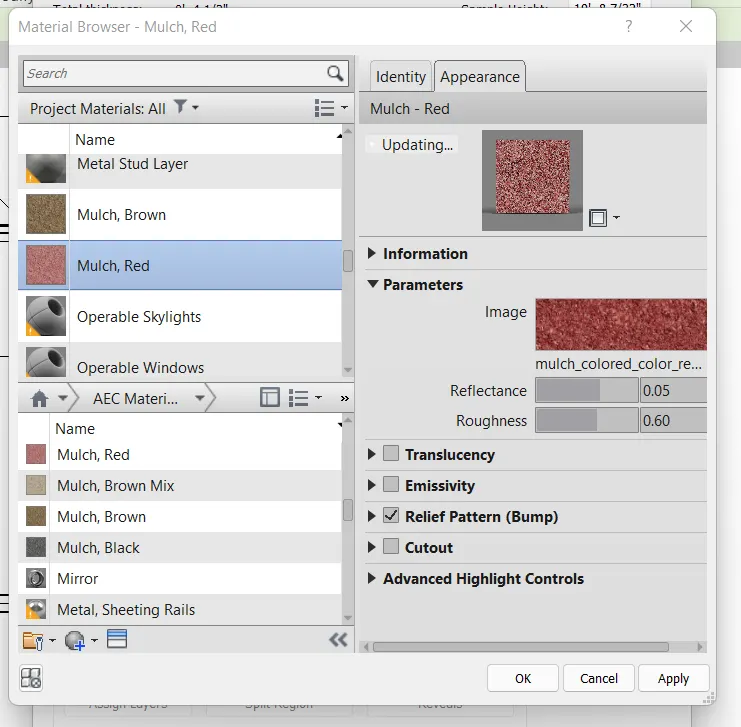

Material Browser Inserted materials

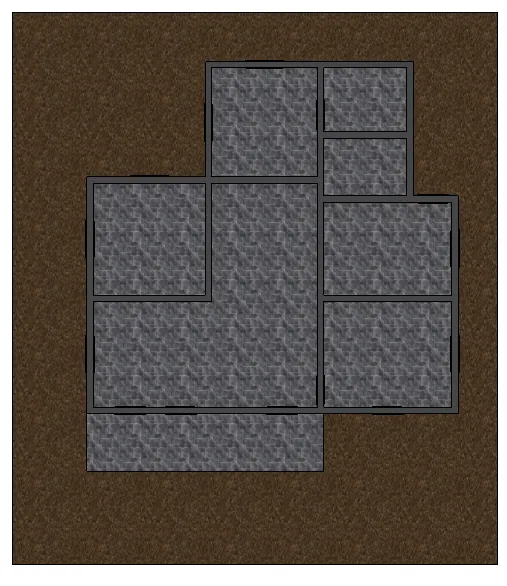

Top view of the Flooring layout.
RESULT:
Created the flooring by using the Properties tab, Material Brows, and other tools.
2) Add walls based on the floor layout. Pick lines or use the draw tool to modify the boundary of walls. Use the property browser to select appropriate material and thickness for walls. After creating the walls verify using the property browser to see if the top and bottom of the walls are constrained.
a. Based on your observation, what is beneficial for connecting walls with associated levels rather than being Unconnected
b. Which option is convenient for modeling walls, By Height or By Depth?
AIM:
To Create the thickness of the wall and change the material of the wall.
PROCEDURE:
Changing the default size of the wall by invoking the Properties Tab
select the wall to change the properties and size

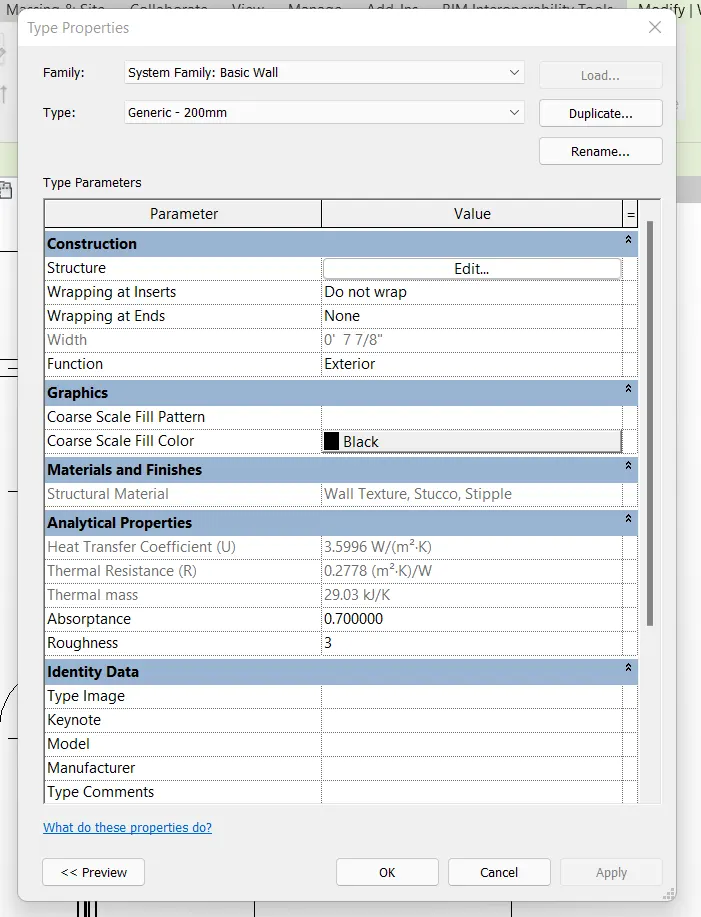

Click on the Edit Type option in the Properties tab

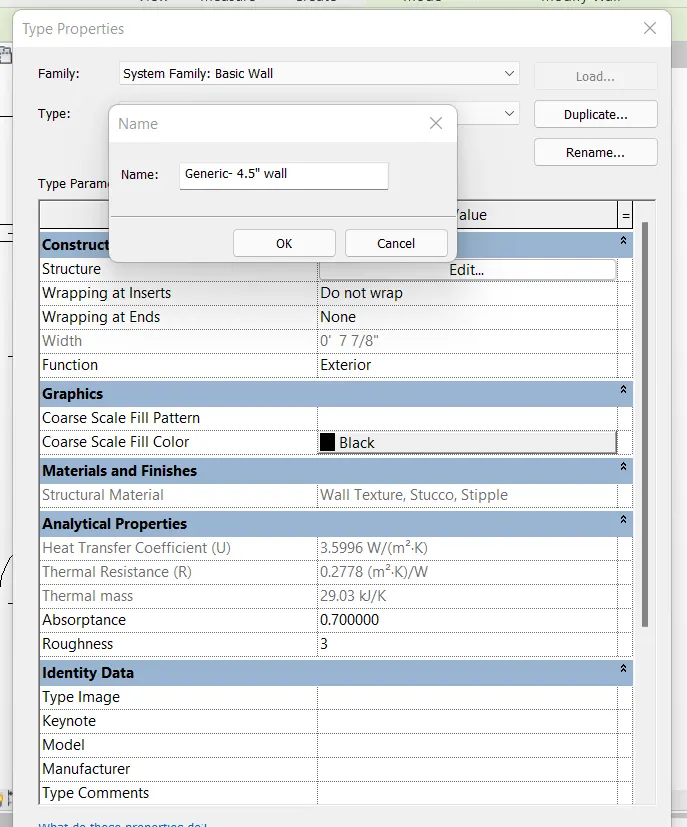

Create the Duplicate wall
Name the wall and click Ok

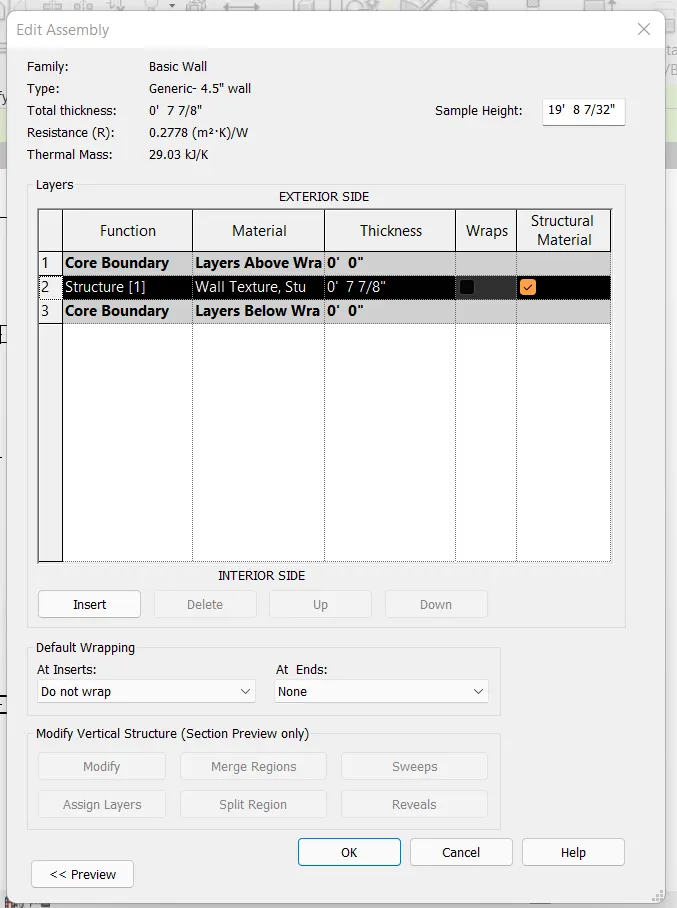

Click on the Structure Edit option for changing the material and thickness of the wall
select the Thickness option of the structure
Enter the thickness of the wall in default unit types
Select the structure material option for changing the material
Browse the material and select the required material from the Material Browser
Click apply to apply selected material, then click OK>
Edited wall as shown below

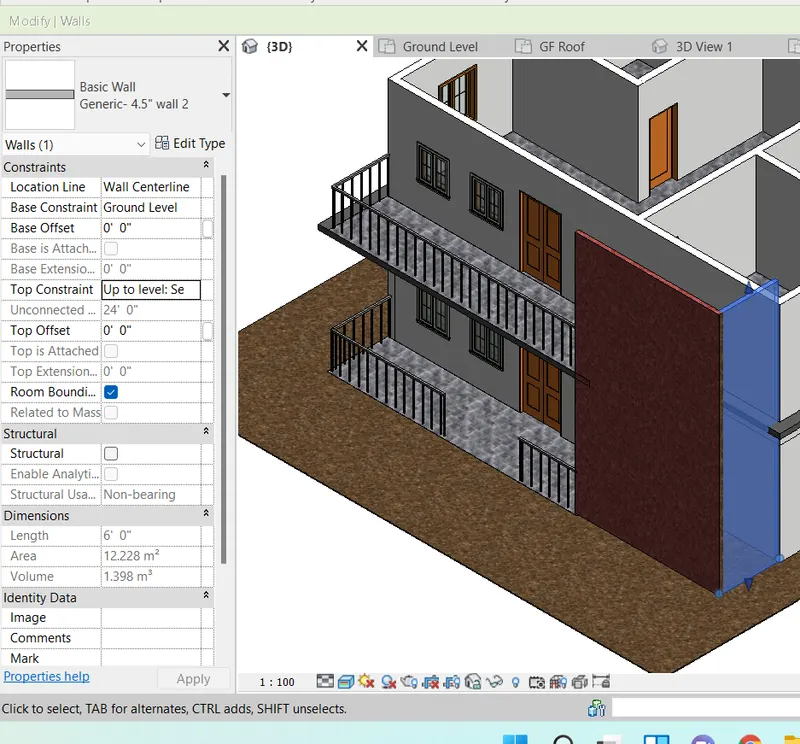

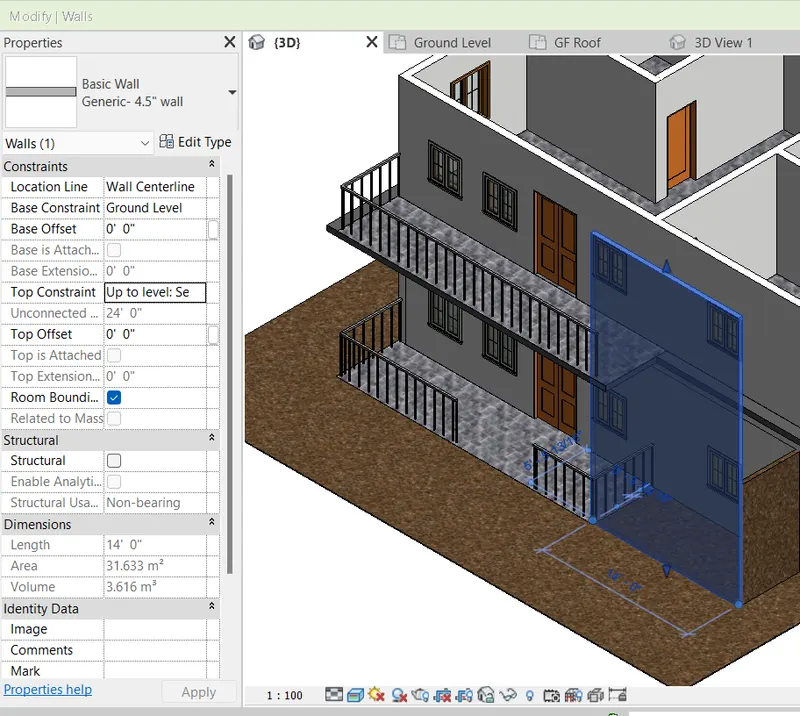

Set the Base constraint and Base Offset to start the wall
Set the height of the wall by entering the value in the Top Constraint
a. Based on your observation, what is beneficial for connecting walls with associated levels rather than being Unconnected
Benefits for connecting walls with associated levels.
No chance to create duplications
The wall connection will be perfect
Not cross one object to another object
when we open the elevation the level and joints of the wall will show the Error
Sometimes it is difficult to create levels
Unconnected levels:
It creates the wall height as per the given dimensions
It helps to adjust the height of the wall
b. Which option is convenient for modeling walls, By Height or By Depth?
For Creating the Walls above the Datum line it helps Height option
When creating the walls below the datum line, need to enter negative values
The height option is convenient for modeling walls.
RESULT:
Created the wall material and thickness of the walls by invoking the properties tab.
3) Copy the model elements ( wall, floor ) modeled to Ground Floor Level and paste it aligned to First Floor Level. Use modify tab to utilize copy and paste options to align
elements to a different level
AIM:
To create the First Floor by coping the Ground floor.
PROCEDURE:
set the view into the ground floor layout
select the floor layout

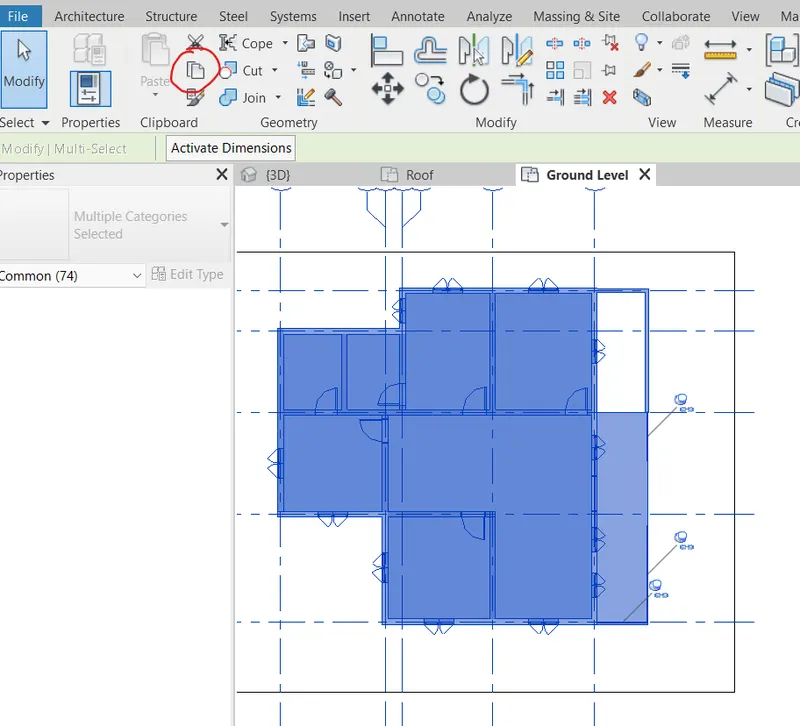

Click the copy tool option in the Clipboard tool tab then
Click the Past tool and select the Aligned to selected levels option.
selecting the first-floor option to inserting the ground floor layout.
Click on the elevation option in the Project Browser tab

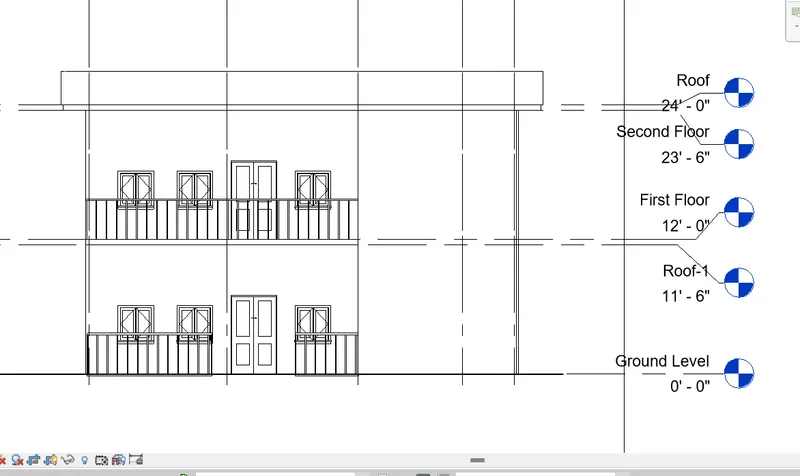

the Ground floor copied at the first-floor level.
RESULT:

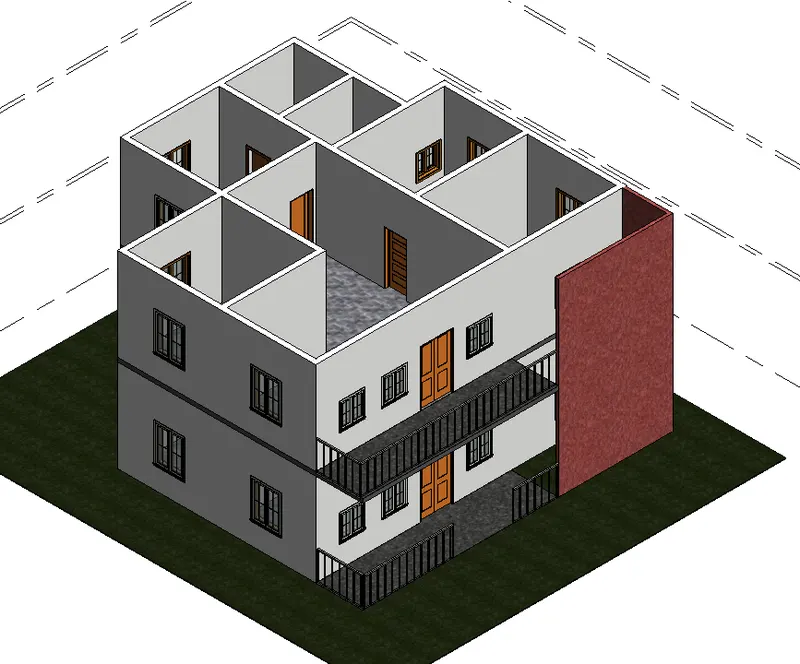

created the first floor by copying the ground floor layout at the First-floor level, 3D view of the building as shown below.
4) Use interior partition walls to create separate rooms within your residential unit. The model must include the following rooms
a. Living Room/ Drawing Room ( 15’ X 18’)
b. Dining Room (9’ X 11’)
c. Bed Room ( 9’ X 12’ and 15’ X 11’)
d. Rest Room ( 10’ X 12’ )
e. Kitchen (8’ X 10’)
The above are examples. You can use them or use your measured entities to create your model based on your layout. You may include entry walkways, Patios, or Guest
rooms based on your creativity and purpose of modeling. Convert units if you are using the metric system
AIM:
Create the Residential building unit.
PROCEDURE:

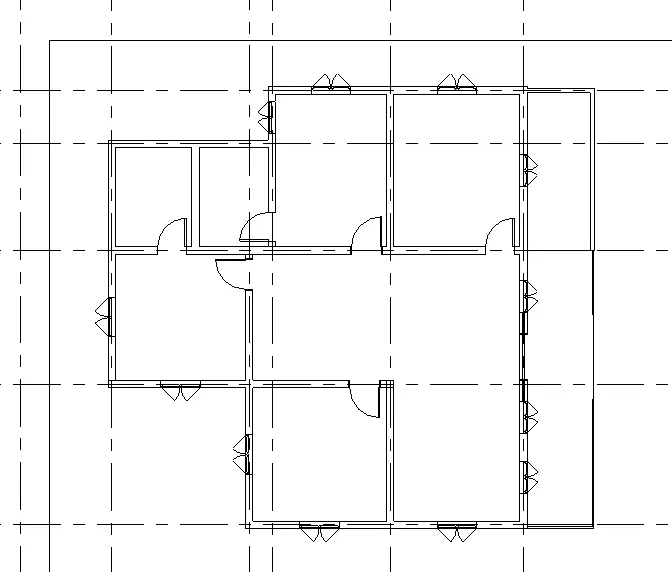

Creating the 44' X 38' Residential layout, it consists of 2Bed rooms, Kitchen, Dining hall, Living Hall, Guest room, Varanda,
creating the Living room 14'x 24', dining hall 12'x12' and kitchen 12'x12' size
Bedrooms are 12'x14', Toilets are 7'x9' and Varanda 6'x24'
inserting the doors and windows
created the First floor of the residential building and
created the roof of the building

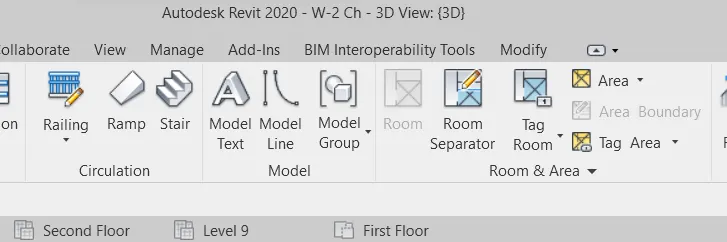

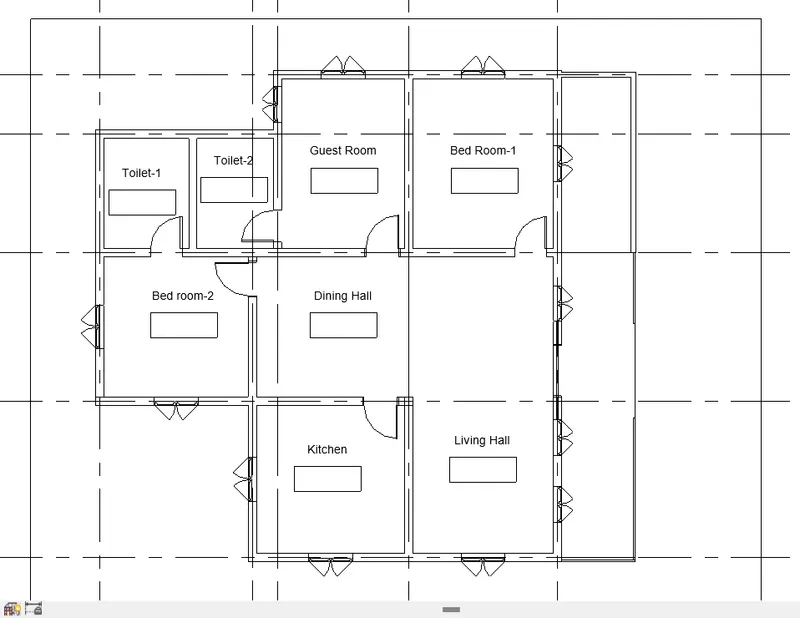

Room tags inserted by invoking the Rooms and Area toolbar
selected the Room tool and create the rooms
Noe select the Tag room and select the rooms to insert room tags and edit that and name the Rooms

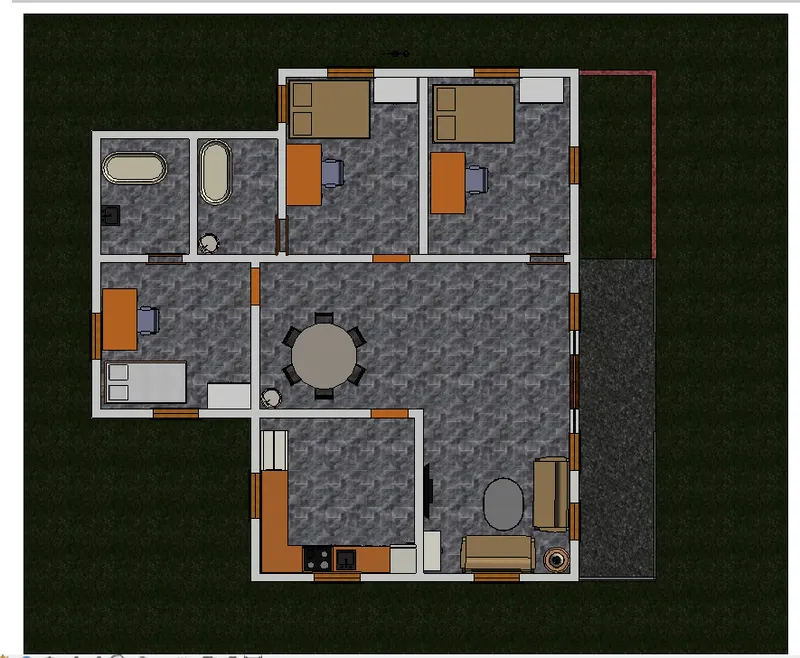

created the 3D layout of the Residential plan and inserted the materials into the layout.
RESULT:
Creating the Residential building and making 3D view of the building
5) Based on the week 2 assignment, the components to be included in a residential unit were inserted into the Revit file. Place these components in appropriate locations to add details to your residential model
a. Place Doors and windows in the wall at appropriate locations
b. The Living Room must include furniture set, couch table, and TV desk, and shelf cabinets
c. The Dining Room must include a table and chairs serving the purpose of eating
d. Bed Room must include a bed set, shelf, lighting, and individual study desk and chair
e. Restroom should include bathtub and plumbing fixtures discussed in class
f. Kitchen should include countertops, gas stove cabinet, and shelves to store food items
g. The wash/storage room can include washing machines and shelves to store clothes
All the components are available in Revit Library. Use them to place at appropriate locations to add details to your model. Use 3D navigation to check the model and its authenticity on a real-time basis to verify the model
AIM:
Inserting the material to the residential unit.
PROCEDURE:
Creating the Door and Windows:
Insert the door element in the project file from the Revit file.
Select the Insert tab

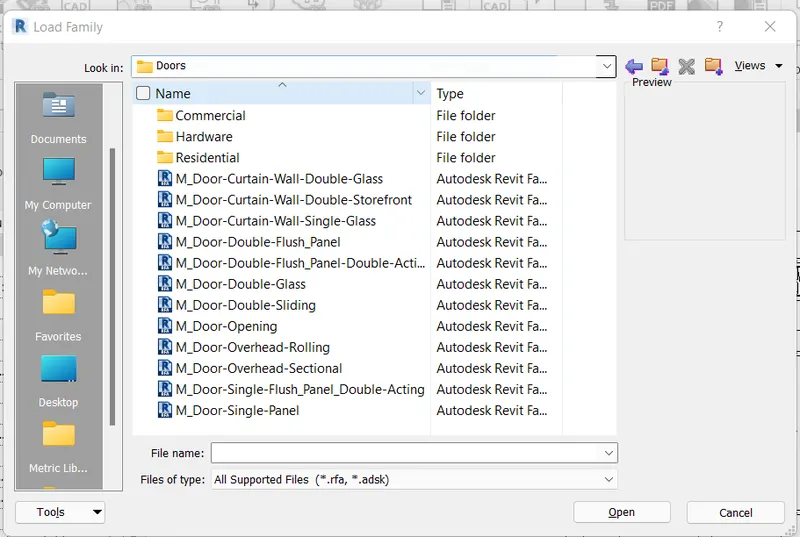

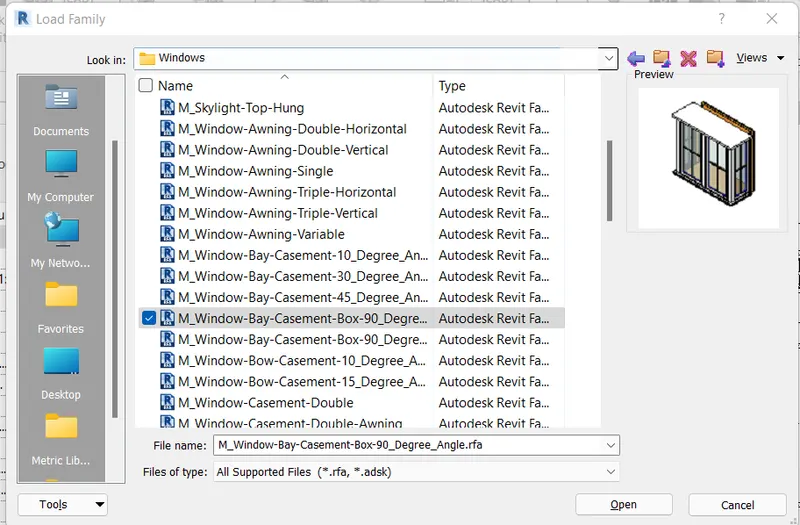

Browse the door file and open it then select the door type and click open.
similarly to inserting the window element into the project file.
Place the door and windows element on the layout
by selecting the appropriate size of the door and window.

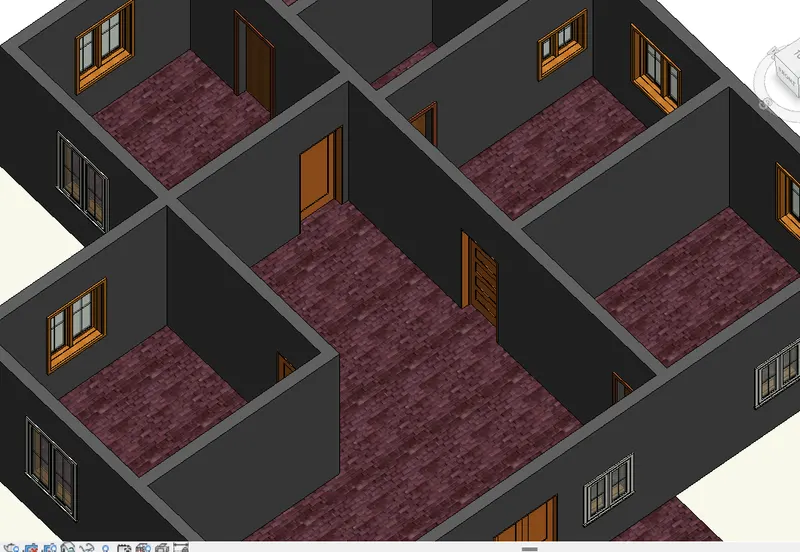

LAYOUT 3D VIEW OF THE LAYOUT
Insert the living room element in the project file from the Revit file.
Select the Insert tab

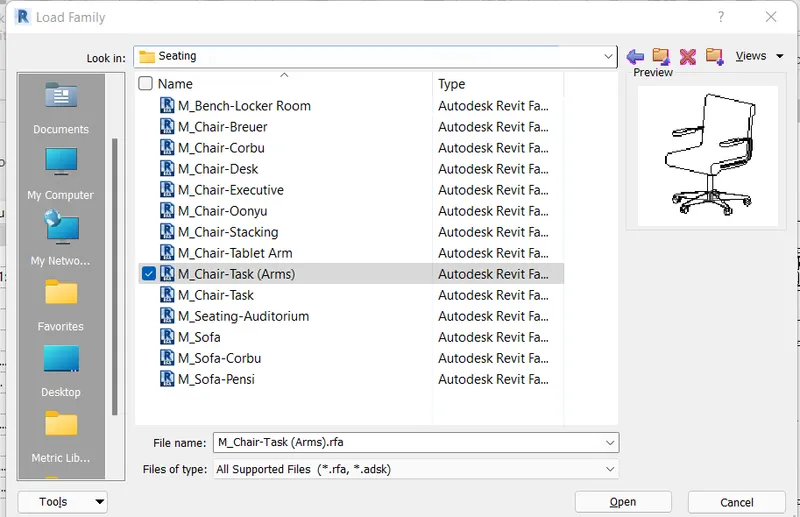

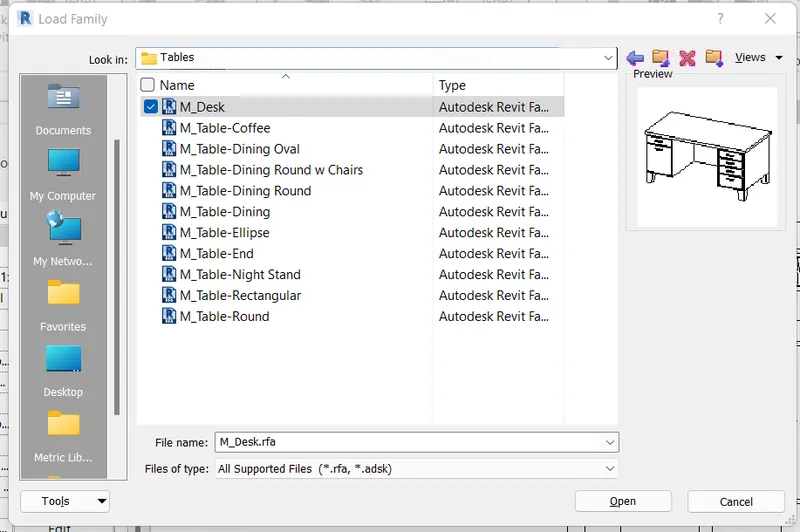

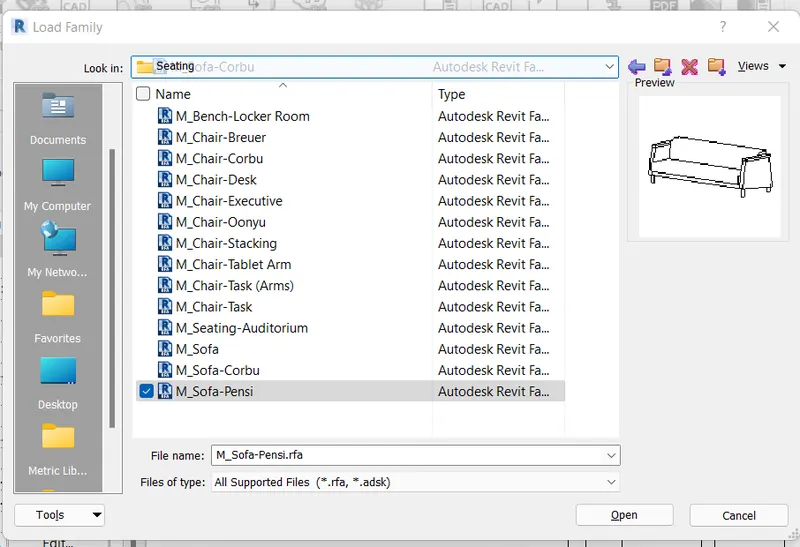

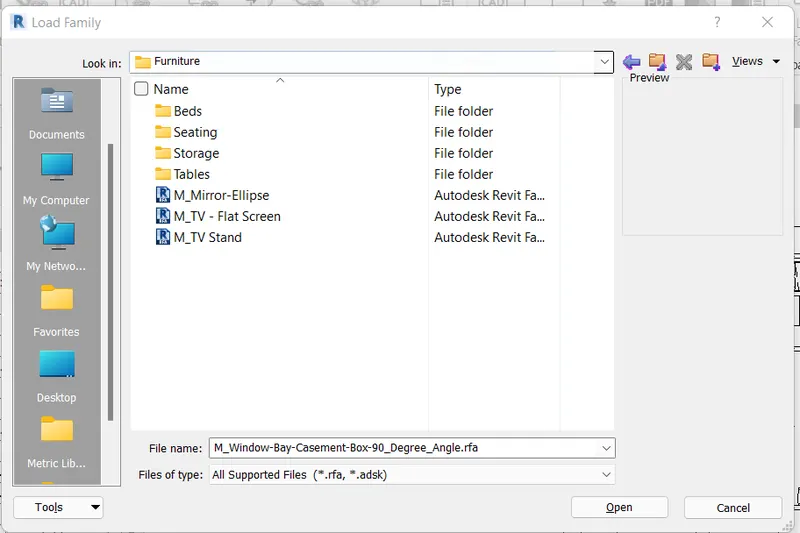

Browse the Furniture file and open it then select the sofa type and click open.
similarly to inserting the table, tv, element into the project file.
Place the sofa, tv, table element on the layout
by selecting the appropriate size.

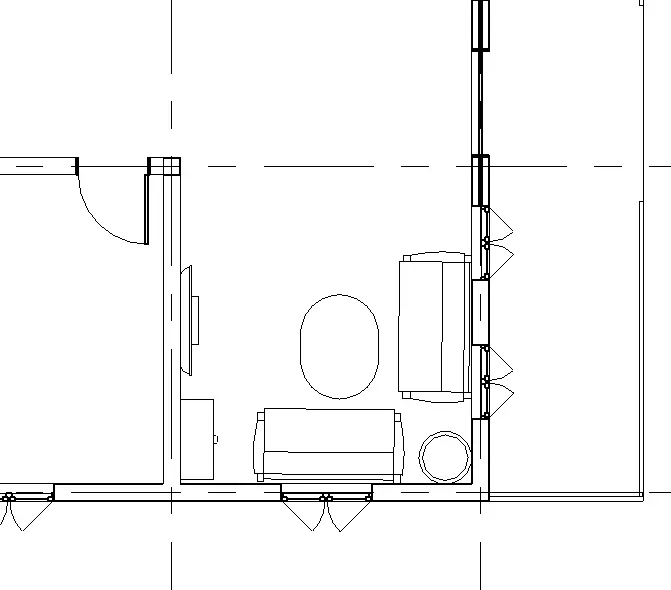

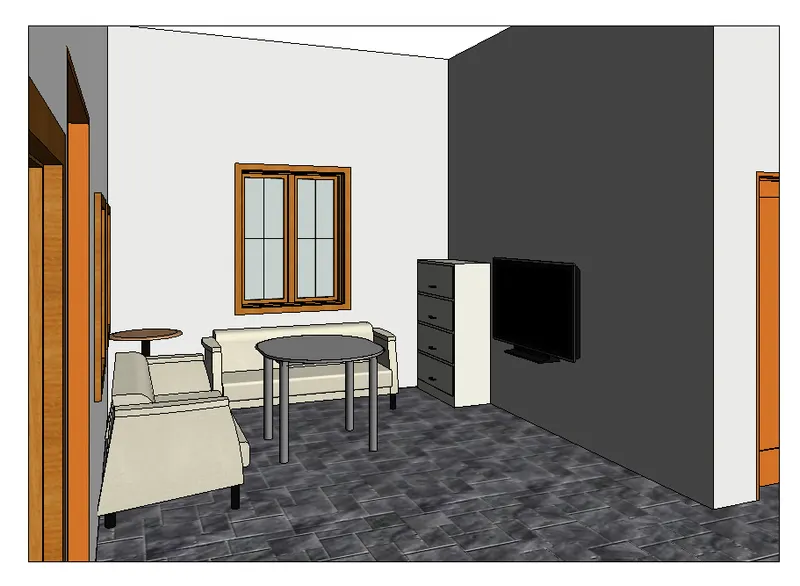

2D VIEW OF LIVING ROOM 3D VIEW OF LIVING ROOM
Insert the kitchen element in the project file from the Revit file.
Select the Insert tab

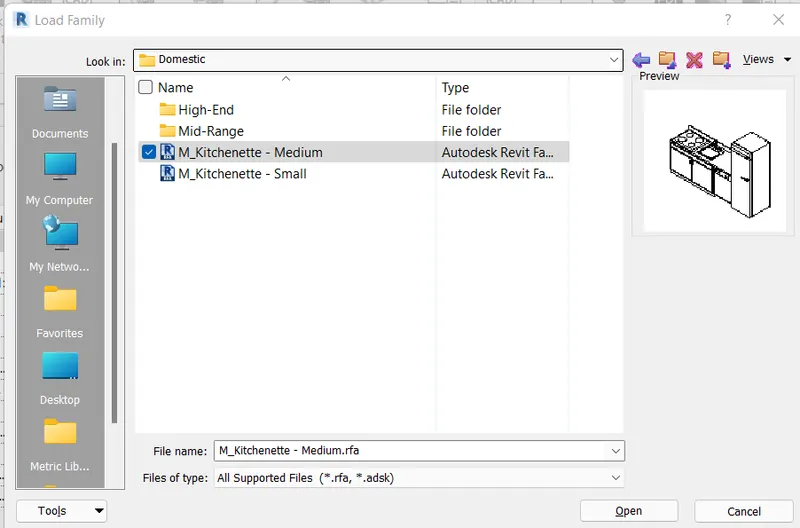

Browse the Domestic file and open it then select the kitchen elements and click open.
similarly to inserting the other storage element into the project file.
Place the sofa, tv, table element on the layout
by selecting the appropriate size.

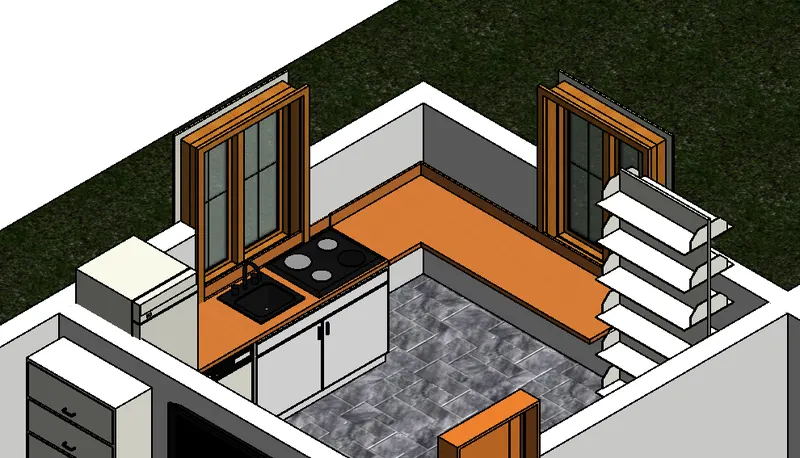

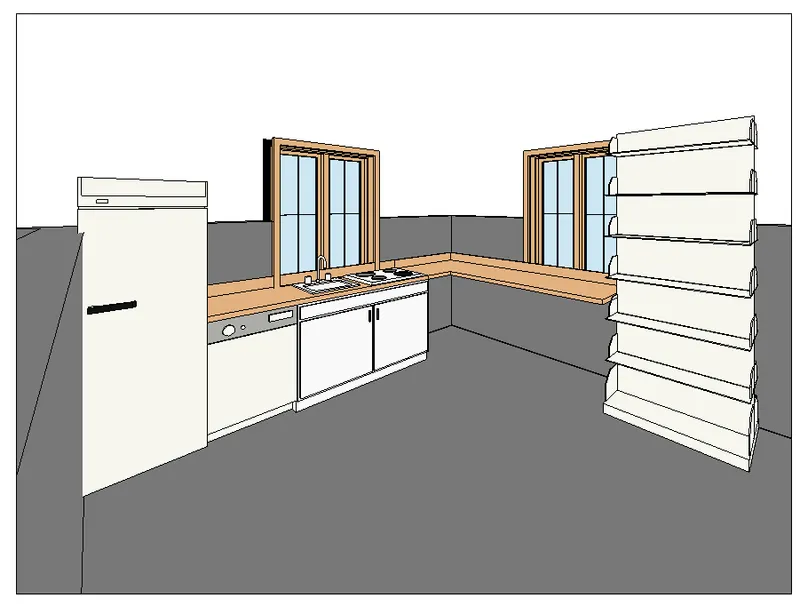

KITCHEN IN REALISTIC VIEW CONSTRAINT COLORS
Insert the Dining element in the project file from the Revit file.
Select the Insert tab

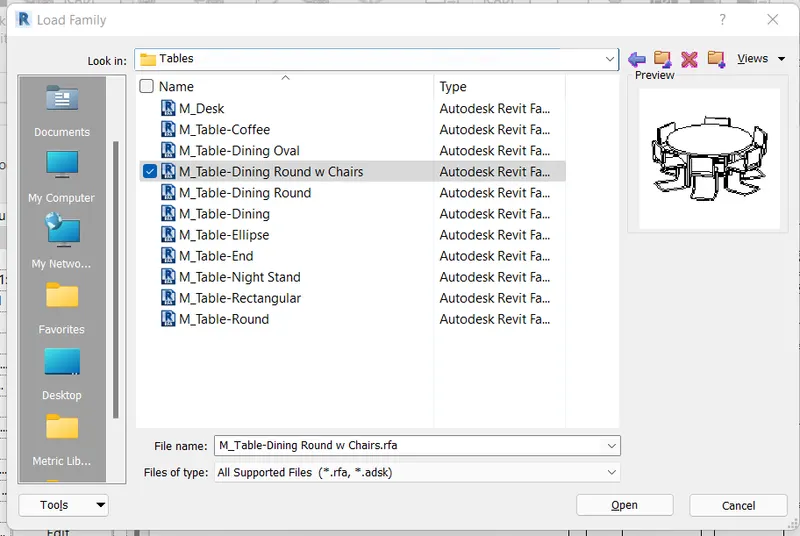

Browse the furniture file and open it then select the table file and select the dining table and click open.
Place Dining table element on the layout
by selecting the appropriate size.

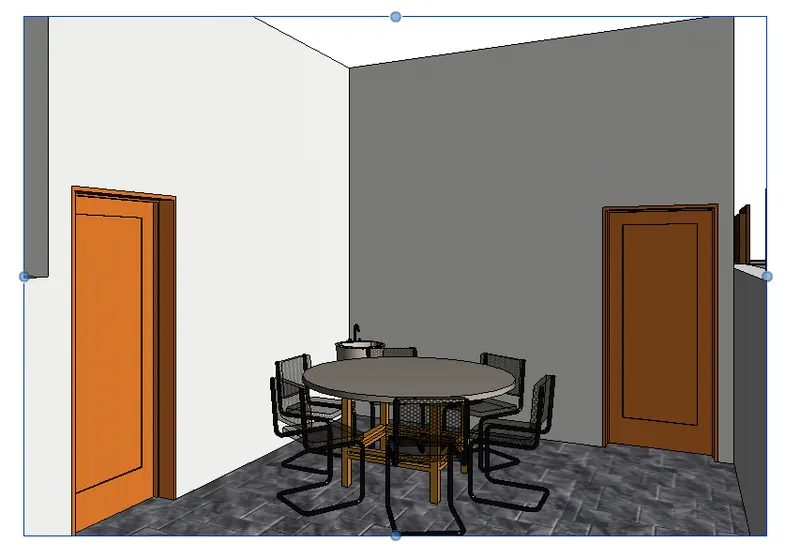

DINING HALL
Insert the Bed, Study Table, Chair, element in the project file from the Revit file.
Select the Insert tab

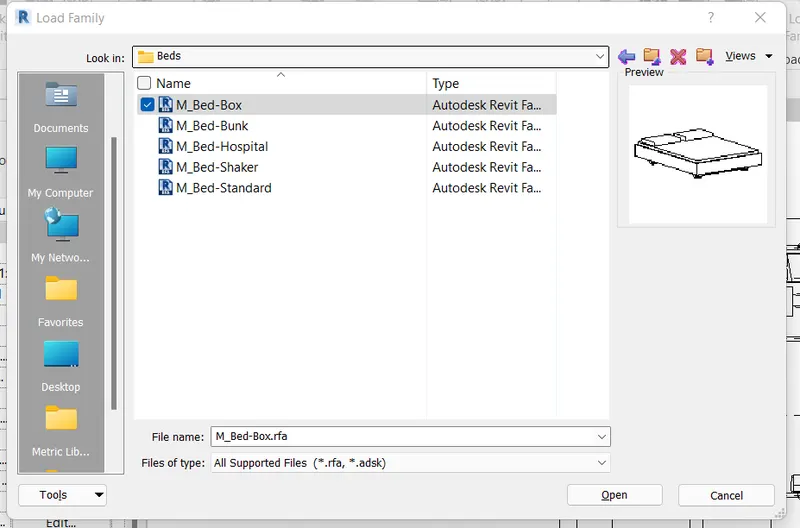

Browse the furniture file and open the bed file insert the Bed element
similarly to inserting the Study table, and chair element into the project file.
Place the Bedroom element on the layout
by selecting the appropriate size.

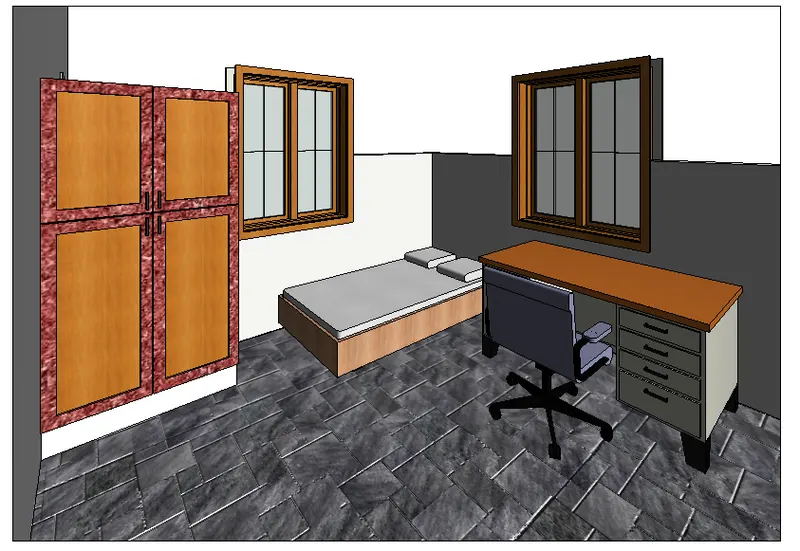

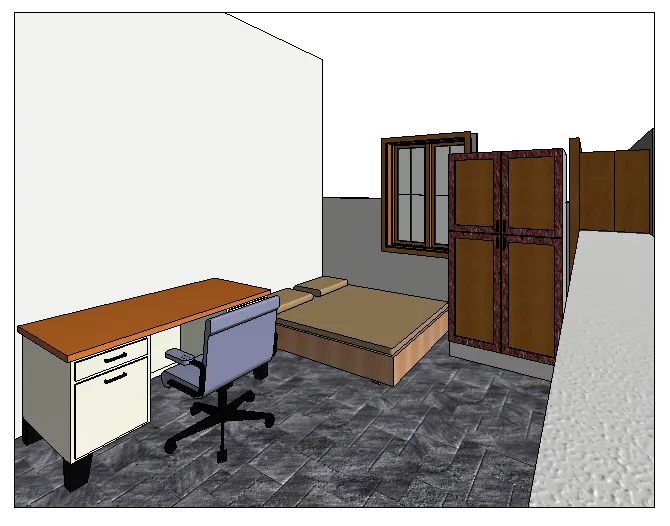

BED ROOM-1
BED ROOM-2 GUEST ROOM
Insert the Toilet element in the project file from the Revit file.
Select the Insert tab

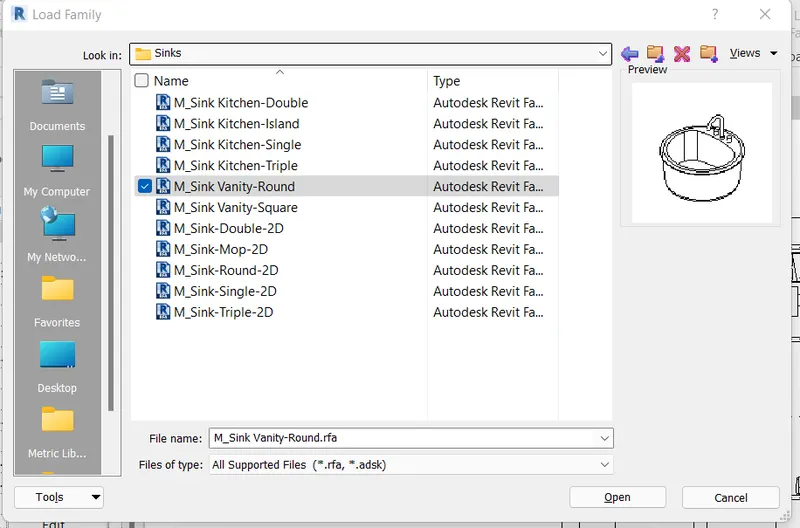

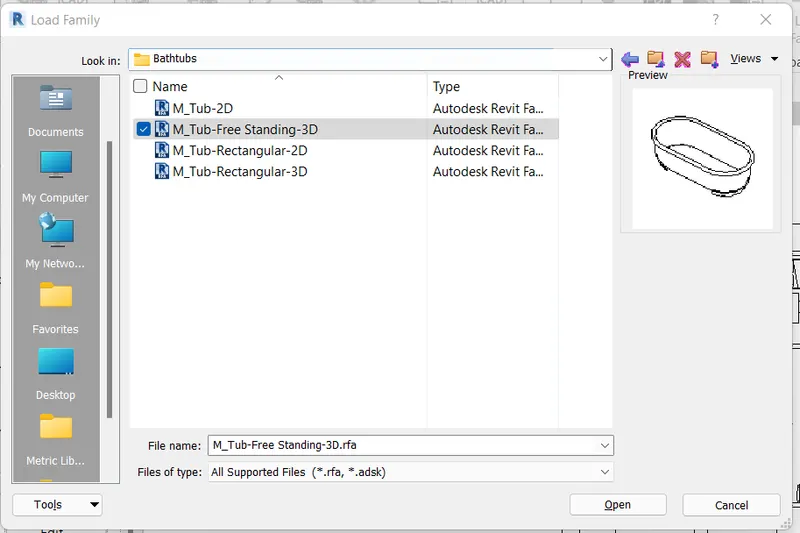

Browse the Plumbing file and open it then select the bathtub file and choose the tub and click open.
similarly to inserting the sink element into the project file.
Place the Bathtub and sink element on the layout
by selecting the appropriate size.

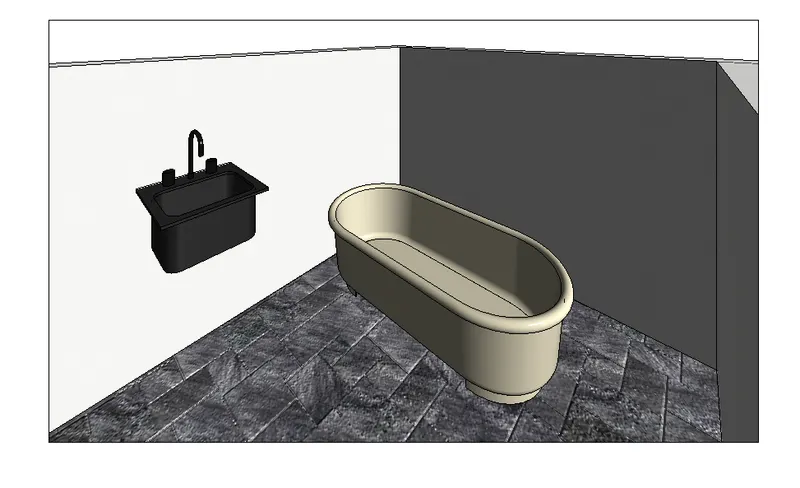

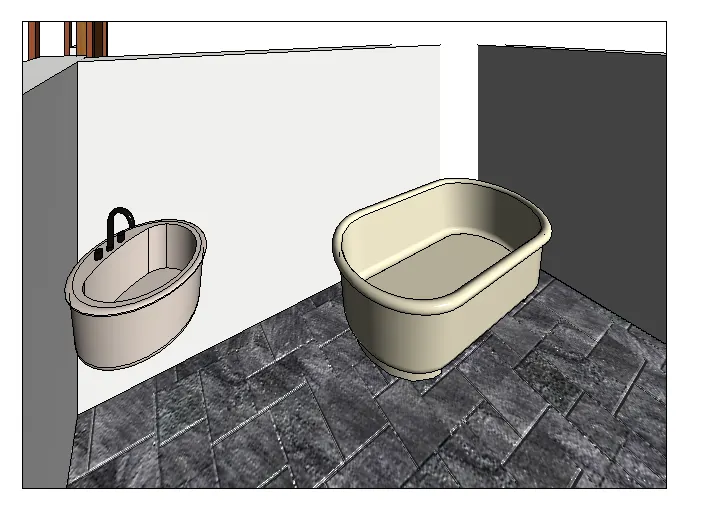

TOILET-1 TIOLET-2
RESULT:
Inserting and placing the Residential building elements into the project file.
