Creating Walls, Partition walls and Floors for a residential layout using REVIT

Q1:

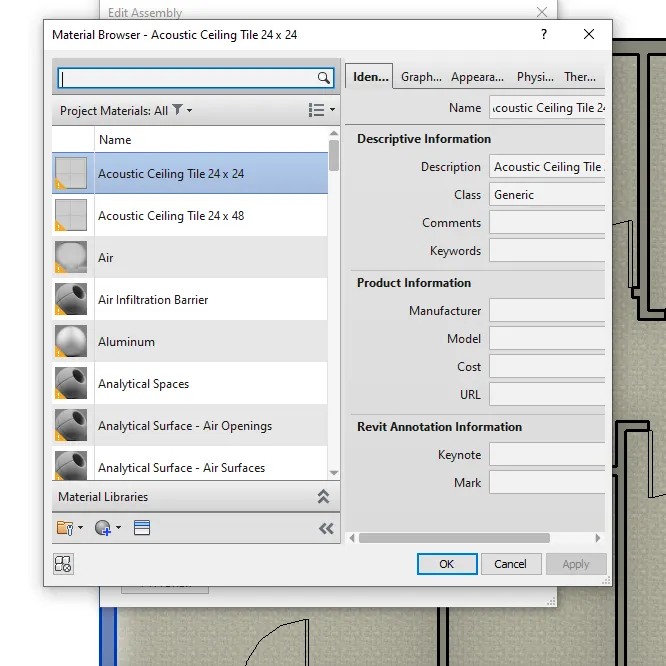

Aim and introduction:Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from week 2

Procedure:

Steps:

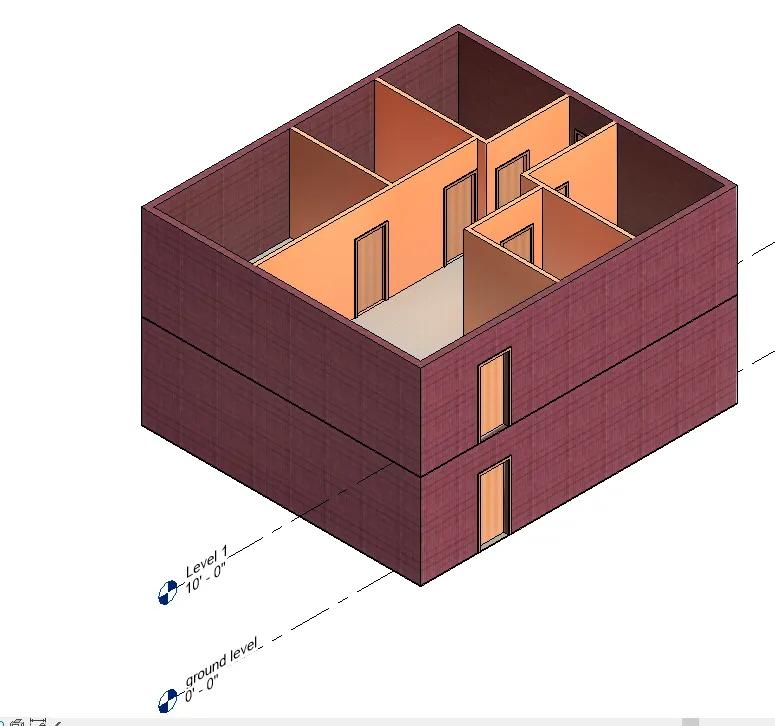

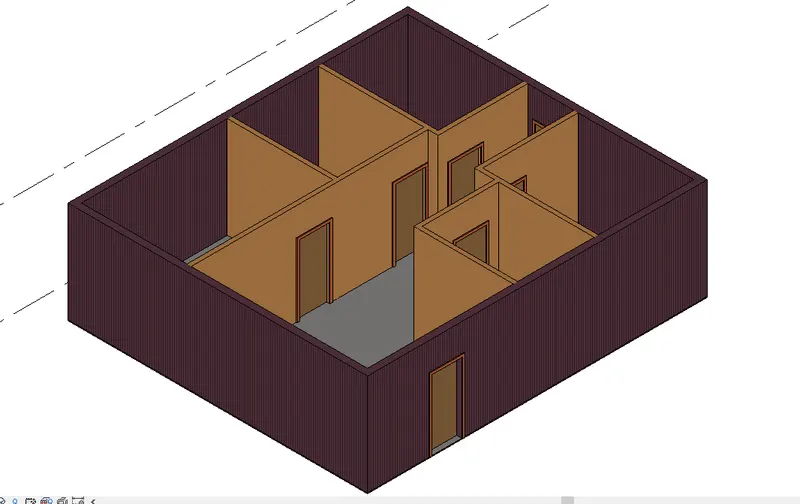

• create walls using architecture tab

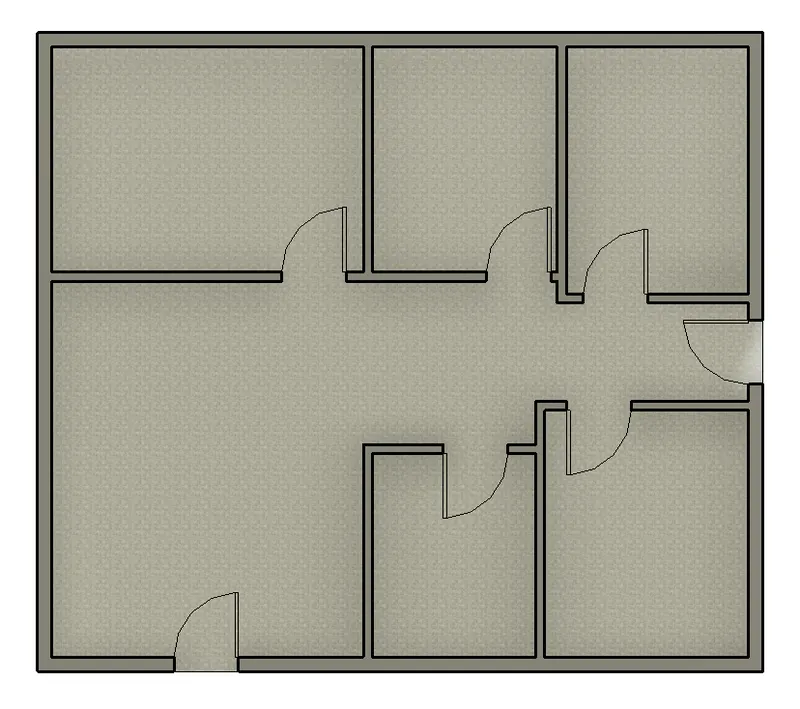

• create a floor
•

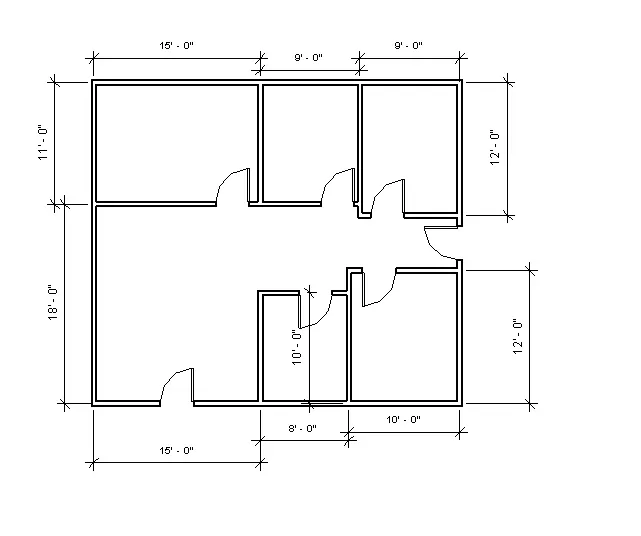

• a. Living Room/ Drawing Room ( 15’ X 18’)
  b. Dining Room (9’ X 11’)
  c. Bed Room ( 9’ X 12’ and 15’ X 11’)
  d. Rest Room ( 10’ X 12’ )
  e. Kitchen (8’ X 10’
•
•
•

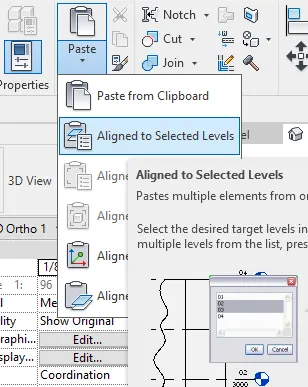

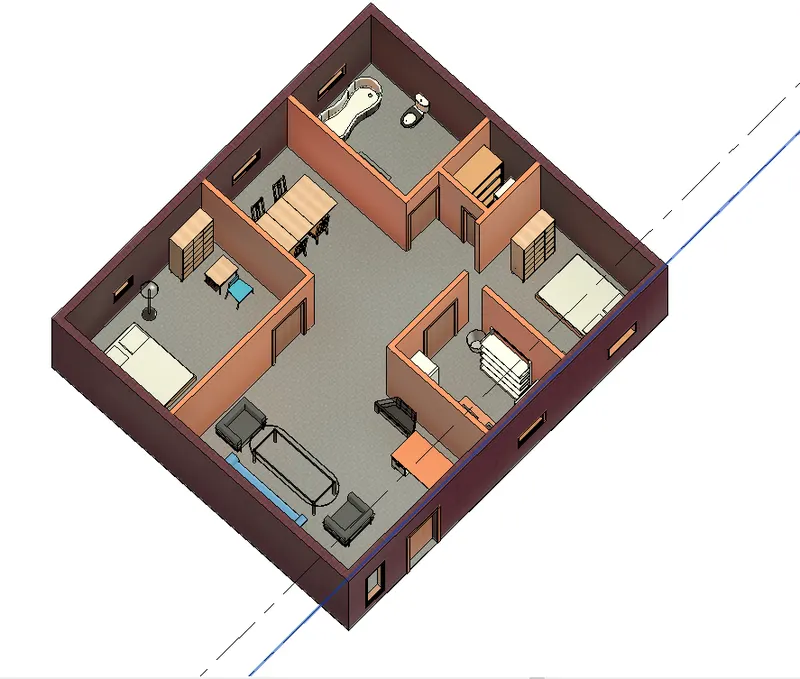

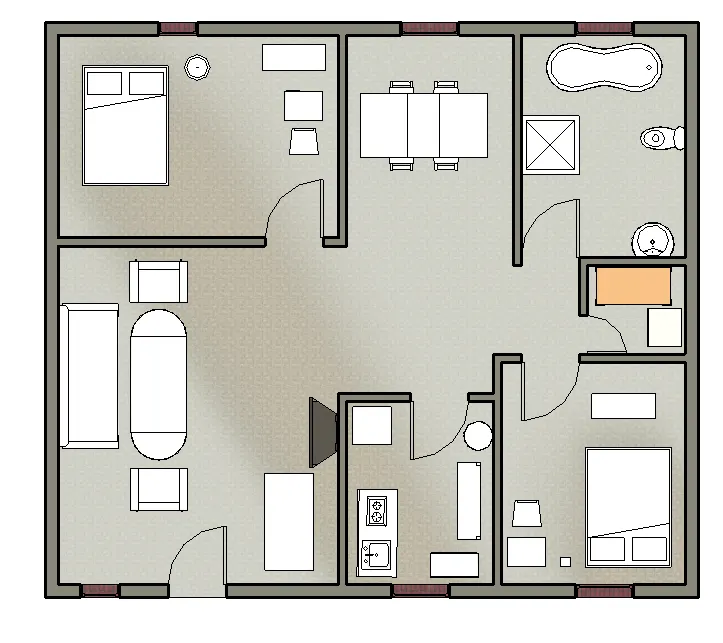

• the components to be included in a residential unit were inserted to the Revit file. Place these components in appropriate locations to add details to your residential model

  a. Place Doors and windows in the wall at appropriate locations
  b. The Living Room must include furniture set, couch table and TV desk and shelf cabinets
  c. The Dining Room must include a table and chairs serving the purpose of eating
  d. Bed Room must include a bed set, shelf, lighting and individual study desk and chair
  e. Rest room should include bath tub and plumbing fixtures discussed in class
  f. Kitchen should include countertops, gas stove cabinet and shelves to store food items
  g. The wash/storage room can include washing machines and shelves to store clothes

•
•
