Creating Walls, Partition walls and Floors for a residential layout using REVIT

1.

Aim: -

• To Create Floor and Assigning Material and Thickness Using Property Browser Create a Layout in the Ground Floor Level, Align it With Grids

Procedure: -

• Open the Week 2 Assignment and By Using File Option save as the Project as Week 3 Press Ok

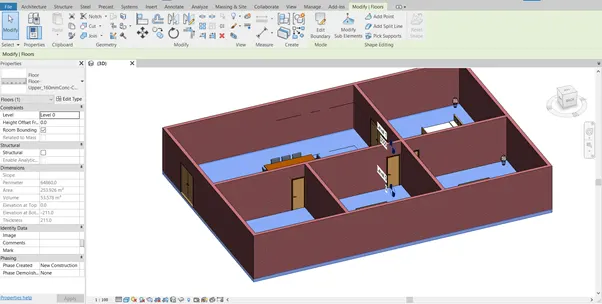

• Go to Architectural tab and Click on Floor and Select the Floor Architectural Select the Boundary Line Press Ok
•
• Select the Floor Type as Floor_ Floor_160mm CC

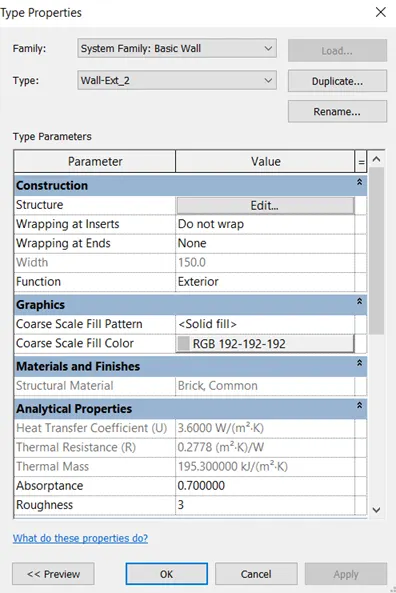

• Click on Edit in Structure

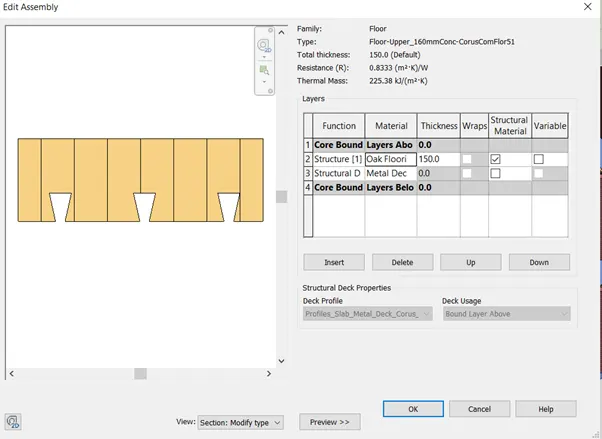

• In Edit Assembly dialogue Box , We Can Change the Thickness and Material, Thickness is Kept 150 mm
• Material as Oak Flooring and Click ok
•
•
• The Wall is Placed in Aligned to Grid 1.
•

Result: -

•
•

2.

Aim: -

• Add Walls Based on the Floor Layout

Procedure: -

• Open the Week 2 Assignment and By Using File Option save as the Project as Week 3 Press Ok
•

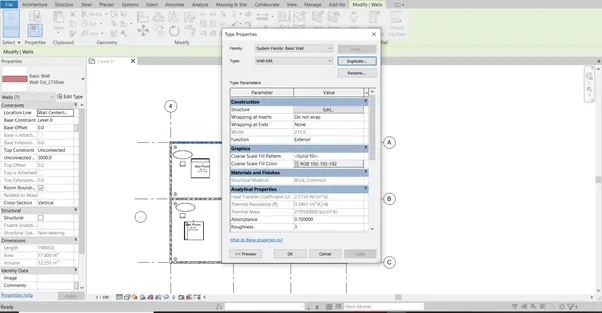

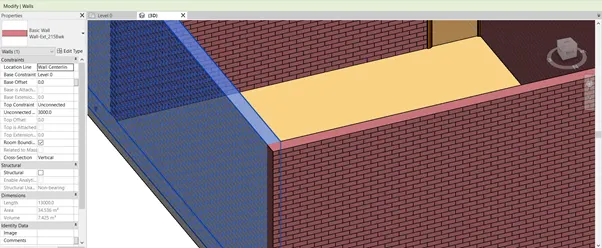

• Change the Boundaries of Wall Click on Edit Profile in Modify Tab, Click Draw Line or Pick Lines Then do necessary Changes
•
• Click Ok
•

Result: -

•

3.

Aim: -

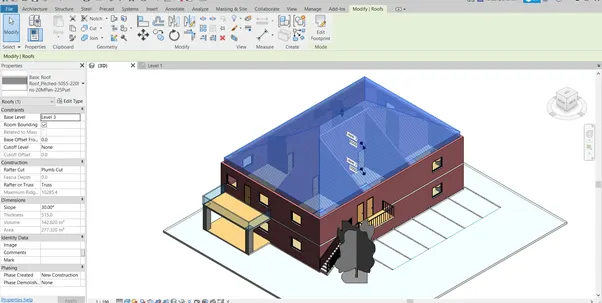

• Use of Copy and Paste and Aligning the Plan to the Other Levels

Procedure: -

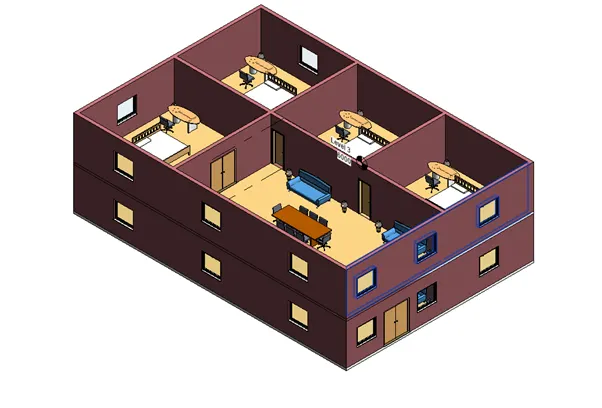

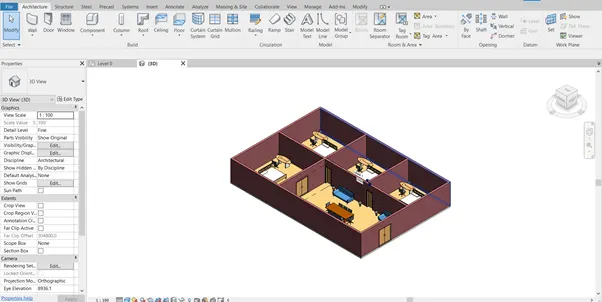

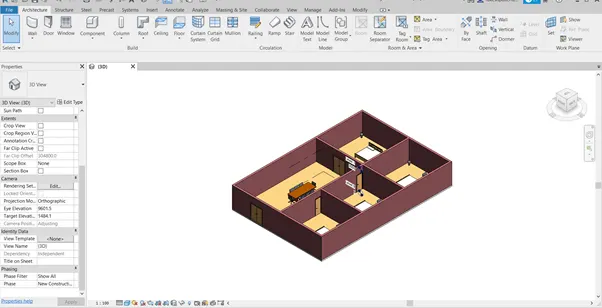

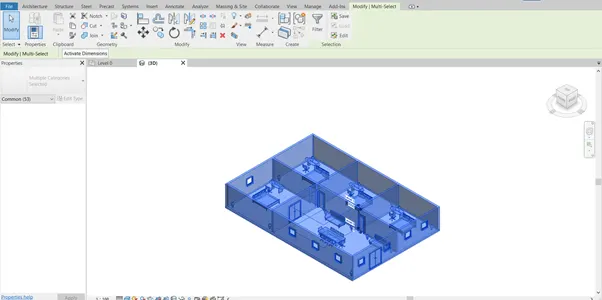

• Select the Model in 3D View
•
•
• Click on Copy to Clip Board

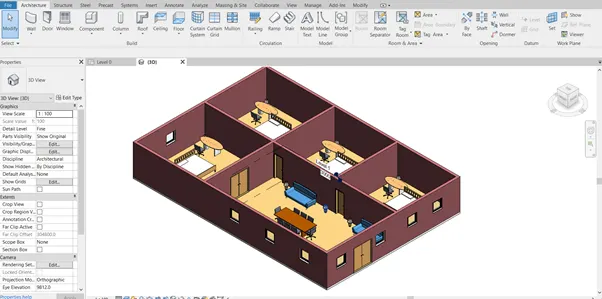

• Select Paste and Select aligned to Selected Levels

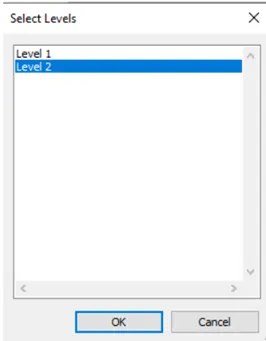

• Select level 2, Click Ok
•
• Delete the Top Door
•

Result: -

•

4.

Aim: -

• To Use Interior Partition Wall to Separate Rooms

Procedure: -

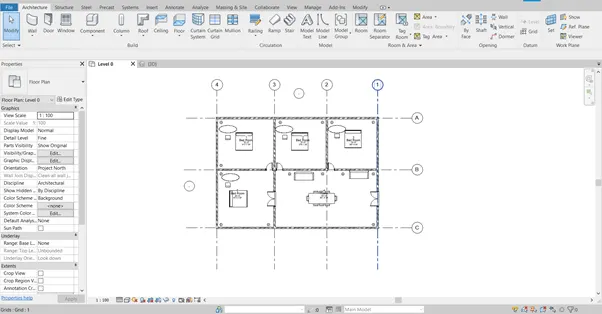

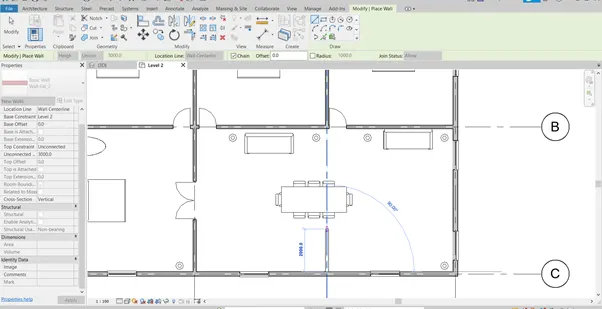

• Form Architectural tab, select wall Architecture
• Select Interior Partition Wall
•
•

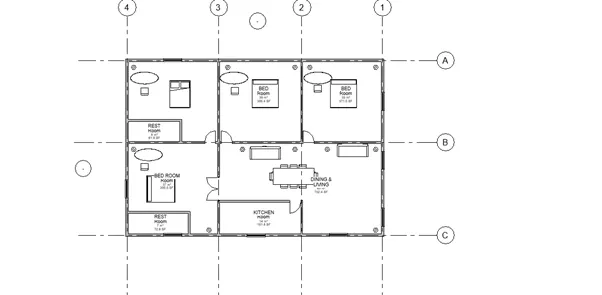

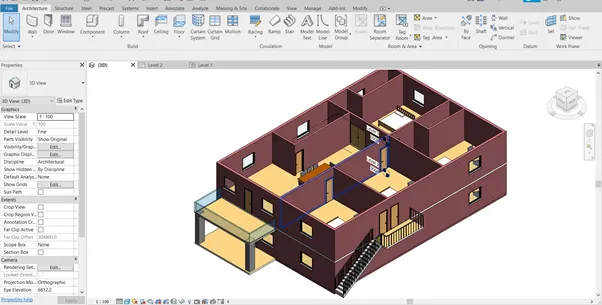

• Place Each Partition Wall to Create Different Rooms
• Create a Patio its where Required
•
• Create Stairs by Clicking on Stair Option From Out Side
•

Result: -

•
•

5.

Aim: -

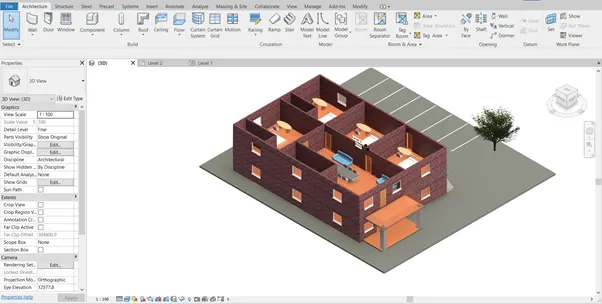

• Adding of Components to the Model

Procedure: -

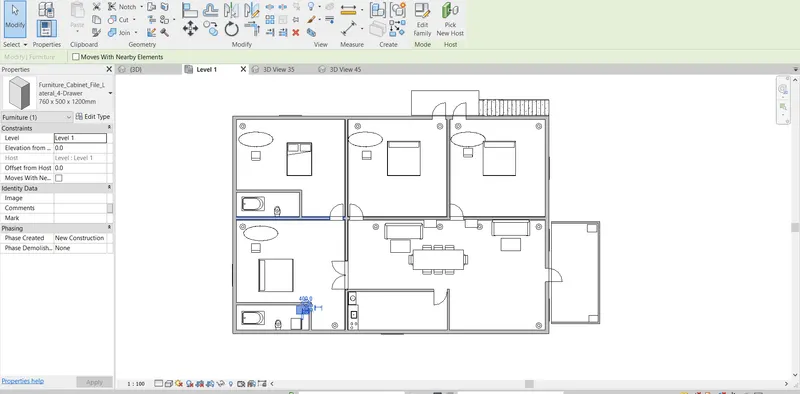

• From the Architectural tab, Click on Door and Create doors from Rooms
• From Architectural tab Click on Windows and Place the Window and Place the Window in all rooms
• The Selected Items Shows the Door and Windows
•

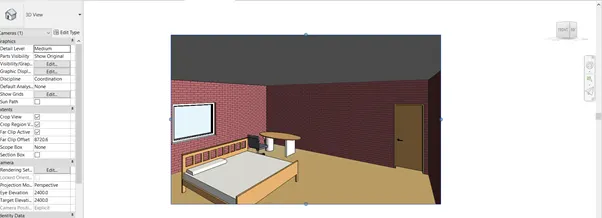

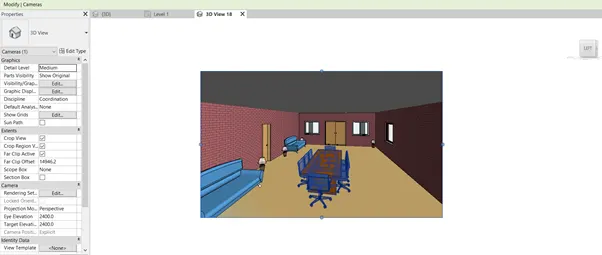

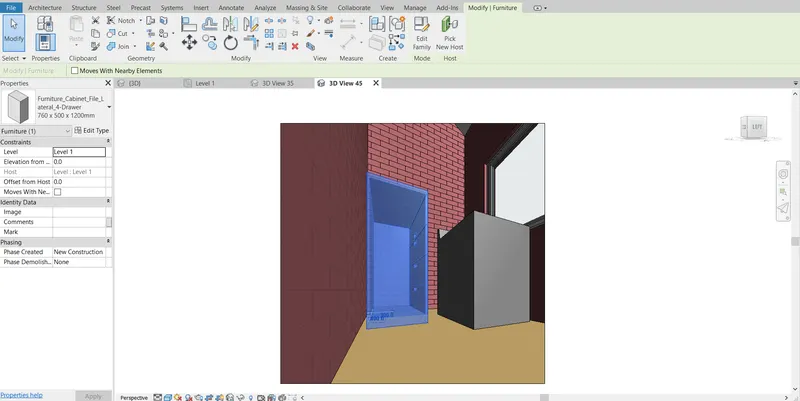

• Place the Camera to Get the Bed Room 3D View
•

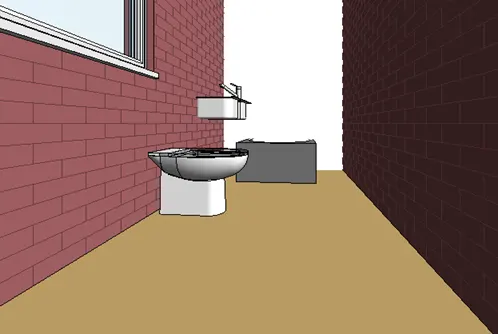

• Place the Camera to Get Rest Room 3D View
•
• Place the Camera to Get the Dining Hall 3D View
•

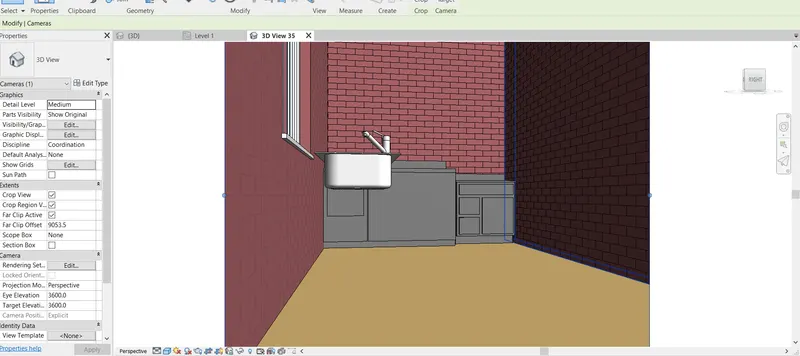

• Place the Camera to Get the Kitchen 3D View
•
•

Result: -

•
•
•
