Creating Walls, Partition walls and Floors for a residential layout using REVIT

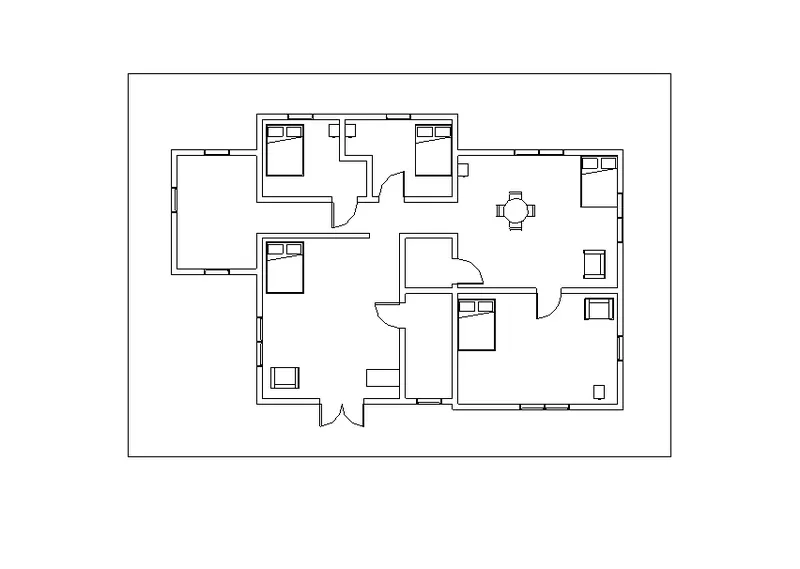

1) Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, use the floor tool under the architecture tab and select the floor with appropriate material and thickness using the property browser to create a layout on the Ground floor Level. Align the floor plan with grids created from week 2

AIM:- To create a floor plan and need to apply the materials and thickness using the property browser.

To align the floor plan with grids created from week 2.

INTRODUCTION:-

• Building material is material used for construction. Many naturally occurring substances, such as clay, rocks, sand, and wood, even twigs and leaves, have been used to construct buildings.
• Apart from naturally occurring materials, many man-made products are in use, some more and some less synthetic.
• Floor plans are the most critical element of your house plans.Drawn to scale and shown from above, floor plans illustrate how rooms, spaces, and physical features work in relation to each other within the home.
• They’re the key documents that show how people will move through the space and interact with their home.
• Floor plans show the extent to which a space will work for its intended purpose.

PROCEDURE:-

Step:-1

• First we select the floor as shown below.

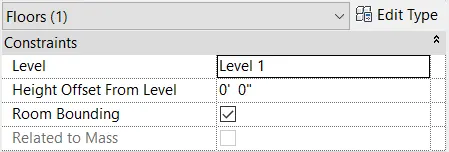

• After selecting the floor, click the edit type from the properties browser, as shown below.

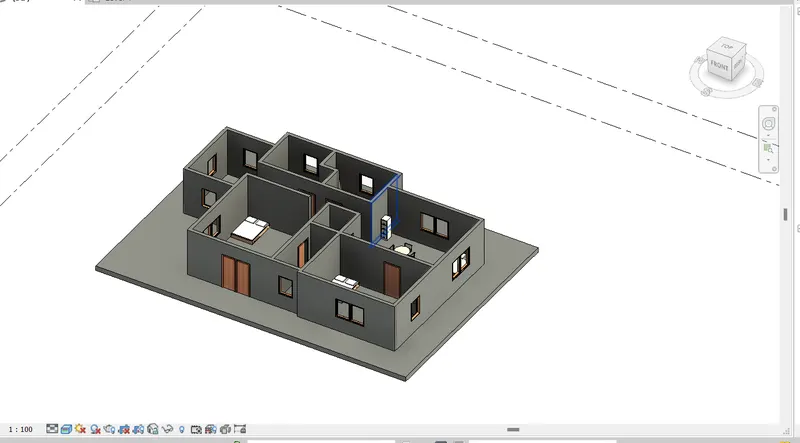

2) Add walls based on the floor layout. Pick lines or use the draw tool to modify the boundary of walls. Use the property browser to select the appropriate material and thickness for walls. After creating the walls verify using the property browser to see if the top and bottom of the walls are constrained.

AIM:- To create a floor plan and need to apply the materials and thickness using the property browser for walls.

Verify using the property browser to see if the top and bottom of the walls are constrained.

Need to undersatand the benefits of connecting walls with associated levels rather than being Unconnected.

Need to know which option is convenient for modeling walls, By Height or By Depth.

INTRODUCTION:-

• Walls are arguably one of the most important elements of any building.
• As such, the Wall Tool is a prominent function of Autodesk Revit Architecture.
• Building material is material used for construction. Many naturally occurring substances, such as clay, rocks, sand, and wood, even twigs and leaves, have been used to construct buildings.
• Apart from naturally occurring materials, many man-made products are in use, some more and some less synthetic.

PROCEDURE:-

Step:-1

• First we select the wall as shown below.

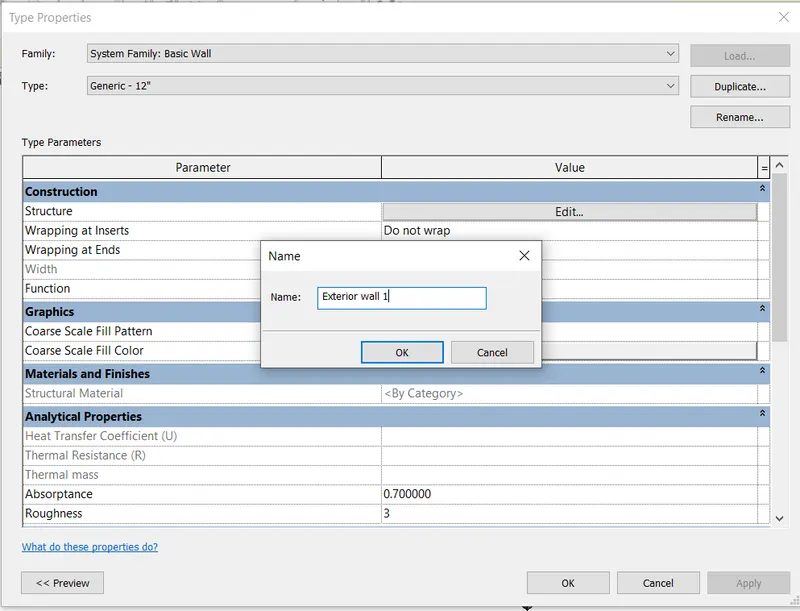

• After selecting the wall, click the edit type from the properties browser, as shown below

Step:-2

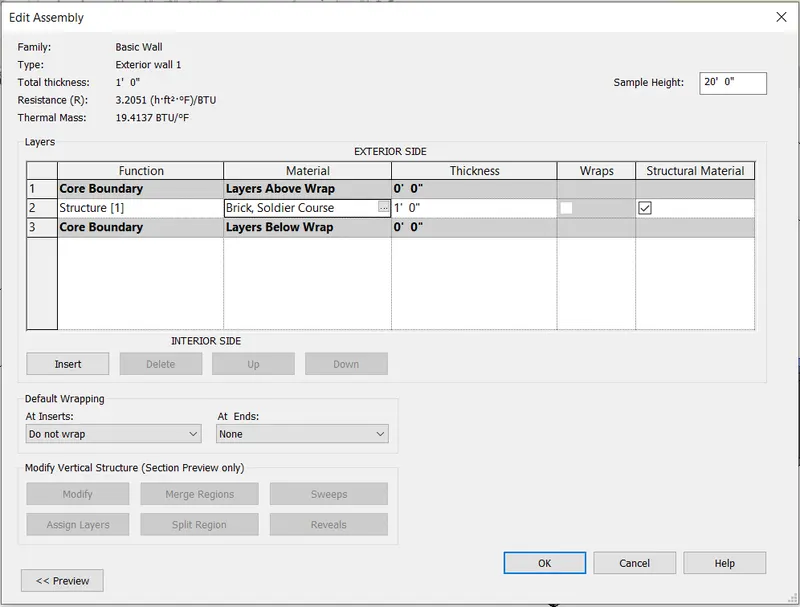

• After clicking the edit option, the edit assembly tab appears.
• We select the material type in 2nd roow as shown below.

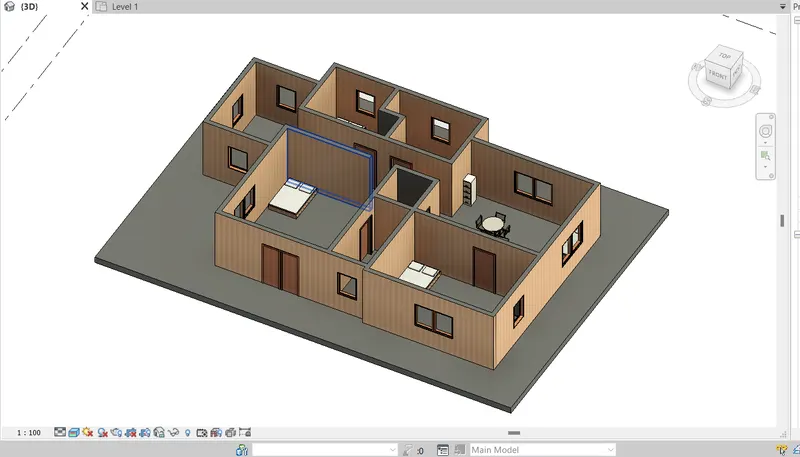

• After clicking that, the material browser appears, then select the material type as Brick, Soldier Course as shown below.

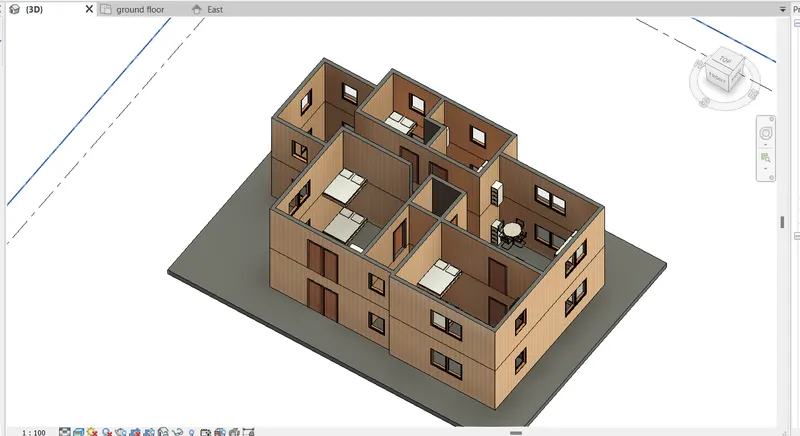

3) Copy the model elements ( wall, floor ) modeled to Ground Floor Level and paste it aligned to First Floor Level. Use modify tab to utilize copy and paste options to align

AIM:- Use modify tab to utilize copy and paste options to align elements to a different level.

INTRODUCTION:-

• Floor plans are the most critical element of your house plans.Drawn to scale and shown from above, floor plans illustrate how rooms, spaces, and physical features work in relation to each other within the home.
• They’re the key documents that show how people will move through the space and interact with their home.
• Floor plans show the extent to which a space will work for its intended purpose.

PROCEDURE:-

Step:-1

• First we select the total groundfloor, then we groundfloor is copied to clipboard.

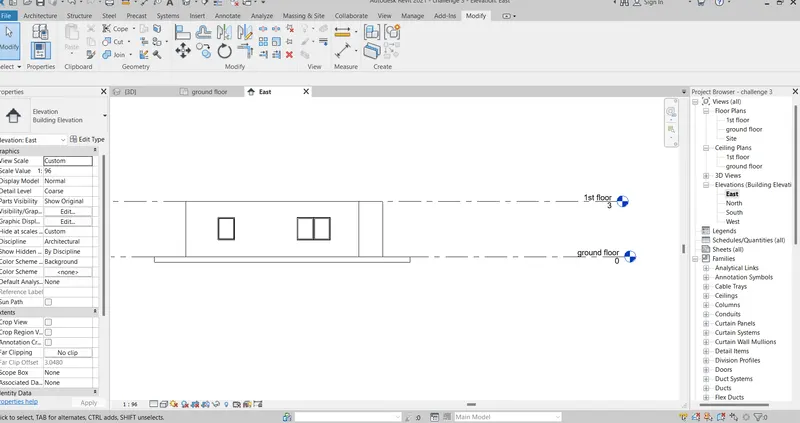

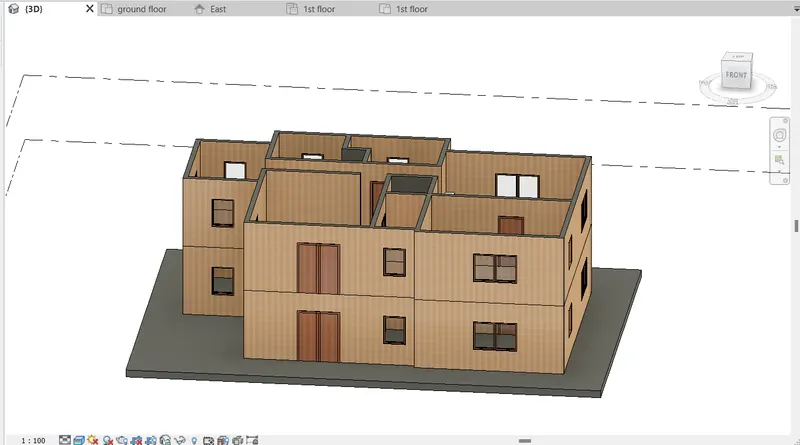

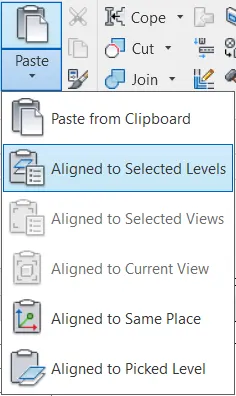

• Then use paste option to align elements to a different level, as shown below.

Step:-2

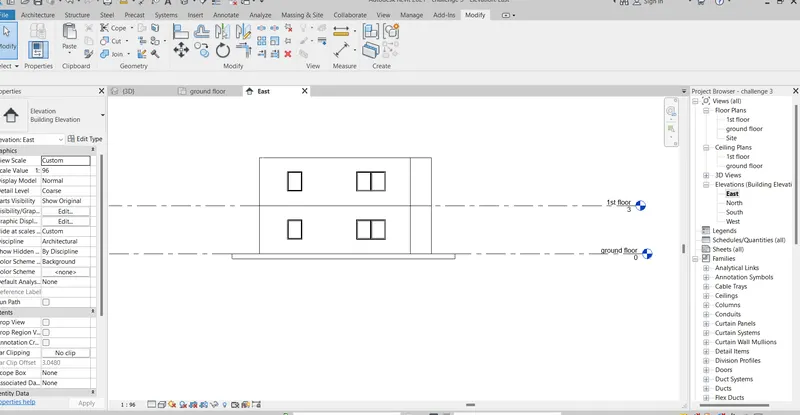

• Next use paste option to align elements to a different level, as shown below.

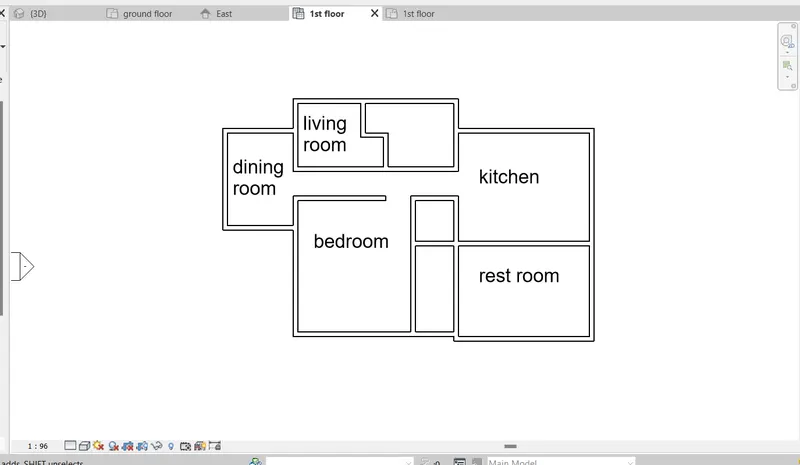

4) Use interior partition walls to create separate rooms within your residential unit. The model must include the following rooms

5) Based on week 2 assignment, the components to be included in a residential unit were inserted to the Revit file. Place these components in appropriate locations to add details to your residential model

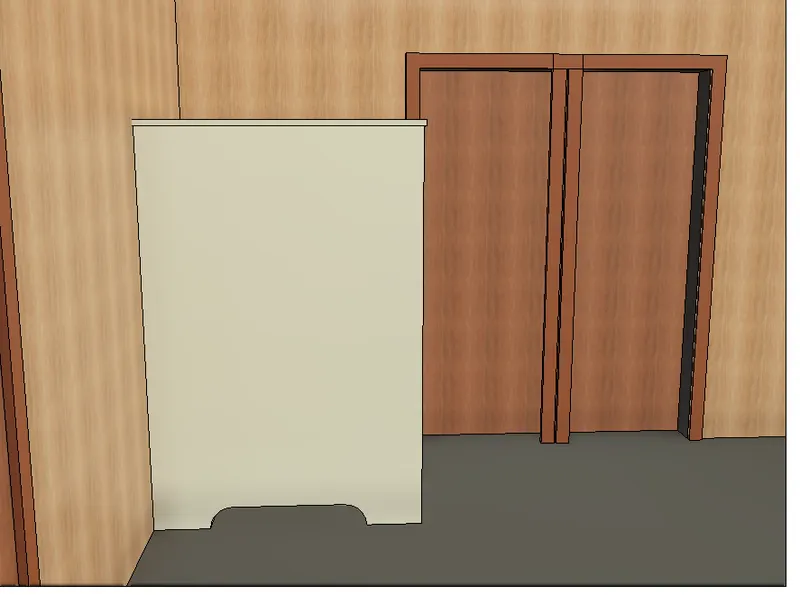

a. Place Doors and windows in the wall at appropriate locations
b. The Living Room must include furniture set, couch table and TV desk and shelf cabinets

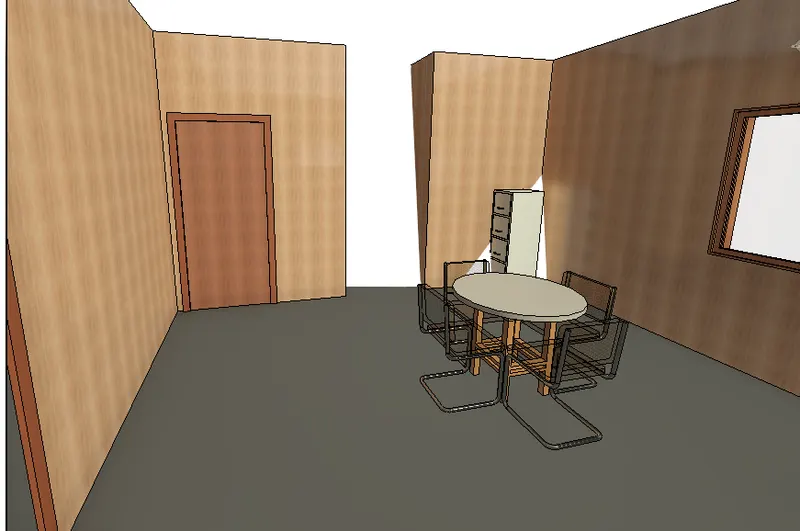

c. The Dining Room must include a table and chairs serving the purpose of eating

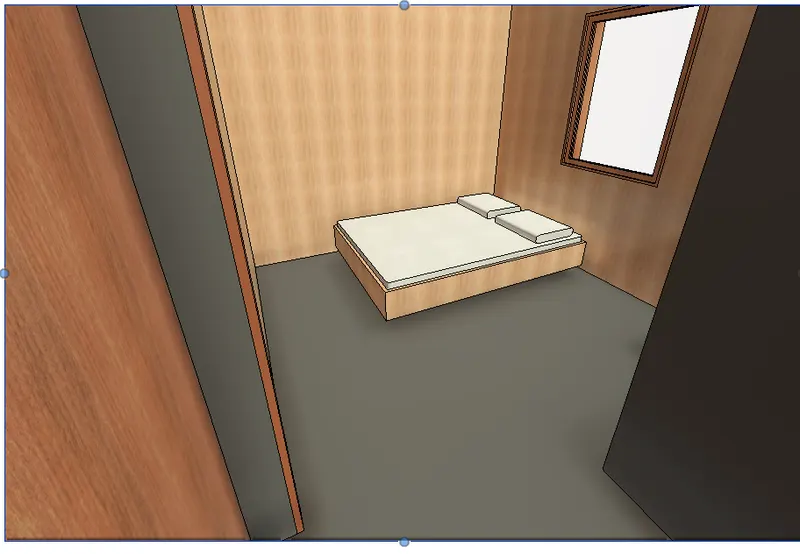

d. Bed Room must include a bed set, shelf, lighting and individual study desk and chair
e. Rest room should include bath tub and plumbing fixtures discussed in class
f. Kitchen should include countertops, gas stove cabinet and shelves to store food items
g. The wash/storage room can include washing machines and shelves to store clothes

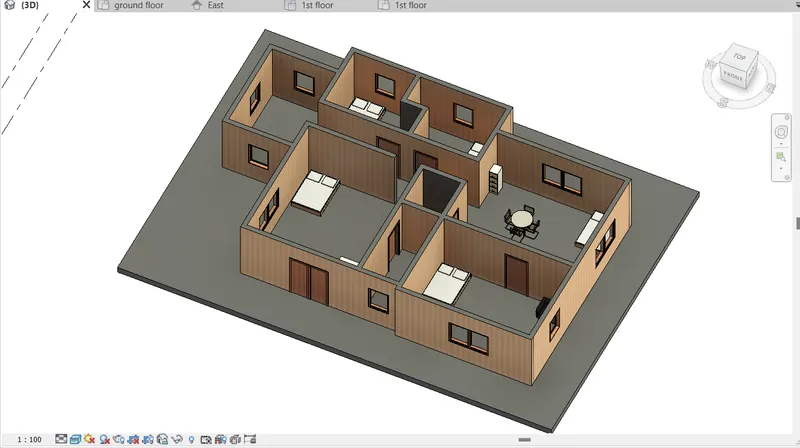

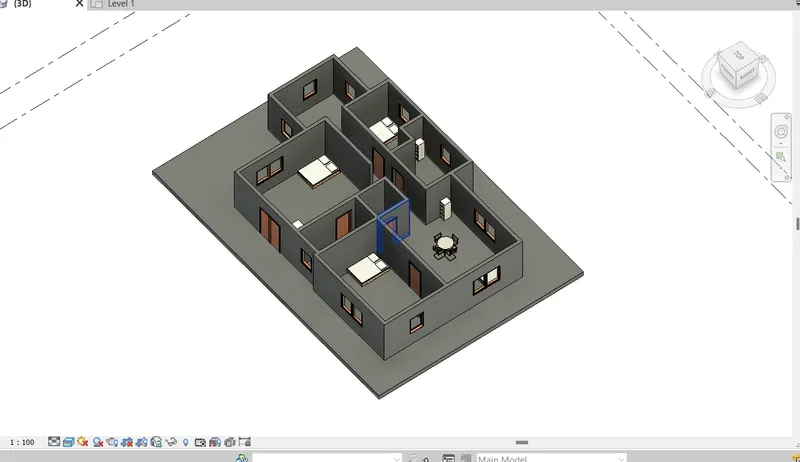

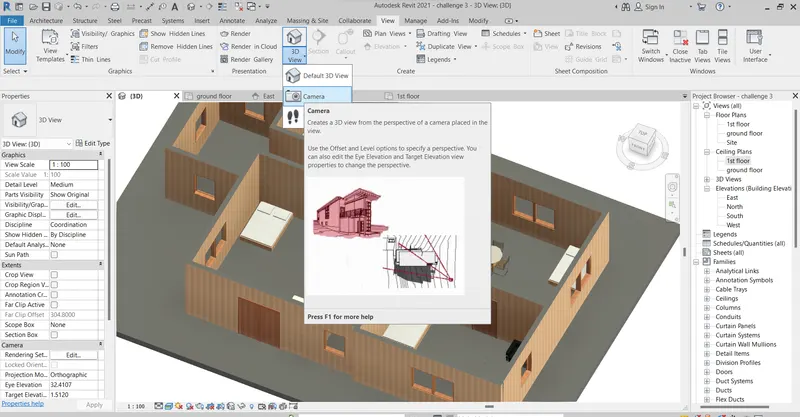

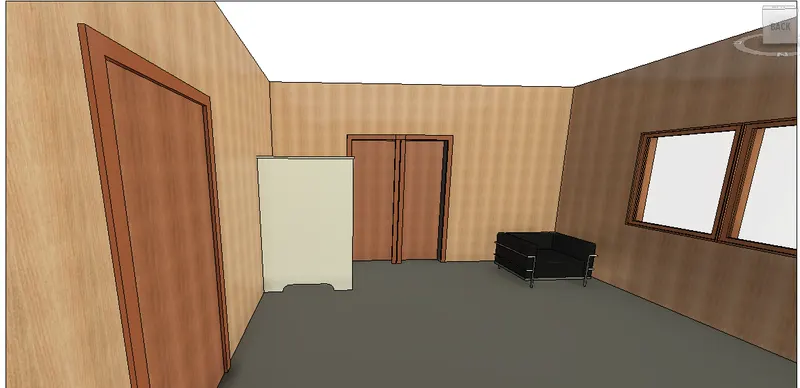

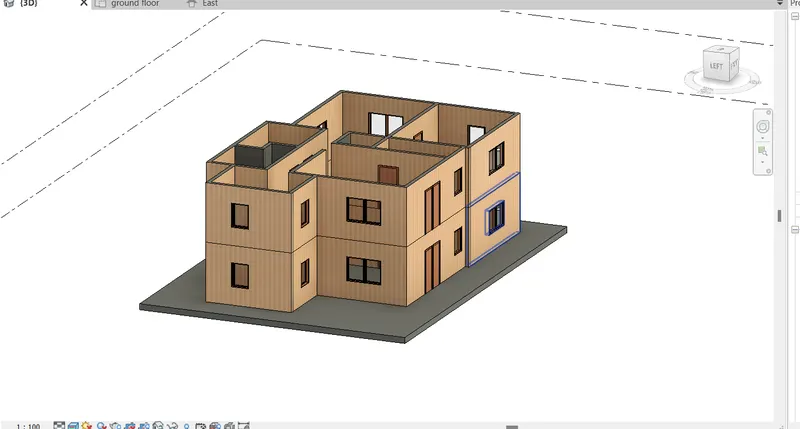

All the components are available in Revit Library. Use them to place at appropriate locations to add details to your model. Use 3D navigation to check the model and its authenticity on a real time basis to verify the model

AIM:- To insert the components in appropriate locations to add details to the residential model, based on the week 2 assignment.

INTRODUCTION:-

• The residential model components are furniture set, couch table, TV desk, shelf cabinets, bed set, shelf, lighting, individual study desk, chair, bath tub and plumbing fixtures discussed in class.
• These components are very important in the building model for construction.
• Comming to the 3d modeling in the revit, these components are present in the library and we need to insert them into the model.
