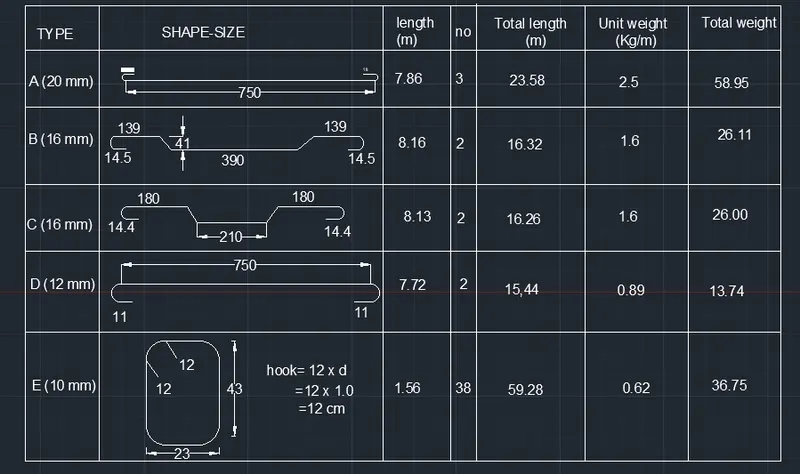

Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

MManoranjan Kumar Ranjan9 May 2023

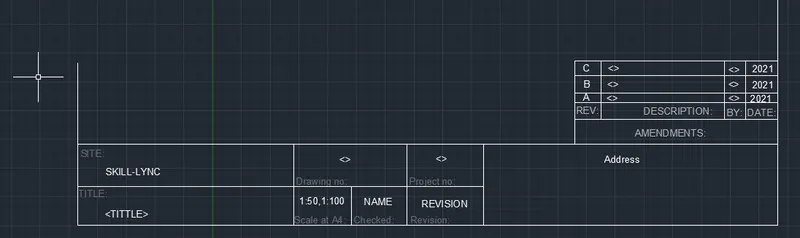

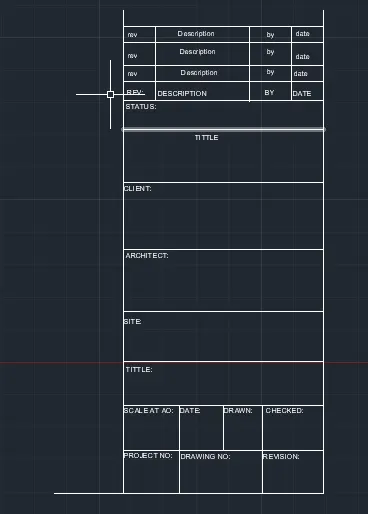

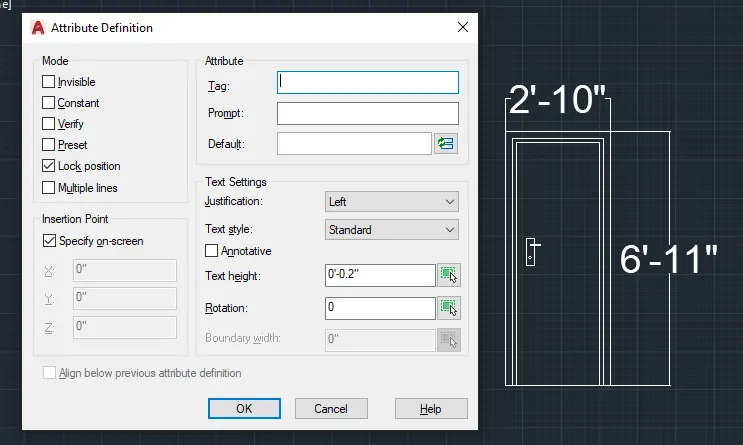

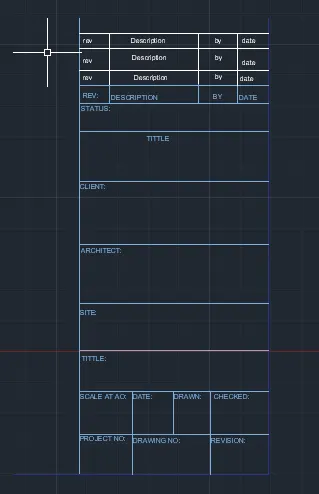

1. Create the templates as shown in Figures. Take the size of the title block as per industry standards or you can assume it as per the size of the paper. Use text and attributes wherever required. After creating the title block you need to save it as a block with names: Custom1_titleblock and Custom2_titleblock, respectively.

AIM:

To Create Custom1_titleblock and Custom2_titleblock using Attributes and block command from Autocad software .

PROCEDURE:

Step 1 ( custom1_tittleblock)

In the command prompt type L to draw the lines
In ribbon tab > Annotate > Mtline ( to draft the text )
go to properties tab to change the colour

STEP 2 (custom2_tittleblock)

In the command prompt type L to draw the lines
In ribbon tab > Annotate > Mtline ( to draft the text )
go to properties tab to change the colour

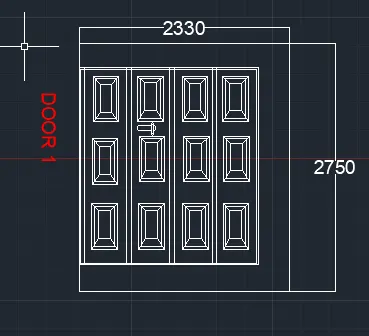

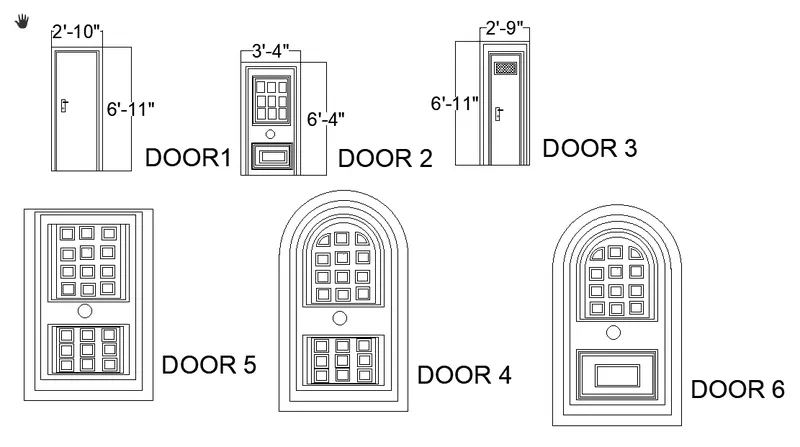

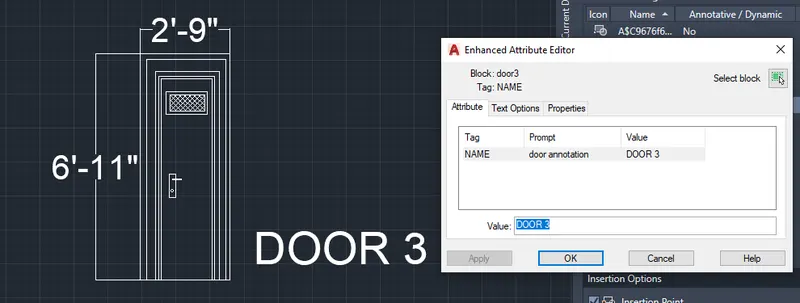

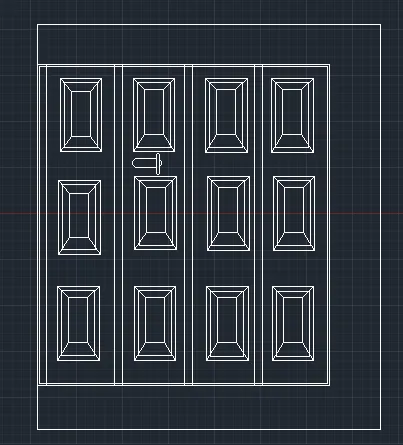

2. Create the doors type for warehouse as shown in the Figure. You need to create each door type as per standard size or given dimensions. Create the blocks of this door type after creating them.

AIM:

To create the doors type for warehouse and to also create the block of this door type after creating them using AutoCAD

PROCEDURE:

step 1:

In the command prompt type the units > mm
In the command prompt type the limax > 100,100
In the command prompt type the limits >0,0

step 2 :

In the command prompt type l to draft the lines
In the command promt type rec to draft the boxes or rectangle
In the command prompt type fillet to get the curve edges

In the ribbon bar > dimensions ( to give the dimensions of the door )
In the ribbon bar > annotation > text ( to give the text for the door )

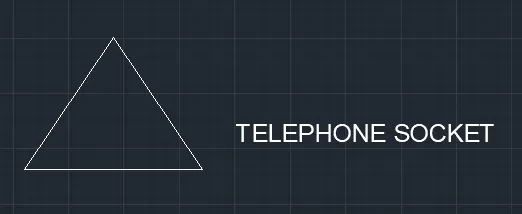

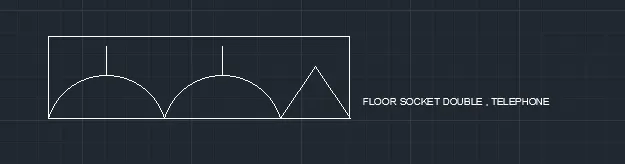

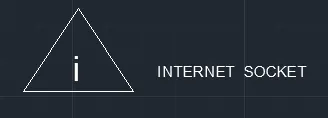

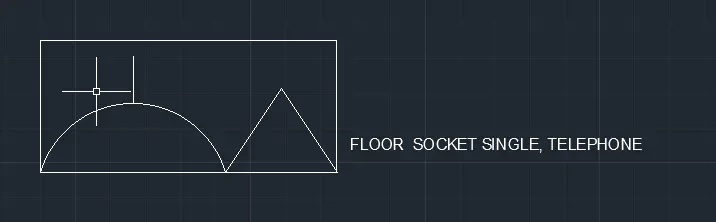

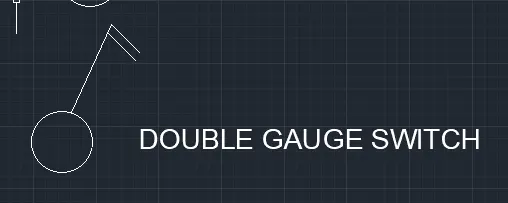

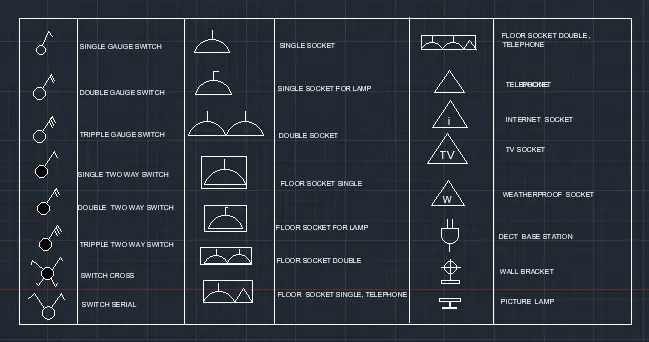

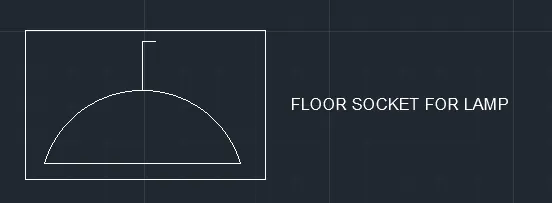

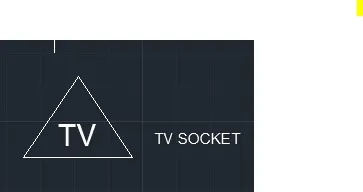

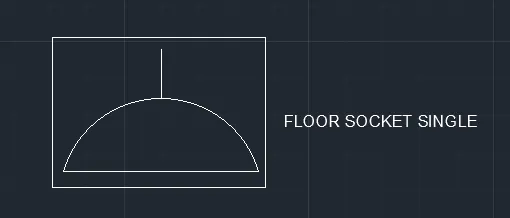

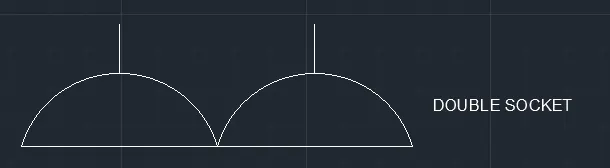

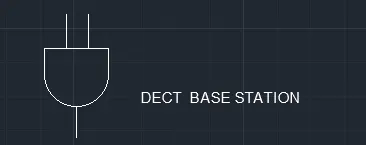

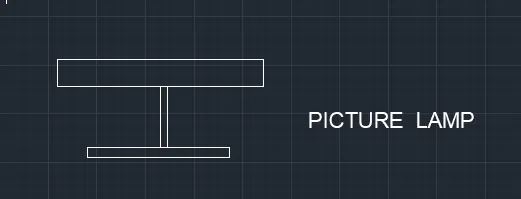

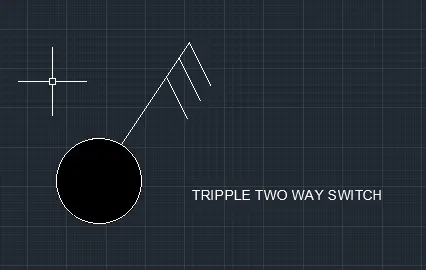

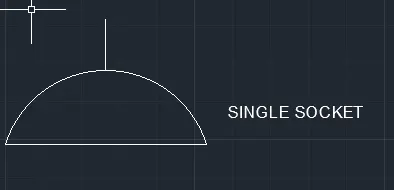

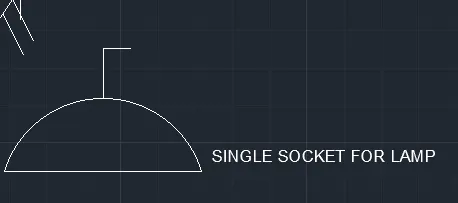

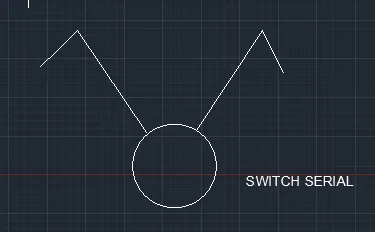

3. Create each symbol as a block with the name given in the legend. After creating the blocks arrange them in the legend as shown in the Figure.

same commands and procedure are followed for all the symbols

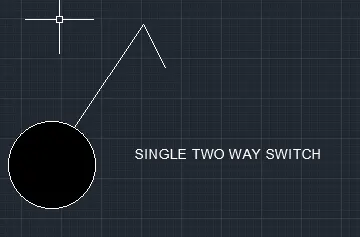

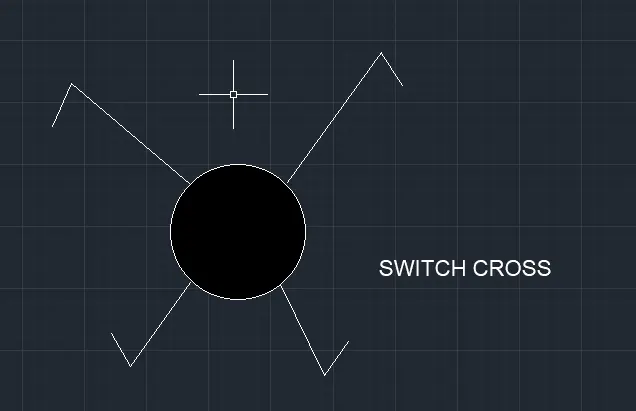

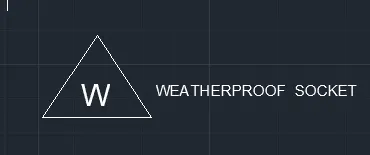

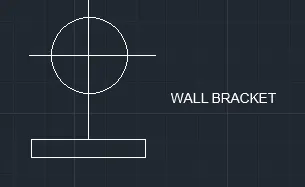

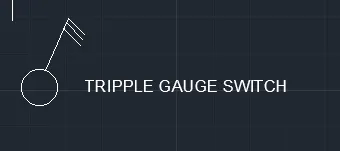

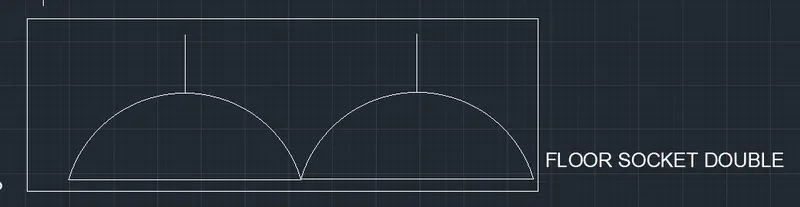

In the command prompt type l to draw the lines
In the command prompt type arc to draw the arc
In the command prompt type Mtext

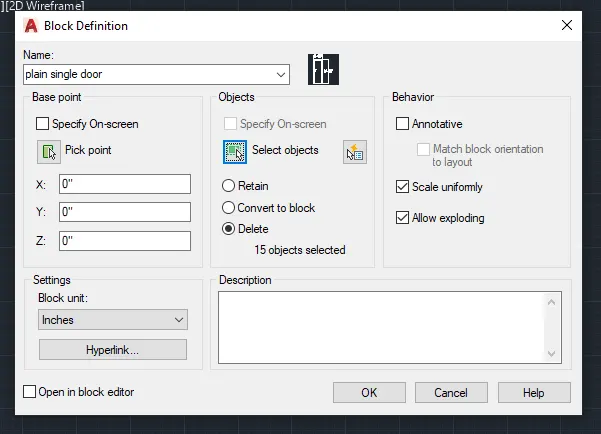

In the ribbon bar > block>create block

In the command prompt type l to draw the lines
In the command prompt type Mtext
In the ribbon bar > block>create block

In the command prompt type l to draw the lines
In the command prompt type fillet to get the curves
In the command prompt type Mtext
In the ribbon bar > block>create block

In the coomant prompt type I to insert the blocks

FINAL RESULT :

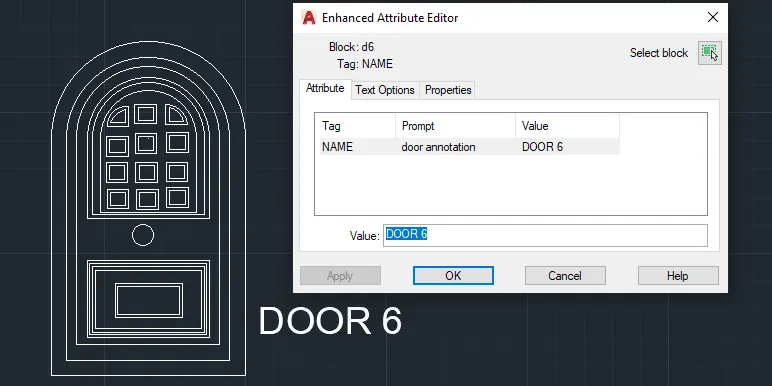

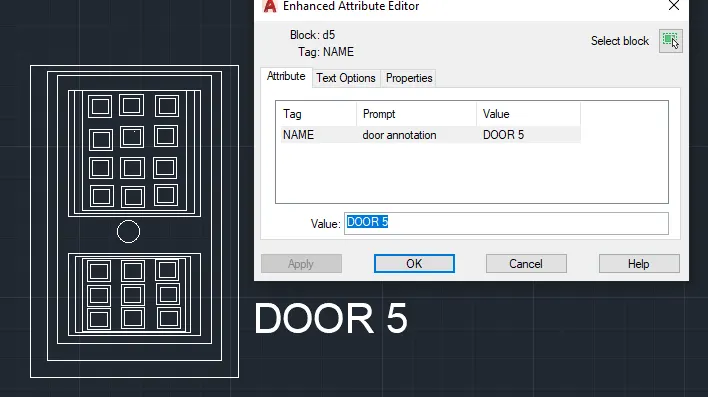

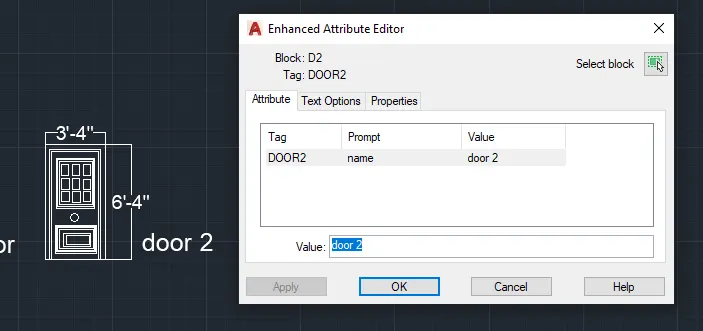

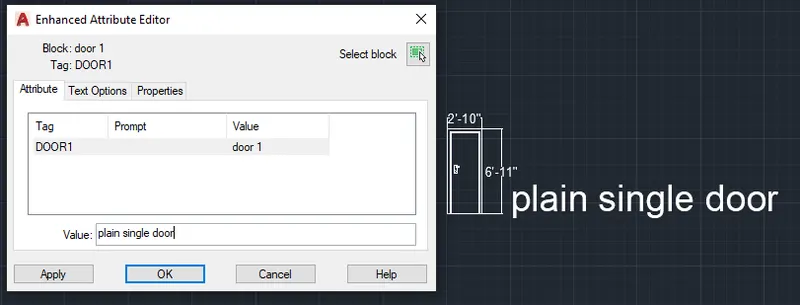

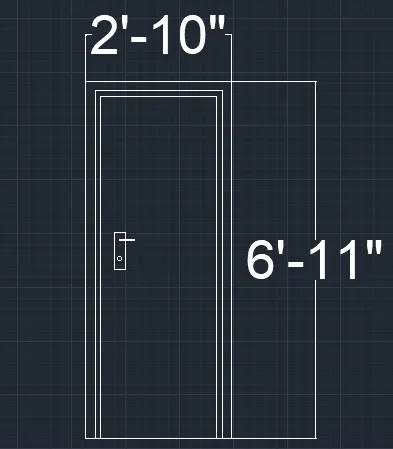

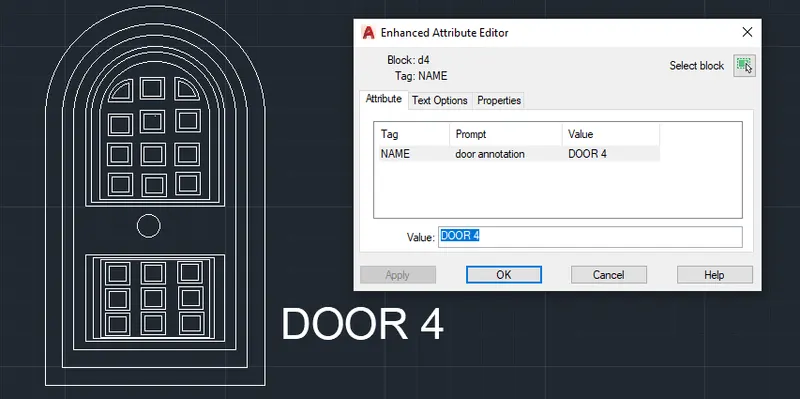

4. Create the door type for residential building as a block. Save the name of the blocks as type. Use given dimensions or assume dimensions as per industry standards.

AIM:

To Create the door type for residential building as a block .

PROCEDURE:

step 1:
