Creating Walls, Partition walls and Floors for a residential layout using REVIT

1.ANS

AIM: creating the floor of residential building

procedure:

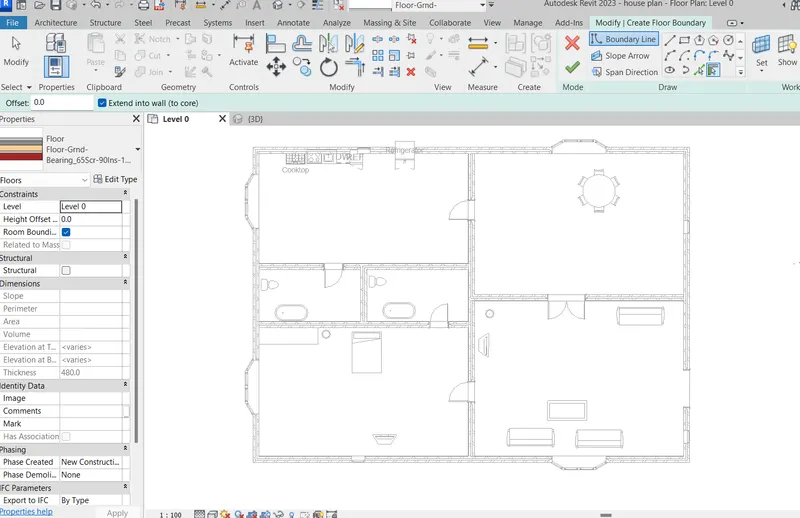

select the floor tool in architecture tab and select boundary line as rectangle and drawn the floor thickness is 200mm

material is given the wood cherry assigned

2.ans

AIM: adding the walls on given layout using Revit architecture plan

procedure:

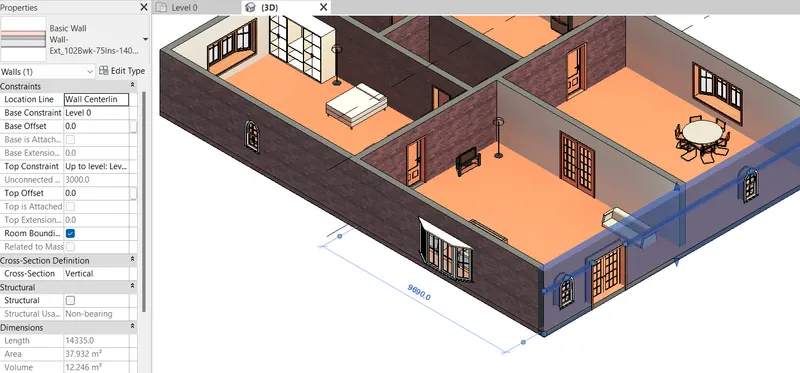

select the wall and type is set and drawn the walls with thickness of

3.ANS

AIM: Creating the multiple levels of residential building

procedure:

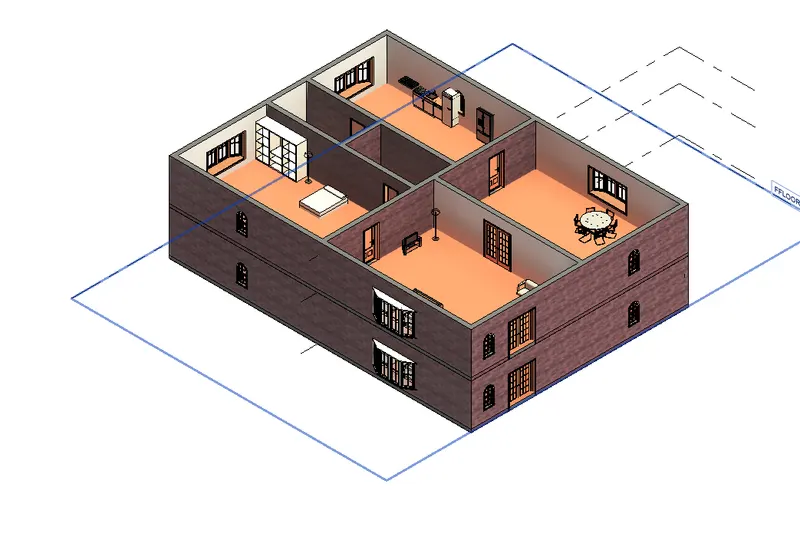

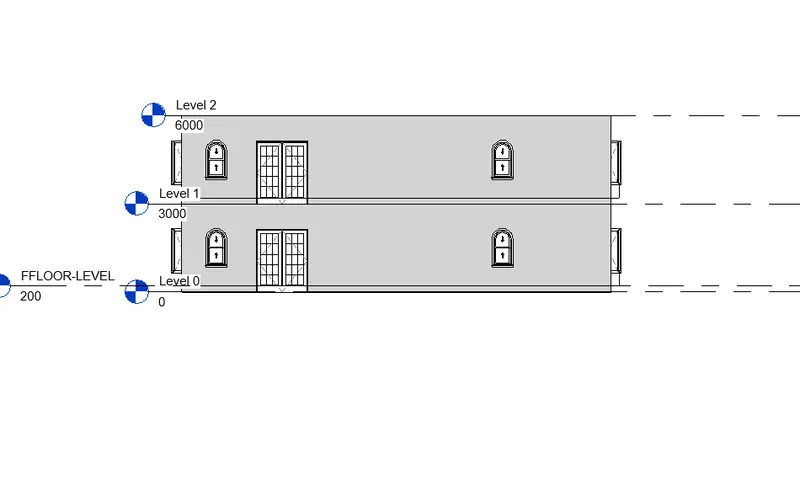

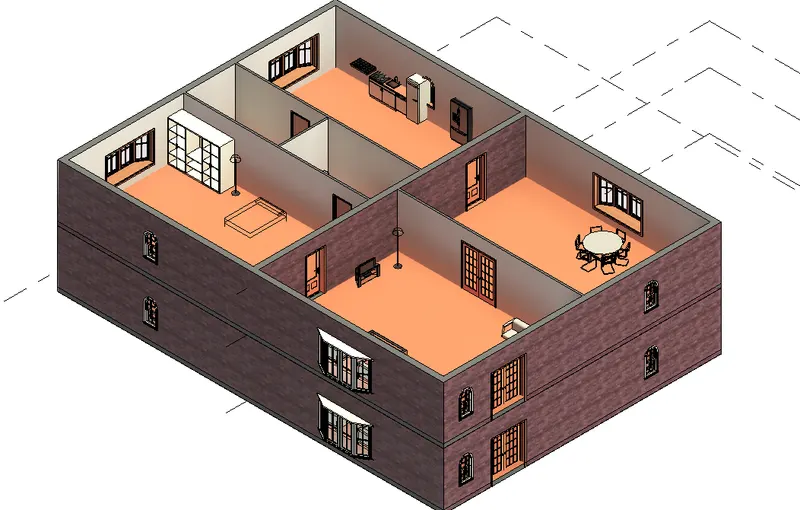

select entire object and copy to the clipboard and paste the aligned levels

4.ANS

AIM: creating the partitions walls of kitchen, living-room, bathroom etc...

procedure:

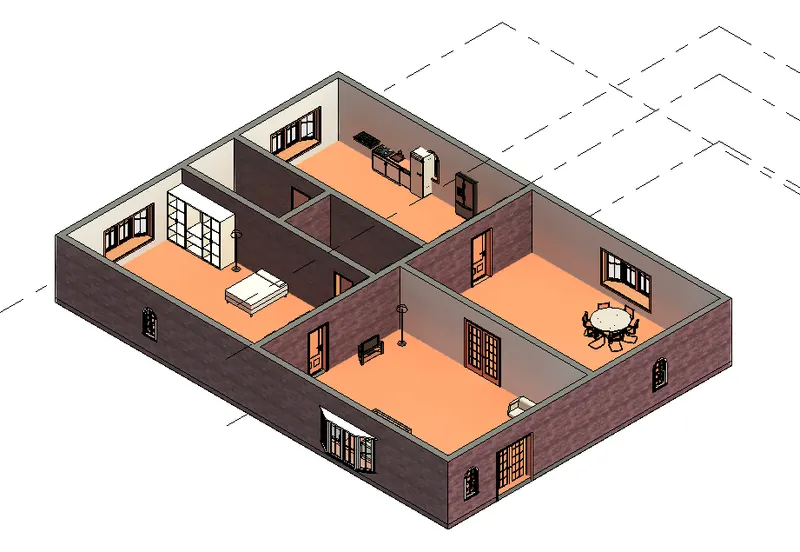

select the wall type and create the duplicate wall walls as partitions wall thickness is 150mm and drawn

5.ans

aim: placing the families of furniture and kitchen sofa tables washroom closets etc....

procedure:

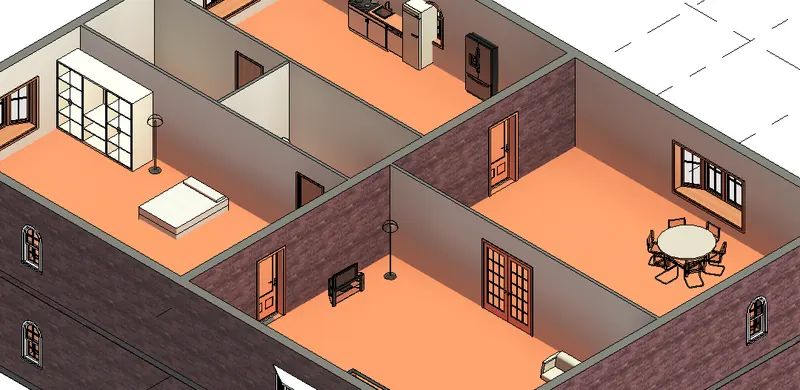

select the insert tab and load the Autodesk family select the required one open

select the model place and select the property browser in furniture and placed
