Challenge

Creating Walls, Partition walls and Floors for a residential layout using REVIT

AAmeerudeen M14 Aug 2022

1) Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from week 2

Aim:

To create a flooring in the Architectural toolbar tab and give the floor material in the week 2 layout model using the Revit software

Introduction:

Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from week 2

Procedure:

In this challenge I am using the layout of the model in the week 2 challenge created layout
And I added the some components of the building using the Components toolbar in the Architectural tab

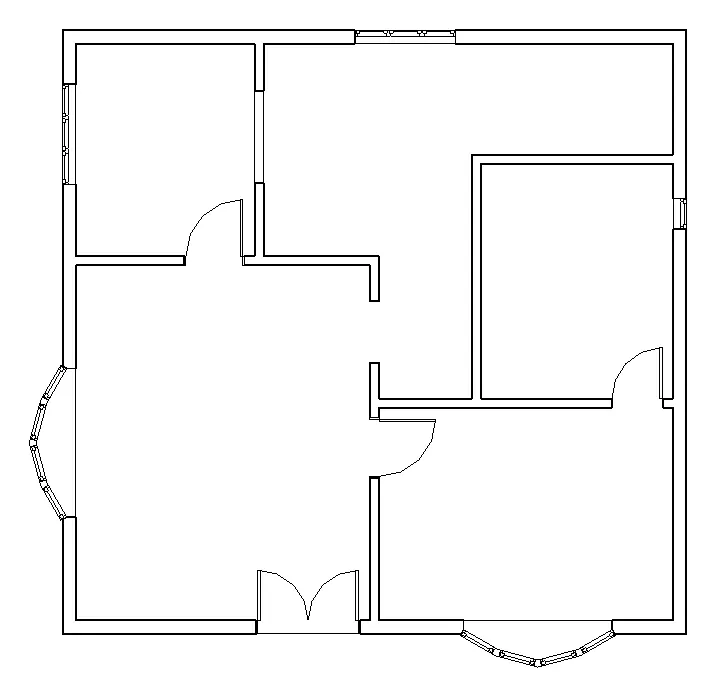

The 2D & 3D view of the layout is created as shown in below figures

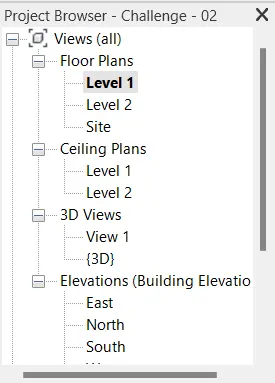

And go to Project browser tab then select the Level 1 floor plan view

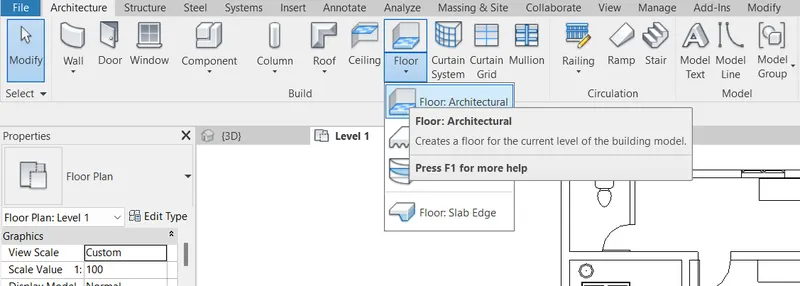

Then select the Floor: Architectural tool in the Architecture tab

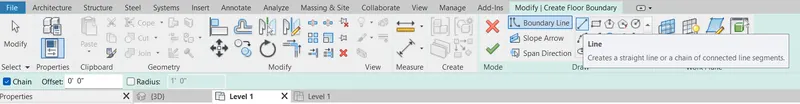

Next select the Line option in the Modify tab
And create floor out line in the Level 1 floor plan

Here, after draw the floor out line is completed
Then select the Tic option in the Modify tab

Finally the floor is created using the Floor option in the Architecture tab

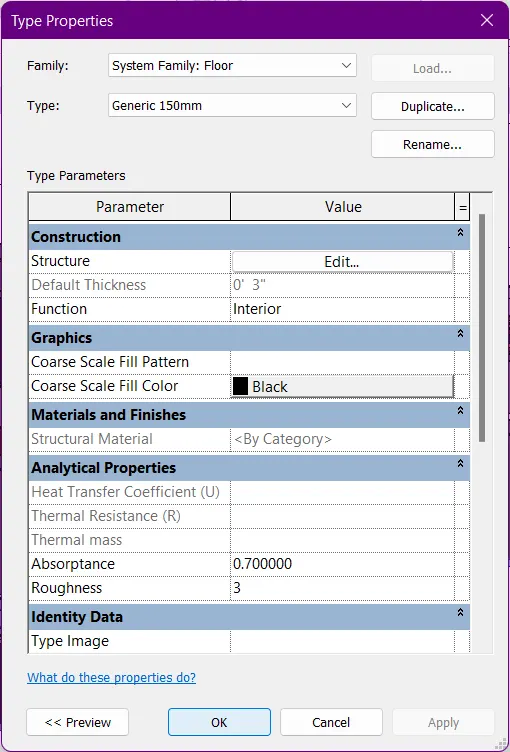

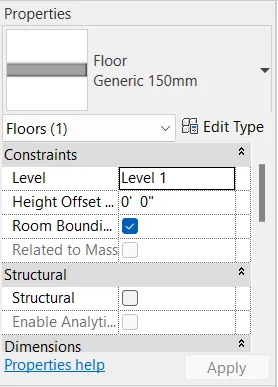

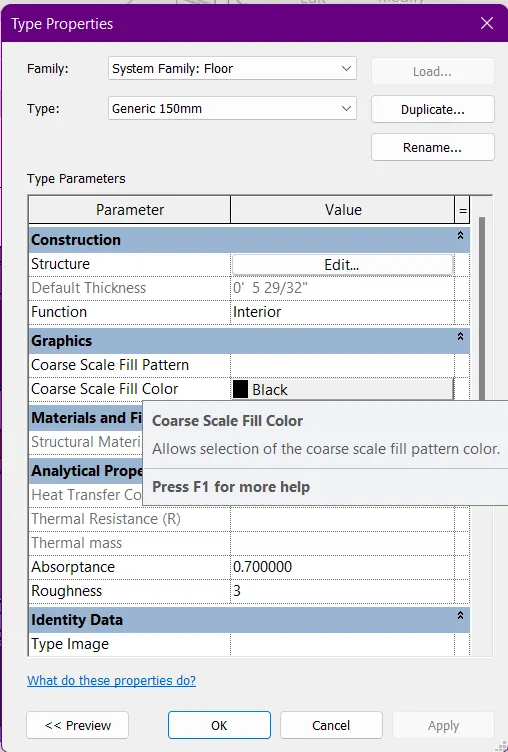

Then select the Edit Type option in Properties tab

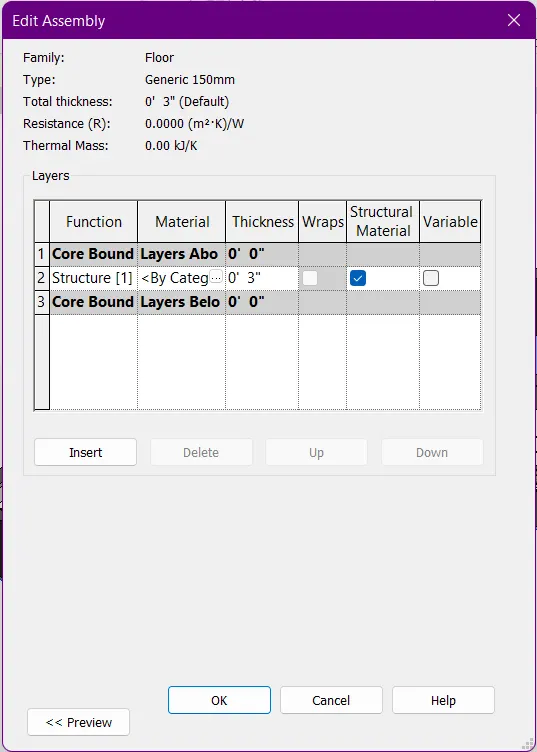

And click Edit option

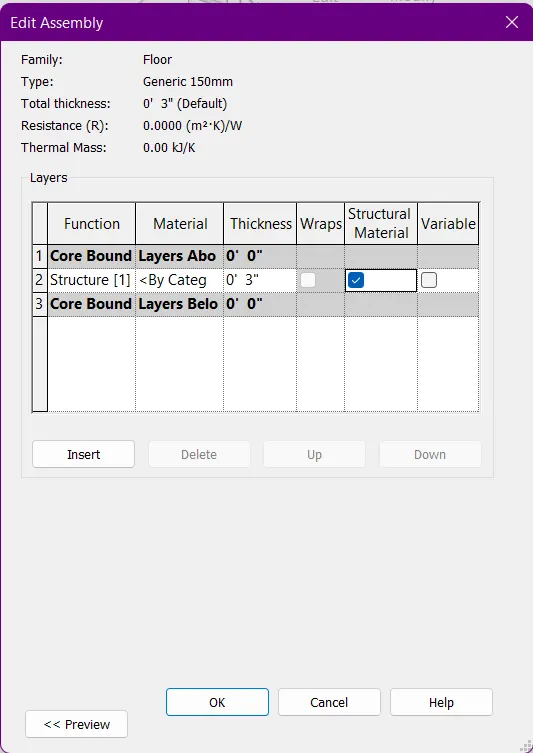

Then give a floor thickness is 3"

And click OK button, Then click Apply button and again click OK button
The floor is change in 3 inches as shown in below figure

Here, I have to givea flooring material using the Properties tab and click Edit type option
And select the By Categies option

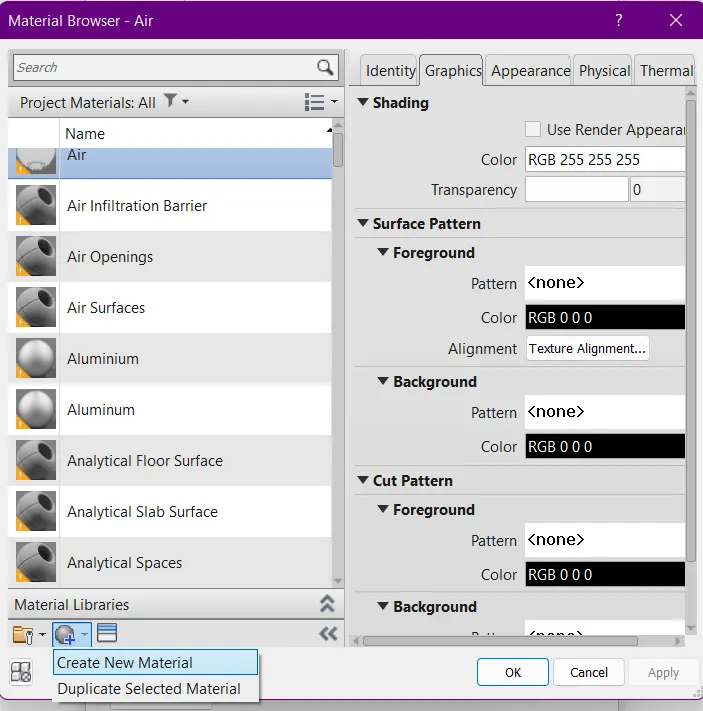

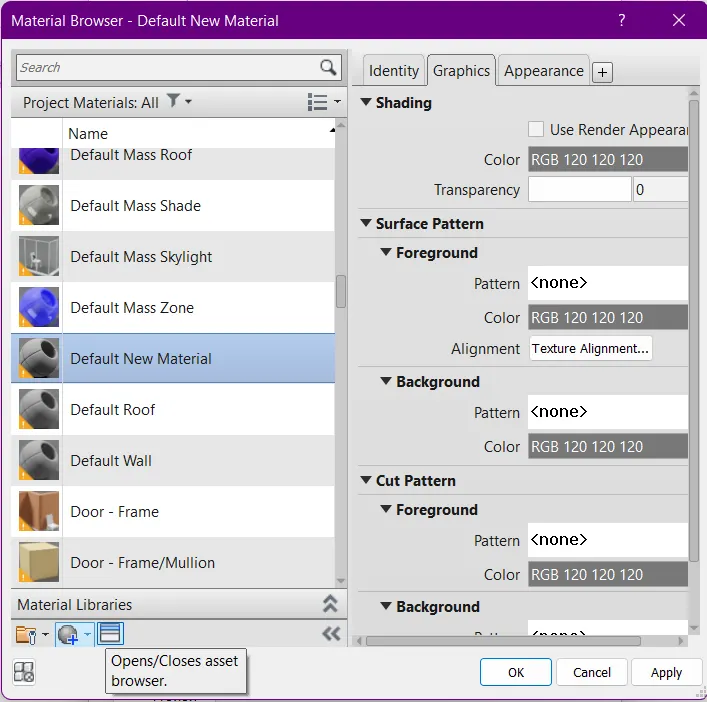

Then click Create New Material then click Open/Close asset browser option in the Material Browser dialogue box

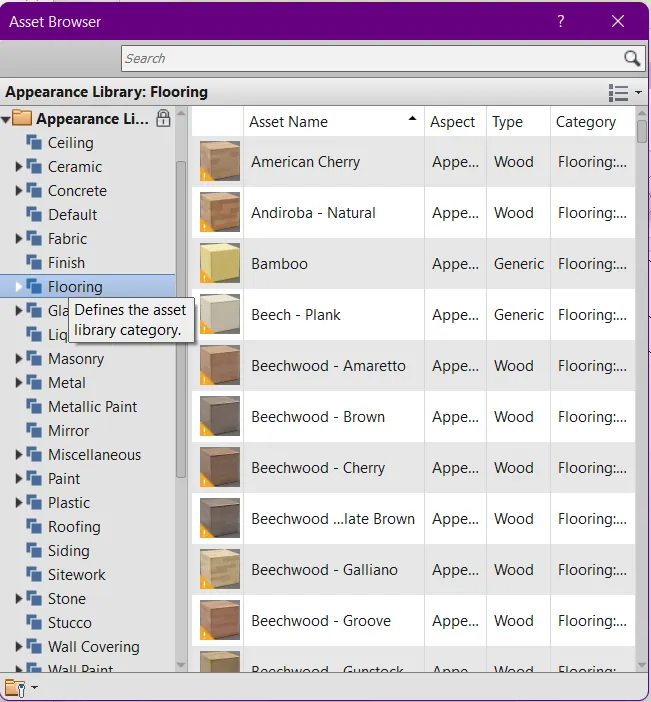

And select the Appearance Library in the Asset Browser dialogue box

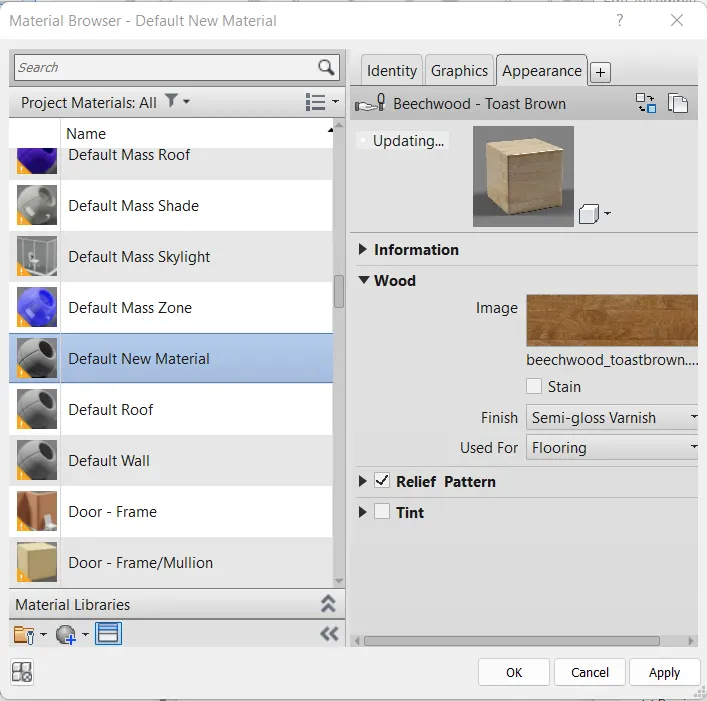

Select Flooring option and select Beechwood-Toast brown flooring
And then double the flooring material

After that click Apply button and select Ok button
Then finally the flooring material is assigned to the created generic floor
The floor is created as shown in below figure

After that finally take the screenshots in where I want to submit the images for questions
The snipping tool shortcut is Windows Key+Shift+S
Then copy the images and attach in the writing pad

Result:

The creation of a flooring in the Architectural toolbar tab and give the floor material in the week 2 challenge layout model using the Revit software is created successfully

2) Add walls based on the floor layout. Pick lines or use the draw tool to modify the boundary of walls. Use the property browser to select appropriate material and thickness for walls. After creating the walls verify using the property browser to see if the top and bottom of the walls are constrained.

a. Based on your observation, what is beneficial for connecting walls with associated levels rather than being Unconnected
b. Which option is convenient for modeling walls, By Height or By Depth?

Aim:

To understand the creation of walls and modifying the wall properties in the Properties browser tab in week 2 challenge model layout using the Revit software

Introduction:

Add walls based on the floor layout. Pick lines or use the draw tool to modify the boundary of walls. Use the property browser to select appropriate material and thickness for walls. After creating the walls verify using the property browser to see if the top and bottom of the walls are constrained.

Procedure:

First select the any of the wall in created model
Then click the Edit Type option in the Properties tab

And select the material of the wall as I want

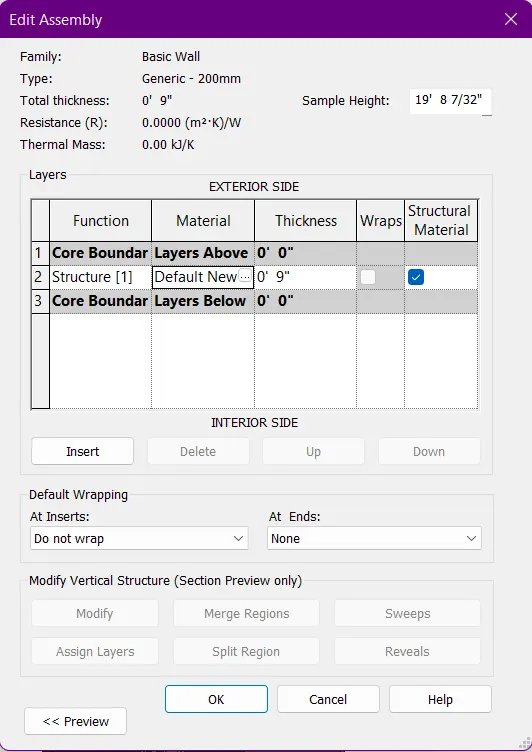

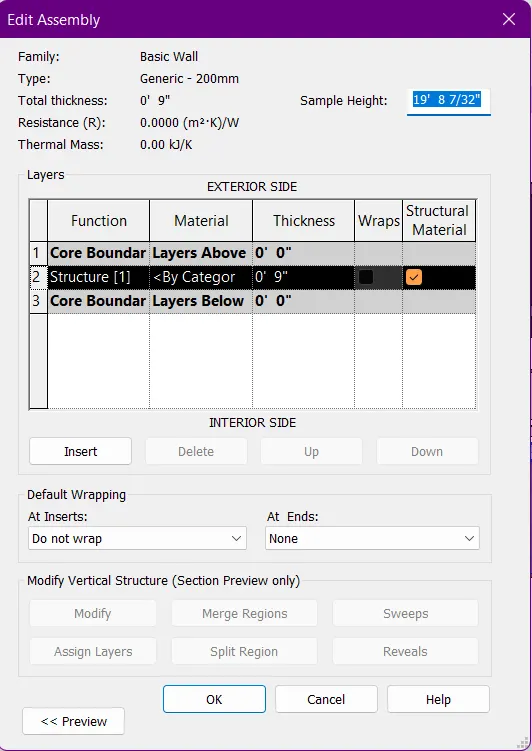

Click By Categories in the Edit Assembly dialogue box

After that select Create New Material option and select the Open/Close asset browser option in the Material Browser dialogue box

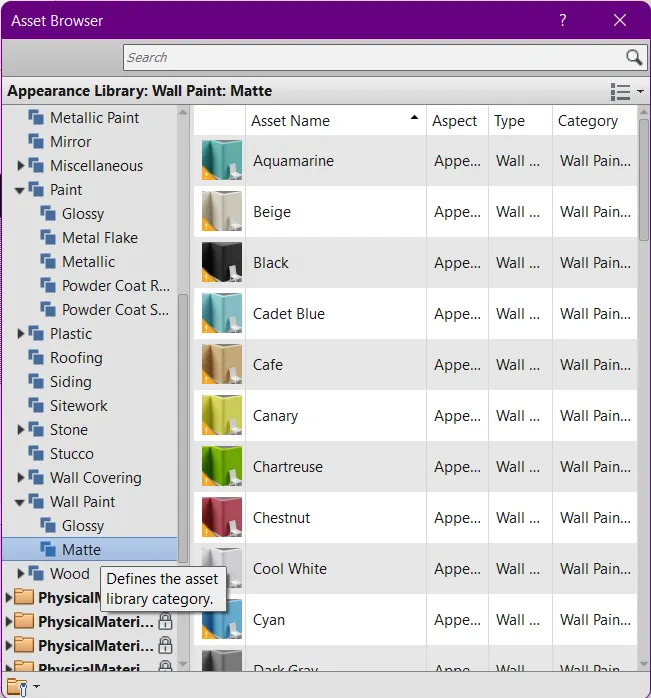

And select the Appearance Library in the Asset Browser dialogue box

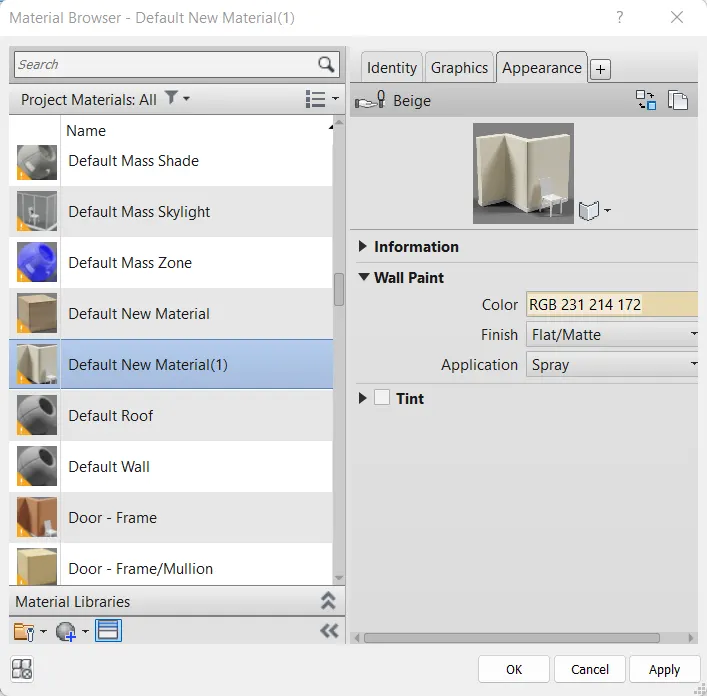

Select Wall paint & Matte option and select Beige flooring
And then double the wall paint material
Click OK button and click Apply & again OK button

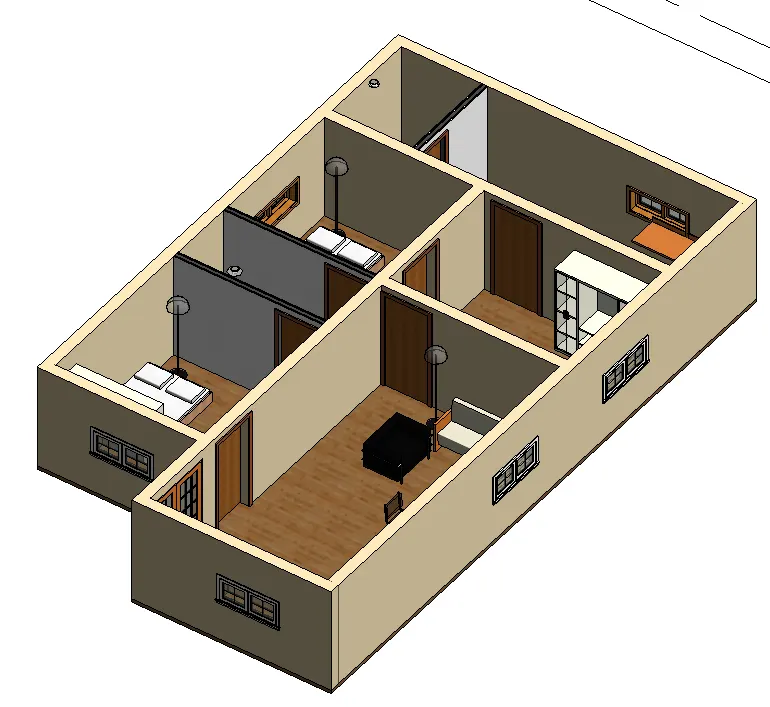

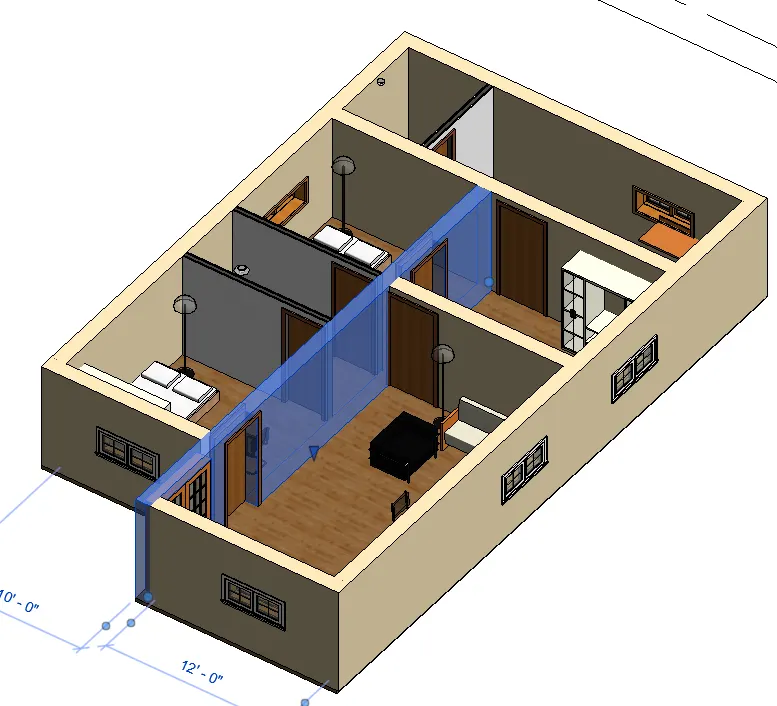

After that the building walls are as shown in below figure

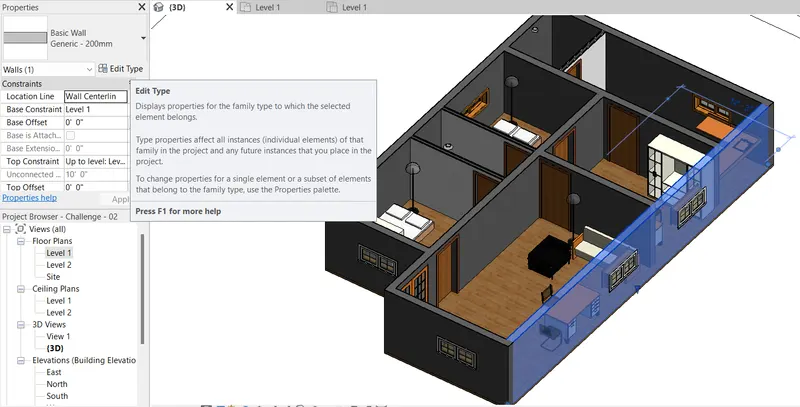

After complete this process, then select any of the wall in the building model

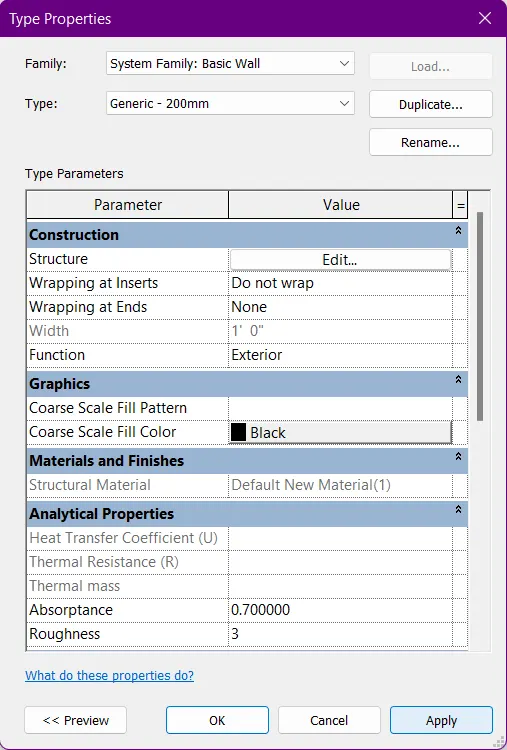

And again click Edit Type option in the Properties tab

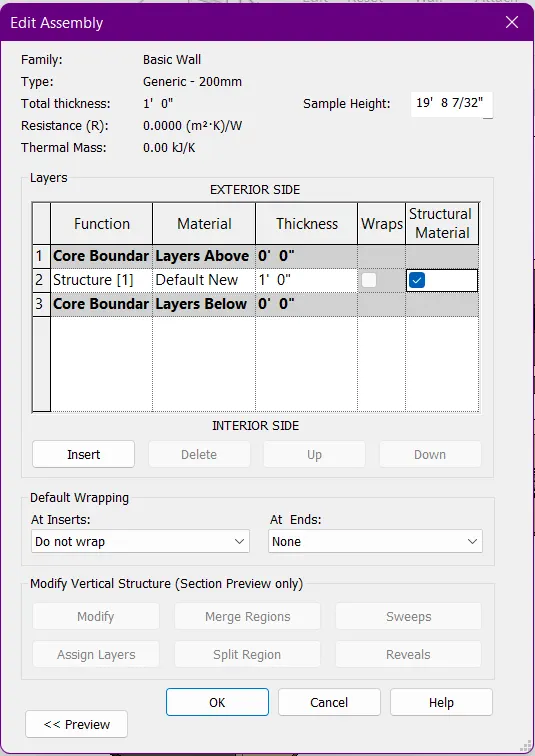

Then edit the wall thickness is 1 feet
Click OK button and Appy and again click OK button

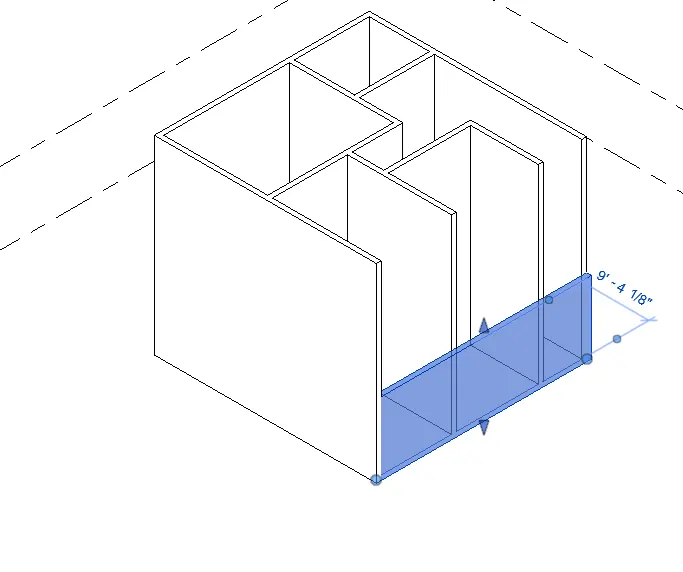

After change the wall thickness is as shown in below figure

After that finally take the screenshots in where I want to submit the images for questions
The snipping tool shortcut is Windows Key+Shift+S
Then copy the images and attach in the writing pad

a. Based on your observation, what is beneficial for connecting walls with associated levels rather than being Unconnected

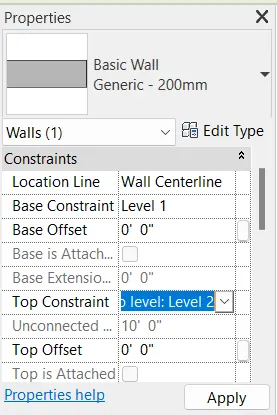

The connecting of walls using the Properties tab select the Top constraint to the Level 2
The unconnected height is gave automatically in 20 feet
But, here I have already created the Levels in the Project file using the Levels option in Architecture tab

b. Which option is convenient for modeling walls, By Height or By Depth?

My convenient is by Height method of modeling the wall

Result:

The understand of the creation of walls and modifying the wall properties in the Properties browser tab in week 2 challenge model layout using the Revit software is completed successfully

3) Copy the model elements ( wall, floor ) modelled to Ground Floor Level and paste it aligned to First Floor Level . Use modify tab to utilize copy and paste options to align elements to a different level

Aim:

To understand the process of Copy the model elements ( wall, floor ) modelled to Ground Floor Level and paste it aligned to First Floor Level in the Revit software

Introduction:

Copy the model elements ( wall, floor ) modelled to Ground Floor Level and paste it aligned to First Floor Level . Use modify tab to utilize copy and paste options to align elements to a different level

Procedure:

First of all select the model drawing, all components of the buildign such as walls, floor and other fixtures
Then go to the Modify tab

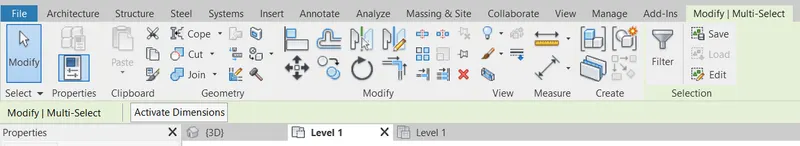

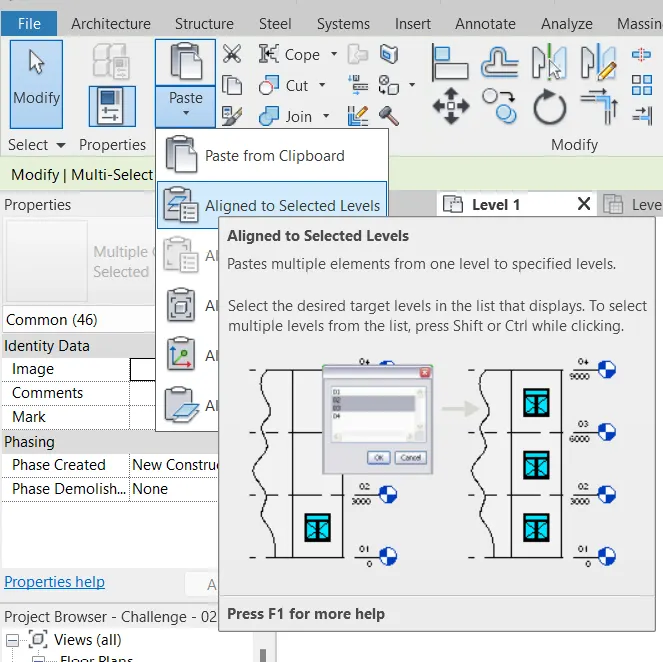

The Modify tab is as shown in below drawing

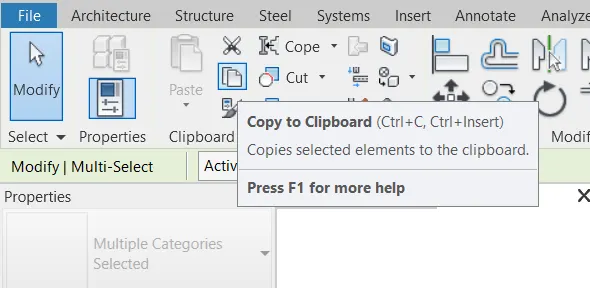

And select the Copy to Clipboard option in the Modify tab
Then select the Paste option

After that select the Aligned to Selected Levels in under the Paste option
Then select the next level of the building is Level 2
And click OK button

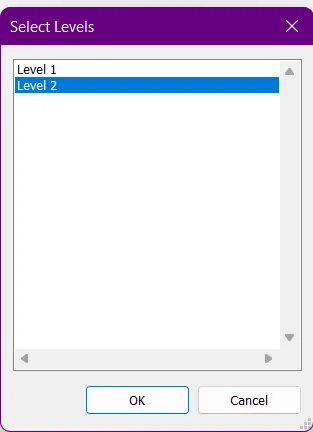

The selected level dialogue box as shown in below figure

The process of the copy the layout is finished

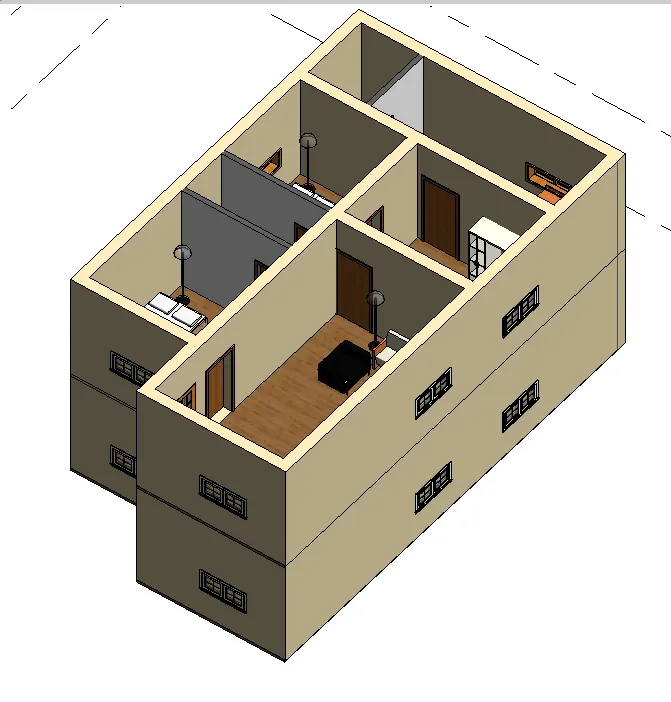

After finish the progress the building is as shown in below figure

After that finally take the screenshots in where I want to submit the images for questions
The snipping tool shortcut is Windows Key+Shift+S
Then copy the images and attach in the writing pad

Result:

The understand of the process of Copy the model elements ( wall, floor ) modelled to Ground Floor Level and paste it aligned to First Floor Level in the Revit software is created successfully

4) Use interior partition walls to create separate rooms within your residential unit. The model must include the following rooms

a. Living Room/ Drawing Room ( 15’ X 18’)
b. Dining Room (9’ X 11’)
c. Bed Room ( 9’ X 12’ and 15’ X 11’)
d. Rest Room ( 10’ X 12’ )
e. Kitchen (8’ X 10’)

The above are for examples. You can use them or use your measured entities to create your model based on your layout. You may include entry walkway, Patios or Guest rooms based on your creativity and purpose of modeling. Convert units if you are using metric system

Aim:

To create a residential unit with using the dimensions as given in the question in Revit software

Introduction:

Use interior partition walls to create separate rooms within your residential unit. The model must include the following rooms

a. Living Room/ Drawing Room ( 15’ X 18’)
b. Dining Room (9’ X 11’)
c. Bed Room ( 9’ X 12’ and 15’ X 11’)
d. Rest Room ( 10’ X 12’ )
e. Kitchen (8’ X 10’)

Procedure:

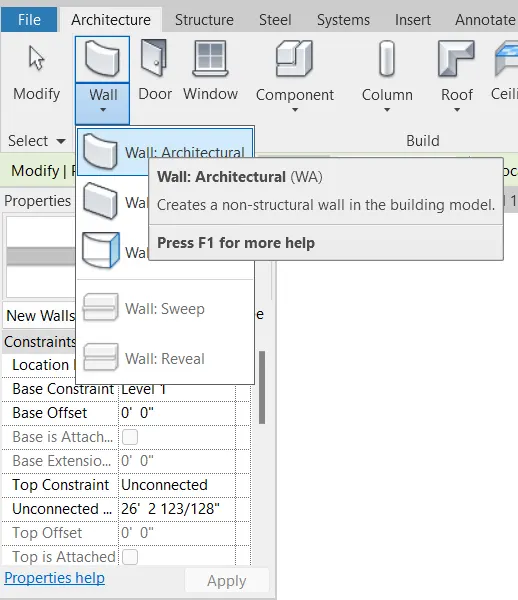

I am create the walls using the Wall: Architectural option in under the Architecture tab
Select the wall and start to draw the building layout

Then draw the building plan by refer the given datas in the question

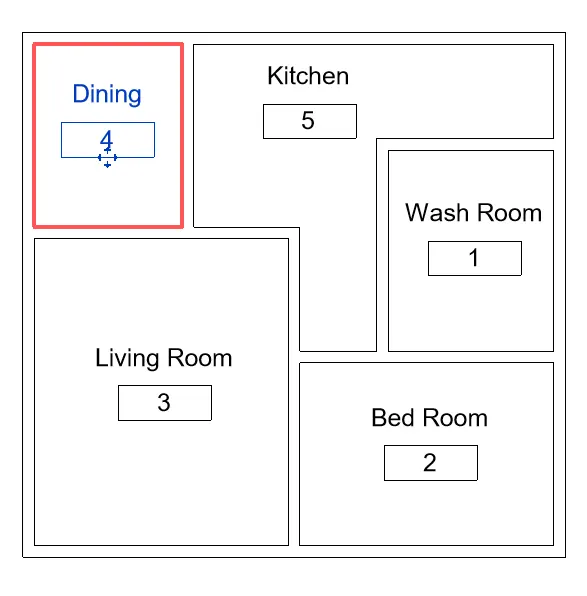

Then mark the areas like 1,2,3,...
And give a room name of the building as Living room, etc.

Select the Wall and Go to Properties tab and then give the wall height
Select the Top constraint is Level 2
Use the Match Property (MA) command to match the all walls in a one height

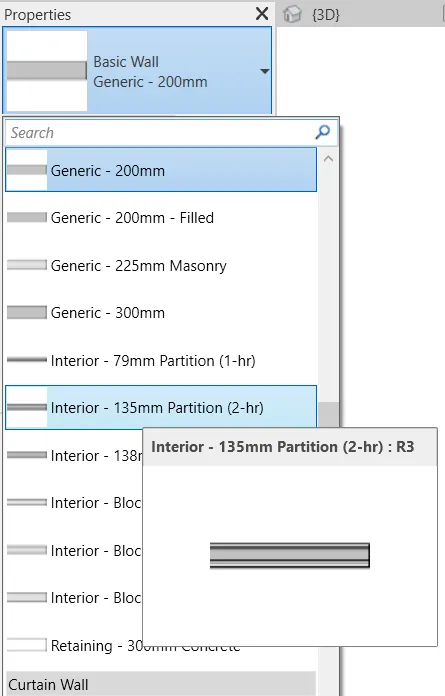

And create the partion wall using the Interior - 135mm Partition and create the wall

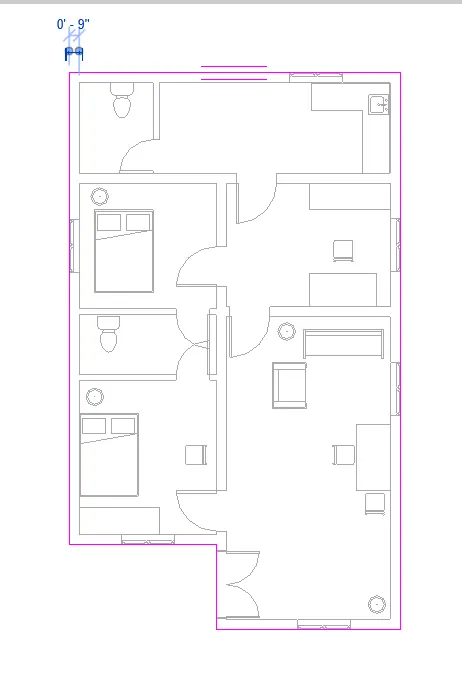

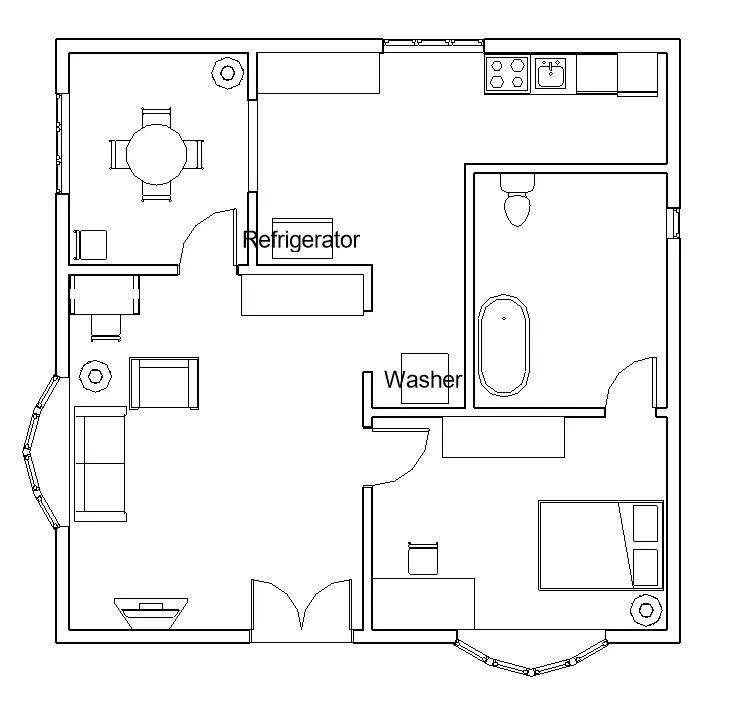

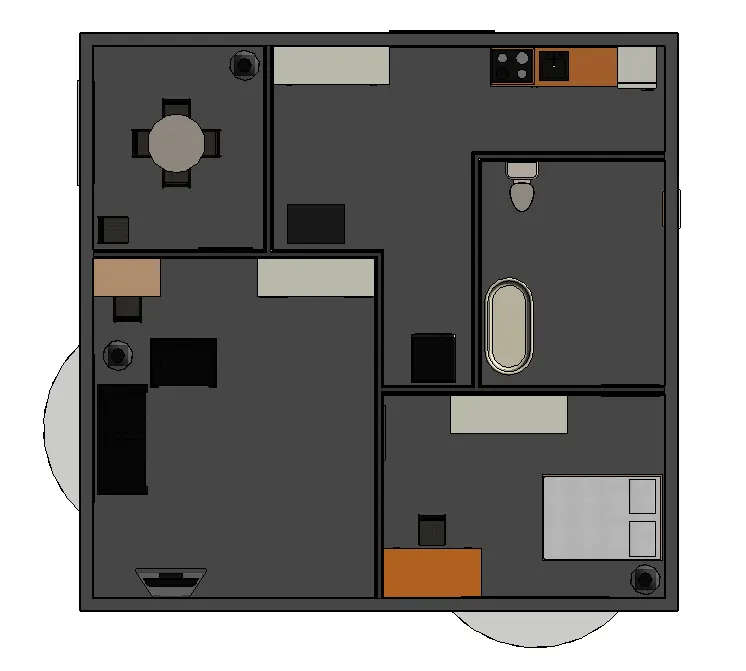

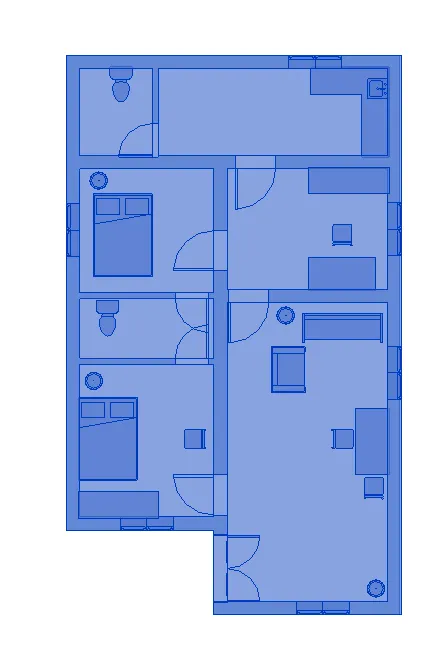

After that the plan is finished as given in the question

After that finally take the screenshots in where I want to submit the images for questions
The snipping tool shortcut is Windows Key+Shift+S
Then copy the images and attach in the writing pad

Result:

The creation of a residential unit with using the dimensions as given in the question is created in Revit software successfully

5) Based on week 2 assignment, the components to be included in a residential unit were inserted to the Revit file. Place these components in appropriate locations to add details to your residential model

a. Place Doors and windows in the wall at appropriate locations
b. The Living Room must include furniture set, couch table and TV desk and shelf cabinets
c. The Dining Room must include a table and chairs serving the purpose of eating
d. Bed Room must include a bed set, shelf, lighting and individual study desk and chair
e. Rest room should include bath tub and plumbing fixtures discussed in class
f. Kitchen should include countertops, gas stove cabinet and shelves to store food items
g. The wash/storage room can include washing machines and shelves to store clothes

All the components are available in Revit Library. Use them to place at appropriate locations to add details to your model. Use 3D navigation to check the model and its authenticity on a real time basis to verify the model

Aim:

To insert the components of the building available in the revit library in Revit software

Introduction:

Based on week 2 assignment, the components to be included in a residential unit were inserted to the Revit file. Place these components in appropriate locations to add details to your residential model

Procedure:

Here, I am using the 4th question model drawing for insert the components of the building

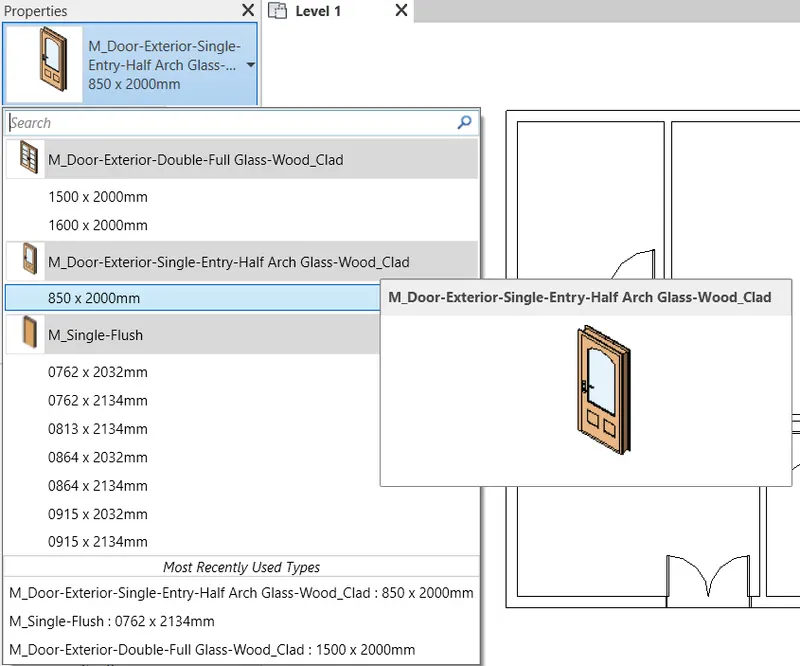

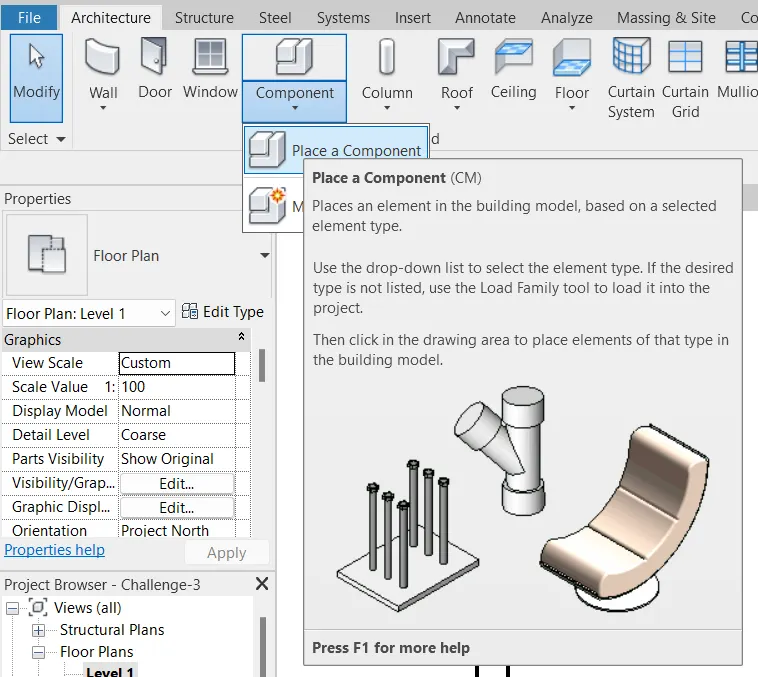

The first component is door insert using the Components option in the Architecture tab
And then take the windows for the building, which one is want to insert to model

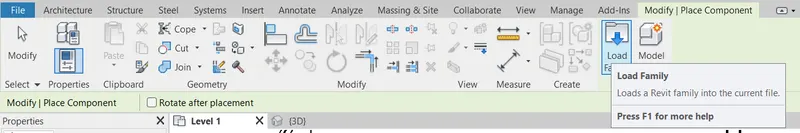

Click Load Family option in the Modify tab

a. Place Doors and windows in the wall at appropriate locations:

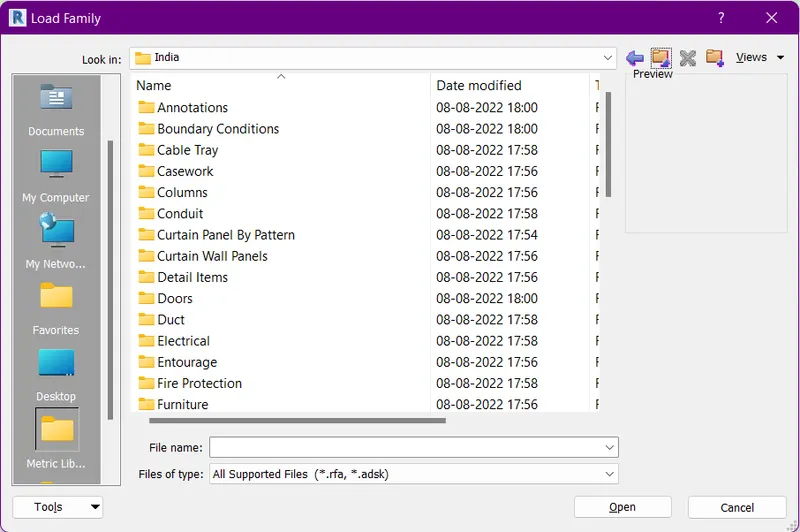

The Revit Library will appear as shown in below figure

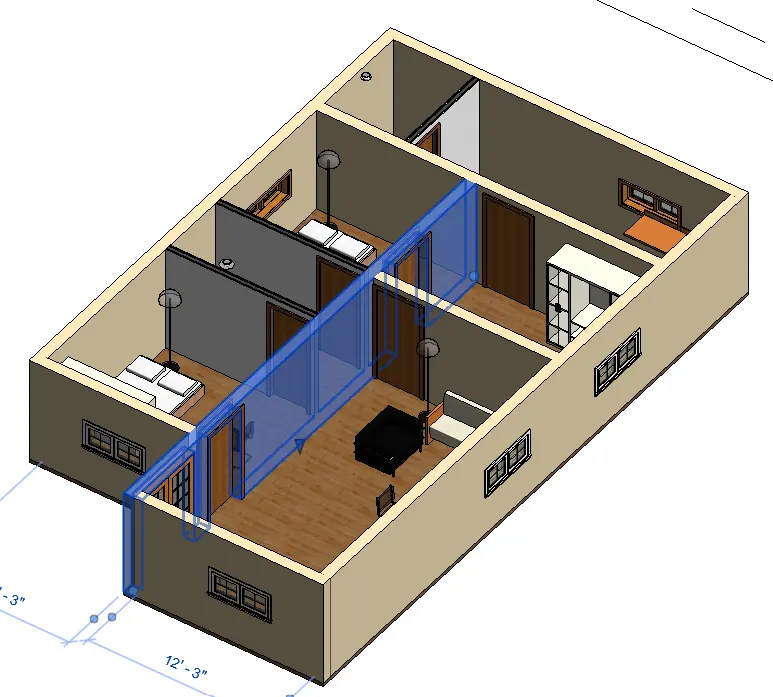

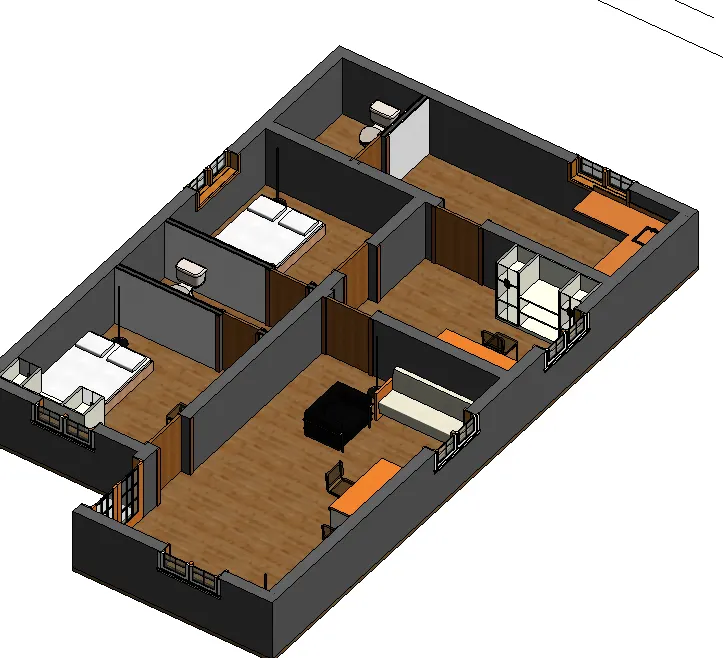

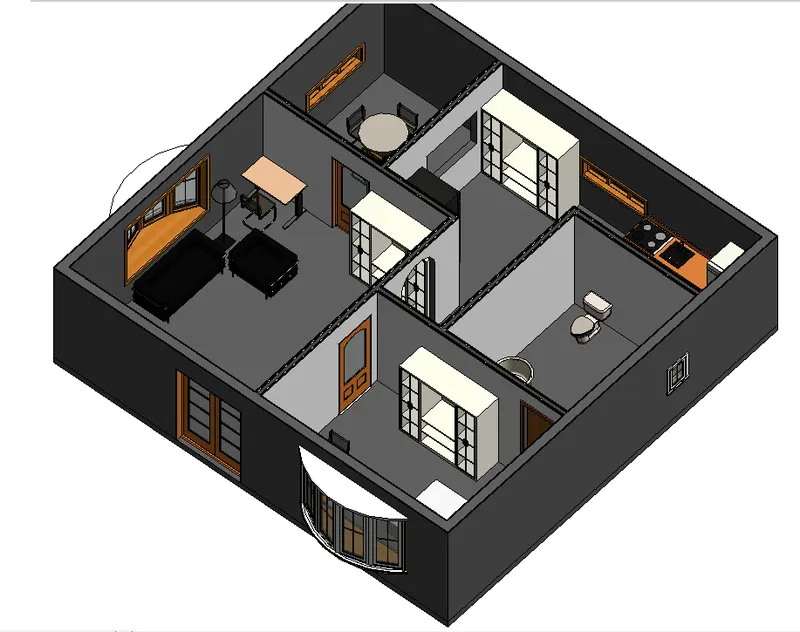

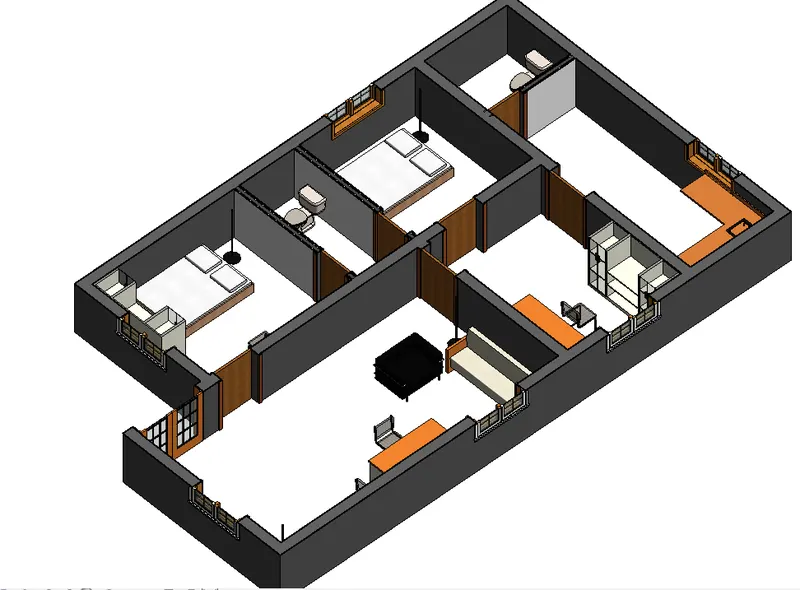

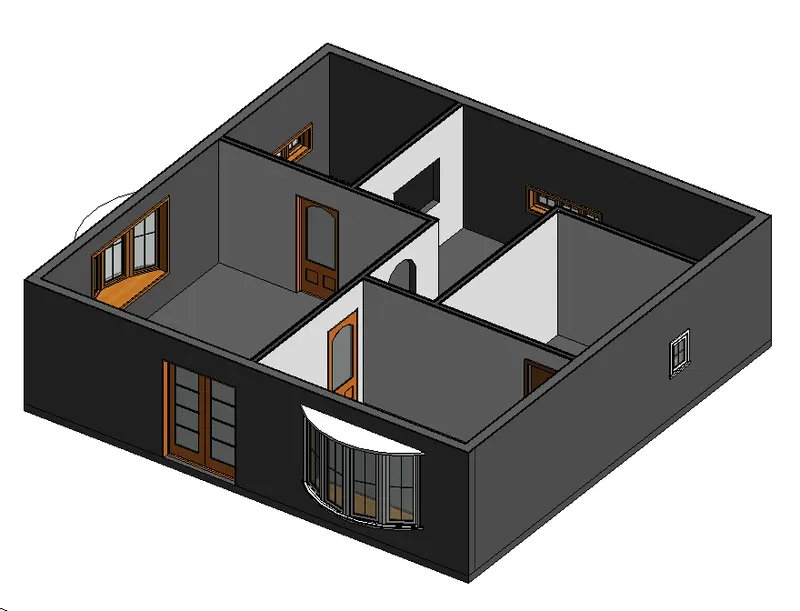

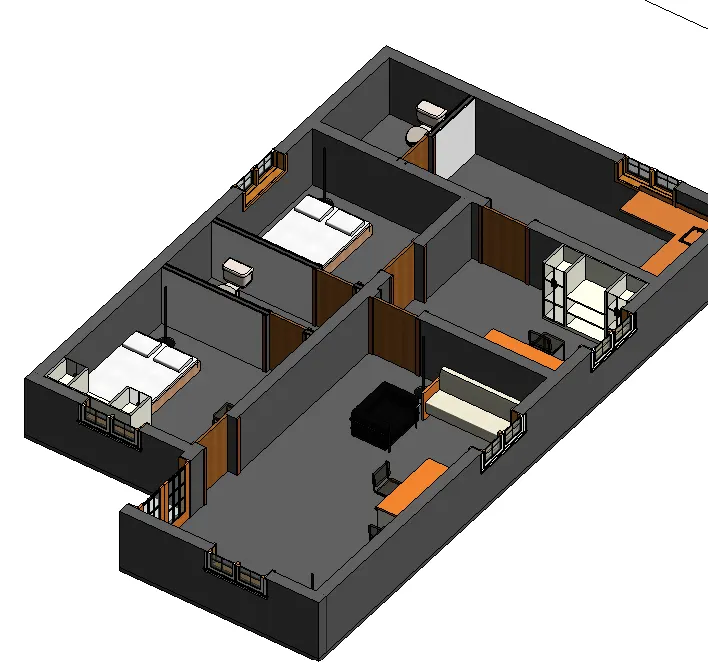

The 3D model of the building as shown in below figure

Then insert the components as give in the question
The components of the building are inserted

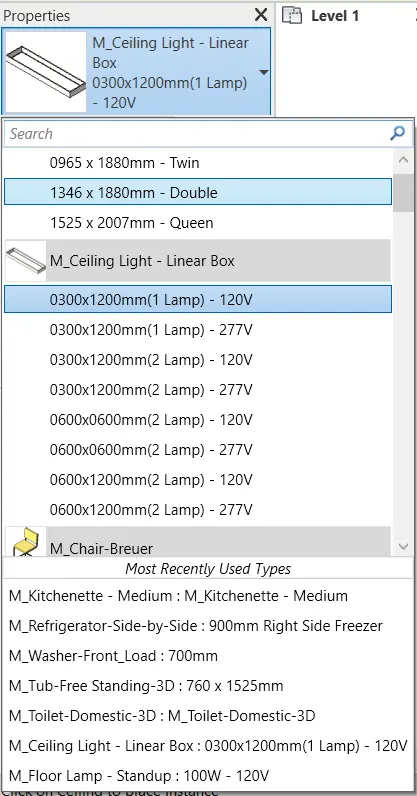

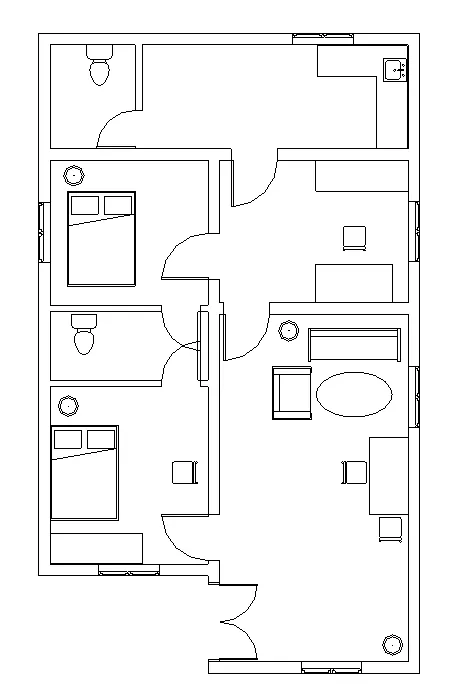

Here, inserted components are given in the below figure

Then take 3D view of the building model

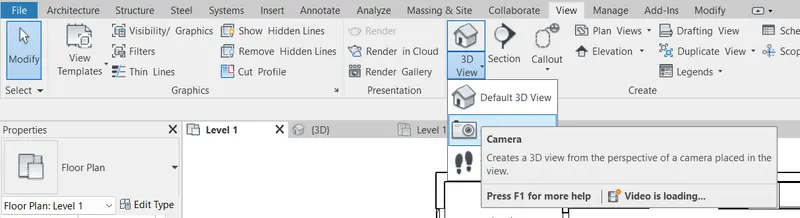

Using the View tab and under the option of 3D view and take the Camera option and then take the pictures where I want take the view of the building

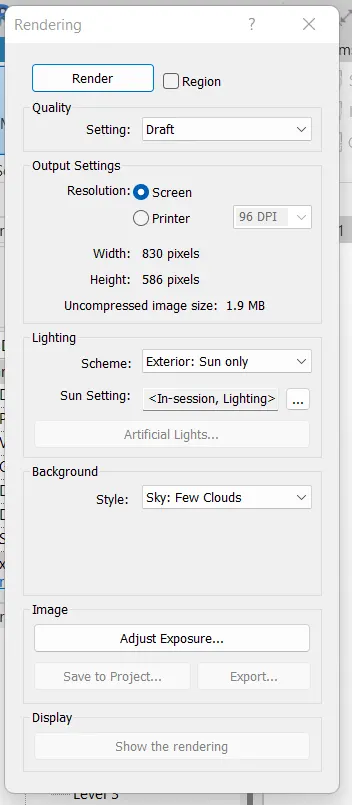

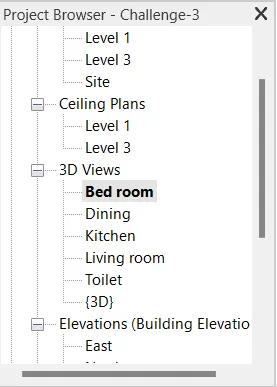

And here, I have take all room picture and Render it using the Render option in the View tab
The 3D view of the rooms are in given below

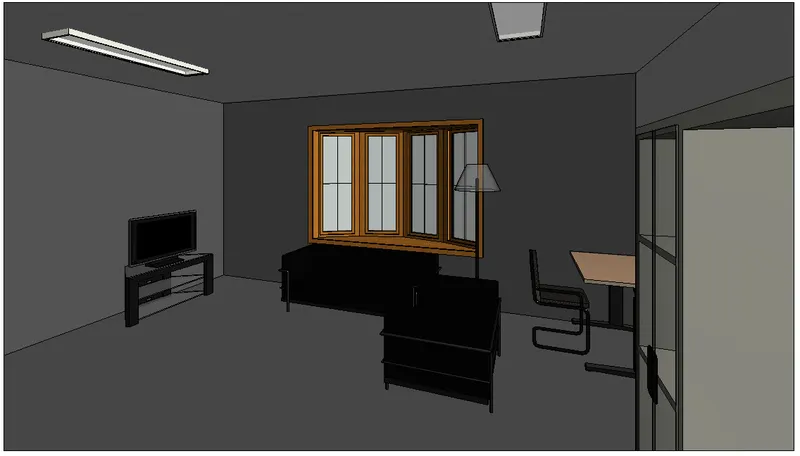

b. The Living Room must include furniture set, couch table and TV desk and shelf cabinets:

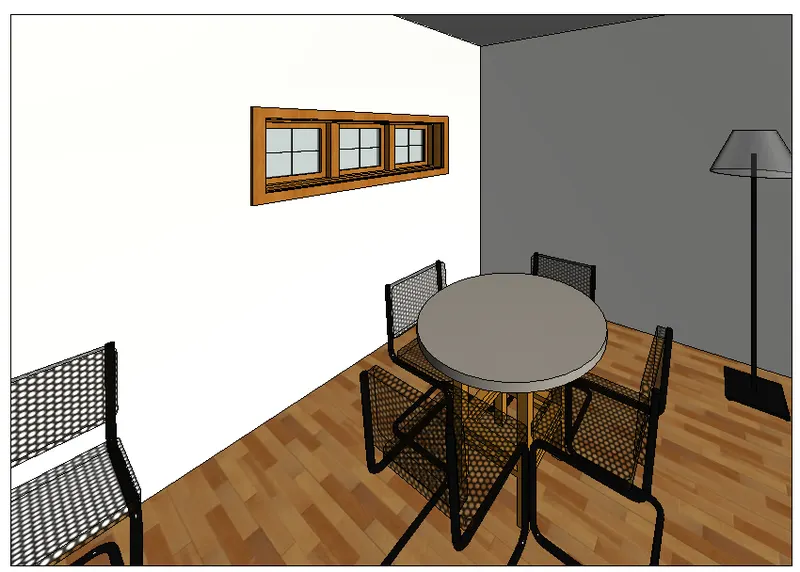

c. The Dining Room must include a table and chairs serving the purpose of eating:

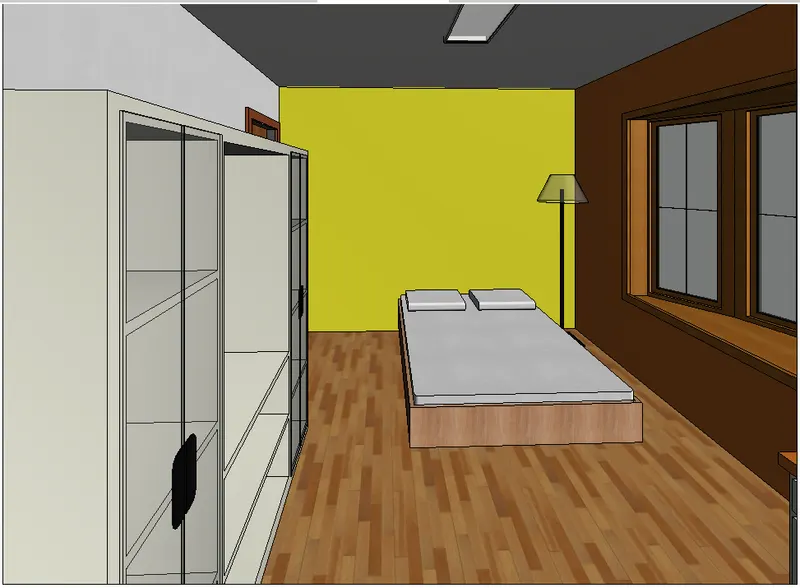

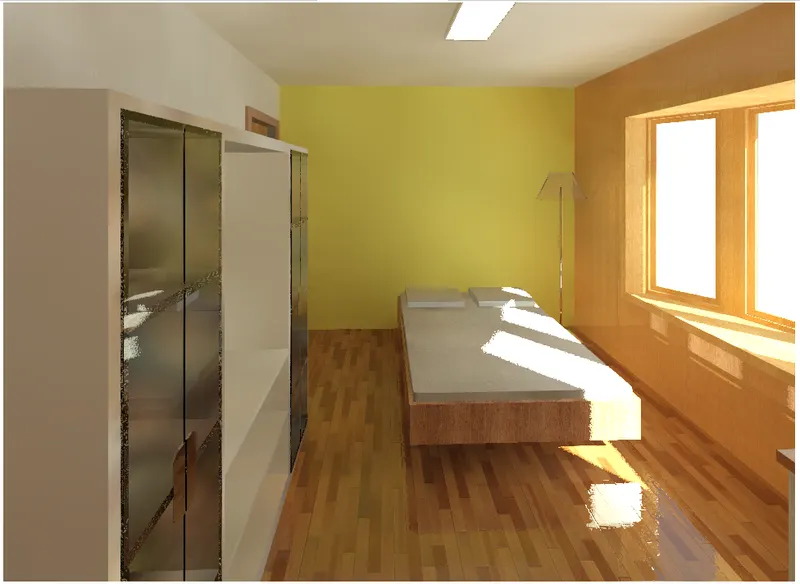

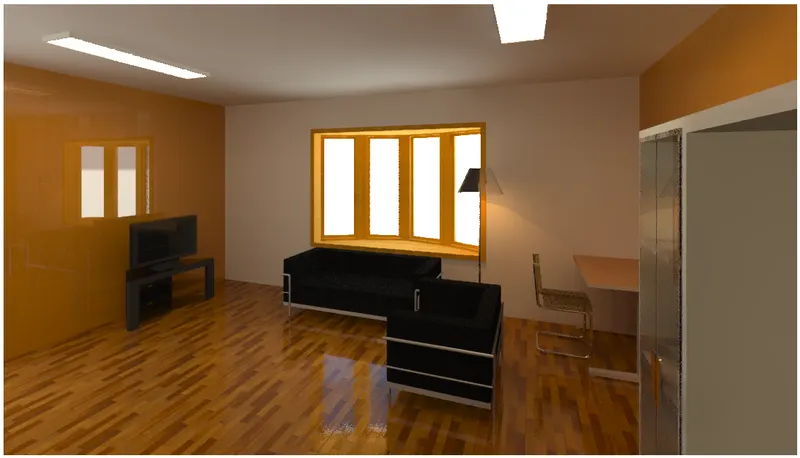

d. Bed Room must include a bed set, shelf, lighting and individual study desk and chair:

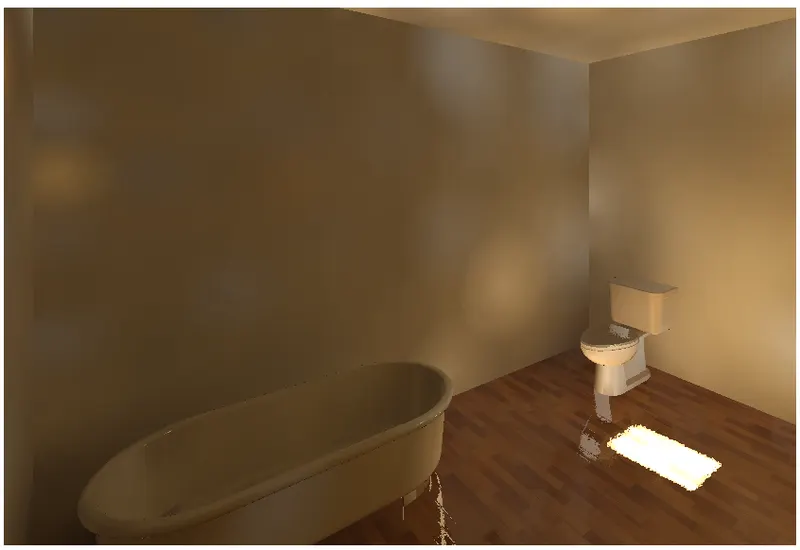

e. Rest room should include bath tub and plumbing fixtures discussed in class:

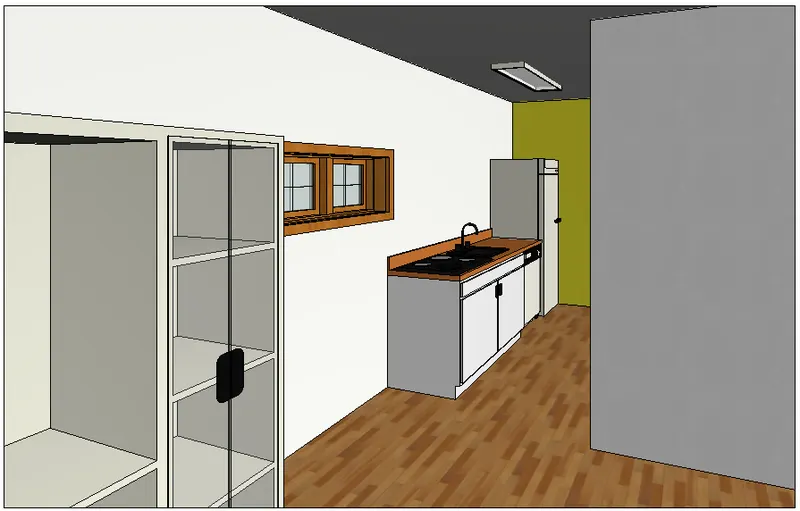

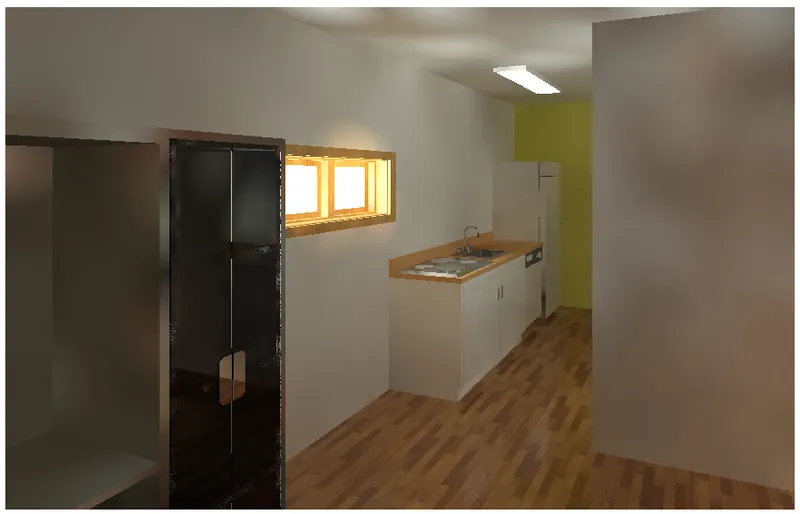

f. Kitchen should include countertops, gas stove cabinet and shelves to store food items:

g. The wash/storage room can include washing machines and shelves to store clothes:

The washing machine is provide in the passage aera in the building

After that finally take the screenshots in where I want to submit the images for questions
The snipping tool shortcut is Windows Key+Shift+S
Then copy the images and attach in the writing pad

Result:

The insertion of a building components using the revit library and taken the view of the individual rooms by using Revit software successfully
