Creating Walls, Partition walls and Floors for a residential layout using REVIT

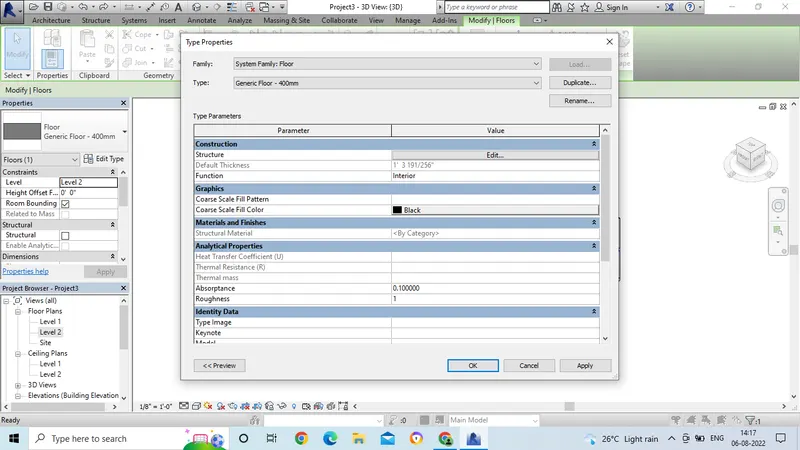

1. Aim: To create the project file created in week 2 by using floor tool under architecture tab by using proper material and thickness by using property browser.

Introduction:To create the project file created in week 2 by using floor tool under architecture tab by using proper material and thickness by using property browser.

Procedure:

• First we have to open the revit software by selecting proper temptlate which is to be used.

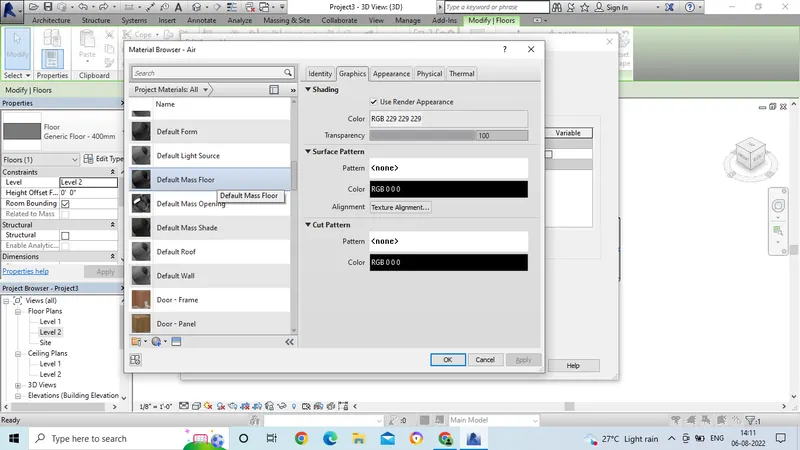

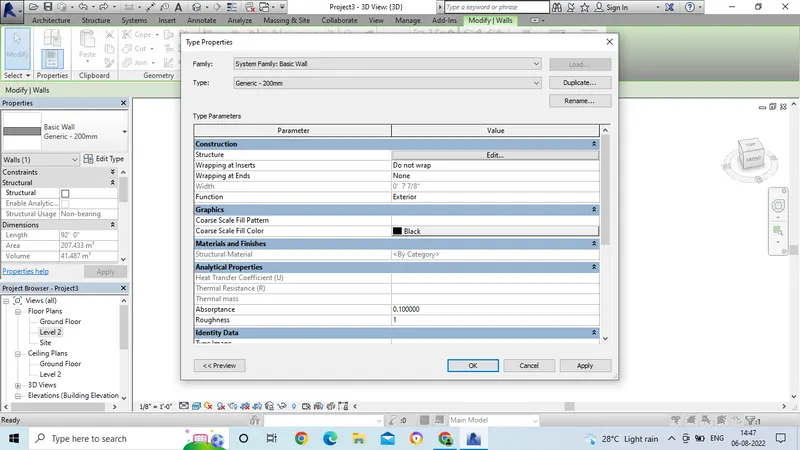

• Next for giving the material to the wall we have to select edit command in the project browser.
• Select the material which is to be edit the material.

• After selecting the edit command next we have to click on by category.
• In this by category option we can change the material.
• And also the colour for material also can be changed.

• After selecting the material then select for thickness.
• Then click "Ok".
• And then Apply and then "Ok".

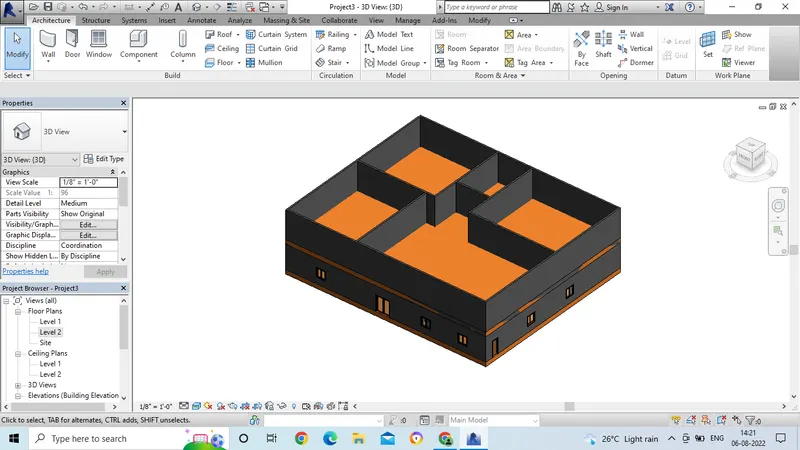

• After applying the material, go to the 3D view.
• Then select for shaded or realsitic view.
• Then the final drawing will appear after applying the material.

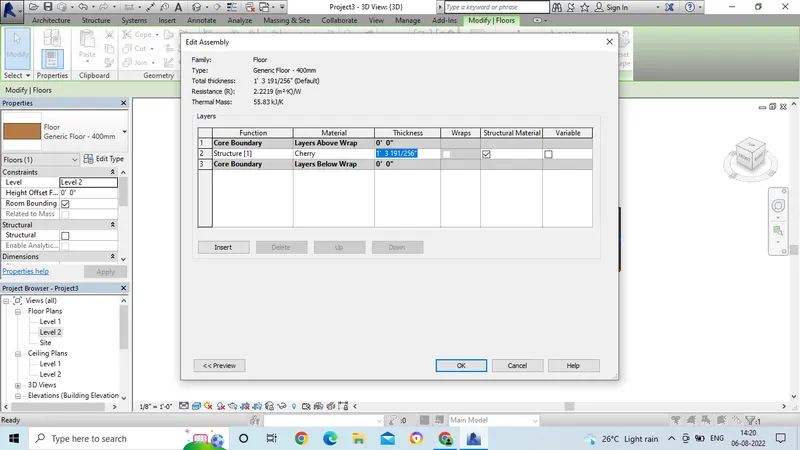

• In the same way by editing the material, we have to edit the thickness of the wall.

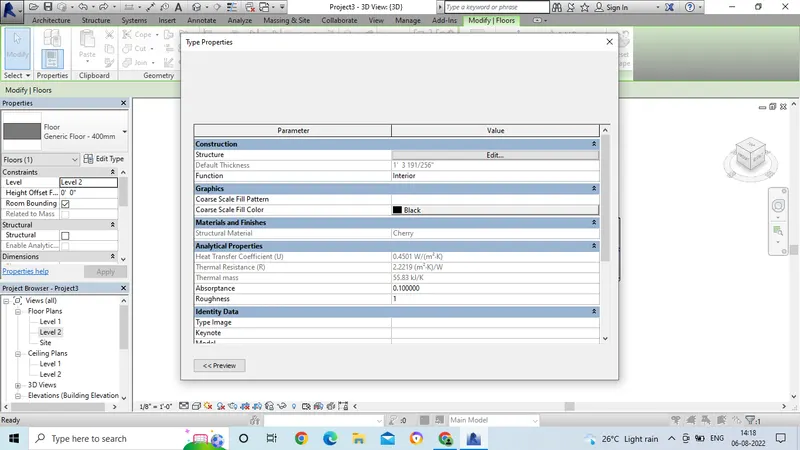

• In the Property browser click on the edit option.
• Then we can change the thickness of the wall.

• After applying the thickness, go to the 3D view.
• Then select for shaded or realsitic view.
• Then the final drawing will appear after applying the material.

Result:

2. Aim: To add the wall on the floor layout by using the draw tool in the modify bar.

Introduction:To add the wall on the floor layout by using the draw tool in the modify bar and by selecting proper material to the wall.

Procedure:

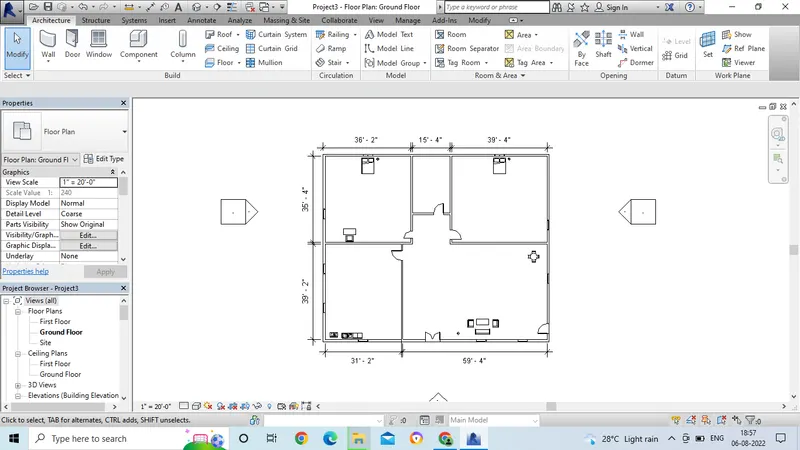

• In the Architecture tab, by using the wall command we have to draw the walls.
• Then separate the rooms by using wall command.
• Then go for 3D view.

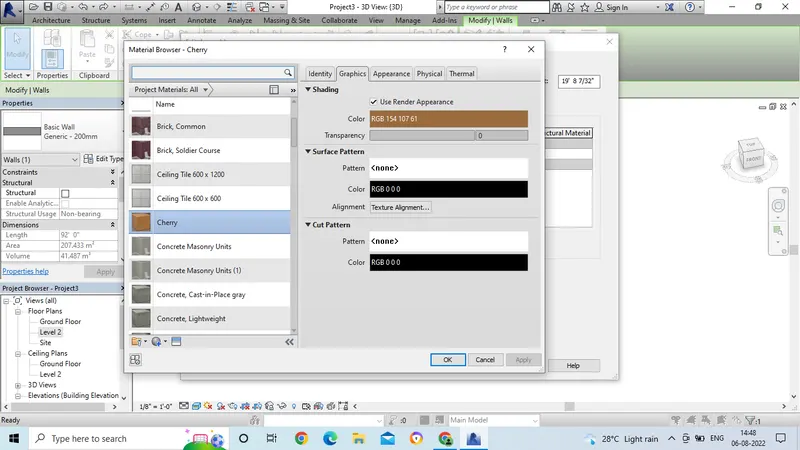

• Next for giving the material to the wall we have to select edit command in the project browser.
• Select the material which is to be edit the material.
• After selecting the edit command next we have to click on by category.
• In this by category option we can change the material.
• And also the colour for material also can be changed.

• After selecting the material then select for thickness.
• Then click "Ok".
• And then Apply and then "Ok".

• After applying the thickness, go to the 3D view.
• Then select for shaded or realsitic view.
• Then the final drawing will appear after applying the material.

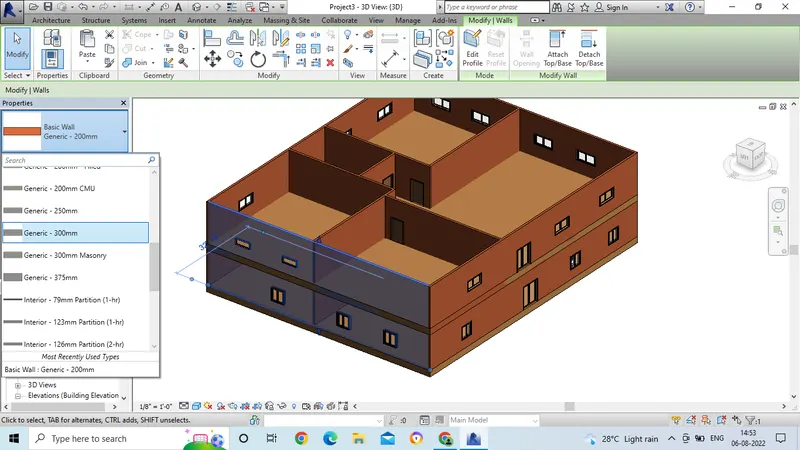

• In the same way by editing the material, we have to edit the thickness of the wall.
• In the Property browser click on the edit option.
• Then we can change the thickness of the wall.

Result:

3. Aim: To copy the modeled ground floor to the first floor by using modify tab.

Introduction: To copy the modeled ground floor to the first floor by using modify tab.

Procedure:

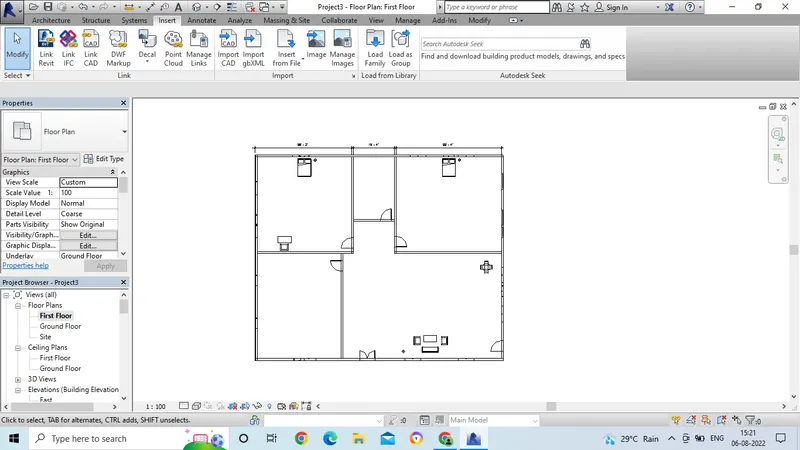

• After creating the ground floor, we have to go for first floor.
• We can copy the elements which are created in the ground floor.
• We have to select the ground floor.
• Then we will get a command tool bar after selecting the material.

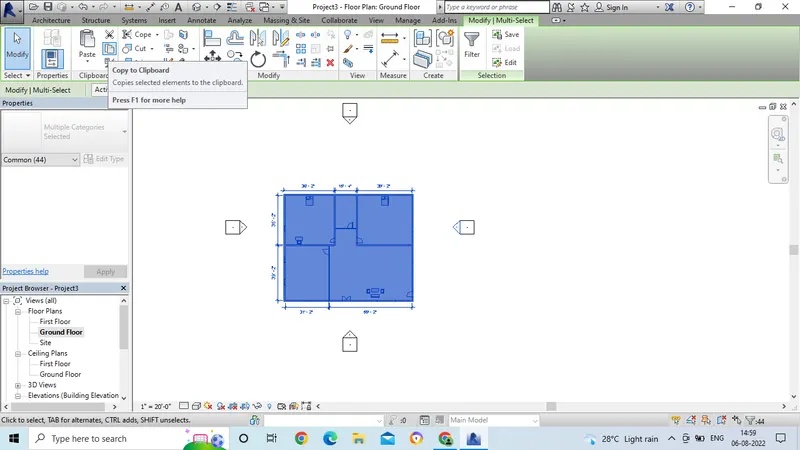

• Then select for the copy to clipboard option.
• Then select the paste option.
• In the paste option select for the Aligned to the clipboard.
• Then the first floor is copied with material.

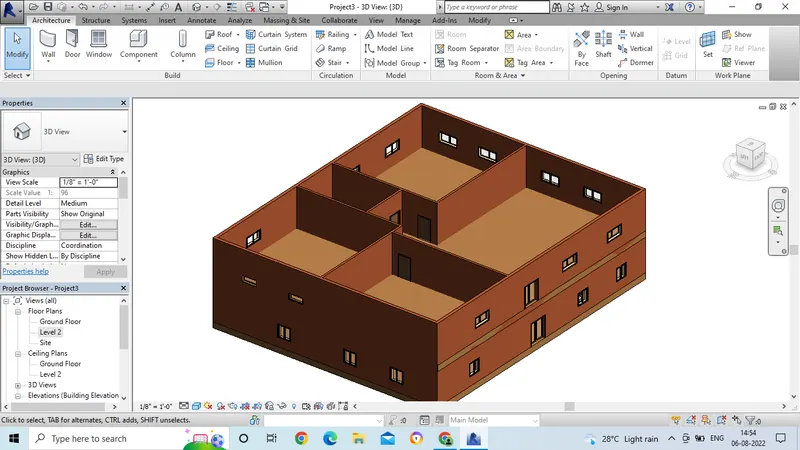

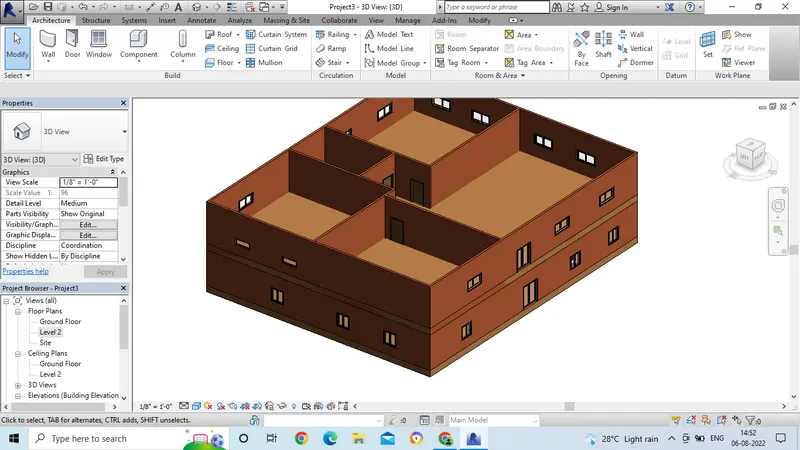

• After creating the first floor go for 3D view.
• In the view command select 3D view.
• Then final drawing is ready.

Result:

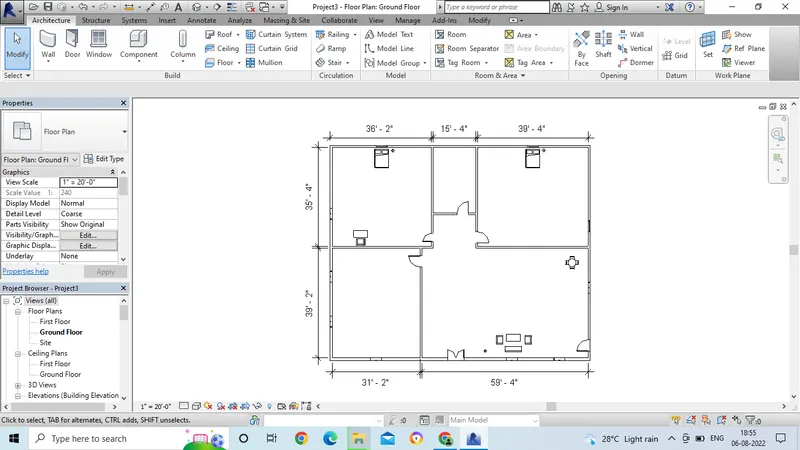

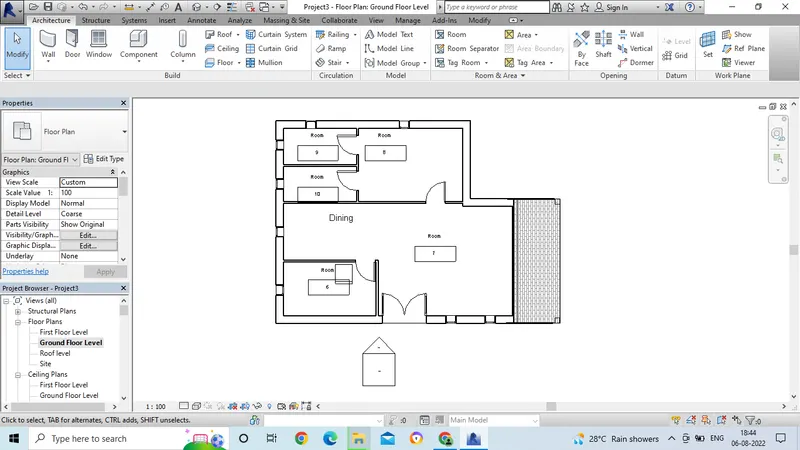

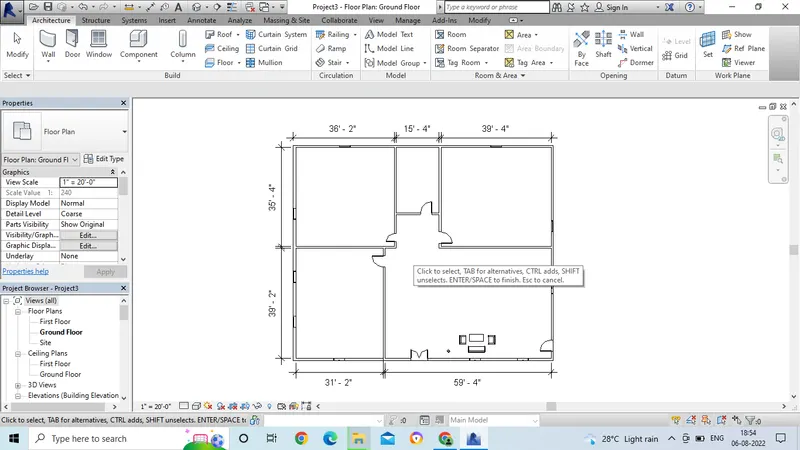

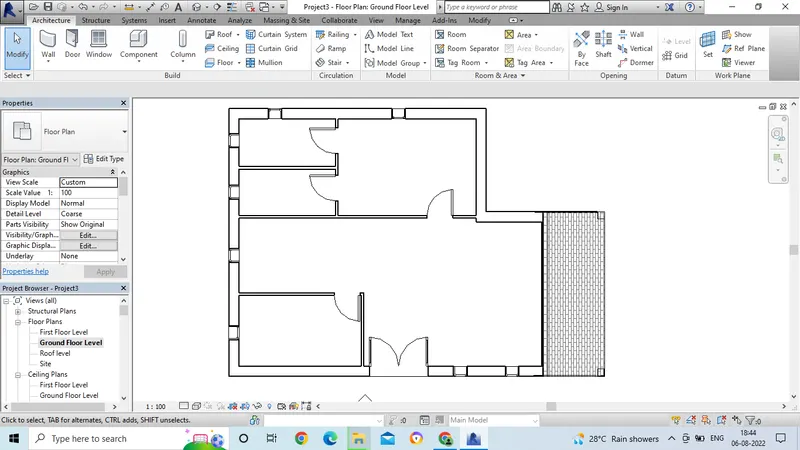

4. Aim: To create the seperate rooms within the residential unit by using given dimensions or by assuming the dimensions.

Introduction:To create the seperate rooms within the residential unit by using given dimensions or by assuming the dimensions.

Procedure:

• We have to divide the room areas for the residential unit.
• For that go for the Architecture tab and select the wall command.
• Then draw the wall from the given dimenisons.
• And also as per vaastu we have to divide the room areas.
• Then separate the room portions as per the requirement.

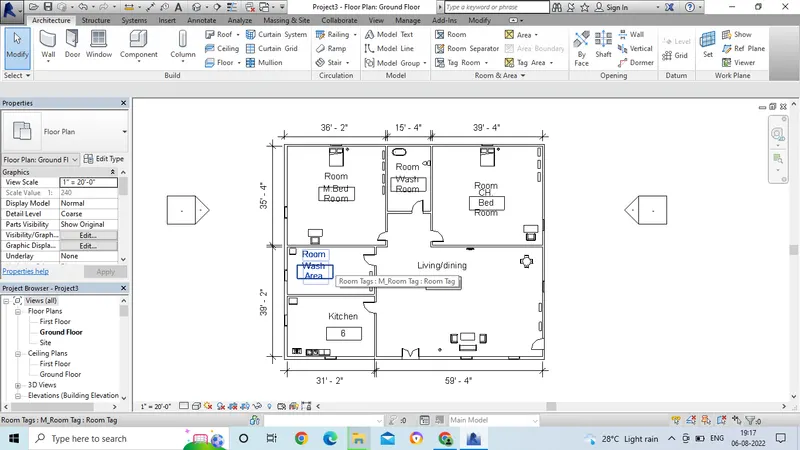

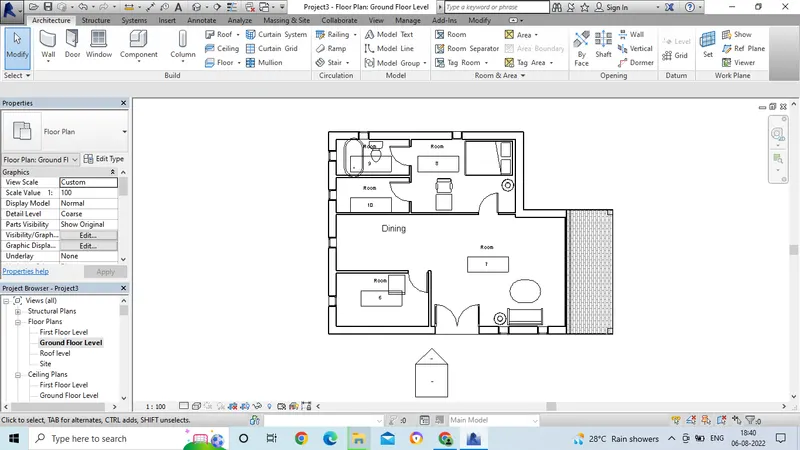

• After placing the rooms we have to mention the text for the rooms.
• For that go to the Architecture tab.
• Select the room area.
• Then click on all the rooms.
• Then edit the text and give proper names to the room areas.

• After givinng the room names, edit the room names by clicking double click.
• Then we have to apply the furniture to the room areas.

• Next for giving the material to the wall we have to select edit command in the project browser.
• Select the material which is to be edit the material.
• After selecting the edit command next we have to click on by category.
• In this by category option we can change the material.
• And also the colour for material also can be changed.

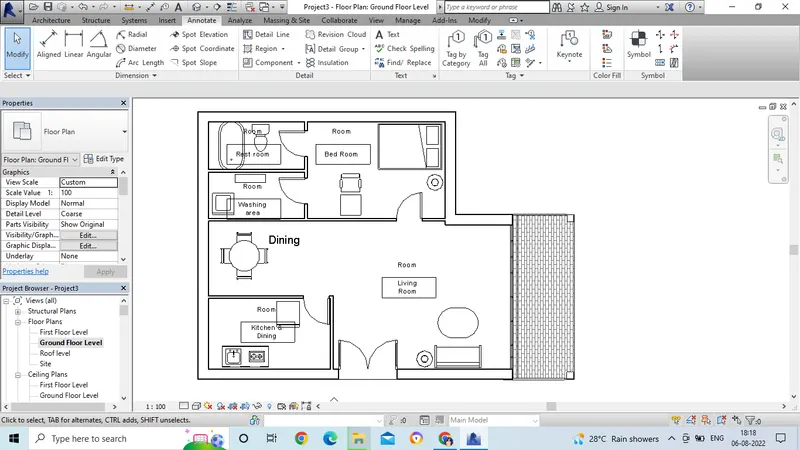

5. Aim: To create the residential unit by giving the components in appropriate locatons to add details for residential model.

Introduction:To create the residential unit by giving the components in appropriate locatons to add details for residential model.

Procedure:

• We have to add the material to the residential unit by loading the material from the families.
• First we have to select the component command and in that select the place a component.
• Then click on the load families option.
• Then families tab will get open.
• For the living room as in the given attachement we have to give the proper furniture.
• Once we select the furniture then click open.
• Then ww have to place the furniture wherever it is necessary.
• We can select and move the furniture after placing.

• In the same way, go for the bed room and place the furniture.
• Select the bed size and place the bed as per the dimension.
• Then we have to place for te table and chair for study purpose.
• And also we can edit the material as per por requirement.
• Go for the edit option in the project browser.
• Then choose for the material and size of the bed.

• In the same way, go for the another bed room and place the furniture.
• Select the bed size and place the bed as per the dimension.
• Then we have to place for te table and chair for study purpose.
• And place the dining wherever it is required.

• In the same way, give the material to all the room for kitchen, wash area and wash room.
• After placing the material we have to mention the text for the rooms.
• For that go to the Architecture tab.
• Select the room area.
• Then click on all the rooms.
• Then edit the text and give proper names to the room areas.

Result:
