Creating Walls, Partition walls and Floors for a residential layout using REVIT

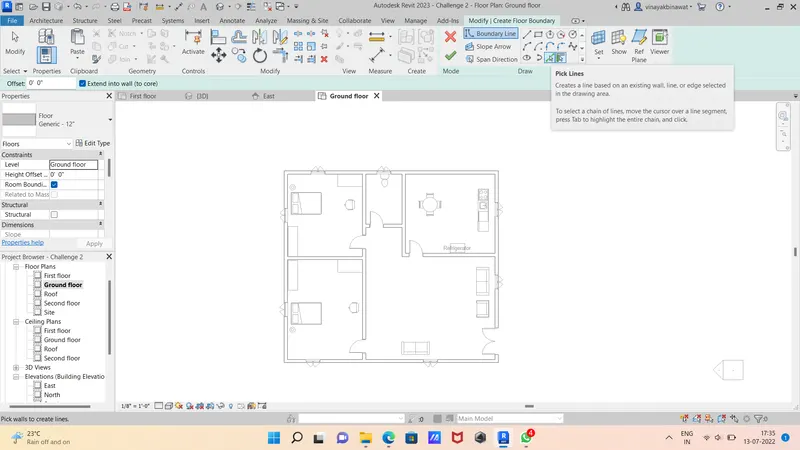

1.] Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from week 2.
Ans.
AIM :To create a floor plan and need to apply the materials and thickness using the property browser.To align the floor plan with grids created from week 2.
INTRODUCTION :
- Building material is material used for construction. Many naturally occurring substances, such as clay, rocks, sand, and wood have been used to construct buildings.
- Apart from naturally occurring materials, many man-made products are in use, some more and some less synthetic.
- Floor plans are the most critical element of your house plans.Drawn to scale and shown from above, floor plans illustrate how rooms, spaces, and physical features work in relation to each other within the home.
- They are the key documents that show how people will move through the space and interact with their home.
- Floor plans show the extent to which a space will work for its intended purpose.
PROCEDURE :
Step 1 :

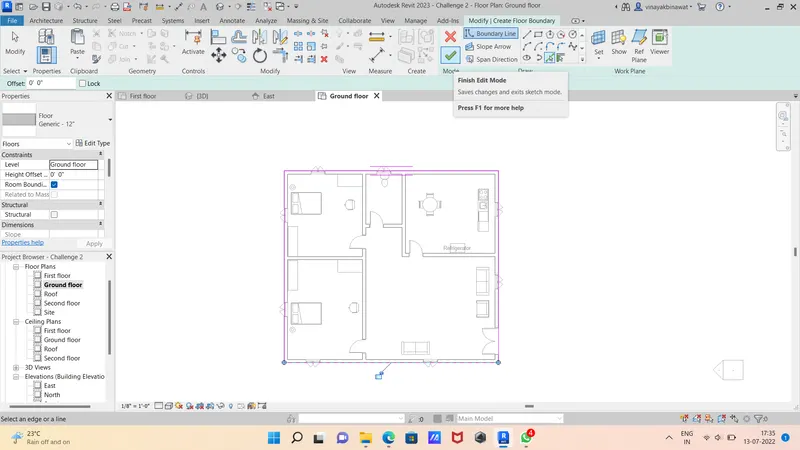

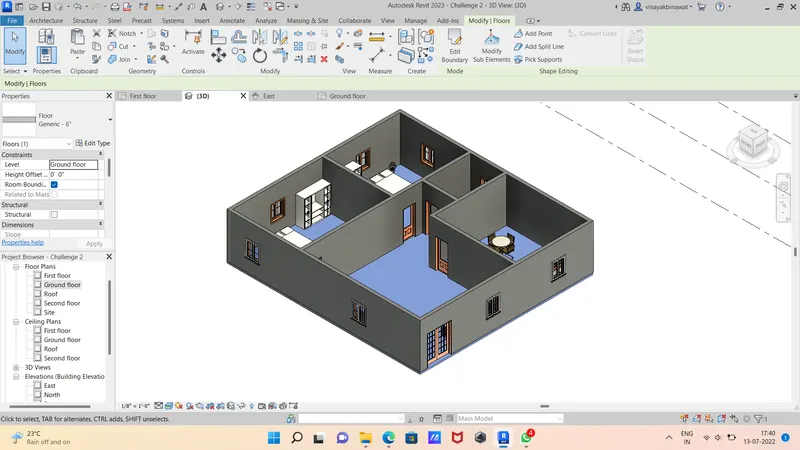

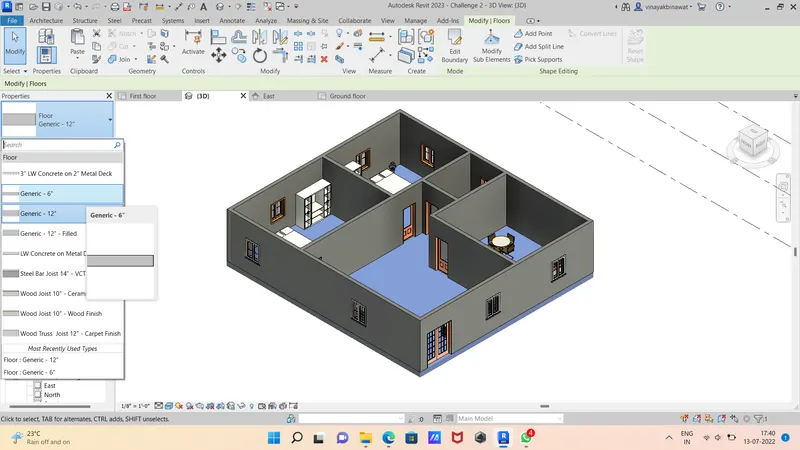

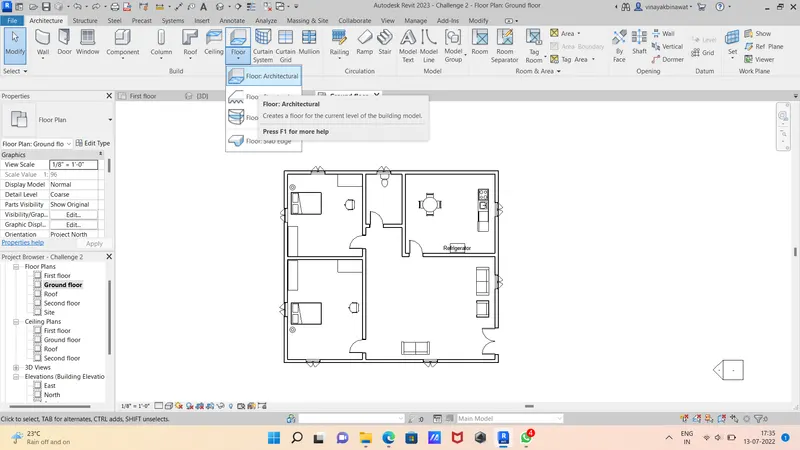

- First we select the floor.

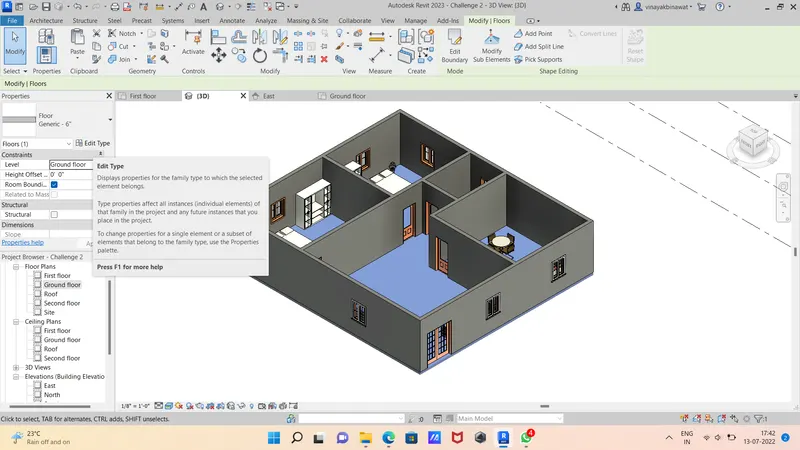

- After selecting the floor, click the edit type from the properties browser.
Step 2 :
- After clicking the edit type, the type properties tab will be visible on the screen.
- Next we change the material type by clicking the edit option.
Step 3 :

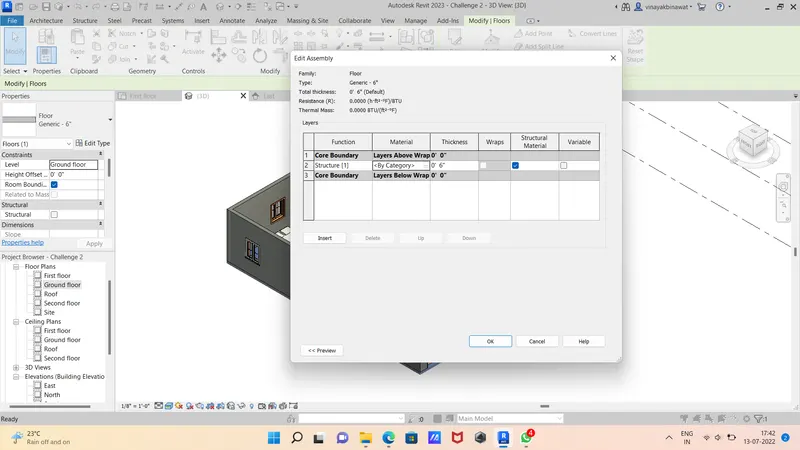

- After clicking the edit option, the edit assembly tab appears.
- We select the material type in 2nd row.

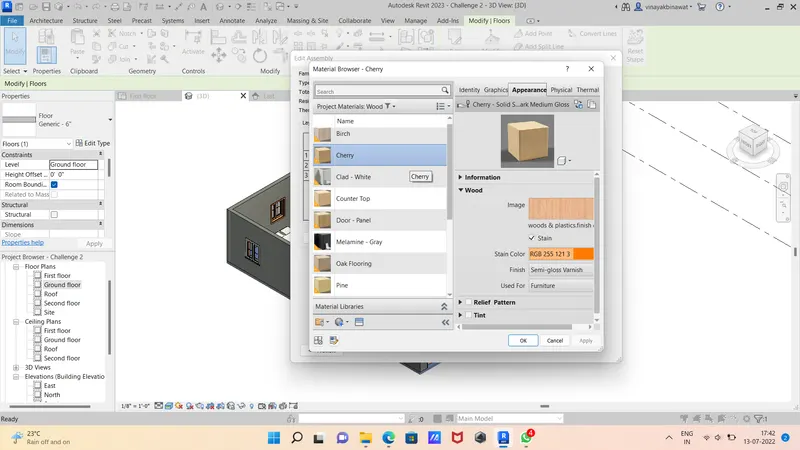

- After clicking that, the material browser appears, then select the material type as cherry.
Step 4 :

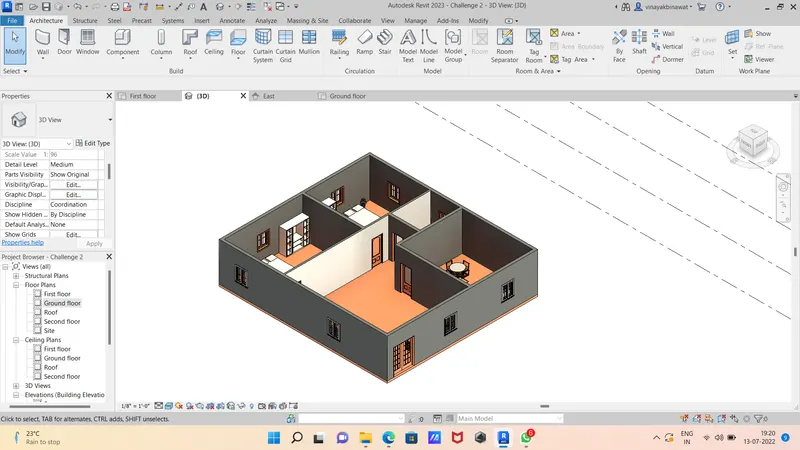

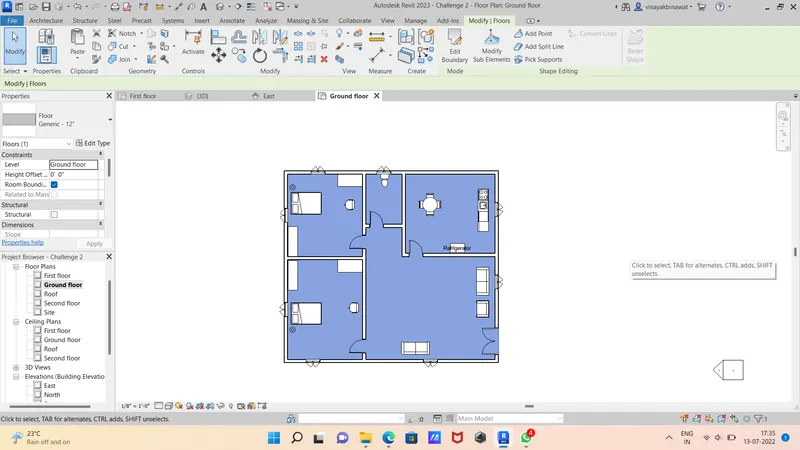

- Finally the material is applyed to the floor.
RESULT :
The materials are applied to the floor and the floor plan is successfully.
2.]
Ans.
AIM : To create a floor plan and need to apply the materials and thickness using the property browser for walls.Verify using the property browser to see if the top and bottom of the walls are constrained.Need to undersatand the benefits of connecting walls with associated levels rather than being Unconnected.Need to know which option is convenient for modeling walls, By Height or By Depth.
INTRODUCTION :
- Walls are one of the most important elements of any building.
- As such, the wall tool is a prominent function of Autodesk Revit Architecture.
- Building material is material used for construction. Many naturally occurring substances, such as clay, rocks, sand, and wood have been used to construct buildings.
- Apart from naturally occurring materials, many man-made products are in use, some more and some less synthetic.
PROCEDURE :
Step 1 :

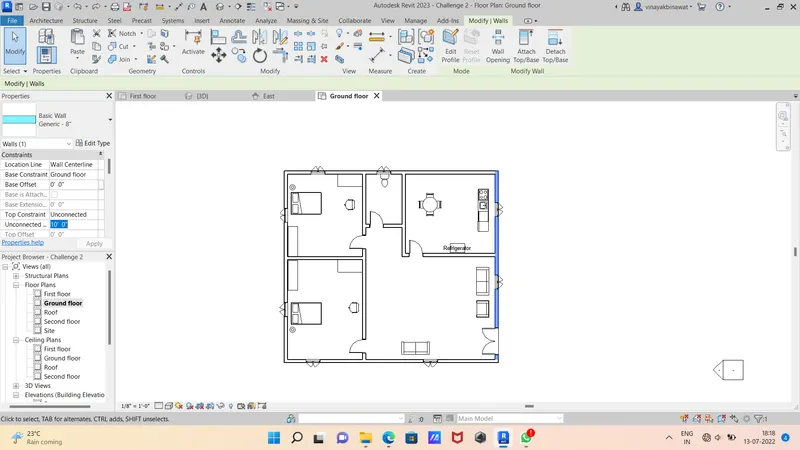

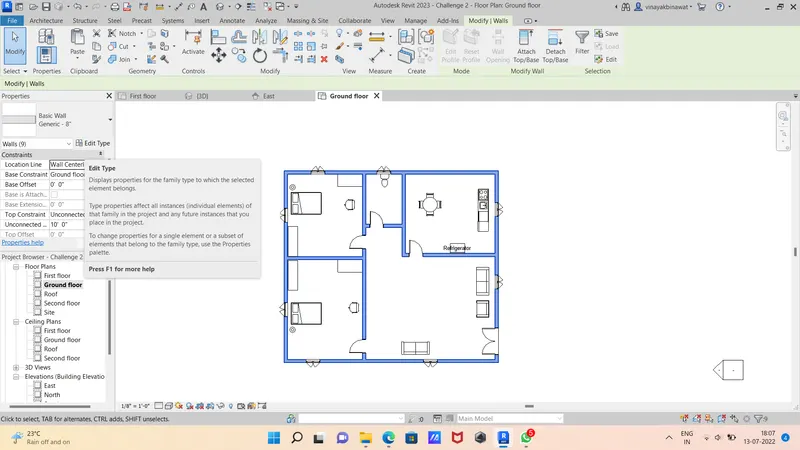

- First we select the wall.
- After selecting the wall, click the edit type from the properties browser
Step 2 :

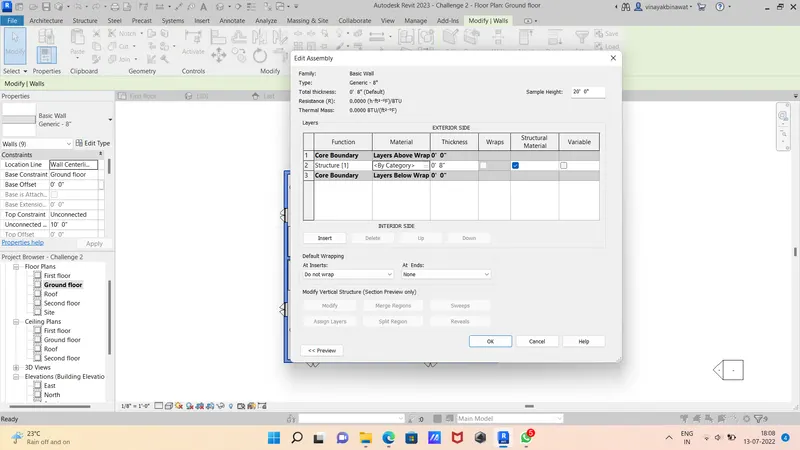

- After clicking the edit option, the edit assembly tab appears.
- We select the material type in 2nd row.

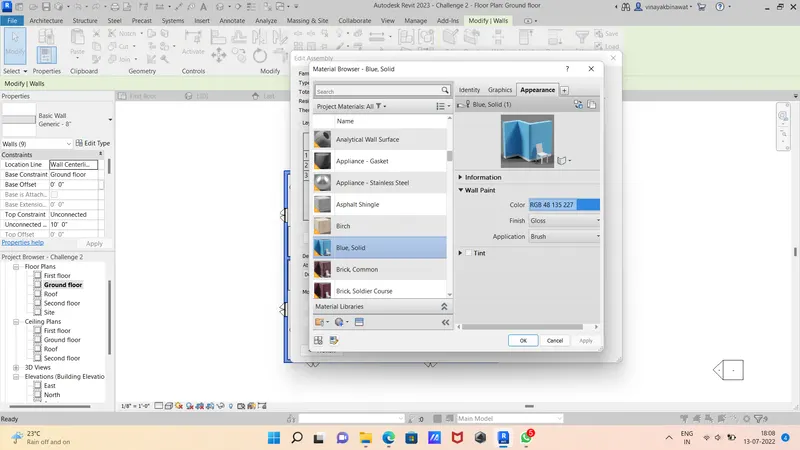

- After clicking that, the material browser appears, then select the material type as Blue,solid.
Step 3 :
After applying the material to the walls, we need to zoom the wall to see the material type very closely.
Step 4 :

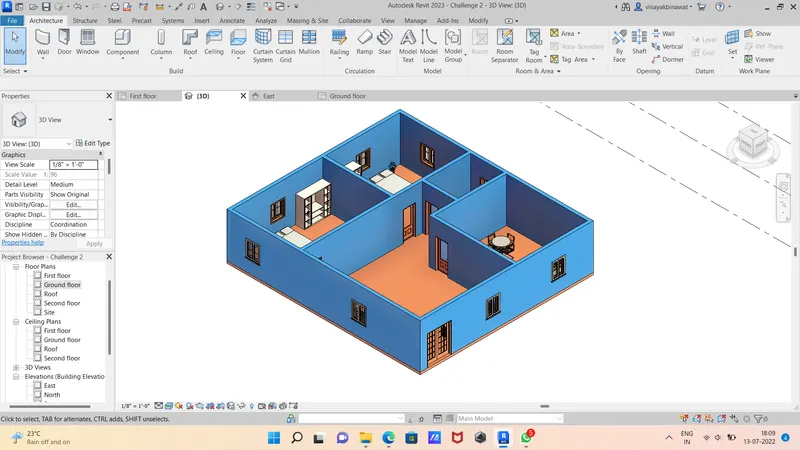

Finally the material has been applied to the walls.
Step 5 :

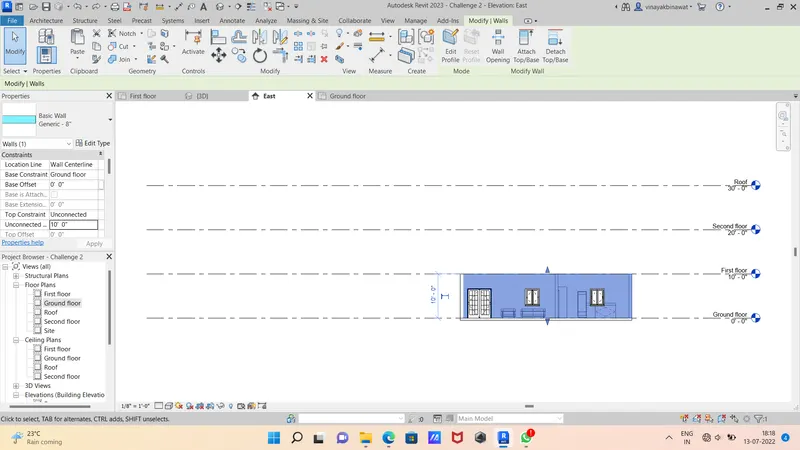

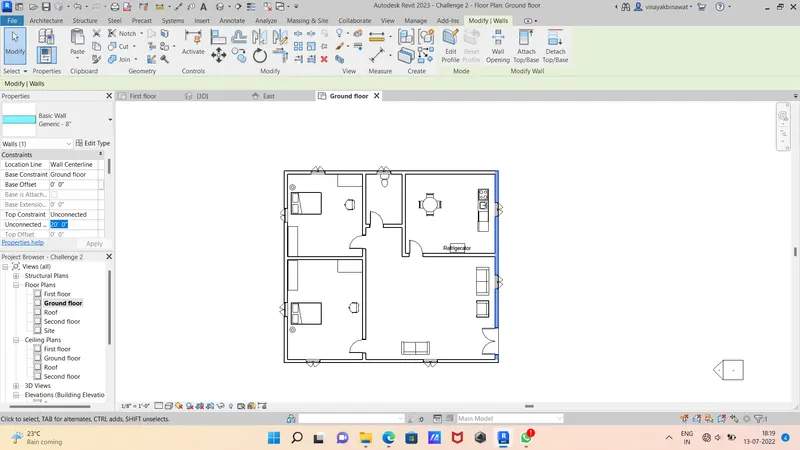

a.] Based on your observation, what is beneficial for connecting walls with associated levels rather than being Unconnected.

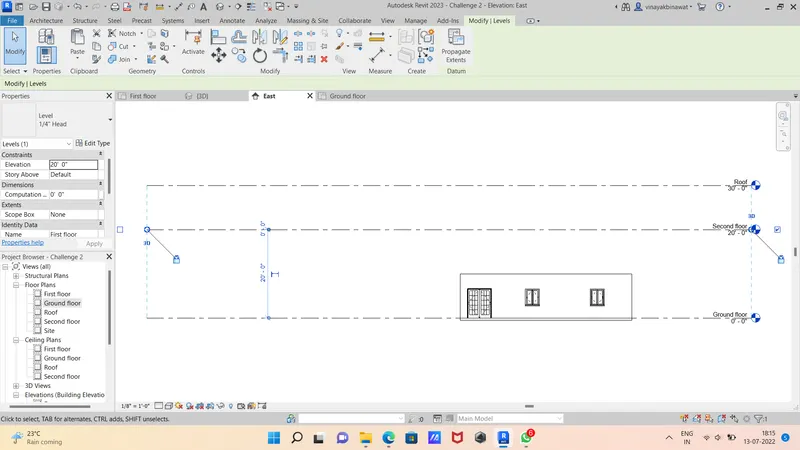

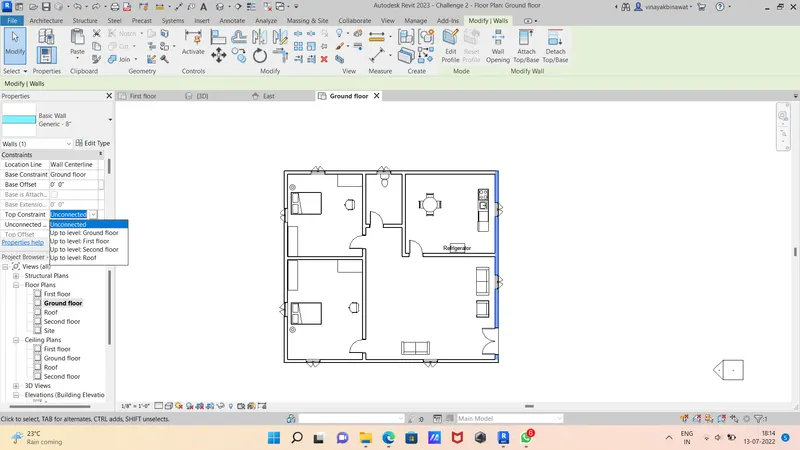

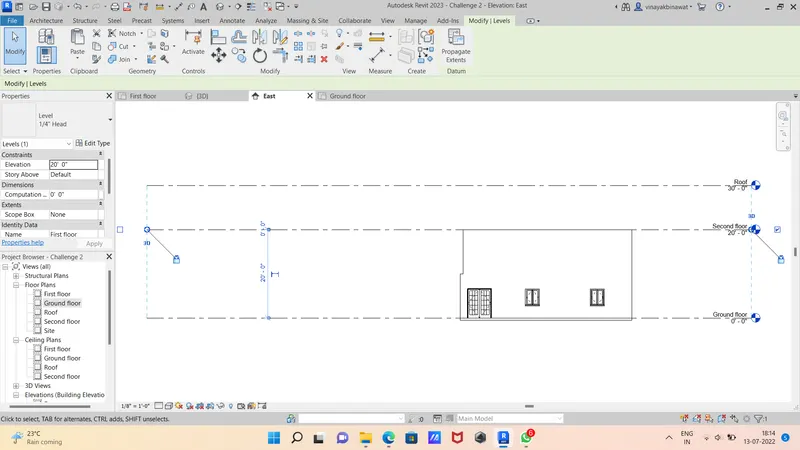

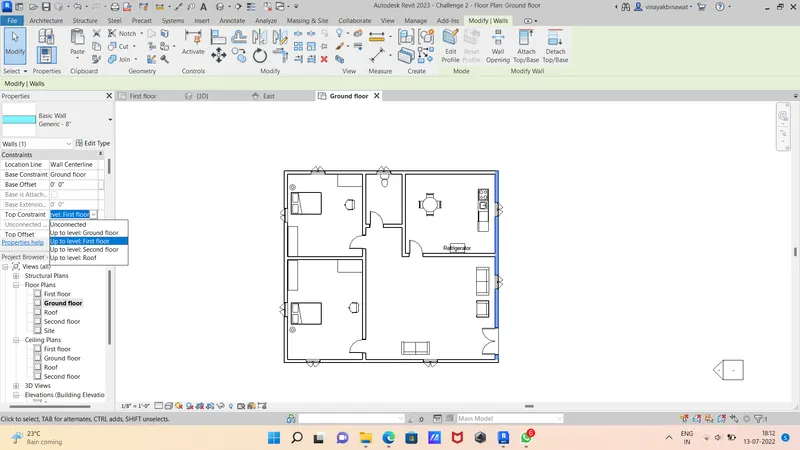

- If we select the top constraint as Up to level: Level 2, The height of the wall changes with the levels.

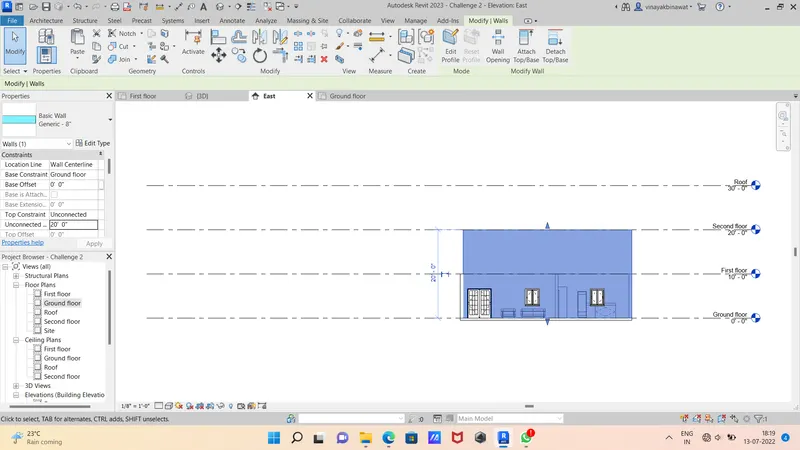

- When we put the level height to the 20', then height of the wall is also changes to the 20'
- The height of level is changed and the height of the wall will not changes.
Step 6 :
b.] Which option is convenient for modeling walls, By Height or By Depth?
- When we select the height option for the wall, The wall will be created above the level.
RESULT :
- Successfully applied materials to the walls.
- The top and bottom of the walls are constrained.
- Beneficial for connecting walls with associated levels is when level height changes, the wall height is also changes.
- Height option is convenient for modeling walls.
3.]
Ans.
AIM : Use modify tab to utilize copy and paste options to align elements to a different level.
INTRODUCTION :
- Floor plans are the most critical element of your house plans.Floor plans illustrate how rooms, spaces, and physical features work in relation to each other within the home.
- They are the key documents that show how people will move through the space and interact with their home.
- Floor plans show the extent to which a space will work for its intended purpose.
PROCEDURE :
Step 1 :

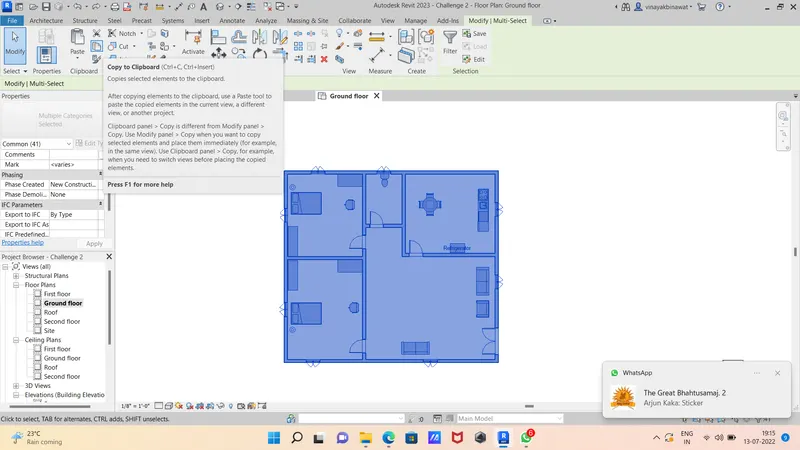

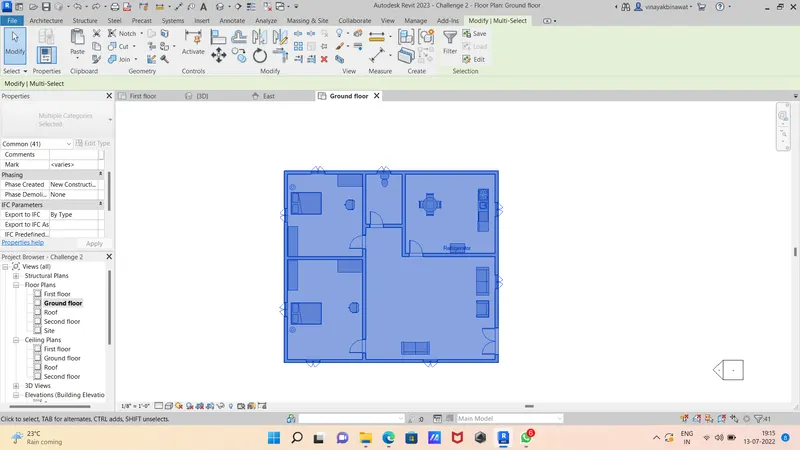

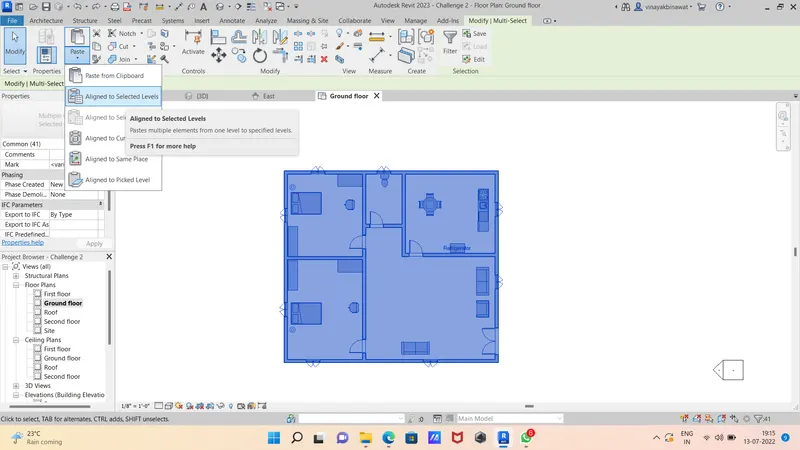

- First we select the total ground floor, then the ground floor is copied to clipboard.

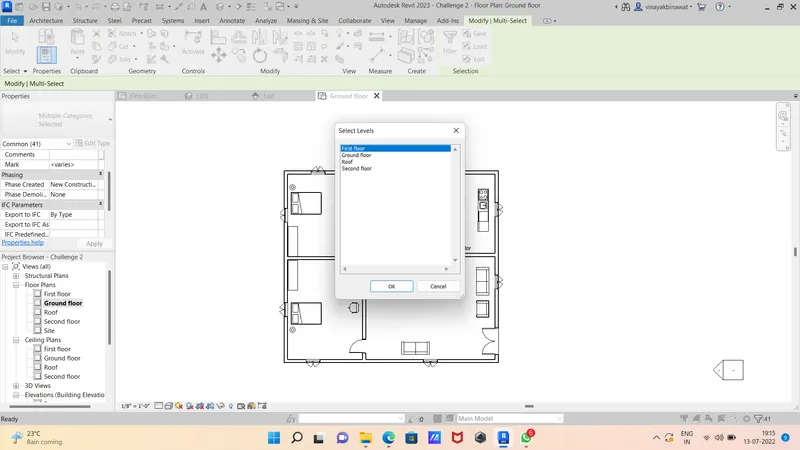

- Then use paste option to align elements to a different level.
Step 2 :
Next use paste option to align elements to a different level.
Step 3 :

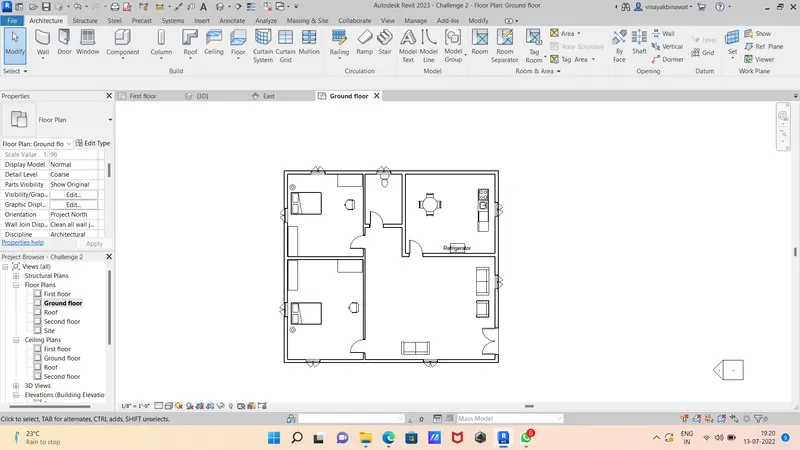

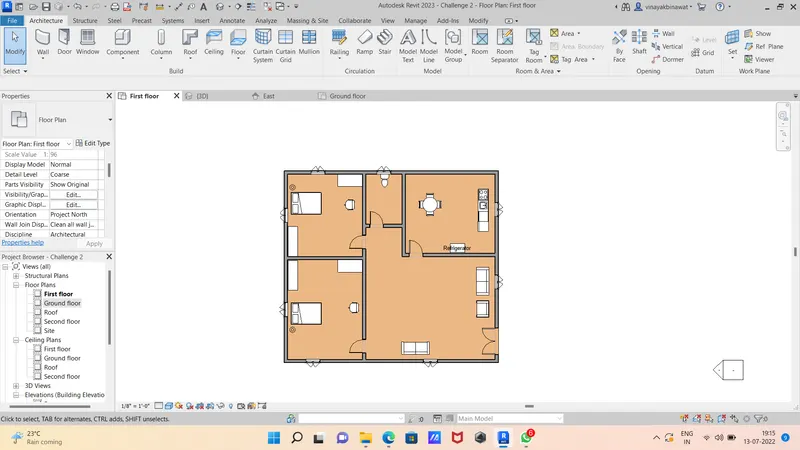

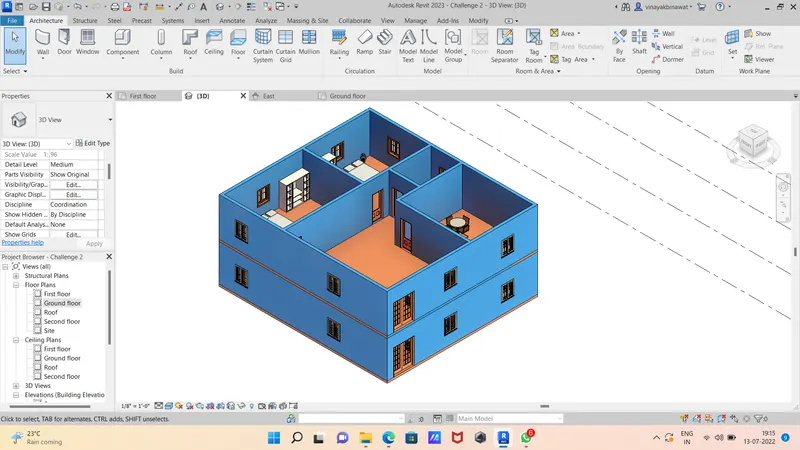

Finally the elements are aligned to the different level.
RESULT :
The elements are successfully aligned to the different level using the copy and paste option.
4.]
Ans.
AIM : To create separate rooms within your residential unit using the interior partition walls.
INTRODUCTION :
- The walls that make for division or privacy in the interior portion of a building and not Carried the ceiling load And floor load and that would make with bricks, glass, or other more materials is called partition walls.
- It has many types like folding, collapsible and fixed types.
- If they carried a load of the walls and ceilings, then it’s called an interior walls.
- The partition wall is the none load-bearing wall; it doesn’t support the floor or ceiling, used only for design purpose and partition purpose.
- Partition wall connects the floor and ceiling.
PROCEDURE :
Step 1 :

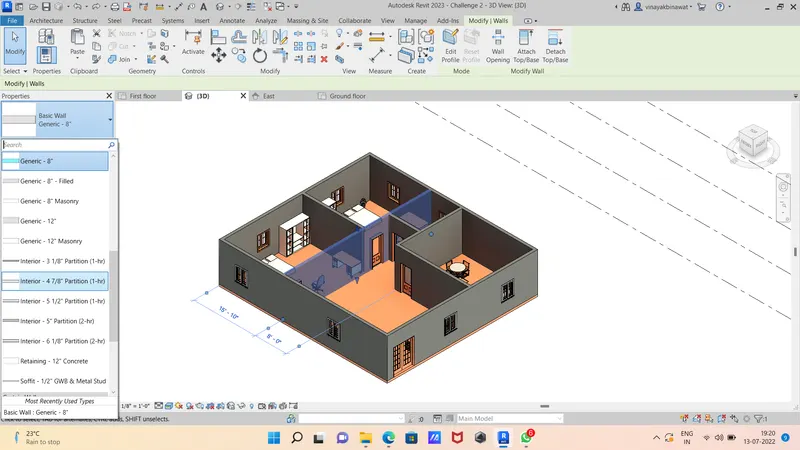

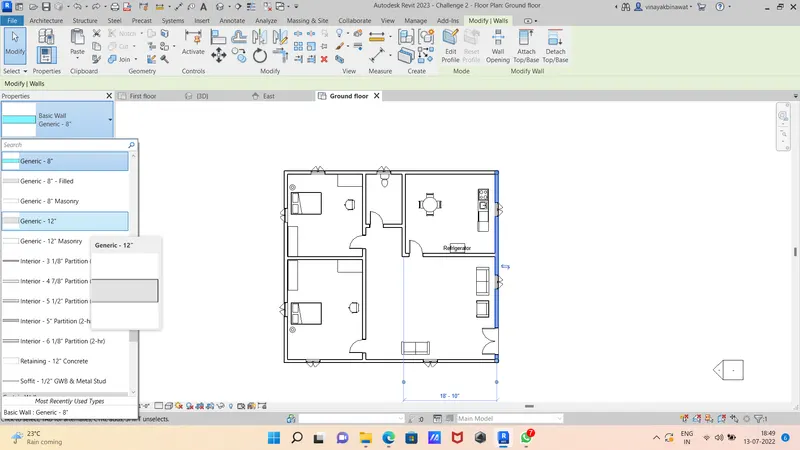

First select the interior wall, and change the wall type as partition wall.
Step 2 :

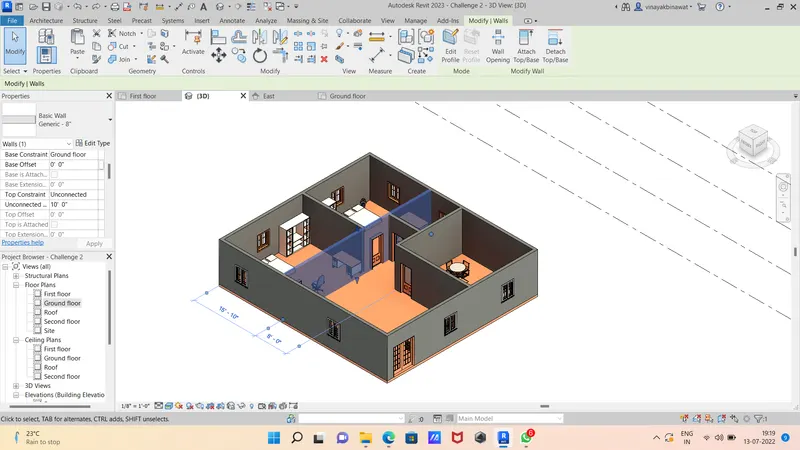

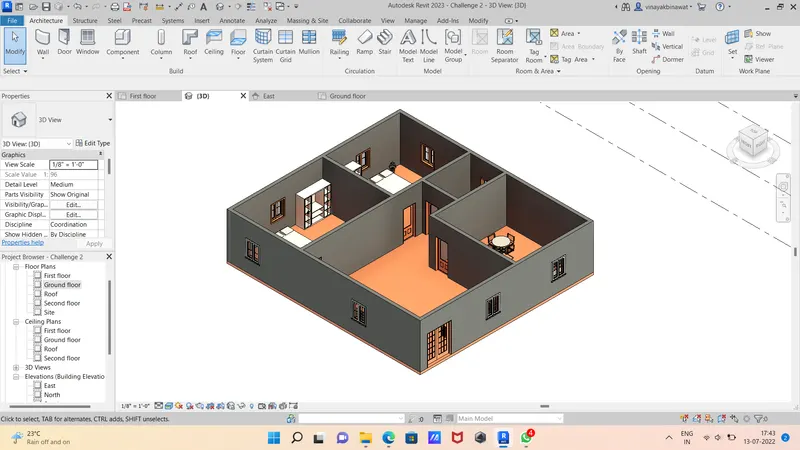

The interior partition walls are created.
RESULT :
The interior partition walls are successfully created.
5.]
Ans.
AIM : To insert the components in appropriate locations to add details to the residential model, based on the week 2 assignment.
INTRODUCTION :
- The residential model components are furniture set, couch table, TV desk, shelf cabinets, bed set, shelf, lighting, individual study desk, chair, bath tub and plumbing fixtures discussed in class.
- These components are very important in the building model for construction.
- Comming to the 3d modeling in the revit, these components are present in the library and we need to insert them into the model.
PROCEDURE :
Step 1 :

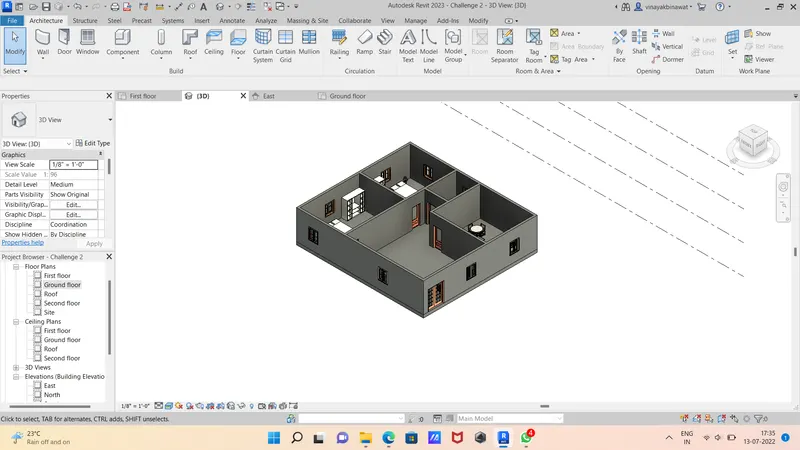

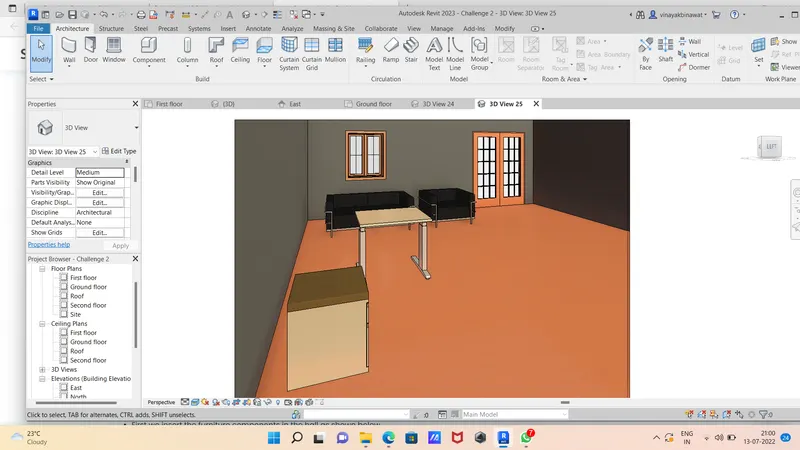

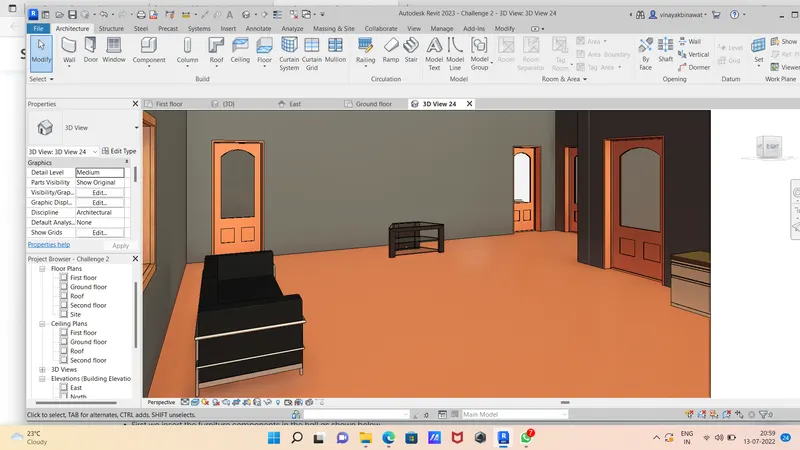

First we insert the furniture components in the hall.
Step 2 :

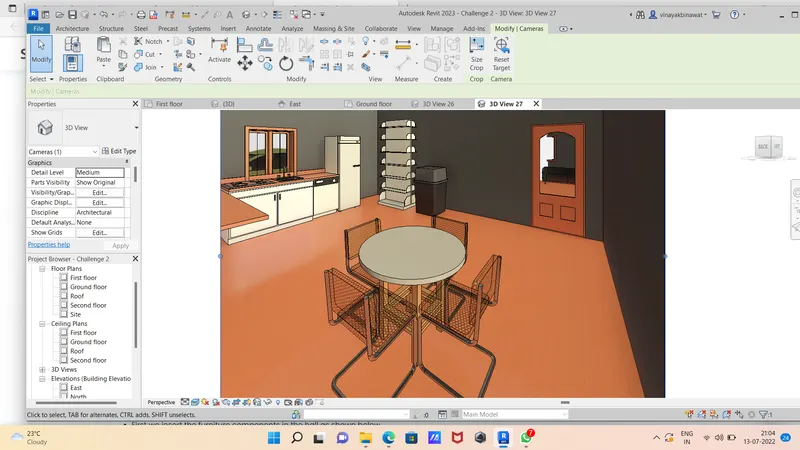

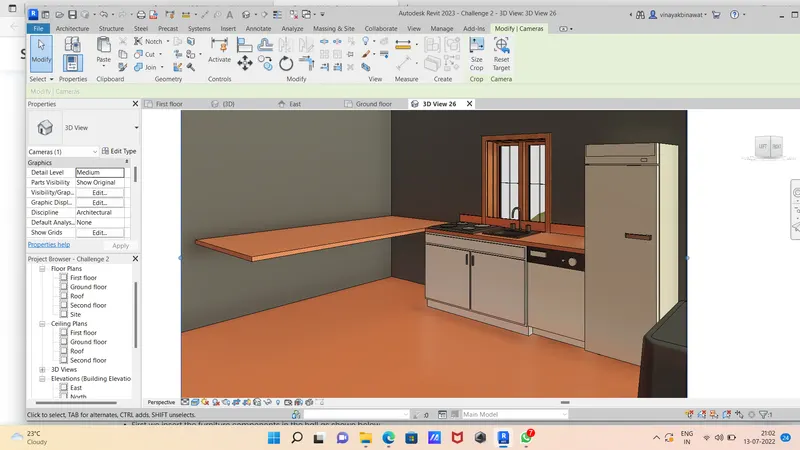

Next we insert the kitchen components from the library.
Step 3 :

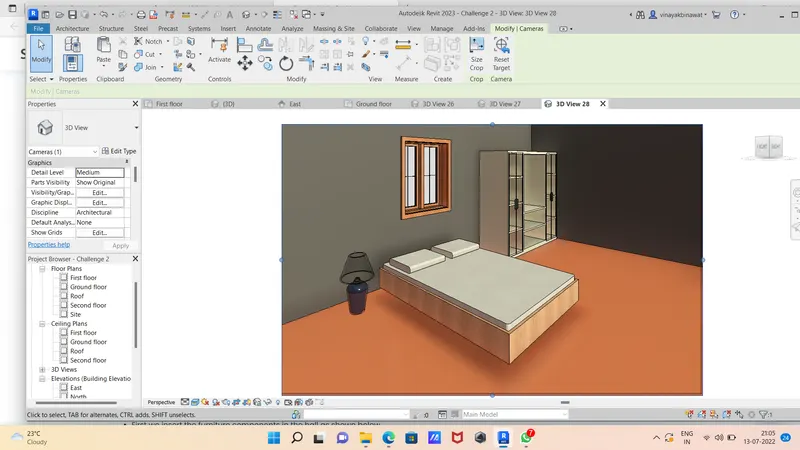

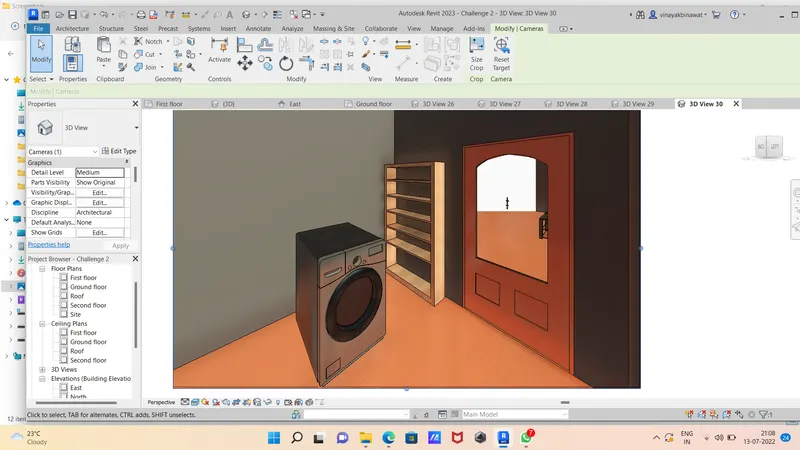

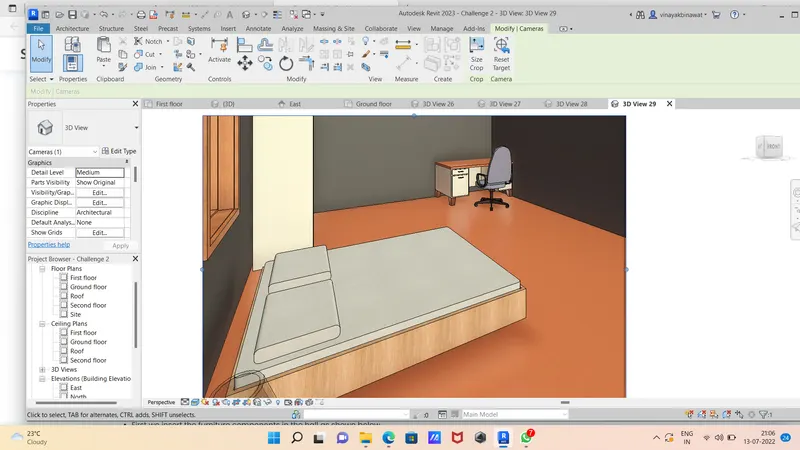

Next we insert the bed room components from the library.
RESULT :
The all components are inserted from the library.
