Drafting of various geometries using Chamfer, Fillet tool in AutoCad
Aim - To draw the geometries using Chamfer,fillet tool in Autocad.
Commands used - Line,circle,chamfer,fillet,mirror,trim,move,rotate,annotate.
Procedure -
1] New sheet - units - decimal - precision 0.00 - meter - ok
2] Limits - 0,0 and 420,210
3] zoom all

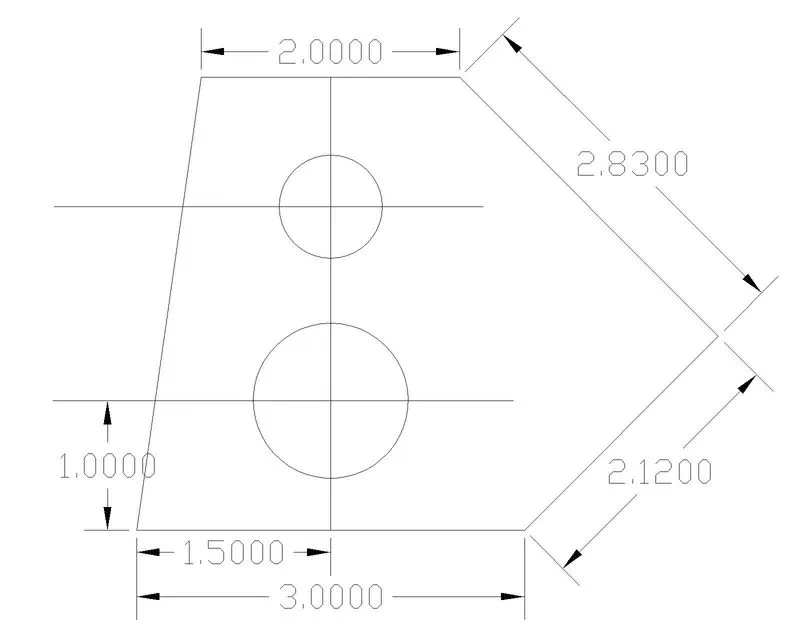

4] Select line tool and draw the lengths starting from base of 3 units,now give line command @2.12<45,@2.83<135,@2<180,and close.
5] Draw the first circle at x=1.5 and y=1 of diameter 1.2 units.Similarly,draw another circle at x= 1.5 and y= 2.5 of diameter 0.8 units.
6] Annotate and give dimension to all the line segments and circles.
1] New sheet - units - architectural - precision 0'-0" - feet - ok
2] Limits - 0'-0",0'-0" and 12'-0",9'-0"
3] zoom all

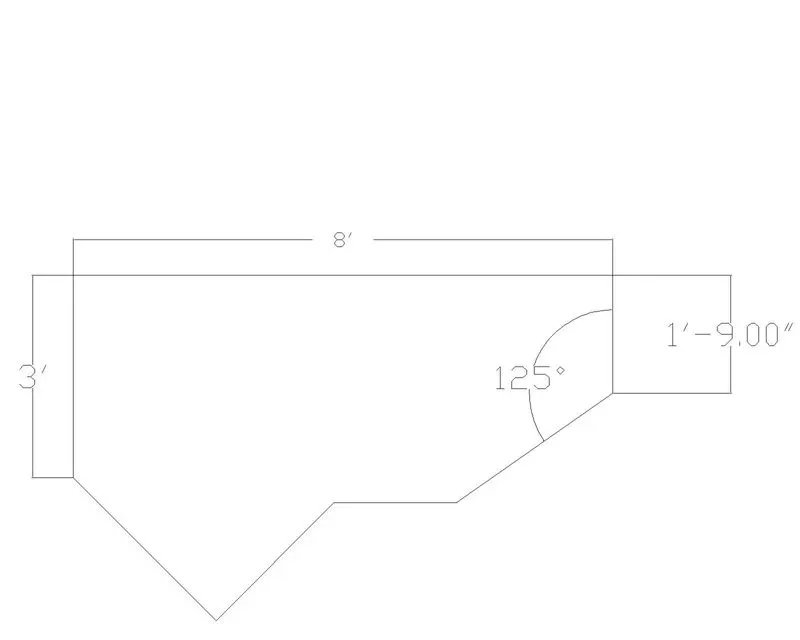

4] Select line tool and draw the lengths starting from topline segment of 8' ,now give line command positioning the cursor at 270 degrees with ortho ON, 1'-9" enter.
5] Give line command positioning the cursor at 270 degrees with ortho ON at first end and draw 2'-5" enter.
6] Draw the line at 315 degree of 3' at 90 degree 2'-6".Now,draw the line 2'-10" at 225 degrees and join the lines.
7] Annotate and give dimension to all the line segments and circles.
1] New sheet - units - architectural - precision 0'-0" - feet - ok
2] Limits - 0'-0",0'-0" and 12'-0",9'-0"
3] zoom all

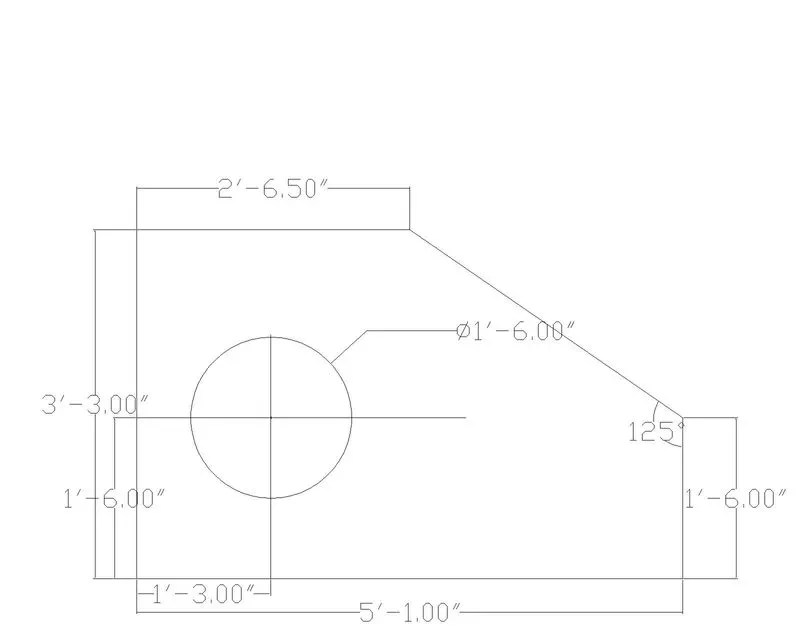

4] Select line tool and draw the lengths starting from topline segment of 2'-6.5" ,now give line command positioning the cursor downwards with ortho ON, 3'-3",5'-0.1",1'-6" and close.
5] Annotate and give dimension to all the line segments and circles.
1] New sheet - units - decimal - precision 0.00 - meter - ok
2] Limits - 0,0 and 420,210
3] zoom all

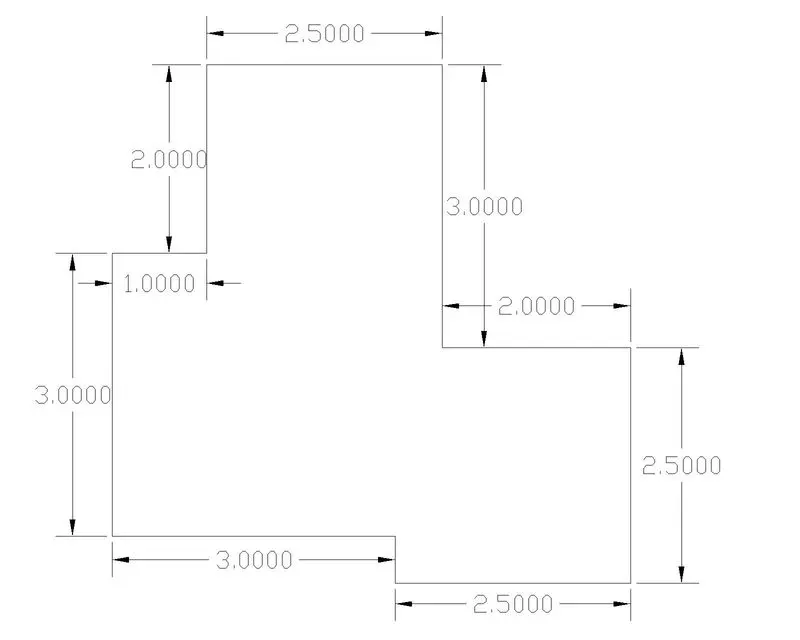

4] Select line tool and draw the lengths starting from base of 2.5 units,now give line command @2<270,@0.5<180,@3<270,@3<0,@0.5<270,@2.5<0,@2.5<90,@2<180 and close.
5] Annotate and give dimension to all the line segments and circles.
1] New sheet - units - decimal - precision 0.00 - meter - ok
2] Limits - 0,0 and 420,210
3] zoom all

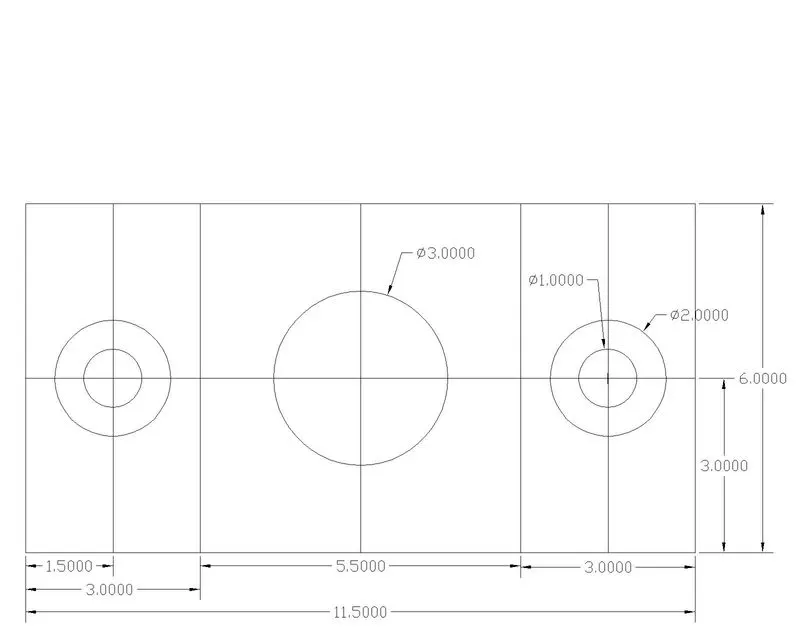

4] Select line tool and draw the lengths starting from base of 11.50 units,now give line command @6<90,@11.5<180,and close.Draw the vertical lines at 2.75 from the centre of the rectangle on both sides.
5] Draw concentric circles with centre at x =1.5 and y =3 of diameter 1 and 2.Copy the circles toward 4.25 right from the rectangle.
6] Draw another circle at centre of rectangle of diameter 3 units.
7] Annotate and give dimension to all the line segments and circles.
1] New sheet - units - decimal - precision 0.00 - meter - ok
2] Limits - 0,0 and 420,210
3] zoom all

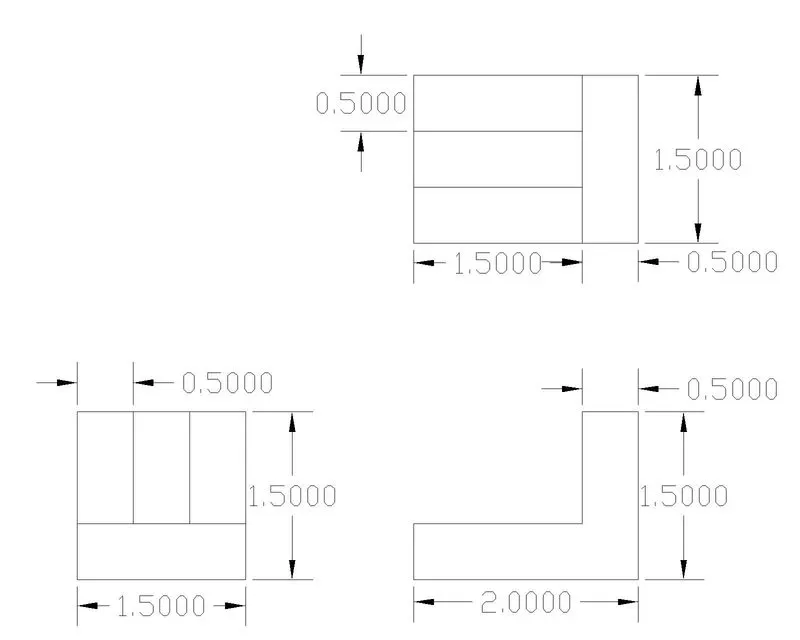

4] Select line tool and draw the lengths starting from base of 1.5 units,Draw offset at 0.5.Taking the total length 1.5 draw an outer boundary and take offset of 0.5 for the vertical segments.Follow the steps to draw 2 units geometry and rotate towards left.Using line command draw the L shape geometry and connect to make the traingular portion.
5] Annotate and give dimension to all the line segments and circles.
1] New sheet - units - decimal - precision 0.00 - meter - ok
2] Limits - 0,0 and 420,210
3] zoom all

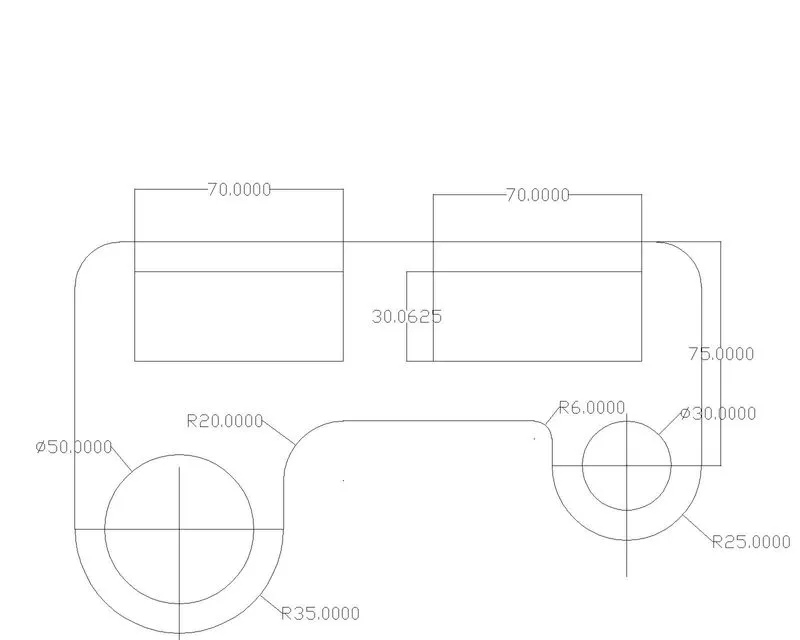

4] Select line tool and draw the lengths starting from base of 210 units,now give line command @100<270.Draw @75<270.Draw the rectangles 70,30 and copy at distance 30.
5] Draw circles with centre at x= 100 and y=75.Draw parallel lines from both the circle and using fillet tool give radius of 35,20,6 and 15
6] Annotate and give dimension to all the line segments and circles.
1] New sheet - units - decimal - precision 0.00 - meter - ok
2] Limits - 0,0 and 420,210
3] zoom all

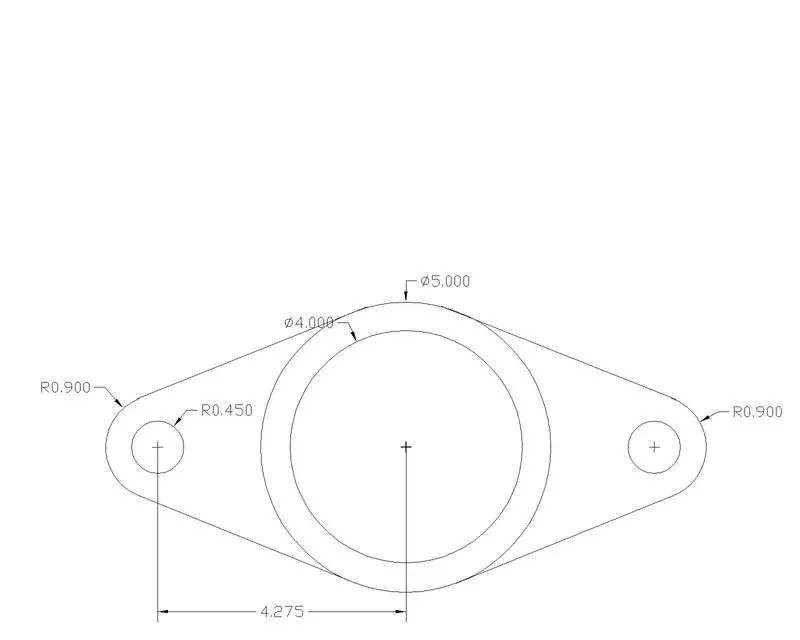

4] Draw concentric circles with diameter 4 and 5 units.Draw one circle at 4.275 distance from the centre.Draw parallel line and draw a fillet of radius 0.9 and extend the lines to draw the tangent of bigger circle.Mirror the same towards right and trim the extras in geometry.
5] Annotate and give dimension to all the line segments and circles.
1] New sheet - units - architectural - precision 0'-0" - feet - ok
2] Limits - 0'-0",0'-0" and 12'-0",9'-0"
3] zoom all

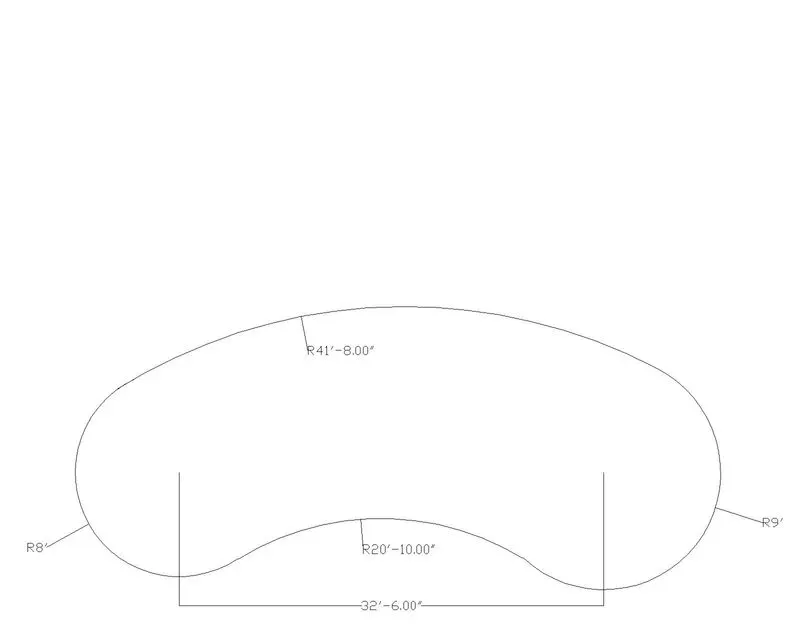

4] Select circle tool and draw the circles of radius 8' and 9' at a centre to centre distance of 32'-6".Using fillet command connect the circles with radius 41'-8" and 20'-10".
5] Annotate and give dimension to all the line segments and circles.
1] New sheet - units - decimal - precision 0.00 - meter - ok
2] Limits - 0,0 and 420,210
3] zoom all

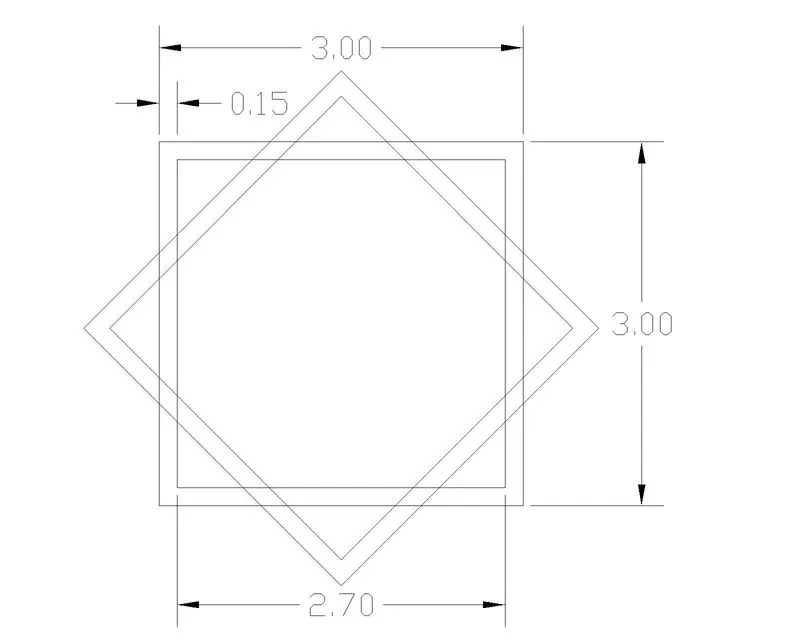

4] Draw square using rectangle tool with width 3 units of equal sides.Copy and rotate at 45 degrees.Take 0.15 units as the thickness.
5] Move the rotated rhombus over the square and trim the unwanted lines.
1] New sheet - units - architectural - precision 0'-0" - feet - ok
2] Limits - 0'-0",0'-0" and 12'-0",9'-0"
3] zoom all

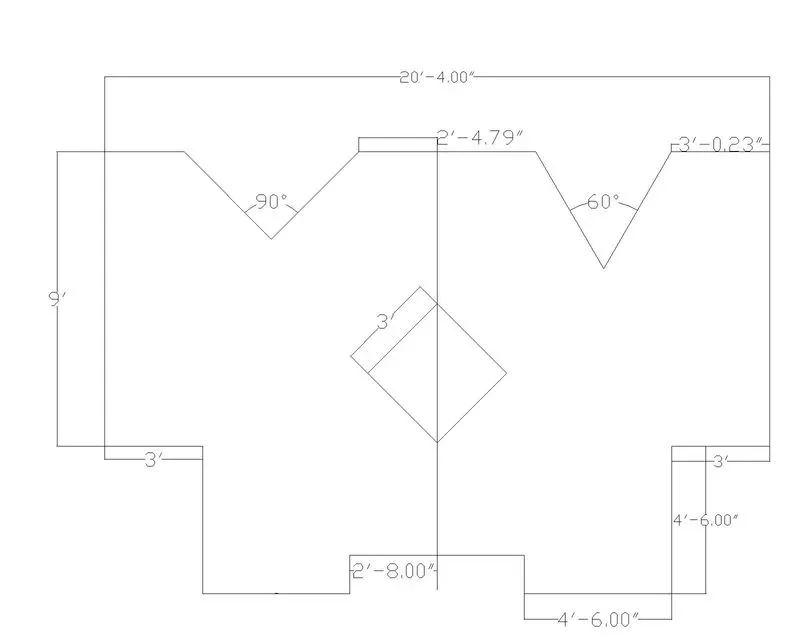

4] Select line tool and draw the lengths starting from topline segment of 9'-0" ,changing the position of cursor in direction of the line with ortho ON draw 3'-0",4'-6",4'-6",1'-2".Now take copy and mirror the left to right and join to close.Draw a square of side 3'-0" and rotate to 45 degrees and position it using move tool.Using line tool draw vertical lines of 2'-8" and 3'-7" and make 30 degrees line on each side with respect to reference vertical line and 60 degrees on the other end.
5] Annotate and give dimension to all the line segments.
Result - The given geometries are drafted using chamfer,fillet,circle,and line tool in autocad in accurate measurement.
