Creating Walls, Partition walls and Floors for a residential layout using REVIT

QUESTION 1

• Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select thenfloor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from week 2
• AIM:

PROVIDE THE FLOOR WITH MATERIAL AND PROPER THICKNESS TO RESIDENTIAL UNIT WHICH IS ALRADY CREATED IN  WEEK 2

• PROCEDURE:

STEP 1

• start revit 2023 software which is alrady download from autodesk website by double clicking on revit software:

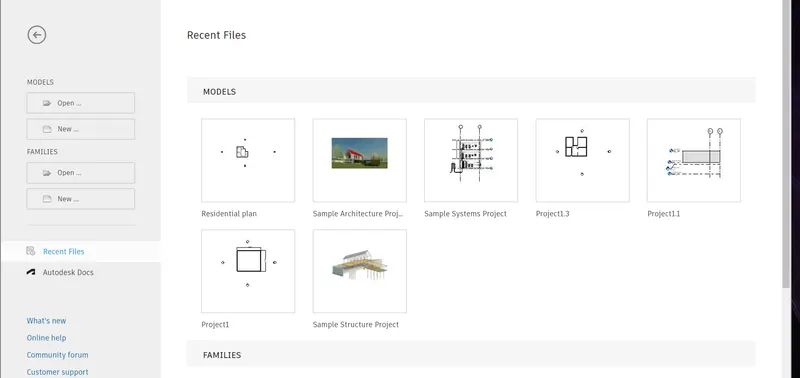

• then home page of software is opened



STEP 2

• then click on OPEN option from that homepage
• then select the file which is alrady created in week 2 challange
• then file name as revit week 2 challange
• select the file and open it.

STEP 3

• then go to the architecture tab
• then click on floor
• select the architecture floor
• then go to the properties
• click on EDIT
• the it shows the dialogbox

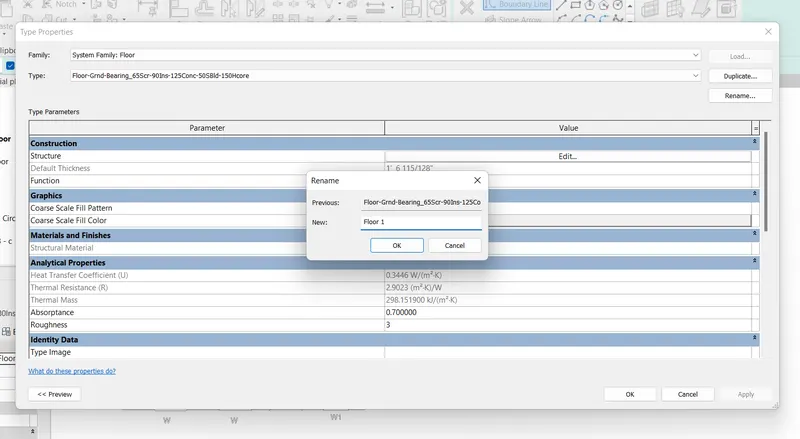

• In that dialogbox click on duplicate option
• and give the name as FLOOR -1
• Click ok

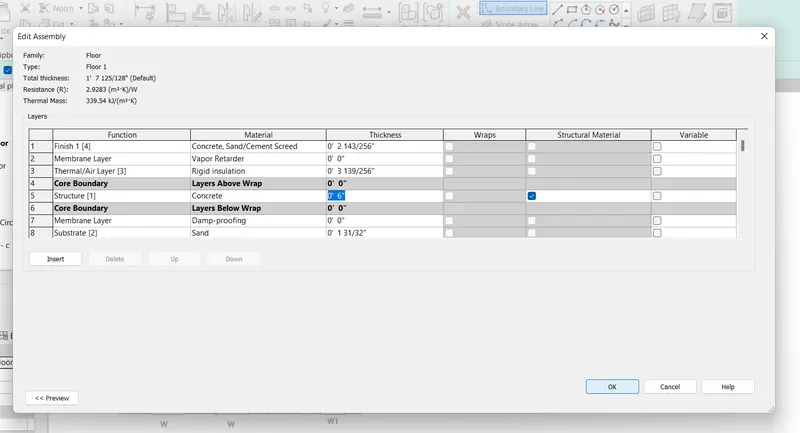

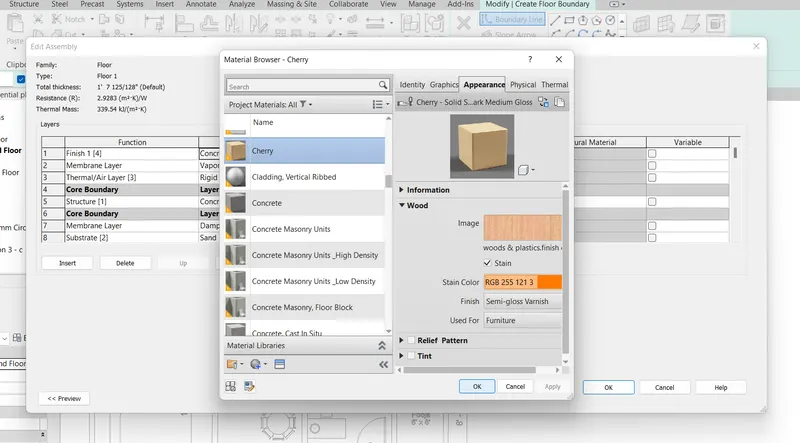

• then go to the structure tab click on EDIT option
• then select the flooring material
• and give the thickness of floor



• Press Enter ,Ok ,Apply

STEP 4

• then go to the modify panl

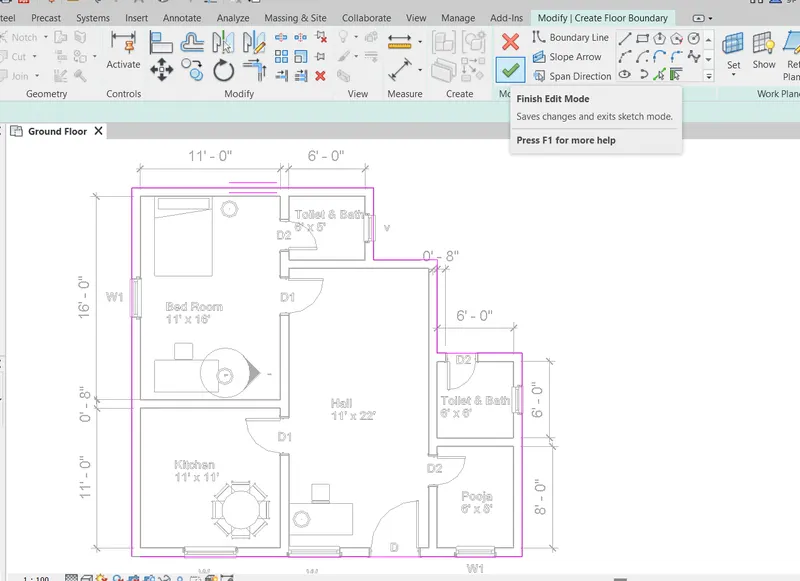

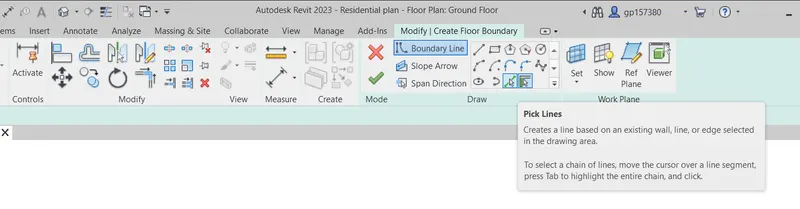

• select the pick line option from that tab

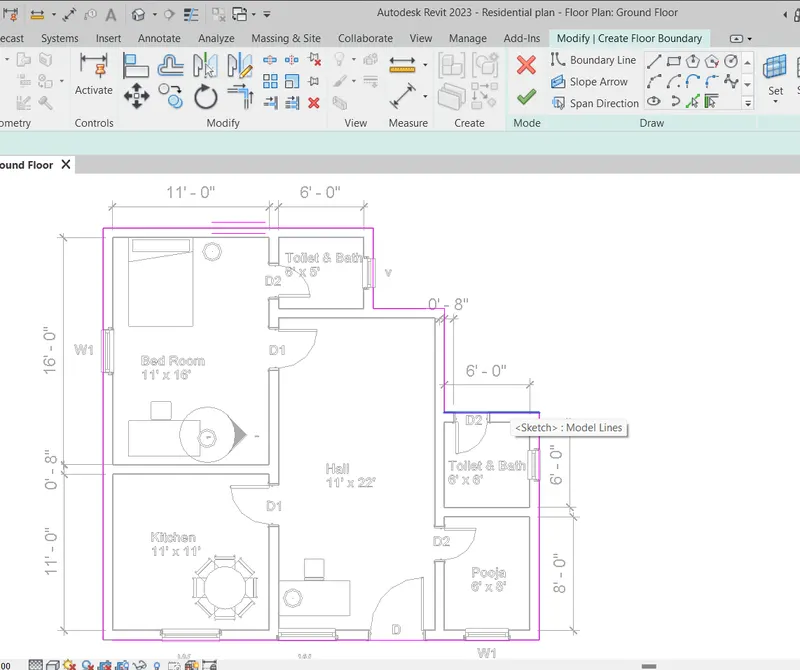

• select the line shown below
• then click on mode option
• then flooring is ready
• then go to the 3D view
• 3d vies of flooring is there
• shown in results

STEP 5

• then go to the properties
• then click on grount floor plan
• to the archicture tab
• from that go to the datum tab

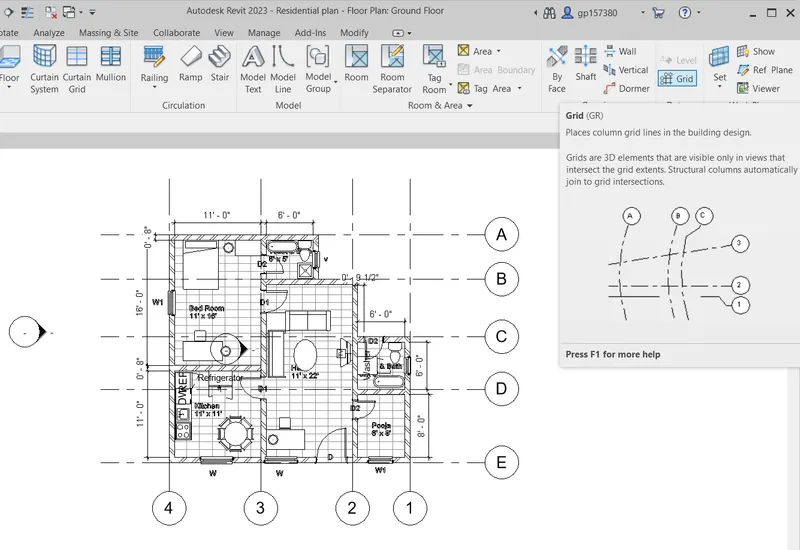

• click on grid option

• do same process did in week 2

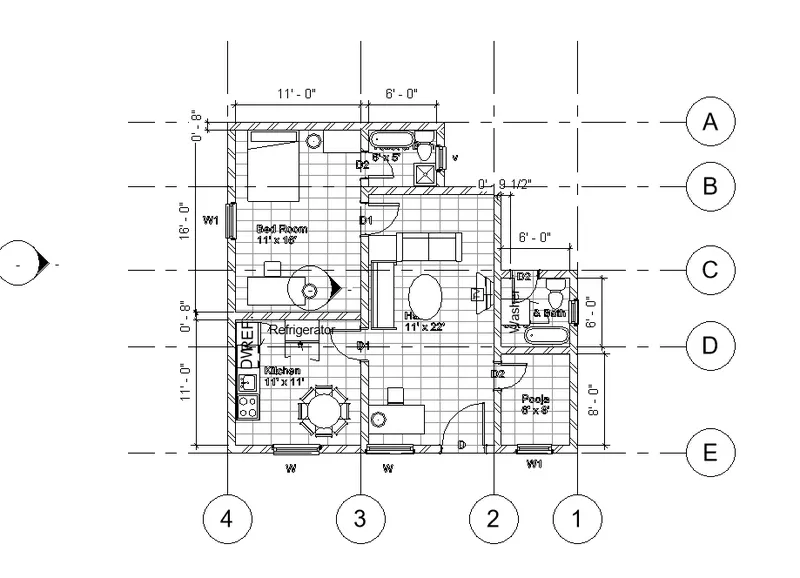

• shown in results.

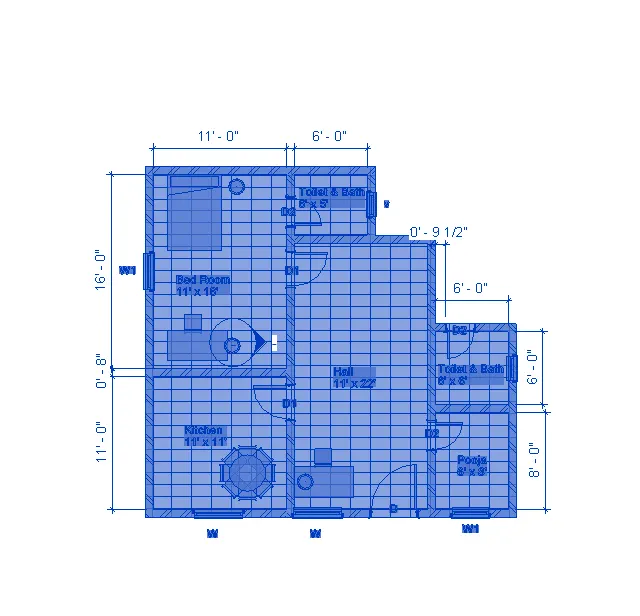

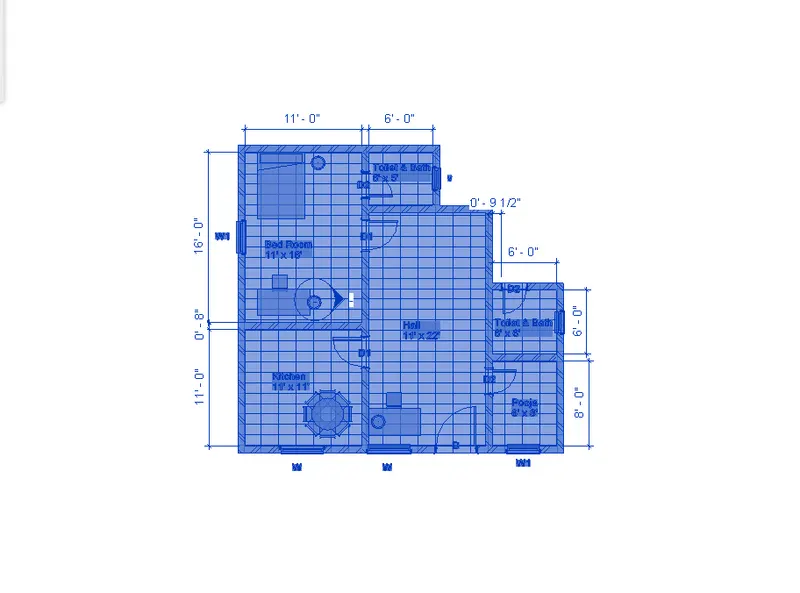

RESULTS:





QUESTION 2

• Add walls based on the floor layout. Pick lines or use the draw tool to modify the boundary of walls. Use the property browser to select appropriate material and thickness for walls. After creating the walls verify using the property browser to see if the top and bottom of the walls are constrained.
• AIM:

ADD THE WALL MATERIAL AND GIVE THE PROPER THICKNESS OF WALL TO THE FLOOR PLAN

• PROCEDURE:

STEP 1

• start the revit 2023 software
• then homepage is open
• shown below



• then click on OPEN option from that homepage
• select the file name as revit challange 2 which is alrady created in challange 2
• select the file and open it

STEP 2

• then go to the archicture tab
• click on wall option go to the properties
• click on edit

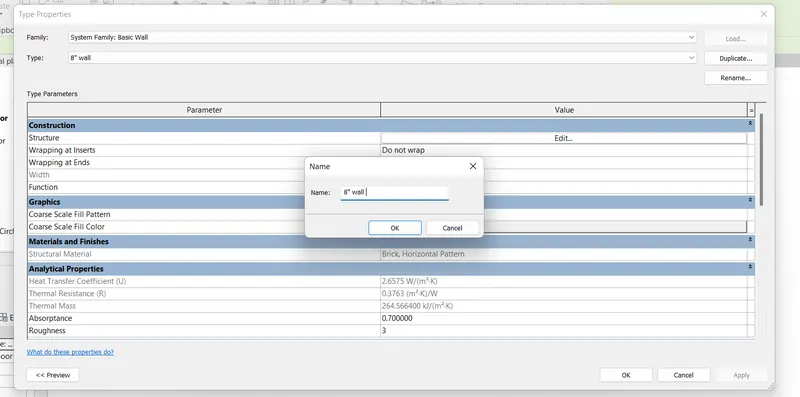

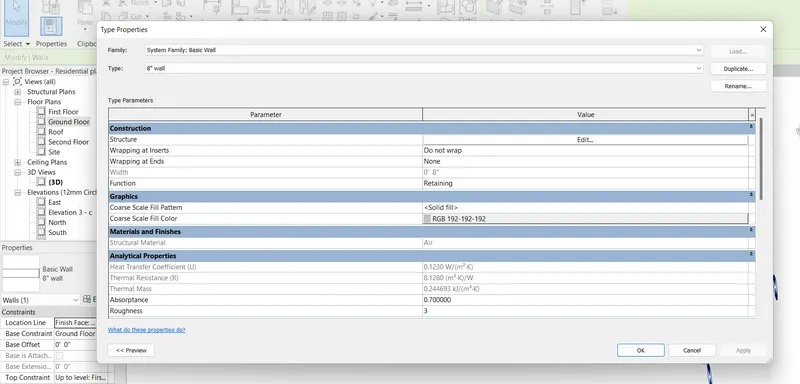

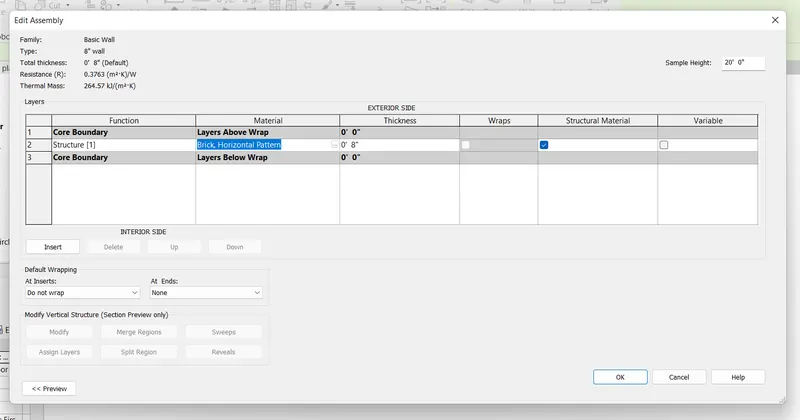

• then click on duplicate option give the name as 8" Wall
• As shown below



• then click on EDIT option
• then select the proper wall material
• the wall material name as Brick, Horinzontal pattern
• as shown below



• then click ok
• press enter

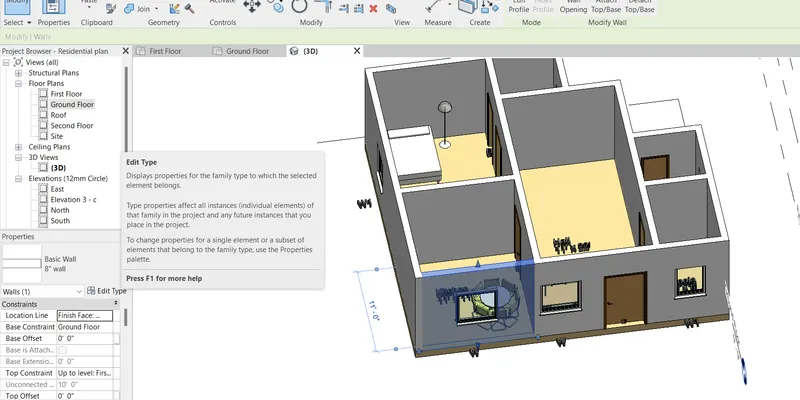

• walls of the structure shown in results

A:

• Based on your observation, what is beneficial for connecting walls with associated levels rather than being Unconnected
• when we draw the wall it is very effective to connect the level mode because if in future the hight of wall is increase or decrease then it can be easy change by changing only height of levels.
• but if our walls is unconnected then if we have to change it by selecting individual element.
• Which option is convenient for modeling walls, By Height or By Depth?
• as per my point of view height option is more effective during modelling the walls.

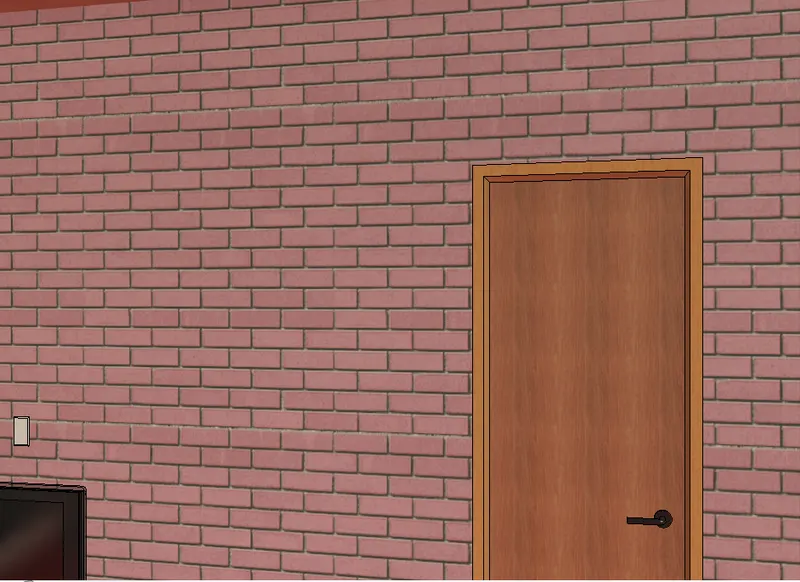

RESULTS:

• go to the view manager
• select the view as realastic as shown below

REALASTIC VIEW:



QUESTION 3

• Copy the model elements (wall, floor) modelled to Ground Floor Level and paste it aligned to First Floor Level. Use modify tab to utilize copy and paste options to align elements to a different level

AIM:

• COPY THE MODEL AND PLACED IT AS FIRST FLOOR

PROCEDURE:

STEP 1

• first start the revit software:
• then homepage is open shown below

• then click on OPEN option from the homepage
• select the file which is alrady created in revit week 2 challange
• file name as revit challange 2 select and open it

STEP 2

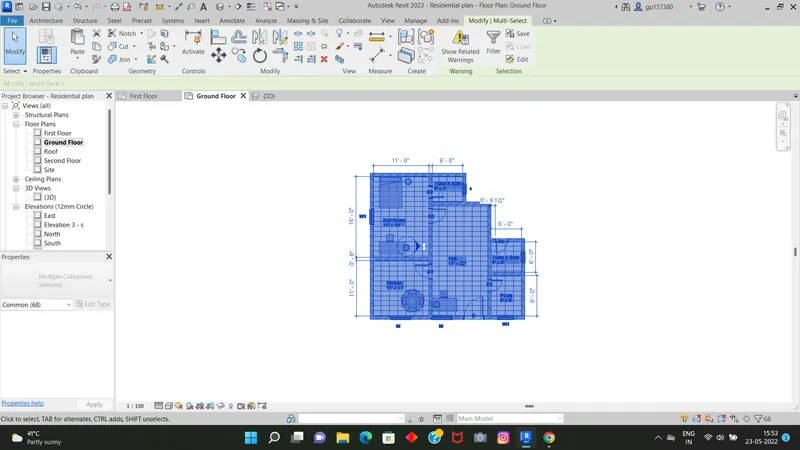

• then to to the ground floor plan in properties broswer
• select the plan view
• after selecting planit shown new rabbien

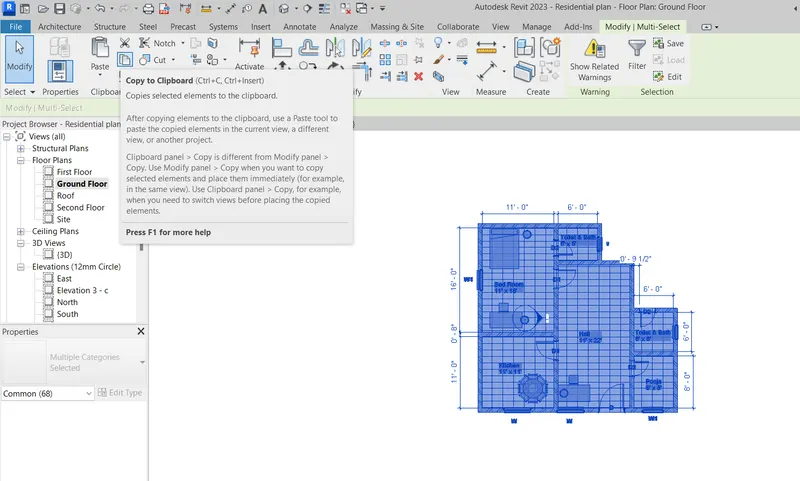

• from that ribbon click on copy clipbord
• then click on past option
• click on dropdown

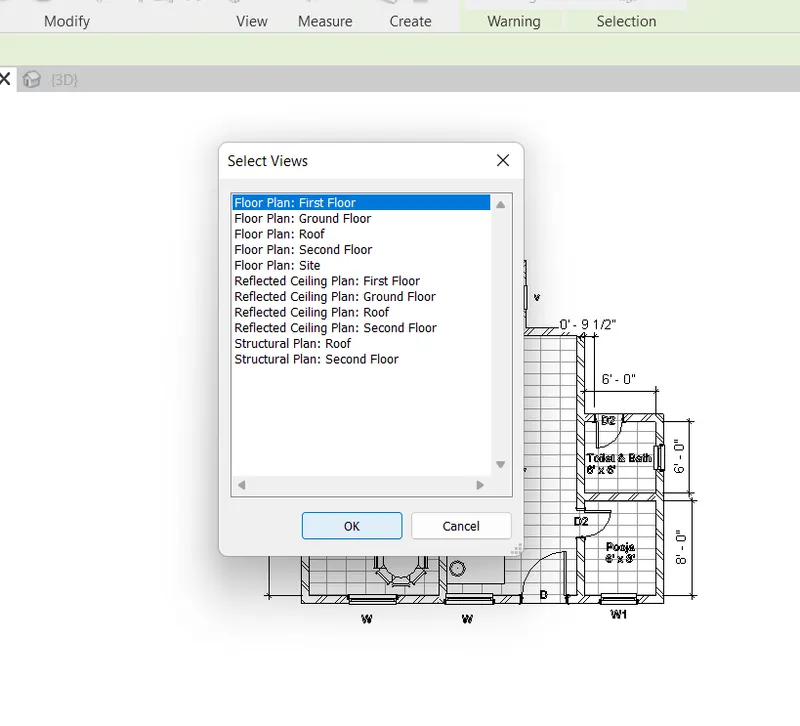

• select the align to selected levels
• slect the first floor option:
• and click ok

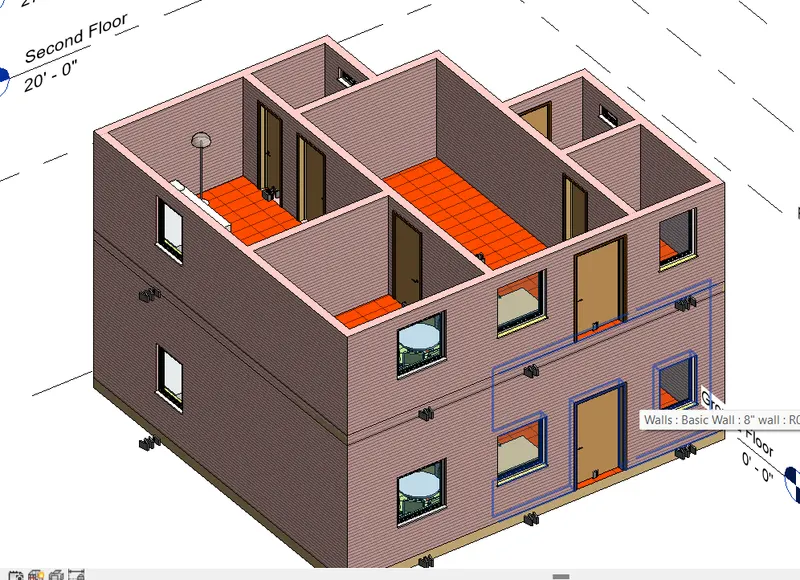

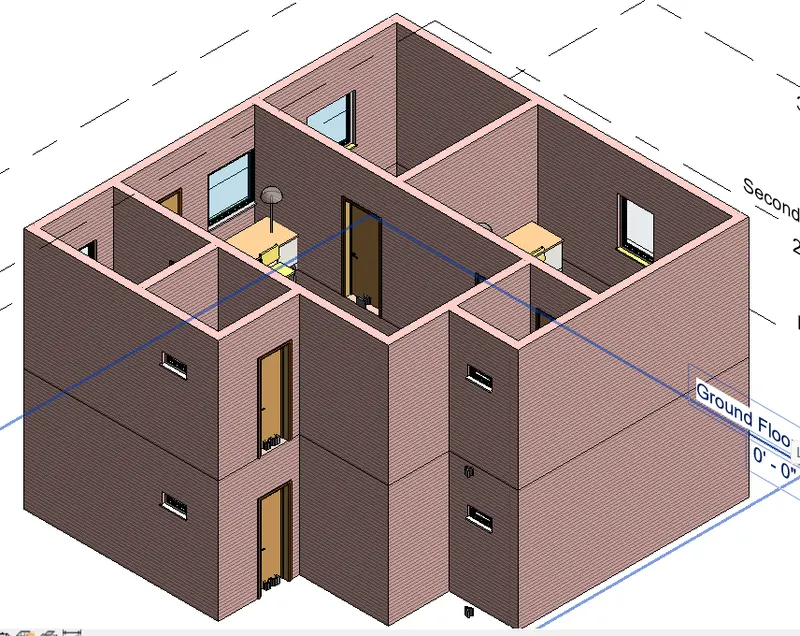

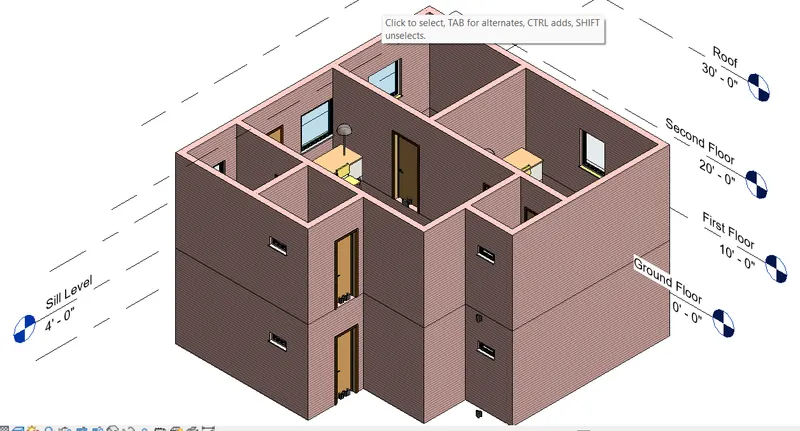

• the model is copied as shown in results



RESULTS:





QUESTION 4

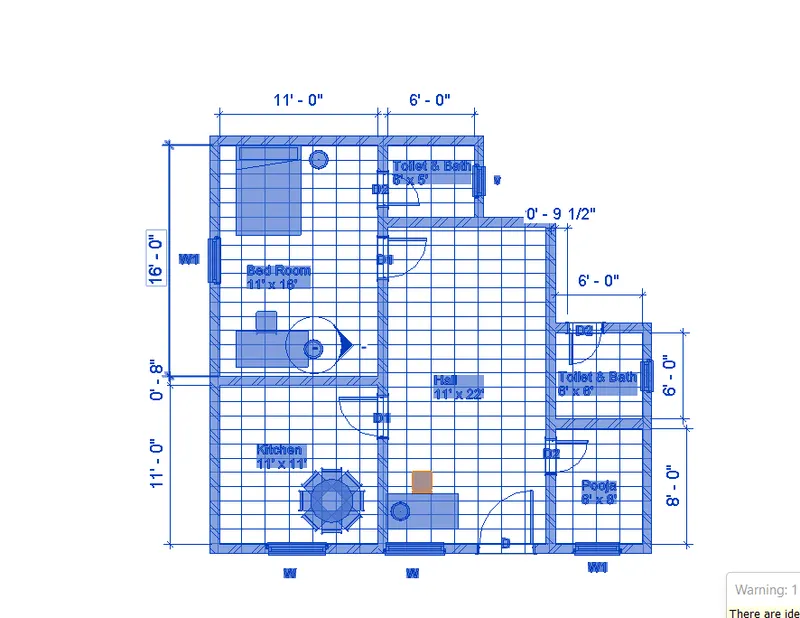

Use interior partition walls to create separate rooms within your residential unit. The model must include the following rooms

a. Living Room/Drawing Room (15' x18')

b. Dining Room (9' X 11')

c. Bed Room (9' X 12' and 15' X 11') d. Rest Room (10' x 12')

e. Kitchen (8' x 10')

The above are for examples. You can use them or use your measured entities to create your model based on your layout. You may include entry walkway, Patios or Guest

rooms based on your creativity and purpose of modeling. Convert units if you are using metric system

AIM:

• GIVE THE INTERIOR WALLS AND CRATE A SEPRATE ROOMS

PROCEDURE:

STEP 1

• first start the revit software
• then homepage is open
• as shown below



• then click on open option from that homepage
• select the file which is alrady created in week 2
• file name as revit challange 2
• select it and open it

STEP 2

• Go to the archicture tab click on wall option
• select the proper wall type from properties broswer
• and draw the walls
• after that
• select the walls
• go to the properties broswer
• click on EDIT option
• and select the proper material and give the thickness of internal wall shown in results

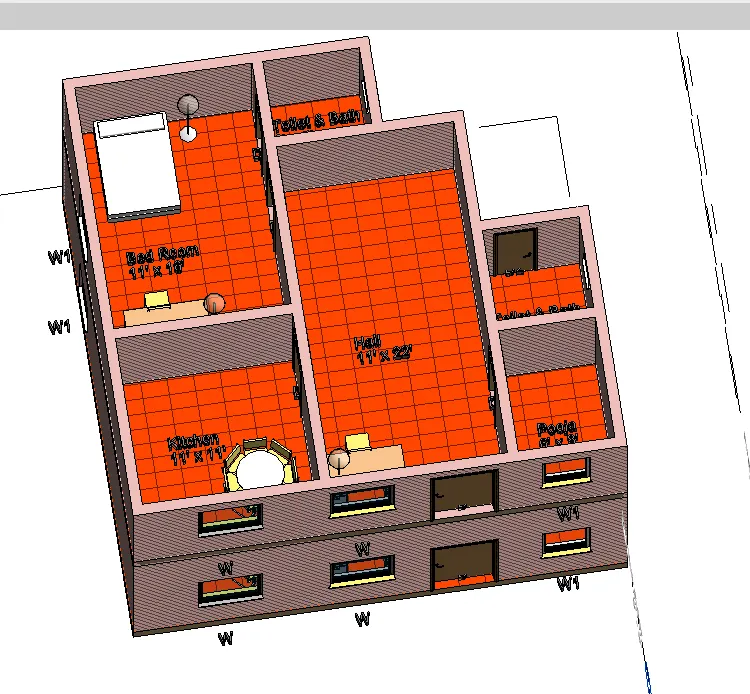

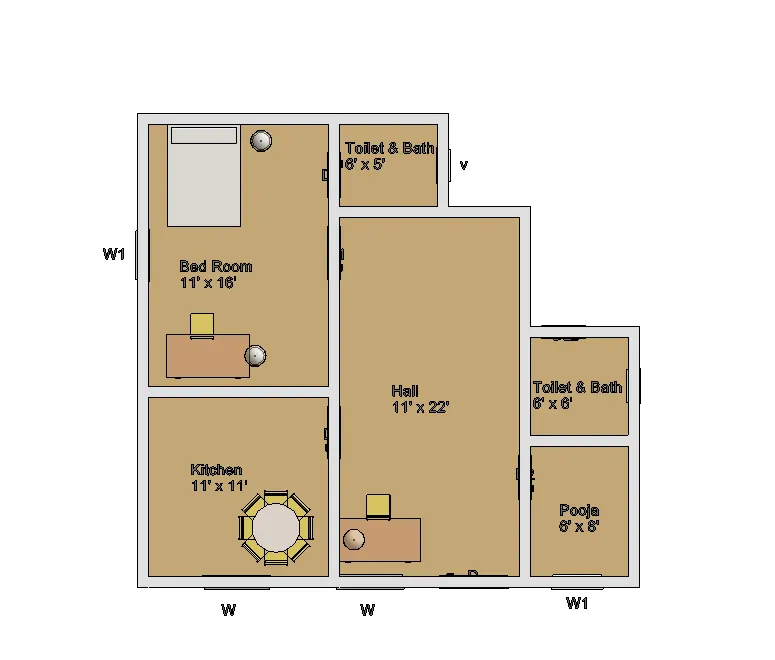

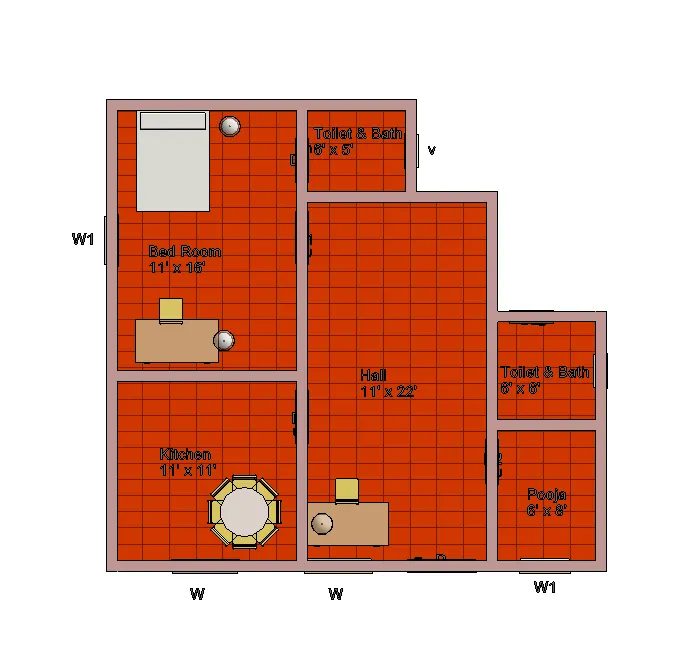

RESULTS:





QUESTION 5

Based on week 2 assignment, the components to be included in a residential unit were inserted to the Revit file. Place these components in appropriate locations to add details to your residential model

• a. Place Doors and windows in the wall at appropriate locations
• b. The Living Room must include furniture set, couch table and TV desk and shelf cabinets
• c. The Dining Room must include a table and chairs serving the purpose of eating
• d. Bed Room must include a bed set, shelf, lighting and individual study desk and chair

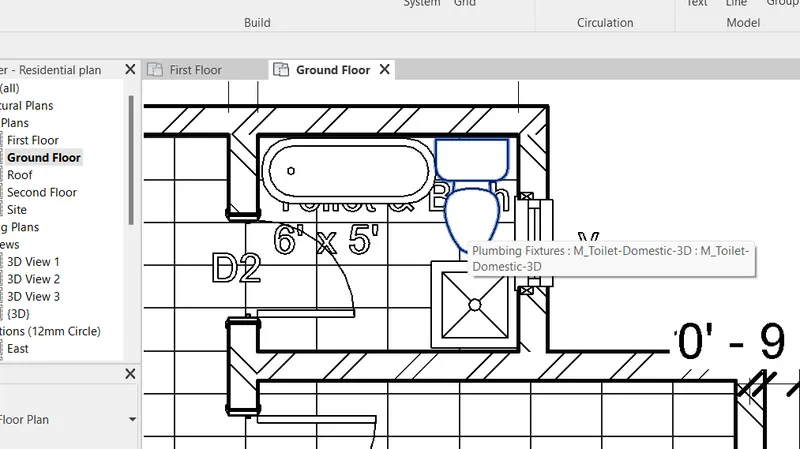

• e. Rest room should include bath tub and plumbing fixtures discussed in class
• f. Kitchen should include countertops, gas stove cabinet and shelves to store food items
• g. The wash/storage room can include washing machines and shelves to store clothes

All the components are available in Revit Library. Use them to place at appropriate locations to add details to your model. Use 3D navigation to check the model and its authenticity on a real time basis to verify the model

AIM:

• INSERT THE COMPONENT IN RESIDENTIAL UNIT WHICH IS CREATED IN WEEK 2

PROSEDURE:

 STEP 1

• start the revit 2023 software
• then homepage of revit software is open as shown below

• click on OPEN option
• select the file which is alrady created in week 2
• file name as revit challange 2
• select and open it

STEP 2

• go to the insert tab.

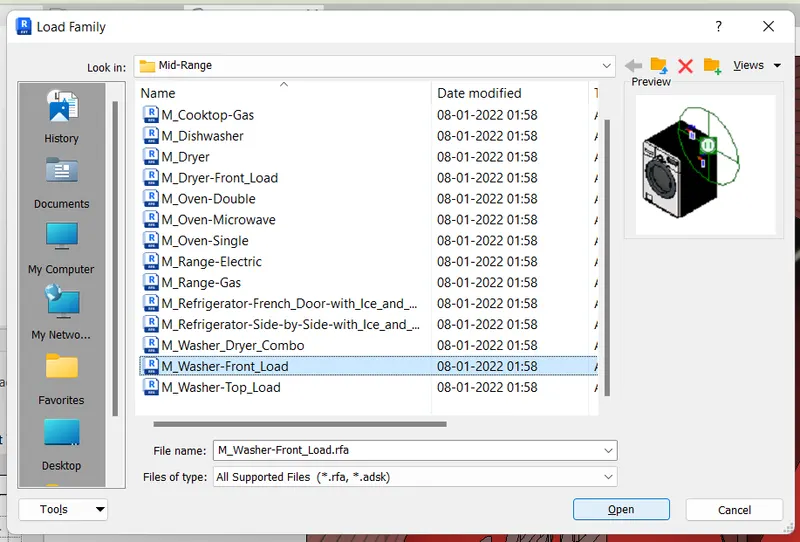

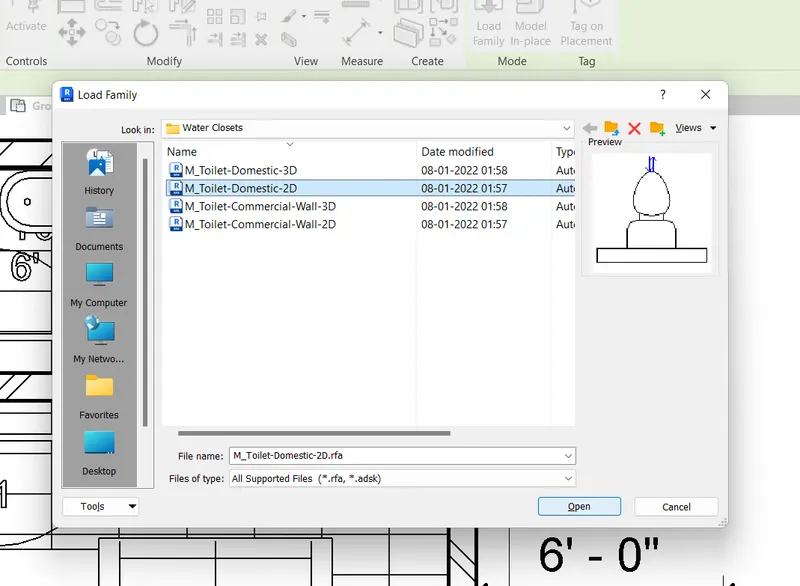

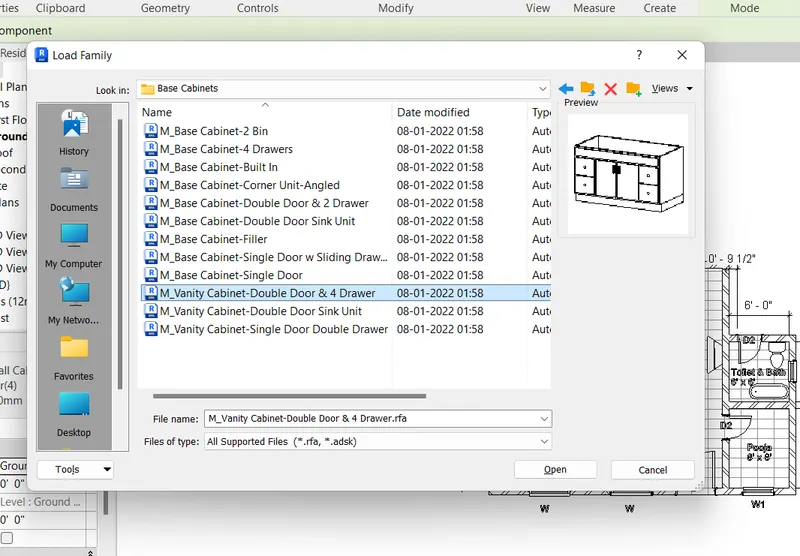

• then click on load family.
• and select the units
• and insert it

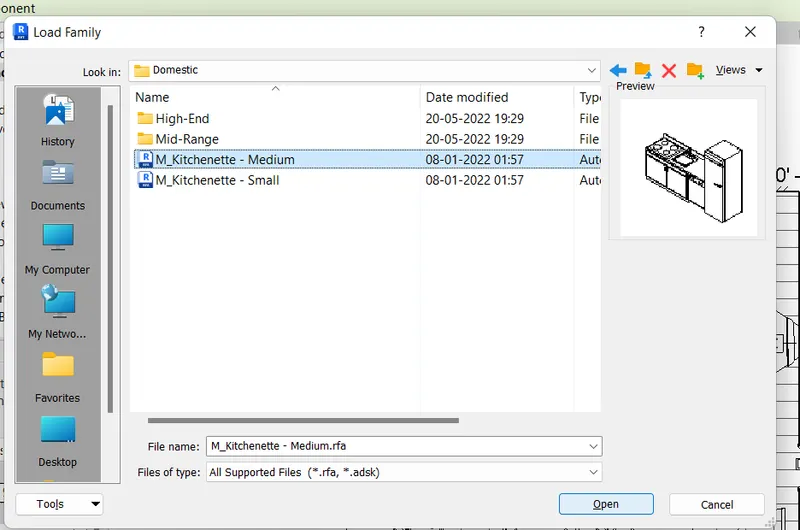

• FOR KITCHEN:

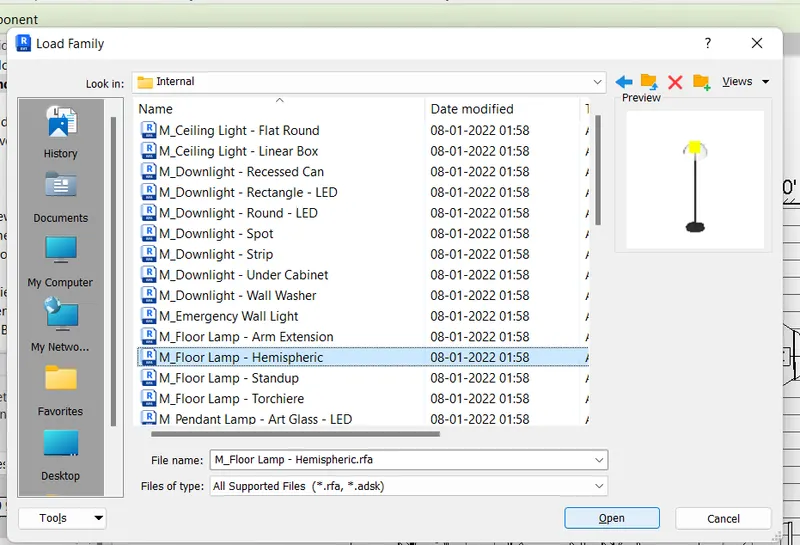

• FOR LIGHTNING
• go to the insert tab
• click on load family
• click on lightning
• and insert the element as shown in results

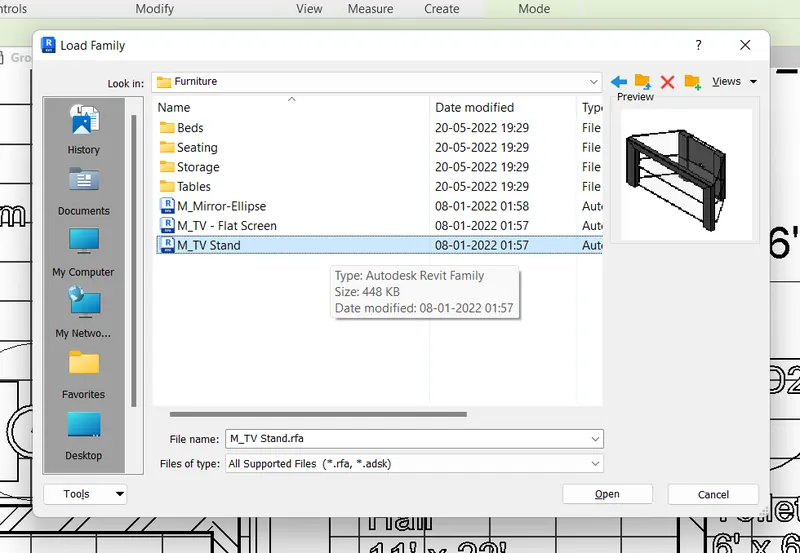

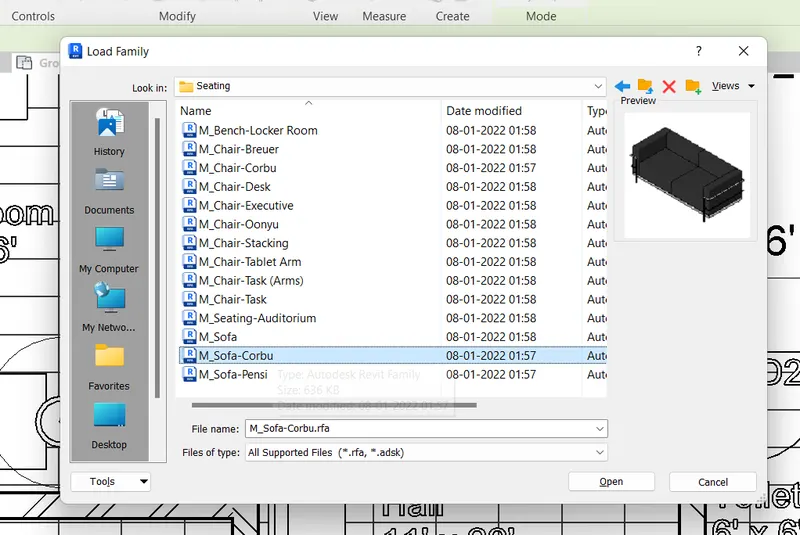

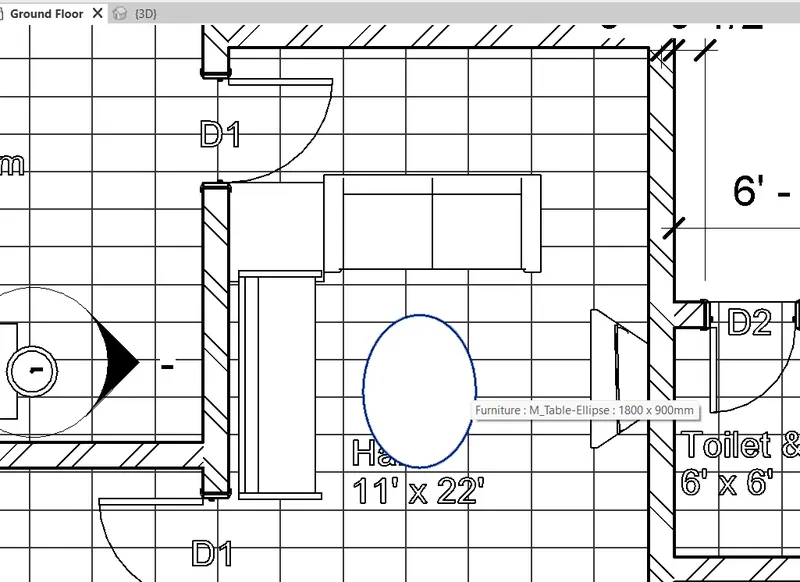

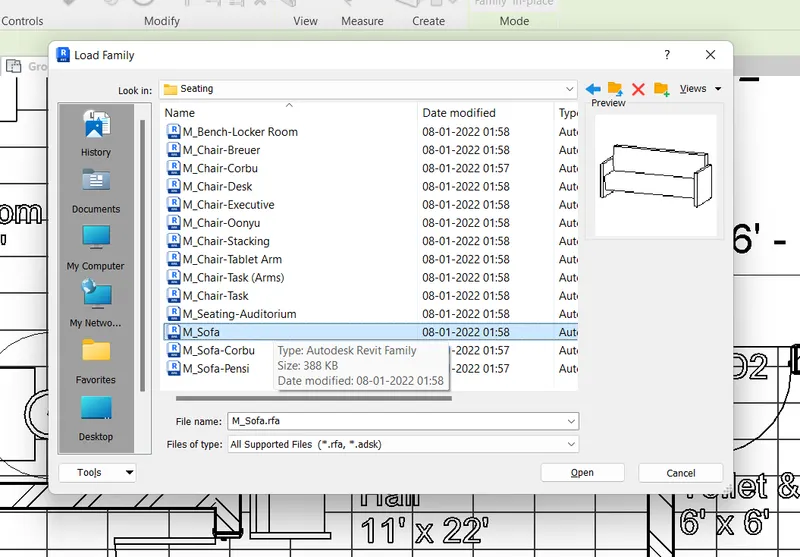

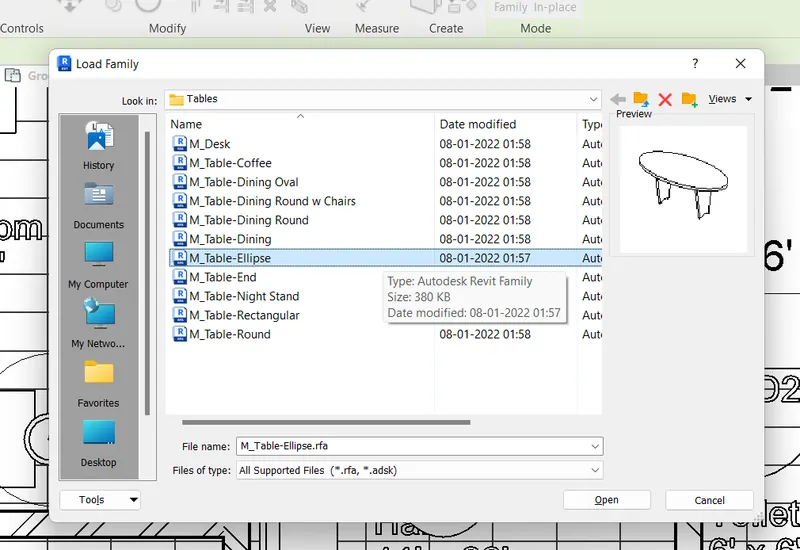

• FOR FURNITURES:

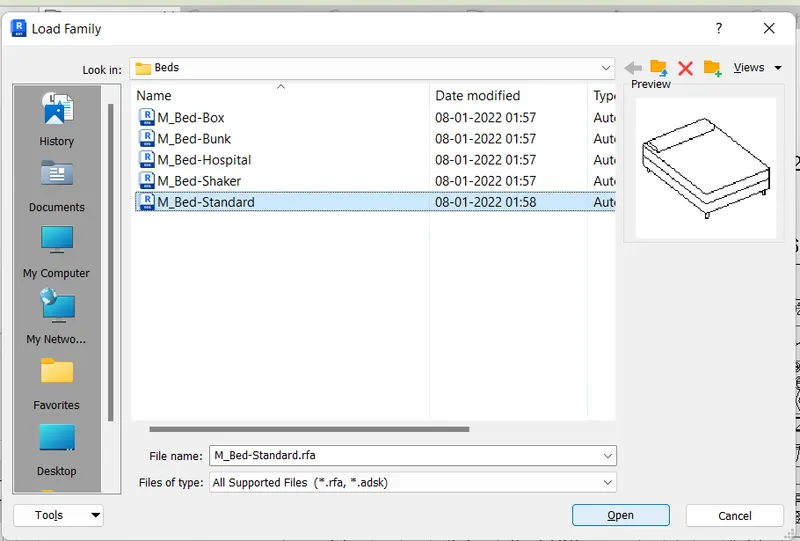

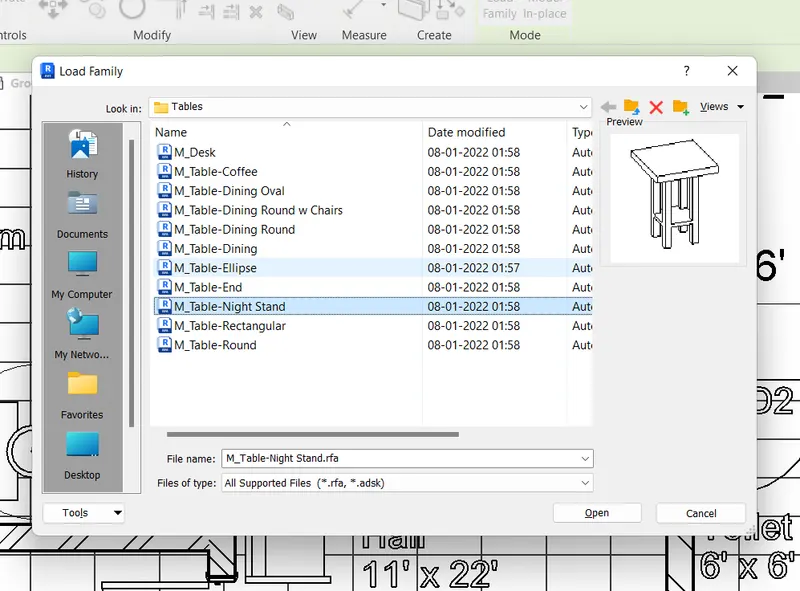

• go to the insert tab
• click on load family
• select the elements from the family
• and insert it in residential units.
• as shown in results



STEP 3

• Click on view

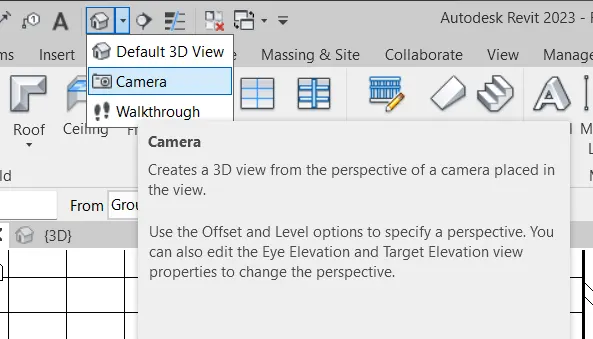

• Select the camera view

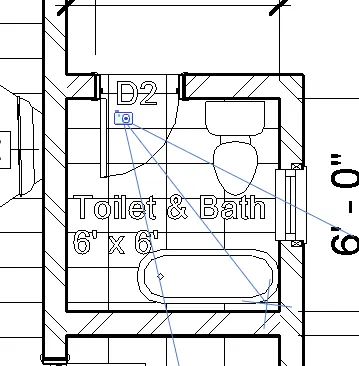

• Place the camera in each room like bedroom , living room , kitchen, Toilet & bath etc.
• The all view shown in result

Results:

•  HALL

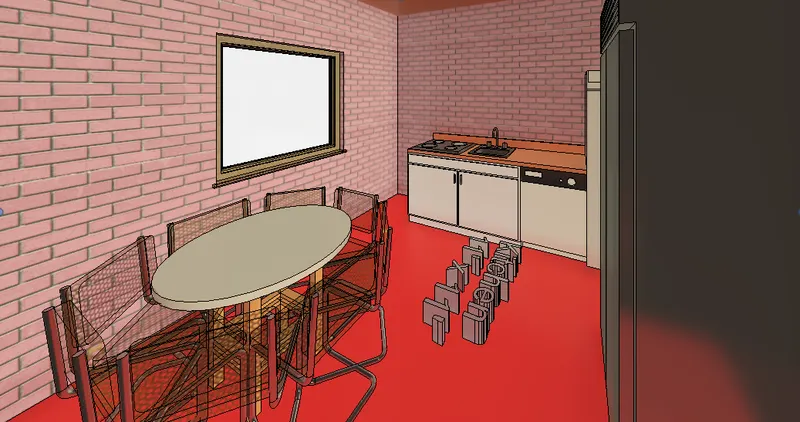

• KITCHEN

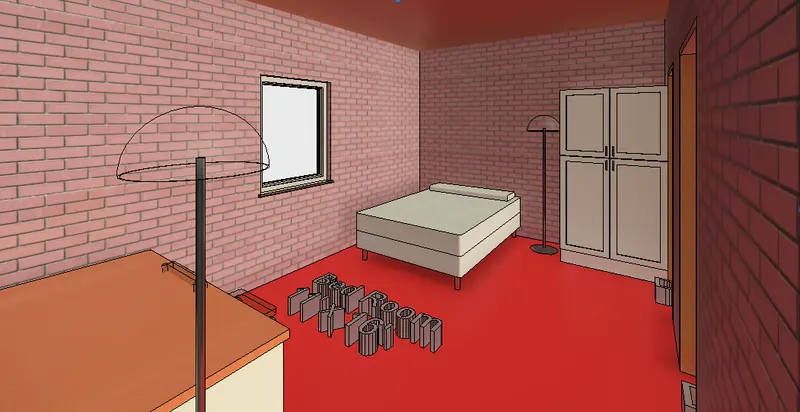

•  Bed Room

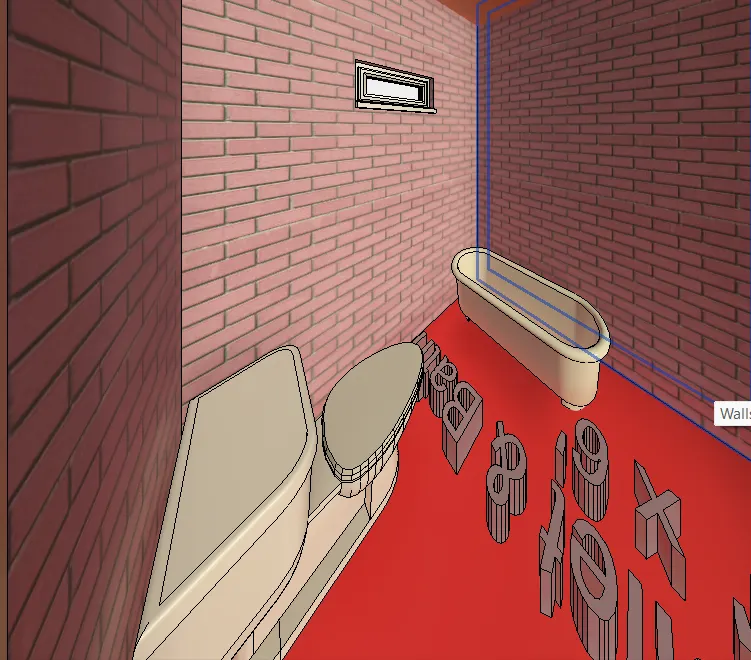

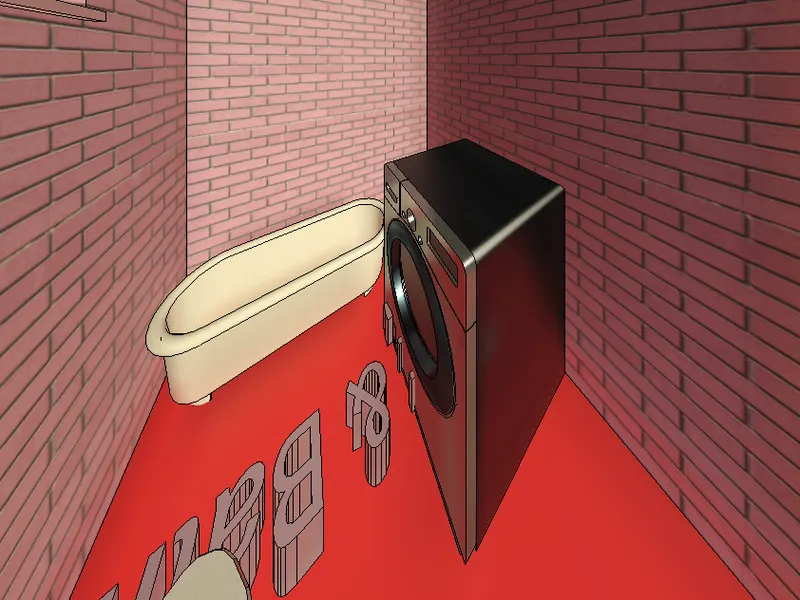

•  TOILET & BATH

•  TOILET & BATH

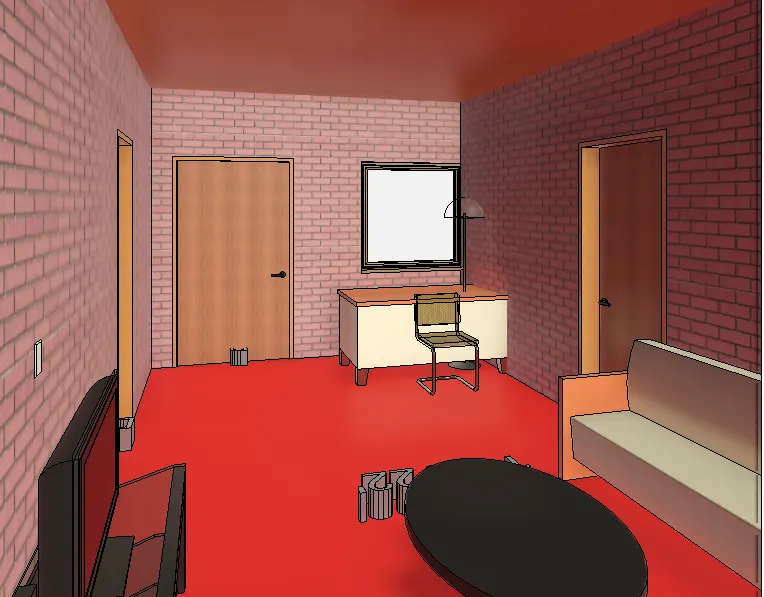

• LIVING ROOM

• Toilet & Bath
