Creating Walls, Partition walls and Floors for a residential layout using REVIT

QUESTION-1

AIM: To create a floor based on our layout and also use property browser to change type of material.

PROCEDURE:

step-1: Open challenge 2 residential unit

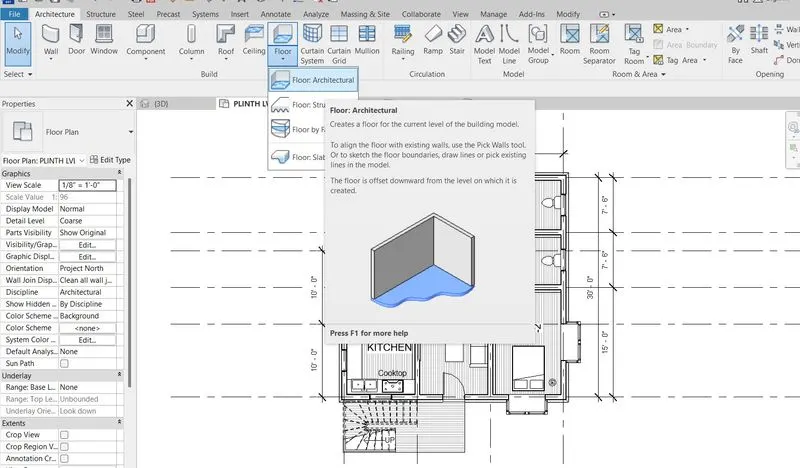

step-2: Select Floor in architectural tab

step-3: Select pickline option to select all the boundary wall to insert floor

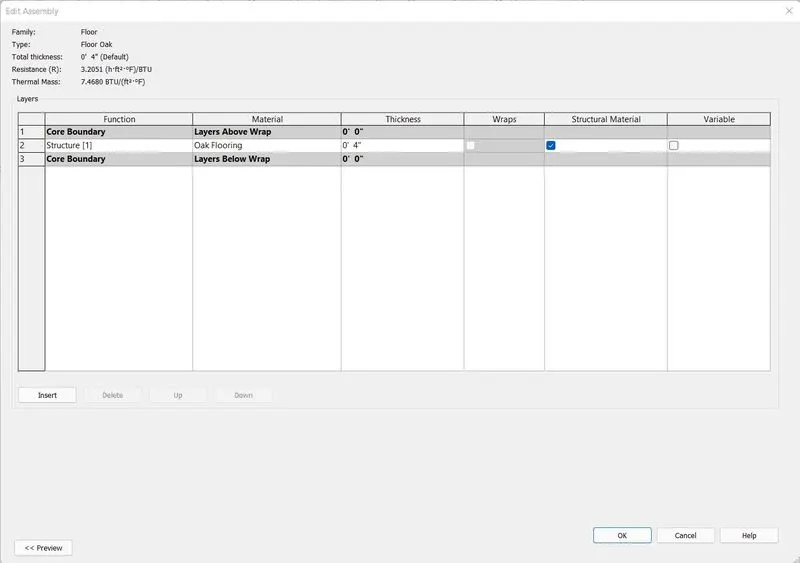

step-4: Go to property browser

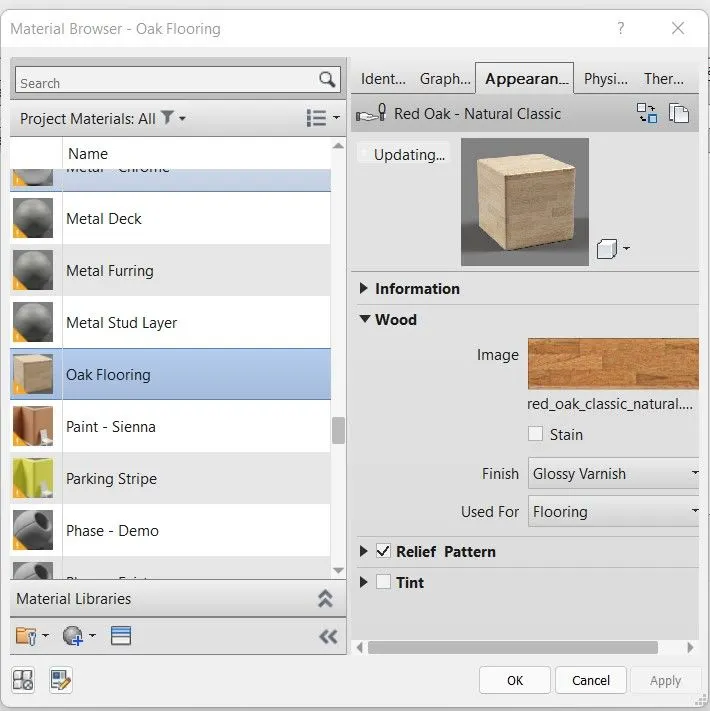

step-5: Change material of the floor

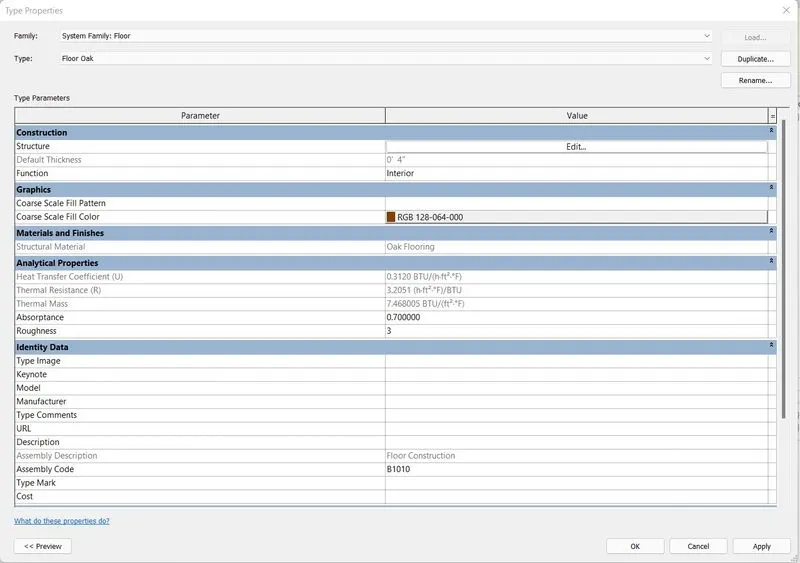

step-6: Change the floor thickness as per standard code provisions

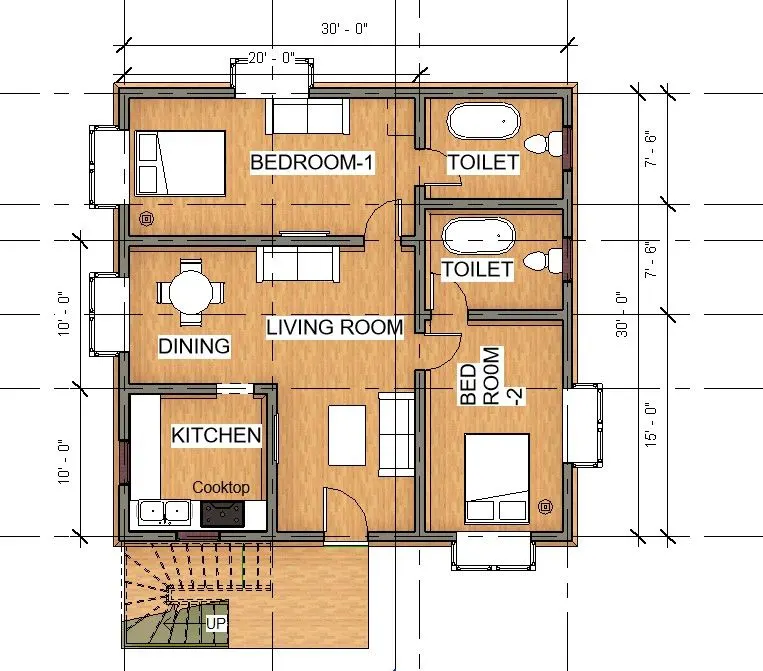

step-7: Select Realistic view to see the material texture in the layout.

RESULT:

QUESTION-2

AIM: To create a wall based on the layout and also use property browser to change type of material.

PROCEDURE:

step-1: Open challenge 2 grid level

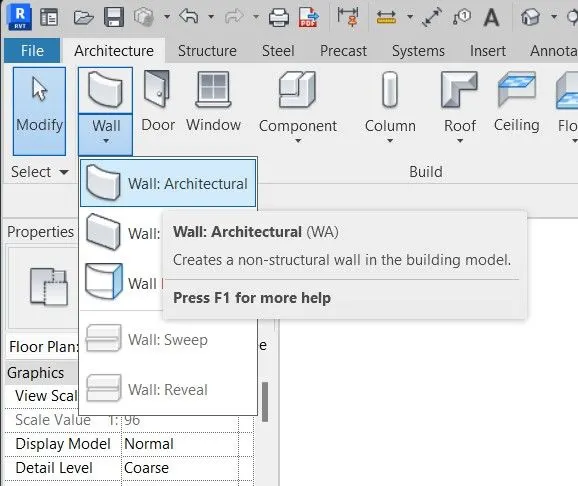

step-2: Select wall in architectural tab

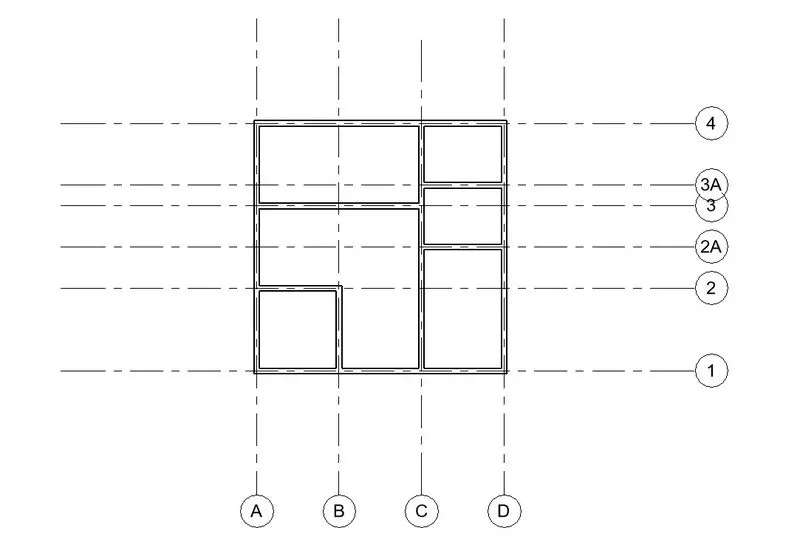

step-3: Add walls to grid by grid

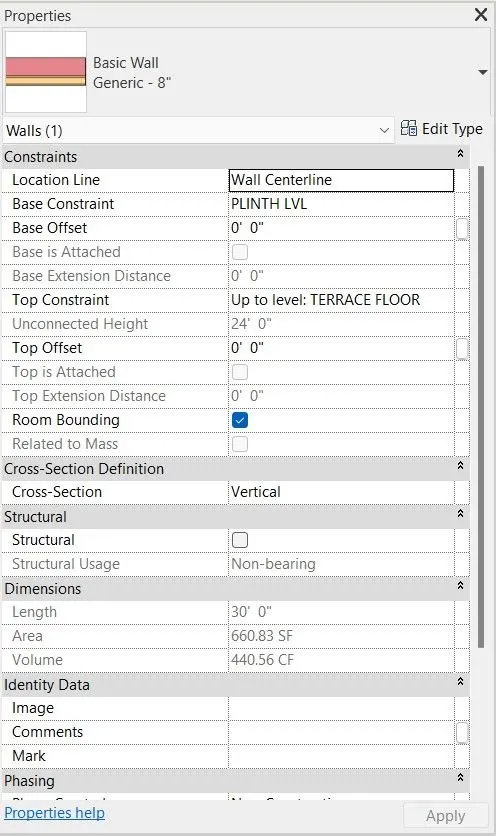

step-4: Go to property browser check whether this wall is connected through all levels we created.

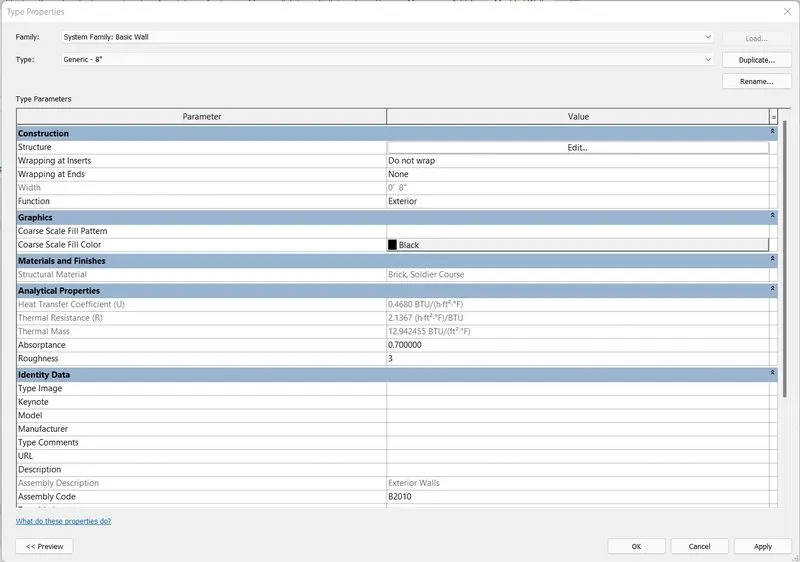

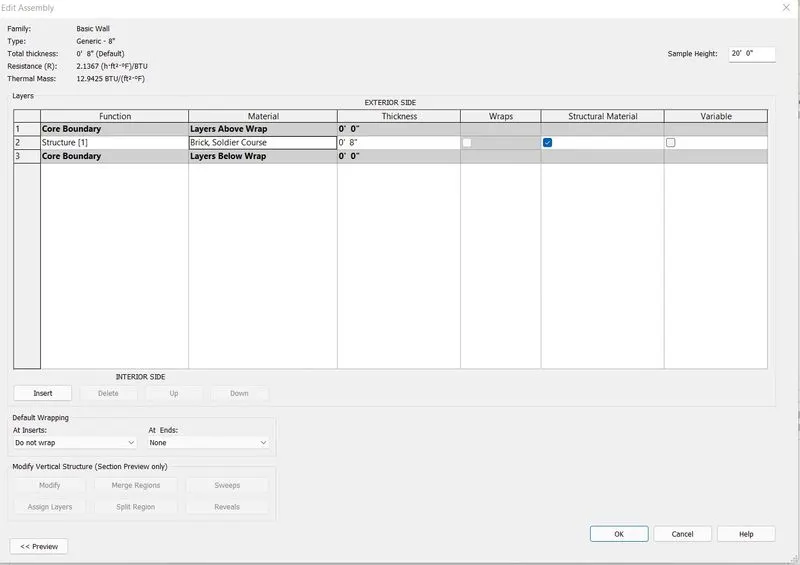

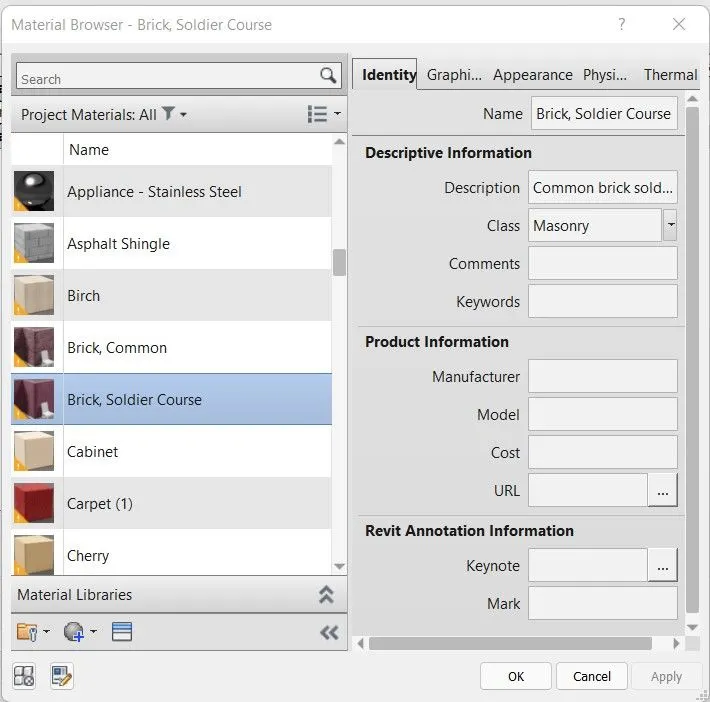

step-5: Go to property browser to change material property of walls

RESULT:

2A) As per my view, Connected wall with associated level is beneficial, in same case we need to change the level for certain distance, in that case if we draft walls are unconnected than it should not follow the levels. These levels are also considered as floor height of the building or important level in elevation drawing. so the walls are connected through out the all levels is beneficial one only.

2B) As per my view, we always used to construct bottom to top only, so we used to draw in the same manner like using height option to draw walls. If we draft substructure like pile or something below to it we could use depth option rather than choosing height. This kind of method is convenient for all.

QUESTION-3

AIM: To copy the wall and floor elements and paste it into all the floors.

PROCEDURE:

step-1: Open challenge 2 ground floor layout

step-2: Select all in the layout

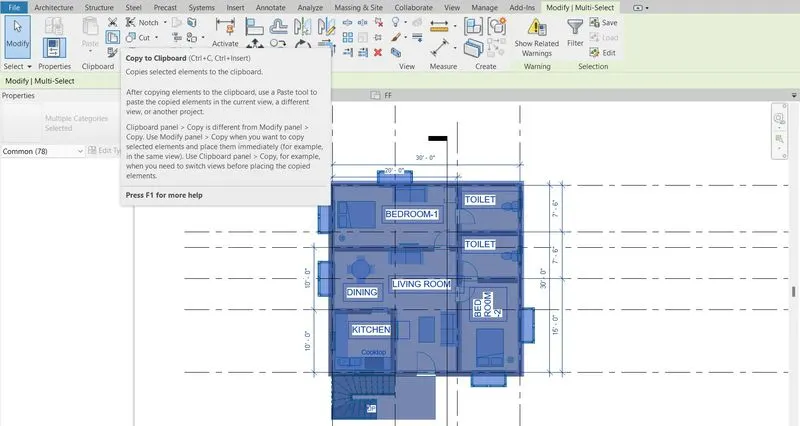

step-3: Click copy to the clipboard

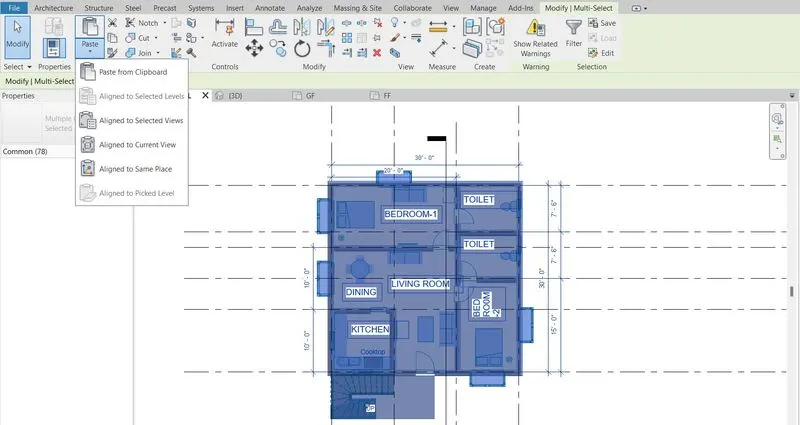

step-4: select paste options and drag down, we have paste it into aligned level

step-5: Click the level we want

step-6: Than press enter and copied the items are pasted in appropriate levels.

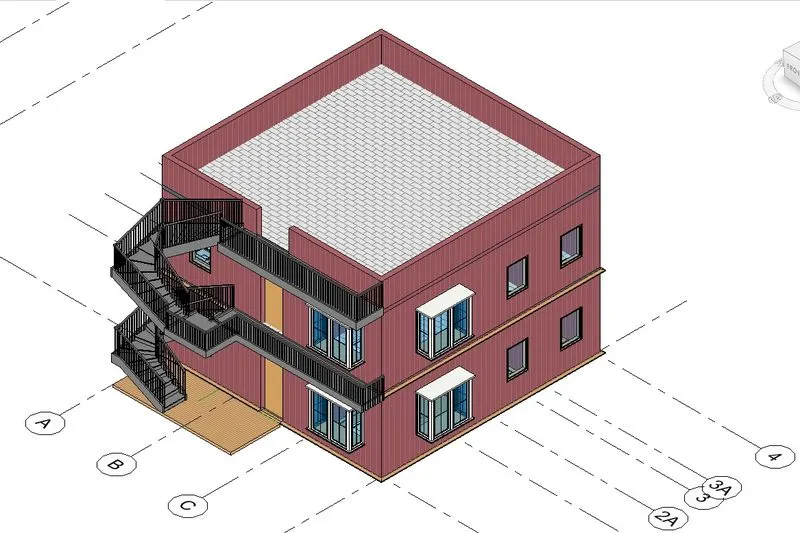

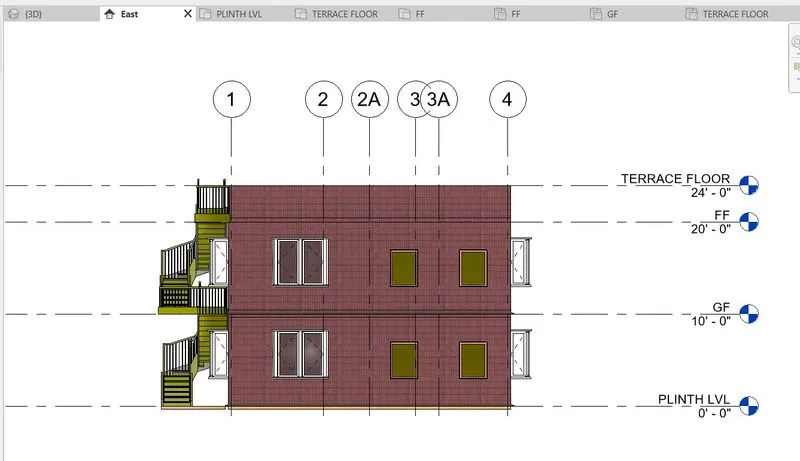

step-7: Click elevation view to see the entire elevated residential unit

RESULT:

QUESTION-4

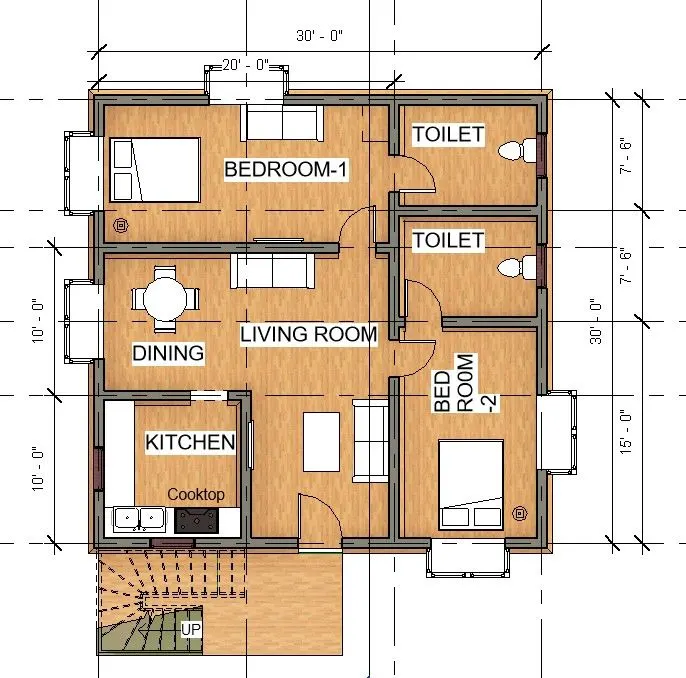

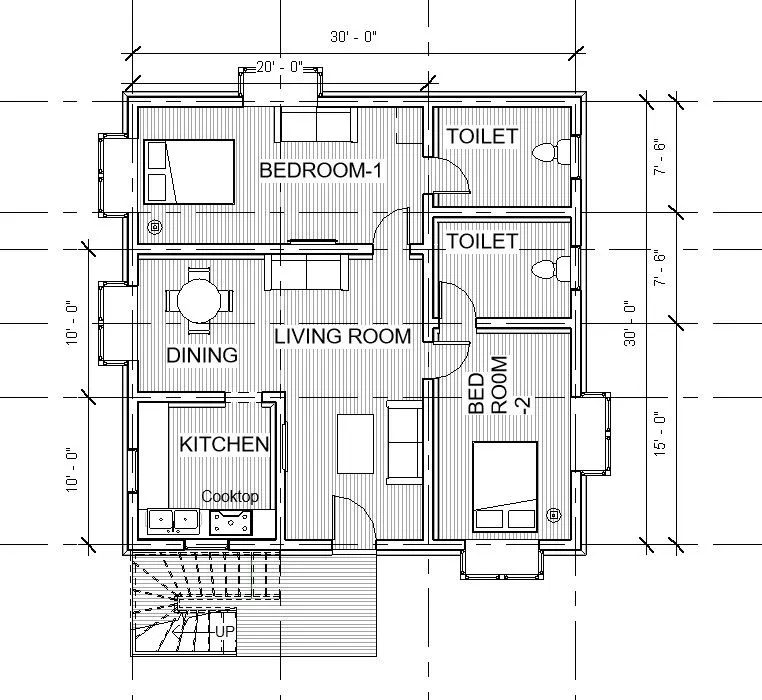

AIM: To create interior partition wall for the residential unit

PROCEDURE:

step-1: Open Rvt 2023

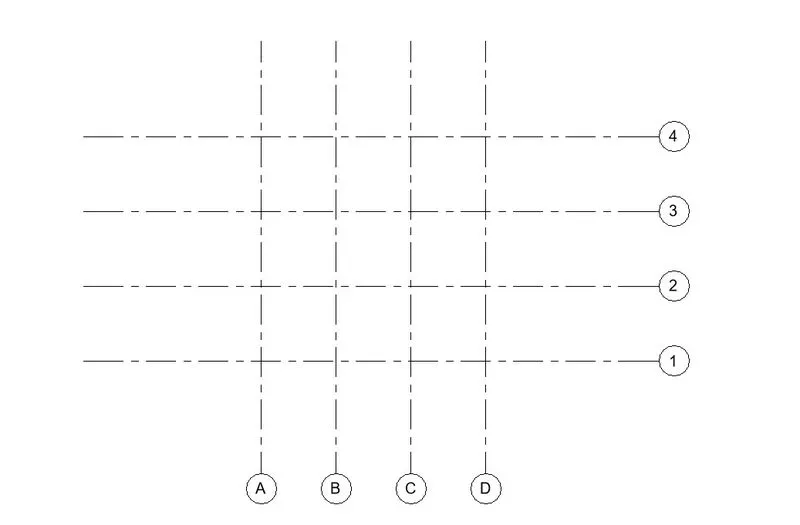

step-2: Create grid and levels

step-3: Select wall from architectural tab

step-4: Select text and aligned dimension in the annotation tab

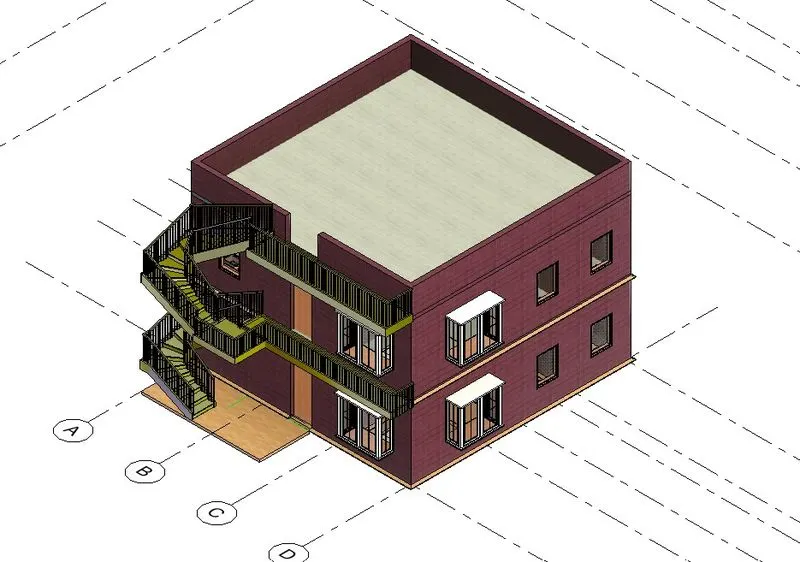

step-5: Select 3D view

QUESTION-5

AIM: To add the components that should be included in a residential unit like furnitures, doors, windows etc.,

PROCEDURE:

step-1: Go to Architectural tab

step-2: Select place a component option

step-3: Select the component we need if it is not there choose load family and load the component we want.

step-4: Place it into the place it required.

A) Doors and windows in the walls

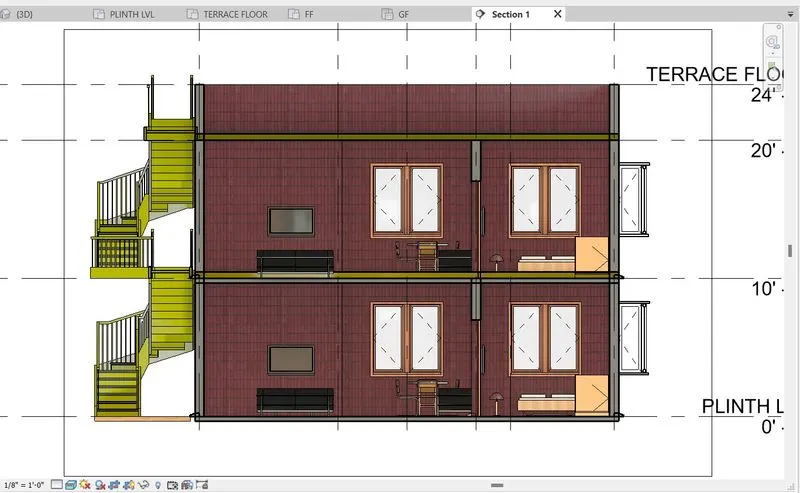

step-5: Select elevation tab from project browser

B) Living room components:

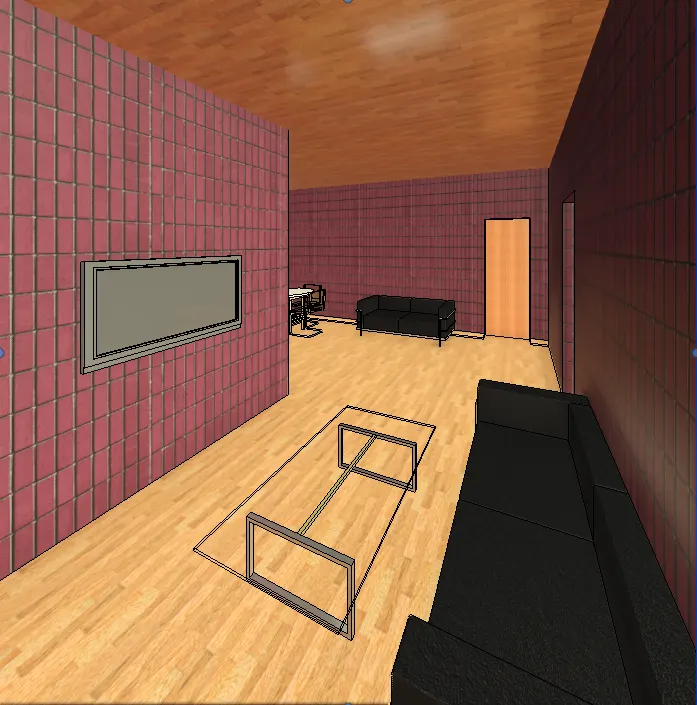

step-6: Select camera view in the view tab and place the camera and take a snap from which place we want in the residential unit.

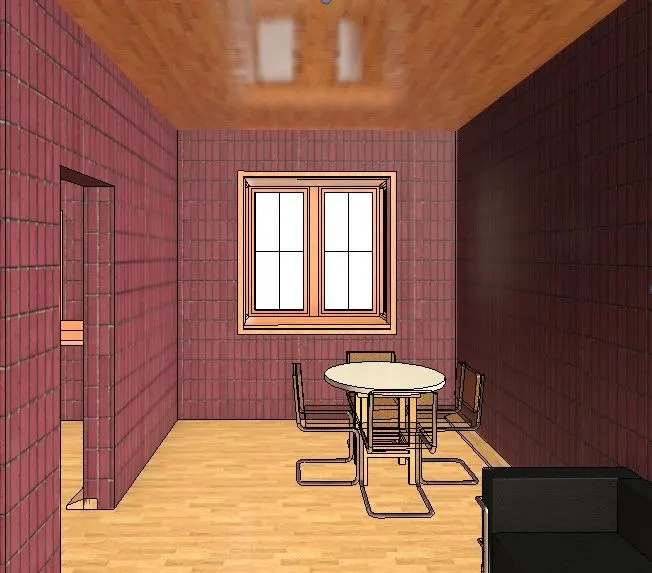

C) Dining room:

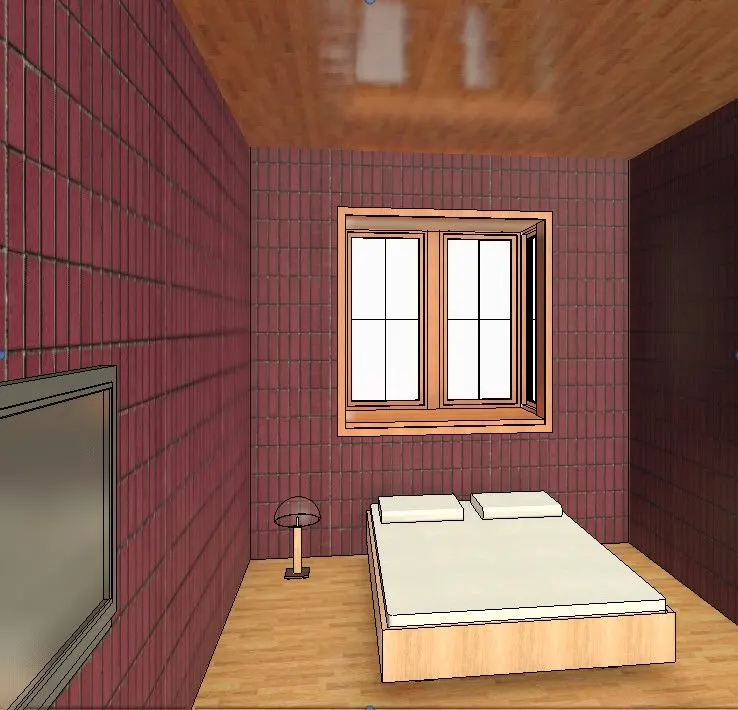

D) Bed room and its components:

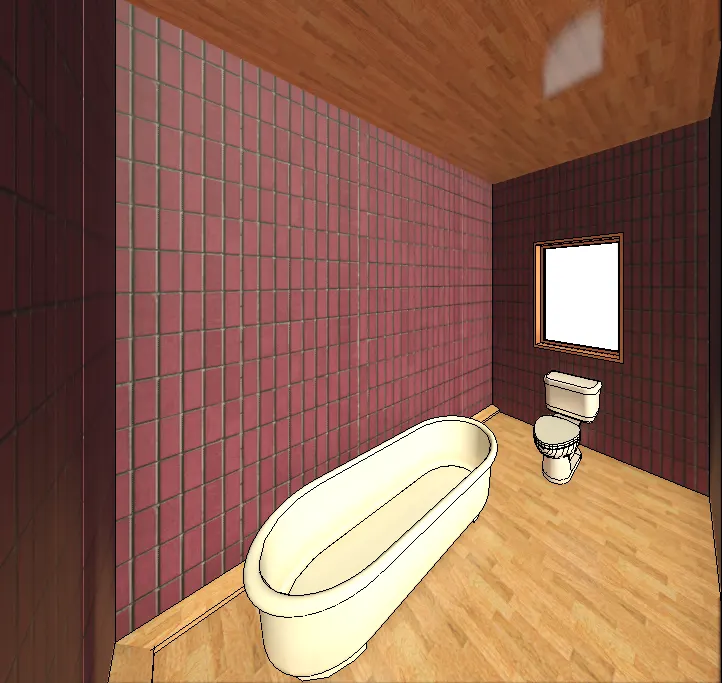

E) Rest room:

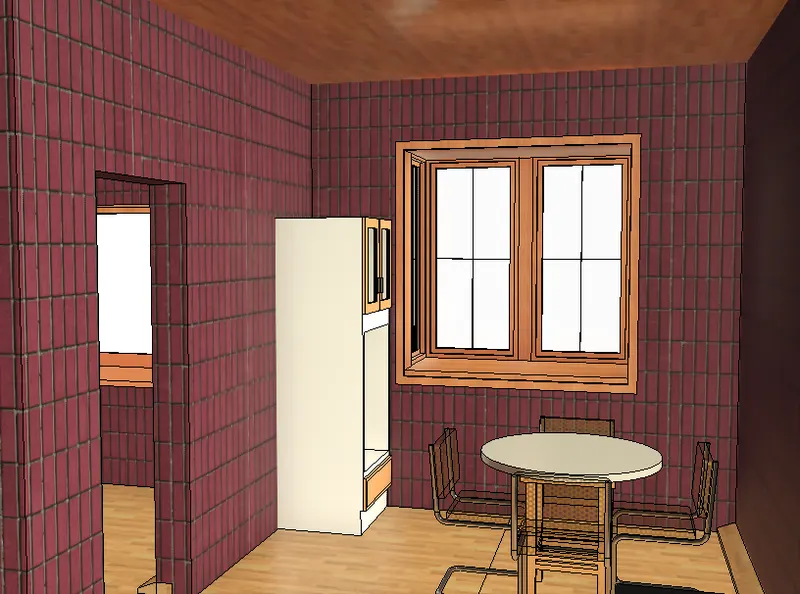

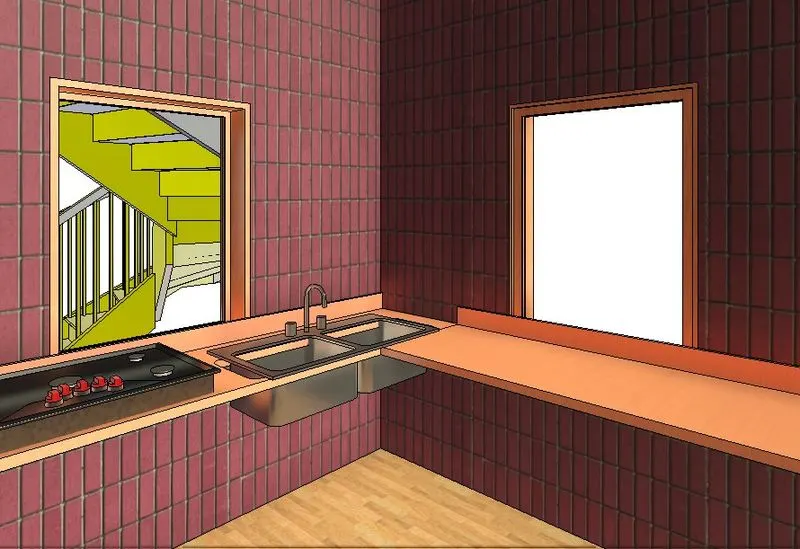

F) Kithen components:

G) Storage unit
