Creating Walls, Partition walls and Floors for a residential layout using REVIT
1) Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from week 2
Ans.
AIM:- To create the project file created from Week 2 using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level and align the floor plan with grids created from week 2
Procedure :-
Step 1:-

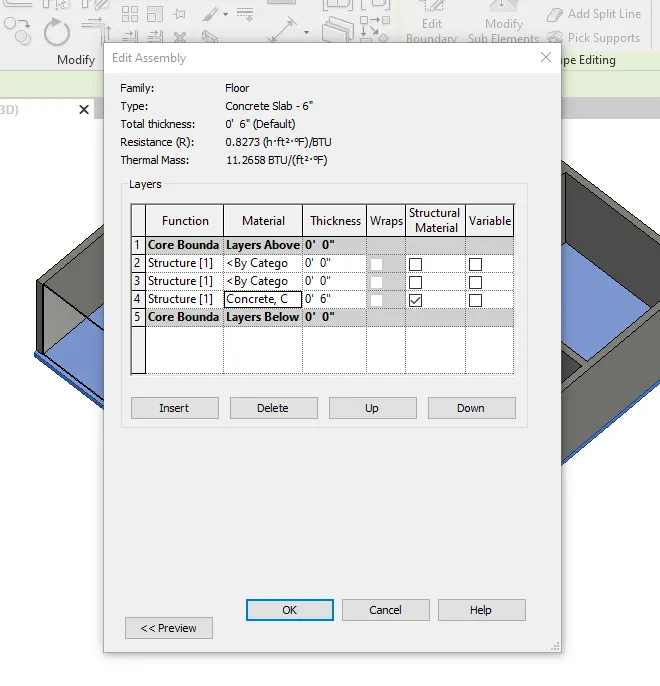

- First we select the floor and click on edit option as shown

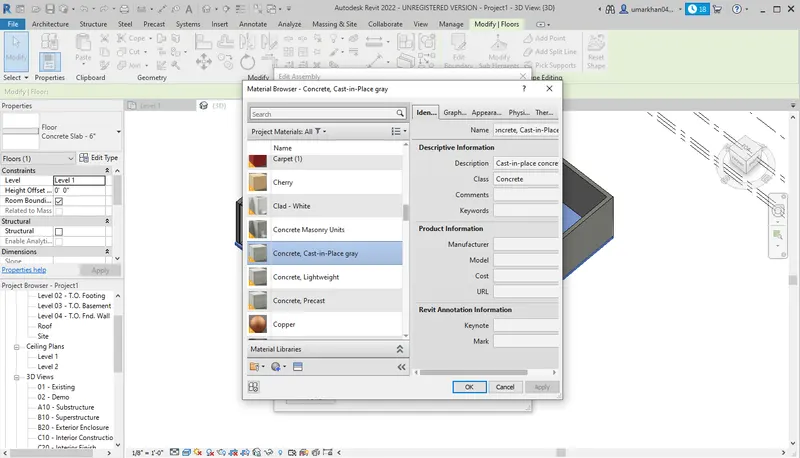

- Then we change the floor material and thickness
STEP 2 :-
- Now load the furniture and other required items
Step 3:-
Step 4:-

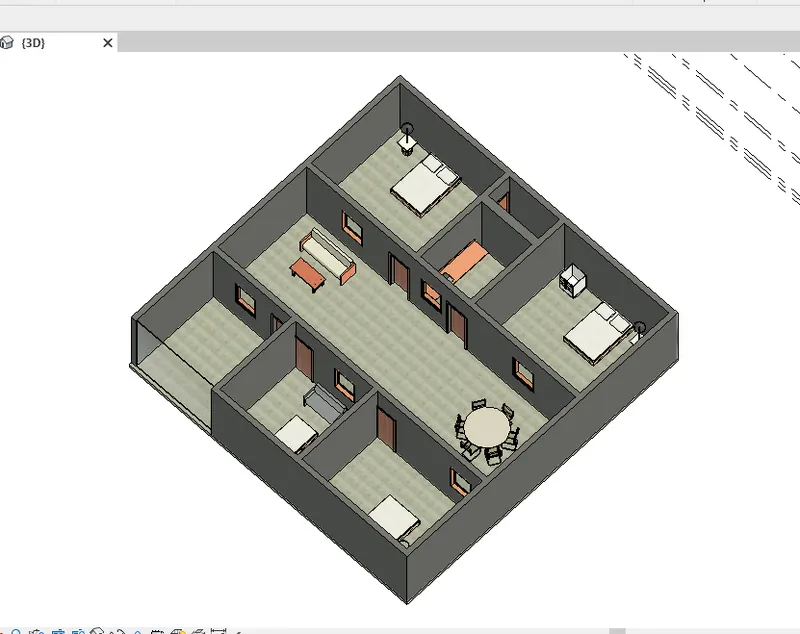

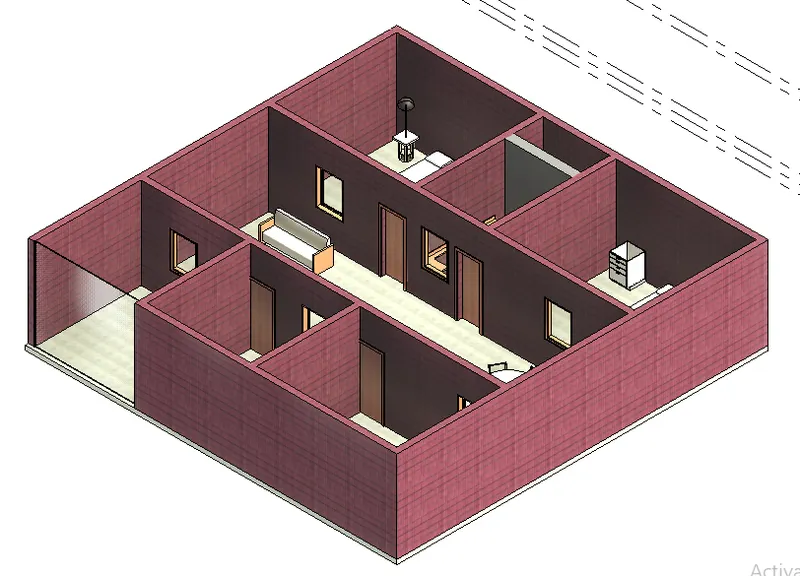

- After assigning all items 3d view
Step 5:-

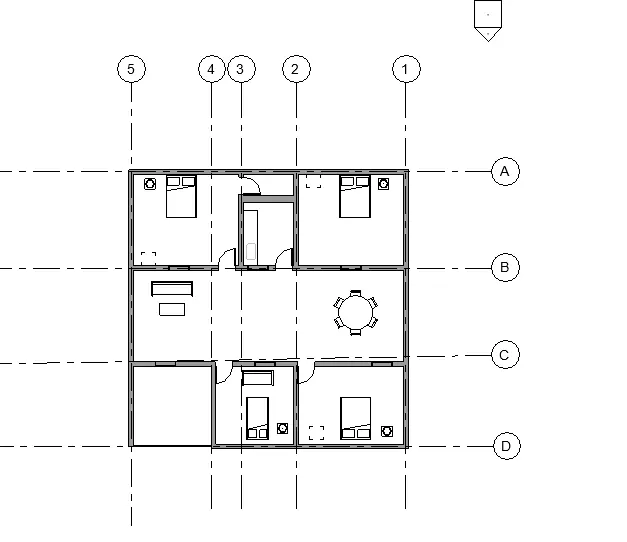

- Now using grid option in toolbar as shown in dwg

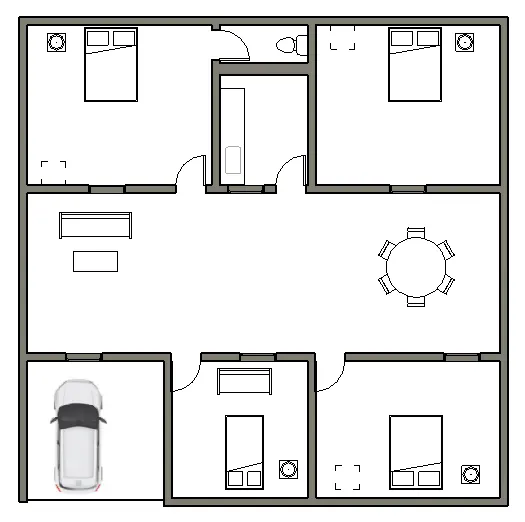

Final Result
2) Add walls based on the floor layout. Pick lines or use the draw tool to modify the boundary of walls. Use the property browser to select appropriate material and thickness for walls. After creating the walls verify using the property browser to see if the top and bottom of the walls are constrained.
a. Based on your observation, what is beneficial for connecting walls with associated levels rather than being Unconnected
b. Which option is convenient for modeling walls, By Height or By Depth?
Ans.
Aim:- To draw tool to modify the boundary of walls, and use the property browser to select appropriate material and thickness for walls

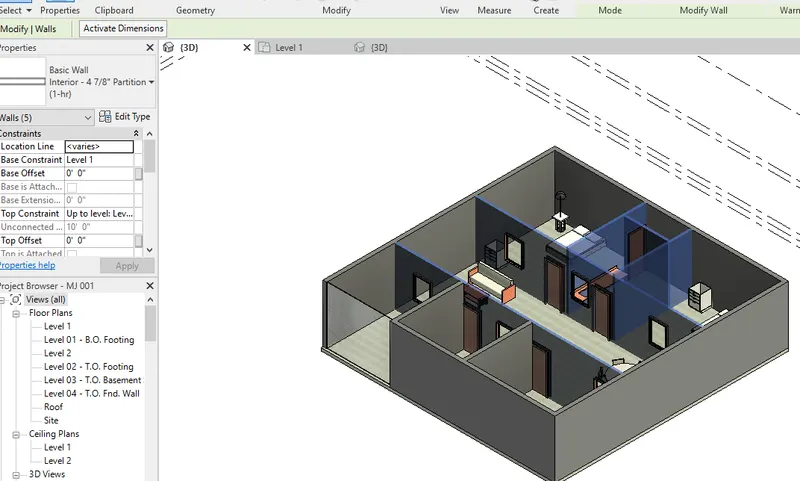

After creating the walls verify using the property browser to see if the top and bottom of the walls are constrained.
a. Based on your observation, what is beneficial for connecting walls with associated levels rather than being Unconnected
b. Which option is convenient for modeling walls, By Height or By Depth
Procedure :-
Step :1

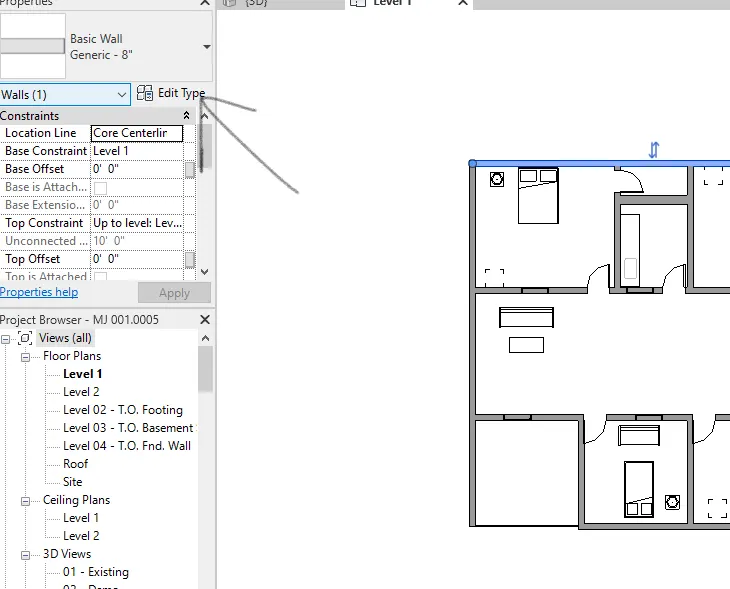

- First we select the wall as shown in fig

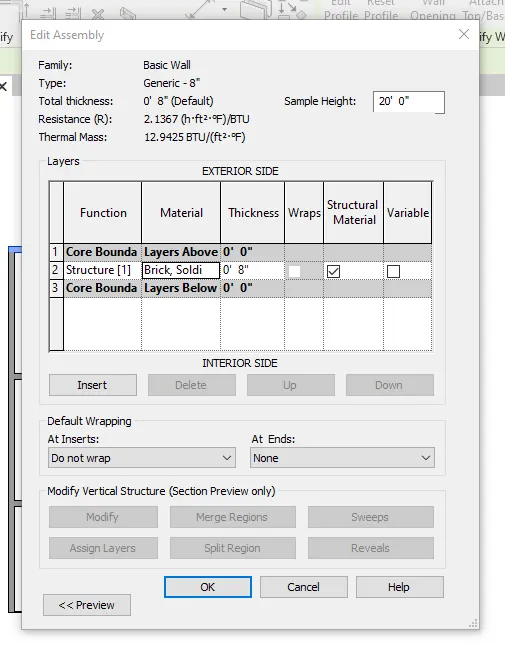

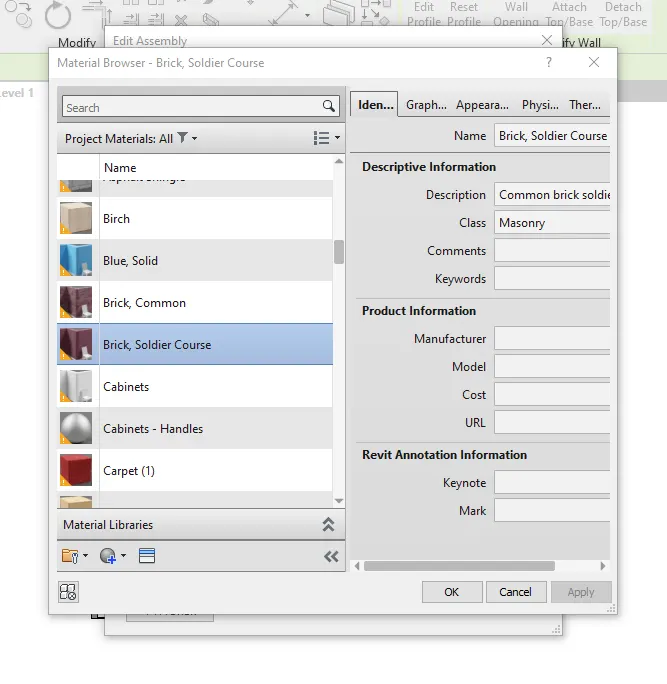

- Now click on edit to change material
Step 2:-
Step 3:-
Step 4:-

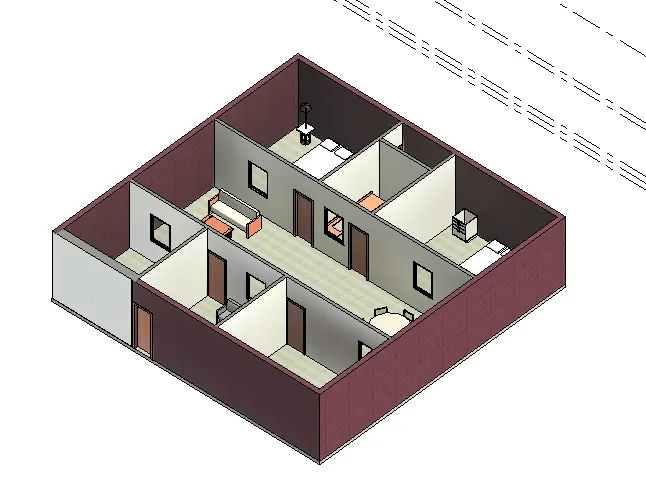

Now material is applied as shown in dwg

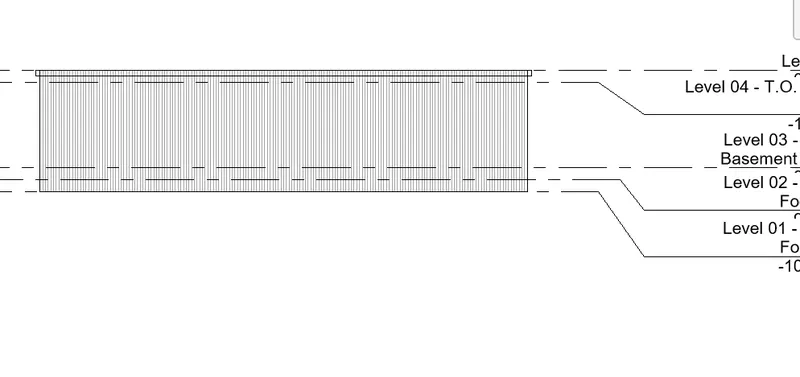

Step 5:- a. Based on your observation, what is beneficial for connecting walls with associated levels rather than being Unconnected
Step 6:-

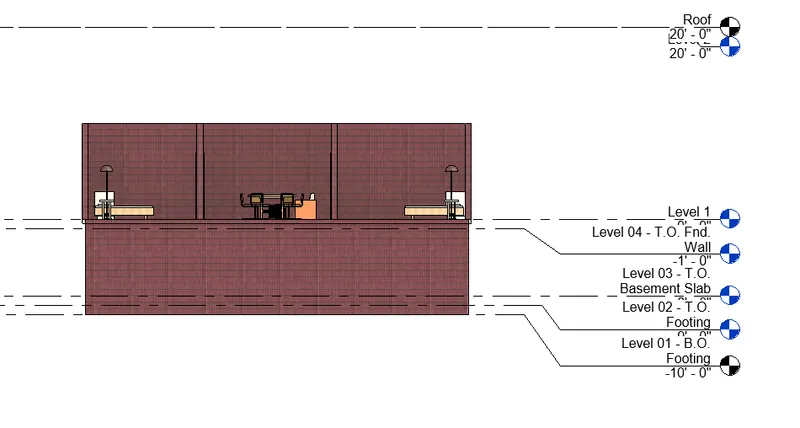

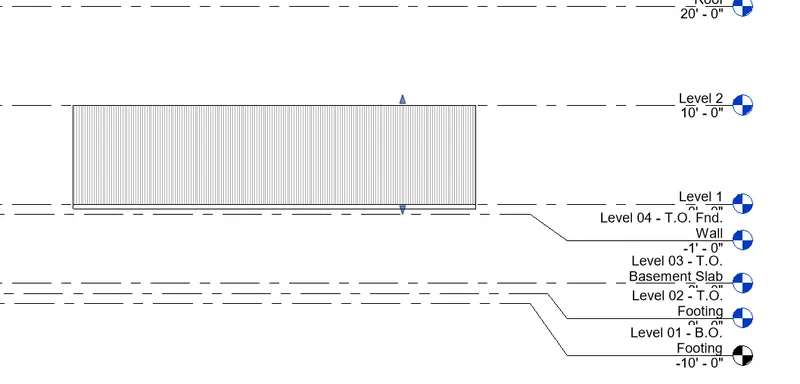

Level hieght is changed at 20' but height of wall is same
Step 7:-
Final Result :-
- Successfully material applied to wall

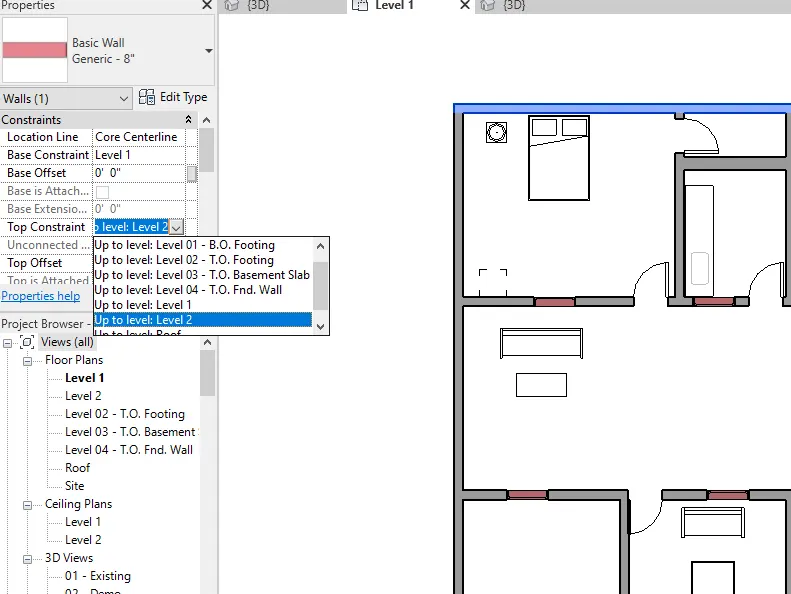

- Top and bottom wall are constrained
- Beneficial for connecting walls with associated levels rather than being Unconnected are also done
- Height option are convinent for modelling wall
3) Copy the model elements ( wall, floor ) modelled to Ground Floor Level and paste it aligned to First Floor Level . Use modify tab to utilize copy and paste options to align
elements to a different level
Ans:-
Aim:- To copy the model elements ( wall, floor ) modelled to Ground Floor Level and paste it aligned to First Floor Level . Use modify tab to utilize copy and paste options to align elements to a different level
Procedure :-
Step 1

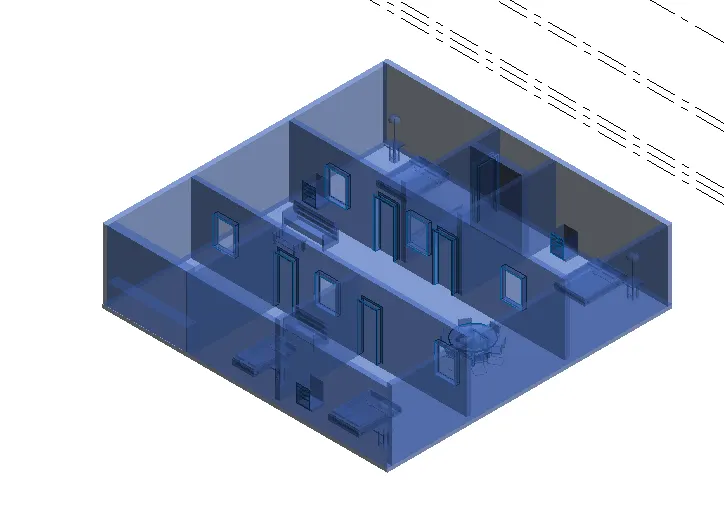

- select the all ground floor elements
- and copy the selected items

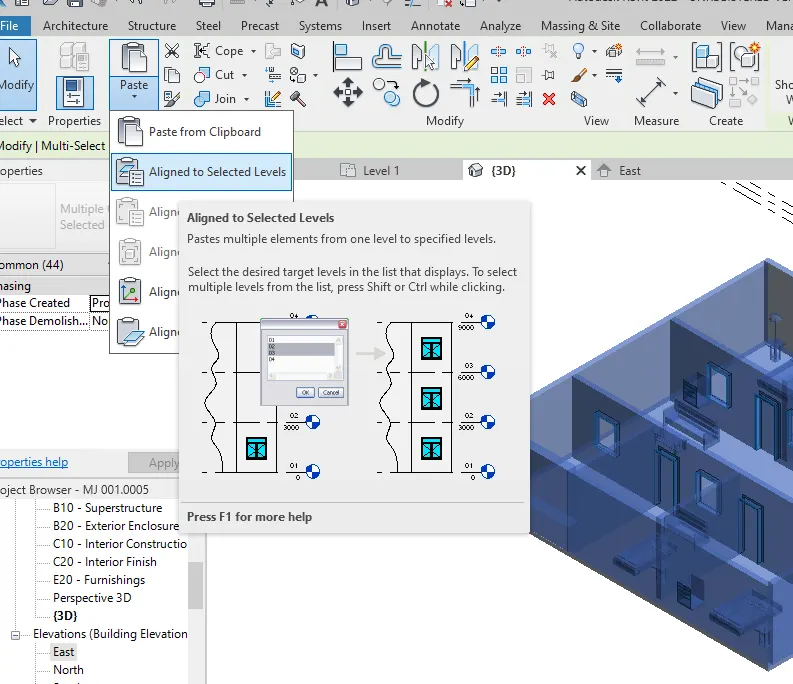

- now paste it aligned to First Floor Level
As shown below

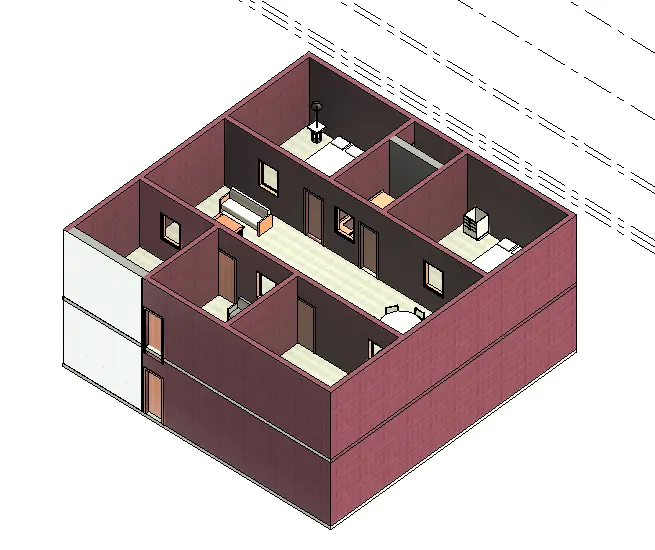

Final Result

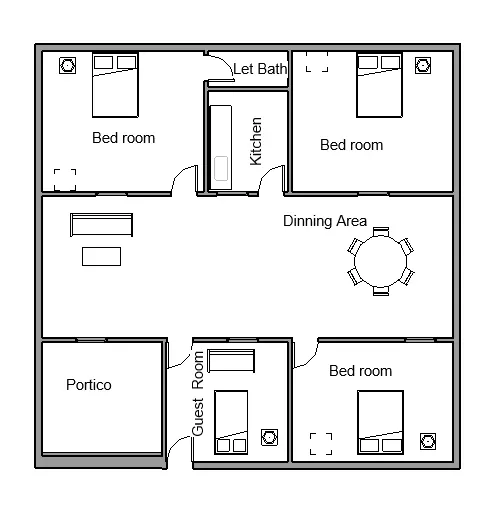

4) Use interior partition walls to create separate rooms within your residential unit. The model must include the following rooms
a. Living Room/ Drawing Room ( 15’ X 18’)
b. Dining Room (9’ X 11’)
c. Bed Room ( 9’ X 12’ and 15’ X 11’)
d. Rest Room ( 10’ X 12’ )
e. Kitchen (8’ X 10’)
The above are for examples. You can use them or use your measured entities to create your model based on your layout. You may include entry walkway, Patios or Guest
rooms based on your creativity and purpose of modeling. Convert units if you are using metric system
Ans:-
Aim:- To create seperate room within your residential unit using internal wall partition
Procedure :-
Step 1:-
Step 2:-
Step 3:-

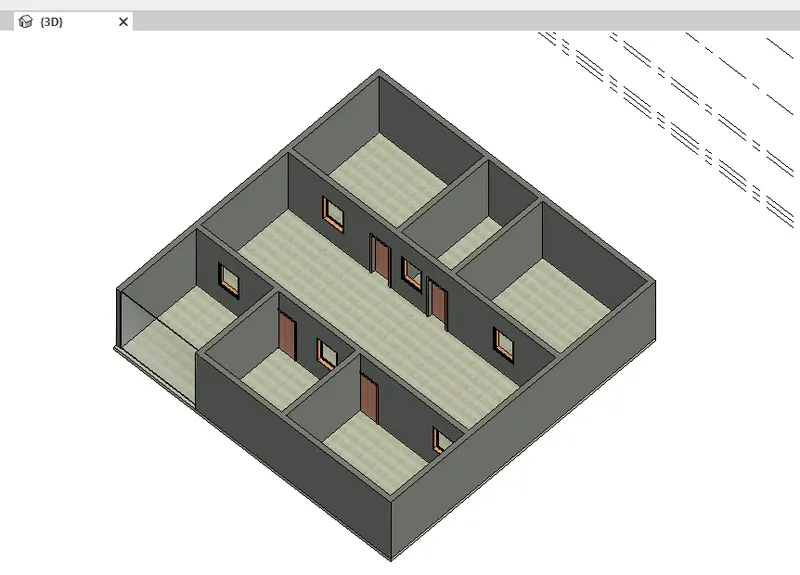

Final Result :-
5) Based on week 2 assignment, the components to be included in a residential unit were inserted to the Revit file. Place these components in appropriate locations to add details to your residential model

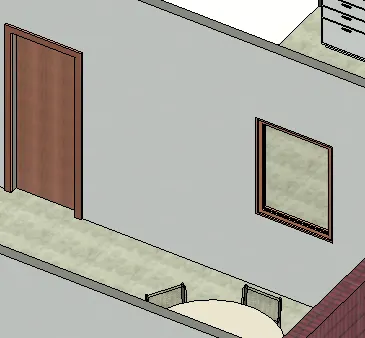

a. Place Doors and windows in the wall at appropriate locations
b. The Living Room must include furniture set, couch table and TV desk and shelf cabinets
c. The Dining Room must include a table and chairs serving the purpose of eating

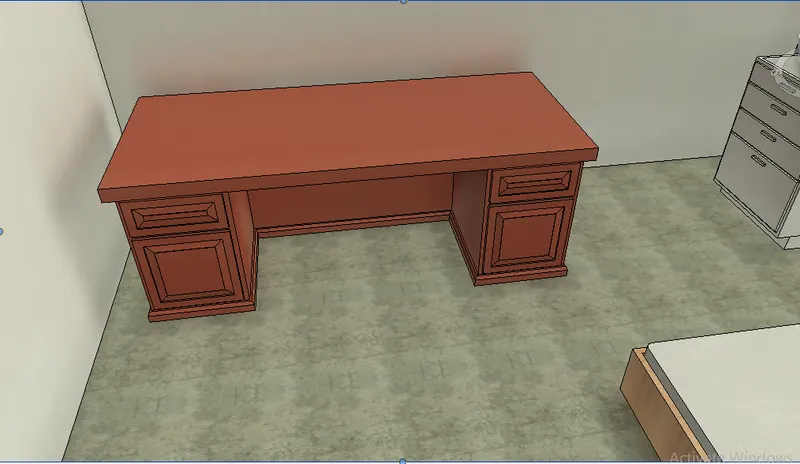

d. Bed Room must include a bed set, shelf, lighting and individual study desk and chair
e. Rest room should include bath tub and plumbing fixtures discussed in class
f. Kitchen should include countertops, gas stove cabinet and shelves to store food items
g. The wash/storage room can include washing machines and shelves to store clothes
All the components are available in Revit Library. Use them to place at appropriate locations to add details to your model. Use 3D navigation to check the model and its authenticity on a real time basis to verify the model
Ans:-

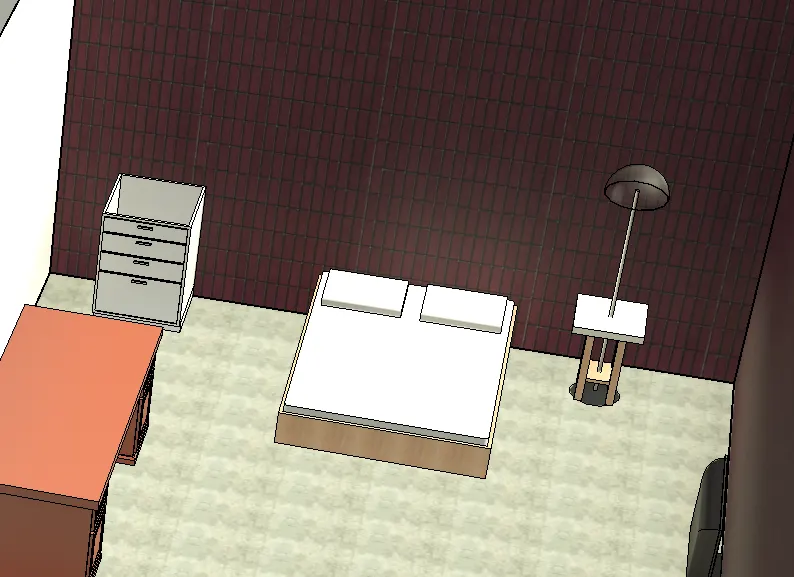

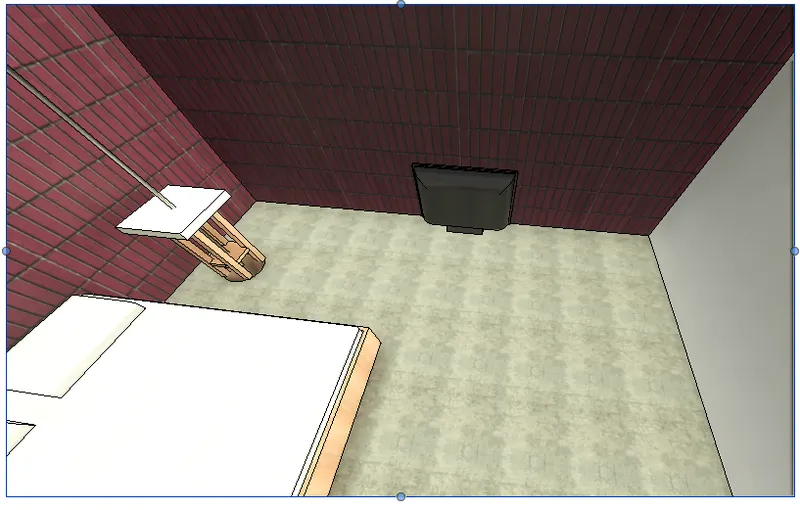

Aim:- To insert door ,window,furniture set, couch table and TV desk and shelf cabinets in above model
a. Place Doors and windows in the wall at appropriate locations
b. The Living Room must include furniture set, couch table and TV desk and shelf cabinets

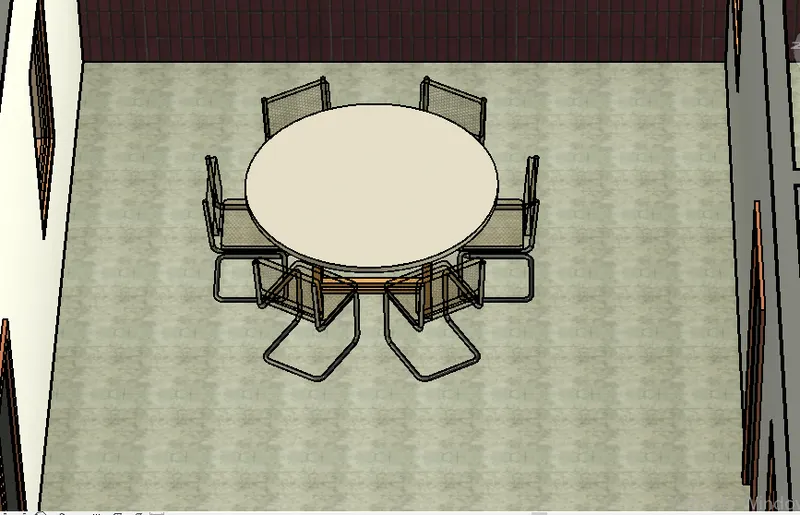

c. The Dining Room must include a table and chairs serving the purpose of eating
d. Bed Room must include a bed set, shelf, lighting and individual study desk and chair
