Creating Walls, Partition walls and Floors for a residential layout using REVIT
Q1. Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from week 2
Ans :
AIM : To create a floor layout using the week 2 project
PROCEDURE :
STEP 1 : Open the week 2 project
STEP 2 : Go to architectural tab select floor tool and in modify select boundry line and select the boundries and press enter

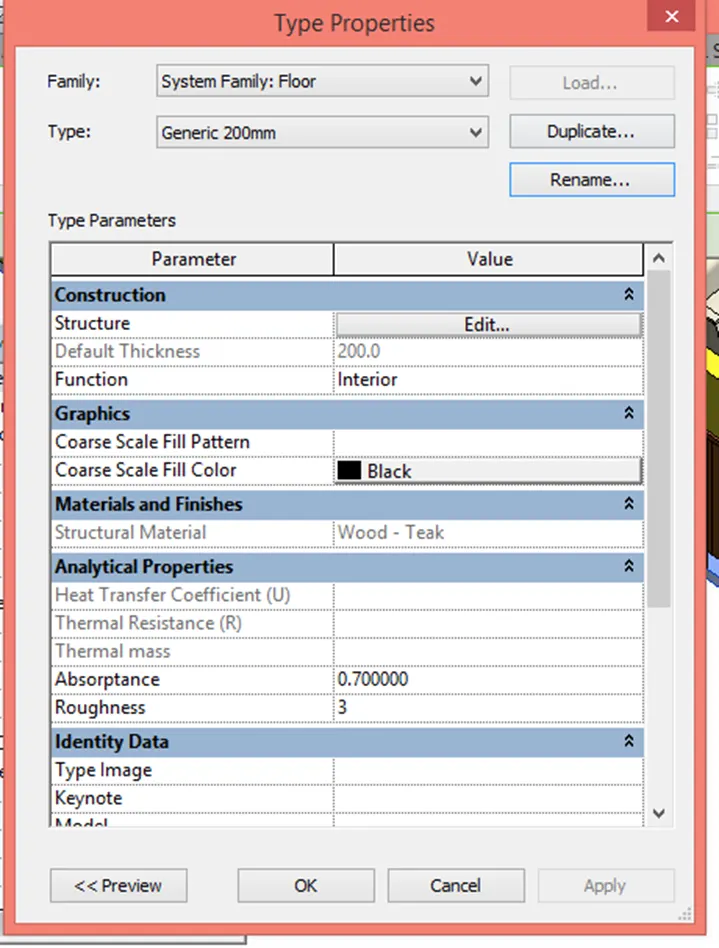

STEP 3 : Go to property browser select edit type

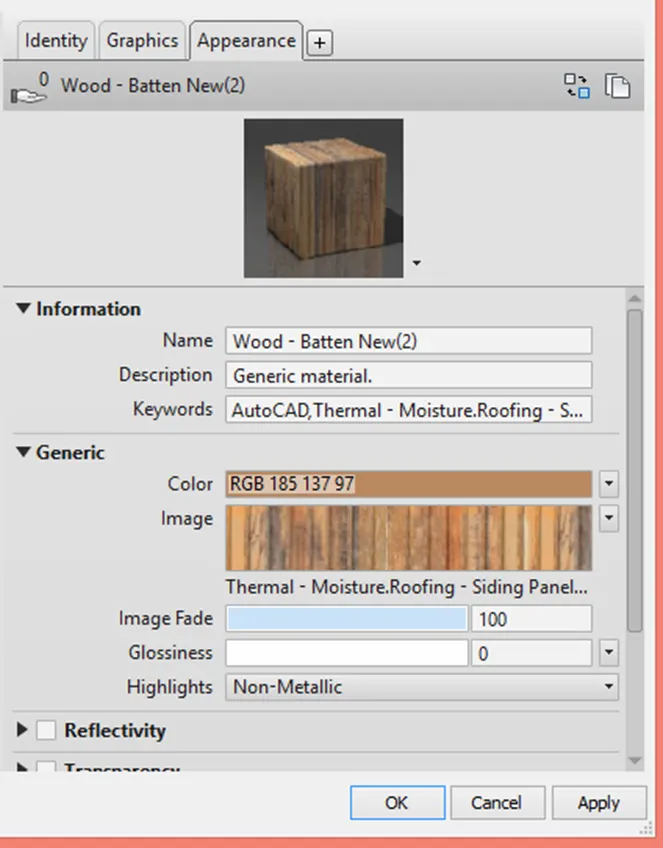

STEP 4 : Dupicate the floor type and edit the stucture of the floor and give material and apply the material to the selected floor and also the thickness of the floor can be changed.
RESULT :
The floor is created by using the appropriate tool from REVIT

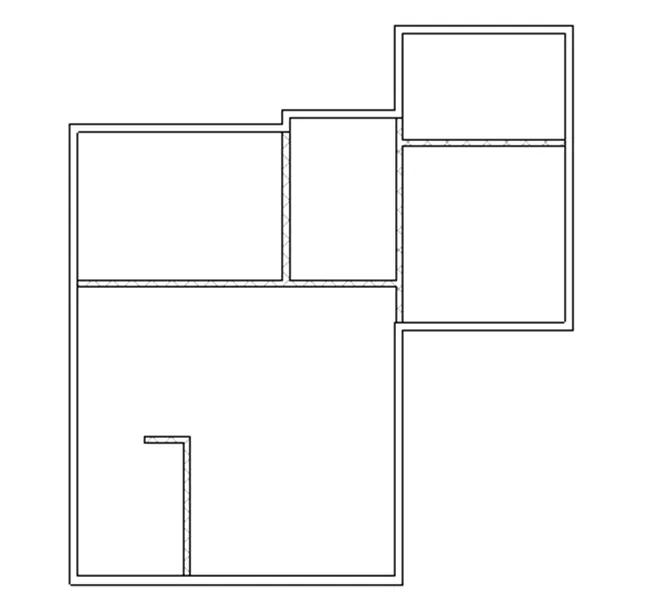

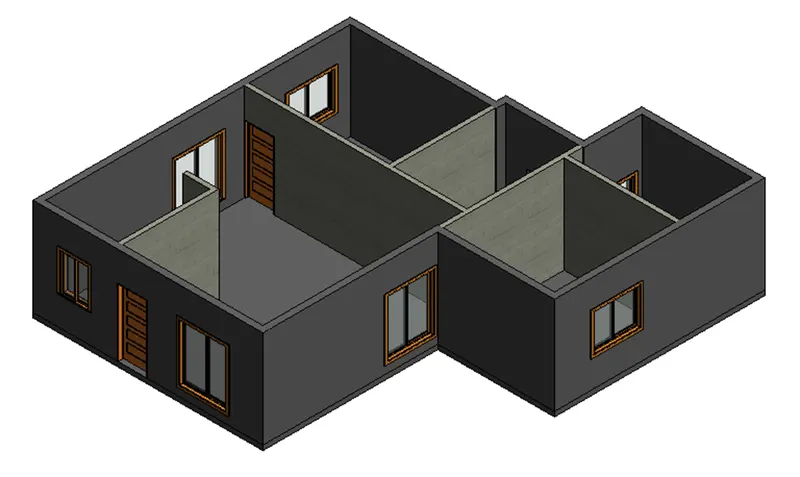

Q2. Add walls based on the floor layout. Pick lines or use the draw tool to modify the boundary of walls. Use the property browser to select appropriate material and thickness for walls. After creating the walls verify using the property browser to see if the top and bottom of the walls are constrained.
Ans :
AIM : To create walls using property browser
PROCEDURE :
STEP 1 : Open the week 2 project

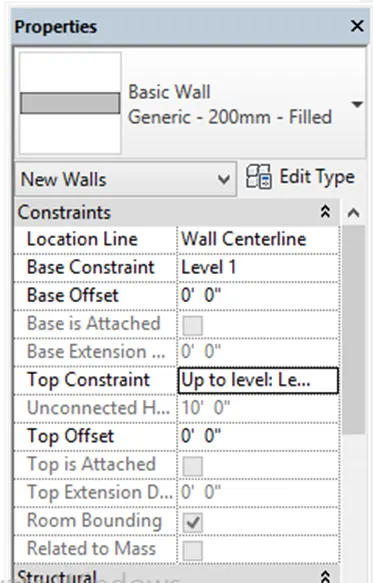

STEP 2 : Select walls and go to property browser and set the top constraint to level 2
STEP 3 : Select edit type in the property browser and duplicate the wall type
STEP 4 : Edit the stucture of the wall and give material and apply the material to the selected wall type and also the thickness of the wall can be changed.
RESULT :
The given challenge is completed by using the appropriate tool in the REVIT
a. Based on your observation, what is beneficial for connecting walls with associated levels rather than being Unconnected
Ans :
Benefits of connecting walls is that when walls are connected with the constraints any changes in the height of the building in any view the walls are automatically adjusts its height with the levels and if the walls are unconnected we have to adjust the height of the wall manually which will take more time in completing the project and chances of error will be more.
b. Which option is convenient for modeling walls, By Height or By Depth?
Ans :
According to me the best way to model walls is height method than width method

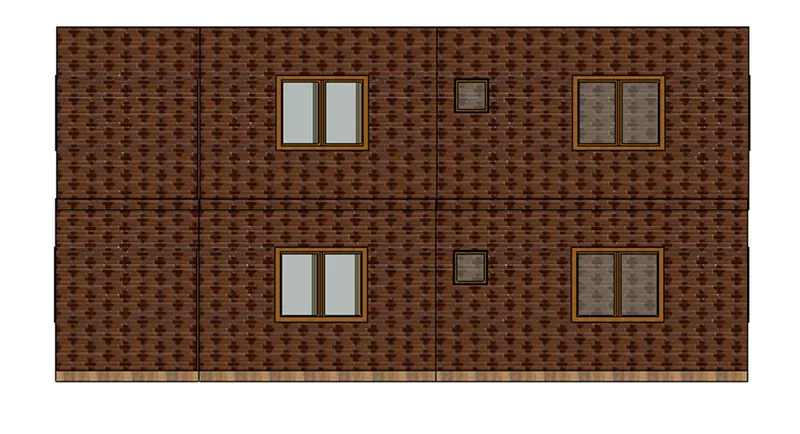

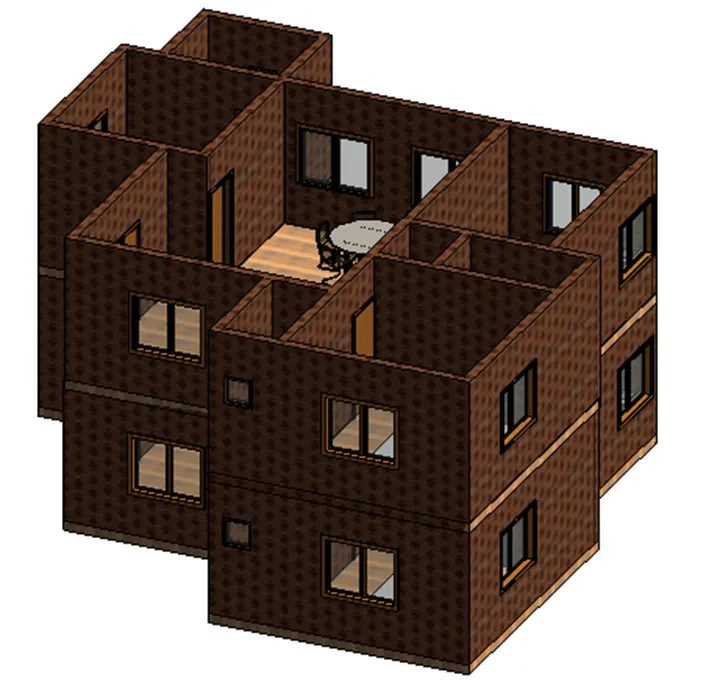

Q3. Copy the model elements ( wall, floor ) modelled to Ground Floor Level and paste it aligned to First Floor Level . Use modify tab to utilize copy and paste options to align
elements to a different level
Ans :
AIM : To copy the model elements (wall, floor) modelled to ground floor level and paste it aligned to first floor level
PROCEDURE :

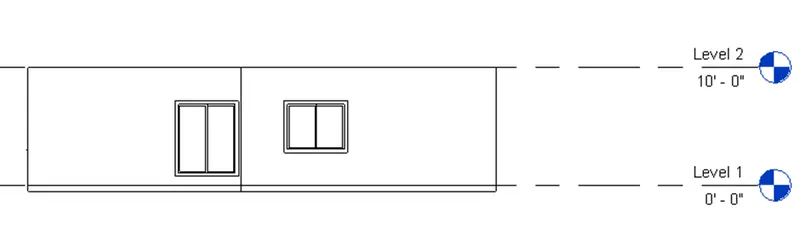

STEP 1 : Go to elevation and create the level
STEP 2 : Go to modify tab select to copy to clip board tool
STEP 3 : Paste the copied object and alligned to selected level. Go to first floor level and paste it
RESULT :
The given challenge is completed by using appropriate tools in REVIT

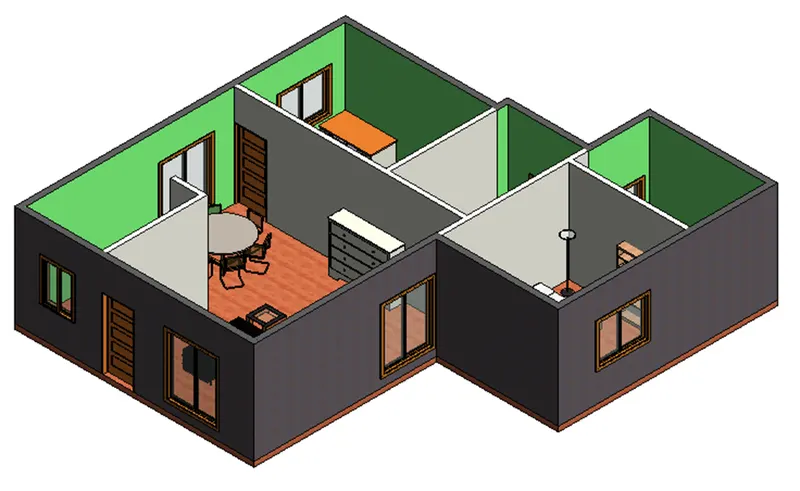

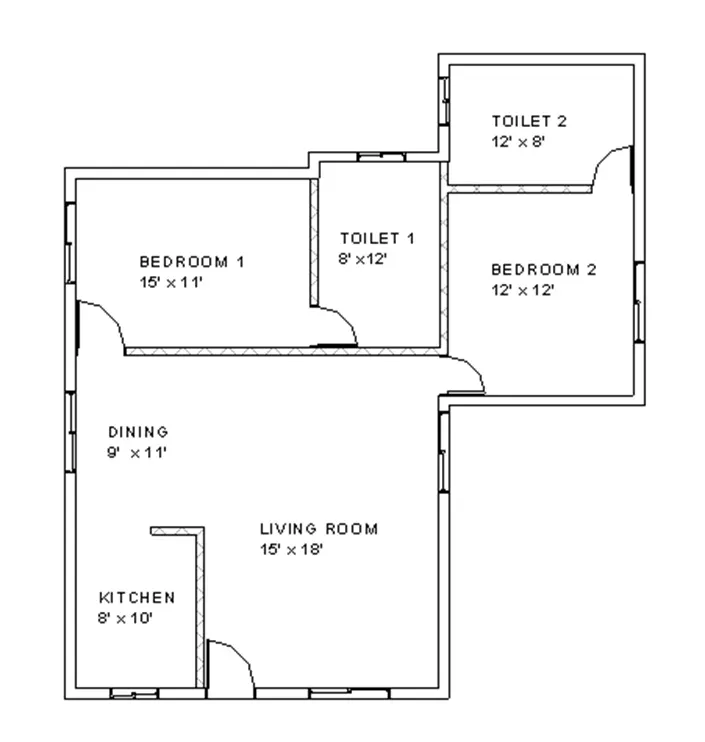

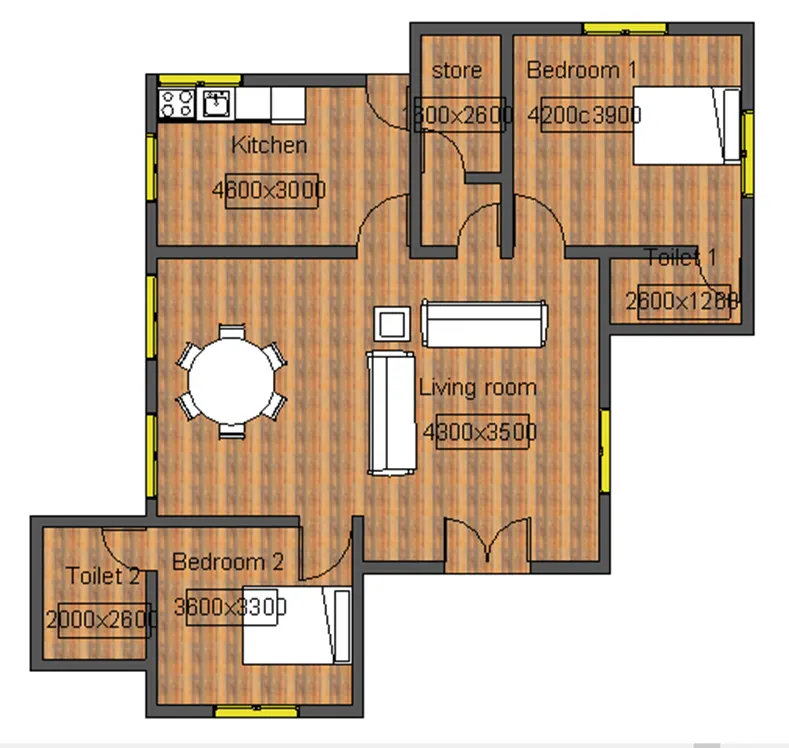

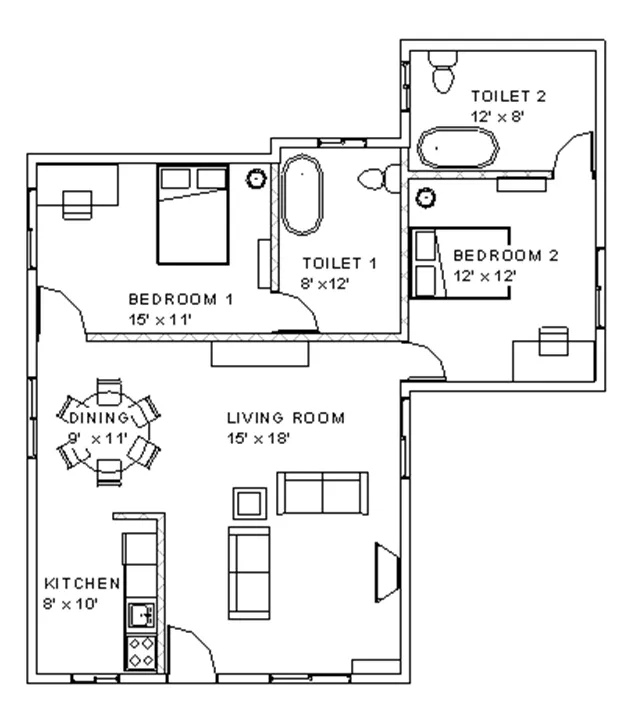

Q4. Use interior partition walls to create separate rooms within your residential unit. The model must include the following rooms
a. Living Room/ Drawing Room ( 15’ X 18’)
b. Dining Room (9’ X 11’)
c. Bed Room ( 9’ X 12’ and 15’ X 11’)
d. Rest Room ( 10’ X 12’ )
e. Kitchen (8’ X 10’)
AIM : To create
a. Living Room/ Drawing Room ( 15’ X 18’)
b. Dining Room (9’ X 11’)
c. Bed Room ( 9’ X 12’ and 15’ X 11’)
d. Rest Room ( 10’ X 12’ )
e. Kitchen (8’ X 10’
PROCEDURE :
STEP 1 : Open Revit software and select architectural template and save the file by giving appropriate path to the file
STEP 2 : Go to architectural tab select wall tool and draw the walls according to the given challenge
STEP 3 : Go to architectural tab select floor tool and draw floor accoring tio the plan
And also add doors and windows by load family
Also add text to the layout plan
RESULT :
The given challenge is completed by using appropriate tools in REVIT

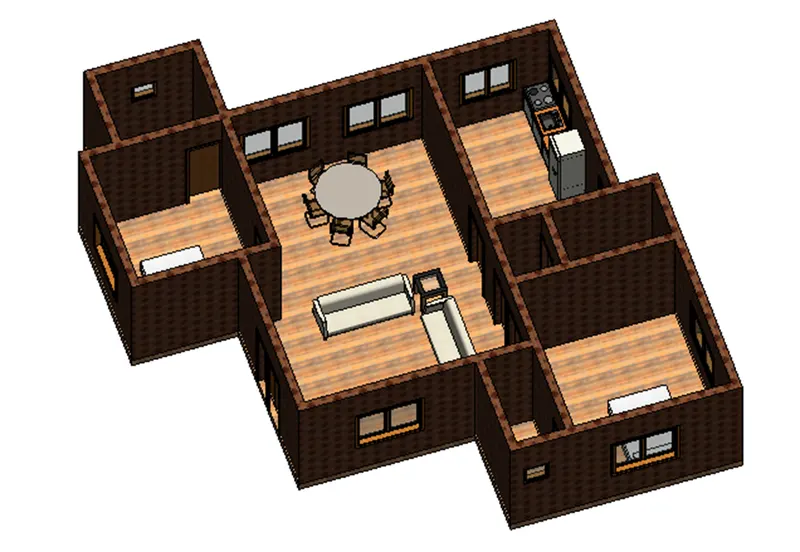

Q5. Based on week 2 assignment, the components to be included in a residential unit were inserted to the Revit file. Place these components in appropriate locations to add details to your residential model
a. Place Doors and windows in the wall at appropriate locations
b. The Living Room must include furniture set, couch table and TV desk and shelf cabinets
c. The Dining Room must include a table and chairs serving the purpose of eating

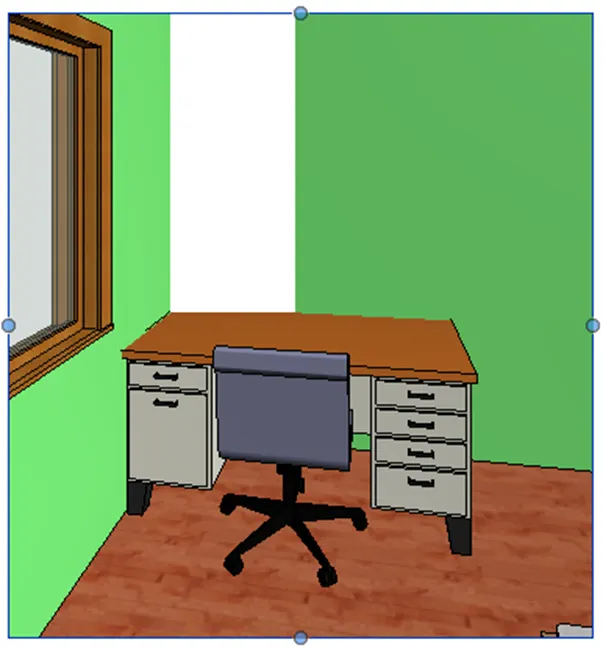

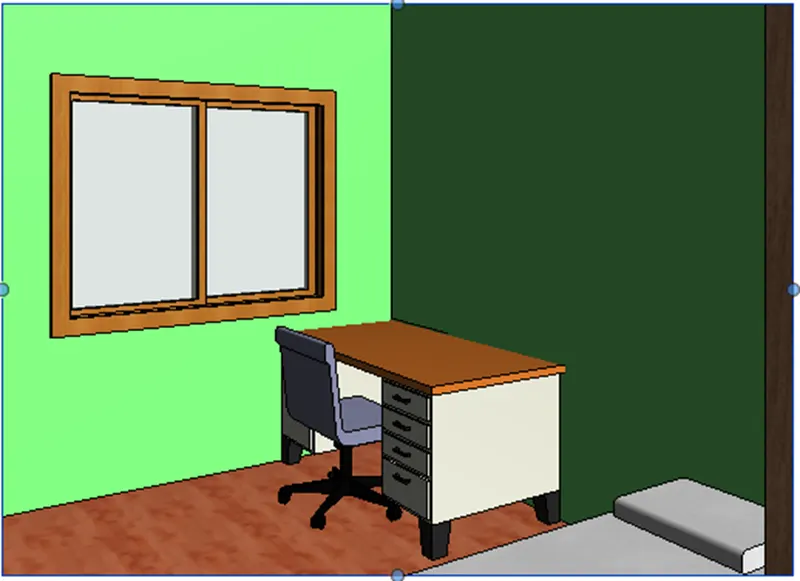

d. Bed Room must include a bed set, shelf, lighting and individual study desk and chair
e. Rest room should include bath tub and plumbing fixtures discussed in class
f. Kitchen should include countertops, gas stove cabinet and shelves to store food items
g. The wash/storage room can include washing machines and shelves to store clothes
Ans :
AIM :
PROCEDURE :
STEP 1 : Go to insert tab select load family and select the components to be added to the project and place the components at required places in the residential unit

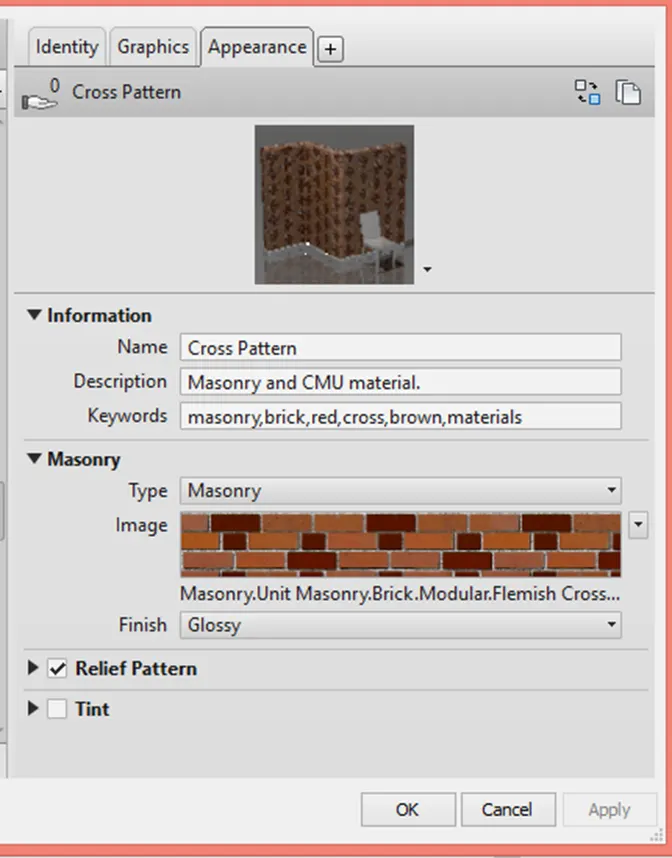

STEP 2 : Select the wall and go to property browser and edit type and duplicate the wall type and edit the structure of the wall by giving the appropriate material to the wall.
Select the floor and go to property browser and edit type and duplicate the floor type and edit the structure of the floor by giving the appropriate material to the wall.
RESULT :
The given challenge is completed by using appropriate tools in REVIT

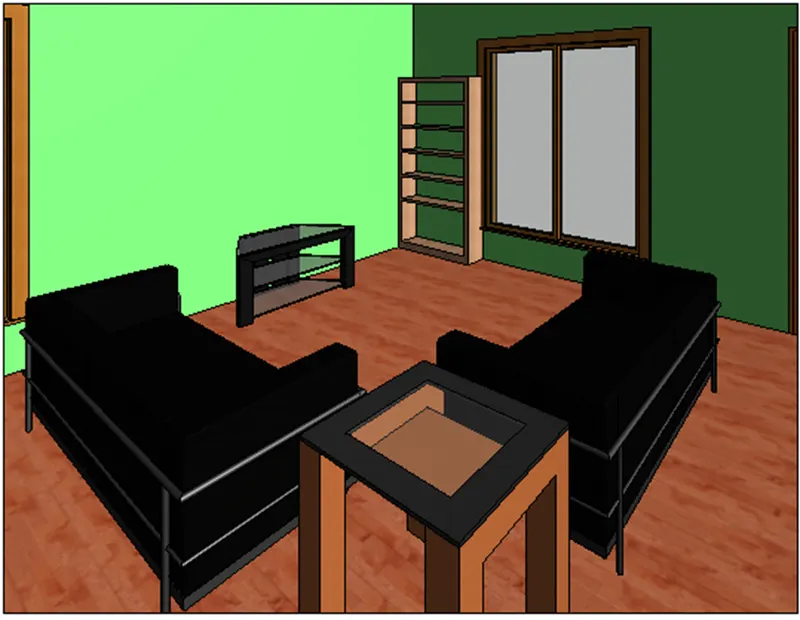

LIVING ROOM :

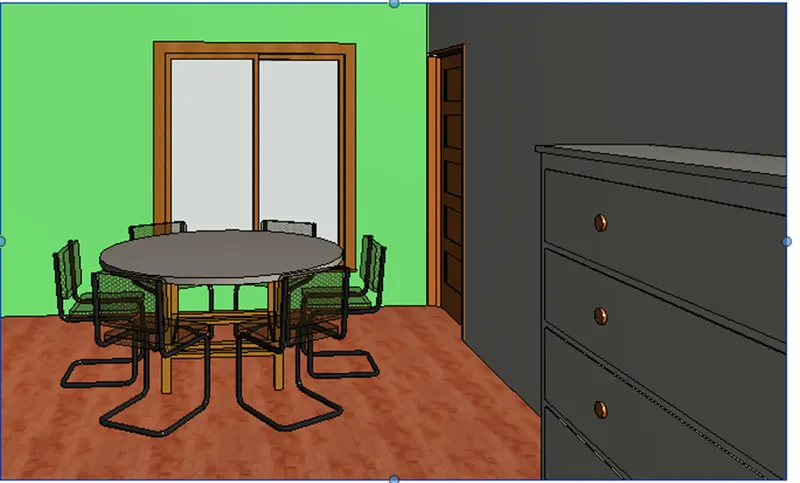

DINING ROOM :

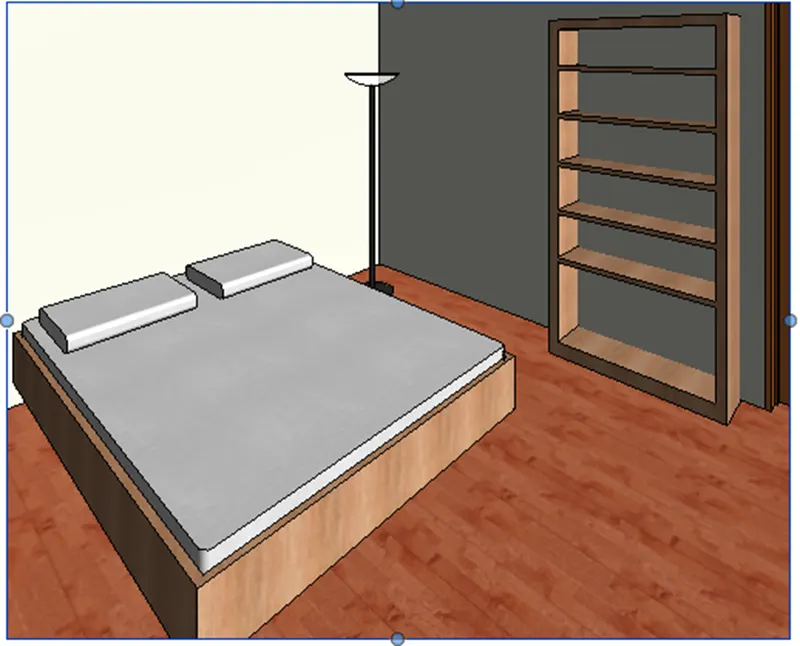

BEDROOM 1 :

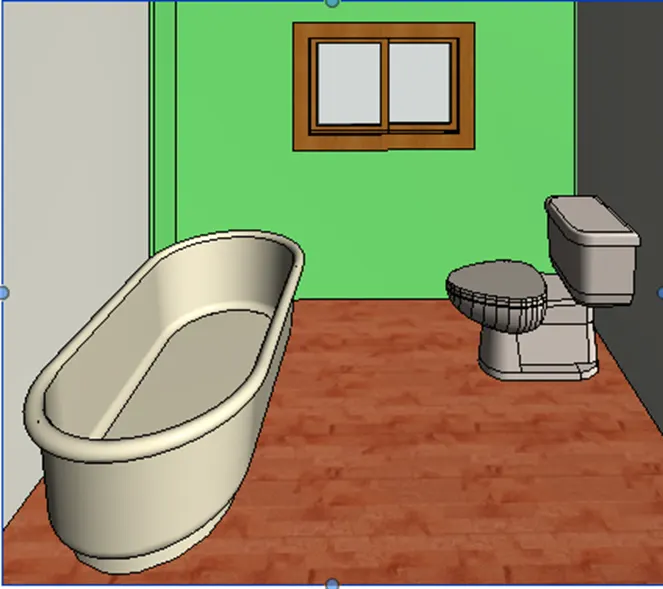

TOILET 1 :
BEDROOM 2 :
TOILET 2 :
KITCHEN :
