Creating Walls, Partition walls and Floors for a residential layout using REVIT

AIM 1:-

To create a floor plan and need to apply the materials and thicknessusing the property browser.

To align the floor plan with grid created from week 2.

INTRODUCTION:-

• Building material is used for construction.Many natirally occuring substances,such as clay,rocks,sand and wood,even twings and leaves, have been used for construction of a buildings.
• Apart from naturallly occuring materials, some man-made syntetic products are also used for building construction

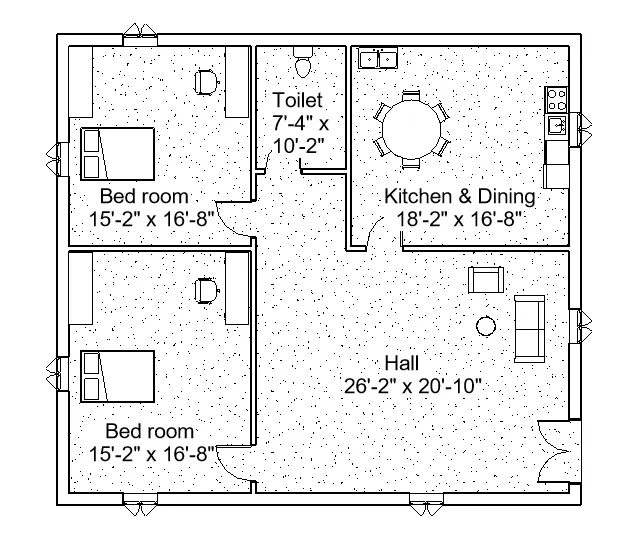

• Floor plans are the most critical element of house plans.Drawn to scale and shown from above,floor plans illustrate hoe rooms,spaces,and physical features work in relation to each other within the home.
• They are the key documents that show how people will move through the space and interact with their home.
• floor plans show the extent to which a space will work for its intended purpose.

PROCEDURE:-

1. First we select the floor
2. After selecting the floor,click the edit from the proprties browser,as shown below.
3. After clicking the edit type the properties tab will be visible on the screen,shown below.
4. Next we change the material type by clicking the edit option as shown.
5. After clicking the edit option,the edit assembly tab appears.
6. We select the material type in 2nd roow as shown .
7. After clicking that,the material browser appears,then select the materialtype as concrete,cast-in-place gray .
8. Finally the material is applyed to the floor,as shown below.

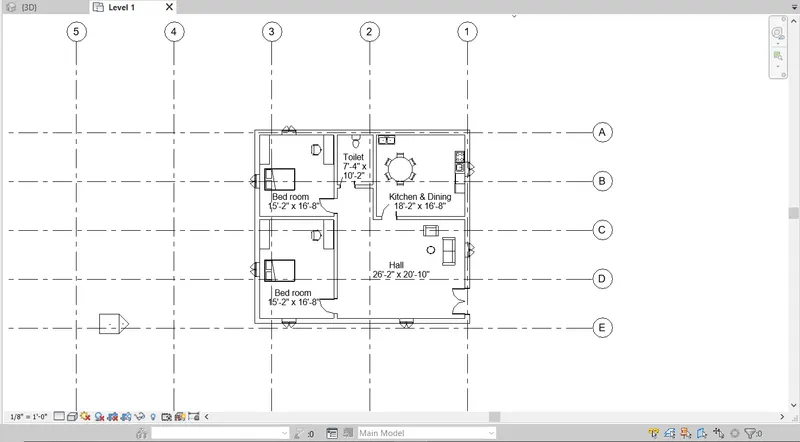

9. Nwxt floor plan is alined to the grid,as shown in the below .

RESULT:-

AIM 2:-

To create a floor and need to apply the materials and thickness using the property browser for wall.

Verify using the property browser to see if the top and bottom of the walls are constrainrd.

Need to understand the benefits of connecting walls associated levels tather than being unconnected.

Need to know which option is covenient for modeling walls,by Height or depth.

INTRODUCTION:-

• Walls are arguably one of the most importent elements of any building.
• As such, the wall tool is a prominent function as Autodesk Revit Architecture.
• Building material is used for construction.Many natirally occuring substances,such as clay,rocks,sand and wood,even twings and leaves, have been used for construction of a buildings.
• Apart from naturallly occuring materials, some man-made syntetic products are also used for building construction

PROCEDURE:-

1. First we select the wall,After selecting the walll,click the edit from the properties browser
2. After clicking the edit option,the editassembly tab appears.
3. We select the materials type in 2nd roow ,after that the materials browser appears,them select the material type as Brick,Soldier Course .
4. After applying the material to the walls,we need to zoom the walls to see the material type very closely.
5. Finallly the material has been applied to walls

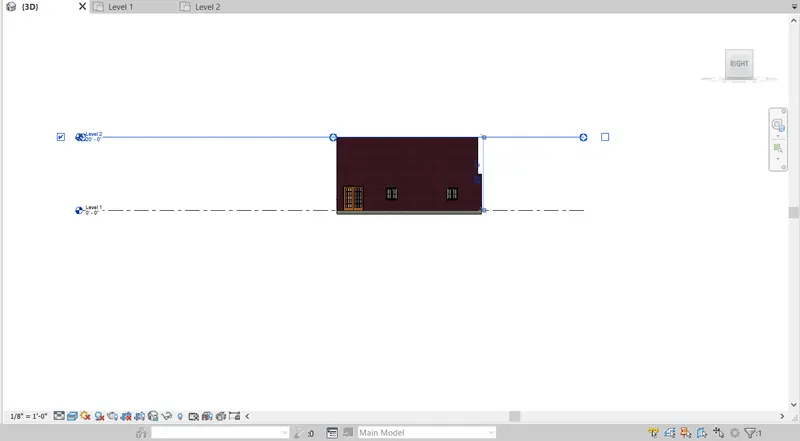

6. If we select the top of consraint as up to level,theheight of the wall changes with the levels.
7. When we put the level height to the 20',then height of the wall is also changes to the 20'
8. If we select the top of the constrain as unconnected,the height of the wall doesn't change with the levels.
9. When we put the level height to the 20;,the only level height is changes, the wall height will not be changed.
10. When we select the height option for the wall, the wall will be created above the level.

RESULT:-

• Successfully applied materials to the walls.
• The top and bottem of the walls are constained.
• Benefical for connectiong walls with associated levels is when level height changes,the wall height is also changes.
• Height option is convenient for modeling walls.

AIM 3:-

Use modify tab to uitlize copy and paste option to align elements to a diffrent level.

INTRODUCTION:-

• Floor plans are the most critical element of house plans.Drawn to scale and shown from above,floor plans illustrate hoe rooms,spaces,and physical features work in relation to each other within the home.
• They are the key documents that show how people will move through the space and interact with their home.
• floor plans show the extent to which a space will work for its intended purpose.

PROCEDURE:-

1. First we select the total ground floor, then we groundfloor is copied to clipboard.
2. Then use paste option to align elements to a different level.

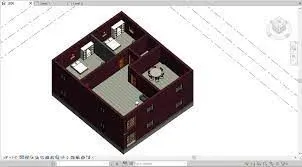

3. Finally the elements are alined to the diffrent level,as shown in below figure

RESULT:-

Finally the elements are aligned to the different level using the copy and pasteoption

AIM 4:- To create separate rooms with in your residential unit the interior partition walls

INTRODUCTION:-

• The walls are make for division or privacy in the interior portion of a building and not carried the ceilingload and that would make with bricks,glass,or other more materials is called partition walls.
• The partition wall is the none load-bearing wall;it does not support the flor or ceiling ,used only for desing purpose and partition purpose.
• Partion wall connect the floor and ceiling.

PROCEDURE:-

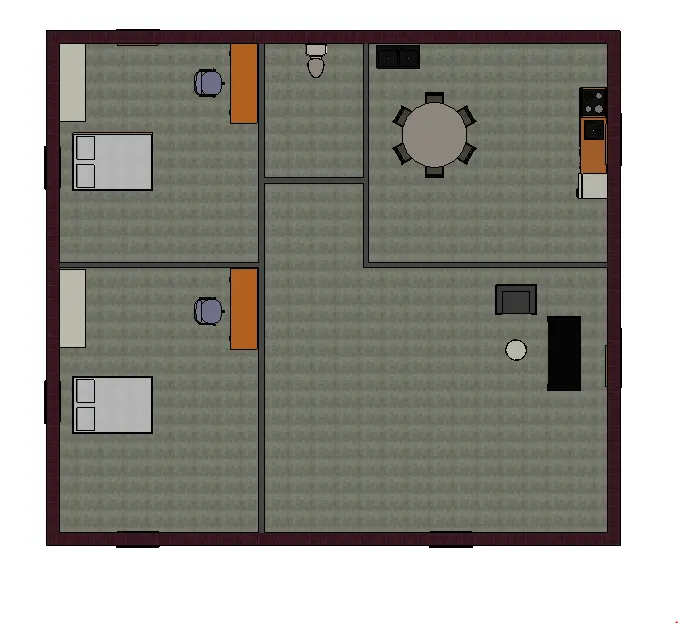

1. First select the interior wall,and change the wall type as partition wall,
2. The interior partitionwall created.

RESULT:-

The inteior partition walla are successfully created.

AIM 5:- To insert the components in appropriate locations and add details to the residential model, based on the week 2 assigment.

PROSCEDURE:-

1. First insert the furniture components in the hall as shown below.
2. Next we insert the thick ness of the kitchen components from the library .

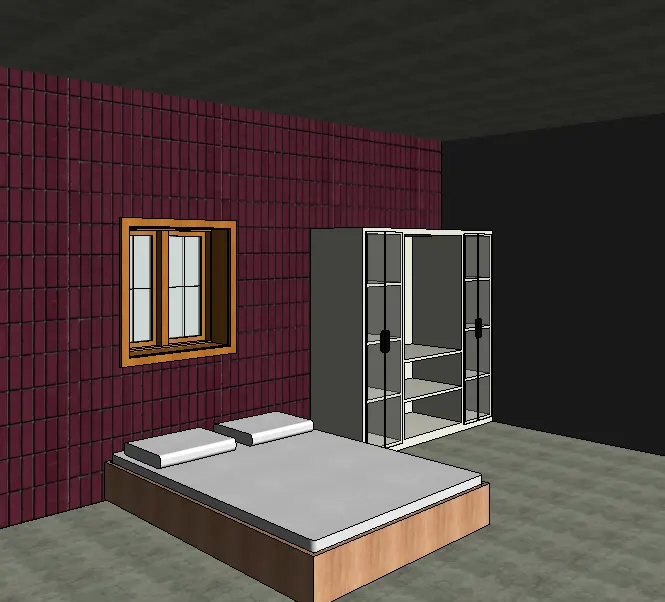

3. Next we insert the bed room component from the library, as shown below
4.

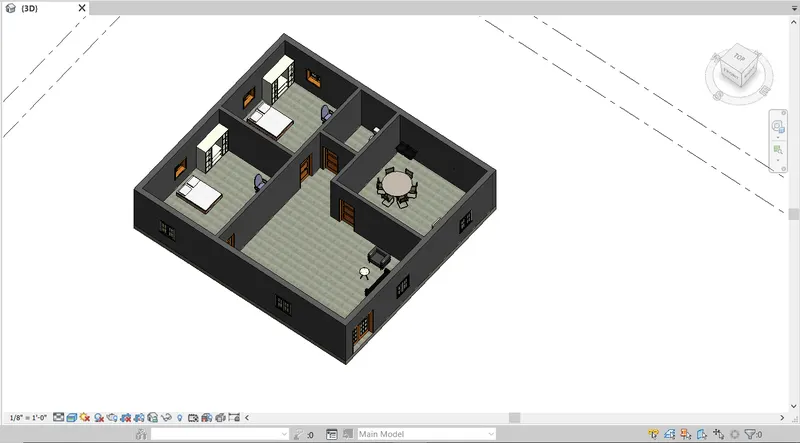

5. The all components are inserted from the library,as shown below

RESULT:-
