Creating various 3D Models like Furniture, Footing, Girder, Column drop with panel and Gable Wall in AutoCad

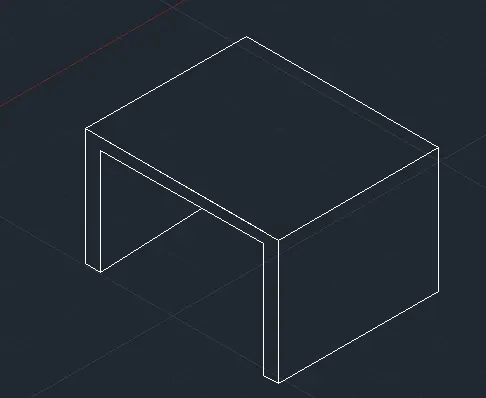

Aim- To draw a 3d furniture element using auto cad

Procedure-

Firstly set auto cad to 3d basics

Then in the top view draw a rectangle and offset ot of thickness

Then in the 3d view draw the legs of the table and join them

Then in the 3d view activate 3F command and draw the face of the furniture

The after giving the sides HIDE them with HIDE command

You view in the 3DORBIT command

2.

Aim- To draw a 3d model pf isolated footing element using auto cad

Procedure-

Firstly Invoke rec command and offset for cover

Then Invoke extrude command and select the rec

Then select the TAPER ANGLE

Drag the angle and right click and then top dimension and OK

Then 3F and select top faces

Then HIDE it

3.

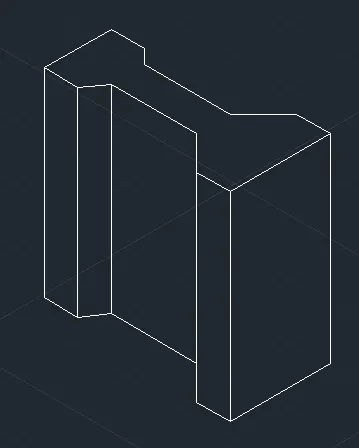

Aim- To draw a 3d girder element using auto cad

Procedure-

Firstly Invoke line command and draw the top view of girder

Then Invoke extrude command and select the girder

Drag the girder and right click and then top dimension and OK

Then 3F and select top faces

Then HIDE it

4.

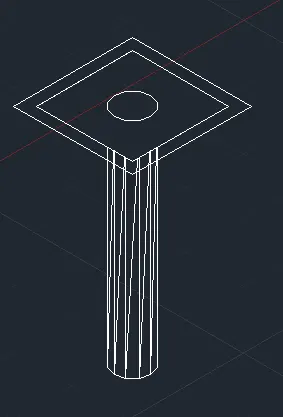

Aim- To draw a 3d coloumn with drop element using auto cad

Procedure-

Invoke the line command

Then draw the coloumn of given dimension

Then draw the drop at given angle and dimension

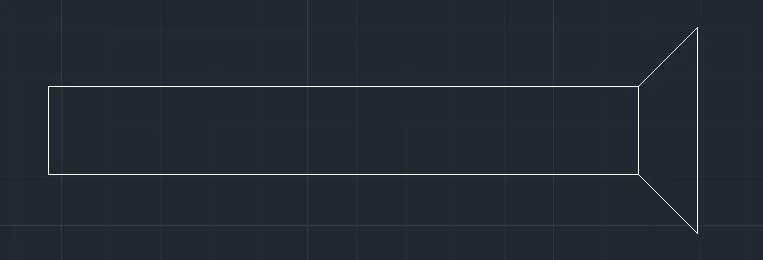

Aim- To draw a coloumn element using auto cad

Procedure-

Invoke the line command

Then draw the coloumn of given dimension

Then draw the drop at given angle and dimension

Extrude the Coloumn downwards

Then 3F and select top faces

Then HIDE it

5.

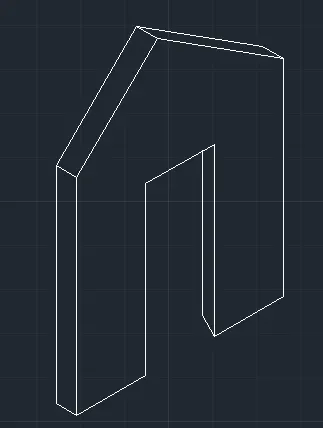

Aim- To draw a 3d wall element using auto cad

Procedure-

Isomerti command is must activates

Take line command from ribbon

Then start a point anywhere

First give thickness as 0.30

Then give height at 90^ and height of 3

Same on the another side buth not thickness because only one side is visible in isometric view

Give door dimensions height if 2.42 and thickness of 0.30

Then give the roof it shoulb be the height of 3.25 from below
