Creating various 3D Models like Furniture, Footing, Girder, Column drop with panel and Gable Wall in AutoCad
CHALLENGE 11
Creating various 3D Models like Furniture, Footing, Girder, Column drop with panel and Gable Wall in AutoCad:
1) CREATING 3D FURNITURE ELEMENT:
Aim :-
To Create a 3D Furniture element as shown in the Figure.
Procedure:
- Click on AutoCAD application and open this application
- Type QNEW in command bar and enter
- Select default setting as Imperial
- In default setting click on use a wizard and in that advance setting and set unit as Architectural and precision as 0’0” and press Next
- Set Angle as Decimal Degree and precision as 0 and click next
- Set Angle Measure as EAST and press NEXT
- Set Angle Direction as Counter-Clockwise and press NEXT
- Set Area by providing Length as 50’ and Width as 50’
- Press finish
- Keep ortho, Object snap >ON
- Keep Snap and Grid > Off
- Un+enter
- Type > Architectural, Precision > 0’0”
- Units to scale inserted content > Inches
- Enter
- Select workspace switching > 3D Modelling
- Select Visual style control > 2D Wireframe
- Take 3D Orbit command
- Select view such as the UCS direction is as shown below
- Take line command
- Select first point > Anywhere in the drawing
- Line specify next point > @0,0,2’6” > Enter
- Line specify next point > @0,3’,0> Enter
- Line specify next point > @0,0,-2’6” > Enter
- Line specify next point > @0,-2”,0 > Enter
- Line specify next point > @0,0,2’4” > Enter
- Line specify next point > @0,-2’8”,0 > Enter
- Line specify next point > @0,0,-2’4” > Enter
- Line specify next point > @0,-2”,0 > Enter

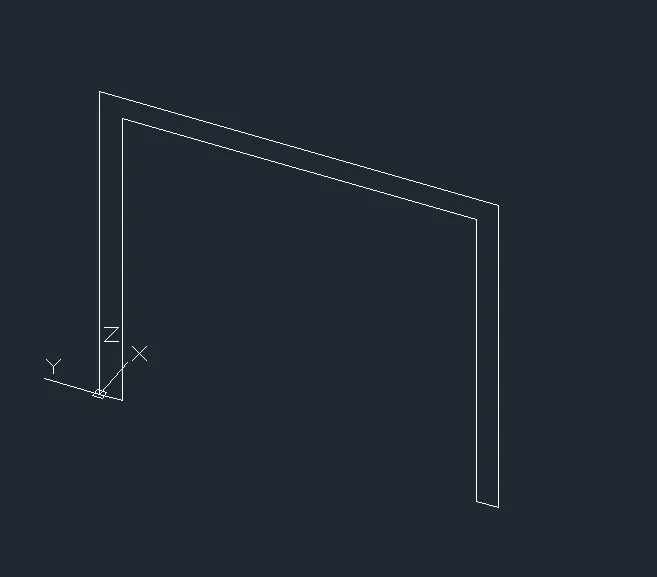

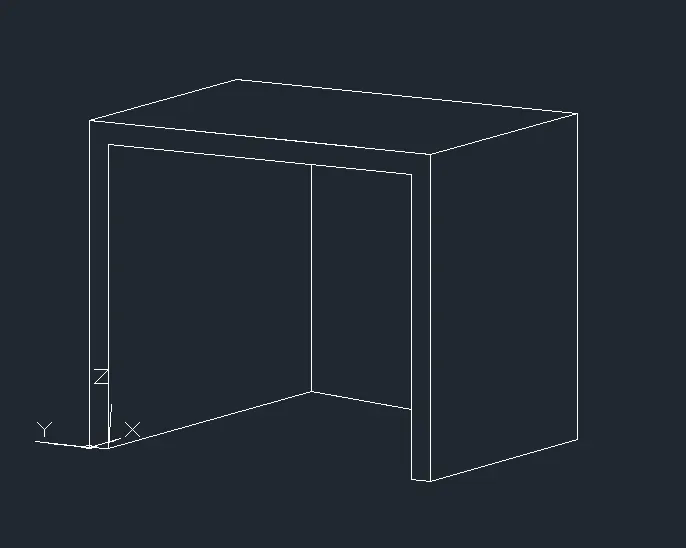

- It will shows the following result.
- Take a rectangle command
- Specify first corner point > Click on top left corner point
- Click > Dimension
- Specify Length > 2’2”
- Specify width > 3’
- Enter

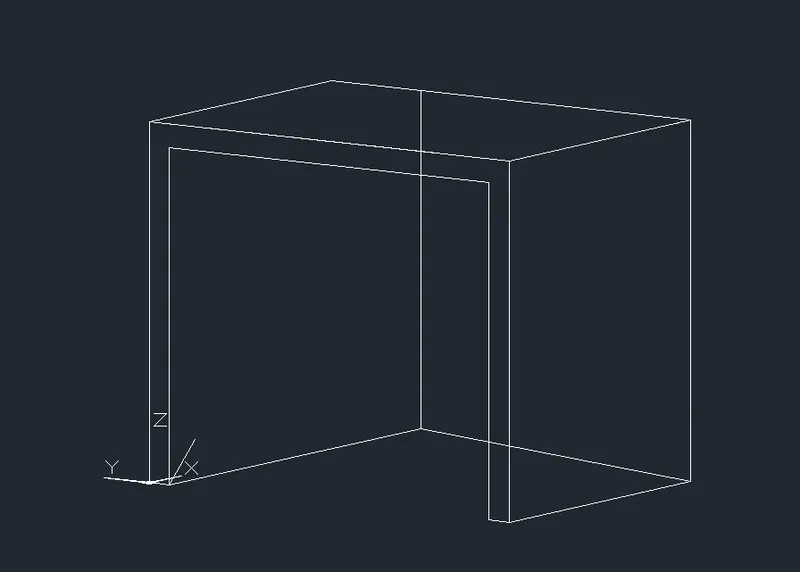

- Use line command to connect the rectangle as shown below.
- Take 3D face command
- Specify all the four point of the top rectangle
- Enter > Hide > Enter
- Similarly do the 3D face command to all the faces of the drawing.
- Click on ANNOTATION tab
- Click on Dimension
- Click > Manage dimension style
- New
- Style name > 3D
- Set the characteristics of dimensions as
- Select the yellow colour for the dimension style and extension line
- Select arrowhead size as 4”
- Select the text as green colour
- Then select linear dimensions
- Provide the linear dimension
- It will shows the following result.

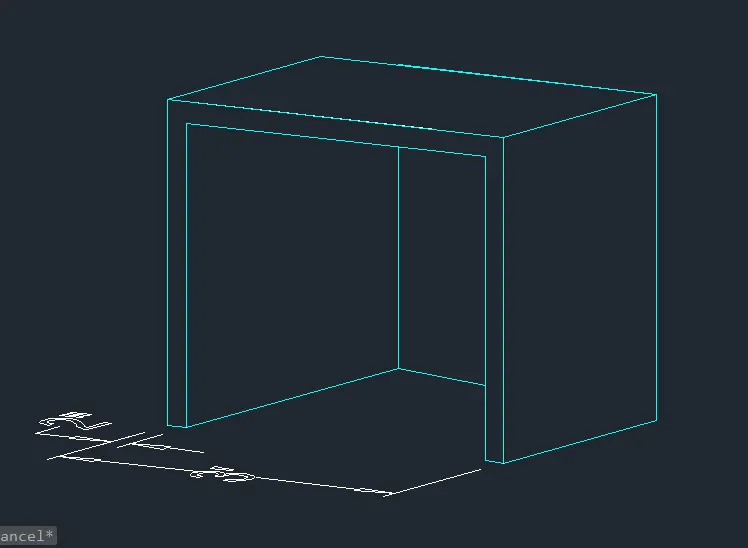

Result:
The 3D furniture is created by using Autocad as shown in fig.
2) CREATING 3D MODELLING OF AN ISOLATED FOOTING:
Aim :-
To Create a 3D Model of an Isolated Footing as shown in the below figure.
Procedure :-
- Click on AutoCAD application and open this application
- Type QNEW in command bar and enter
- Select default setting as Imperial
- In default setting click on use a wizard and in that advance setting and set unit as Architectural and precision as 0’0” and press Next
- Set Angle as Decimal Degree and precision as 0 and click next
- Set Angle Measure as EAST and press NEXT
- Set Angle Direction as Counter-Clockwise and press NEXT
- Set Area by providing Length as 5’ and Width as 5’
- Press finish
- Keep ortho, Object snap >ON
- Keep Snap and Grid > Off
- Un+enter
- Type > Architectural, Precision > 0’0”
- Units to scale inserted content > Inches
- Enter
- Select workspace switching > 3D Modelling
- Select Visual style control > 2D Wireframe
- Take 3D Orbit command
- Select view such as the UCS direction is as shown below.
- Take rectangle command
- Specify corner point anyehere in the drawing
- Click > Dimension
- Specify Length > 3’
- Specify Width > 3’
- Enter
- Take rectangle command
- Specify corner point anyehere in the drawing
- Click > Dimension
- Specify Length > 1’
- Specify Width > 1’
- Enter
- By keeping object snap on

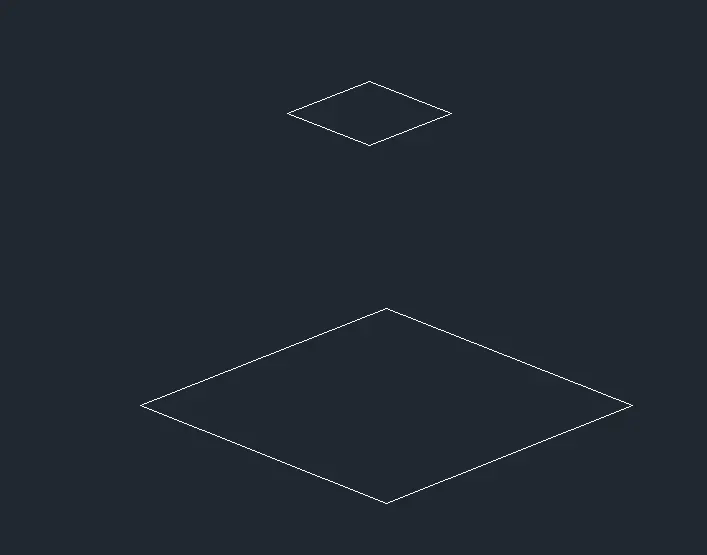

- Keep the small rectangle such as, both rectangle shows the same centre point.
- Take move command
- Select object > Click on small rectangle
- Move it in a Z axis at a distance of 2’6”
- Take the line command

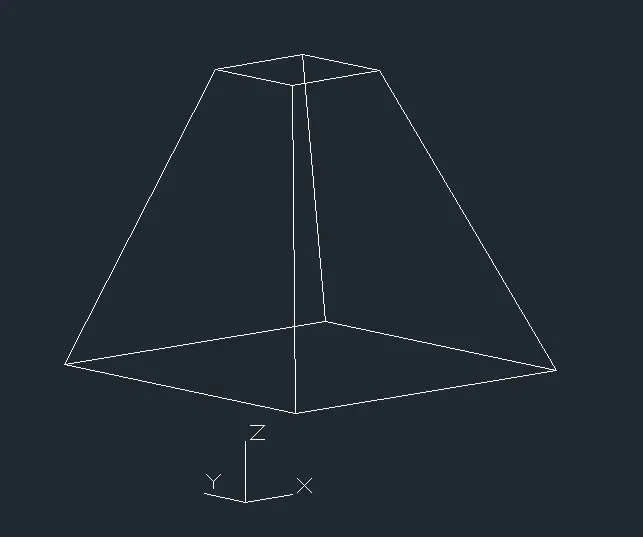

- Join all the corners of the both rectangle as shows below
- Take 3D face command
- Specify all the four point of the top rectangle
- Enter > Hide > Enter
- Similarly do the 3D face command to all the faces of the drawing
- Take the extrude command
- Select object > Click on the bottom rectangle
- Specify extrude height > 6”
- Enter
- Change the visual style control > Hidden
- Click on ANNOTATION tab
- Click on Dimension
- Click > Manage dimension style
- New
- Style name > 3D
- Set the characteristics of dimensions as
- Select the yellow colour for the dimension style and extension line
- Select arrowhead size as 4”
- Select the text as cyan colour
- Then select linear dimensions
- Provide the linear dimension

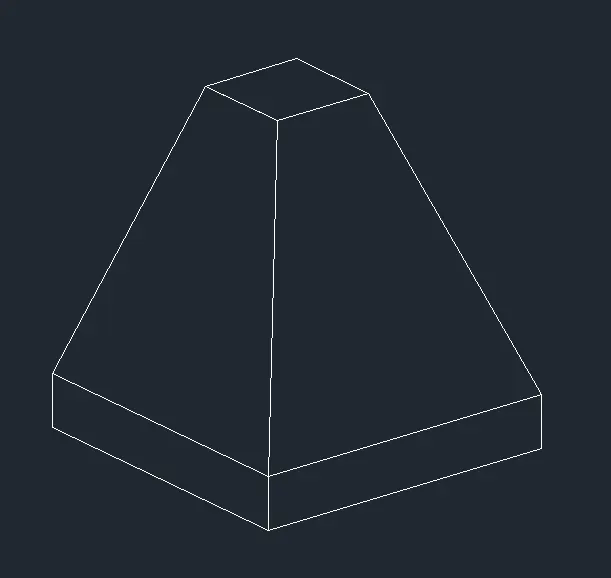

- It will shows the following result.

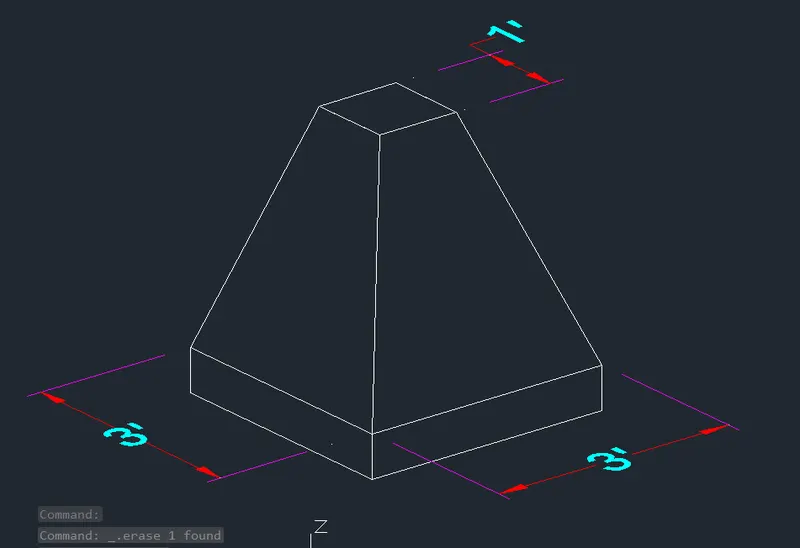

Result:
The 3D furniture Modelling is created by using Autocad as shown in fig.
3) Creating the 3D view of the AASTHO Type Girder:
Aim:
To create a 3d model of AASTHO type girder using AutoCAD 3d.
Procedure:
Step 1:
Click on front view.Use UCS command and make the x and y axis in the front view plane
Step 2:

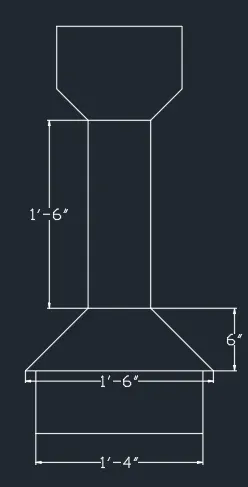

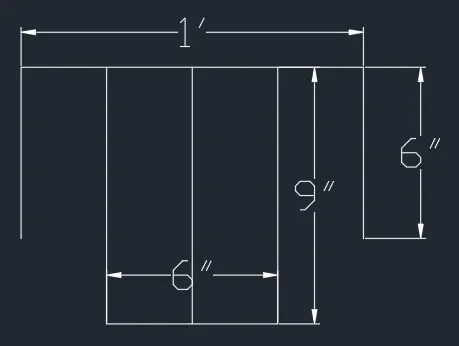

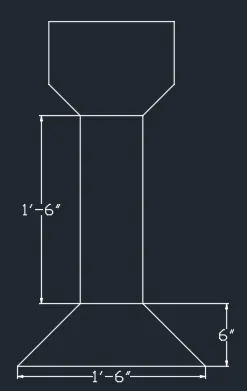

Then by line command draw the I section with the given dimension.Command 'L”, draw a line of 1' that is the top width of the girder.
With the line draw a 6" downwards.With snap on draw a line from the center of 1' and offset 3" on both sides such that the width of web becomes 6".
Step 3:
Give a taper distance and join the web and the flange.Mirror the same on the other side
The web is given a height of 1'6", offset the distance 1'6"from the end of tapering of the flange portion (1').Delete the center line drawn for the offset and also trim off the extra lines in flange.
Step 4:
Extend the web to the offsite line.Again offset 6" from the last line and taper the sides.Mirror the tapered portion to the other side.The sides should be tapered such that the bottom should be 1'6", draw a center line and offset 9" on both sides, then join the taper.
Step 5:
Offset 6" downwards from the bottom horizontal line to define the height.To draw the taper at bottom 1'4”, from the Centre draw a line and offset 8" on both sides.
Step 6:Extend the 6" offsite line and trim the rest of lines.Draw the vertical line downwards and the tapering also.
Step 7:
With 3d orbit turn the view and draw a line of 10' in z direction.Click on sweep from the home toolbar and select the section and, then the path through which the section to be swept i.e., the line.

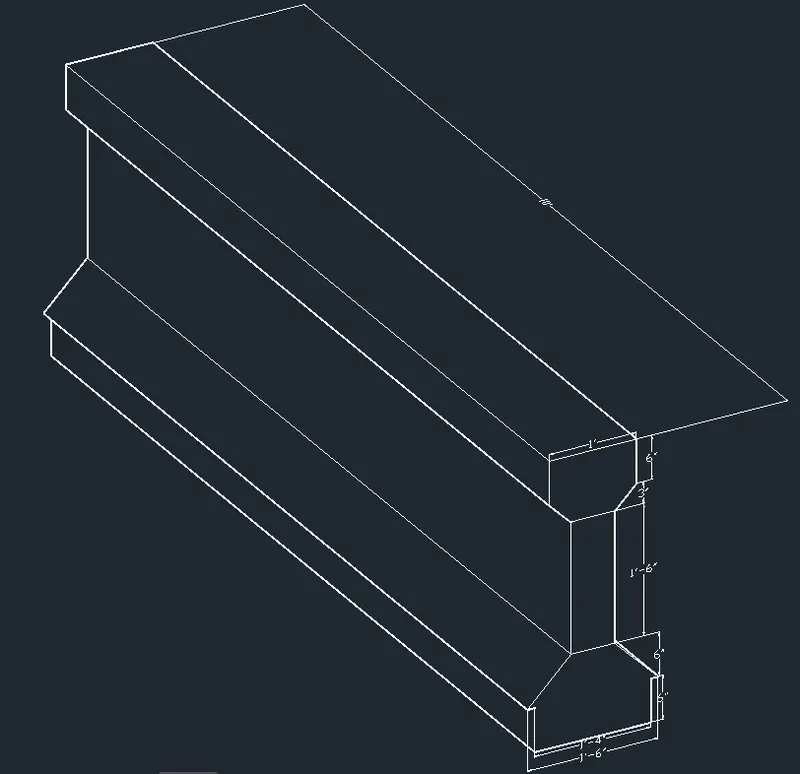

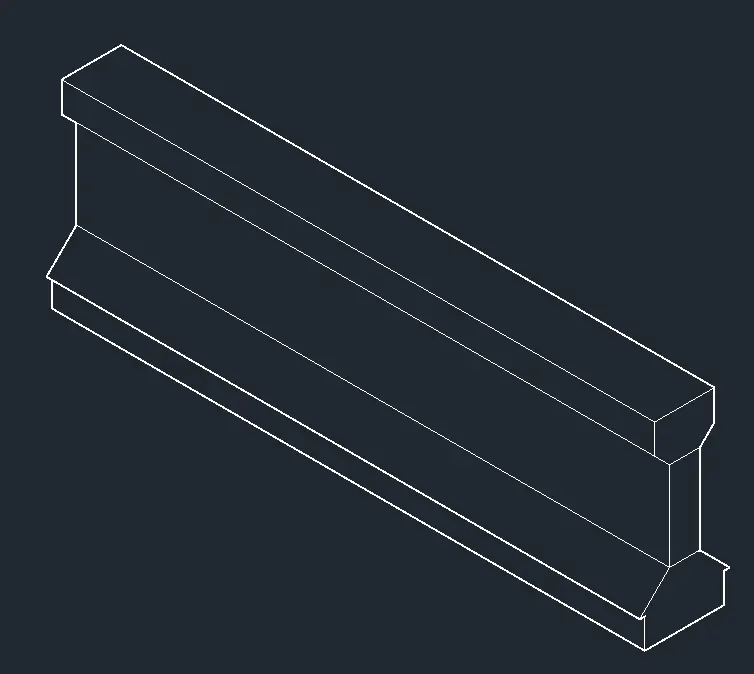

Result:

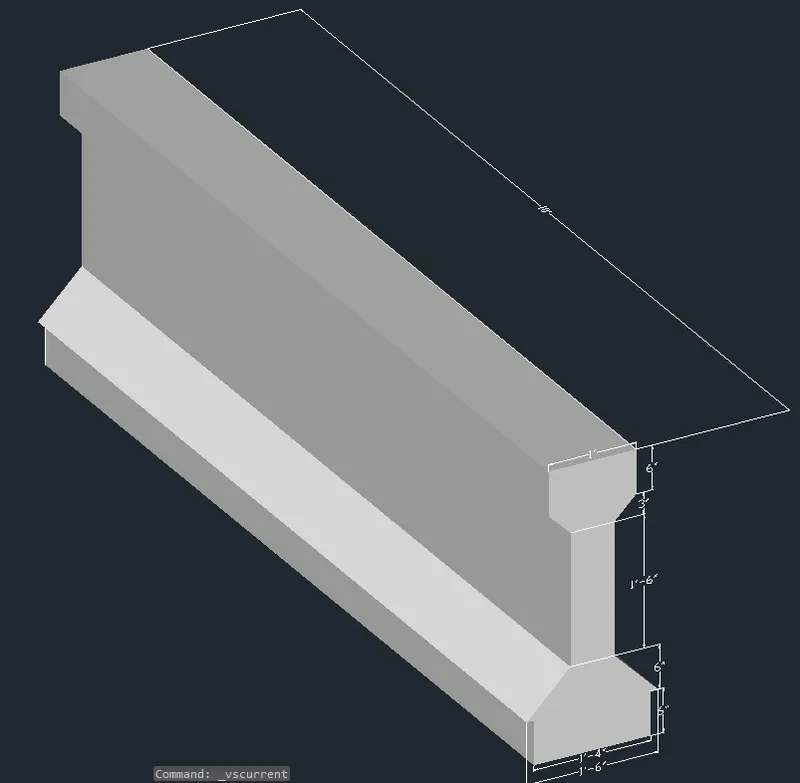

The 3D model of the AASTHO girder is drawn:
4).
3D MODEL OF A DROP COLUMN WITH PANEL
Aim: To draw the 3d model of a drop column with panel section and show its isometric view.
Procedure:
Step 1:
Create a circle of diameter 1'6” in the top view.
Step 2:

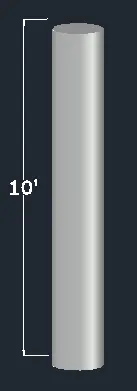

Create a region-by-region command and select the rectangle.Extrude it with extrude in home toolbar and give a distance of 10'.
Step 3:
Create a cone by clicking on cone from the home toolbar.Click on diameter and give the base diameter as 1'6".
Step 4:
Click on top radius and give the value as 1'6" and give the height of the cone as 1".
Step 5:

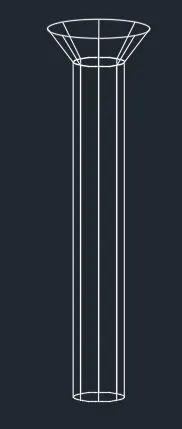

Place the frustum of cone on top of the extruded circle i.e. the column in the front view, with snap option place such that the center of two objects coincide ,also place the center of frustum with center of column in the top view.

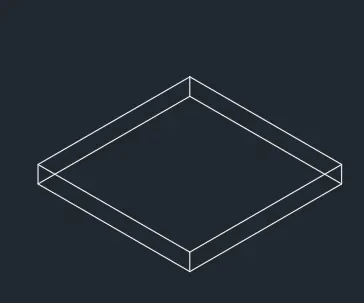

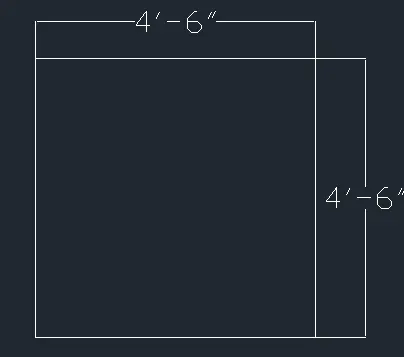

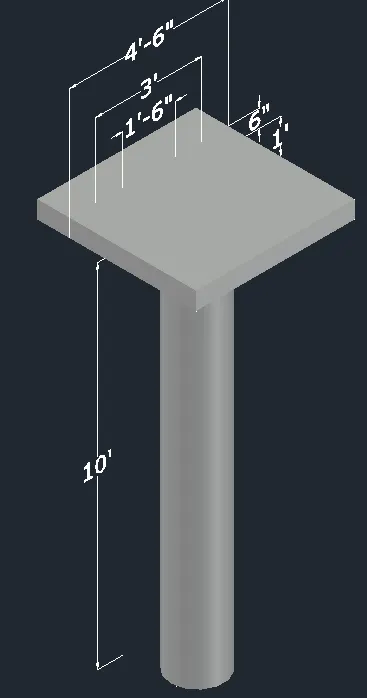

Step 6: In top view, create a rectangle of dimension 4'6" x4'6".Extrude it to a height of 6".
Step 7:

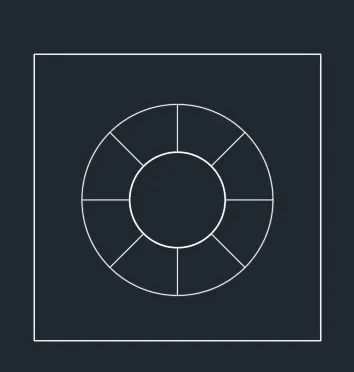

In the top view, place the rectangle at the center of cone and also adjust in the front view or give move command and give the coordinate as 0,10',0 as the rectangle is at bottom in the front view.

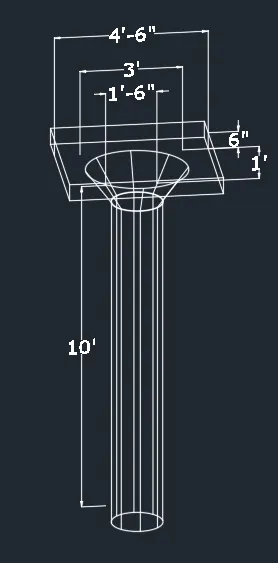

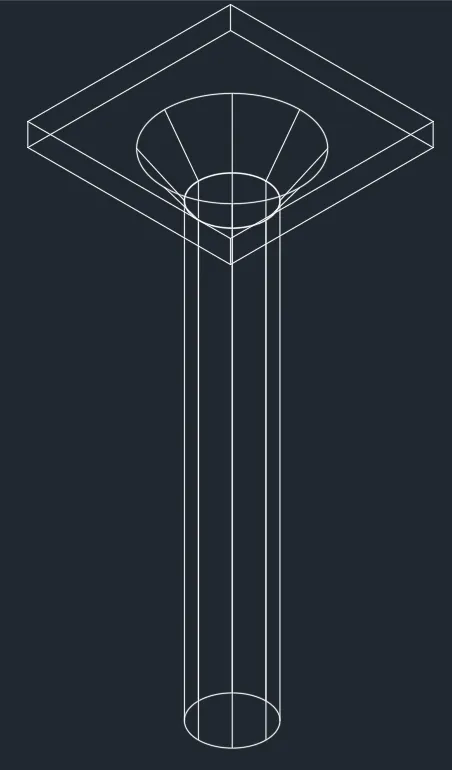

3D view
Result:
The 3d model of a drop column with panel has been drawn section and isometric view is also shown:
5) 3D MODEL OF WALL
Aim: To draw a 3d model of wall.
Procedure
Step 1:

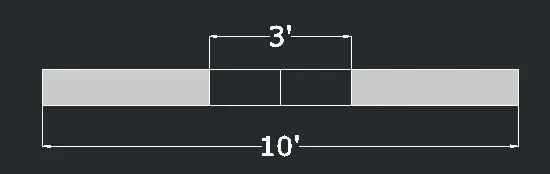

Draw a rectangle of 10' x 9".Create a line in the center and offset 1.5" on both sides as 3" is the width of door opening.
Step 2:
Use the command "BO" for boundary and create the region i.e., both the region on either side of the door opening.

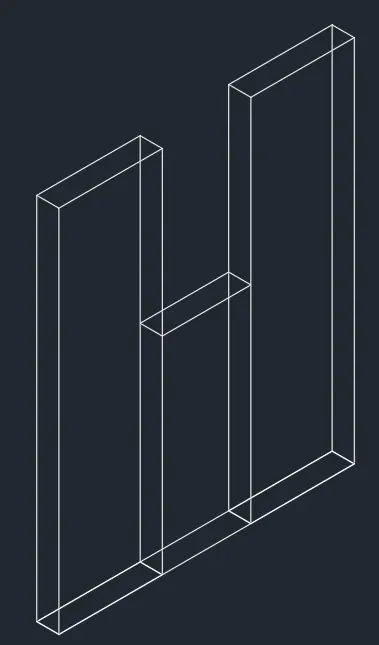

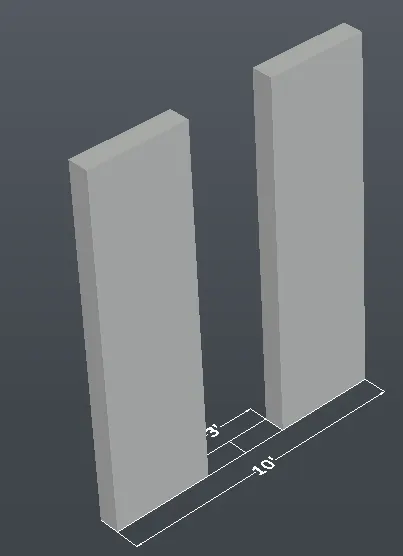

Step 3: Extrude the region to a height of 12'6" total height.
Step 4:Create a rectangle in place of door in the top view.Move the rectangle in z axis at a height of 7' from the bottom.

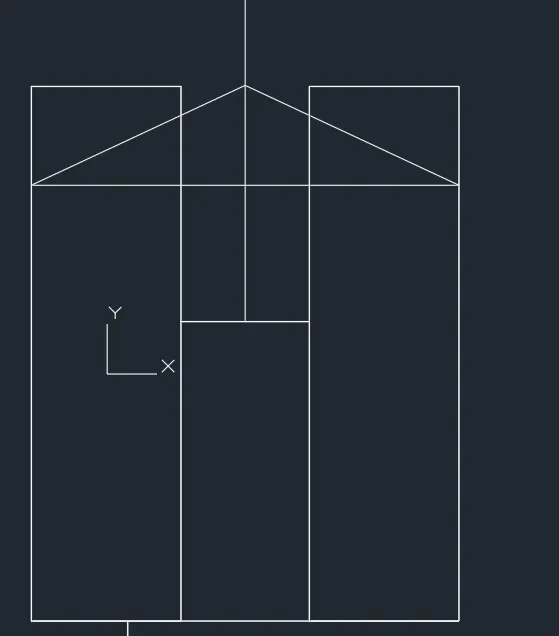

Step 5: go to front view and draw a line from the center of the moved line of door. Draw slanting line from the total height from the center line intersecting the edge.
Step 6: Mirror the line to the other side.Draw the horizontal line to join.
Step 7: trim off the excess line and the center line and join the triangle with join command.Create a region with region command in the triangle created.
Step 8: Select the extruded rectangle and with the help of grip bring it down to the level of the triangle base on both sided.Extrude the rectangle of door to a height equal to base of triangle.

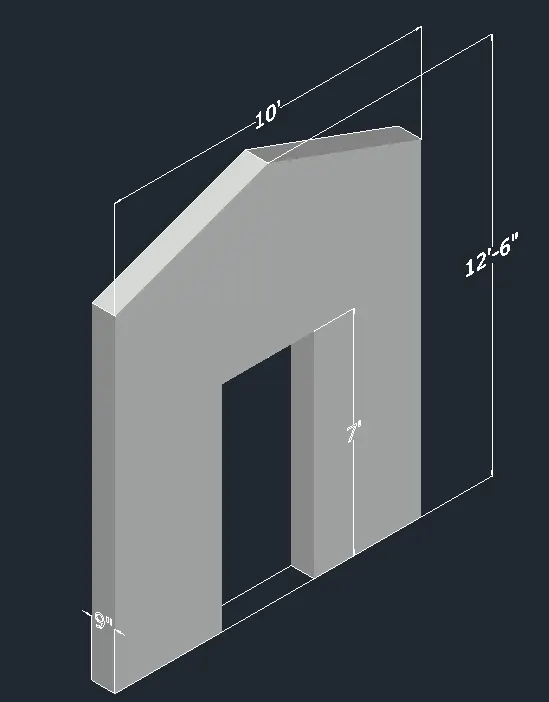

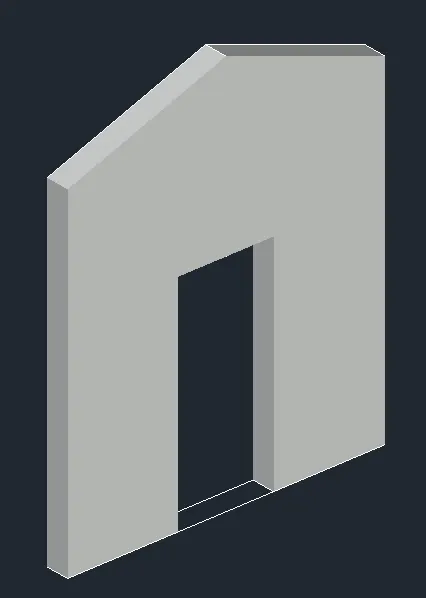

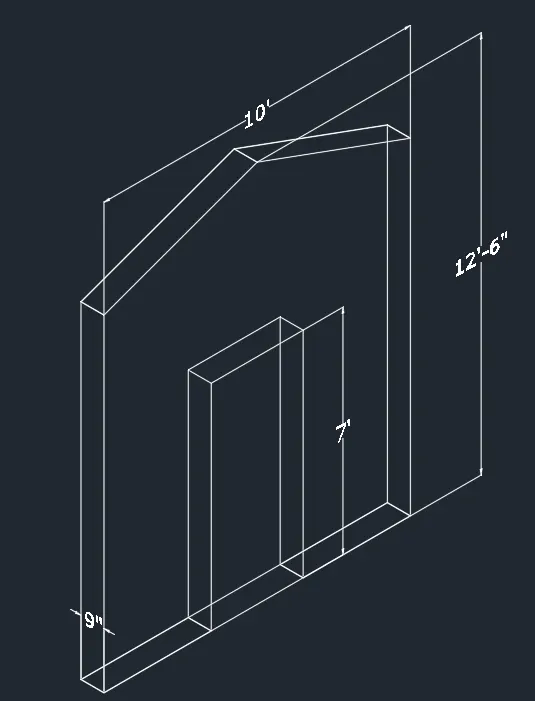

Result: 3d model of wall is drawn.
RESULT:
- 3d model of furniture element is created.
- 3d model of isolated footing is created.
- 3d model of AASTHO type girder is created.
- Drop column with panel 3d model is created.
- 3d model of wall is created.
