Creating various 3D Models like Furniture, Footing, Girder, Column drop with panel and Gable Wall in AutoCad

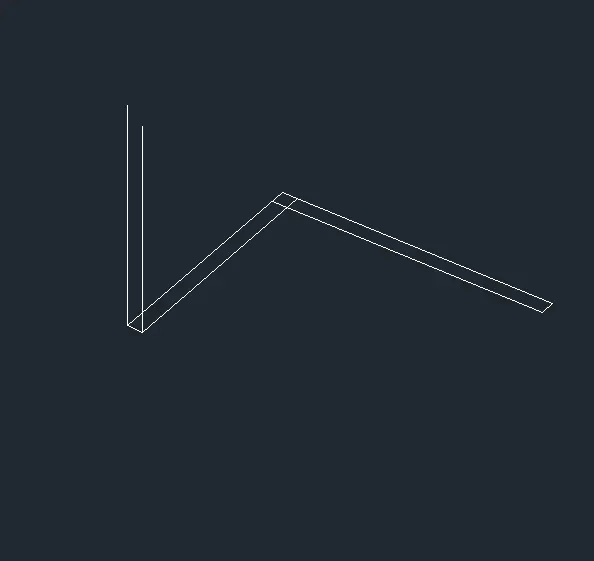

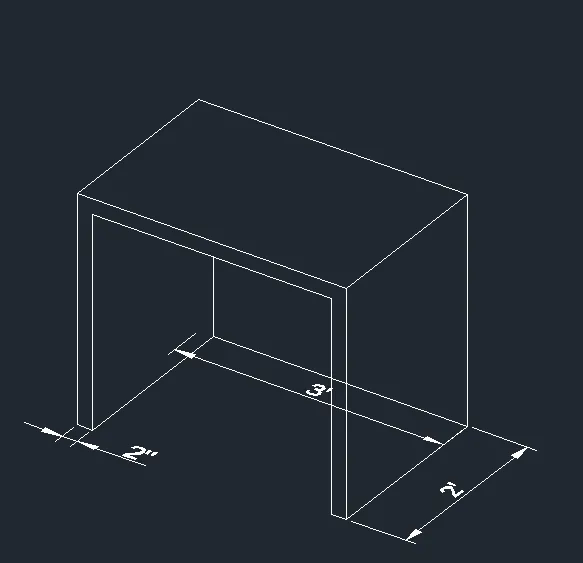

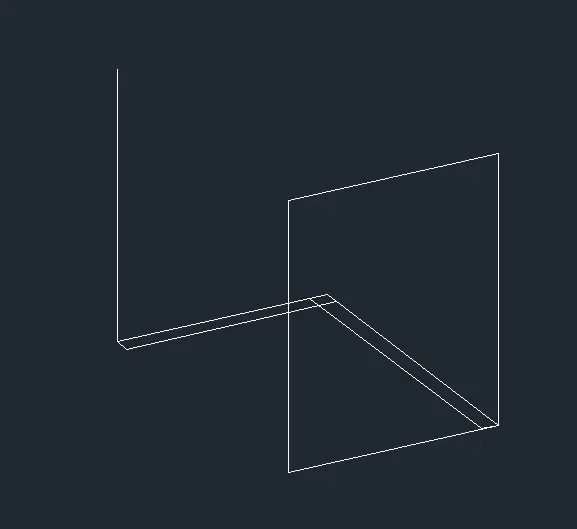

Aim:To create a 3D Furniture element

Result:

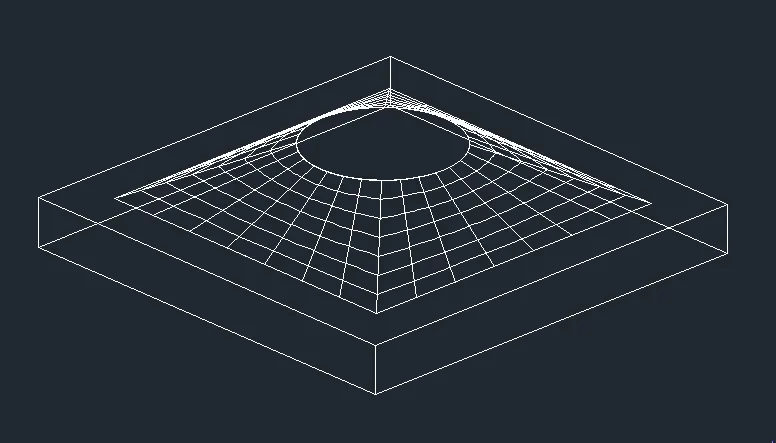

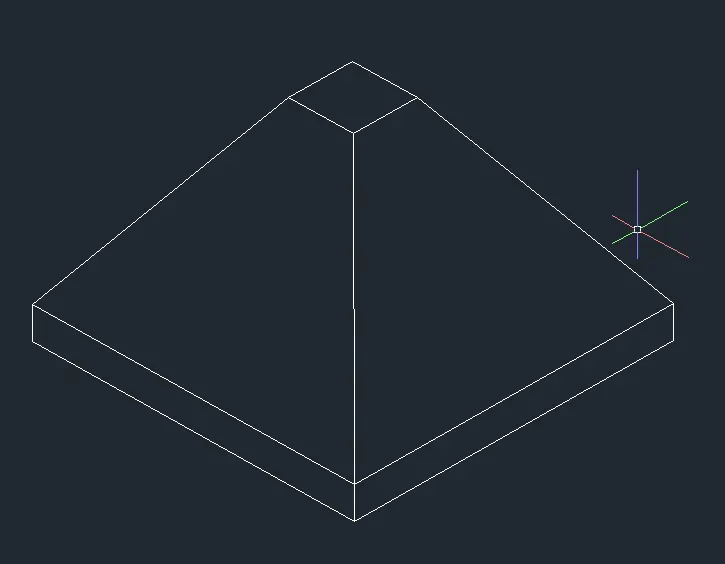

Aim: To create 3d model of an isolated footing

Procedure:

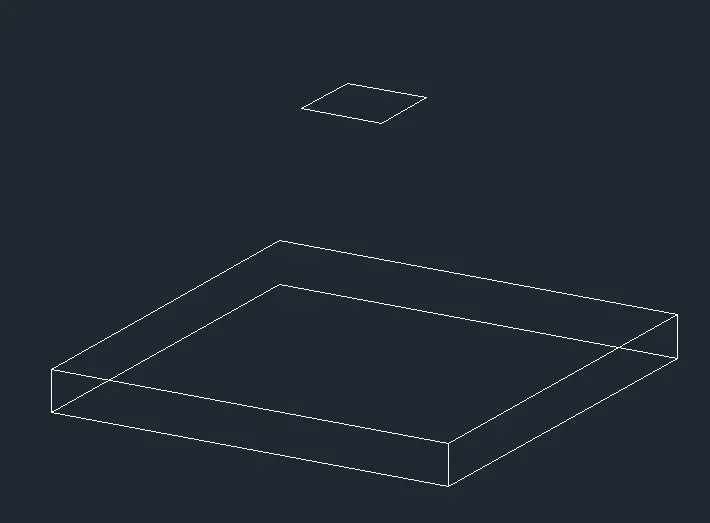

• Draw the rectangle of the desired dimension
• Copy the rectangle 6" height
• Draw the rectangle of 1',1' and move the rectangle at the given height.
• Join the line as shown.

Result:

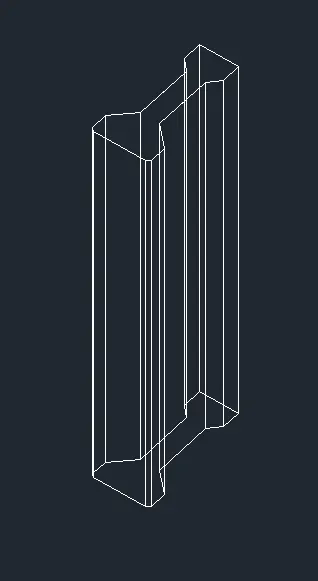

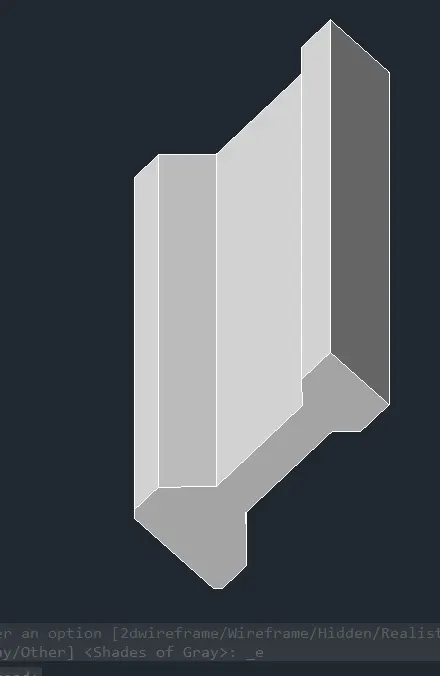

Aim: To create 3d view of AASTHO type grider

Procedure:

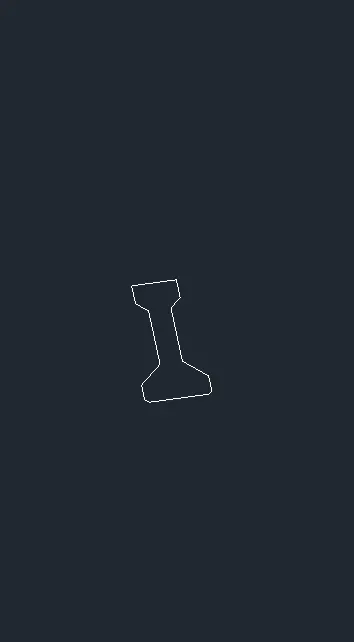

• Enter the line command and draw the bottom part of the grider
• Convert it into surface using boundary command
• Extrude into 3d using Extrude command.

Result:

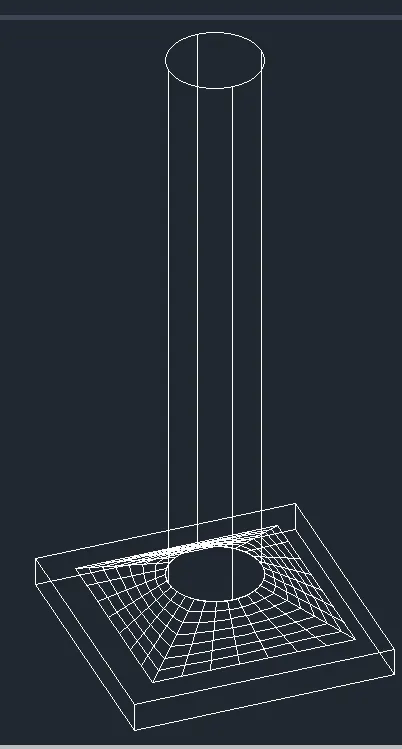

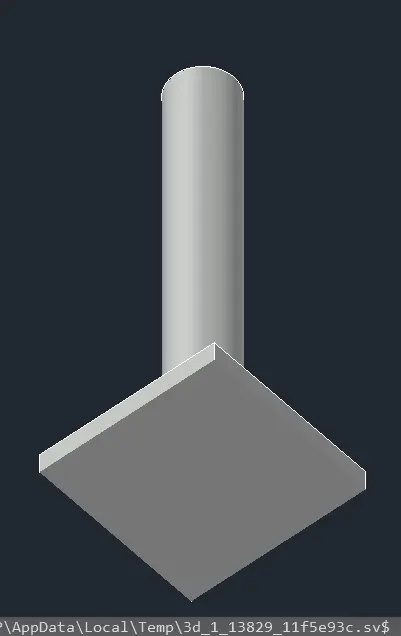

Aim: To create a 3d Model of a drop column with panel

Procedure:

• Open the 3d view in the autocad

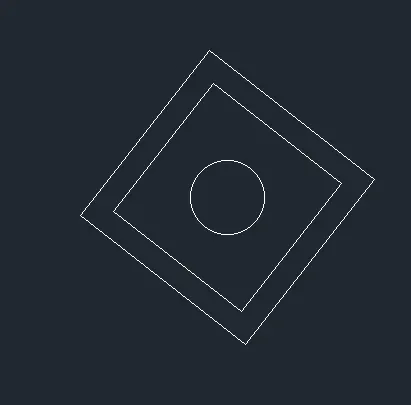

• Draw the rectangle
• Enter circle command to draw the circle
• Use loft command to join circle and the rectangle
• Draw the cylinder of the given height.

Result:

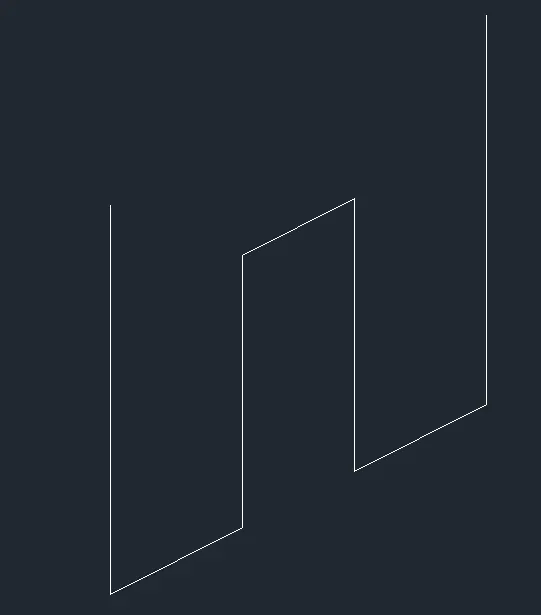

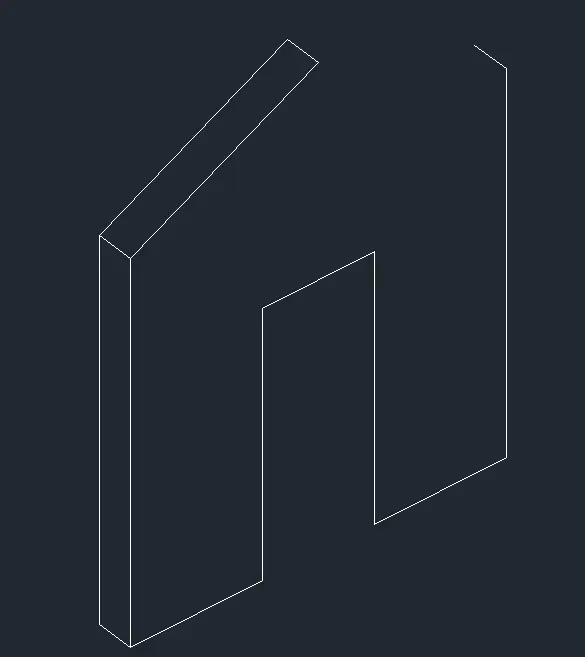

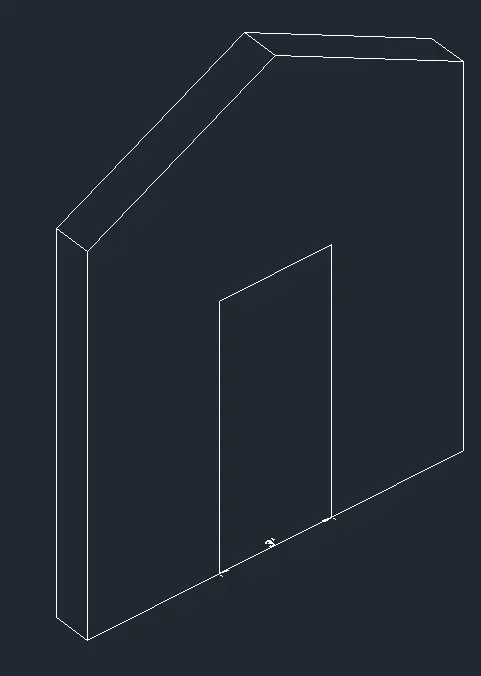

Aim : To create 3d view of wall
