Creating various 3D Models like Furniture, Footing, Girder, Column drop with panel and Gable Wall in AutoCad

Aim:-

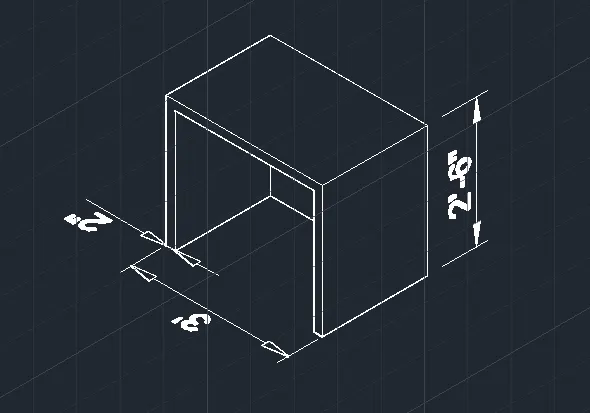

1) To Create a 3D Furniture element

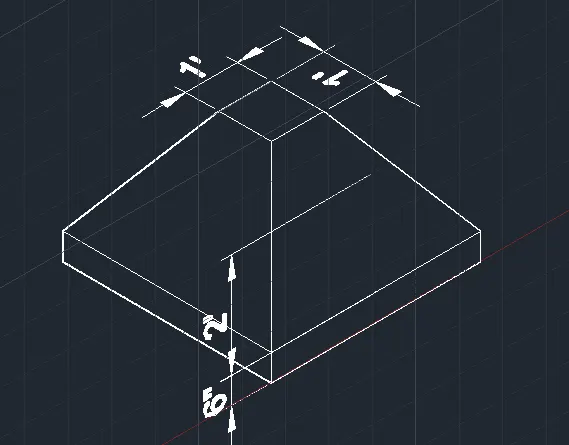

2)Create the 3d Model of an Isolated footing

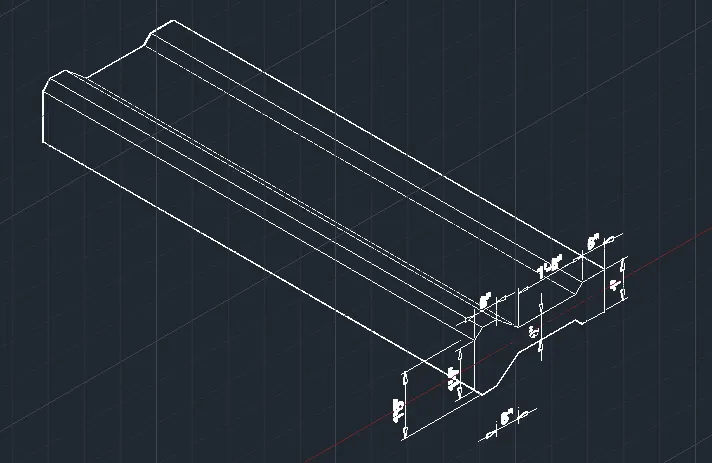

3)Create the 3D view of the AASTHO Type Girder

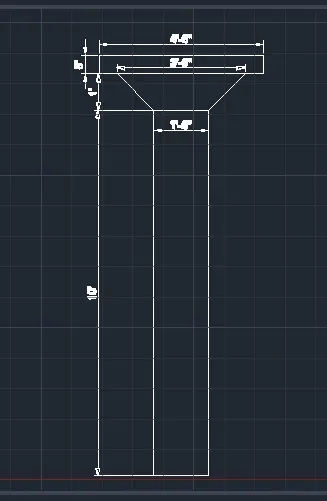

4)Create a 3d Model of a drop column with panel

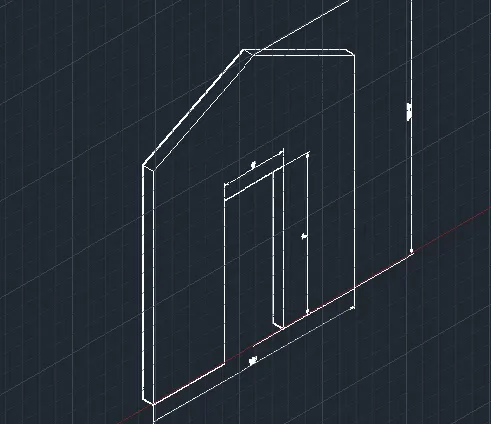

5)Create the 3d model of a wall

Procedure

step 1:- draw Furniture element in front view as per given dimensition

step 2:- use Region command to convert 2d object to 3d object

step 3:- use exterude command to give required thickness

step 4:- type visual style command to get required view

step 1:- draw Isolated footing in front view as per given dimensition

step 2:- use Region command to convert 2d object to 3d object

step 3:- use exterude command to give required thickness

step 4:- use substract command to give taperd

step 5:-type visual style command to get required view

step 1:- draw AASTHO Type Girde in front view as per given dimensition

step 2:- use Region command to convert 2d object to 3d object

step 3:- use exterude command to give required thickness

step 4:-type visual style command to get required view

step 1:- draw drop column with panel in front view as per given dimensition

step 2:- use Region command to convert 2d object to 3d object

step 3:- use exterude command to give required thickness

step 4:-type visual style command to get required view

step 1:- draw a wall in front view as per given dimensition

step 2:- use Region command to convert 2d object to 3d object

step 3:- use exterude command to give required thickness

step 4:-type visual style command to get required view
