Creating various 3D Models like Furniture, Footing, Girder, Column drop with panel and Gable Wall in AutoCad

ANS 1:

AIM:

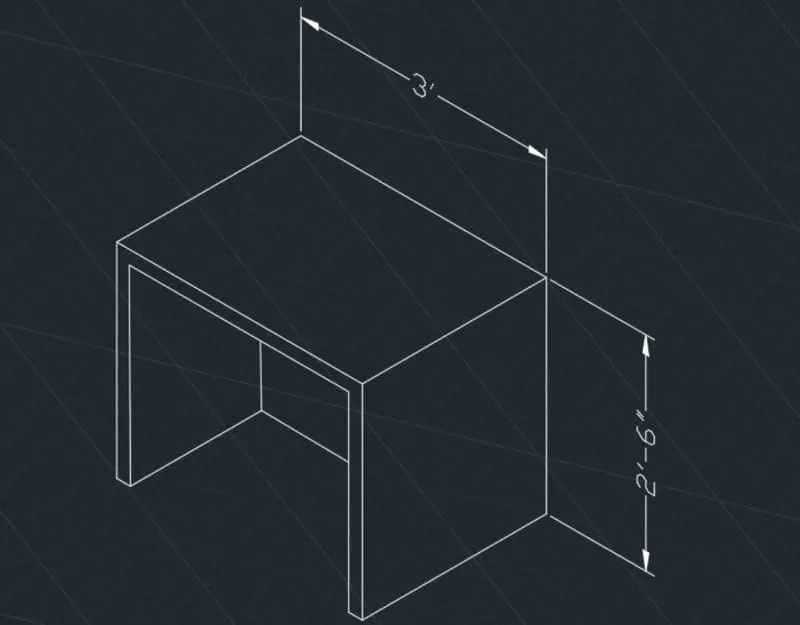

To create a 3D Furniture element as shown in the Figure.

PROCEDURE:

• Open AutoCAD and click the workspace icon
• Enter Units and limits
• Line command is used to draw the 3D object
• Command-line draw 2'6" in the Z direction
• Line of 3' in the Y direction
• Line 2'6" in a negative Z direction
• Offset 2" as the thickness of the 3D object
• Assume the width of the object as 2'3"
• Move USC and face in the desired manner
• Use face command place the particular face and show dimensions

RESULT:

The given diagram is created using AutoCAD.

ANS 2:

AIM:

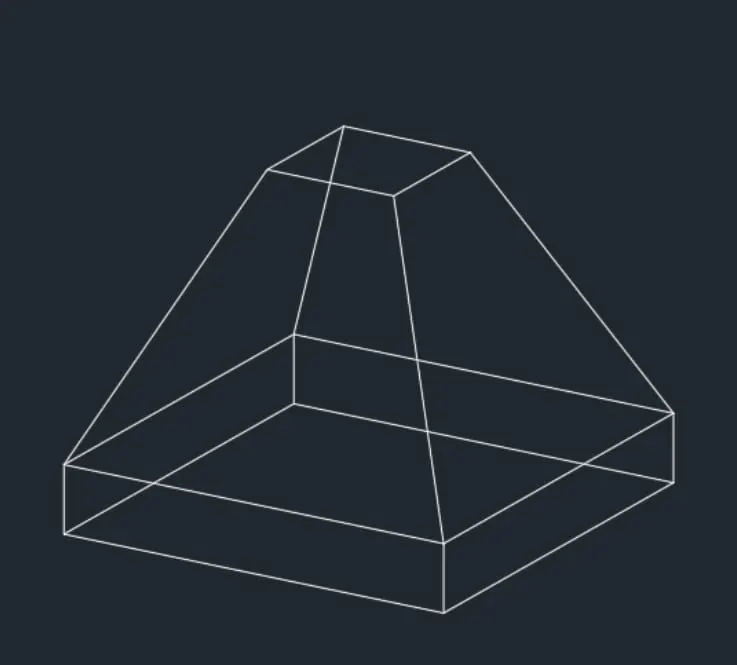

To create the 3d Model of an Isolated footing as shown in Figure

PROCEDURE:

• Open AutoCAD and click the workspace icon
• Enter Units and limits
• Line command is used to draw the 3D object

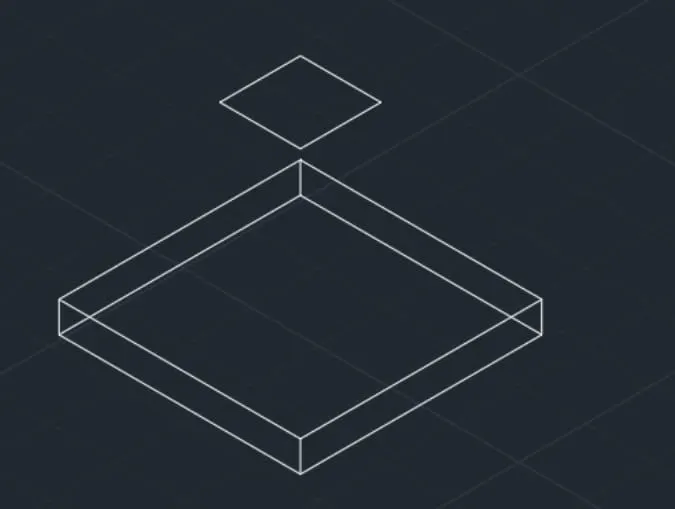

• Draw a rectangle (1',1') in the 3D view
• Give offset of 1' to the rectangle on the outside of the rectangle
• Extrude the bigger rectangle to the height of 6"
• Move the inner rectangle at the height of 2'6"
• Join all corners points
• Use the command 3D orbit to move the object in the degree manner and join all the corner points

RESULT:

The 3D model of isolated footing is created.

ANS 3:

AIM:

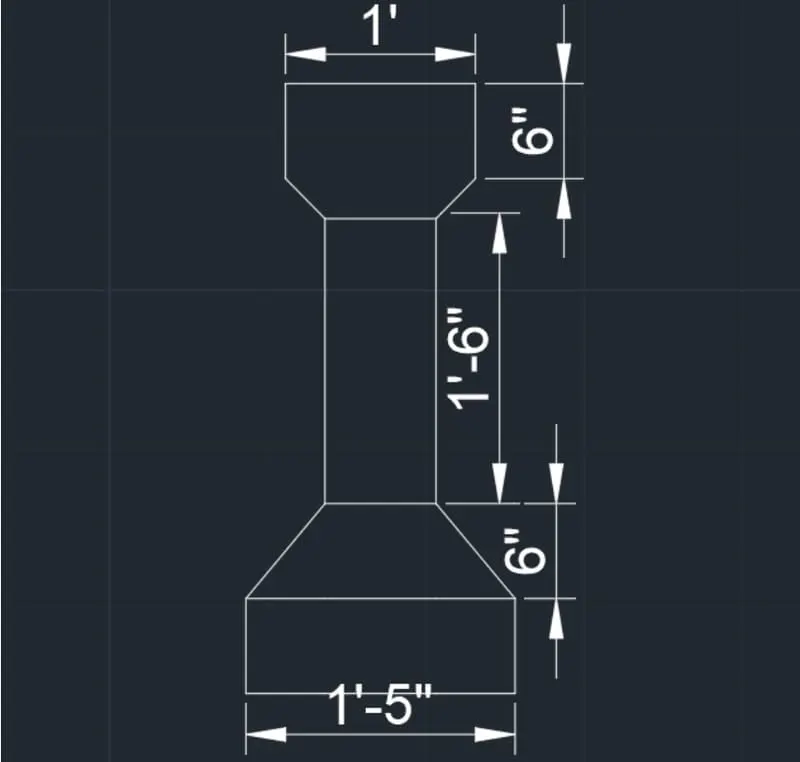

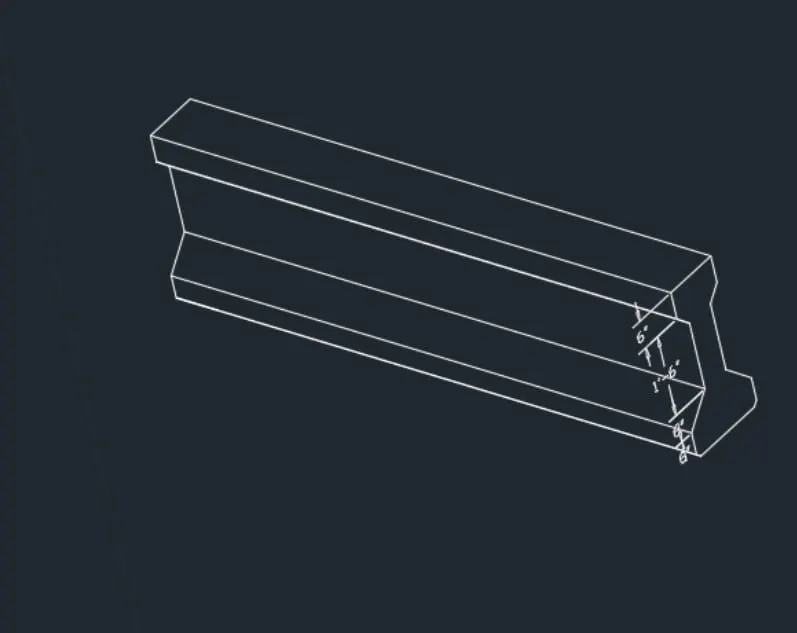

To create the 3D view of the AASTHO Type Girder.

PROCEDURE"

• Open AutoCAD and click the workspace icon
• Enter Units and limits
• Line command is used to draw the 3D object
• Create the front view of the plan
• Then turn to the 3D view and Extrude them
• Use 3D orbit command and move the object as desired.

RESULT:

The 3D view of the AASTHO Type Girder is created.

ANS 4:

AIM:

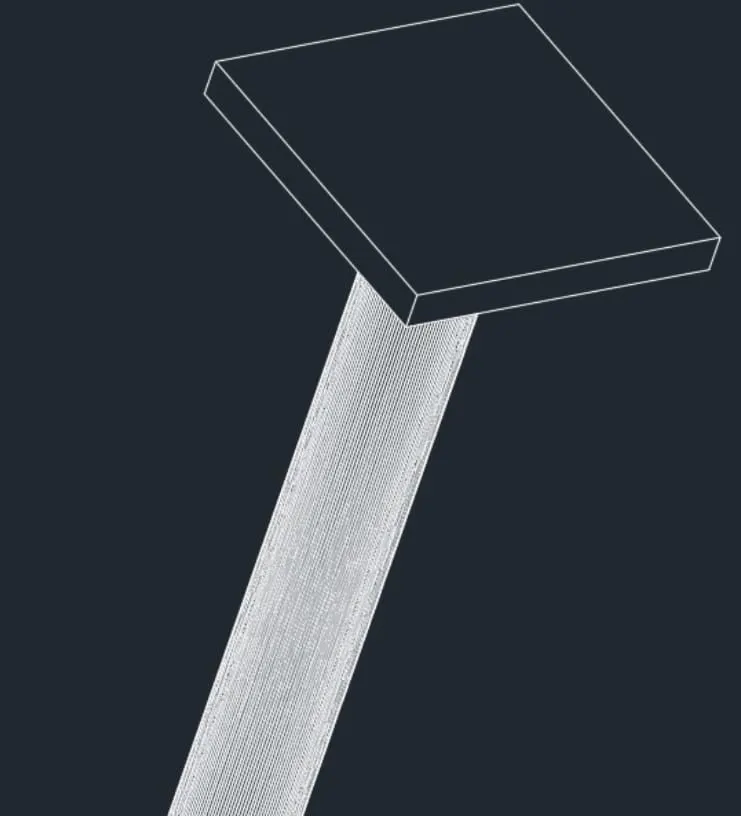

To create 3d Model of a drop column with the panel as shown in section and isometric view.

PROCEDURE:

• Open AutoCAD and set units

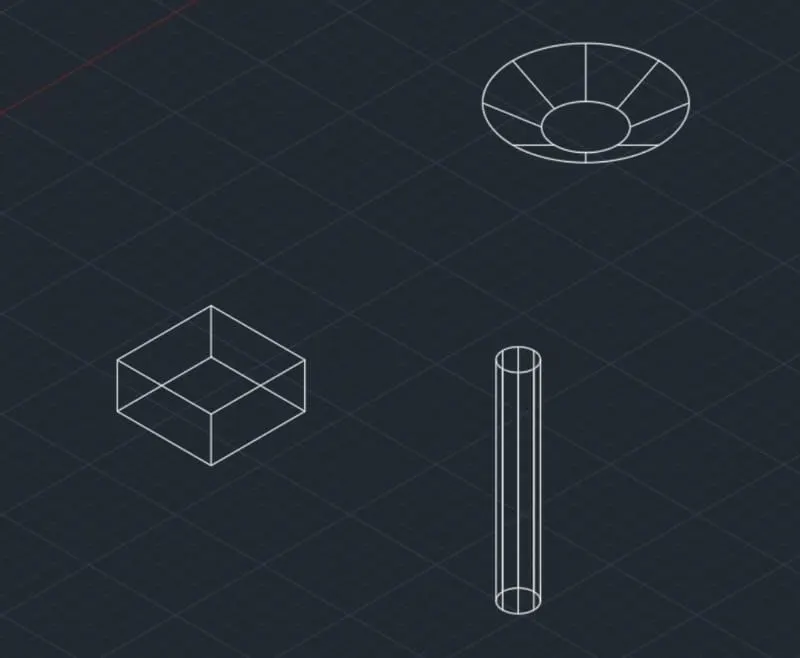

• In 3D mode draw a circle of radius 1'6"
• Extrude the circle up to 10'
• Draw cone of 3'6" and bottom side of 1'6" with a height of 1'
• Draw a rectangle of 4'6" and extrude with thickness of 6"
• Use 3D orbit command to align the figure
• Use dim linear command to give dimension.

RESULT:

The given 3d Model of a drop column with the panel as shown in section and the isometric view is created.

ANS 5:

AIM:

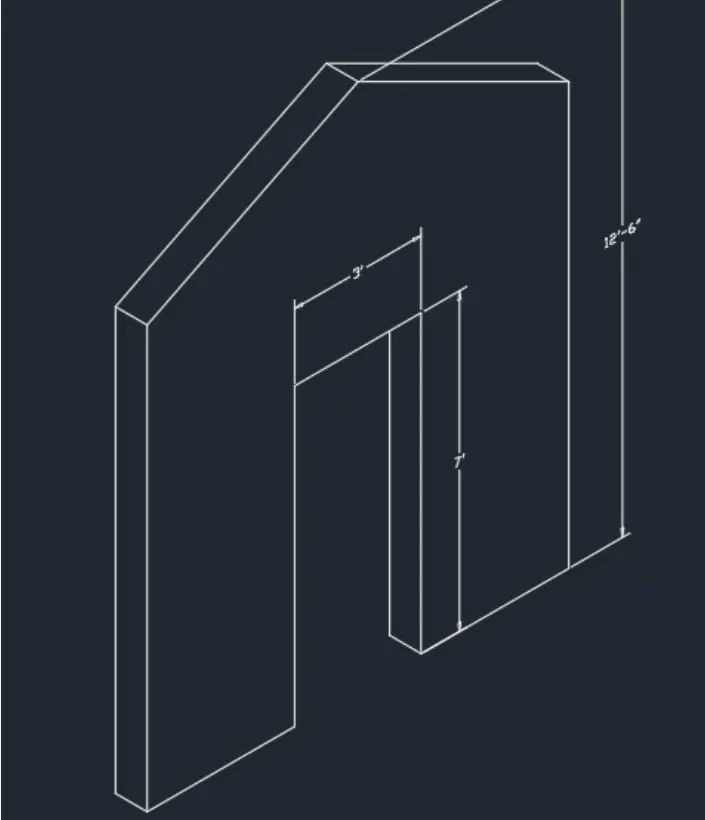

To create the 3d model of a wall as shown in Figure

PROCEDURE:

• Open AutoCAD and click the workspace icon
• Enter Units and limits
• Line command is used to draw the 3D object
• Draw a line of 10' in the X direction
• Specify the center of line 1'
• Draw a line of 1'5" in both directions with a height of 7' to draw the door of the wall
• The thickness of the wall is considered as 9"
• Draw the top of the wall on the distance of 12'6" from the bottom. offset 9" to draw the roof of the wall
• Use dim linear command to give the dimension
• Move UCS using the command 3 points from the ribbon and give dimensions.

RESULT:

The 3d model of a wall is created as shown in Figure.
