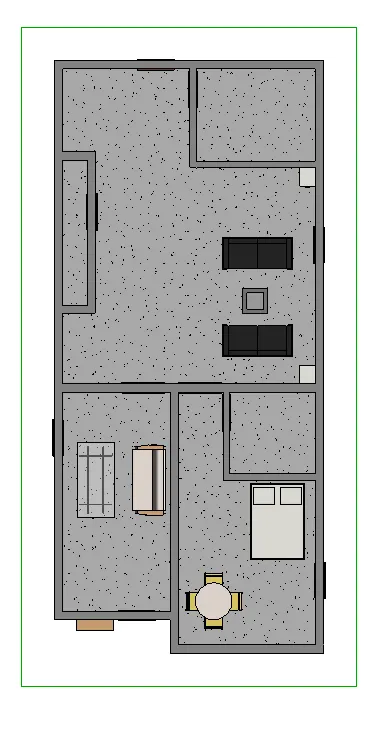

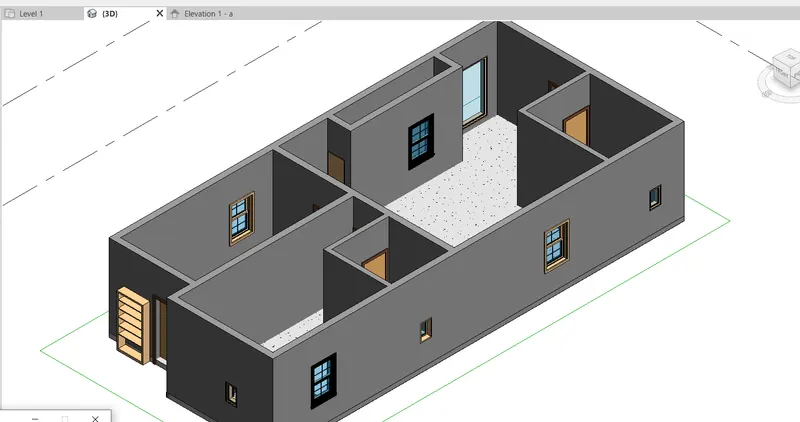

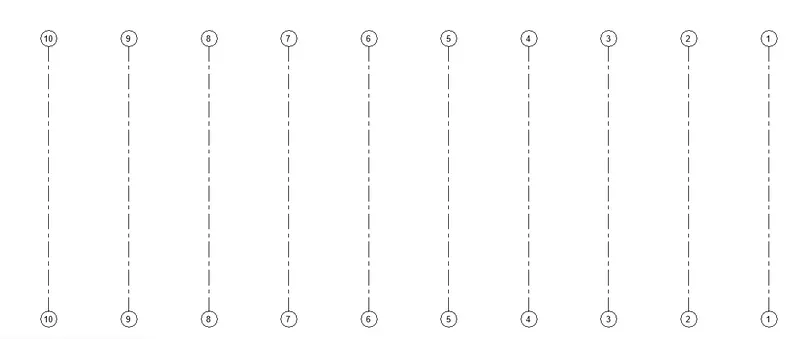

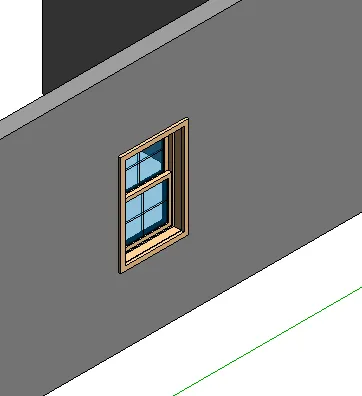

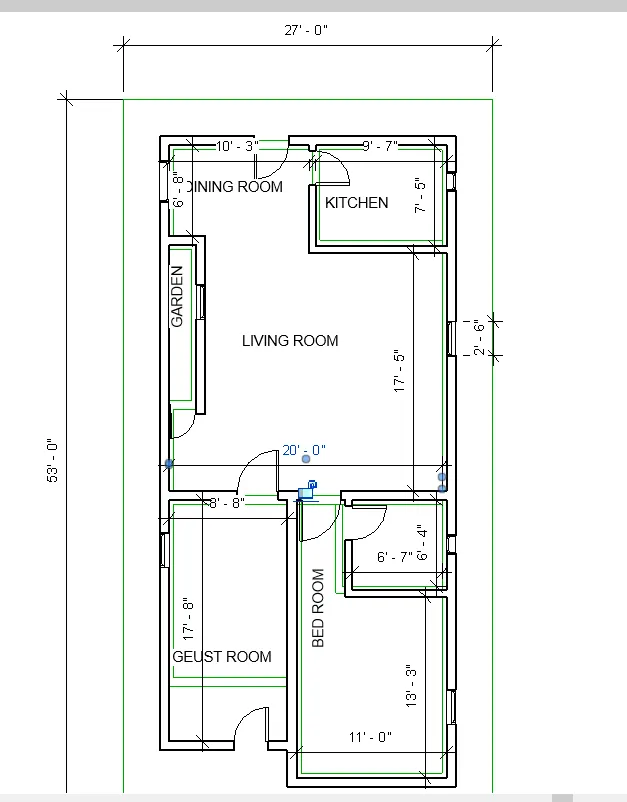

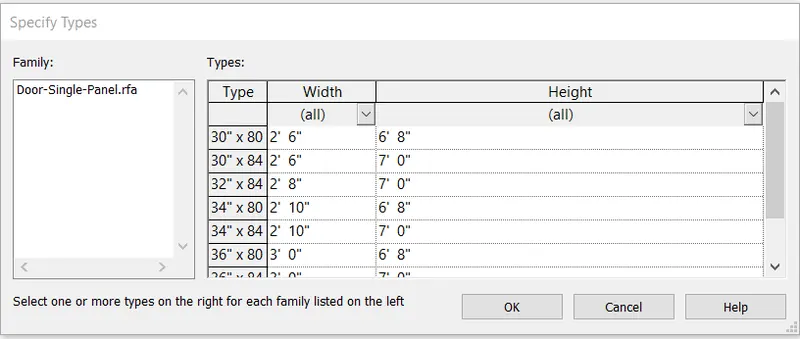

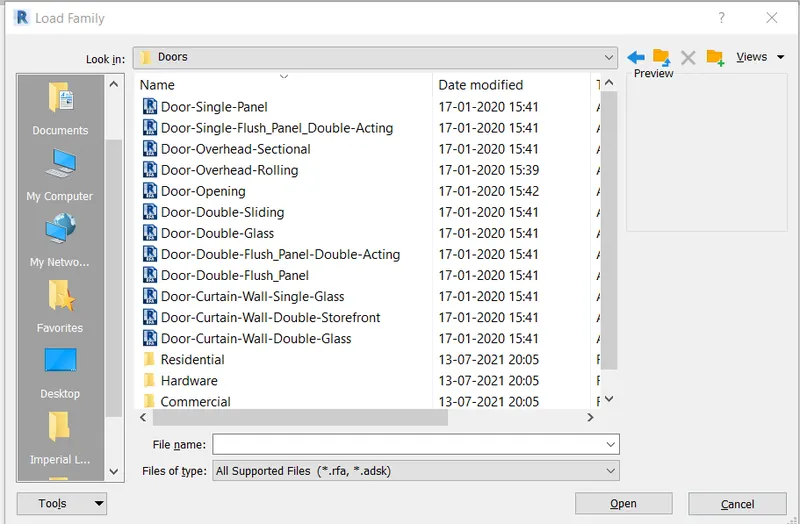

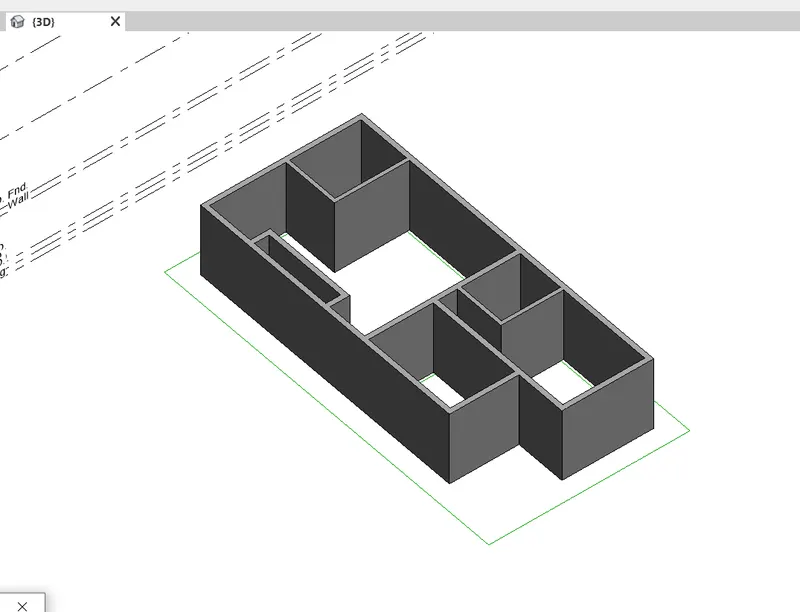

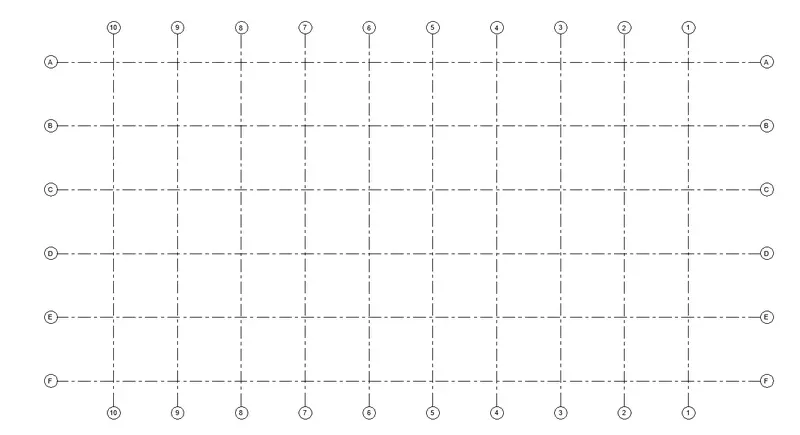

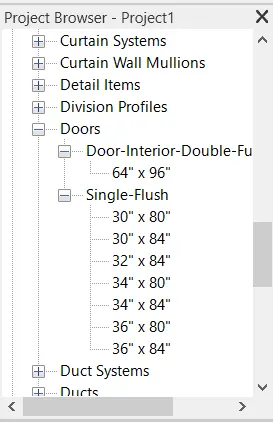

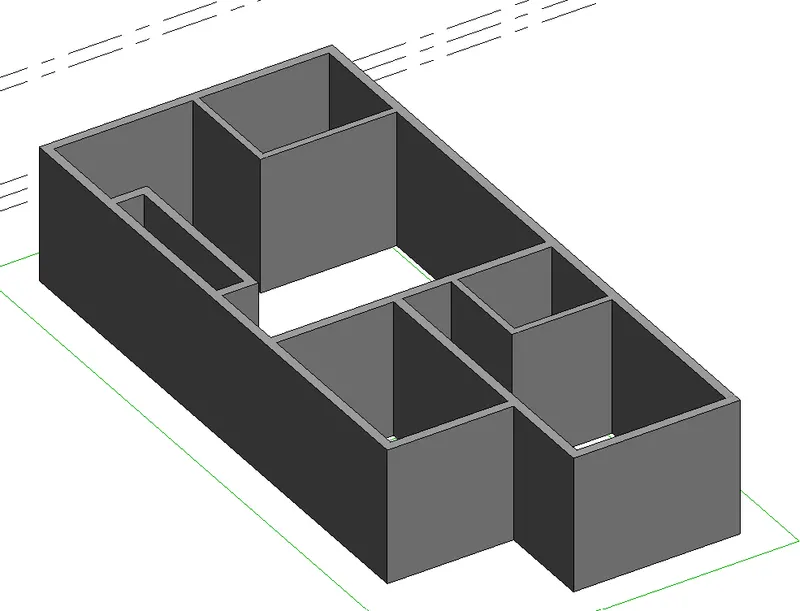

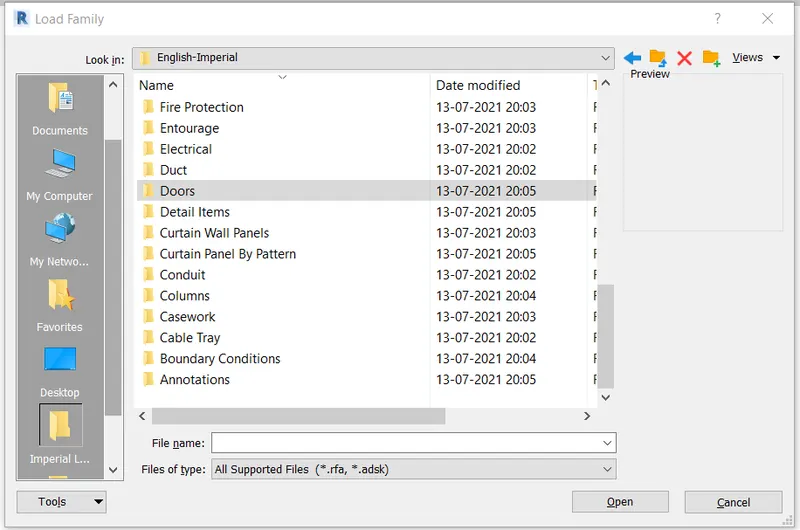

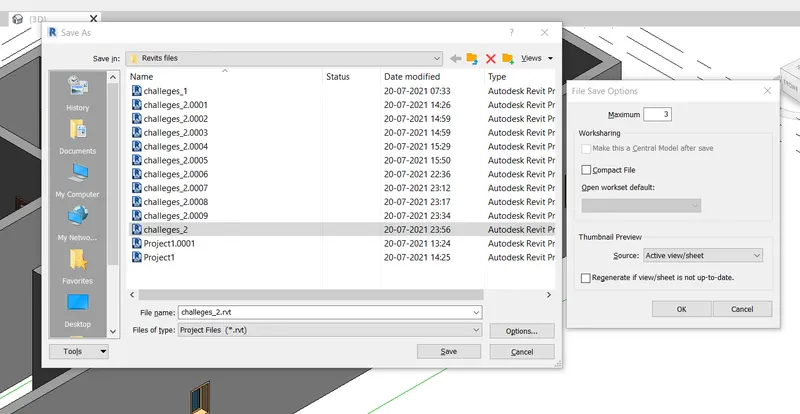

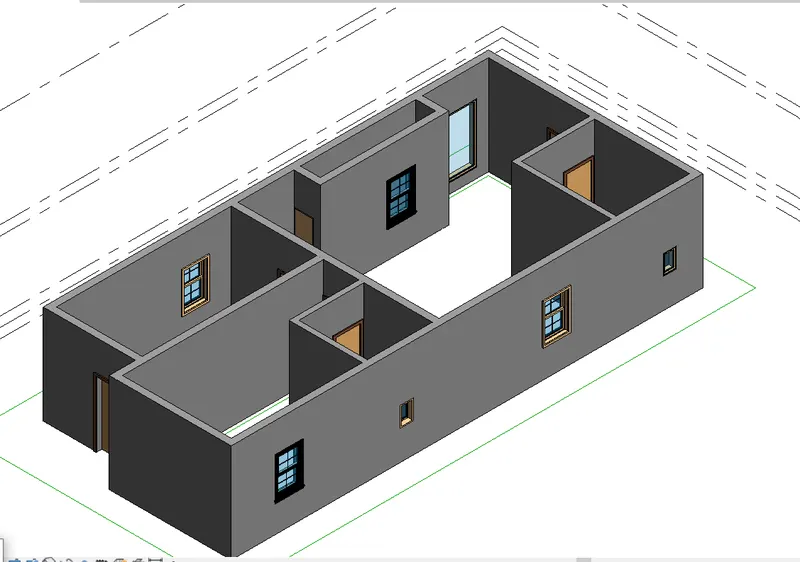

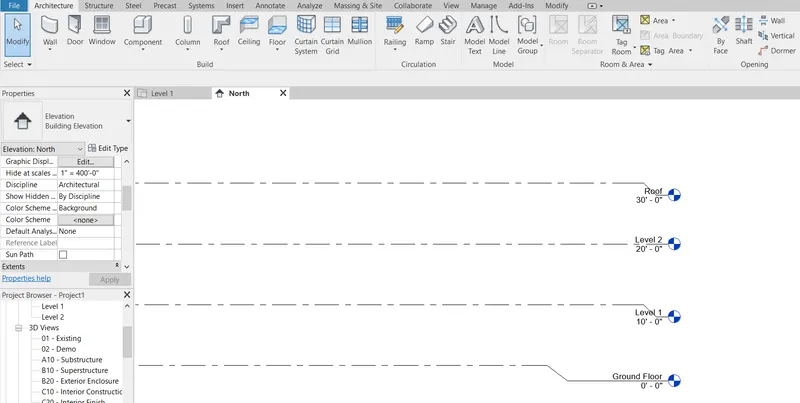

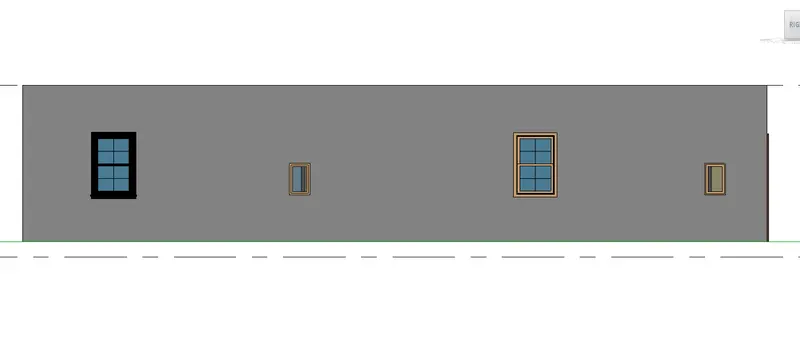

Creating Levels, Grids, Layout and model elements for a residential unit using REVIT

13/10/2021   Answer   Calculation of Stiffness in Structural elements

22/09/21   Answer   Aim We are investigating the beam, column joint, and the function of the beam and column. After investigating the beam, column joint, and surface. We need to see the binding ability of the concrete and steel. how the steel and concrete are subjected to expansion and contraction in…

08/09/21   Answer   1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class   Open open the Architecture/ Structure Project file developed by you in Week…

07/09/21   Answer   1) Using Dynamo creates a set of sinusoidal points and create a curve and create a surface out of the curve.   create the architectural template and go to the Manage tab and click the dynamo option and proceed with the following steps   creates a set of sinusoidal points to create…

25/08/2021   Answer   1) Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below a. Using a 3D model create a section box                                       -BXb.…

21/07/21   Answer   1) What are HVAC systems? Why are they essential in the modeling of buildings   What Is An HVAC System? First and foremost, HVAC stands for heating, ventilation, and air conditioning. This system provides heating and cooling to residential and commercial buildings. You can find HVAC systems…

13/07/21   Answer       1) Select the type of structure you want to build from one of the three below:        a. Multi-Unit Residential Apartment        b. Office Buildings        c. School   B. Office Building, as per the choice.  …

03/08/21   ANSWER     1) Open an architectural template. Using the Manage tab set project base point and project shared coordinates for the project   Step-1  Open the architectural template Step-2 make the visibility/graphic dialog box open Step-3 use the site check box open Step-4 check the base…

29/07/21   Answer   1) Why are building codes or standards essential for the modeling/ efficiency of drawings in Revit? In any Part/Section of this Code, where reference is made to ‘good practice’ in relation to design, constructional procedures or other related information, and wherereference is made to ‘accepted…

26/07/21   ANSWER      1) Based on the project saved from Week 3, proceed from the First Floor Level.   Model a Ceiling from the architecture tab above the walls at the first-floor level.       Step-1  uses the Revit software to make the ceiling option from the architecture.…

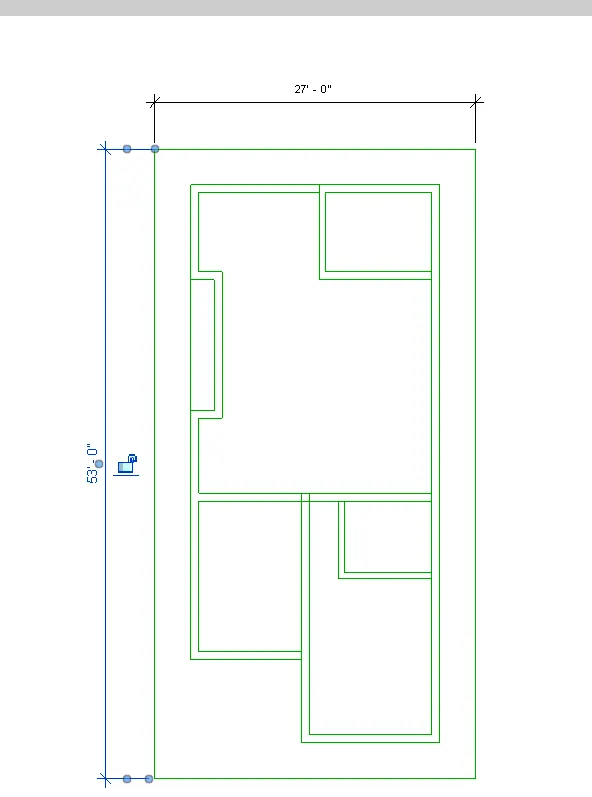

25/07/21   ANSWERS   1) Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using the floor tool under the architecture tab and select the floor with appropriate material and thickness using the property browser to create a layout in the Ground floor level.…

19/07/21   Answers   1) What is BIM? Summarize the features of BIM and the benefits of using BIM over 2D CAD tools.   BIM BIM stands for building information modeling or building information management it helps to in all categories people such as architects, structural engineers, HVAC engineers, Electrical…

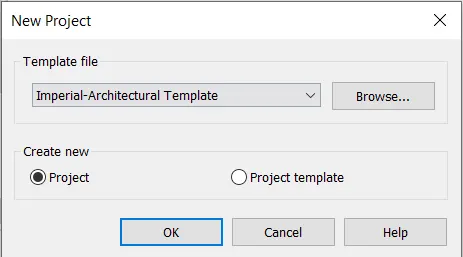

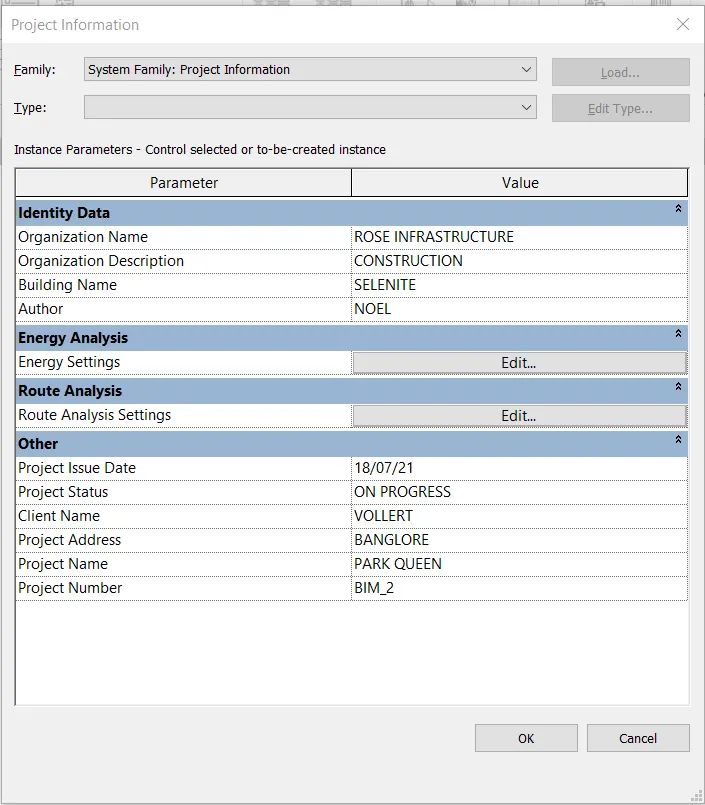

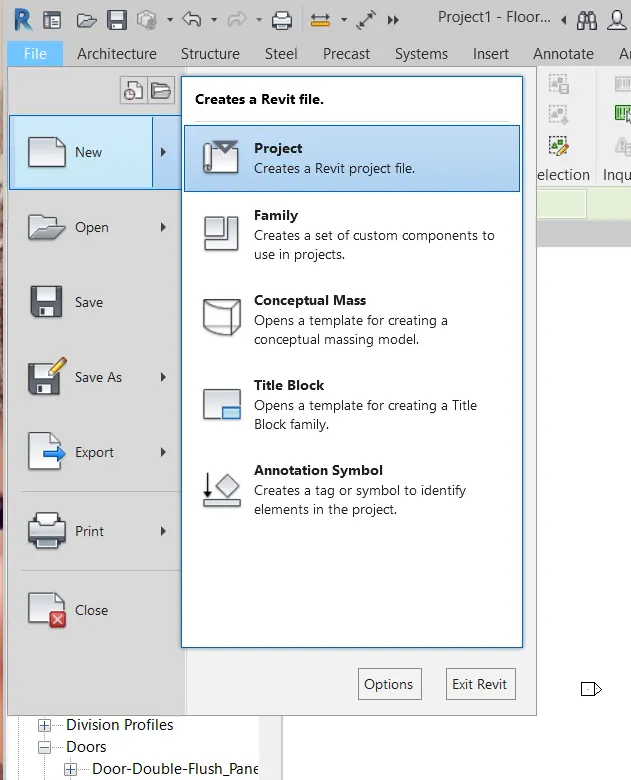

16/07/21   Answer   Aim To create the new project and provided the name using the Revit Introduction We can use the Revit, In all kinds of the following Architecture Structural Electrical MEP HVAC these are the accept we can use the Revit software. And also we can use for the Analysis and estimation purpose.…

Your Answers 12/07/21   Answer   Create a 3 dimensional model of the residential building with a rendered view.     Aim Create a 3 dimensional model of the residential building with a rendered view using Autocad.   Procedure   STEP-1 opening to the AutoCAD software and entering the workspace.…

07/07/21   Answer   1. Create a 3D Isometric View of the building with plan and elevation given.   Aim   Create a 3D Isometric View of the building with plan and elevation using Autocad. Procedure   STEP-1 opening to the AutoCAD software and entering the workspace. STEP-2 Setting limits >specify…

04/07/21   Answer   1. Create a 3D Furniture element as shown in the Figure. Assume dimensions that are missing.   Aim Create a 3D Furniture element of the project.   Procedure   STEP-1 opening to the AutoCAD software and entering the workspace. STEP-2 Setting limits >specify…

02/06/2021   Answer   1.Create a layout of the Plan and Section A of the project.   Aim Create a layout of the Plan and Section A of the project.   Procedure   STEP-1 opening to the AutoCAD software and entering the workspace. STEP-2 Setting limits >specify lower-left corner:0,0…

1/07/21   Answer   1. Create the Kitchen Layout.     Aim To draw Create the layouts of the Kitchen and provide hatches pattern using AutoCAD.   Procedure STEP-1 opening to the AutoCAD software and entering the workspace. STEP-2 Setting limits >specify lower-left…

28/06/21   Answer   1. Create the templates as shown in the Figures. Take the size of the title block as per industry standards or you can assume it as per the size of the paper.   Custom1_titleblock  Custom2_titleblock STEP-1 opening to the AutoCAD software and entering the workspace. STEP-2 Setting limits >specify…

24/06/21   ANSWER   Draft a layout of a residential building a. Plot Size: 60’x20’(18.3m x6m)    STEP-1 we are creating the site plan of  3arces and multiple plots size.  STEP-2 the total area is divided and cropped into different sectional areas. STEP-3 we are having the parking,…

21/06/21   Answer   Aim To draw the Plan, section, elevation of the G+3 building using AutoCAD. Procedure STEP-1 opening to the AutoCAD software and entering the workspace. STEP-2 Setting limits >specify lower-left corner:0,0 STEP-3 specify upper-left corner:100,100 STEP-4 Set>units>Demical>intersectional…

16/06/21 Answer   Q1. Draw the elevation and details of a wardrobe. Aim To draw the elevation an details of a wardrobe using autocad. Procedure STEP-1 opening to the AutoCAD software and entering the workspace. STEP-2 Setting limits >specify lower-left corner:0,0 STEP-3 specify upper-left…

11/06/21 Answers 1. Create a column schedule as shown in the figure. Aim To Create a column schedule using AutoCAD Procedure Step-1 opening to the AutoCAD software and entering the workspace. Step-2 Setting limits >specify lower-left corner:0,0 Step-3 specify upper-left corner:100,100 Step-4 Set>units>Architectural>intersectional…

07/06/21   Answers   Challenge 1 STEP-1 opening to the AutoCAD software and entering the workspace. STEP-2 Setting limits >specify lower-left corner:0,0 STEP-3 specify upper-left corner:100,100 STEP-4 Set>units>Architectural>intersectional scale>inches STEP-5 Limmax>100,100…

02/06/21   Answers FIG-1 STEP-1 opening to the AutoCAD software and entering the workspace. STEP-2 Setting limits >specify lower-left corner:0,0 STEP-3 specify upper-left corner:100,100 STEP-4 Set>units>Decimal>intersectional scale>mm STEP-5 Limmax>100,100 STEP-6  take…

30/05/21   ANSWERS   C1- C.S. OF LOAD-BEARING WALL OVER SPREAD FOOTING STEP-1 opening to the AutoCAD software and entering the workspace. STEP-2 Setting limits >specify lower-left corner:0,0 STEP-3 specify upper-left corner:100,100 STEP-4 Set>units>Decimal>intersectional scale>mm…

25/05/21   Answers   Aim To create the following drawing in the Coordinate systems Absolute System Relative Rectangle Coordinate Relative Polar Coordinate Procedure P-1        Step-1:opening to the AutoCAD software and entering the workspace. Step-2:Setting limits >specify lower-left corner:0,0…

Aim: To calculate the load acting on the proposed structure Procedure: Dead Load: Self weight of Column = 0.3 x 0.3 x 4.5 x 25 = 10.125 kN Self weight of Beam = 0.3 x 0.45 x 25 = 3.45 kN/m Self weight of slab = 0.125 x 25 = 3.125 kN/m^2 Self weight of wall = 0.23 x 4.5 x 20 = 25.87 kN/m Live load: As per IS 875 part 2:…

Answers A)  M35 grade concrete Aim To Calculate the Concrete Mix Design for M35 grade concrete with fly ash Introduction The calculated mix proportions shall be checked by means of trial batches.Workability of the Mix shall be measured.The mix shall be carefully observed for freedom from segregation and bleeding…
