Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

1)

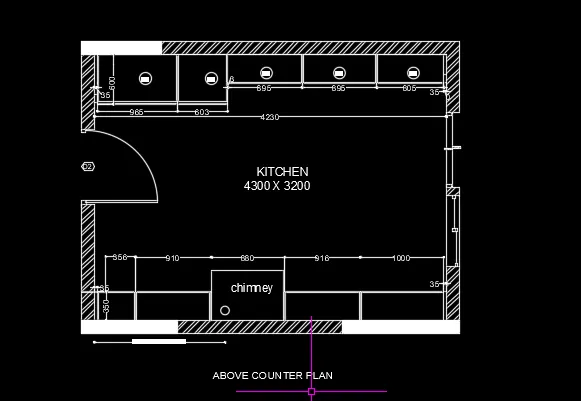

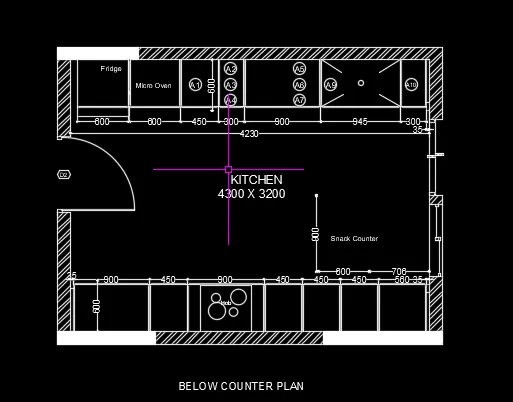

Aim:- To create given kitchen layout and laying the hatching for walls and all.

Procedure:-

1. By using line command i created the out and out rectangles and by using offset command i created all required sanitaryware and all.

2. I created door and gave dimensions and text as per given sizes.

3. I used commands like line offset trim extend and erase etc...

4.Then by using hatching option i created the given kitchen layout.

Result:-

By using Auto CAD software i created the given excercise.

2)

Aim:-

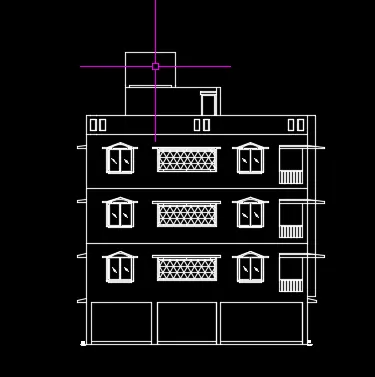

To create the Given elevation from the reference of challenge 7

Procedure:-

1. BY using XL command i created the basic section as given.

2. By using the reference plan i created the section and mentioning all kind of windows and doors/

3. I created additional cutoffs too.

4. I used commands like line offset trim extend and erase etc...

5.I created text where as needed.

6.FInally i had given the hatching to the created Elevation.

Result:-

By using Auto CAD software i created the given excercise.

3)

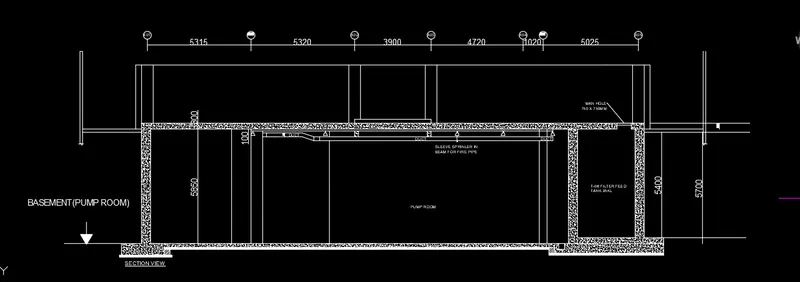

Aim:- To create given industrial building section and laying the hatching for walls and all.

Procedure:-

1. By using line command i created the out and out rectangles and by using offset command i created all required tanks and all.

2. I created duct and gave dimensions and text as per given sizes.

3. I used commands like line offset trim extend and erase etc...

4.Then by using hatching option i created the given industrial building.

Result:-

By using Auto CAD software i created the given excercise.
