Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

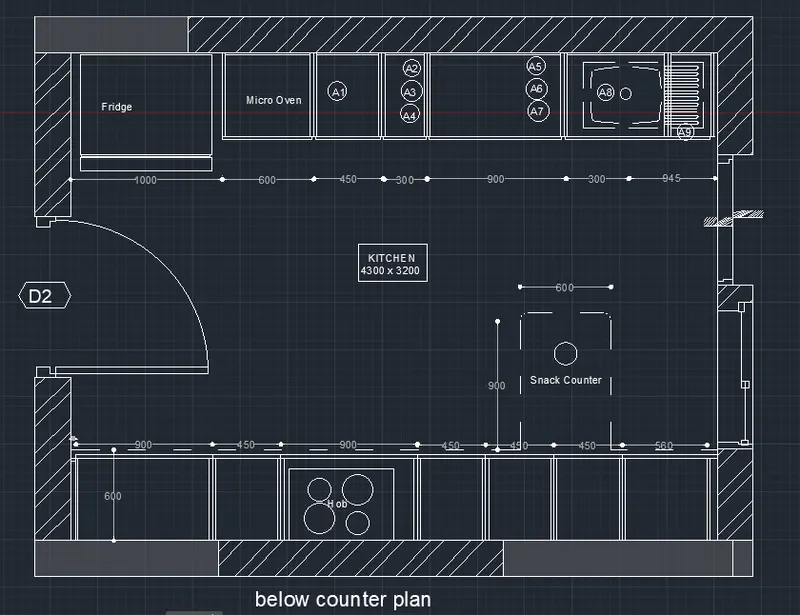

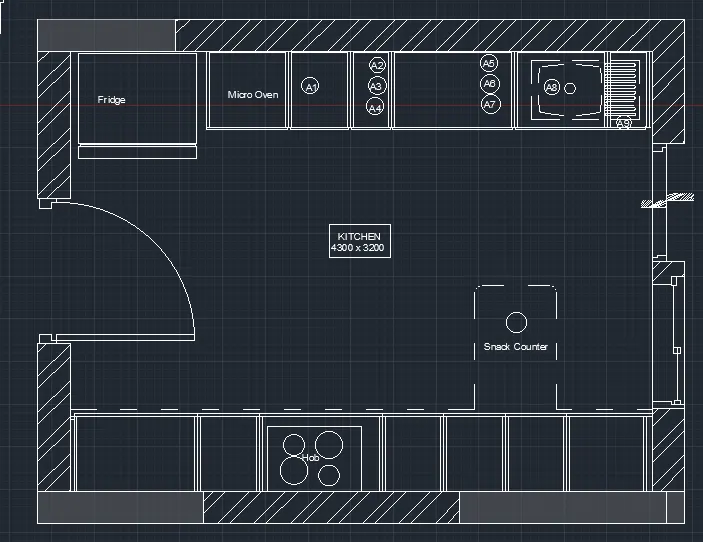

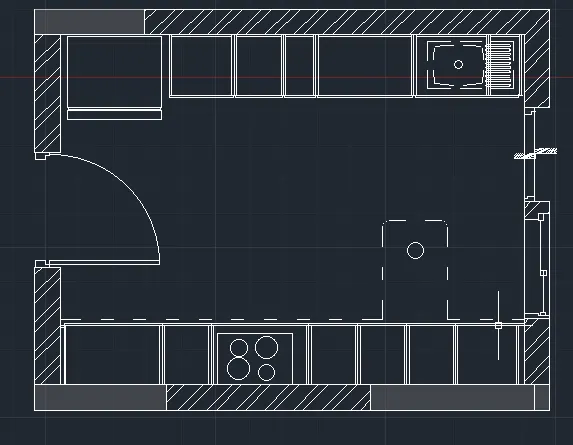

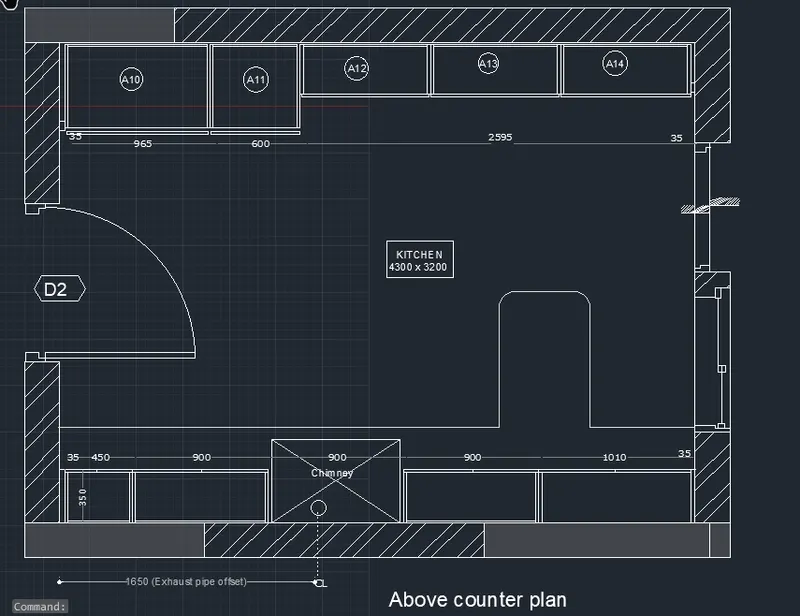

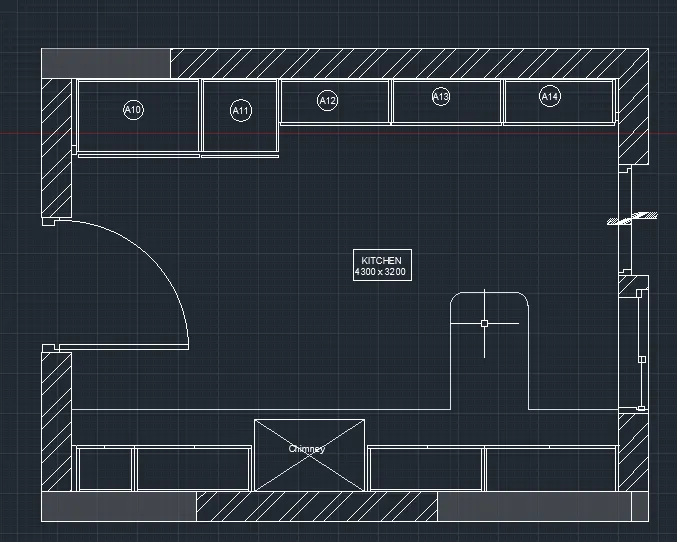

1. Kitchen layout
AIM :-
Create the layouts of the Kitchen and provide hatches pattern as shown. Also, use blocks wherever required. Provide appropriate dimensions in the plan. Assume the size of doors, appliances and others as per the standards.
Procedure =

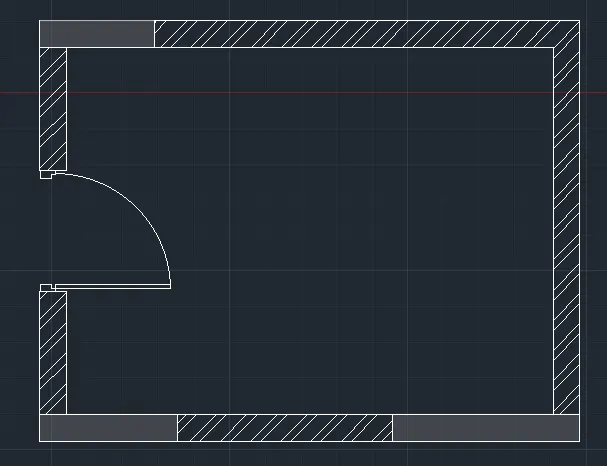

In the command prompt type rec and the dimensions are 4734 x 3688 mm
In the command prompt type offset and offset it to the distance of 230mm
Using arc and lines the door is drawn
In the command prompt type hatch to hatch the model
In the command prompt type rec > dimensions , to do the fridge
In the command prompt type offset and offset it to the desired distace to get the Micro Oven
In the command prompt type trim to trim the extras
In the command prompt type offset and offset it to the horizontal distance of 350,450,900,450,450 and 560
In the command prompt type offset and offset it to the vertical distance of 600
In the command prompt type trim to trim the extras
In the command prompt type line type and load the dotted lines
In the command prompt type text to text the given annotations
In the command prompt type dimensions to given the dimensions to your plan
In the command prompt even the leader command is used to name the dimensions
Output =

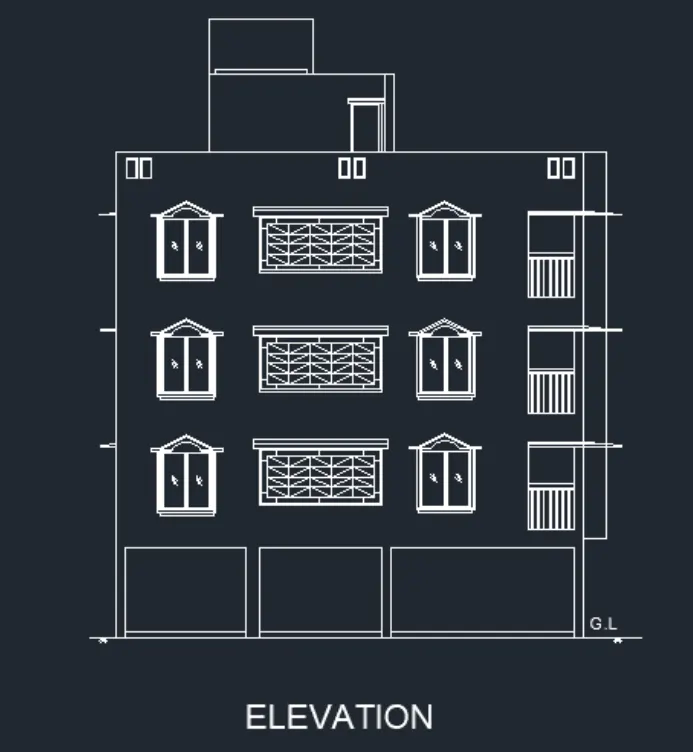

2.Architectural layout
AIM :-
Create the elevation of the plan created in the Challenges 7 and apply proper hatch in the walls, doors, windows, and other architectural elements. Refer to the dimensions in Plans and sections in Challenges 7.
Procedure =
- In the command prompt type l to draw the lines
- In the command prompt type rec to draw the rectangle
- In the command prompt type arc to draw the arc
- In the command prompt type l to draw the lines
- In the command prompt type rec to draw the rectangle
- In the command prompt type l to draw the lines
- In the command prompt type rec to draw the rectangle
- In the command prompt type rec to draw the rectangles
- In the command prompt type rec to draw the rectangles
Output =

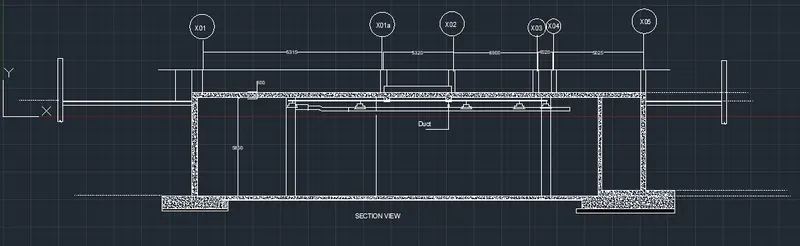

3.Industrial building
AIM :-
Create the section view of an industrial building as shown in Figure. Provide appropriate hatches and dimensions wherever required. Also, provide annotations to the drawing.
Procedure =
- First we have to draw the X-line at anoy point on the screen.
- Next offset the line to top to a distance of 5850mm and we have to do offset of last offset line to the distance of 300mm to the top.
- Next we have to draw the vertical X-line on any point on the horizontal line.
- Next do offset of line to right to a distance of 10635mm
- Next offset the last line with a distance of 3900mm to the right.
- Next offset the lst line with the distance of 5740mm to the right side.
- Next we do the offset for last line with the distance of 5025 to the right side.
- Offset the left and right edges with the distance of 500mm.
- Next we have to trim the outer edges using the trim command.
- Next offset the bottom edge of the top floor to a distance of 30mm.
- Next offset the last line with a distance of 70mm to the bottom.
- Next offset the last line with the distance of 100mm to the bottom.
- Next we draw the splinkler pipe along with the duct pipe.
- The duct pipe thickness is 300mm and the thickness of splinkler pipe is 100mm.
- Next we draw the manhole cover with the thickness of 750mm at the right top edge of filter feed walls as shown in the figure.
- Next we draw the thickness of pump room slab with the different layers using the line command.
- Next we need to draw the circle with radious of 500mm, and enter the text in the circle as given in the figure.
- Next we need to use the single text command to enter the text where ever required in the section view of industrial drawing.
- Finally we use the hatch command to hatch the walls and floor slabs as drawn in the below figure.
- Finally we have use the dimlinear command to put the dimensions whereever required in the drawing.
Output =
