Challenge

Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad by Nithish S. S

To create the layout of the kitchen and providing hatches to it using the autocad in detail.


Commands used:


Offset command
Hatch command
Dimlinear command
Units command
Fillet command
Trim command
Join command
Object snap command


Procedure:

Step:-1

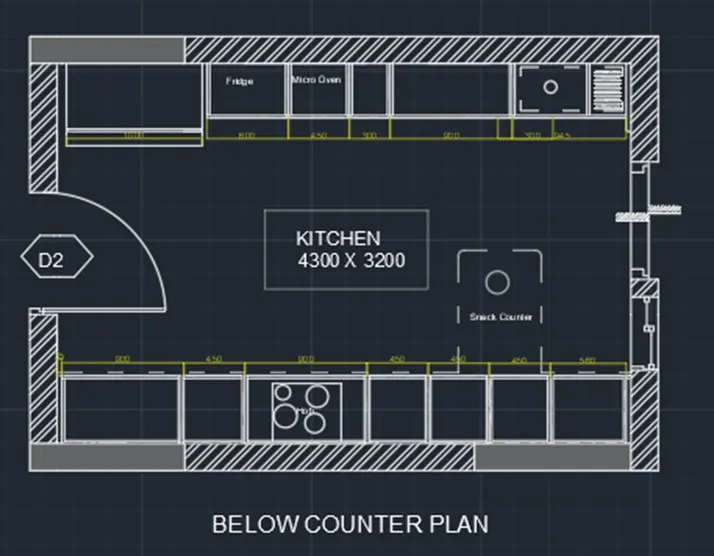

  • Below counter plan:Draw the line horizontally of length 4300mm.
  • Draw another line from the previous line of length 3200mm vertically .
  • Join the first line and the last line and complete the rectangle
  • Offset the four sides with 20mm outside.
  • Draw the fridge with other dimensions in the kitchen layout.
  • Divide the seven parts downside with different dimensions .
  • Next leave the space left and right corners with the length of 35mm at the top and bottom.
  • Next we have use the single text command to mark the parts
  • Next draw the snack counter with the length of 600mm and width of 900mm.
  • Create windows using line command

Step:-2

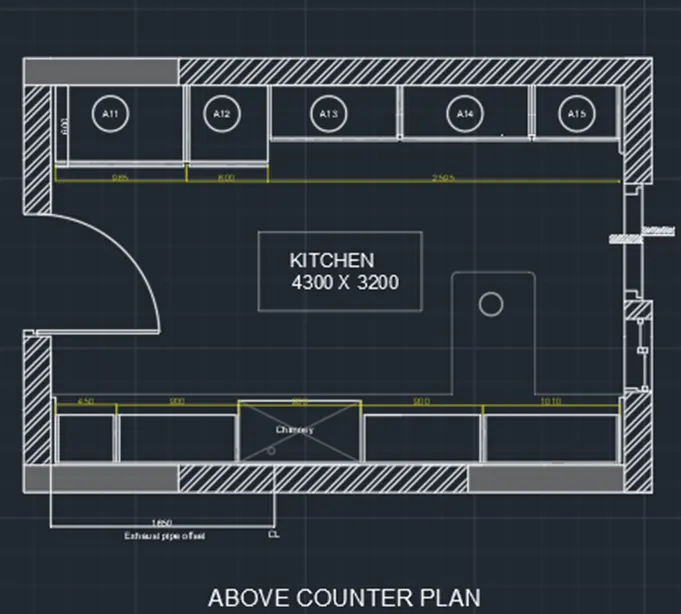

Above counter plan:

  • Copy theabove counter plan and paste in below
  • Delete the interiors of the plan
  • Offset the line with the length of 350mm, and again we do offset of 600mm .
  • And leave the space for both side corners with the length of 35mm.
  • Offset of 350mm at the bottom portion of the kitchen.
  • Divide the bottom portion into five parts
  • Use different hatch styles to hatch the walls in the kitchen layout.
  • Draw the doors using the line command, circle command and trim command.
  • Draw the windows using the line command and trim command.
  • Use Dimlinear command to put the dimensions where ever they are required.
  • Next use the single text command to indicate the kitchen parts in the kitchen layout
  • Draw the snack counter with the length of 600mm and width of 900mm.


RESULT:

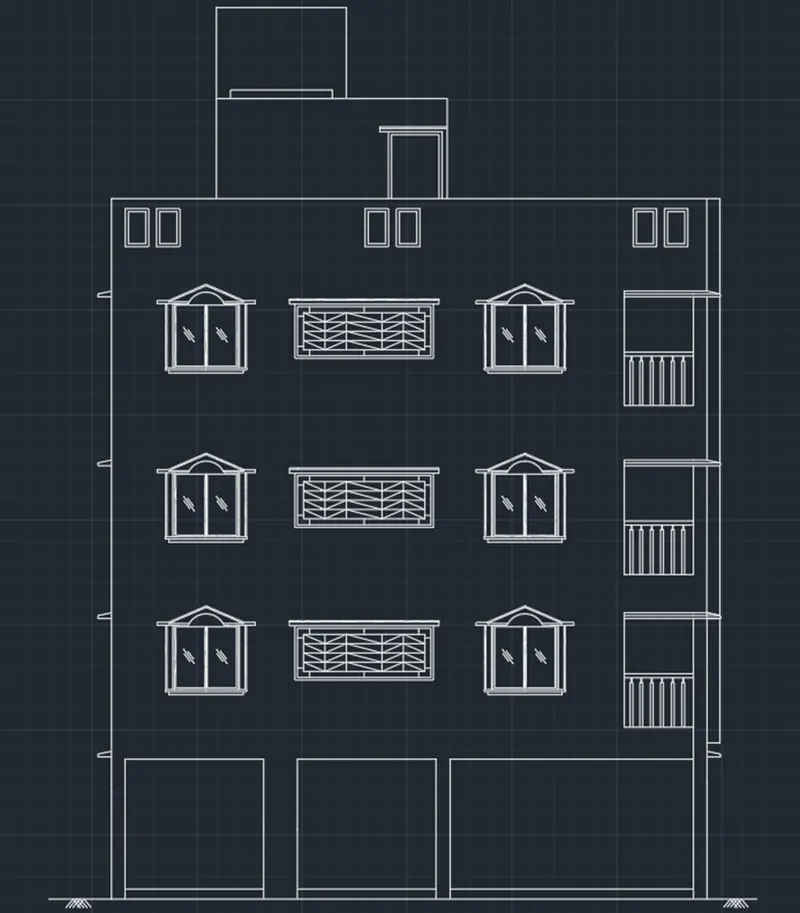

2. To Create the elevation of the plan created in the Challenges 7. And need to apply proper hatchs in the walls, doors, windows, and other architectural elements.


COMMANDS USED:


Offset command
Dimlinear command
Fillet command
Trim command
Join command
Zoom command

PROCEDURE:

Step 1 :

  • Draw the horizontal line using the line command with the length
  • Draw the another line from the previous line vertically
  • Draw the line horizontally backwards from previous line at the top.
  • Draw the line downwards vertically.
  • Draw the rectangle at the top of the building.
  • Draw the another rectangle on the previous rectangle with the lengths given in the given drawing.
  • Draw the three rectangles at the bottom of the rectangle with the different dimensions.

Step:-2

  • Draw the sunshades provided in the drawing using rectangle , mirror and arcs.

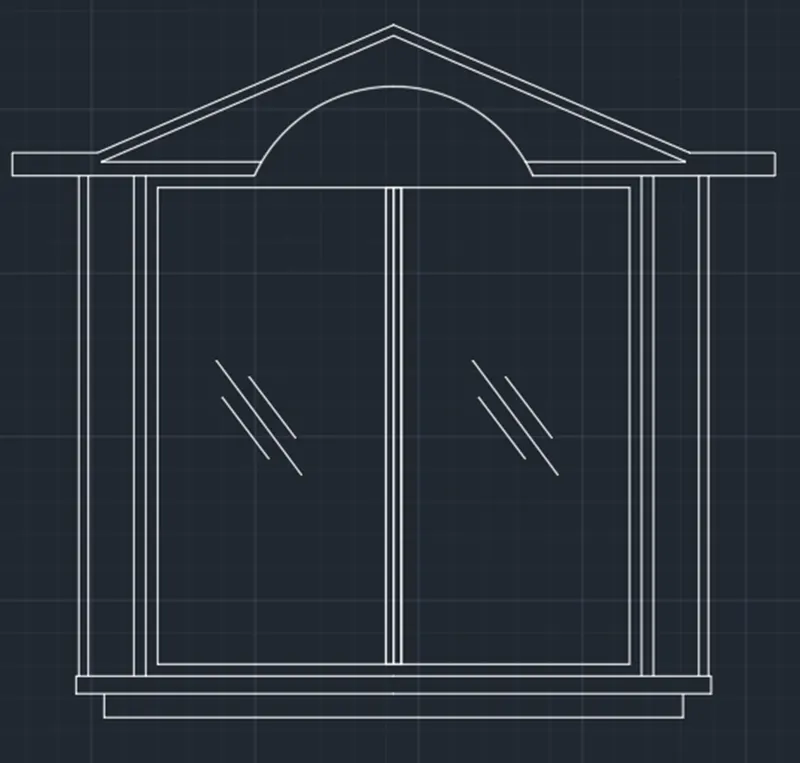

  • Draw the windows with the help of line command and arc command.

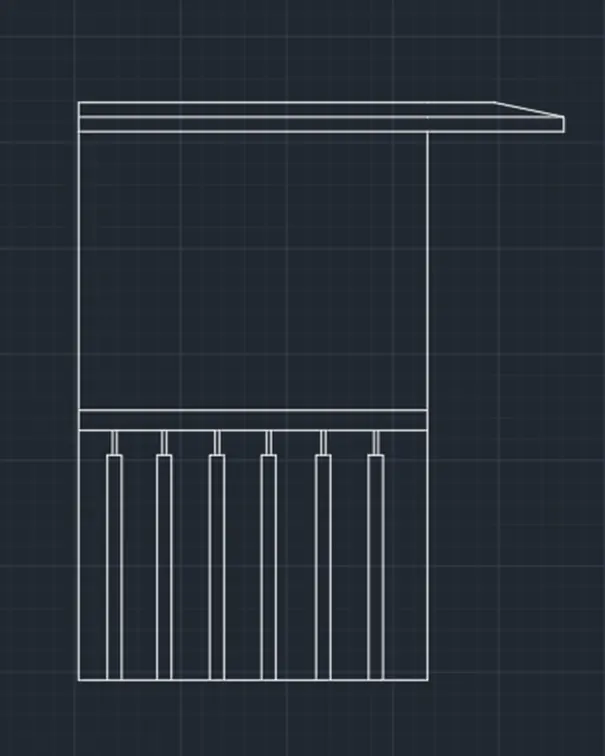

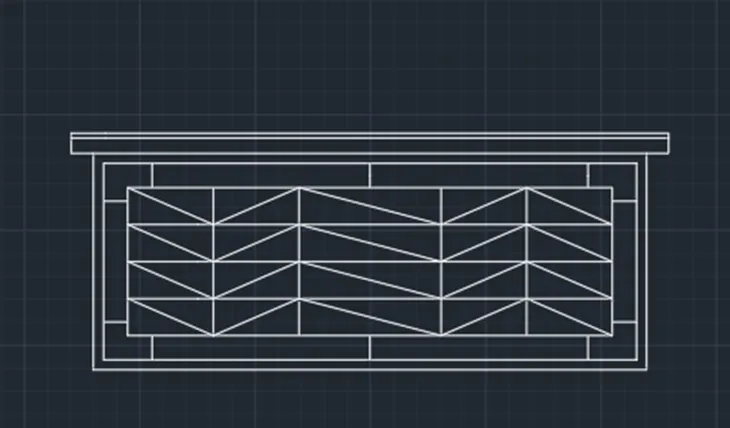

  • Next draw the balcony part using the line , offset and trim.

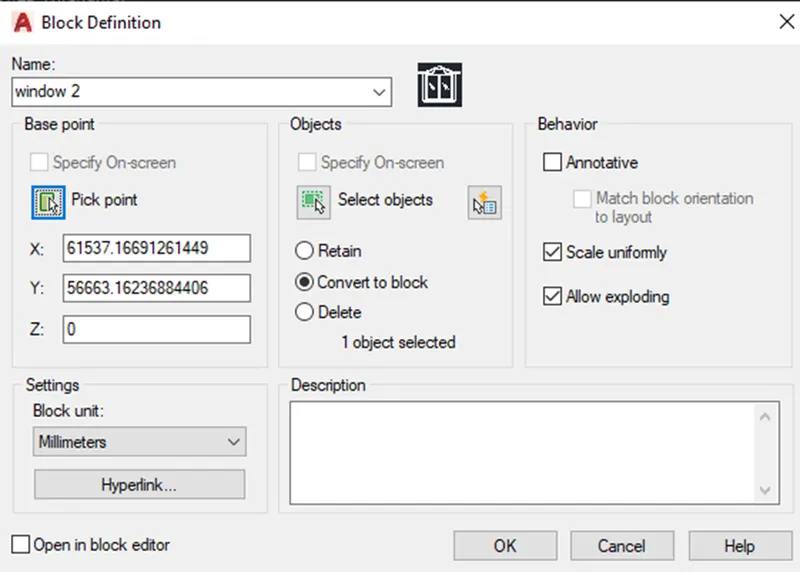

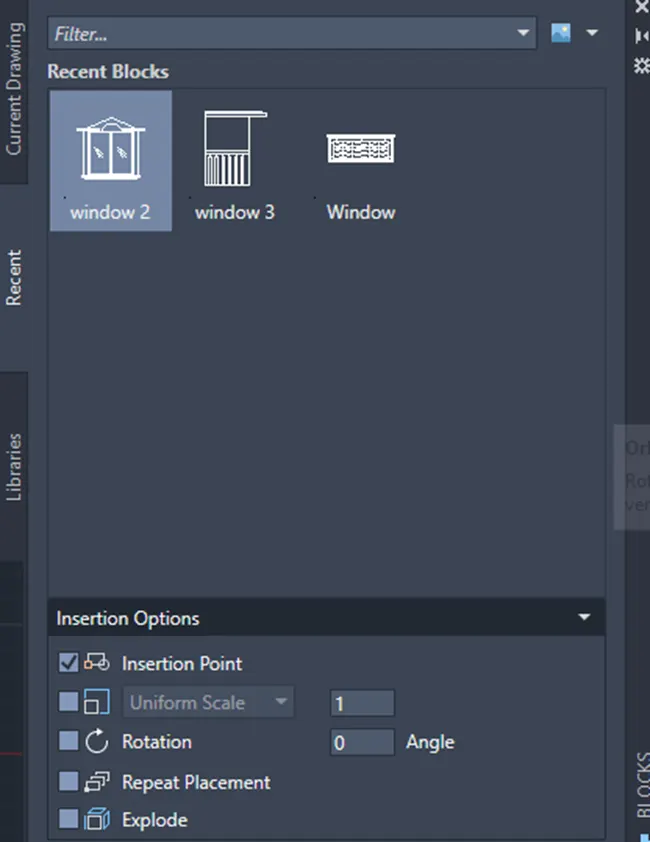

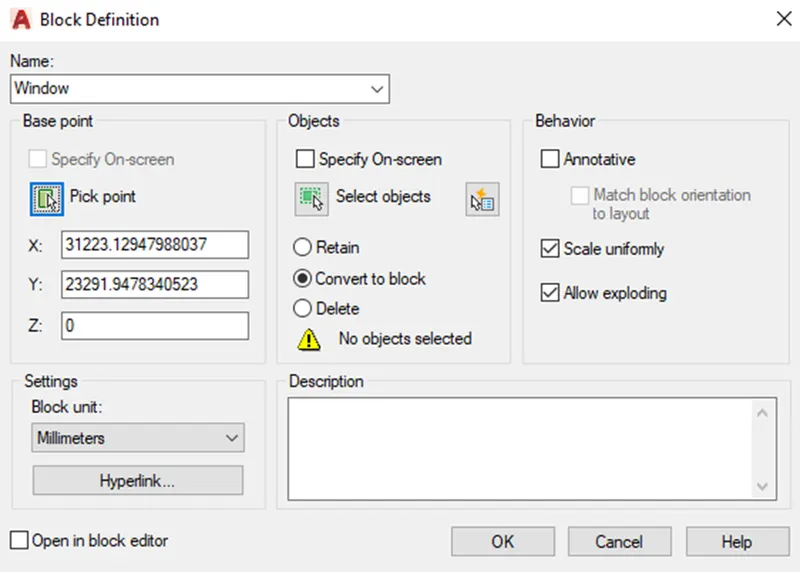

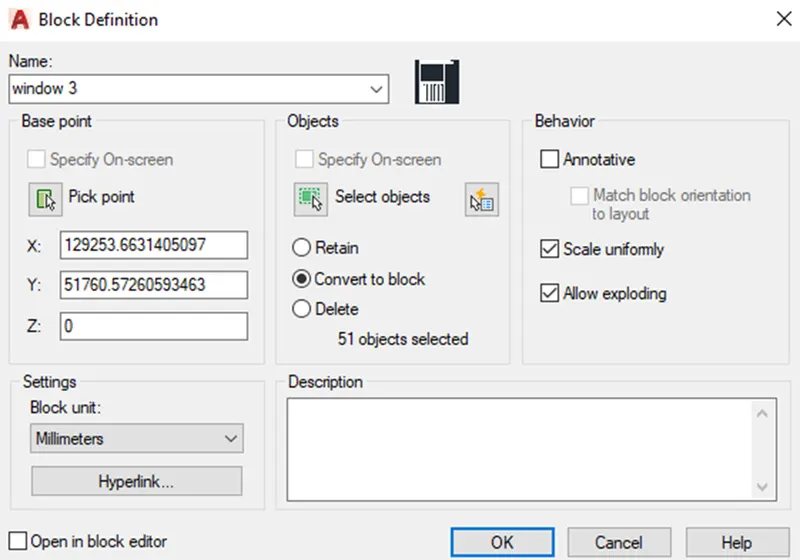

  • Use block command to add these elements as blocks.
  • Use it on all three rows and columns as per the elevation.


Step:-3

Use the hatch command to hatch the walls, doors, windows and other architectural elements

RESULT:

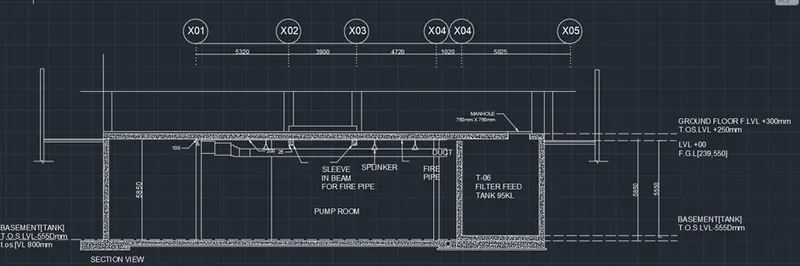

3)To create the section view of an industrial building.

COMMANDS USED:


Line command
Offset command
Hatch command
Dimlinear command
Extend command
Fillet command
Trim command
Join command
Object snap command
Rectangle command
Zoom command


PROCEDURE:

Step 1 :

  • Draw a line to top to a distance of 5850mm and offset line to the distance of 300mm to the top.
  • Offset the last line with a distance of 3900mm to the right.
  • Offset the Ist line with the distance of 5740mm to the right side.
  • Offset for last line with the distance of 5025 to the right side.
  • Offset the left and right edges with the distance of 500mm.
  • Offset the bottom edge of the top floor to a distance of 30mm.
  • Offset the last line with a distance of 70mm to the bottom.
  • Offset the last line with the distance of 100mm to the bottom.

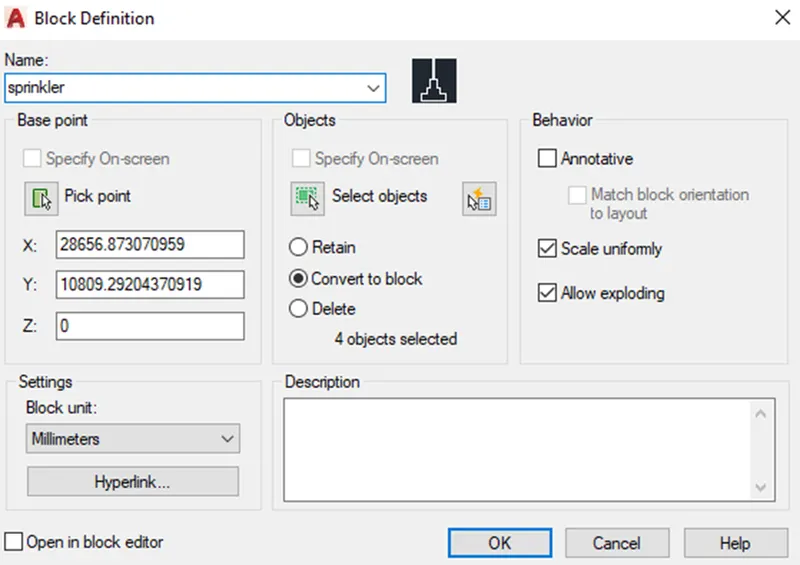

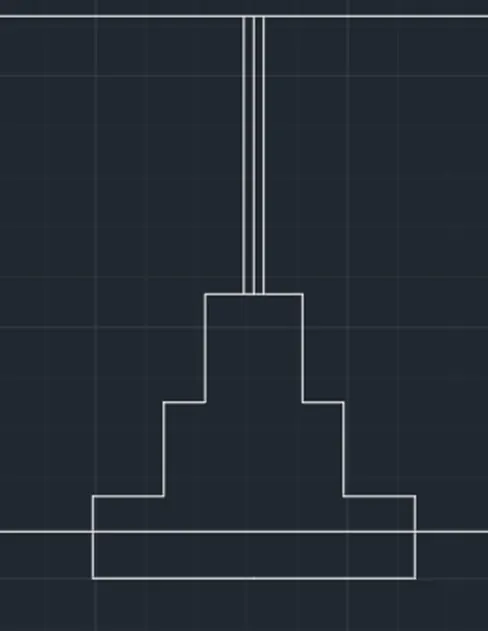

  • Use the block command to save the sprinkler as block

Step:-2

  • Next we need to draw the circle , and enter the text in the circle .
  • Next we need to use the single text command to enter the text where ever required in the section view of industrial drawing.
  • Use the hatch command to hatch the walls and floor slabs as drawn in the below figure.

Result :
