Challenge

Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

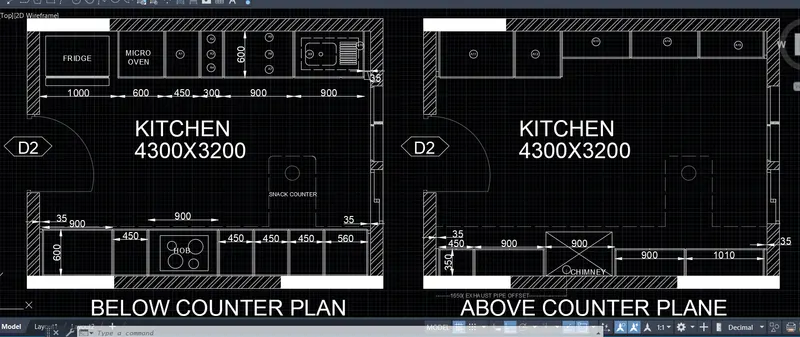

AIM: Create the layouts of the Kitchen and provide a hatches pattern

PROCEDURE:

Set the unit to decimal and mm
First create a wall of thickness of 250mm
Now create the counter wherever it's required as per the given dimension
Making all components required on the counter
And label them with the number with the help of the block command
Now hatch the wall as per the drawing
There are two plans one is above and below the counter
Also determine the dimension of the components with the help of the dimension command

RESULT:

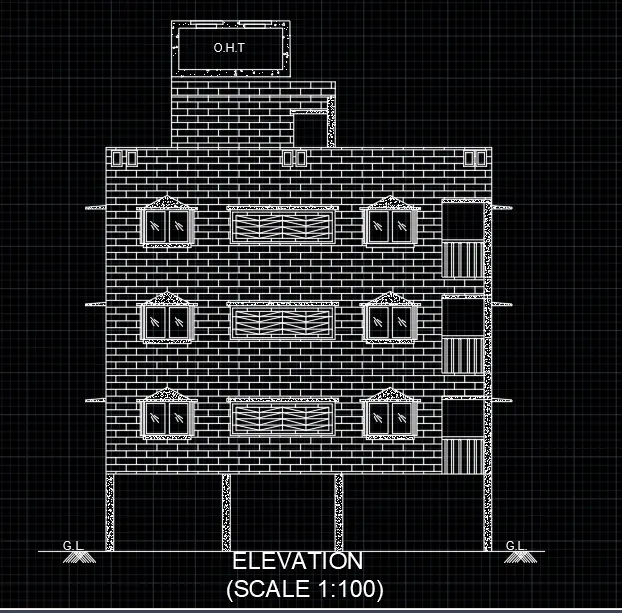

AIM: To Create the elevation of the plan created in Challenges 7

PROCEDURE:

Now first draw a line for ground level and take the projection for a column for the plan
Fix the position of the column at the ground level
And then take the side projection for a similar height.
Take the height of the slab from sections A-A
Now draw the 1st floor by draping the wall, windows, and doors projection from the plan
Determine the height from sections A-A
After completing the 1 st floor heigh light it and with the help of copy command copy the first floor for the 2nd and 3rd floor.
Assemble the 2nd and 3rd floor which is symmetrical as the 1st floor
Now draw the parapet wall for the height of 1000mm
determine the dimension of the structure with the help of the dimension command
And with the help of the leader determine the component name and its details
Ans lastly hatch the concrete and masonry wall with the help of hatch command

RESULT:

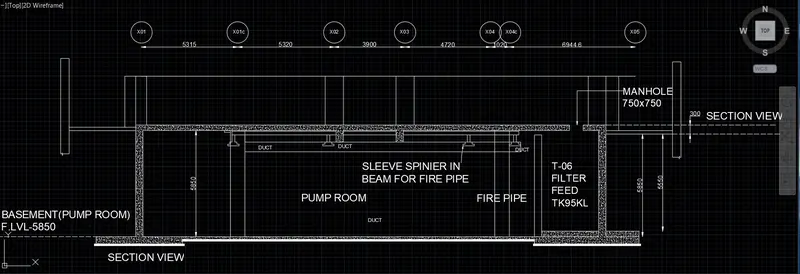

AIM: To Create the section view of an industrial building

NOTE= SOME OF THE TEXT AND DIMENSIONS ARE DISTORTED IN THE QUESTION AS WELL AS IN ATTACHED PDf UNABLE TO RECOGNIZE THE TEXT AND DIMENSION

THEREFORE THE DIMENSION IS ASSUMED

PROCEDURE:

RESULT:
