Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad
Question 1)
Answer:

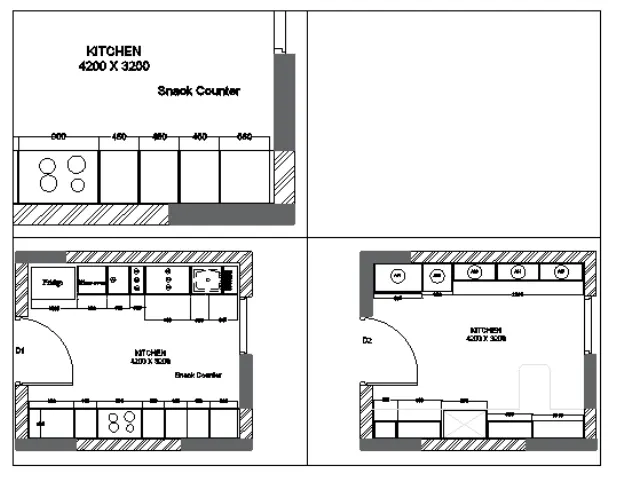

Aim: To create a layout of kitchen and provide hatch pattern as shown in challenge question
Introduction: Two kitchen plans are given one below contour plan and another above contour plan.Below contour plan consists of fridge, micro oven, cupboards, hob, dishwashers etc, Above contour plan consists of cupboards, chimneys etc.
We used following commands to draw layout:
Xline,Line, offset, Circle, Extend, Hatch, Array, Dimension, Trim, Text etc
Procedure:
Open Autocad
In startup setting start from scratch select(Meter)
Open grid and snap setting
Change grid and grid spacing to 0.1
Change major line every grid line to 10
Turnoff adaptive grid
Type UN in command box and press enter
Change units type to decimal and precision to 0.00and insertion scale to milimeter

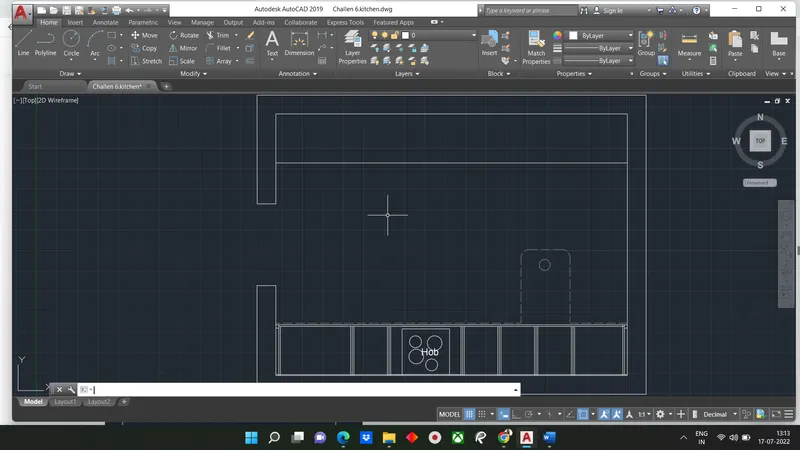

STEP-1: Creating Below Contour Plan
Type 'rec' or rectangle in the cammond tab or we can select directly from toolbar
- Specify first corner point: Select any point on grid
- Specify other corner point or [Area:Dimension:Rotation]: D
- Specify length for rectangle: Type 4300 and press enter
- Specify width for rectangle: Type 3200 and press enter and set the directionas first quadrant
Type '0'or offset and press enter or click offset from the modify toolbar
- Specify offset distance: Type 230 and press enter
- Select object to offset: Select the rectangle drawn earlier and select the outside of the rectangle
Explode two rectangle using explode command
cReate a door opening using line and trim command
Type 'o' or offset and press enter
- Specify offset distance: Type 600 and press enter
- Select object to offset: Select the bottom edge of the inner rectangle and select on top
Type 'o' or offset and press enter
- Specify offset distance: Type 40 and press enter
- Select object to offset: Select the last offset line and click on bottom
Draw a line starting from left end of the last offset line and bottom left corner of the inner rectangle
Type 'o' or offset
- Specify offset distance: Type 35 and press enter
- Select object to offset: Select the line drawn earlier and click on right
Type 'o' or offset
- Specify offset distance: Type 900 and press enter
- Select object to offset: Select the line drawn earlier and click on right
Type 'o' or offset
- Specify offset distance: type 450 and press enter
- Select object to offset: Select the last offset line and click on right
- Select object to offset: Select the last offset line and click on right
- Select object to offset: Select the last offset line and click on right
Type 'o' or offset
- Specify offset distance: Type 630 and press enter
- Select object to offset: Select the last offset line and click on right
Type 'o' or offset
- Specify offset distance: Type 10 and press enter
- Select object to offset: Select the bottom edge of the inner rectangle and selecton top
Type 'o' or offset
- Specify offset distance: Type 20 and press enter
- Select object to offset: Select the line offset at 35 from left and click on right

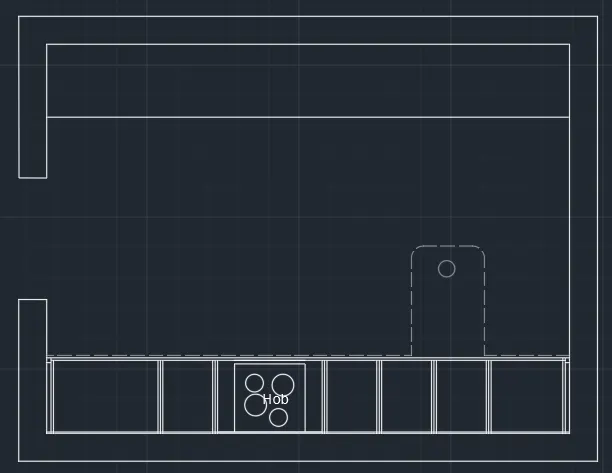

Repeat the same process for all the offset lines drawn above

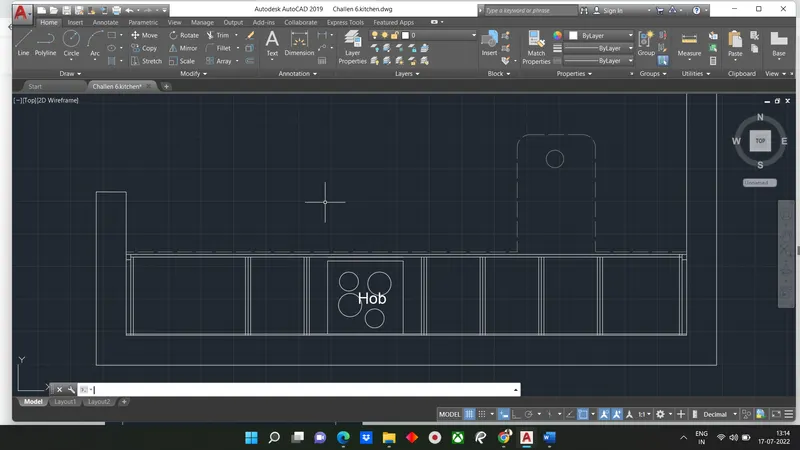

Create hob using rectangle and circle command
Create the snack counter using line command and ISO dash space as line type with line type scale as 0.1 and use fillet option at top corners.
Type 'o' offset
- Specify offset distance: Type 600 and press enter
- Select object to offset: Select the top edge of the inner rectangle and select on bottom
Type 'o' offset
- Specify offset distance: Type 1000 and press enter
- Select object to offset: Select the door side line to make offset
Type 'o' offset
- Specify offset distance: Type 10 and press enter
- Select object to offset: Select the top edge of the inner rectangle and select on bottom
Draw a line starting from left end of the last offset line and bottom left corner of the inner rectangle
Type 'o' or offset and press enter or click offset from modify tool bar
- Specify offset distance: Type 35 and press enter
- Select object to offset: Select the line drawn earlier and click on left
Type 'o' or offset
- Specify offset distance: Type 300 and press enter
- Select object to offset: Select the last offset line and click on left
Type 'o' or offset
- Specify offset distance: Type 645 and press enter
- Select object to offset: Select the last offsetline and click on left
Type 'o' or offset
- Specify offset distance: Type 900 and press enter
- Select object to offset: Select the last offset line and click on left
Type 'o' or offset
- specify offset distance: Type 300 and press enter
- Select object to offset: Select the last offset line and click on left
Type 'o' or offset
- Specify offset distance: Type 450 and press enter
- Select object to offset: Select the last offset line and click on left
Type 'o' or offset
- Specify offset distance: Type 600 and press enter
- Select object to offset: Select the last offset line and click on left
Create the fridge component using rectangle, 2 point circle and line command as shown in fig
Doors and windows are created as per the step 3

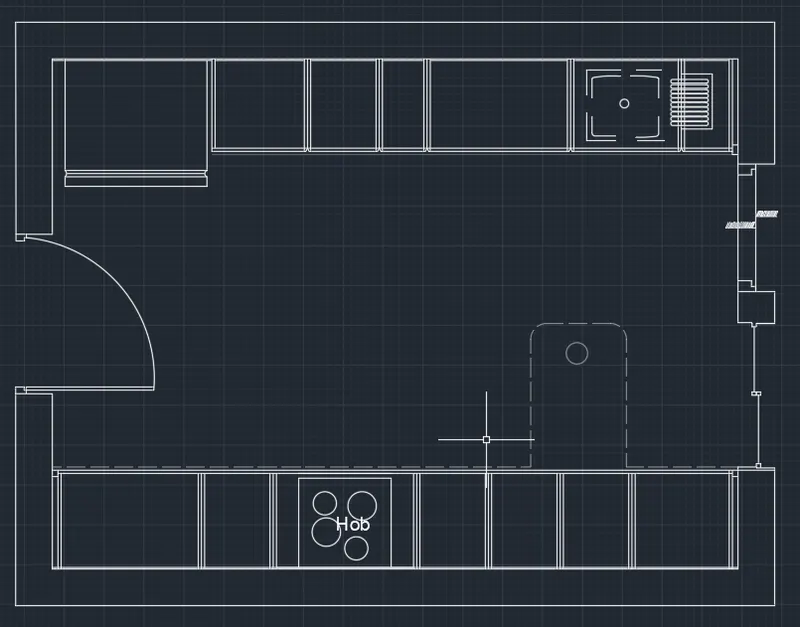

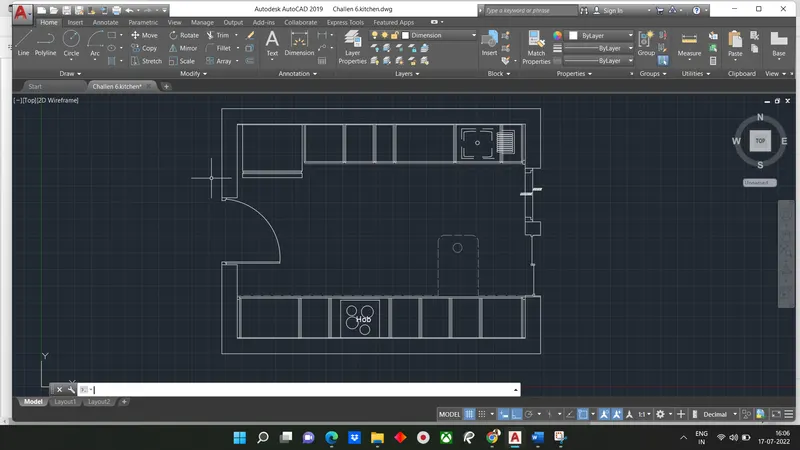

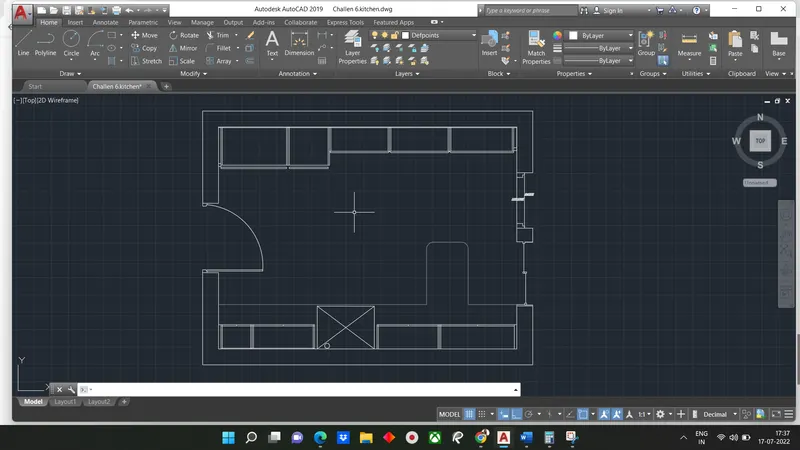

The result of step1 after adding doors and windows is as follows

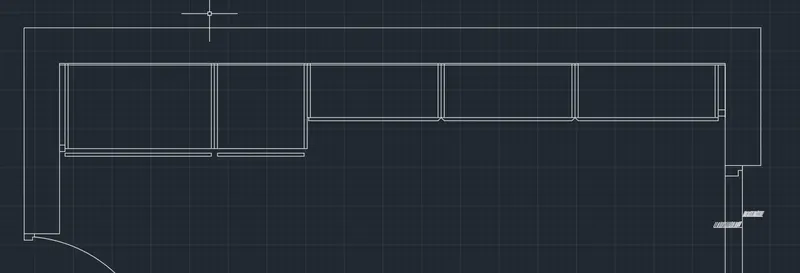

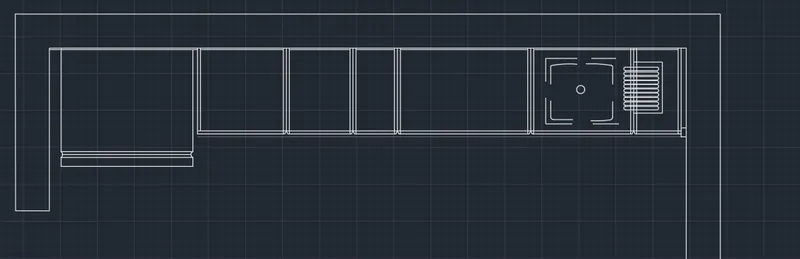

STEP-2: Creating Below Contour plan
Using copy command, copy all the necessary components of below contour pland and paste at any Point as walls, doors and window
Type 'o' or Offset and press enter or click offset from the modify toolbar
- Using copy command, copy all the necessary components of below contour plan and paste at any point such as walls, doors and window
Type 'o' or offset and press enter
- Specify offset distance: Type 350 and press enter
- Select object to offset: Select the bottom edge of the inner rectangle and select on top
Draw a line starting from left end of the last offset line and bottom left corner of inner rectangle
Type 'o' or offset
- Specify offset distance: Type 35 and press enter
- Select object to offset: Select the line drawn earlier and click on right
Type 'o' or offset
- Specify offset distance: Type 450 and press enter
- Select object to offset: Select the last offset line and click on right
Type 'o' or offset
- Specify offset distance: Type 900 and press enter
- Select object to offset: Select the last offset line and click on right
- Select object to offset: Select the last offset line and click on right
- Select object to offset: Select the last offset line and click on right
Type'o' or offset
- Specify offset distance: Type 1010 and press enter
- select object to offset: Select the last offset line and click left
Type 'o' or offset
- Specify offset distance: Type 10 and press enter
- Select object to offset: Select the last offset line and click on left
Type 'o' or offset
- Specify offset distance: Type 20 and press enter
- select object to offset: Select the line offset at 35 from left and click on right
Repeat the same for all offset lines drawn

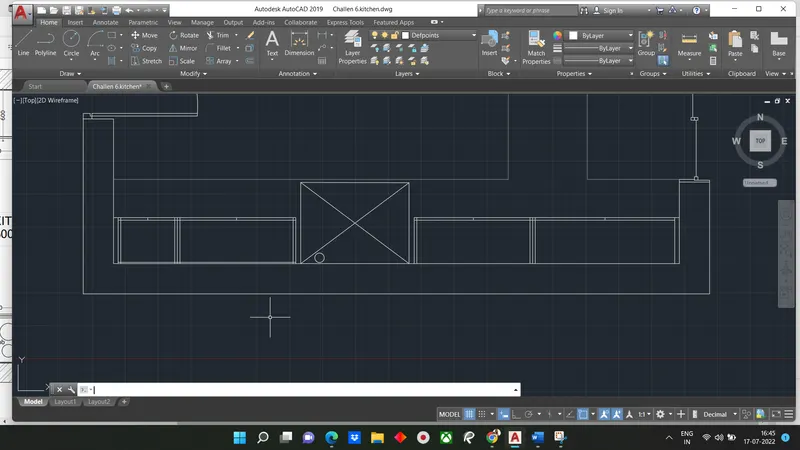

Create the chimney in the 0.9 distance gap using a rectangle command
Create the snack counter using line command and ISO dash as line type with line type scale as 0.1
Type 'o' or offset
- Specify offset distance: Type 600 and press enter
- Select object to offset: Select the top edge of inner rectangle and select on bottom
Type 'o'or offset
- Specify offset distane: Type 350 and press enter
- Select object to offset: Select the top edge of the inner rectangle and select on bottom
Type 'o' or offset
- Specify offset distance: Type 10 and press enter
- Select object to offset: Select the top edge of inner rectangle and select bottom
Draw a line starting from left end of the last offsetnline and bottom left corner of the inner rectangle
Type 'o' or offset command
- Specify offset distance: Type 35 and press enter
- Select object to offset: Select the line drawn earlier and click on right
Type 'o' or offset command
- Specify offset distance: Type 965 and press enter
- Specify object to offset: Select the line drawn earlier and click on right
Type 'o' or offset command
- Specify offset distance: Type 600 and press enter
- Select object to other: Select the last offset line and click on right
Draw a line starting from left end of last offset line and bottom left corner of the inner rectangle of 0.35 distance
Type 'o' or offset command
- Specify offset distance: 865 and press enter (for 3 times)
- Select object to offset: Select the line drawn earlier and click on right
Doors and windows are created as per the step 3
Trim off extra portions

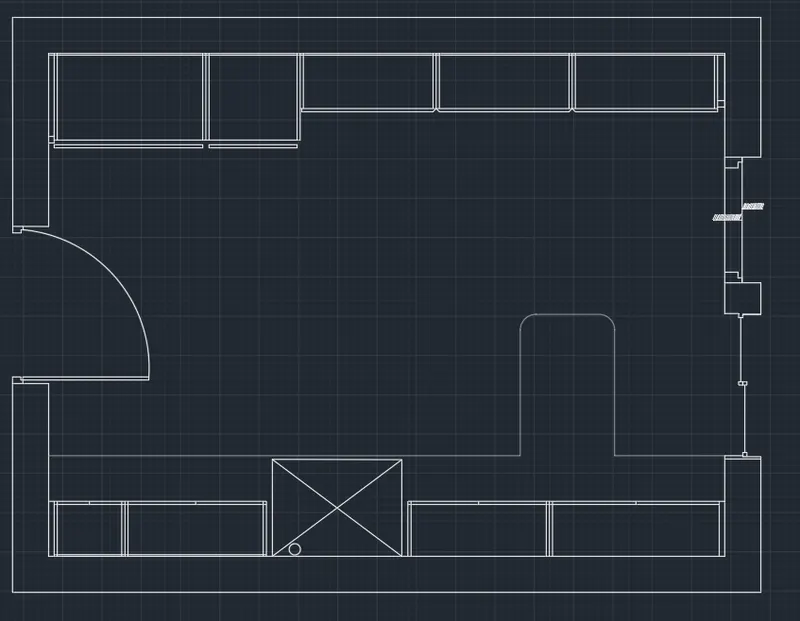

The result of step 2 after adding doors and windows is as follows
STEP-3: To create Door And Window
D3-
- Select line command and select outer end of door opening
- Draw a line of distance 80 and keep the curser to the right and draw a line of 50
- Keep thec curser to down and draw a line of 60 and keep the curser to right and draw aline of 50 and draw a line perpendicular to bottom end
- Mirror the same created and paste it on other side of door end
- Draw a line connecting the top edges of boot the shapes

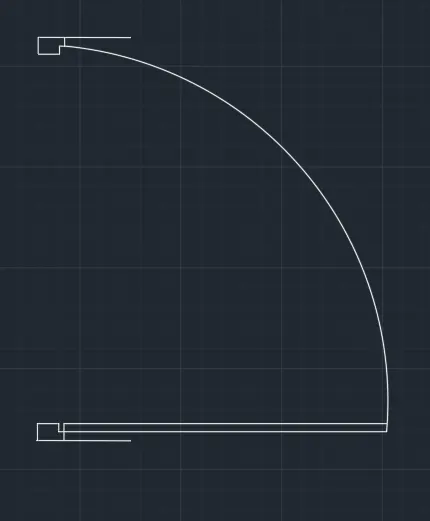

D2-
- Select the command and select the outer end of the door opening
- Draw a line of distance 0.08 and keep the curser to the right and draw a line of 50 and draw a line perpendicular to bottom end
- Mirror the same created and paste it on the other side of door
Type rec or rectangle in the command box or select rectangle from the draw toolbar
- Specify first corner point: Select any point on grid
- Specify other corner point or [Area:Dimesion:Rotation]: Click on dimensions
- Specify length for rectangle: Type 800 and press enter
- Specify width for rectangle: Type 60 and press enter and set the direction as first quadrant
Select start center end command from the drop down of arc tool from draw tool bar
- Select the start point: Select right edge of the shape drawn
- Select the centerpoint: Select the bottom of rectangle drawn
- Select the end point: Select the bottom end of the shape drawn at the other door end

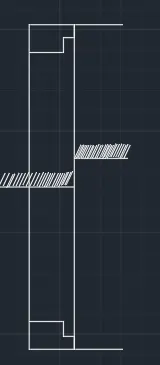

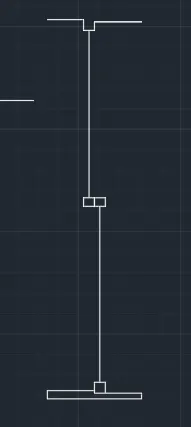

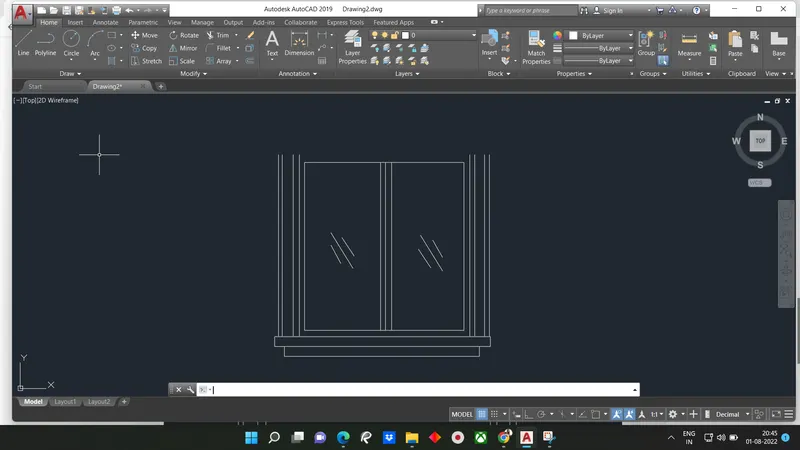

Window 1
- Using rectangle command draw 2 rectangles at the center of the window
- Using line command draw 2 line from the midpoint of 2 rectangles to the opposite edges of window
- At the point of intersection of these lines draw 2 rectangles on both edges as shown in figure

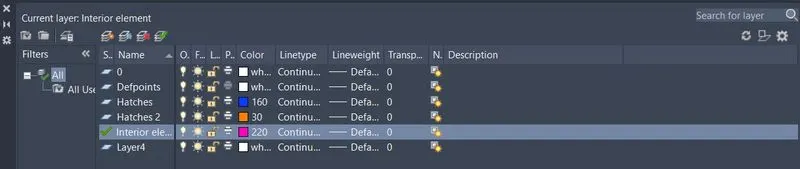

STEP-4: Creating layers
Open layer properties and create new layers by clicking on new layer or right click on any layer and select new layer to create new layer
Layer is created

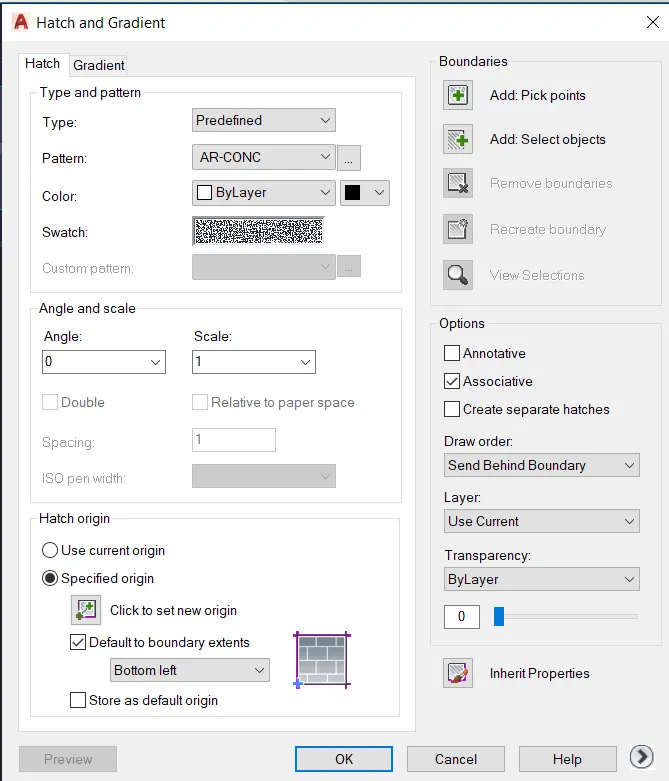

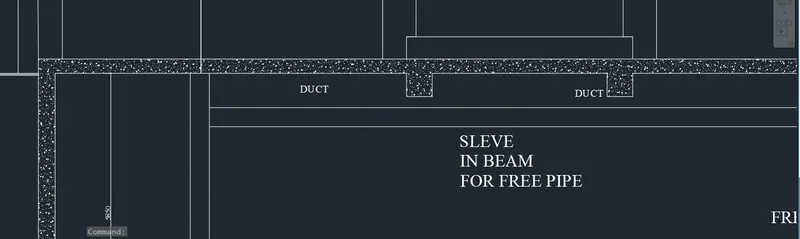

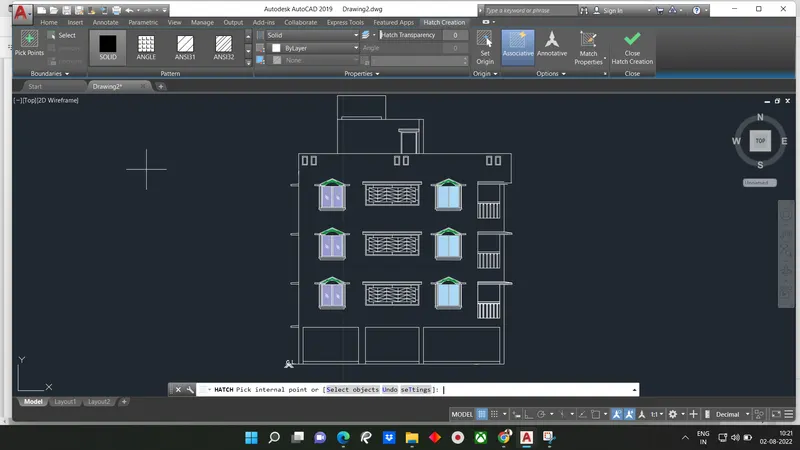

STEP-5: Creating Hatch

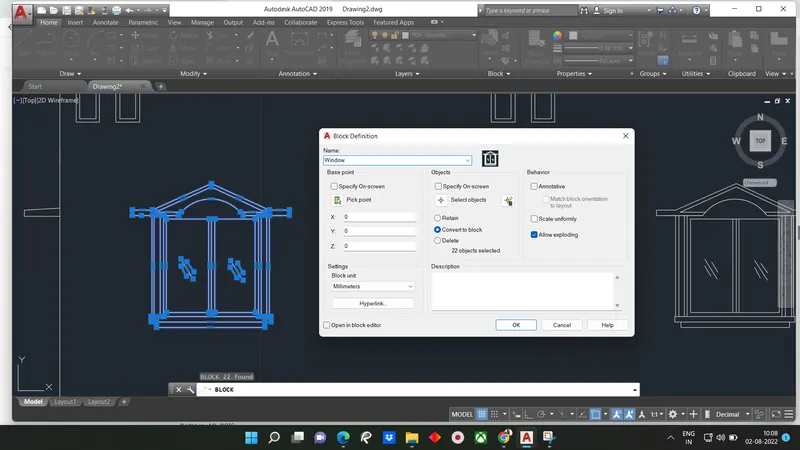

STEP-6: Create Block to Components

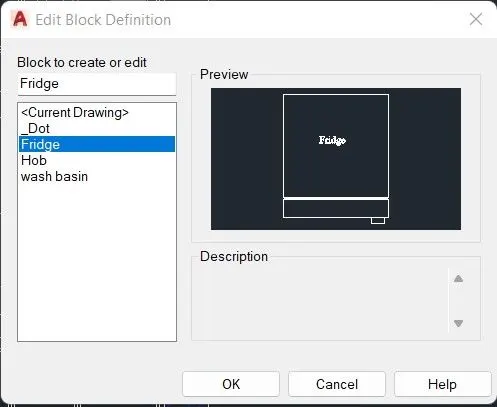

Type "B" to block components in the drawing
Select Wash Basin and enter block
And Select Fridge and enter "B" to block the particular element

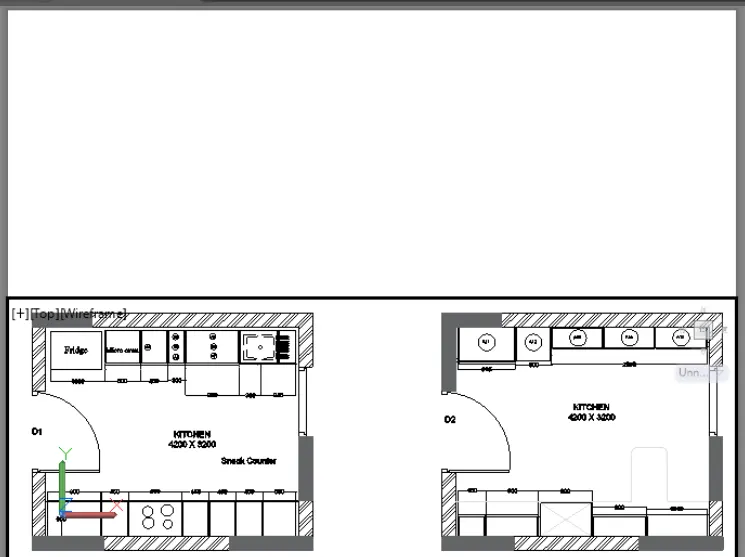

FOR LAYOUT CREATION IN AUTOCAD
Step 1:
1) From the floor plan drawing Click left click of Layout tab

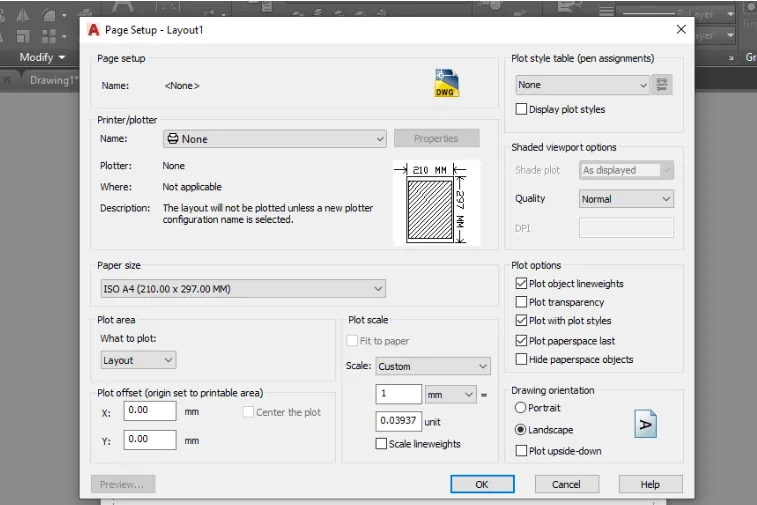

2) Select Page Setup Manager
3) Choose paper size as A4
4) Then click ok
STEP-2
1) In the command prompt write Layout
2) Select New and choose suitable name
3) From the layout area Command MVIEW
4) Select the plot area and paste the object
STEP-3
1) In the plot area type MSVIEW
2) Select the area and paste another object to show
3) Use MS and PS commands for edititng and zooming the object inside plot area
Result:

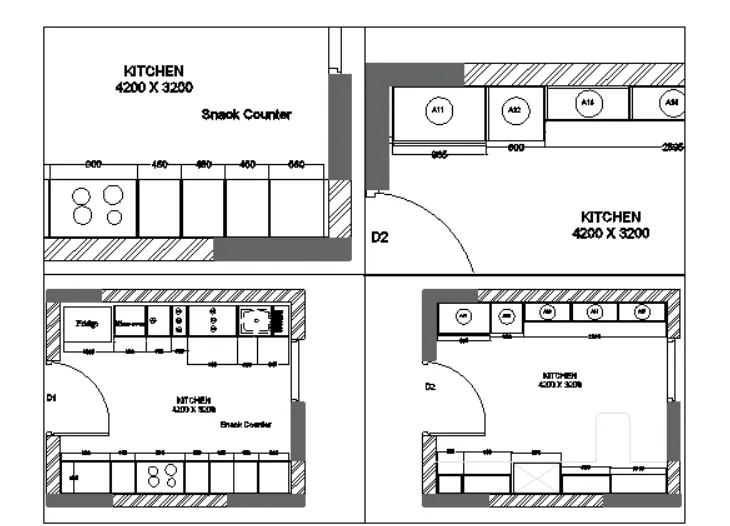

The result of this challenge question consists two kitchen layouts. One below the contour plan and another above the contour plan.The wall thickness is assumed to be 230mm
The components of kitchen is created as per given in figure
Doors and window created with assumed dimension because it is not given with question
All dimension are in mm

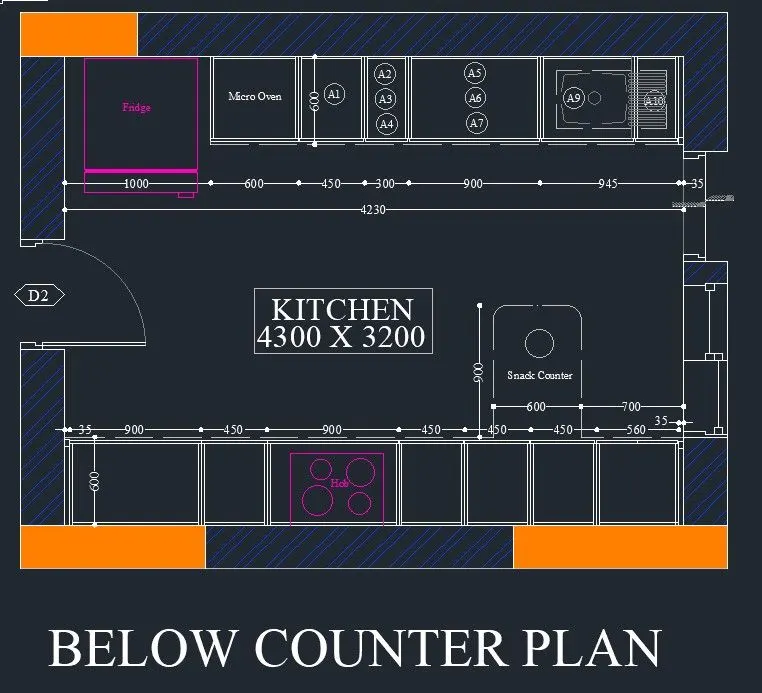

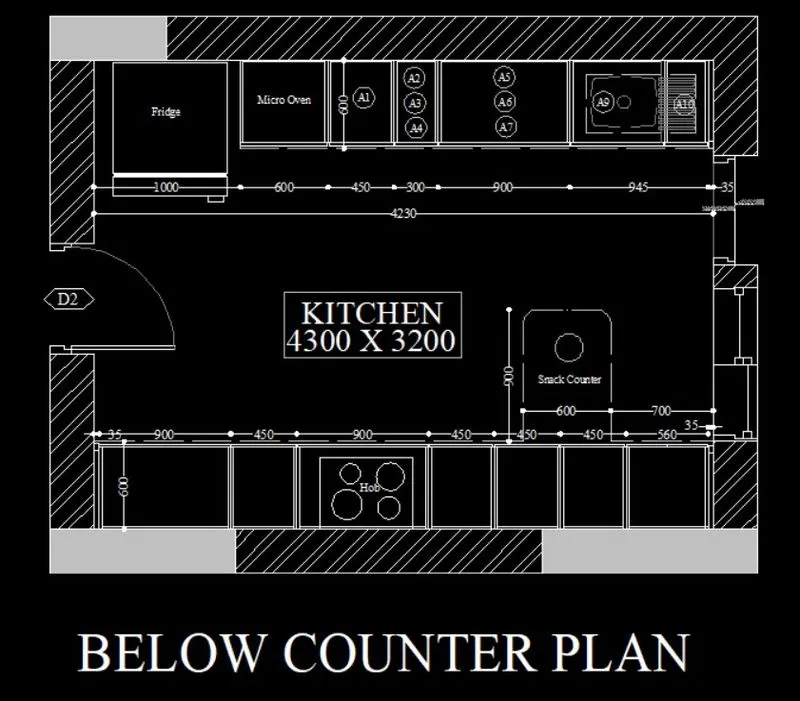

A) Below Counter Plan

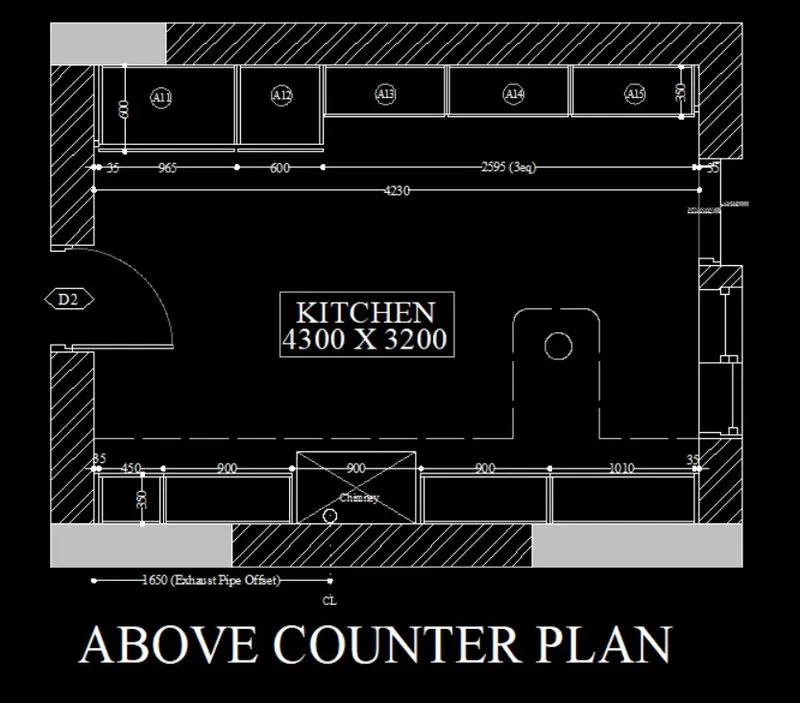

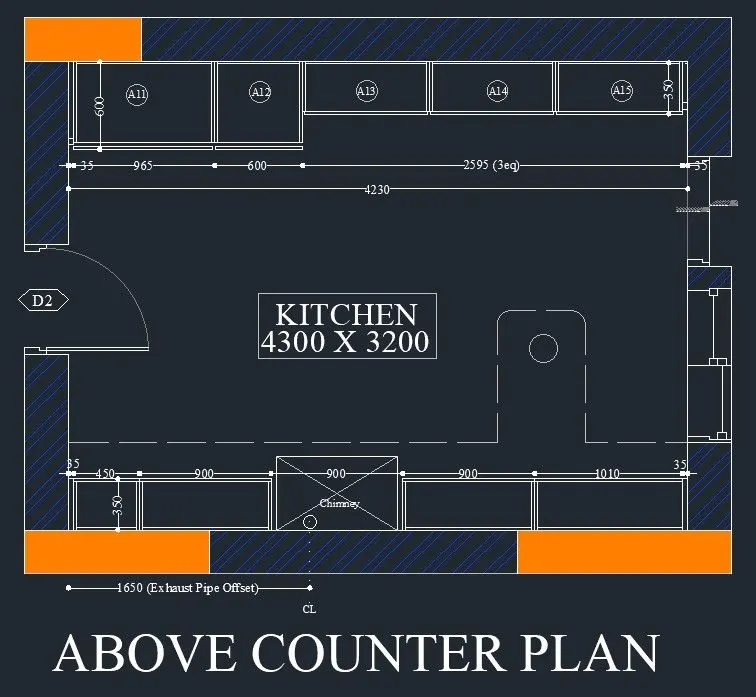

B) Above Counter Plan
Question 2)
Answer:

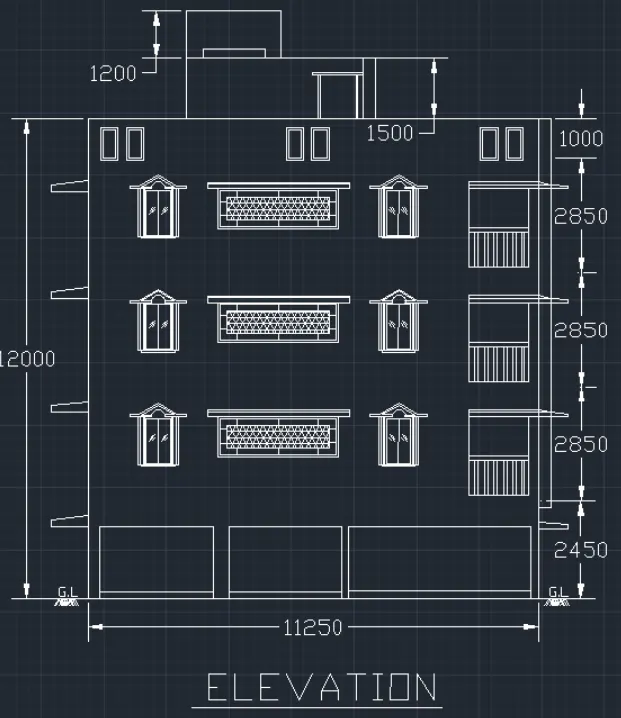

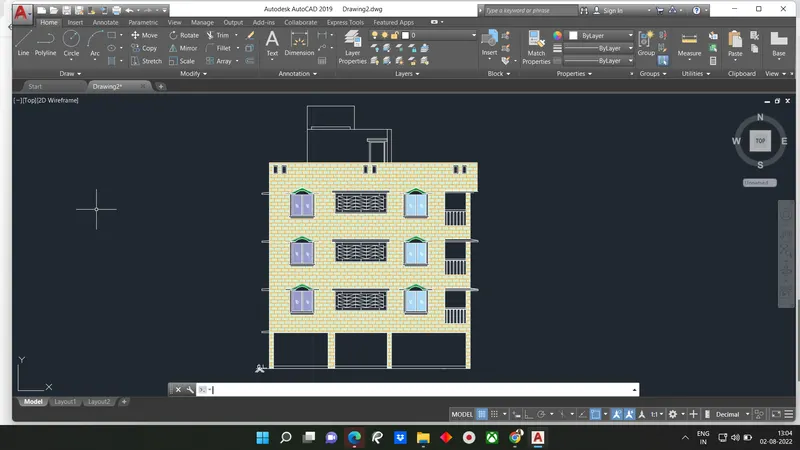

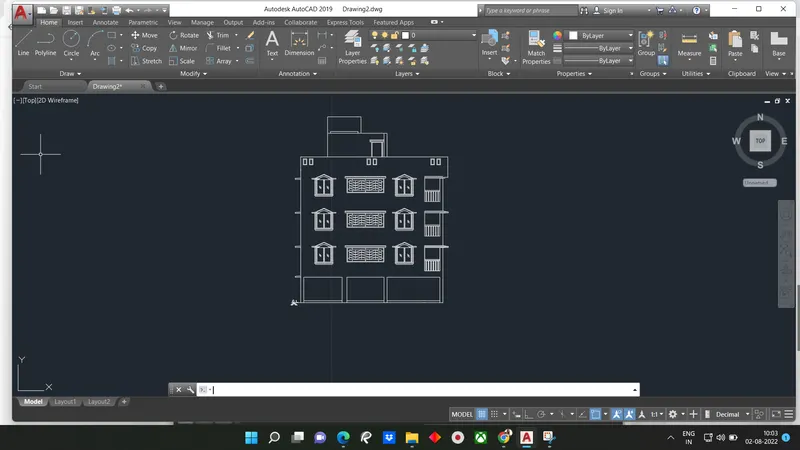

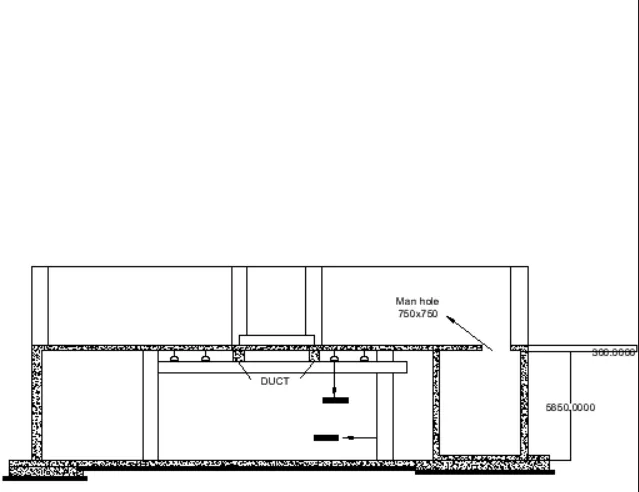

Aim: To create elevation of the plan created in challenge 7
Introduction: Create elevation of the plan created in challenge 7 and apply hatch to walls, doors, window and other architectural elements.
XLine: It means construction line. It has infinty edges we used for making wall. By typing "XL" on command line we envoke this tool.
Line: It connects one point to another points. Used to draft various elements.
Trim: This modification tool helps to cut extended edges on the drawing. And to trim inbetween two line or elements. "TR" command to envoke this tool.
Extend: It is also a modification tool, if we have some broken edges or need to extend some portion towards anonther element. "EX" command to envoke the tool.
Offset: Offset the existing element with certain distance. this tool avoid to create new parallel elements.
Layer: Each and every elements has unique property and unique style. This layer tool helps to organize those. Line weight, line style, colour gradient, freeze, lock. it has numerous benefits in Auto CAD drafting.
Hatch: Hatching helps to fill the voids with certain texture on it. If we draft wall means, we mention the brickwork details with the help of hatching.
Circle: Used to make circle elements in the sheet. Type "C" to envoke this tool. Here it is used to draft door.
Procedure:
STEP-1: Open AutoCAD
Open Autocad
In startup setting start from scratch select(Meter)
Open grid and snap setting
Change grid and grid spacing to 0.1
Change major line every grid line to 10
Turnoff adaptive grid
Type UN in command box and press enter
Change units type to decimal and precision to 0.00and insertion scale to milimeter

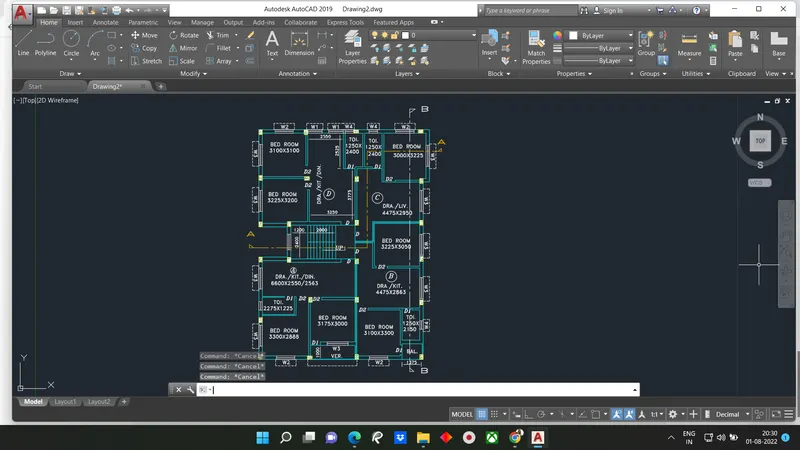

STEP-2: Open Existing Plan created in challenge 7

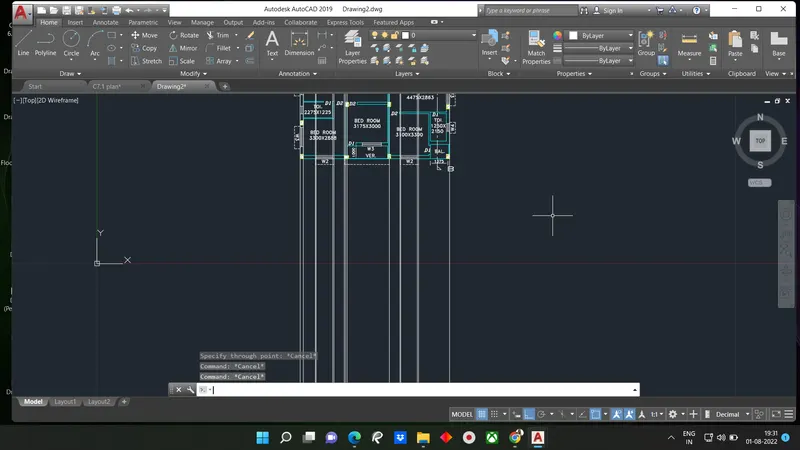

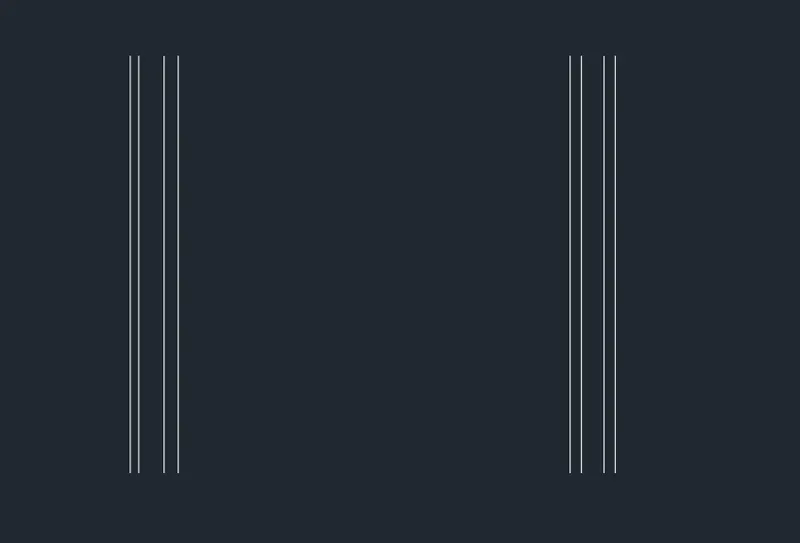

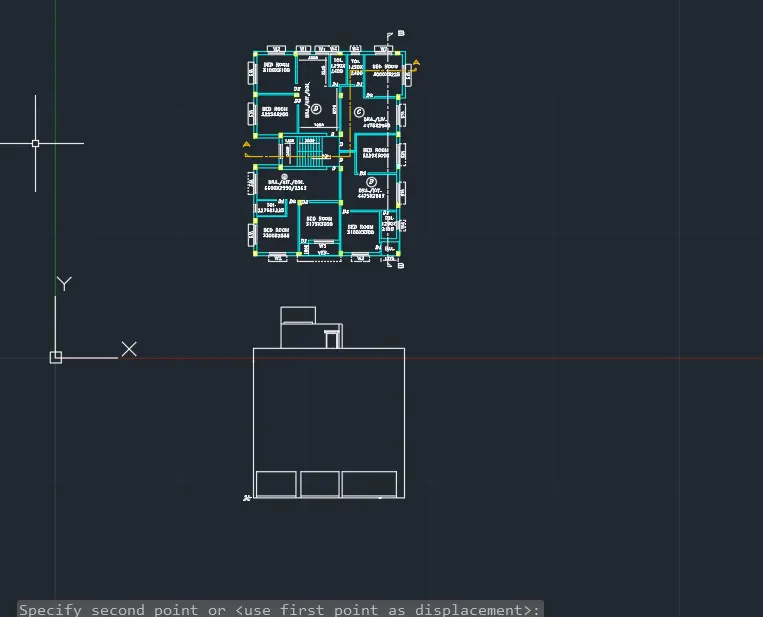

STEP-3: Draw Construction Lines
Specify command: XL in command tab
Select XL -vertical

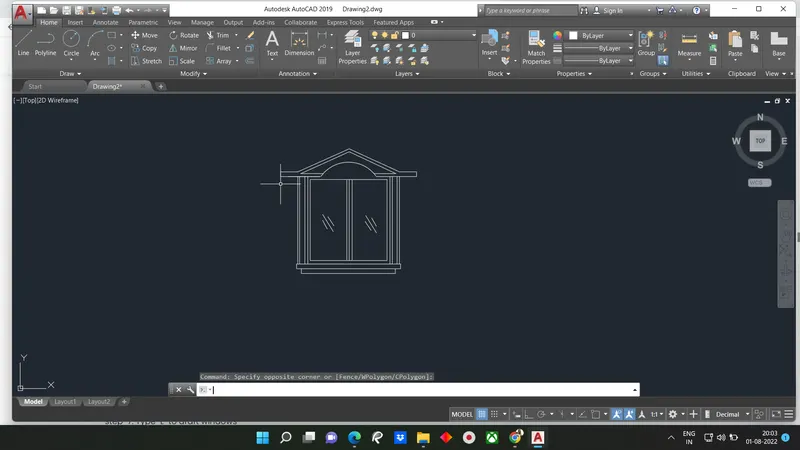

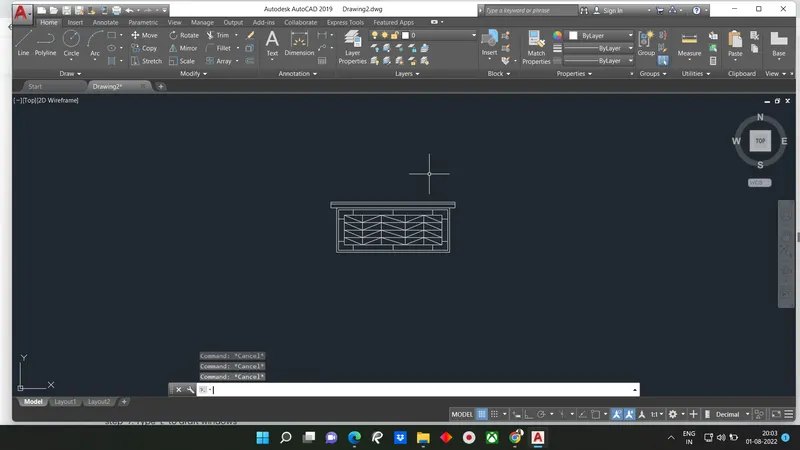

STEP-4: Create a Window
Take projection from previous plan lines
Use line command to draw lines in window
Create bottom lines and using line and offset command
Use rectangle command for glass portion
Use arc command to draw top arc
Create a rectangle and guve offset with some distance.
Use line command at surrounding hatch
At top make a rectangle and place
Create a block of window
Provide hatch to window using hatch command.
Provide hatch to wall
Result:
Question 3)
Answer:

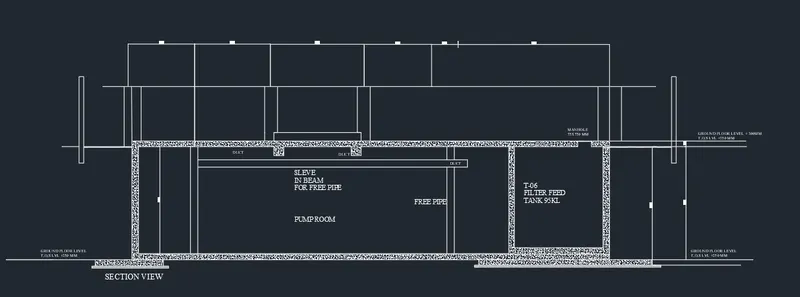

Aim: Create section for given dimension by using drafting and modify command.
Introduction: Using Various commands in autocad draft the given industrial building.
Procedure:
- click on autocad application
- type QNEW in command section
- click on advance setup
- unit decimal precision 0
- angle decimal precision 0
- angle measure : EAST
- set angle direction counter clockwise
- press :NEXT
- Set the area
- length :100
- width :100
- press : OK
- command : UN (for units )
- give the units is decimal
- and mm
- press :ENTER
- command :Z (FOR zoom )
- type A in command section
- press :ENTER
- command : REC (for rectangle )
- select the start point
- click on DIMENSION
- length : 25300
- width : 5850
- press : enter
- command : O (for ofset )
- give the ofset distance 300
- press : enter
- command : X (for explode )
- select the object
- press : enter
- command :L (for line )
- by using line command draw the reamenning part
- press : enter
- command : MTEXT (for text )
- write the text over section plan
- press : enter

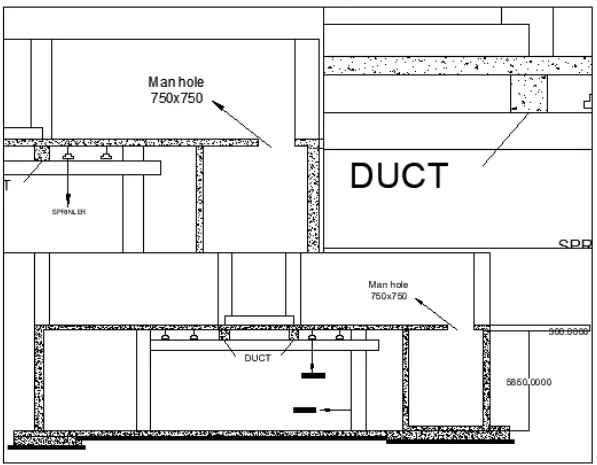

- then go to the ANOTATION tab
- click on multileader
- click on CONTENT
- selct the MTEXT option
- select 2 point for leader
- as shown in fig
- press : enter
- command : H (for hatch )
- click on SEATING in commad section
- select the patern as shown in below
- select the pick point
- press : enter
- go to the object
- and give the hatch
- after theat press :enter
- COMMAND :DIMLIN (for dimension )
- give the dimension
- command : DIMCONTINUE
- And give the all dimension
- press :enter
RESULTS :
Created the section view of an industrial building as given in fig. and also provided appropriate hatches, dimensions and annotations by using Auto CAD.
Command Used-
- START :QNEW
- UNITS : UN
- LIMETS LMMAX
- ZOOM : Z
- RECTANGLE : REC
- LINE : L
- OFSET : O
- HATCH : H
- QLADER
- TEXT :MTEXT
- DIMENSION : DIMLIN ,DIMCONTINUE

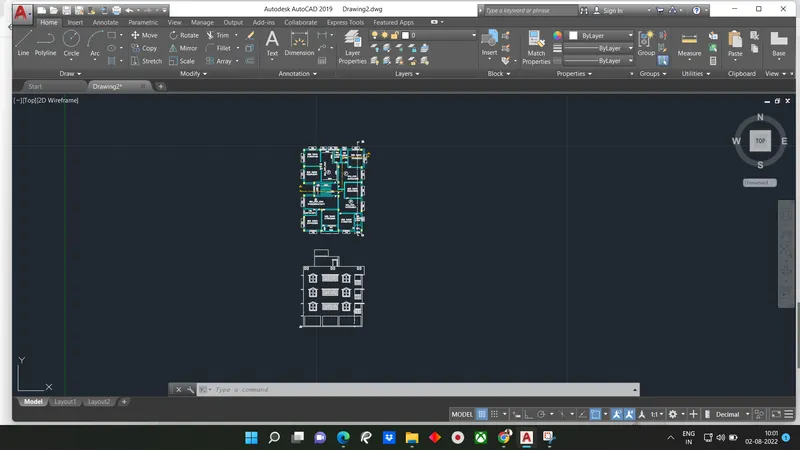

Creating Layout
STEP-1
- From the floor plan drawing Click left click of Layout tab
- Select Page Setup Manager
- Choose paper size as A4
- Then click ok
- In the command prompt write Layout
- Select New and choose suitable name
- From the layout area Command MVIEW
- Select the plot area and paste the object
STEP-2:
- In the plot area type MSVIEW
- Select the area and paste the other objects to show
- Use MS and PS commands for edititng and zooming the object inside plot area
- Then click enter and complete the layout

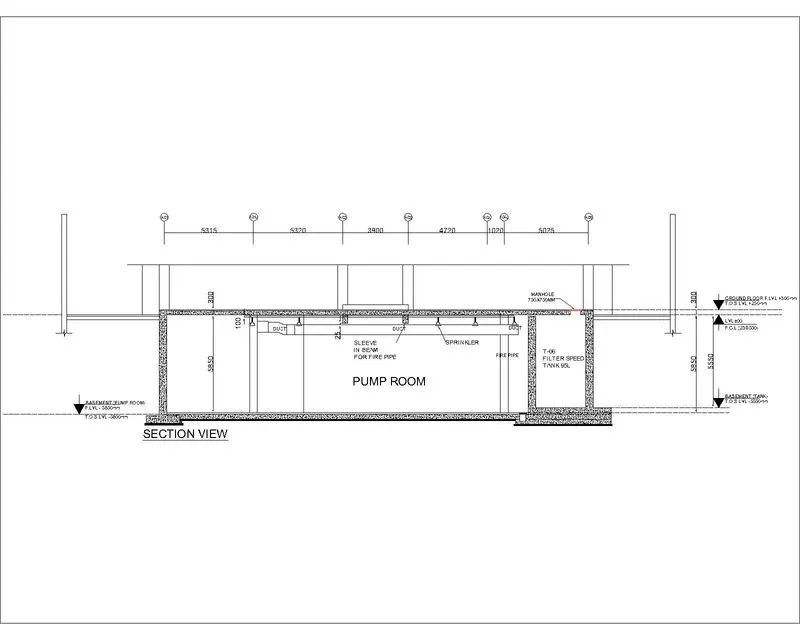

RESULT OF LAYOUT
