Challenge

Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

Aim:

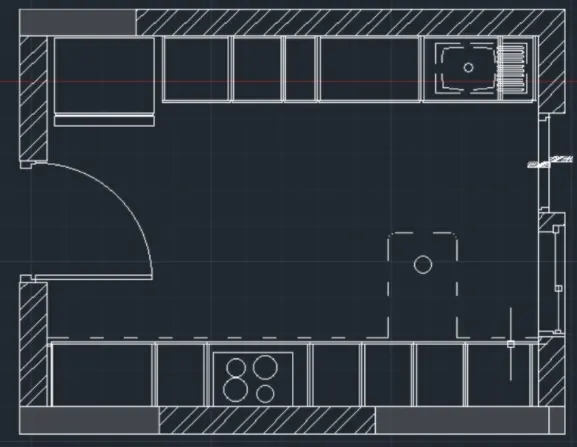

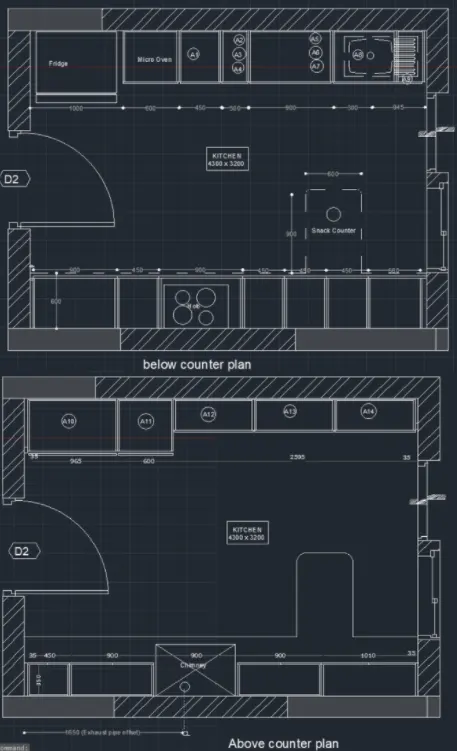

To Create the layouts of the Kitchen and provide hatches pattern as shown.

Procedure:

Draw a rectangle of dimension 4300 X 3200
Explode it
Offset the edges to a distance of 230.
Offset the top to a distance of 600 to draw the kitchen platform and otta
Offset 90 as fist offset, 1000mm for fridge, 600 for oven, 450 for A1 part, 300 for A2/A3/A4, 900 for A5/A6/A6 and 300, 945 and 35 offset
Offset 12 mm to both sides in each corner of the room
Offset 600mm from bottom in the middle for the platform
Offset - 900,450,900,450,450,560,35

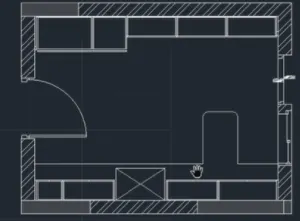

Draw a rectangle of dimension 4300 X 3200
Offset the edges to a distance of 230.
Offset 90 as fist offset, 1000mm for fridge, 600 for oven, 450 for A1 part, 300 for A2/A3/A4, 900 for A5/A6/A6 and 300, 945 and 35 offset
Offset 12 mm to both sides in each corner of the room
Offset 600mm from bottom in the middle for the platform
Offset - 35,450,900,900,900,1010,35
Home - Draw panel - Hatch
On the Properties panel, select the hatch type
On the boundaries panel, specify how the pattern boundary is selected
Pick points. Insert the hatch fill

Result:

____________________________________________________________________________________________________

Aim:

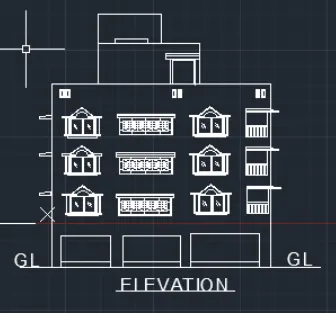

To create the elevation of the plan created in Challenges 7 and apply proper hatch in the walls, doors, windows, and other architectural elements

Procedure:

Select the line command and extend the lines from the plan in a downward manner to create projections
Offset 150mm from ground level
Offset 2450 for the ground floor, 2850 for the second floor, 2850 for the third floor, 1000 for the parapet wall, and 2500 from terrace level for money.
Offset 600 and 1200 for OTH
Offset 1250 for tread and offset 143.75 for the rising of the staircase
Offset 125 below floor level for slab
Draw chajjas and windows as per sizes
Draw the railing of the staircase in-dash manner from the layers and change layer to ACADISO003W100
Give dimensions and Annotate.
Home - Draw - Hatch
On the properties panel Hatch Type list, select the type of hatch you want.
On the Boundaries panel, specify how the pattern boundary is selected
Pick points INsert the hatch within a closed area
Select Boundary Objects
Selection method is retained until you change it
On the ribbon, make the required adjustment
On the expanded Options panel, you can change the draw order to specify whether the hatch and its boundary are displayed in front of other objects
Apply the hatch
HAtch the brick wall with hatch type as brick and hatch another part of concrete as air concrete.

Result:

____________________________________________________________________________________________________

Aim:

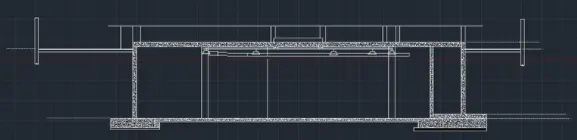

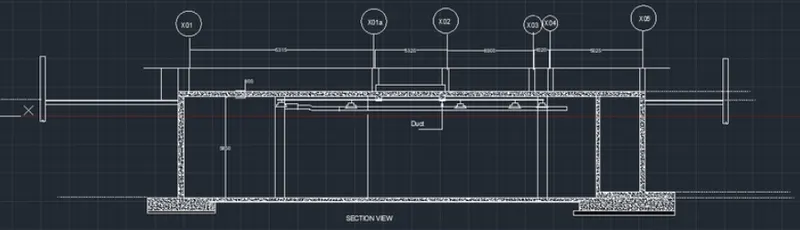

To create the section view of an industrial building

Procedure:

Result:
