Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo

1.Aim:

To create a sinusoidal point and curve using dynamo

Procedure:

• Open revit and from manage tab go to dynamo.
• From dynamo page lets start drawings.

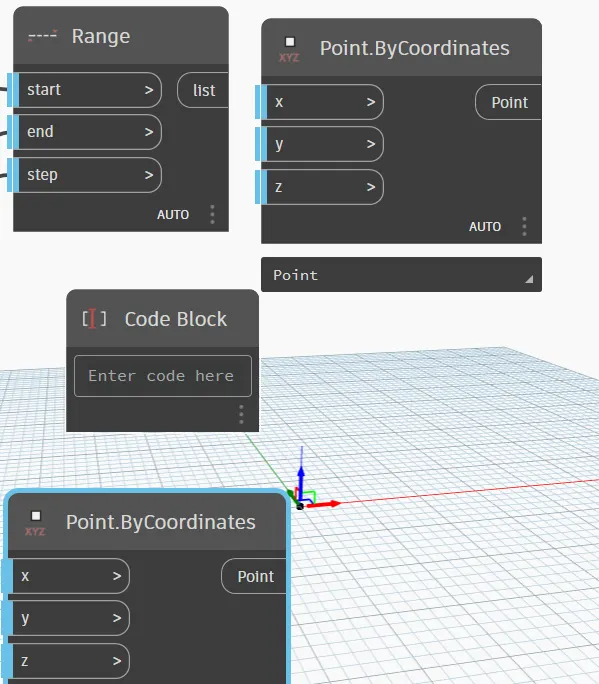

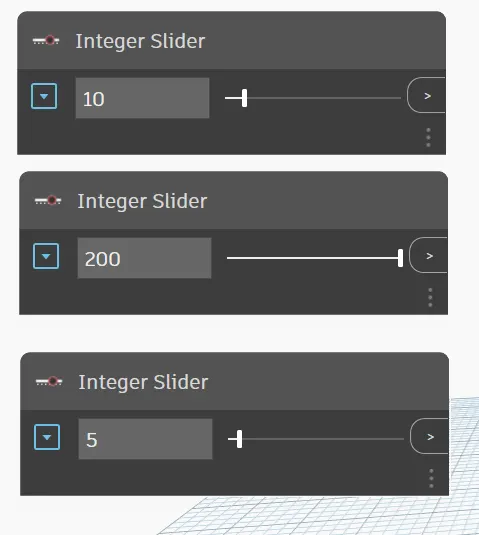

• Type slider and choose integer slider 3times for giving start,end and step.

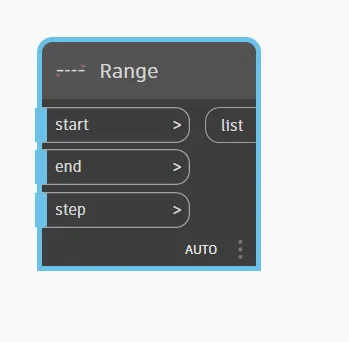

After creating integer type range.

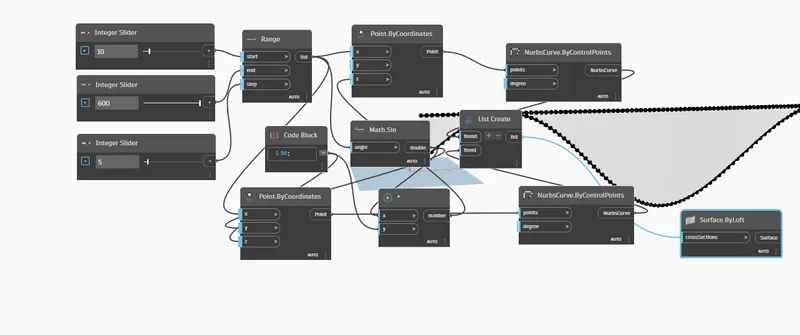

Have point by coordinates and code blocks.

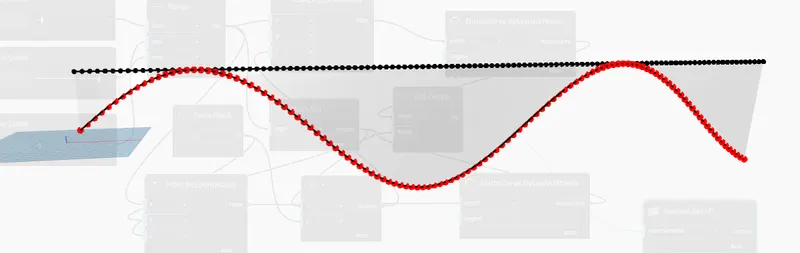

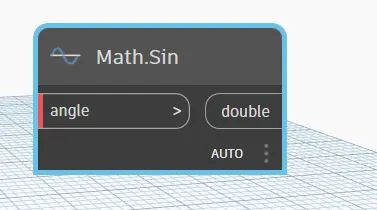

Have math.sin to make a curve

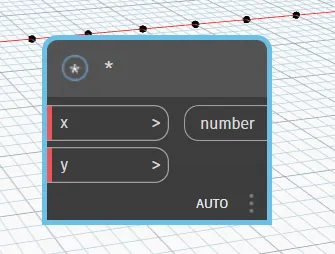

And have a product

Result:

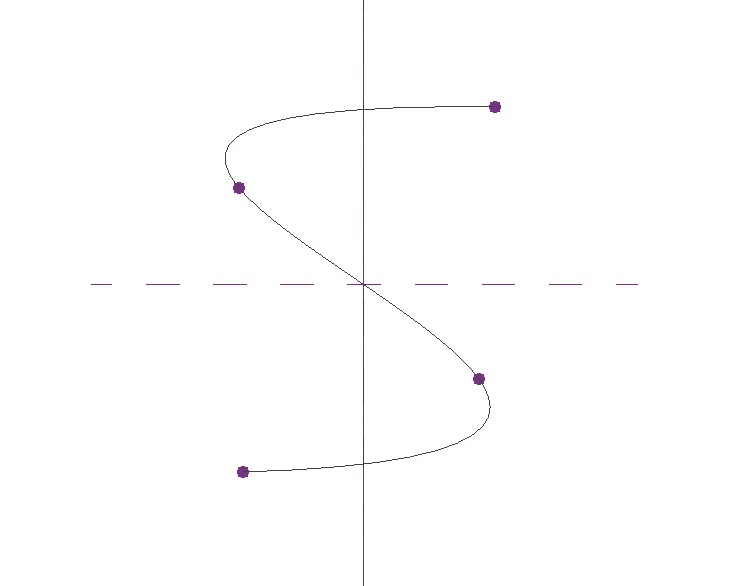

Thus the point and curve are created.

2.Aim:

To create conceptual layout of floor plan.

Procedure:

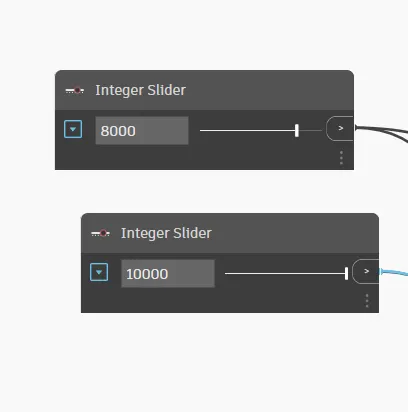

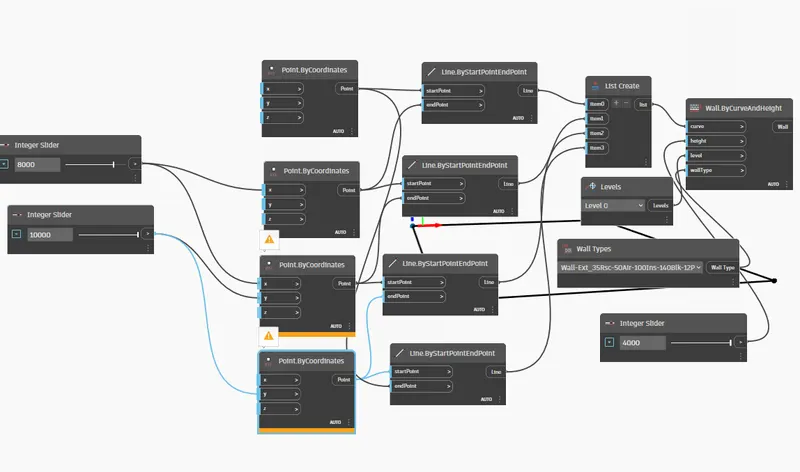

• Open dynamo and create integer slider of two numbers.

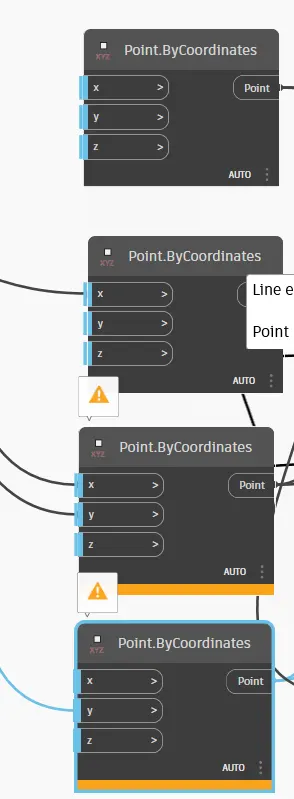

• To create point now create point by coordinates.

• Now connect the points and now the point is created.

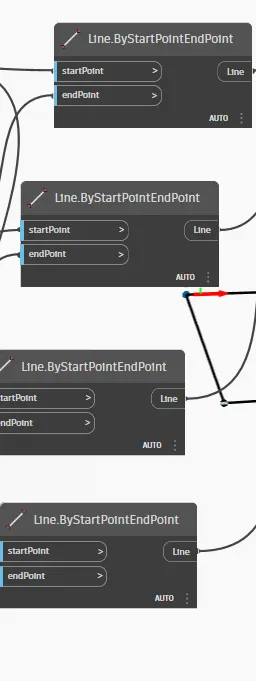

• To draw line create lines
•
• Now join all points to create the line.

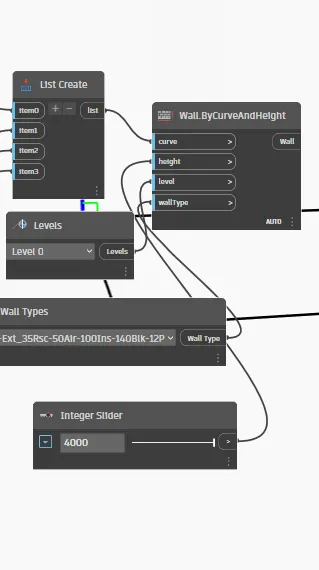

• Create list and level and floor type to create wall.
• Now join all the points.

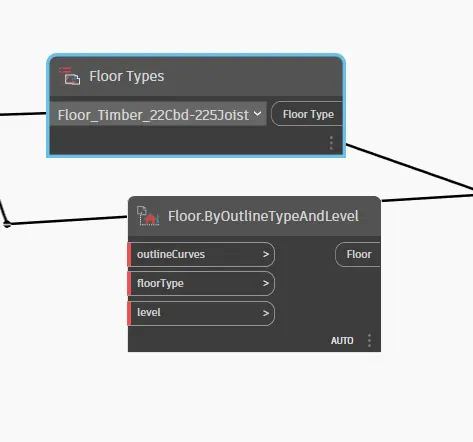

• To create floor choose floor and floor type and select the particular points.

Result:

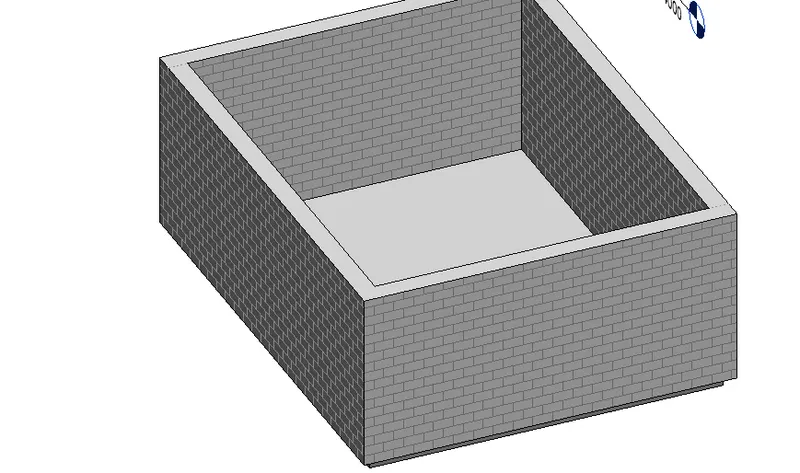

Thus the wall and floor are created.

3.Aim:

To create array using revit and using dynamo vary the properties of modeling element.

Procedure:

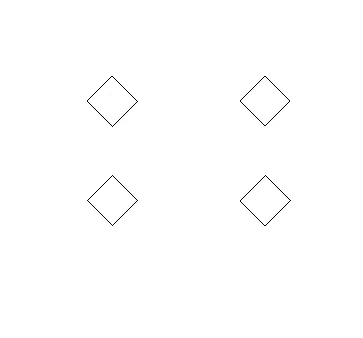

Open revit and choose column and make a column.

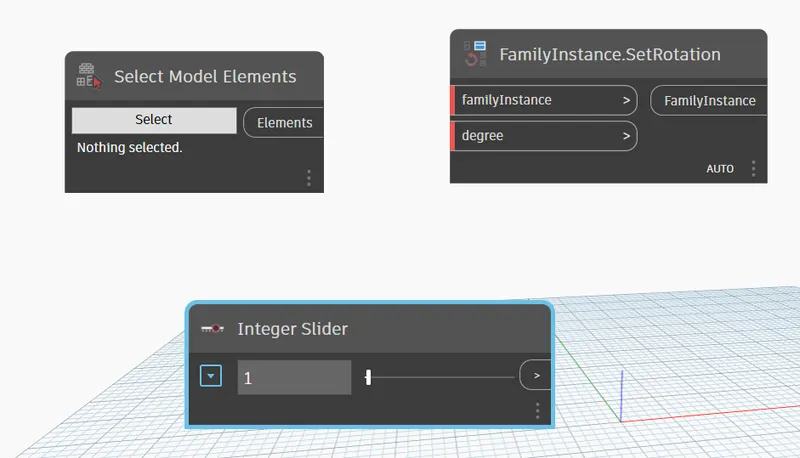

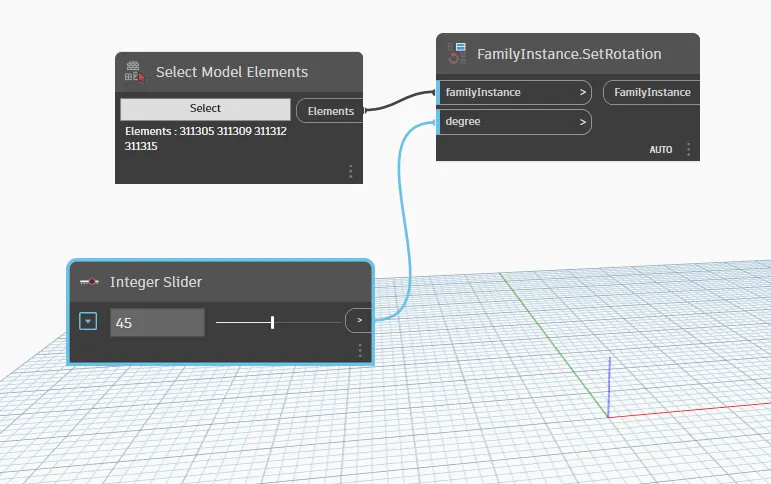

Now go to dynamo and choose model element and rotation and integer slider.

Now select the element from revit and set the rotation angel . and join all the points to it.

Result:

Thus the rotation is done.

4.Aim:

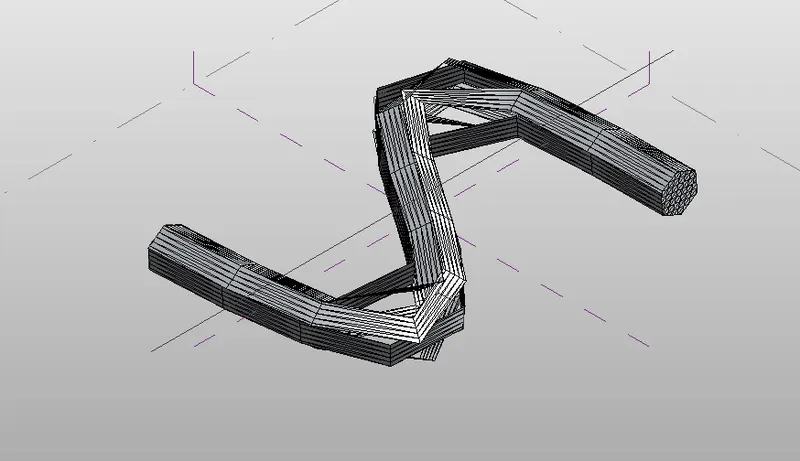

To create conceptual mass in revit and develop a parametric column by dividing the surface and use triangular bent.

Procedure:

• Open a new file and select new and choose conceptual mass and metric mass.
• Now go to elevation view and make a offset of 12' to create a level.

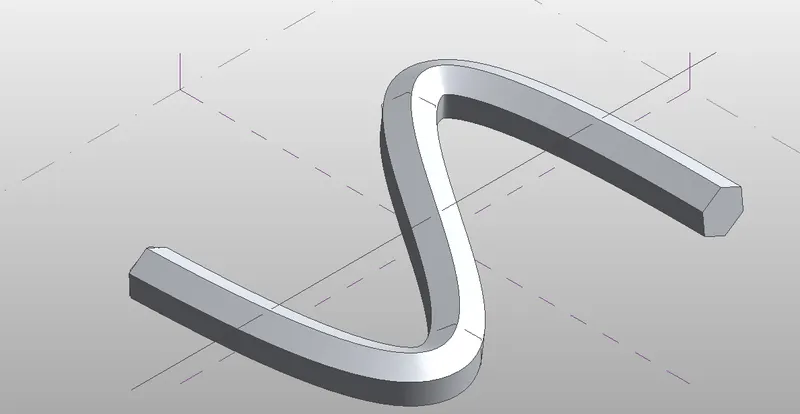

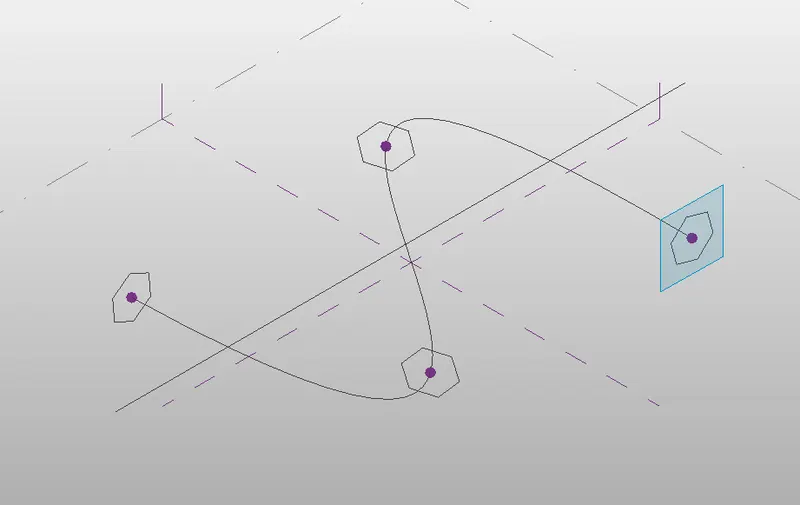

• Go to floor plan and choose spline option and draw a spline like curve.

• Go to 3D view and set and choose circumstrance polygon of 12'

• Click create and create form and solid.

• Select all and give filter and click form and ok.
• Select all and five divide surface.
• Select material from properties and choose triangle.

Result.

Thus it created.

5.Aim:

To use dynamo to parametric stadium.

Procedure:

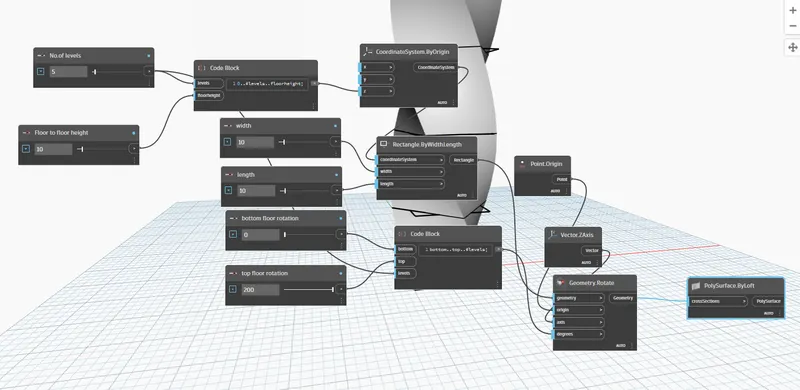

• Open revit file and go to dynamo.

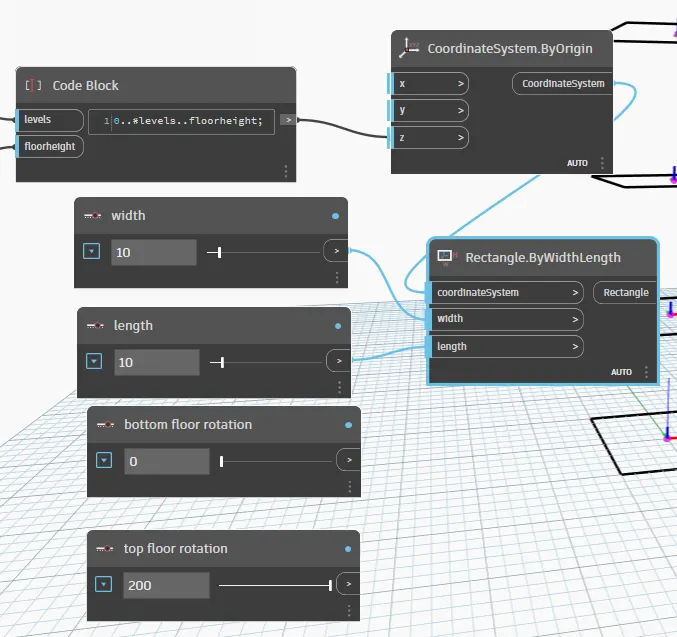

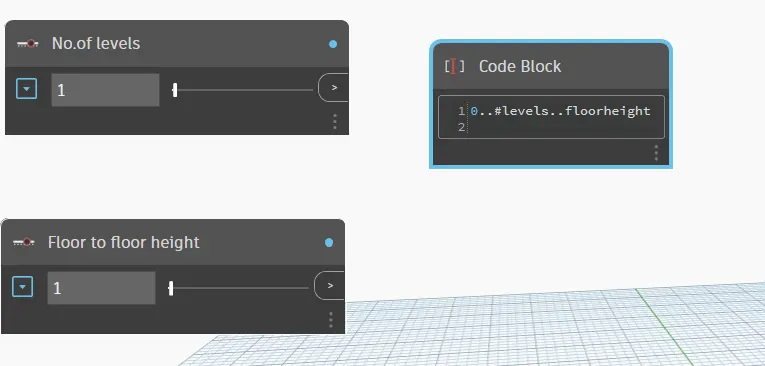

• And create integer slider and name them as no of levels and floor to floor height.
• Now add a code blocks

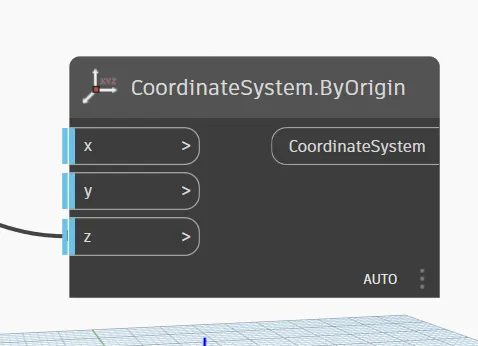

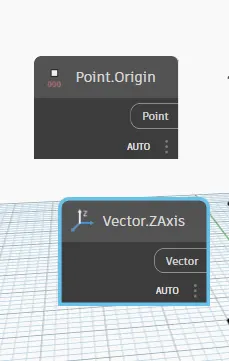

• Then add origin by coordinate system.And join the code block to Z axis.

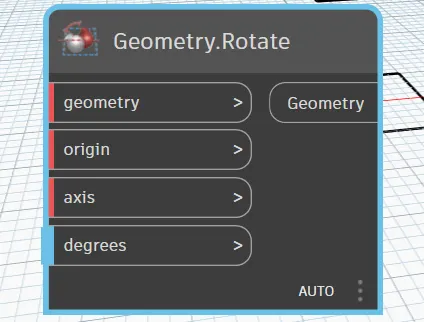

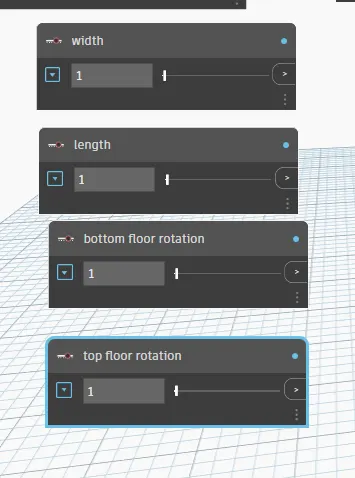

• Then add integer sliders and name them as width length bottom floor rotation and top floor rotation.

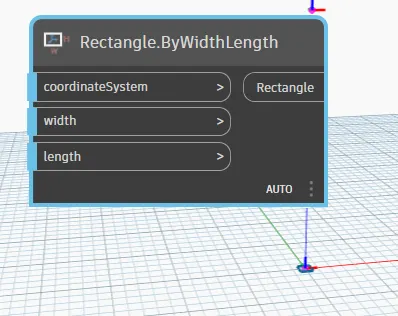

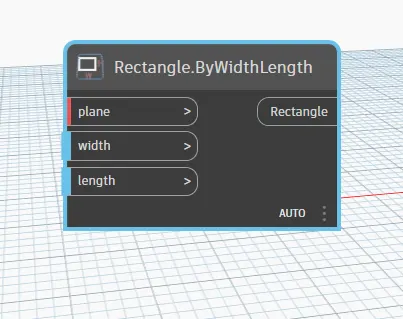

• Now to draw rectangle take rectangle by width and length
• And choose a coordinates and join them.

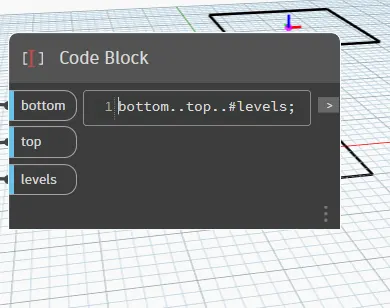

• Add another code block

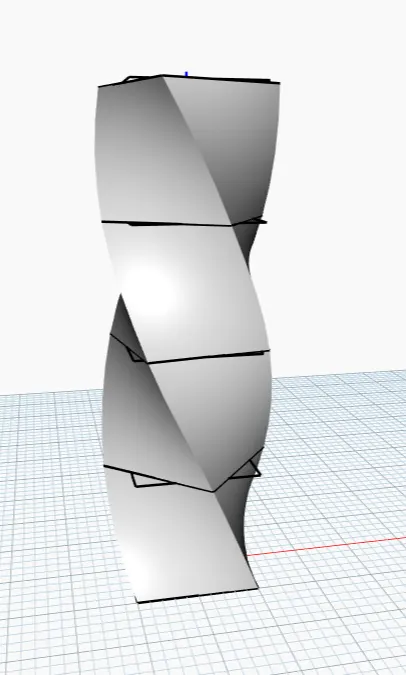

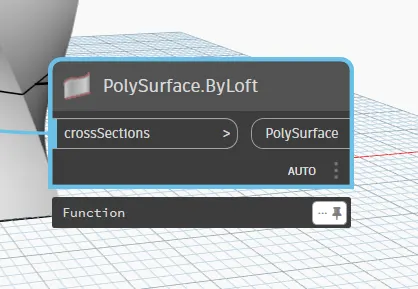

• Poly surface loft to cover.

Result:

Thus the parametric is created.
