Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo

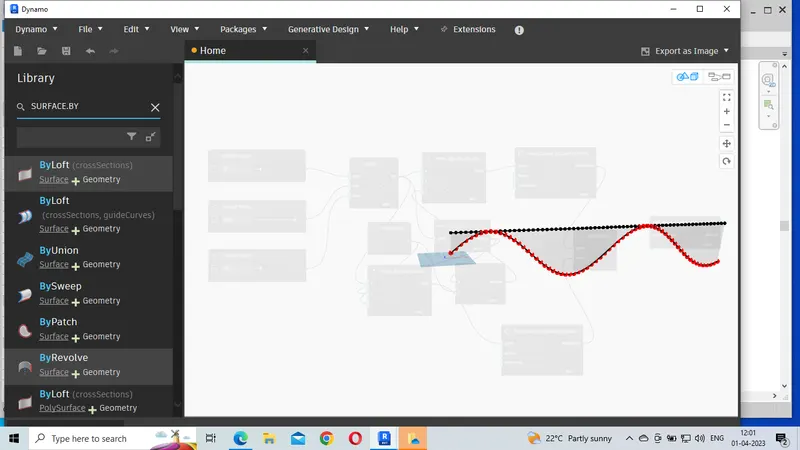

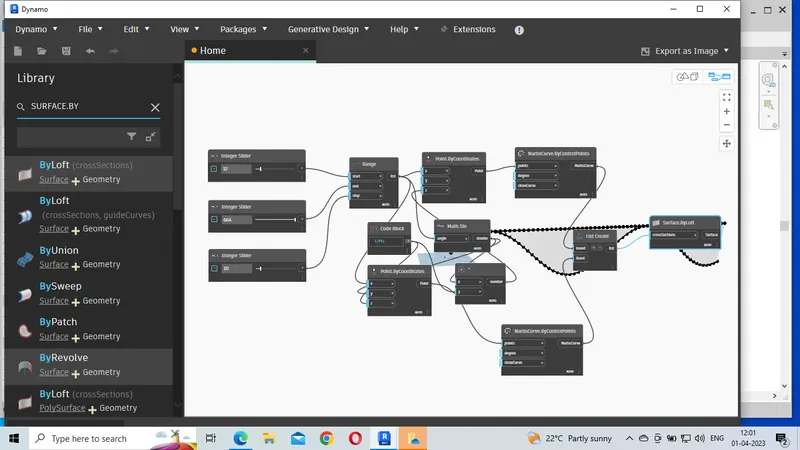

ANS 1. AIM- TO CREATE A SET OF SINUSOIDAL POINTS AND CREATE A CURVE.

PROCEDURE- 1.WE USE INTEGER SLIDER TO GIVE NUMBERS.

2. WE CONNECT IT TO THE RANGE WHICH GETS CONNECTED TO MATH.SIN FUNCTION.

3. THIS IS CONNECTED TO THE PRODUCT FUNCTION WHICH GIVES THE AMPLITUDE FUNCTION.

4. THIS IS FOLLOWED BY THE LINK CREATE COMMAND.

5. THE OBJECT IS CREATED WITH THE USE OF SURFACE LOFT COMMAND WHICH GIVES THE SURFACE TO THE FIGURE.

RESULT- THE DESIRED AIM IS ACHIEVED.

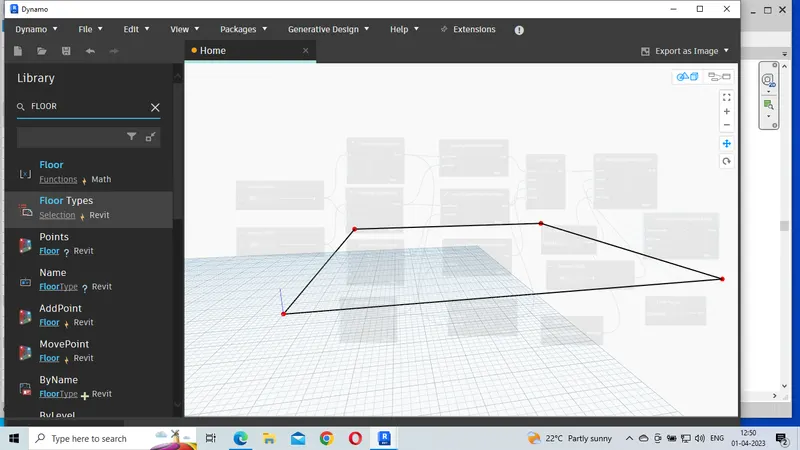

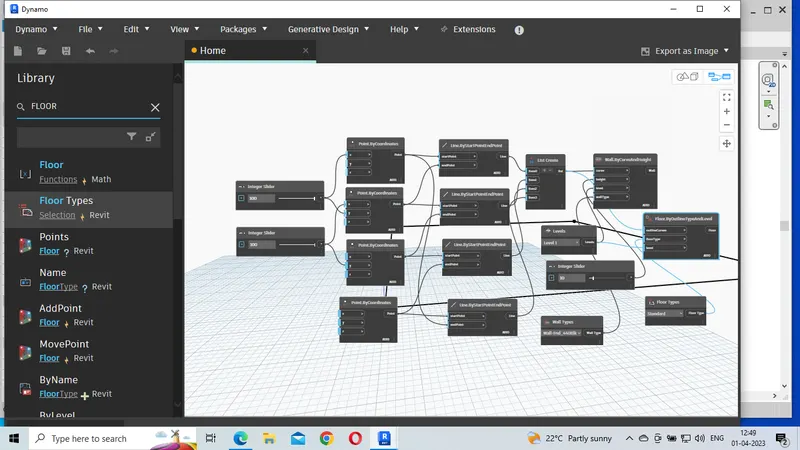

ANS 2. AIM- TO CREATE CONCEPTUAL MASS OF A FLOOR PLAN.

PROCEDURE- 1. THE FIRST USE OF INTEGER SLIDER IS MADE FOLLOWED BY POINT BY CORDINATES.

2. IT IS FOLLOWED BY THE COMMAND LINE BY START AND END POINT.

3. IT IS FOLLOWED BY LIST CREATE AND WALLS BY HEIGHT AND CURVE.

4. FLOOR IS CREATED BY FLOORS BY OUTLINE AND TYPE.

RESULT- THE DESIRED ACTION IS ACHIEVED.

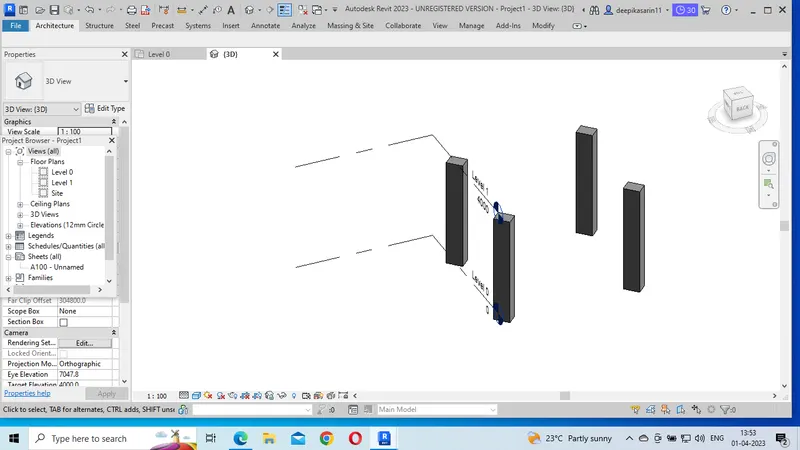

ANS 3. AIM- CREATE AN ARRAY OF MODEL ELEMENTS.

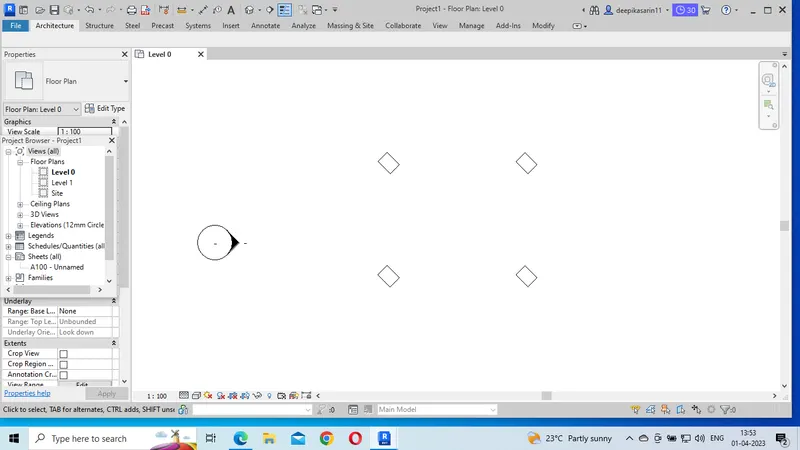

PROCEDURE- 1. OPEN THE ARCHITECTURAL TEMPLATE FILE.

2. THEN GO TO THE ARCHITECTURAL COLUMN AND CREATE A COLUMN.

3. CREATE AN ARRAY OF COLUMN.

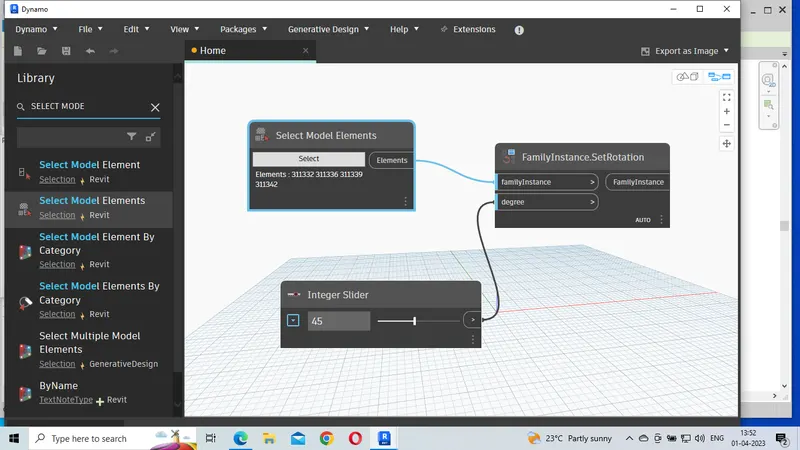

4. WE CAN NOW OPEN A DYNAMO FILE.

5. WE CAN GO FOR SELECTING MULTIPLE ELEMENTS.

6. WE CAN ALSO CHOOSE AN INTEGER SLIDER.

7. WE CAN CONNECT THE ABOVE ELEMENTS WITH ROTATE COMMAND.

RESULT- THE DESIRED AIM IS ACHIEVED.

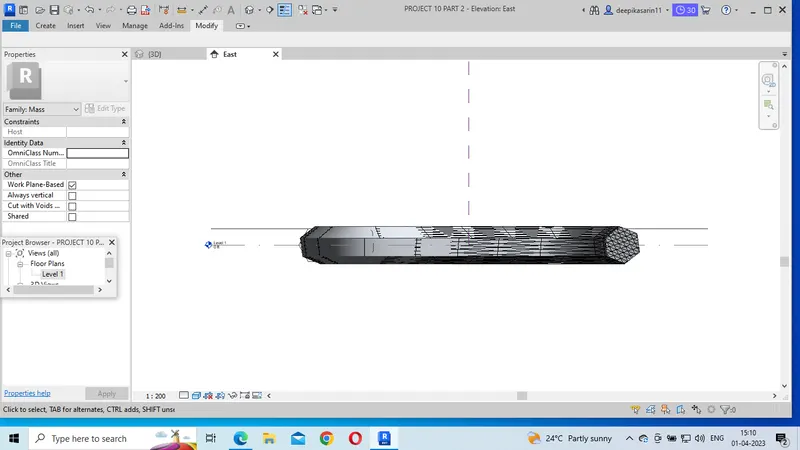

ANS 4. AIM- TO CREATE CONCEPTUAL MASS IN REVIT.

PROCEDURE- 1. GO TO THE FAMILIES SECTION IN START OF REVIT AND CHOOSE CONCEPTUAL MASS.

2. THEN CHOOSE METRIC MASS AND THE REFRENCE PLANE IS CREATED.

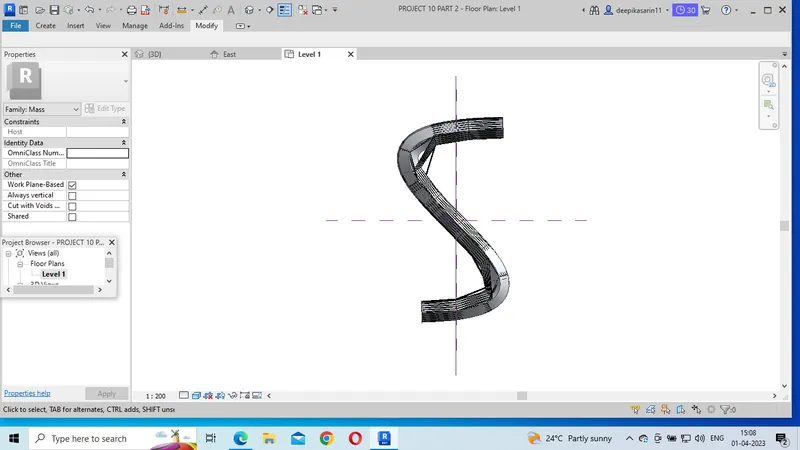

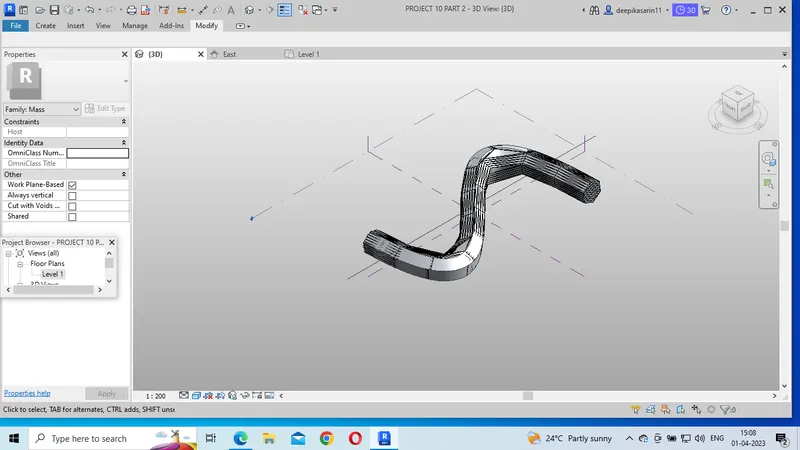

3. WE THEN CHOOSE THE SPLINE CURVE AND MAKE IT S SHAPED.

4. AT CONTROL POINTS, WE WILL CREATE THE PLANE.

5. WE THEN WILL CLICK ON CIRCUMSCRIBED POLYGON AND CREATE THEM AT THE CONTROL POINTS.

6. THEN CHOOSE THE SPLINE CURVE AND THE POLYGON AND PRESS ON CREATE A FORM OPTION.

7. WE WILL SEE THE FORM CREATED.

8. WE CAN CHANGE THE PROPERTIES OF THE OBJECT BY CLICKING ON THE OBJECT ITSELF.

RESULT- THE DESIRED AIM IS ACHIEVED.

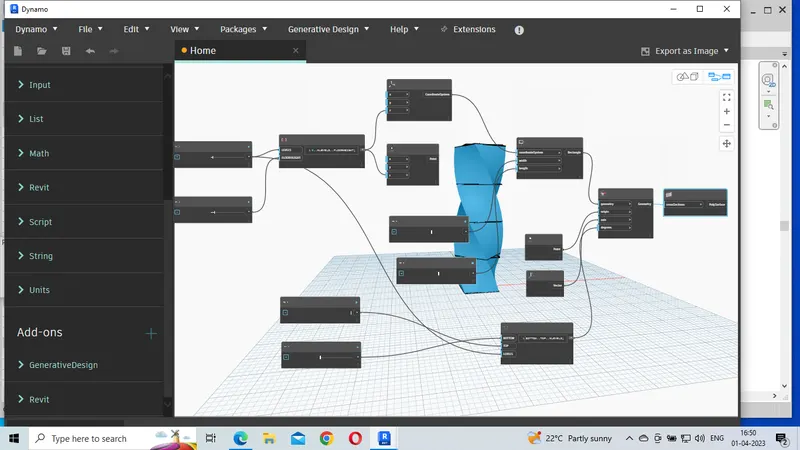

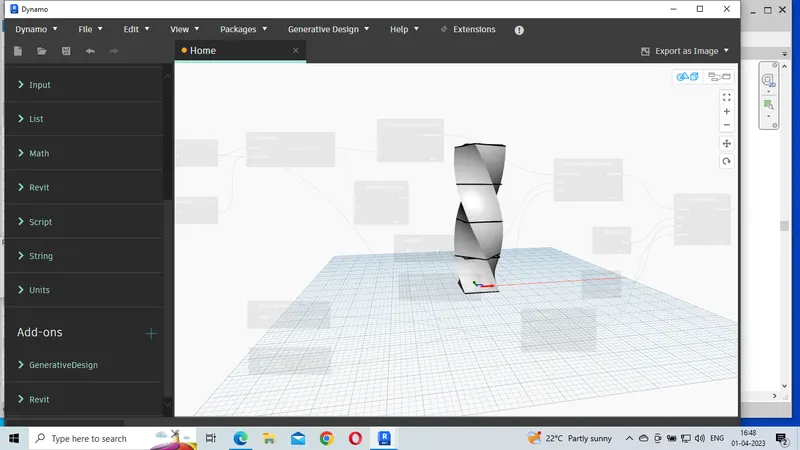

ANS 5. AIM- TO CREATE A PARAMETRIC STADIUM USING DYNAMO.

PROCEDURE- 1. WE WILL ENTER THE NUMBER OF LEVELS AND HEIGHT OF EACH FLOOR.

2. WE WILL ENTER THE WIDTH AND THE LENGTH THROUGH SLIDERS.

3. WE WILL THEN USE RECTANGLE WIDTH COMMAND.

4.THIS IS FOLLOWED BY THE GEOMETRY ROTATE COMMAND.

5. WE WILL USE THE POLYSUFACE LOFT COMMAND TO GIVE THE SURFACE TO THE WHOLE MODEL.

RESULT- THE DESIRED AIM IS ACHIEVED.
