Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo

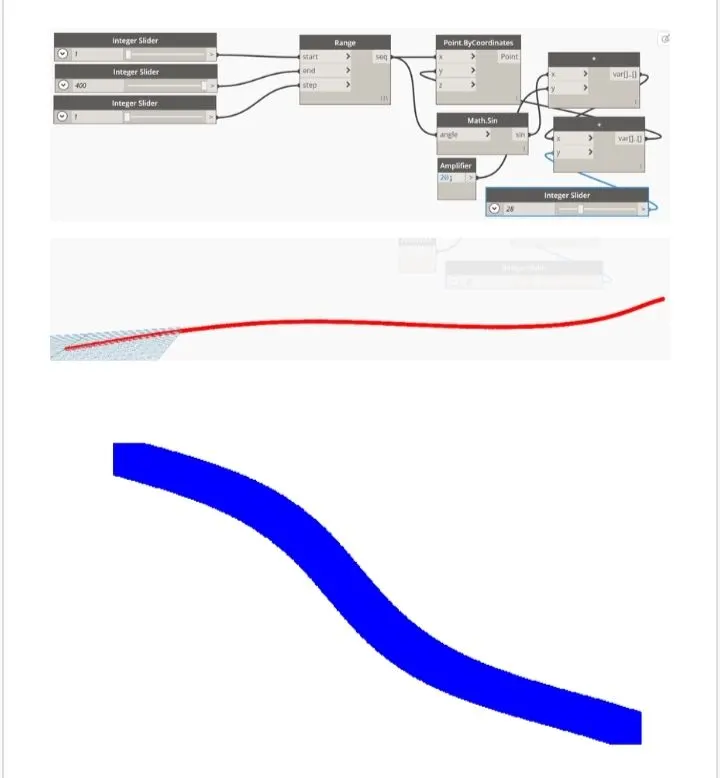

To create a set of sinusoidal points and create a curve and create a surface out of the curve using Dynamo.

PROCEDURE:

step 1:

Open revit > architectural template >manage tab.

click on dynamo.

step 2:

• connect integer slider (numbers and steps) to range to coordinates (x axsis)

• connect range to math.sin product x

• connect amplifier to product y

• connect product to addition x

• coonect number to addition y

• coonect addition to coordinate (y axsis)

step 3:

• lines > NurbsCurve.BycontrolPoints

• connect NurbsCurve.BycontrolPoints (points) to point by coordinates (point)

• connect

NurbsCurve.BycontrolPoints

(degree )to number slider (1 to 5)

step 4:

follow the same for the rest of the lines

list create> connect all the curves

surface > surface by loft > connect it to the list created

2)AIM:

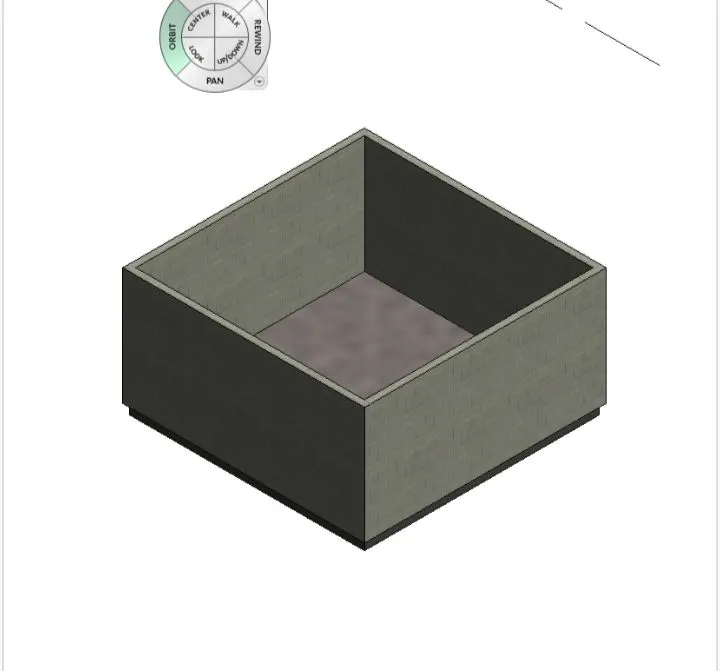

To create a floor, wall layout using dynamo

Procedure:

• open dynamo > New

type points > points by coordinates

• name them x-axsis, y-axsis, xy axsis

• Two integers are added

Type line > by startpoint.end point

• connect the following:

origin - start point & x-axsis - end point

• x-axsis -start point & y-end point

y-axsis -start point & xy -end point

• xy -axsis -start point & x-axsis - end point

• now type floor> byoutline.level

• connect as follows:

• list to outline curves

floor types to floor type

levels to levels

• now type walls >wallbycurveand height

• connect as follow;

• list to curves

height (integer slide) to height

• wall type to wall type

level (level 1) to level.

3)AIM:

To create array of model elements

PROCEDURE:

open revit

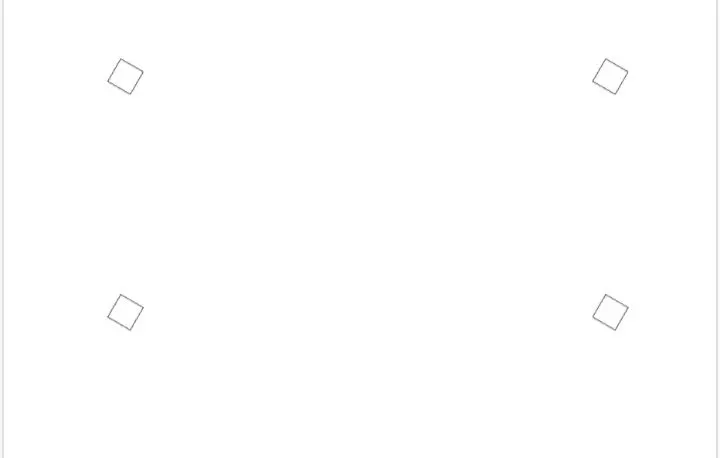

click on the created model > array

open dynamo >new project

select model elements > select the elements from revit

type set rotation, integer slider

connect elements to family instance

integer slider to degree

4)AIM:

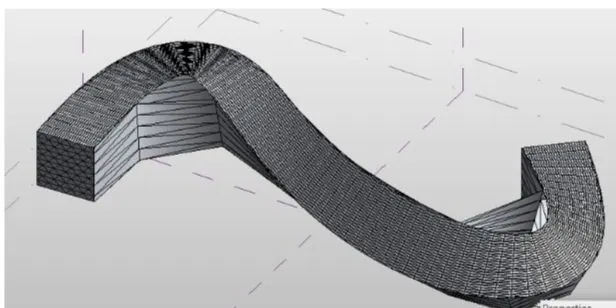

To create conceptual mass in revit

PROCEDURE:

• go level >create height of roof > 10m

• go to height of roof

using spline line create a curve

• at points create workplane > draw circumference polygon > select polygon,spline >create form

• select your form and divide your surface

• click on properties > pattern >triangular bent

5)AIM:

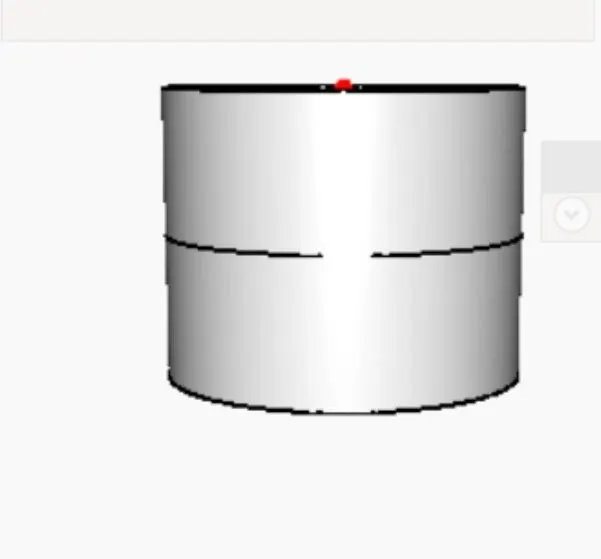

To create a parametric high rise tower PROCEDURE:

• open architectural template in revit > manage tab >dynamo

select integer slider (4)

point by cordinates

point by circle

type polysurface< loft

• connect circle to cross section

• type polysurface< loft

• connect circle to cross section

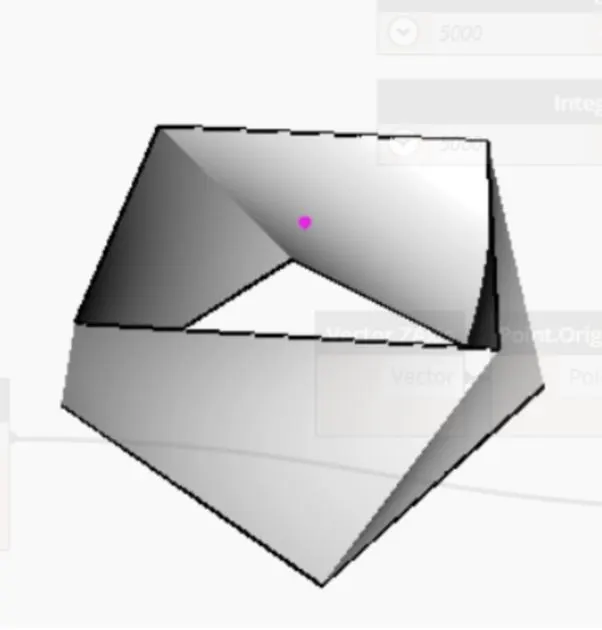

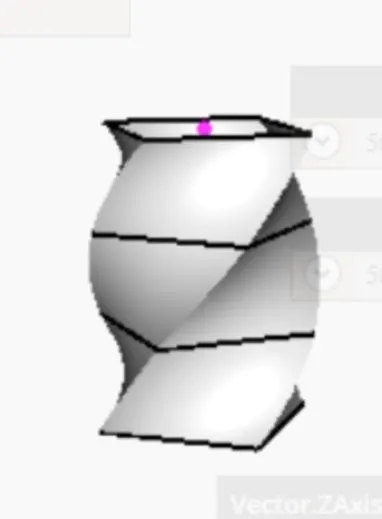

now the same procedure is done for a rectangle

• connect the code block to coordinateSystem .ByOrigin

• connect rectangle to gomentry rotate, connect geometry rotate with the code block which is connected to bottom floor rotation and top roatation.

• Its axsis to z-axsis and connect it to polysurface.
