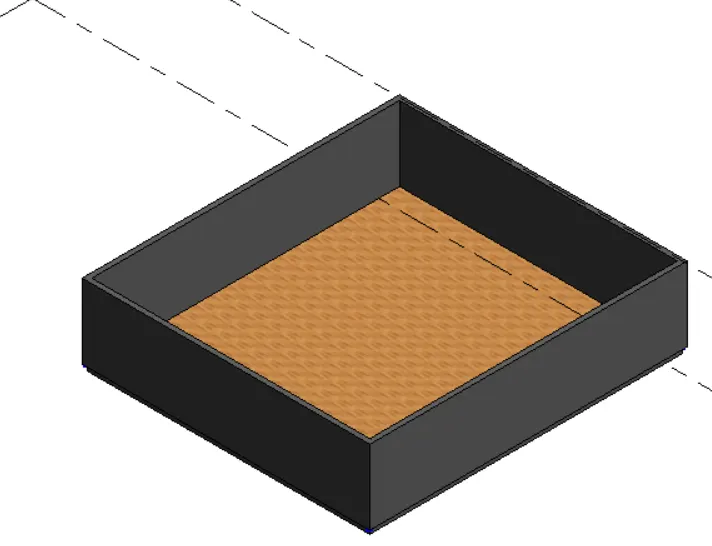

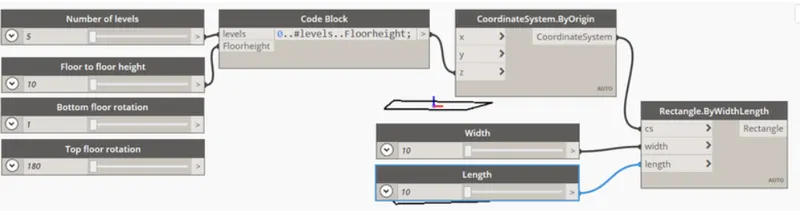

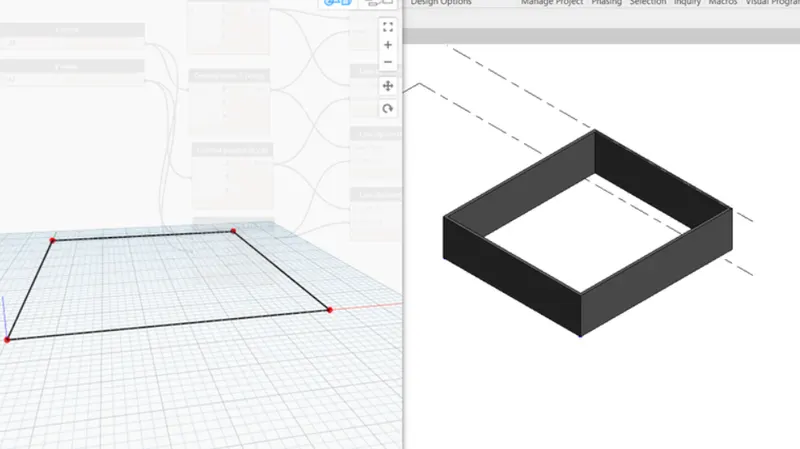

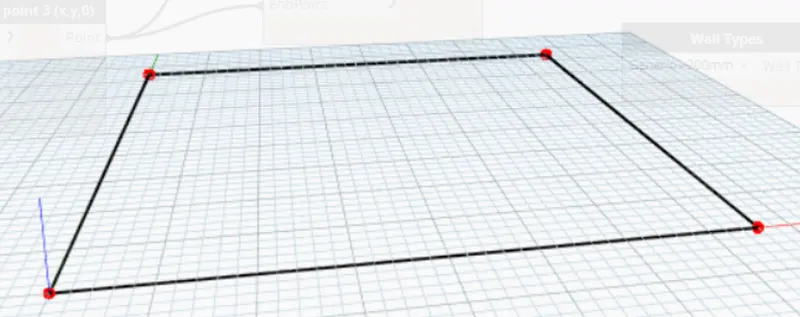

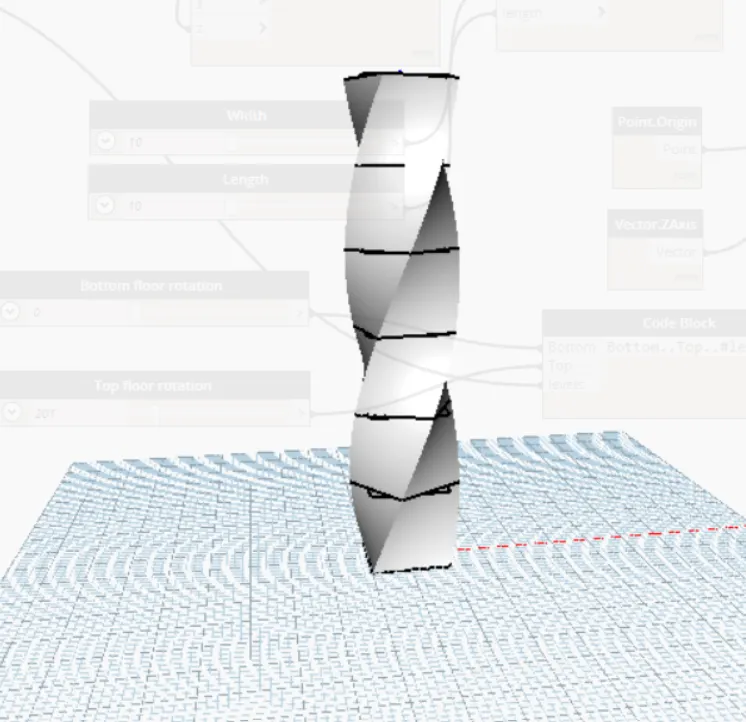

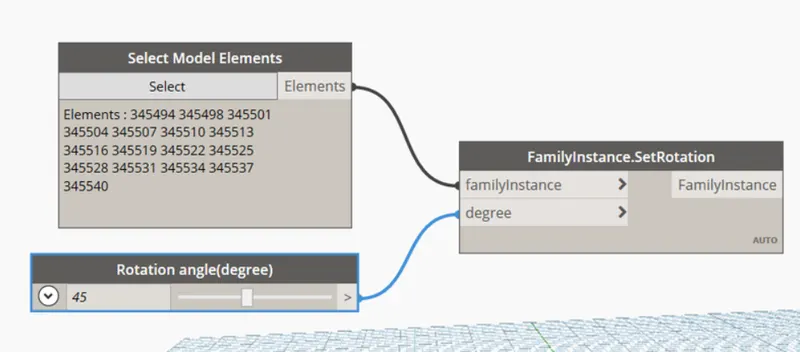

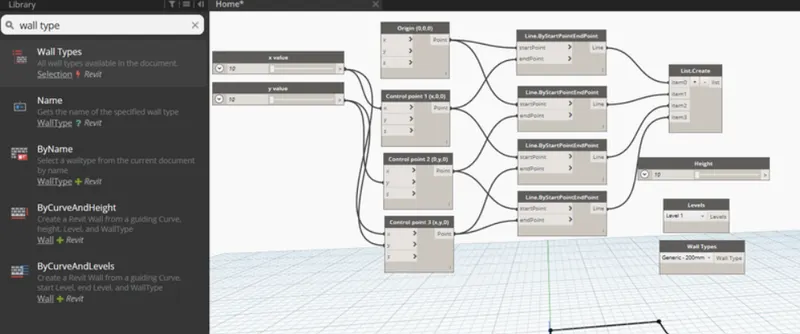

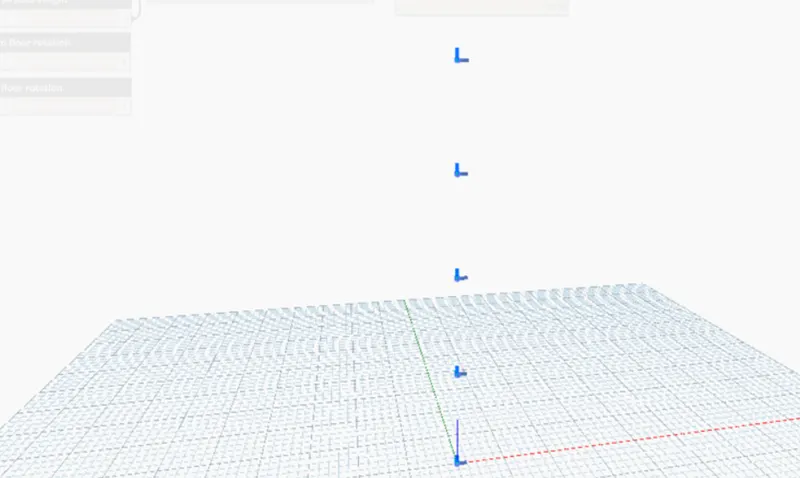

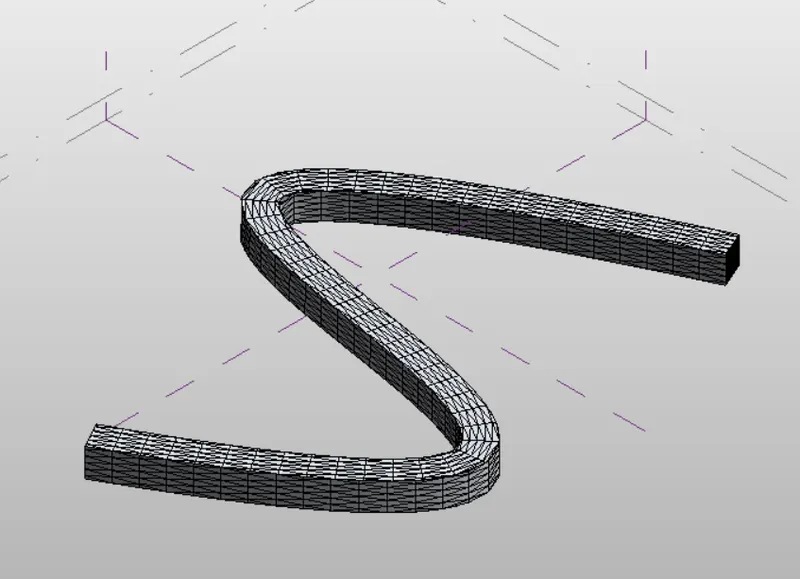

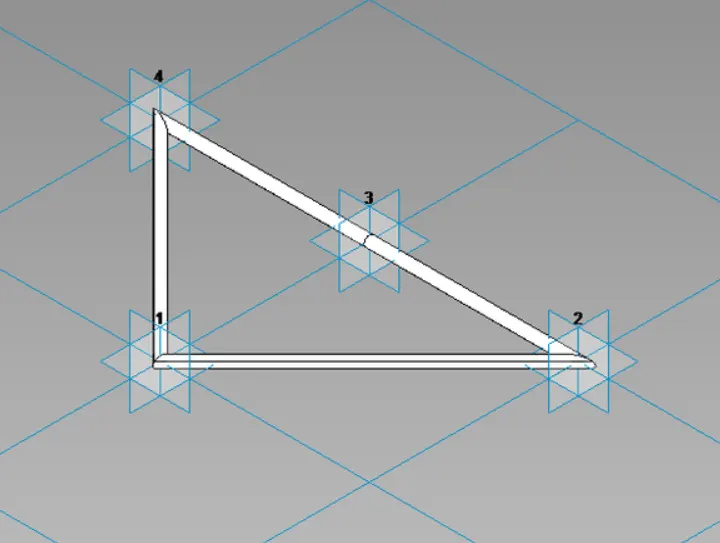

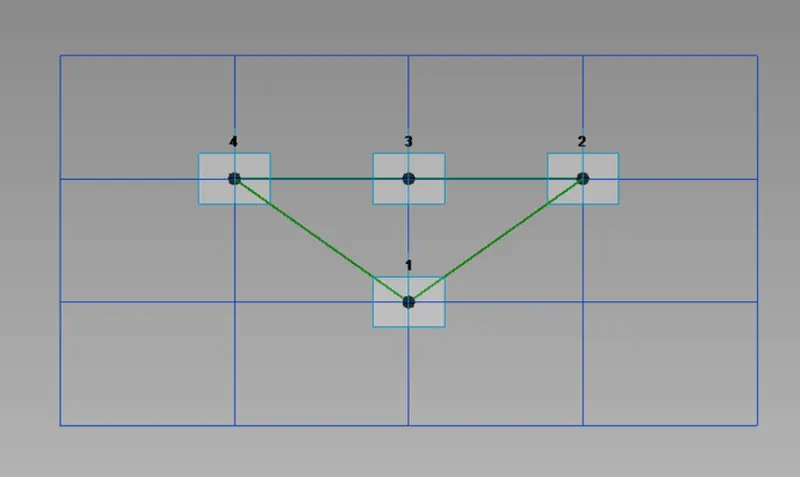

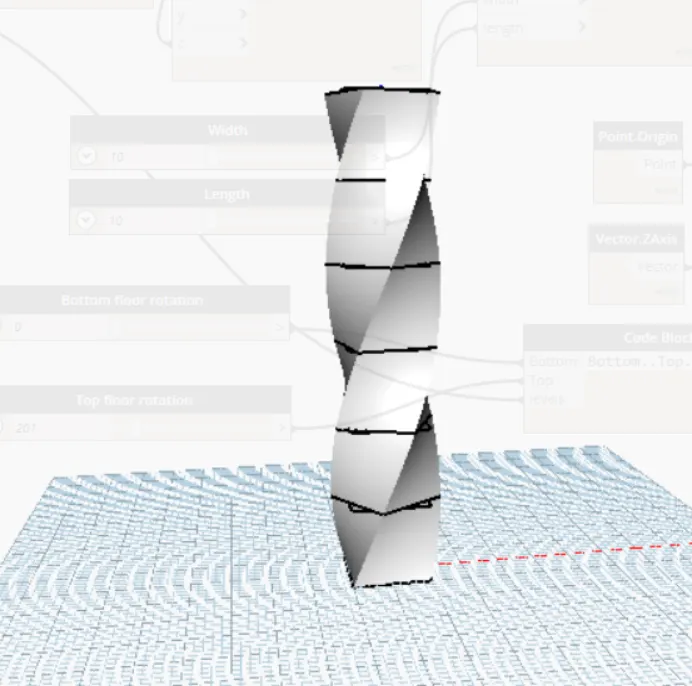

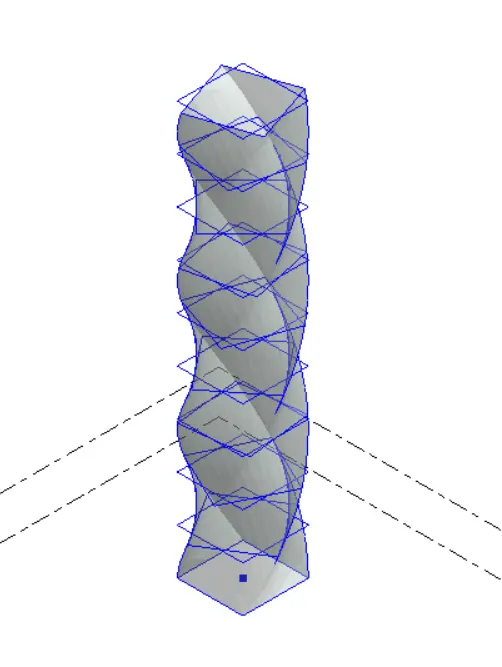

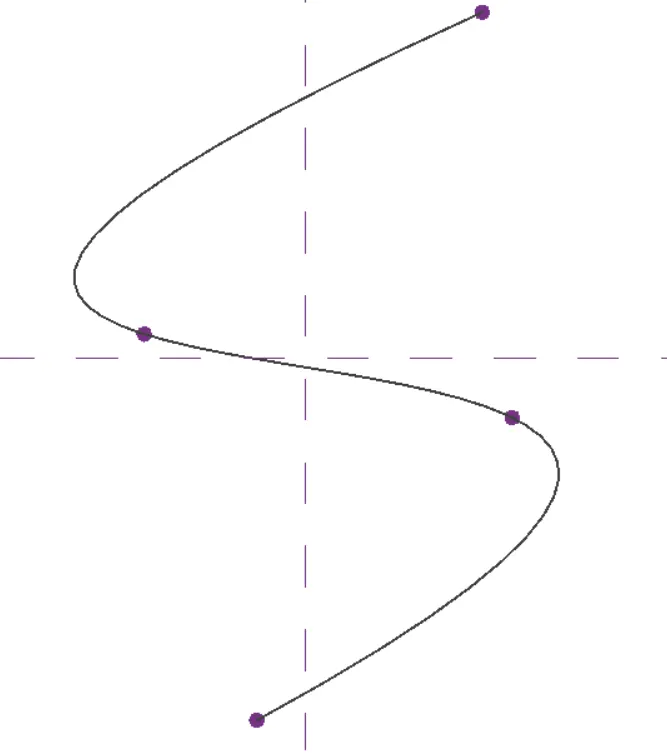

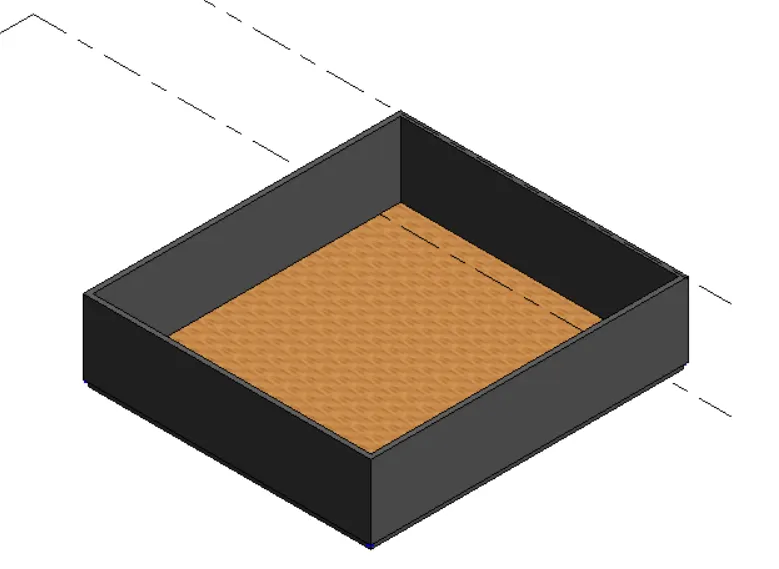

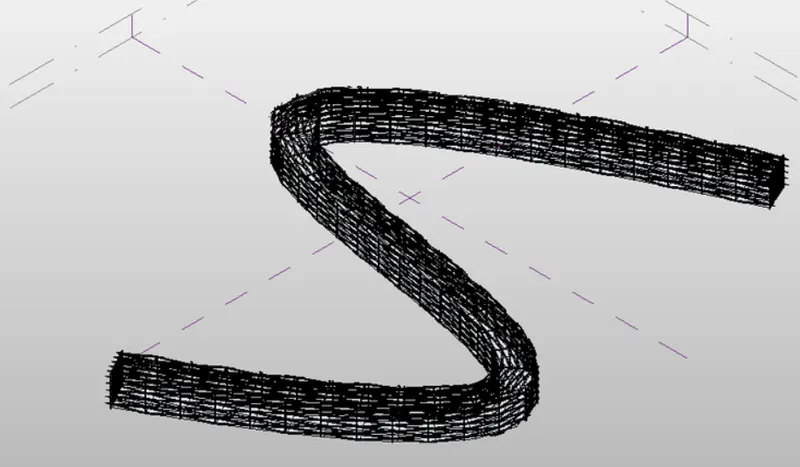

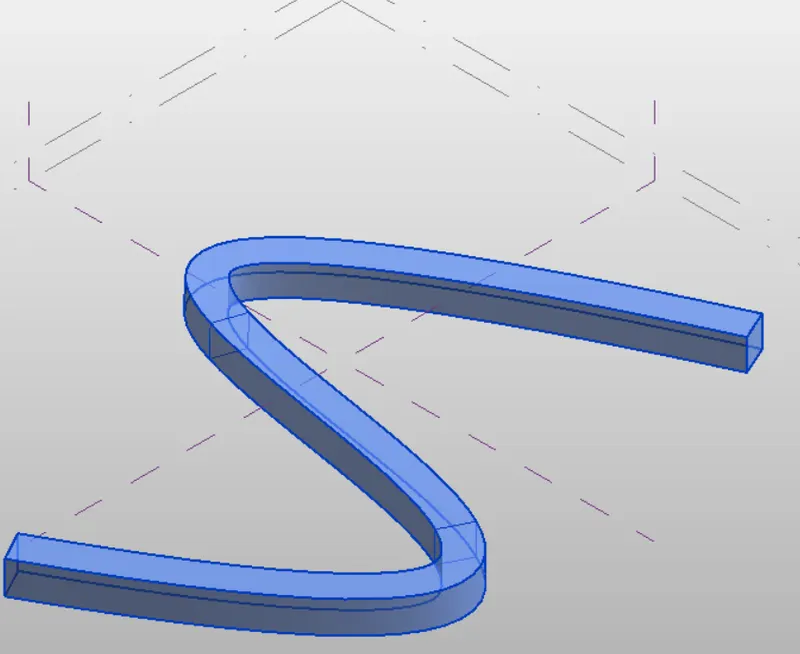

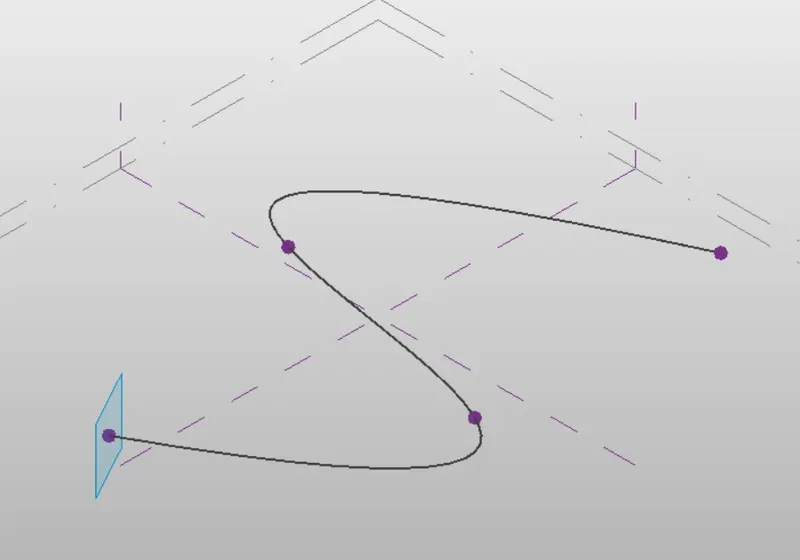

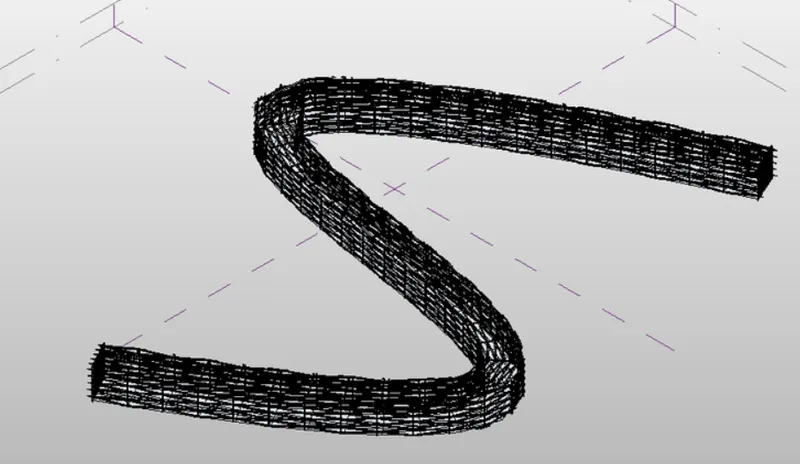

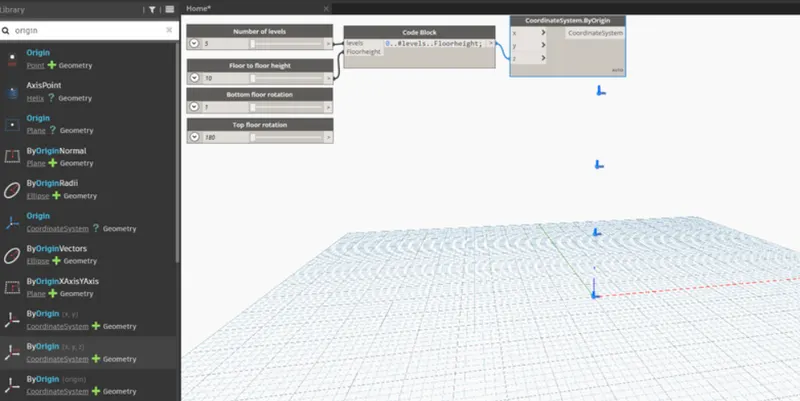

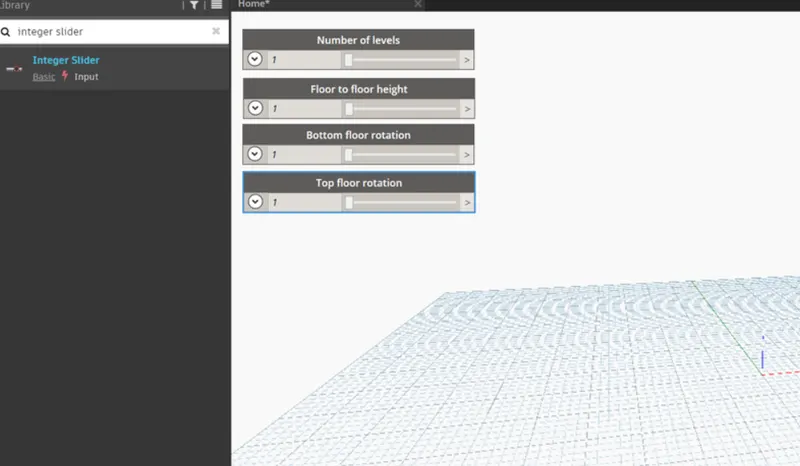

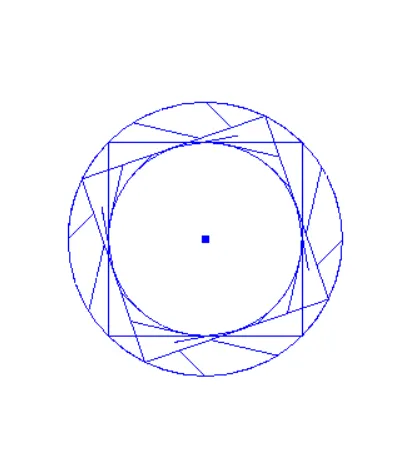

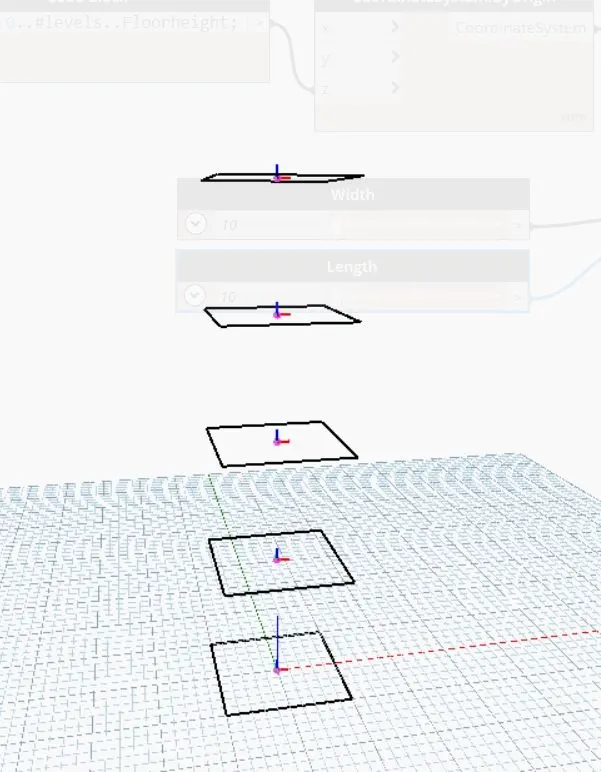

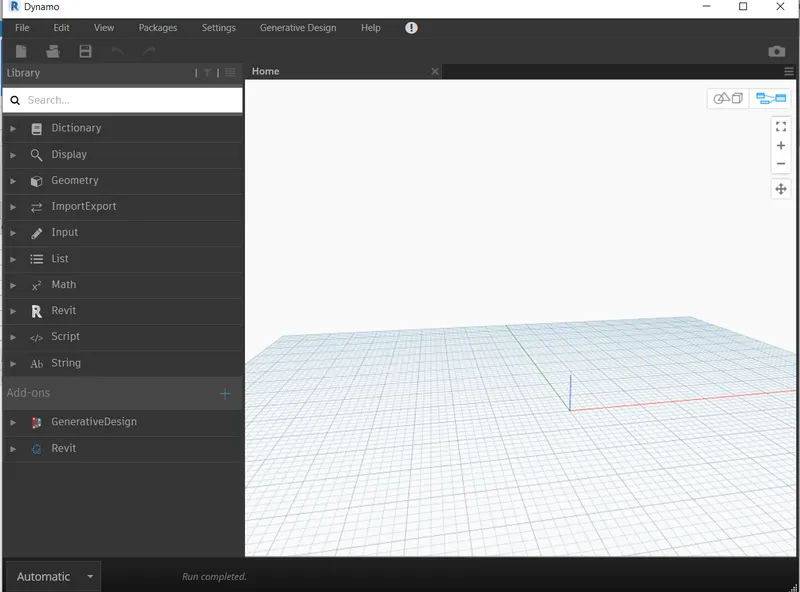

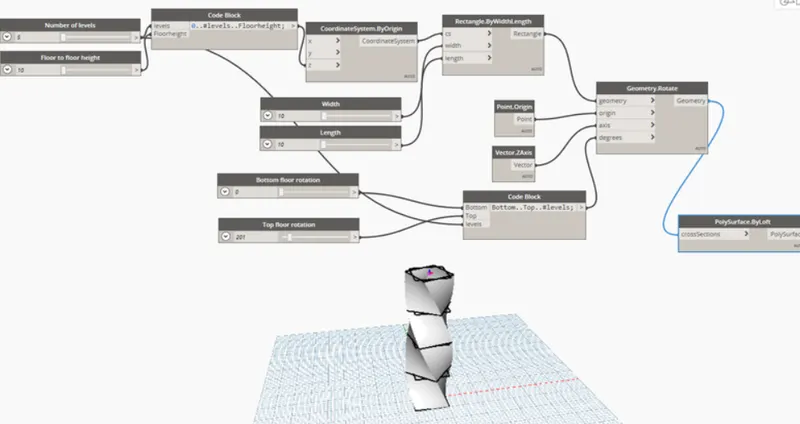

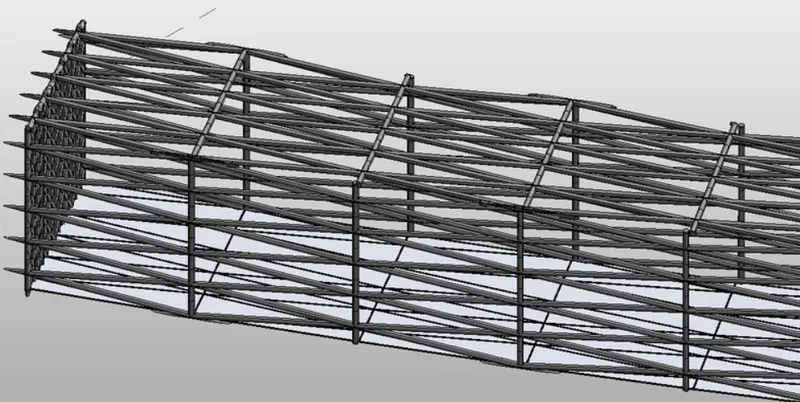

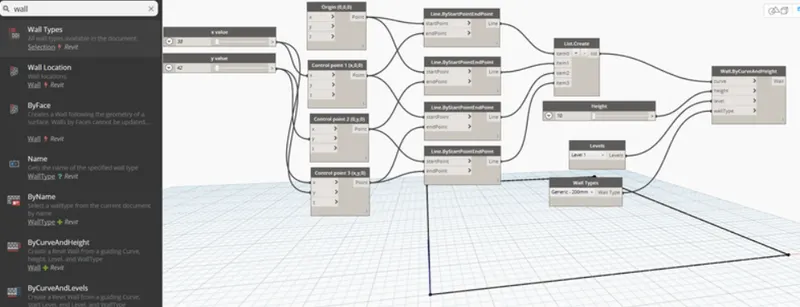

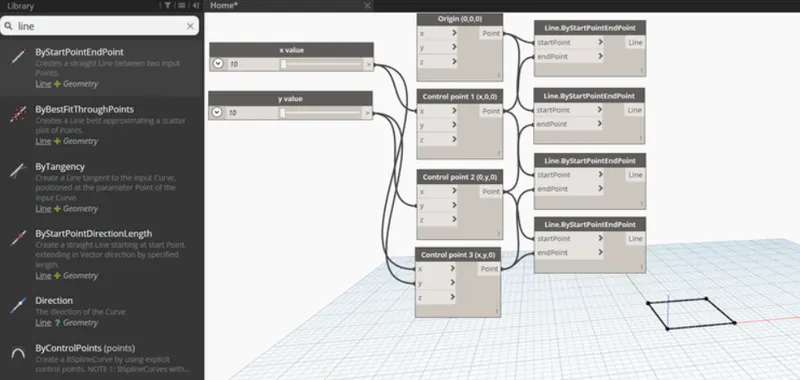

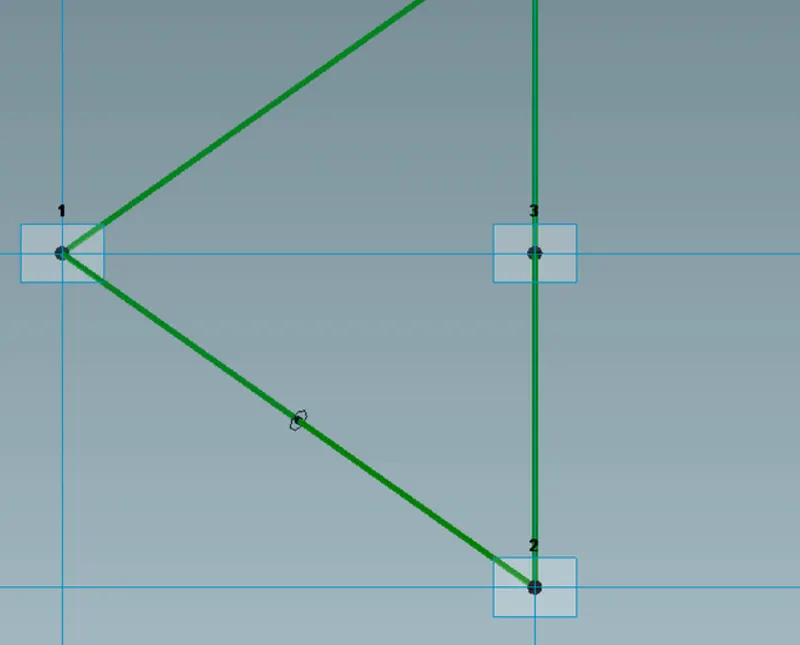

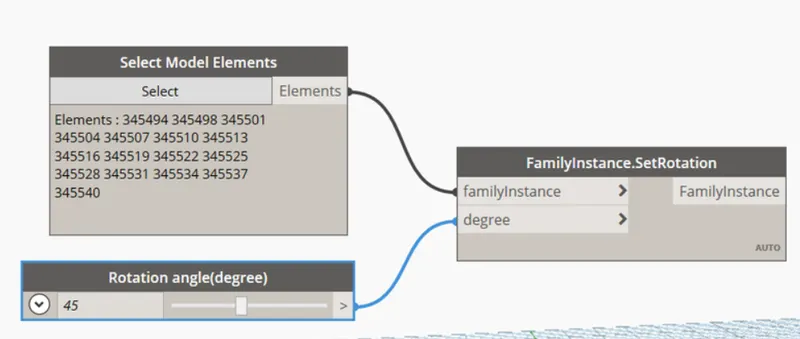

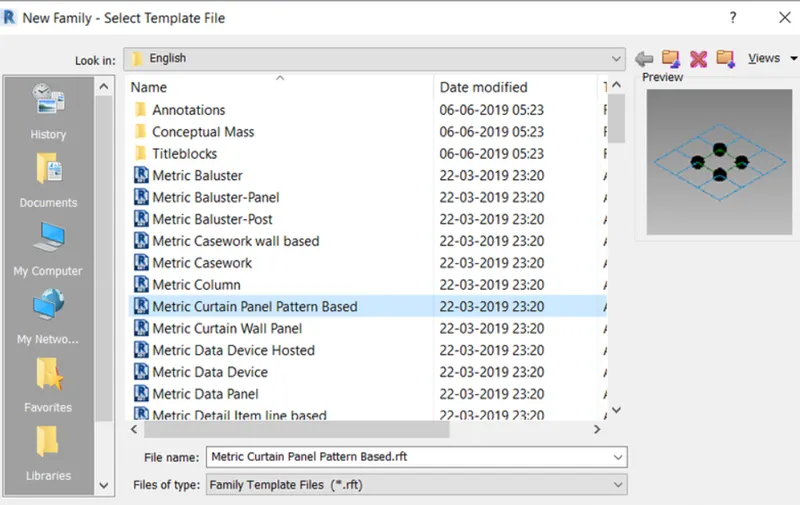

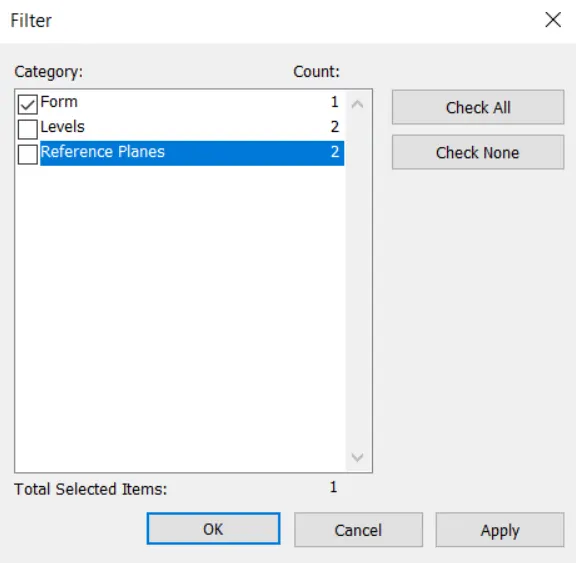

Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo

1. (a) For this, the structure is considered as it is asymmetric in nature. Here, it cannot be considered as a horizontal irregularities and the shear wall shape like L. There are some uncertainty concerning certain features of the seismic response of non-rectangular walls. It occurs lack of tensile capacity and force…

1. 1)Symmertry Having a look over the aspects of symmetry of the framing plan, it is observed that the distribution of mass,Stiffness is across the plan;it is observed that the distribution of mass, stiffness is across the plan.It is considered for one of the good Symmetrical aspects.This tends to reduce the horizontal…

AIM:-              To compute Ln , Mn and Γn for each of the five modes from the given equations.             To calculate the effective modal mass Mn* and the modal mass participating ratio for the 5 modes.    …

1. STATIC ANALYSIS Static analysis can only be performed if the system being simulated does not depend on time,and if the loads being applied are constant. Static analysis don't consider inertia. Static refers to the force that has constant size,position and direction on or within a structure  There is no necessity…

  QUESTION-1 a) This crack will be formed due to the flexural failure of a beam. The flexural strength, known as modulus of rupture, bend strength, or fracture strength, is a material property, defined as the stress in a material just before it yields in a flexure test. The…

1)   Aim:-       To export the Revit file into the Naviswork file.   Procedure:- First, install the Navsiworks Exporter same as Revit version Goto structural File of week 7 > open it > export to NWC. file  then save it as NWC file Architectural file Add file both structural and…

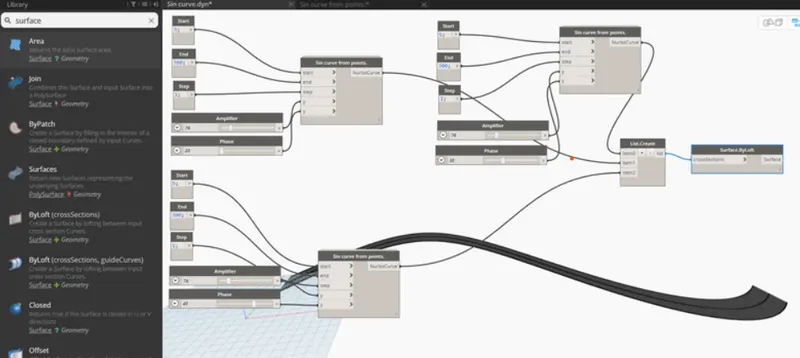

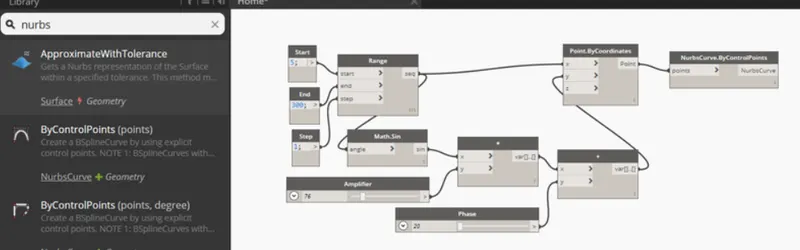

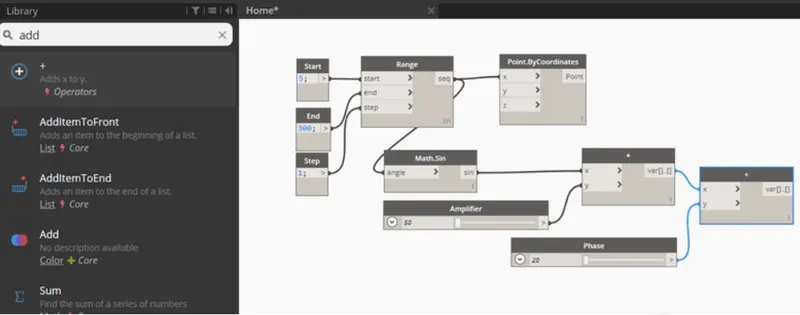

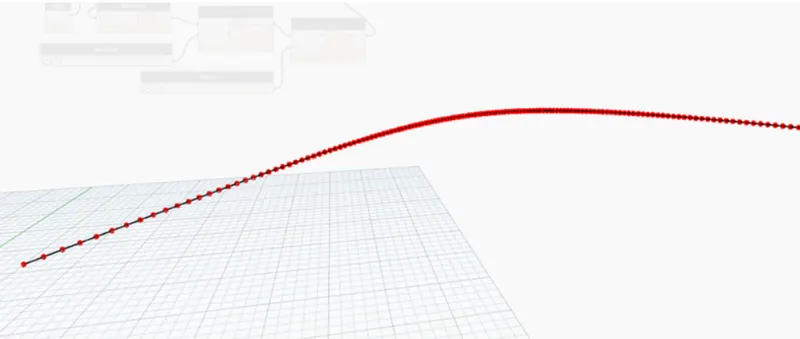

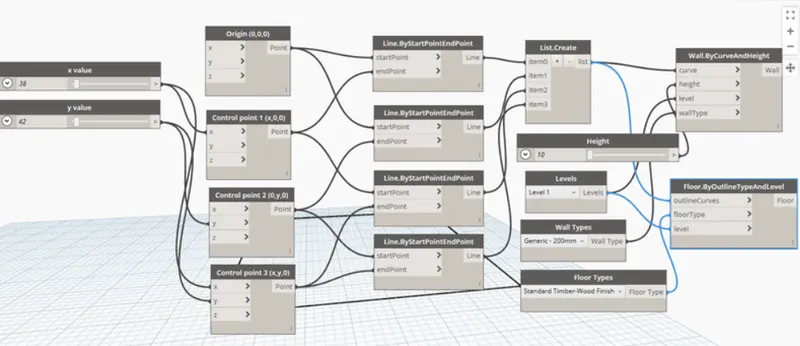

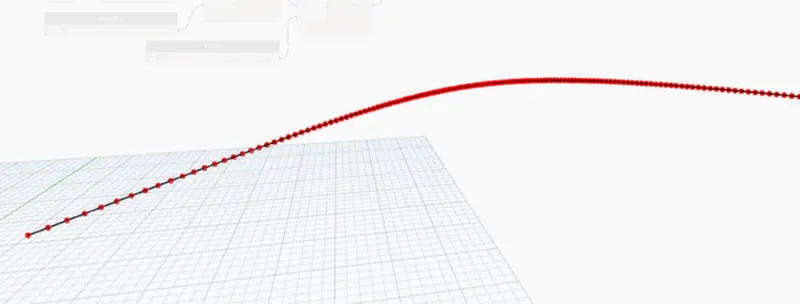

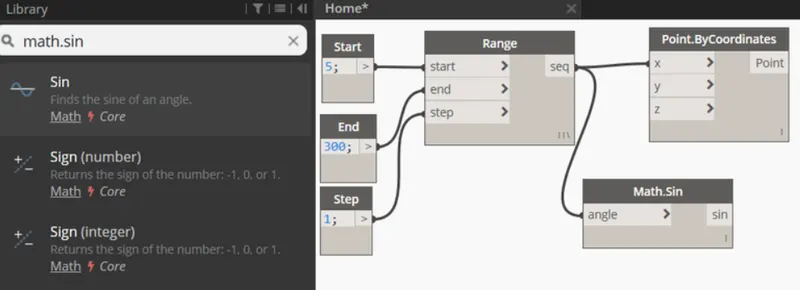

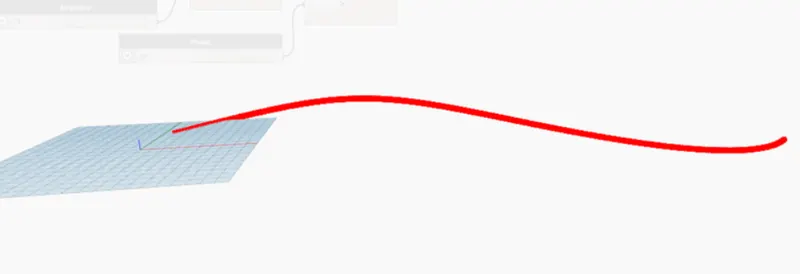

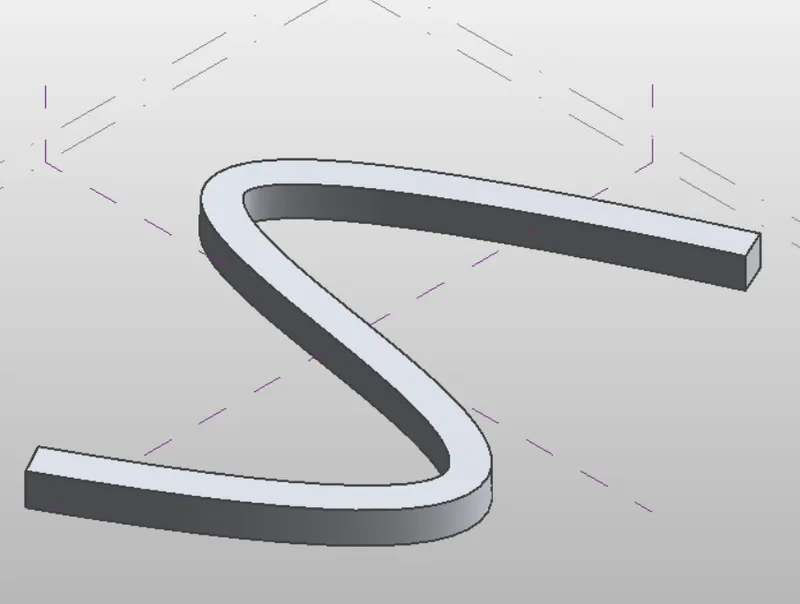

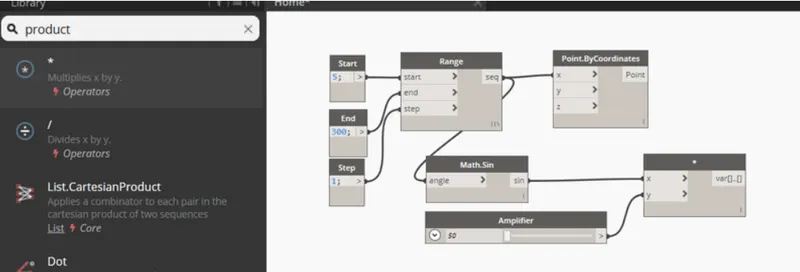

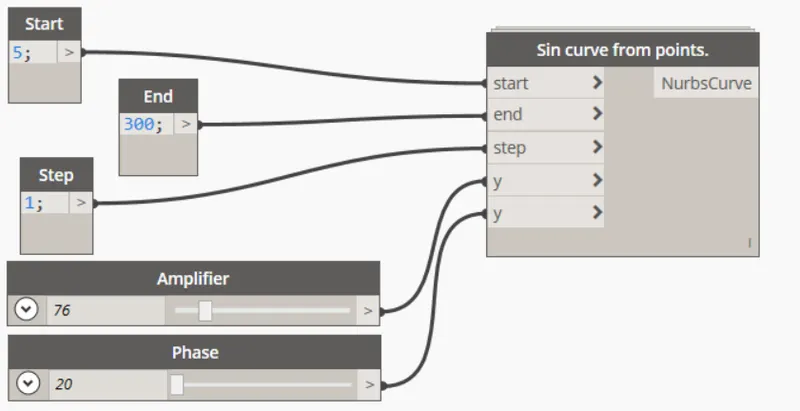

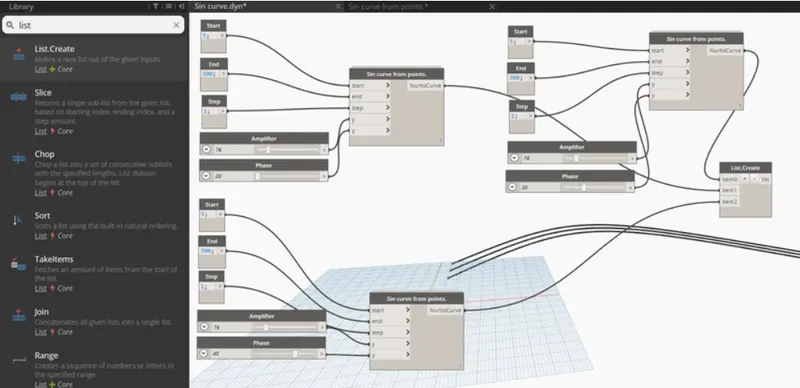

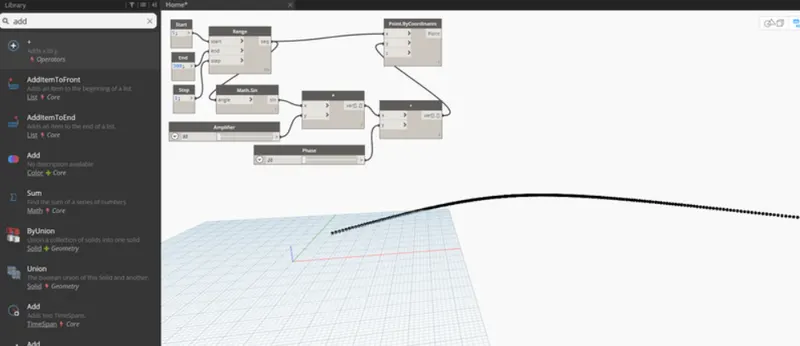

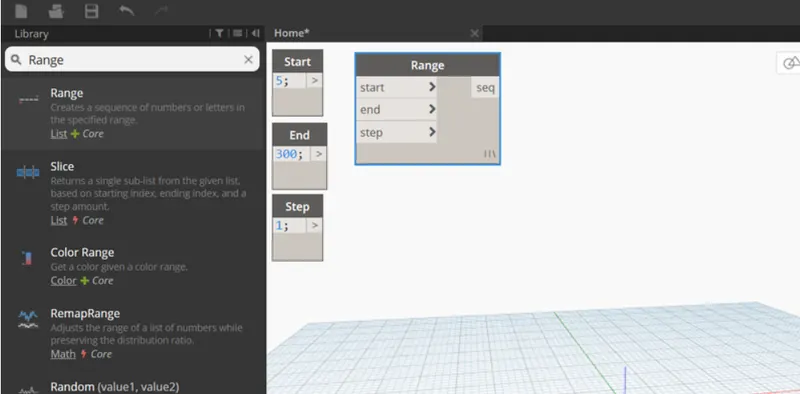

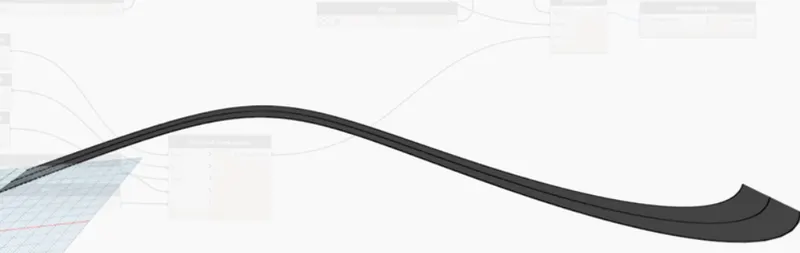

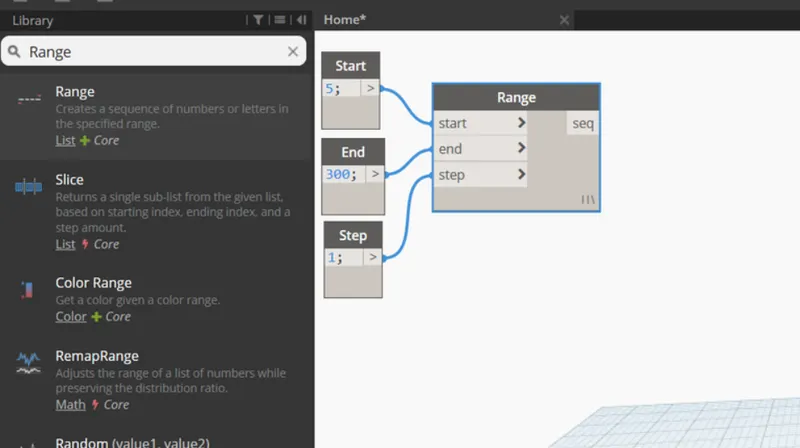

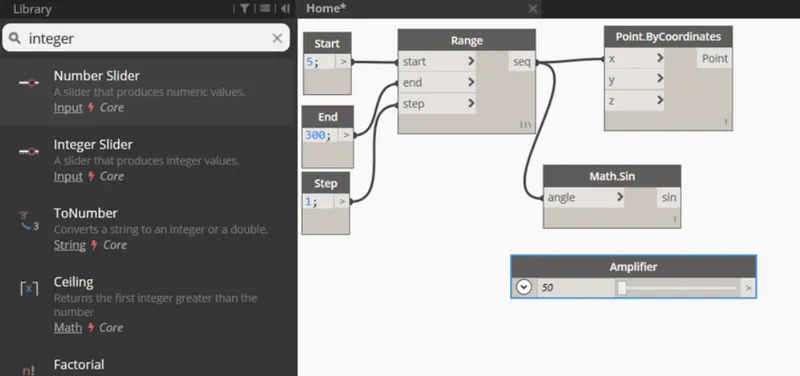

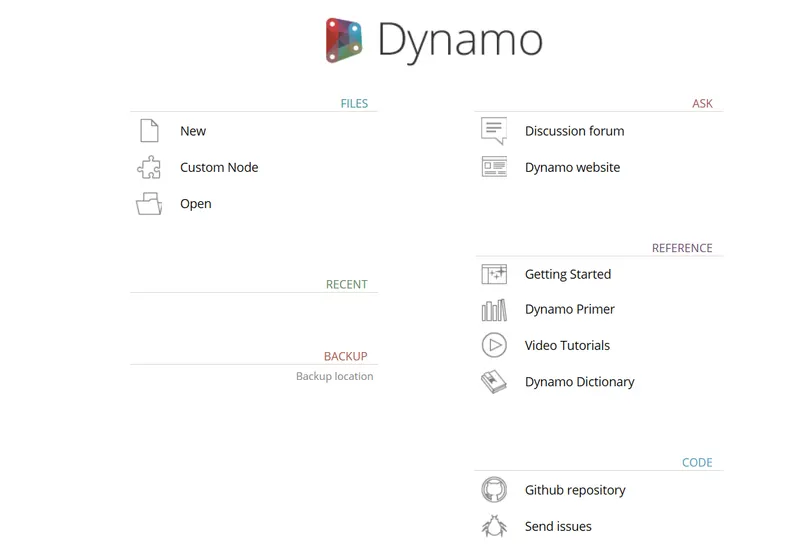

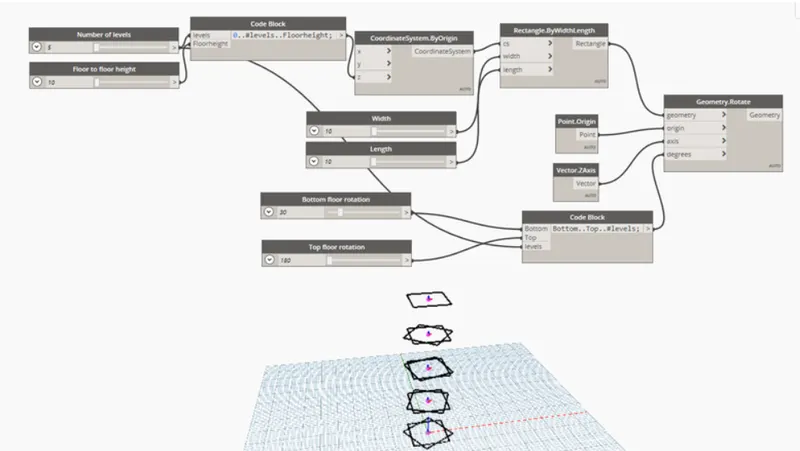

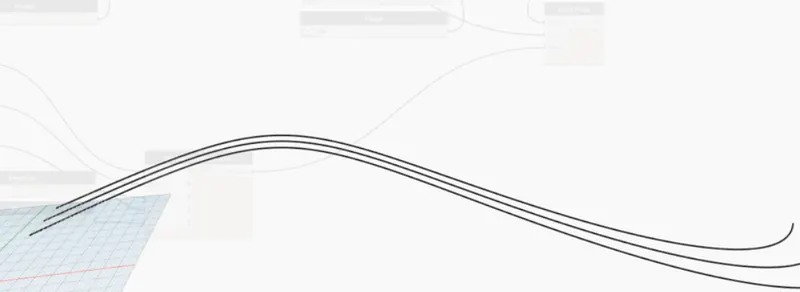

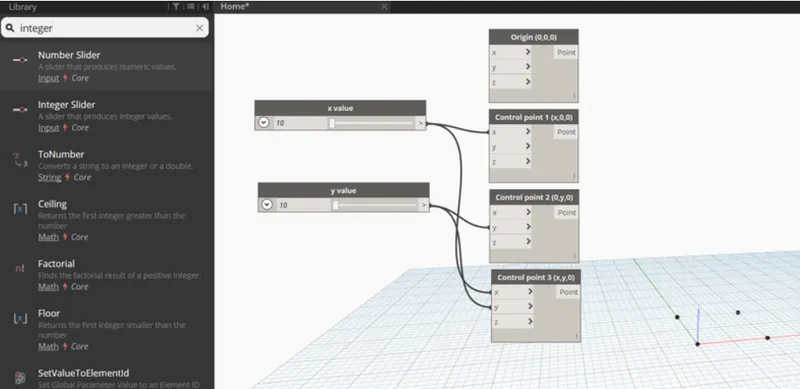

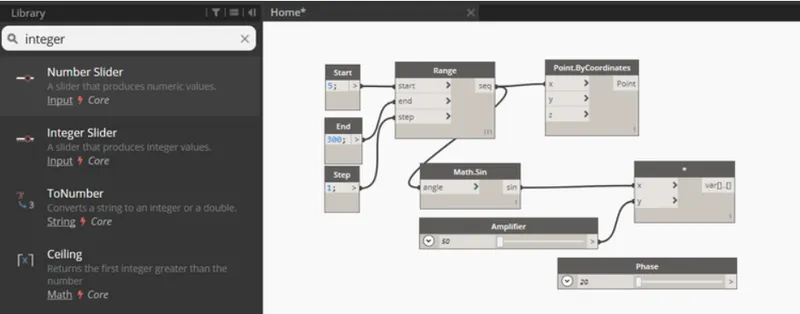

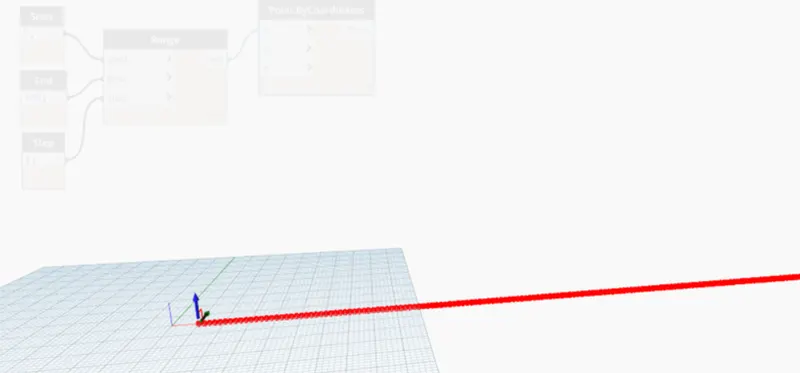

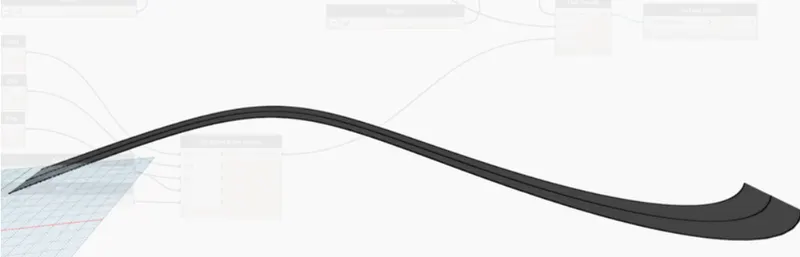

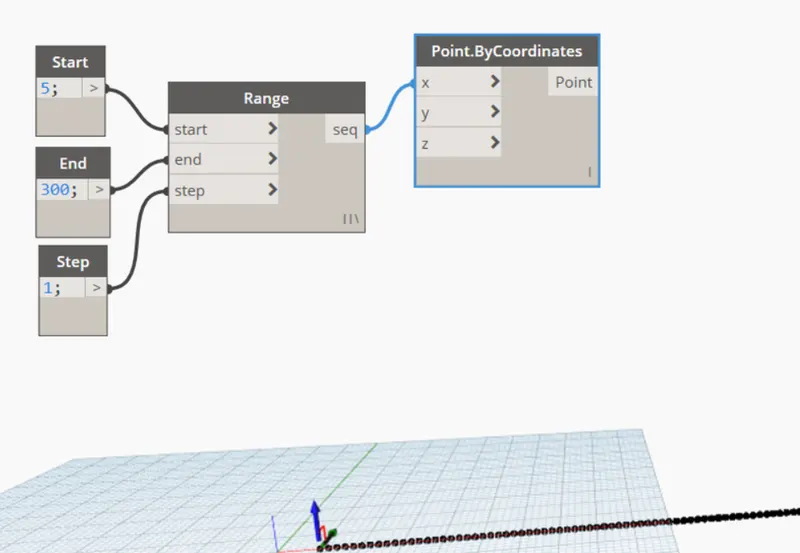

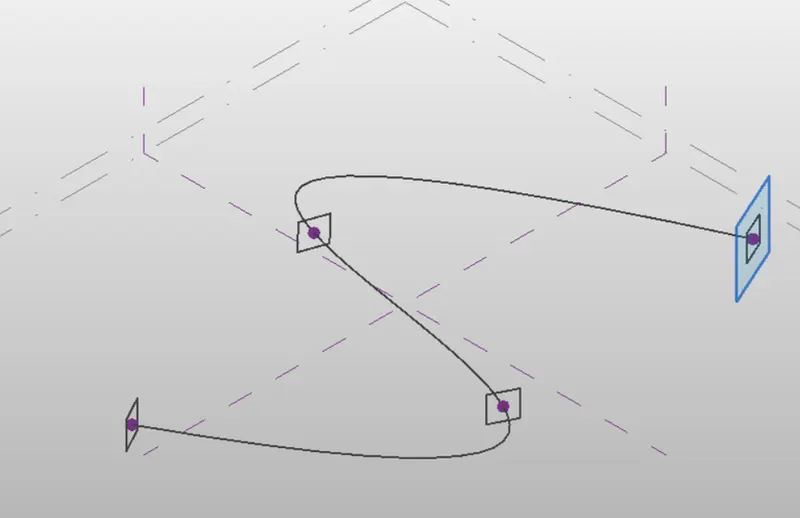

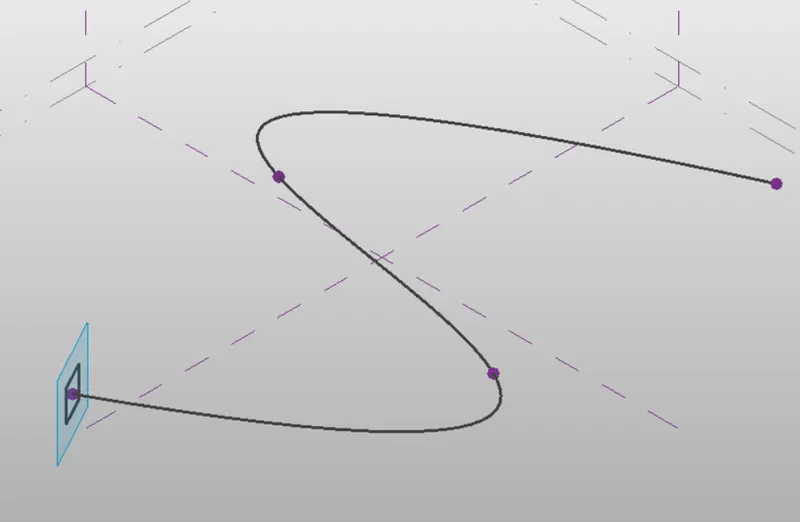

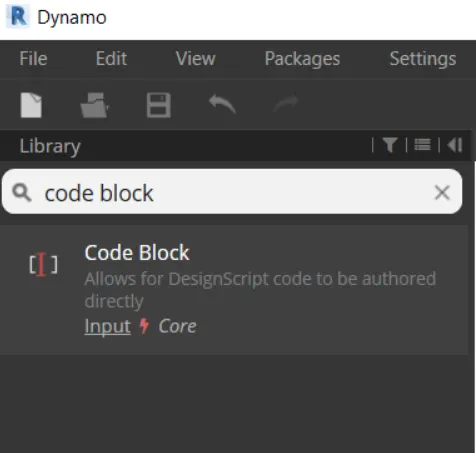

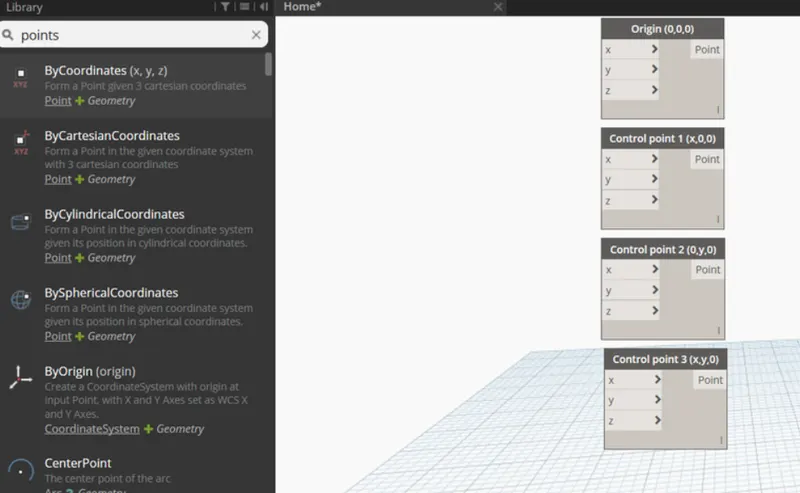

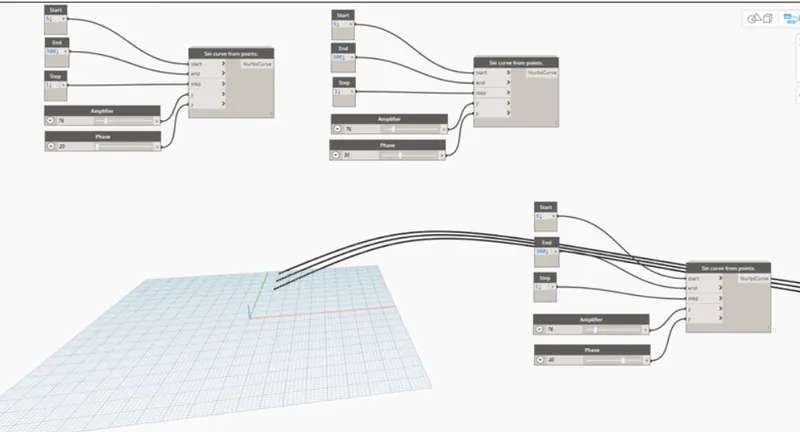

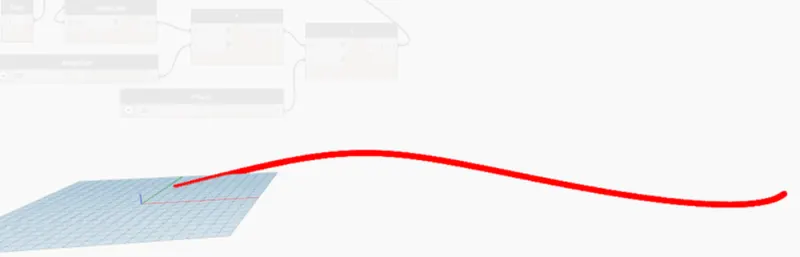

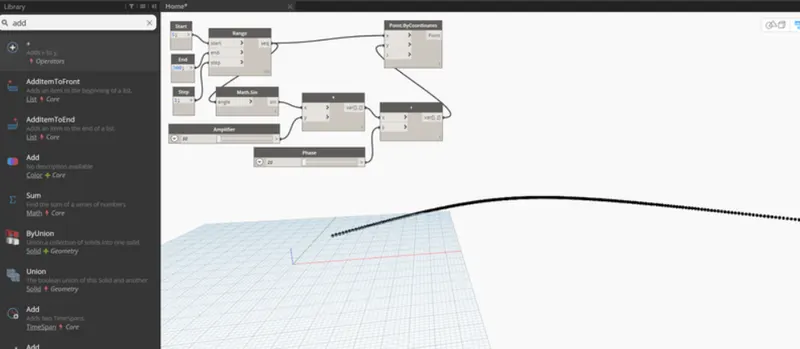

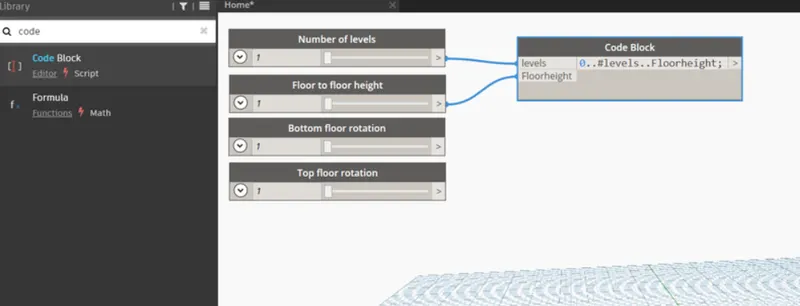

    1)    Aim: To create a set of sinusoidal points, a curve and a surface out of the curve using dynamo. Procedure: Initially, open the architecture template of Revit software and go to manage tab.In manage tab select the dynamo.Then dynamo window opens and then go to new option. Now, start the process…

    1)  I have chosen an office building for the project. 2)  The office building is planned to be constructed in commercial IT park area in Kochi.      Modelling requirements as per NBC- Since, my building is an office building, it can be taken as a business building. The open space…

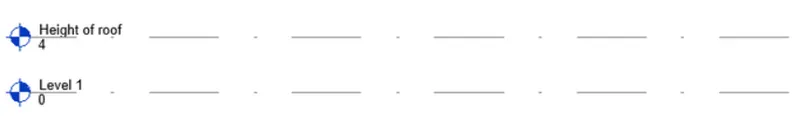

1)   AIM:  To model a ceiling from the architectural tab above the walls at the first-floor level  INTRODUCTION: Ceilings help create an enclosure and separation between spaces, they help to control the diffusion of light and sound around a room and help prevent the passage of sound between rooms. In Revit, The creation…

Task 1: AIM: To create a 3 dimensional model of the residential building  To create a rendered view of the developed model. To use materials and light setting. Procedure: Here in the project we are going to create a 3d model of a residential building. This is building after being created, it is rendered.…

1. Aim: To draw the 3D Isometric View of the building as shown in the figure Introduction:   A plan view of wall of two elevation views of windows on both sides are given and they are to be converted into a 3D model. 2 window openings on both sides are given with details regarding the frame dimensions, mullion…

1.AIM         To create a 3D Furniture elements using the various commands in Auto CAD. INTRODUCTION BY 3D VIEW The process of creating a mathematical representation of any surface of an object in three dimensions by using special software. A 3D model can even be represented as a two dimensional image…

    1. Aim: To create layout of plan and section using Template mArch.dwt.To create viewport using MV command of size 400x445 and 375x445 and setting the scale (1:50) Editing Attributes in the template.Take a plot using A1 size. Procedure: In the command prompt enter "XREF" and on the left corner attach the Dwg.Attach…

1. AIM: To create the layout of the kitchen and providing hatches to it using the autocad in detail. INTRODUCTION: kitchen layout is the most important part of designing your perfect kitchen. It's the layout that will determine how you cook, how you eat and how you socialise. So whether you're totally remodelling the kitchen,…

1. AIM: To Create Custom1_titleblock and Custom2_titleblock using Attributes and block command from Autocad software . PROCEDURE: Step 1 ( custom1_tittleblock) In the command prompt type L to draw the lines  In ribbon tab > Annotate > Mtline ( to draft the text ) go to properties tab to change the colour …

Aim: To draw 1. Architectural Drawing (Floor Plan, Elevations, and Sections)                     2. Structural Drawing (Column, Bean, Footing Plan) 1. Architectural drawing of a residential building: Plan of a residential building. Elevation of a residential building.…

AIM- TO DRAW PLAN ELEVATION AND SECTION OF THE HOUSE IN AUTO CAD.   INTRODUCTION- Commands used for drawing the plans and drawings   STEPS FOR DRAWING PLAN-   Open auto Cad and enter UN (Units command) in the command box and select type as decimal and set precision of decimal as 0 Select X line command and…

1. AIM: To draw the elevation and details of a wardrobe as shown in the figure. After sketching, you need to provide the dimensions and text with the use of layers. PROCEDURE: STEP 1: Units are set to mm Limits and limax are also set Zoom command is also used STEP 2: In the command line type rec > 2800,2600 In the command…

1. AIM       To Create a column schedule. INTRODUCTION Column C1 is provided with 4 bars of 20 mm dia. and 6 bars of 12 mm dia. The 12 mm dia bars are marked with 'a'. Column C1a and Column C3 are provided with 12 bars of 16 mm dia bars. Column C2 is provided with 8 bars of 20 mm dia and 4 bars of 12 mm…

AIM:     To Draw the above metioned drawings with required unit measurements by using AutoCAD.   INTRODUCTION: Residential Layout is ideal for students and practitioners of urban design, planning, engineering, architecture and landscape seeking a comprehensive guide to the theory and practice of designing…

AIM:      To draw the attchments in the PPt as per dimensions using Chamfer and Fillet tool in AutoCAD. INTRODUCTION:      The AutoCAD software is mostly used by the engineers such Civil, Mechanical and Electrical. The drawings or planning of an object or the component which are predetermined…

AIM:          To Creating a Floor plan, Footing detail and Isometric view using AutoCAD. INTRODUCTION:          The main objective of this assignment is to get in touch with various tools in AutoCAD like        the rectangle, polylines, modifications…

AIM: (A) To Create the geometries from P1 to P2 using all the coordinates system      methods  (B) To Draw the profile and the trusses using any coordinate system methods. The dimensions are there for reference.   INTRODUCTION: Before going to the drawing, we should know about the coordinates systems…

Aim of the project-       To sketch a G+1 floor residential plan according to vastu Shastra and to list down the names of structural drawings required to be provided to the site for construction.      To assume the size of structural elements (Column, Beam, slab etc) and to calculate the loads…

                                                        M35 GRADE CONCRETE WITH FLY ASH Aim & Introduction:           The Aim of the mix design is to calculate…
