Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo

ANS.1.

AIM :-

To create a set of sinusoidal points and create a curve and create a surface out of the curve using dynamo.

INTRODUCTION :-

Revit software from Autodesk can be used to capture design intent efficiently and accurately in 3D; producing consistent, coordinated, and complete model-based building designs and documentation.

Features

a.Automatically update floor plans, elevations, sections, and 3D views

b.Use 3D visualizations to see a building before it’s built

PROCEDURE :-

Open dynamo software from Revit

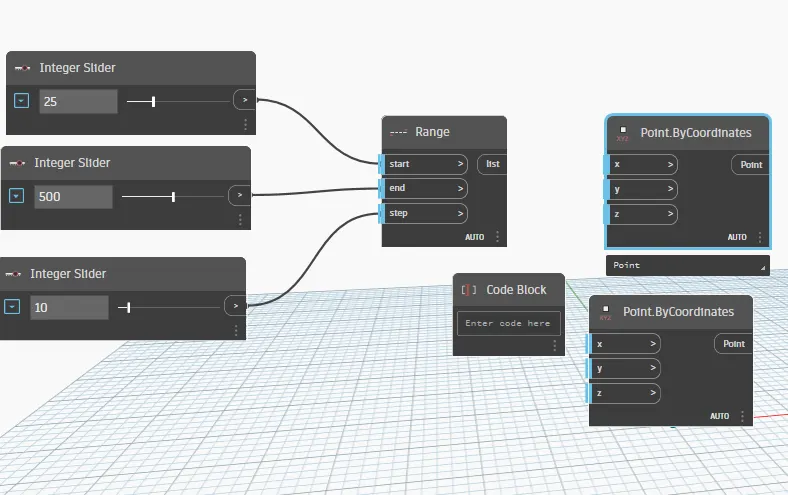

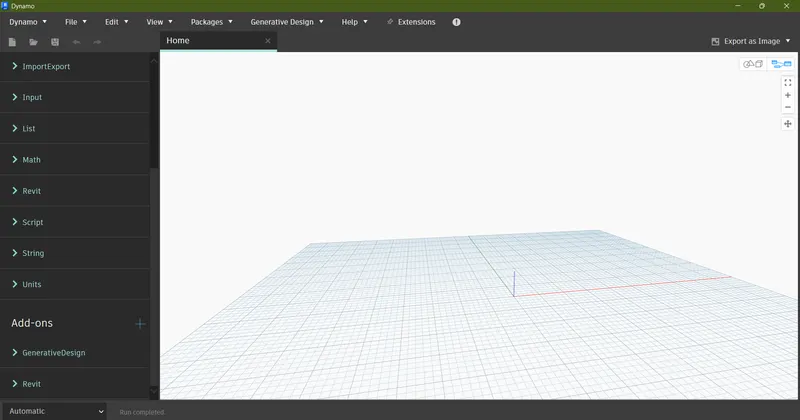

After opening The dynamo software the home screen will look like this

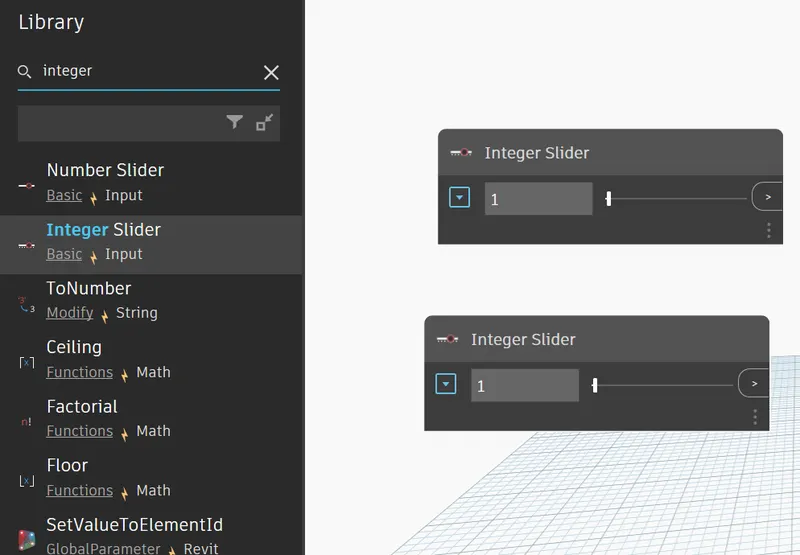

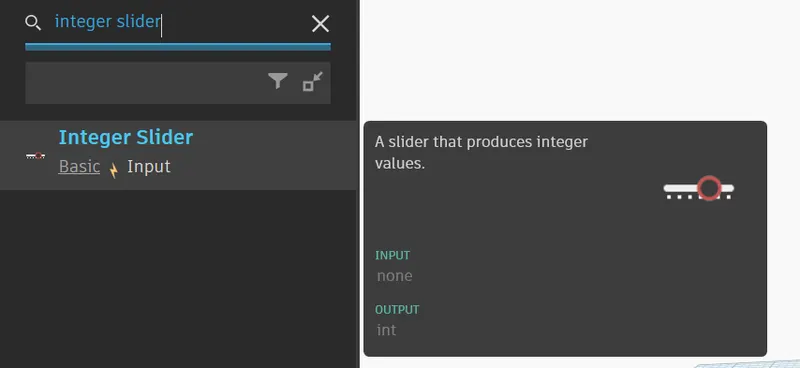

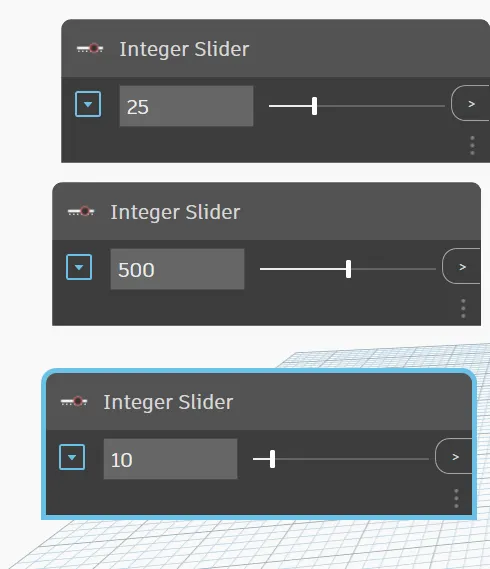

Then go to the search option and first search for integer slider

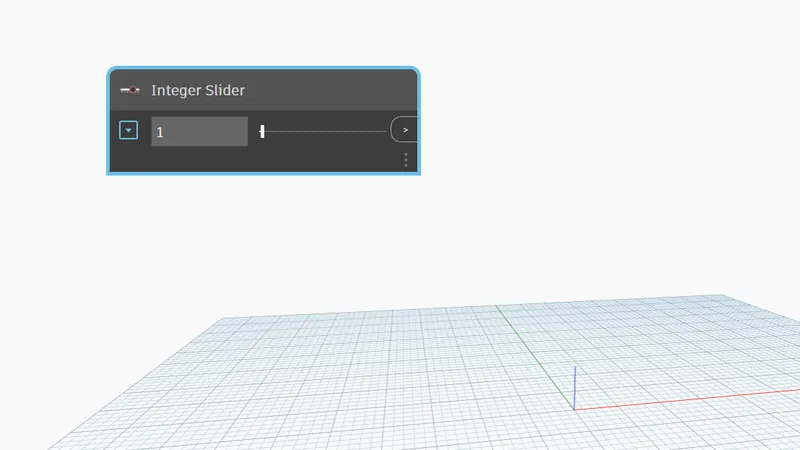

Then place the integer slider in the drawing section

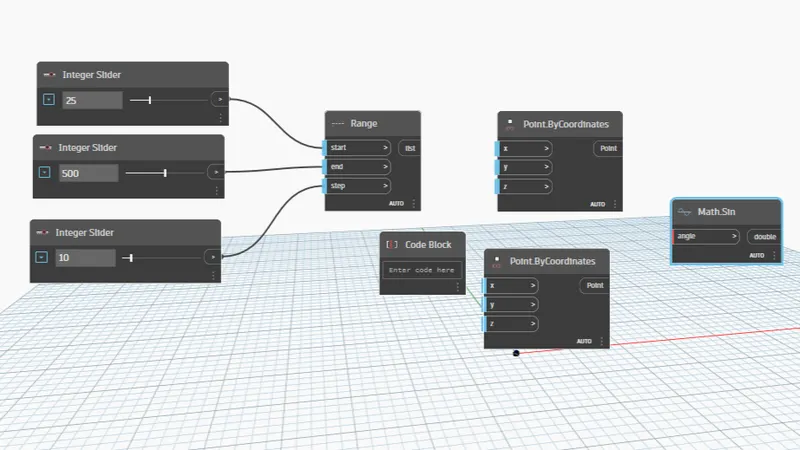

Then copy the integers slider in 2 by using copy and paste commands

Then provide the value as per the Desire

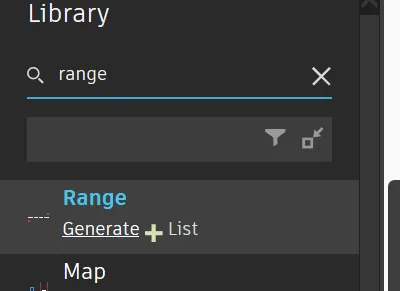

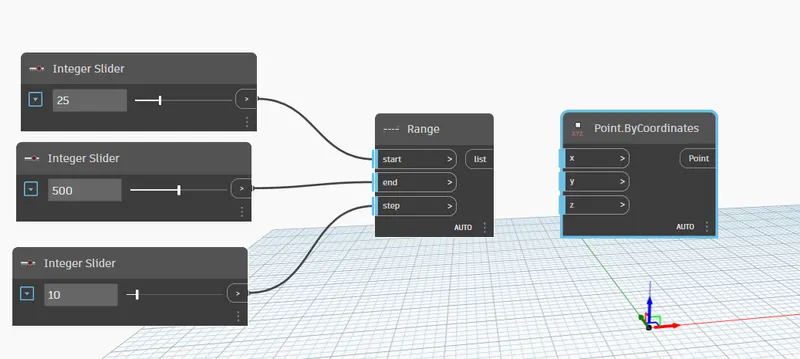

Again go to the search option and search for range

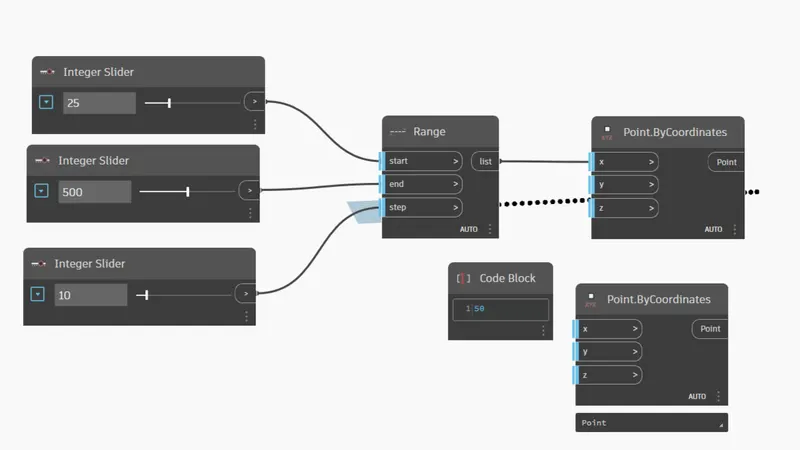

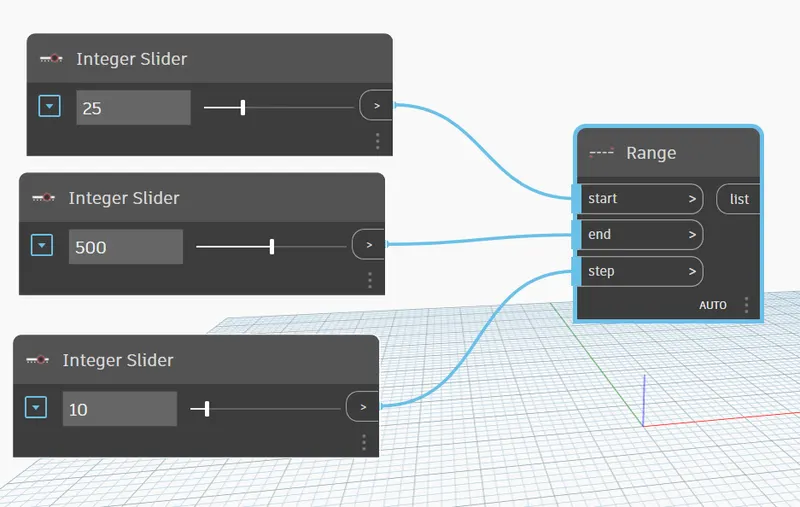

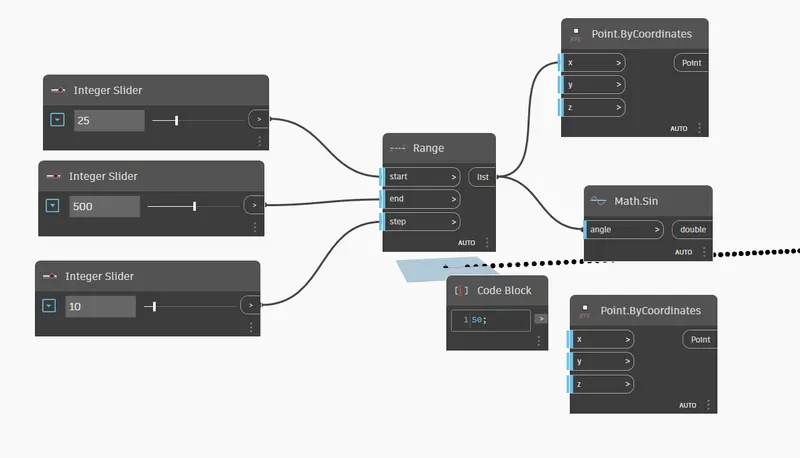

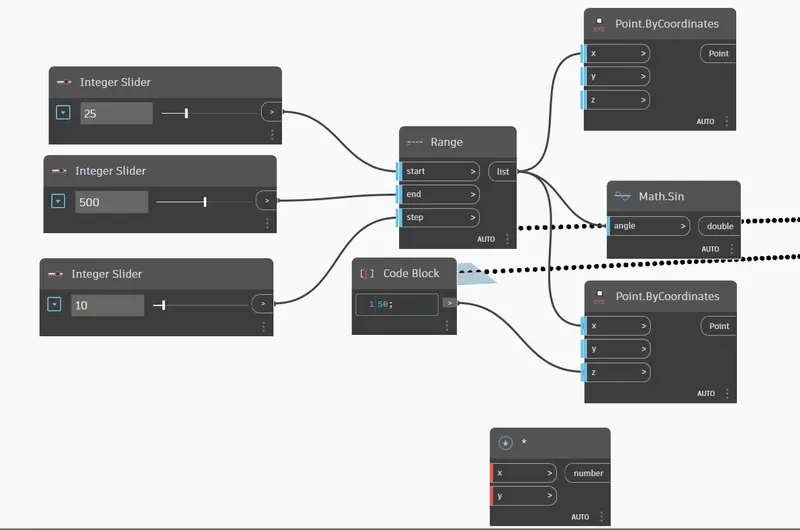

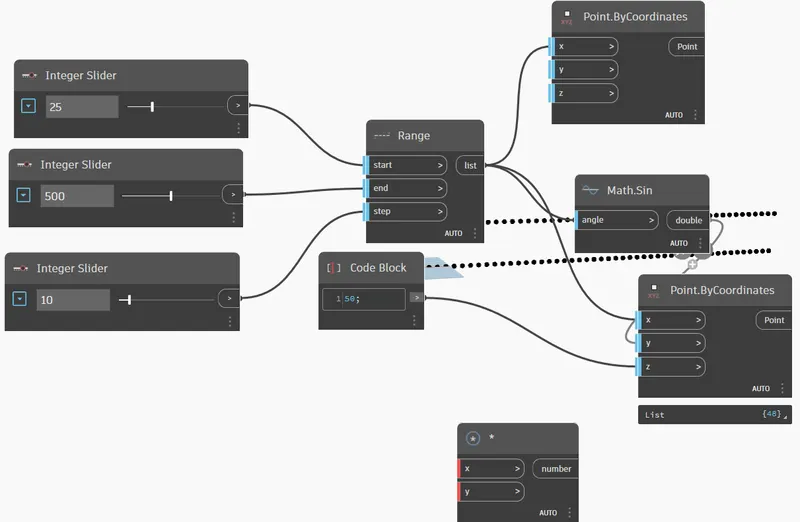

Then connect to the integer slider to start,end and step as shown

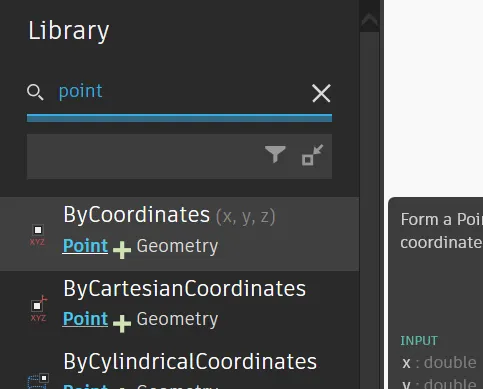

Go to search library and search for point by coordinates

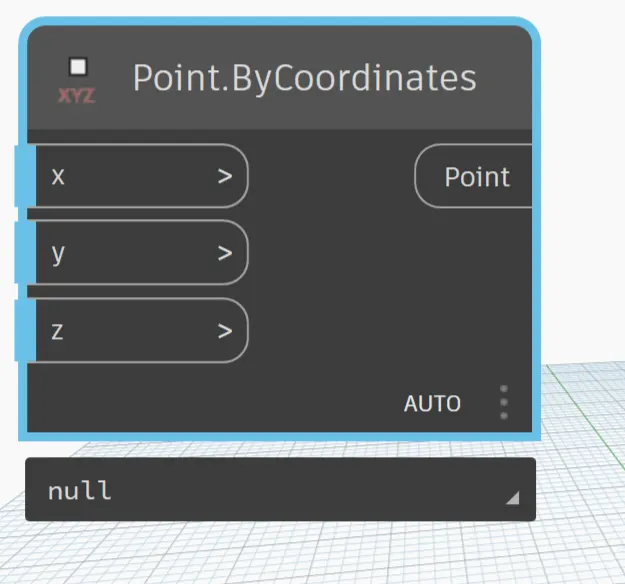

Place the point by coordinates in the drawing section

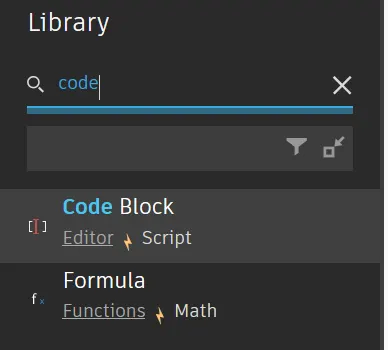

Then go to the search library again and search for code block

Then copy the point by co-ordinate by using the copy and paste control commands

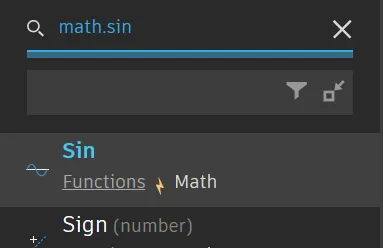

Then search math.sign

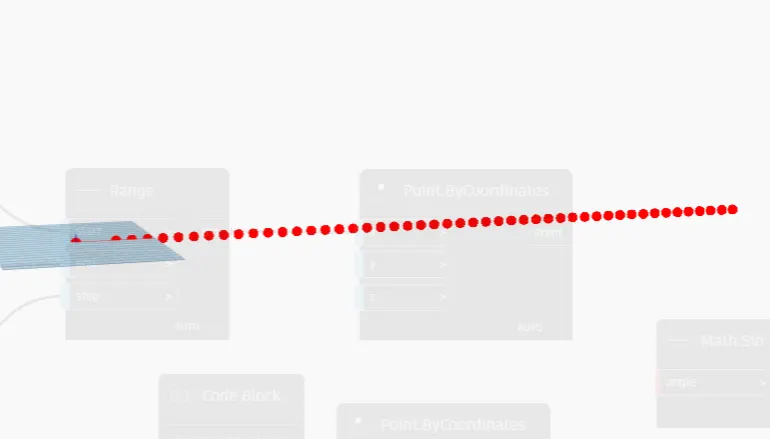

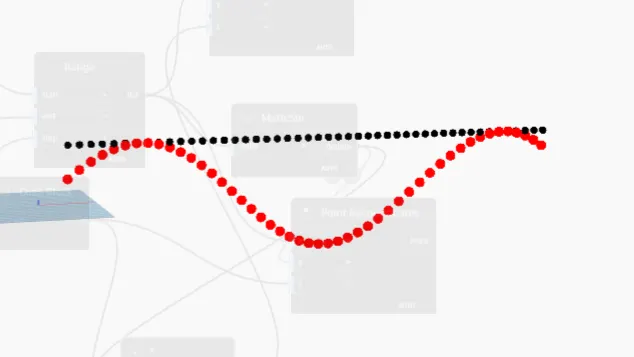

Now you can see the sinusoidal curve its forming

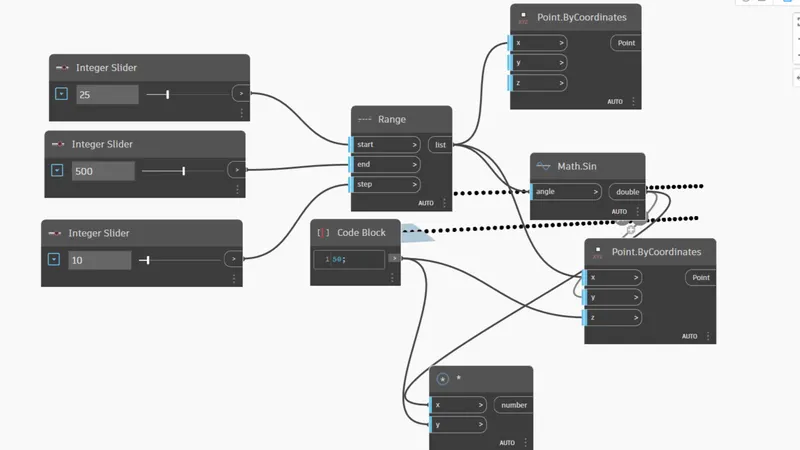

Connect the range to the points by co-ordinate x

And then connect the range to the Math.sin

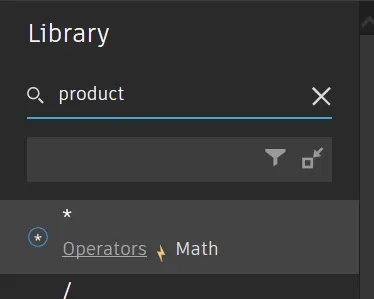

Search for product in the search library

Then connect the code block to the point by coordinates Z

Connect the Math.sin to points by co-ordinate y

Then connect to the math.sin to the product

And also code block to product Y

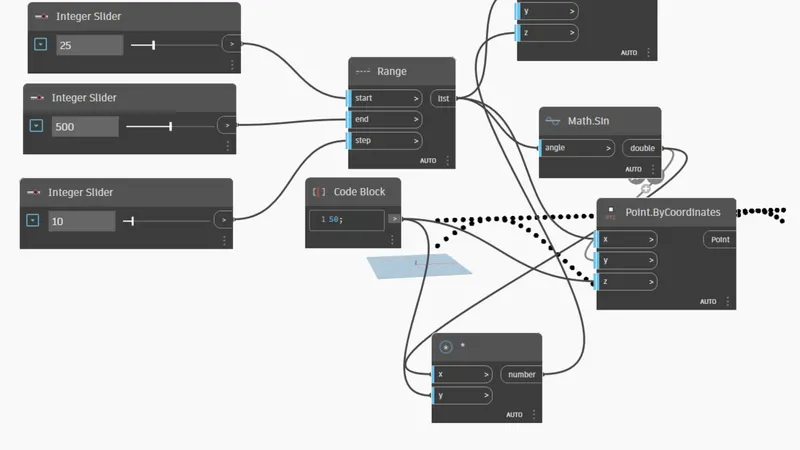

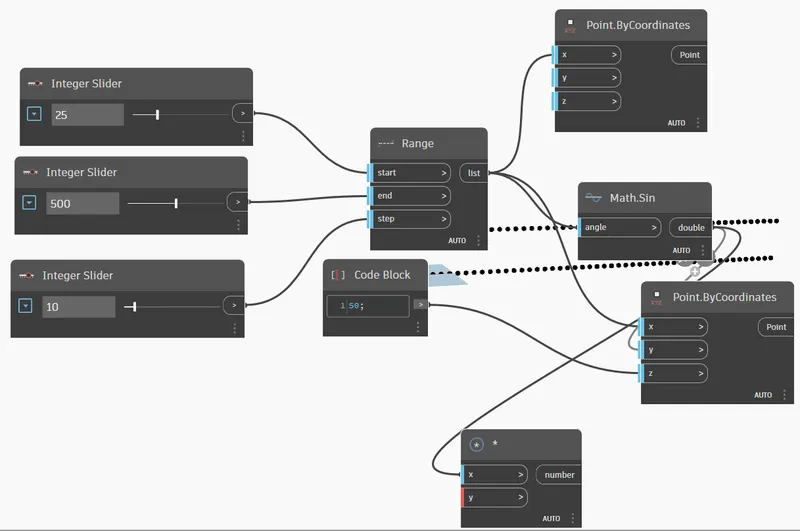

Now connect the product number to the co-ordinate system x

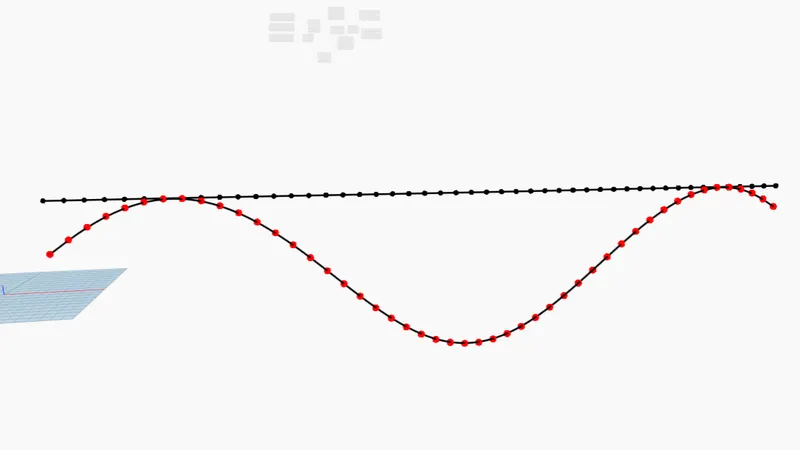

hence the sinusoidal curve has been formed

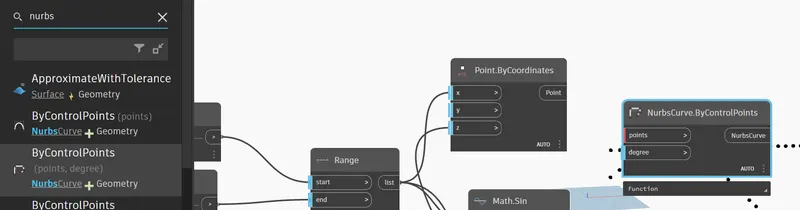

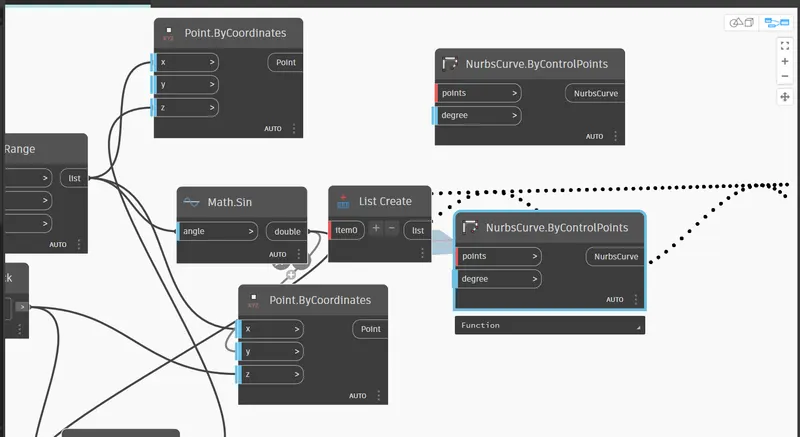

Now go to search and search for nurbs by control point

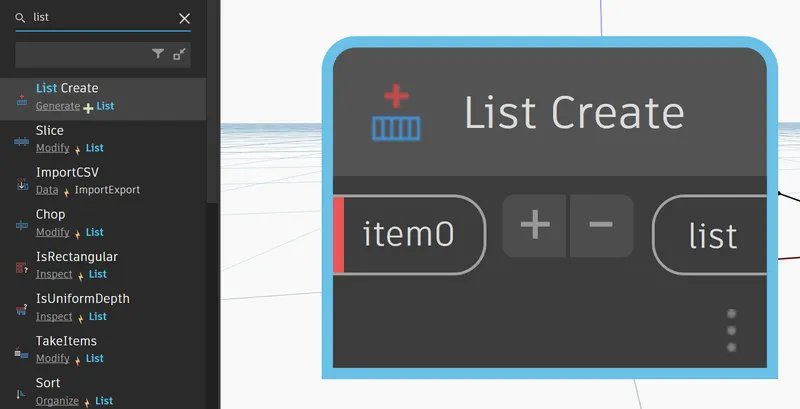

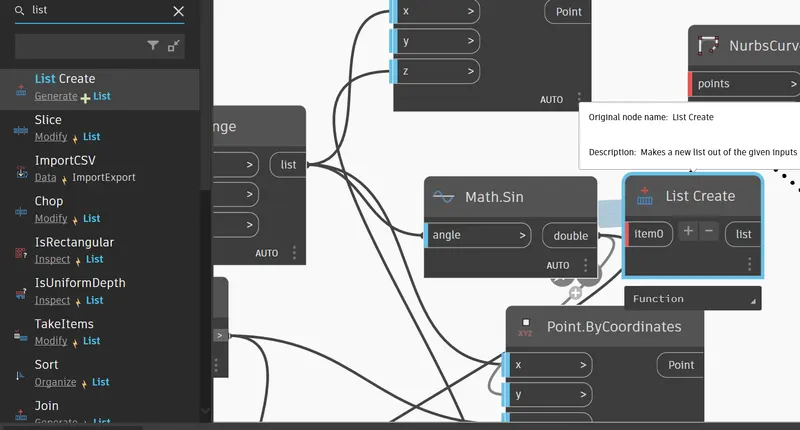

Also search for List create

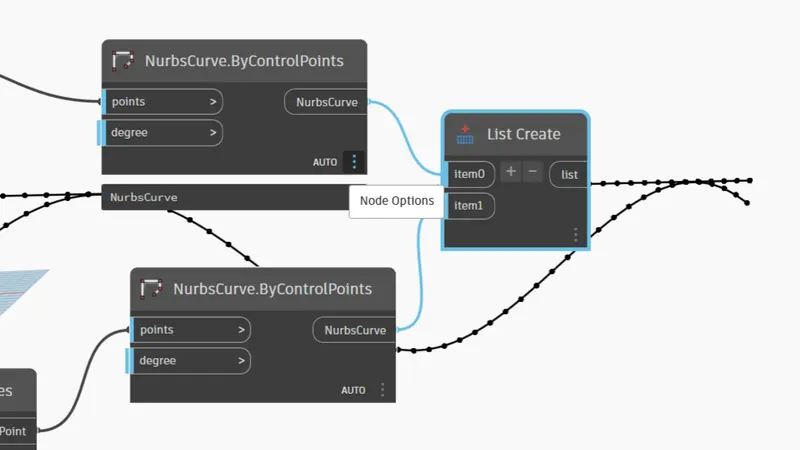

Copy the nurbs by control point

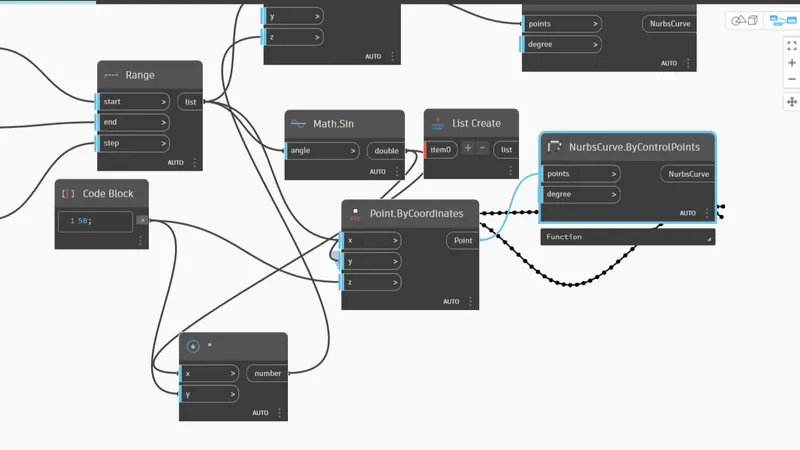

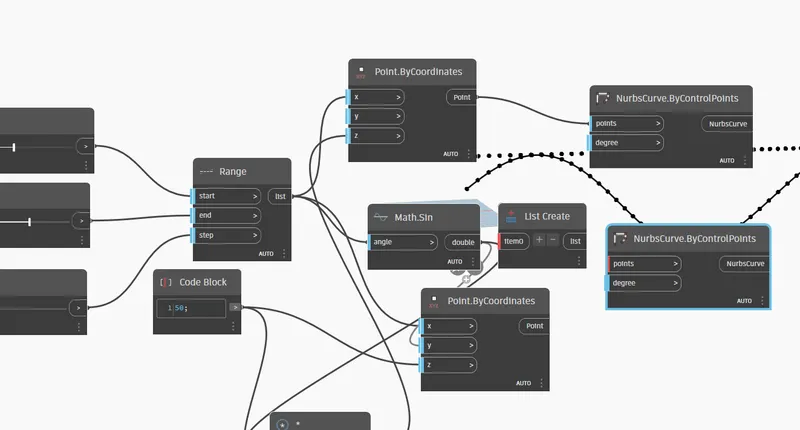

Connect the points by coordinates to the nurbs point

And do the same for the other one also

Hence you can see a line has been created in our curve

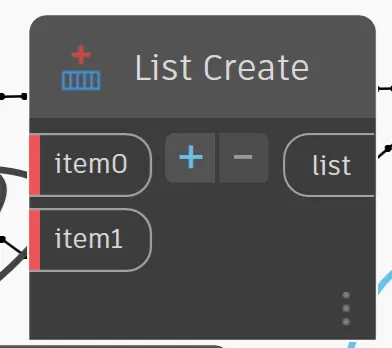

Now go to create list and just add one more item on it

Then connect the Nurb curve to the list create

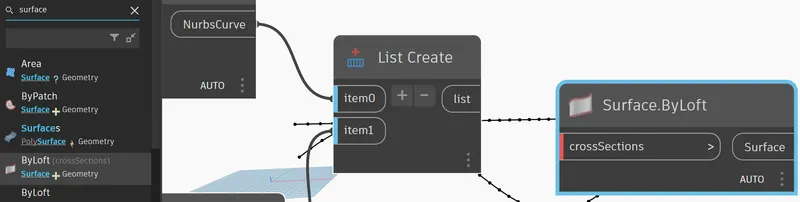

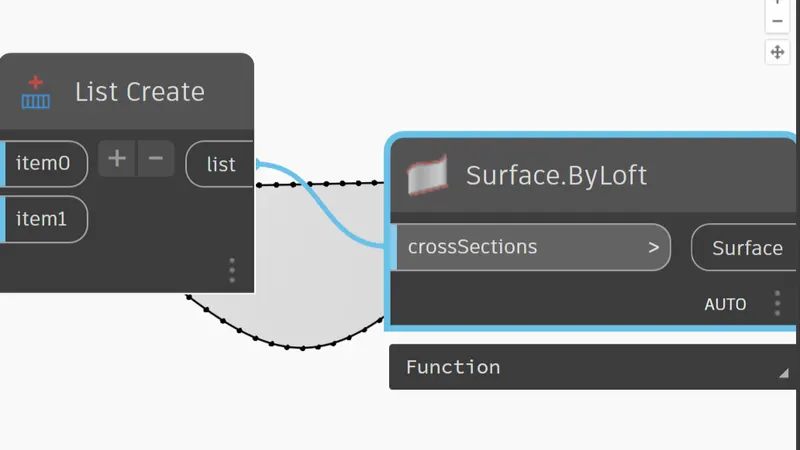

Then search for surface by loft

Connect the list create to the surface by loft

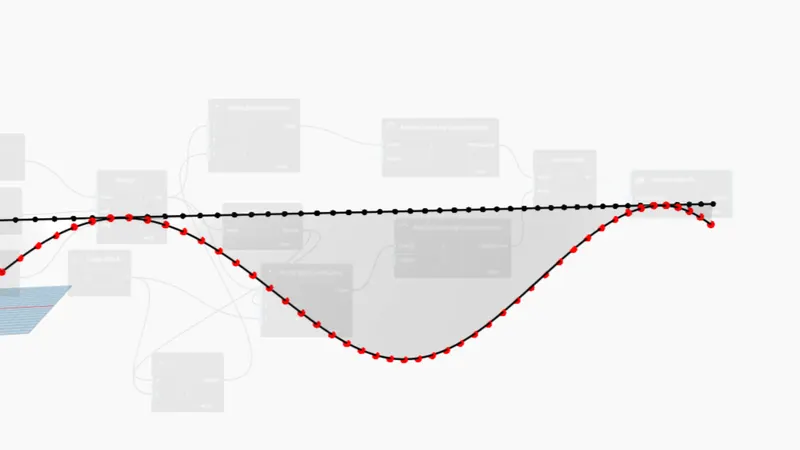

Hence a surface has been created in our Sinosoudal curve

RESULT :-

Hence a set of sinusoidal points and curve are created with surface.

ANS.2.

AIM :-

To create a conceptual layout of floor plan in dynamo .Using the tools available in dynamo link the lines to appropriate model elements in Revit by choosing the wall types and wall parameters. Make use of the sliders to slide through the height of the wall and length of the wall.

INTRODUCTION :-

Revit software from Autodesk can be used to capture design intent efficiently and accurately in 3D; producing consistent, coordinated, and complete model-based building designs and documentation.

Features

a.Automatically update floor plans, elevations, sections, and 3D views

b.Use 3D visualizations to see a building before it’s built

PROCEDURE :-

Open dynamo and goto search option

Search for integers sliders.

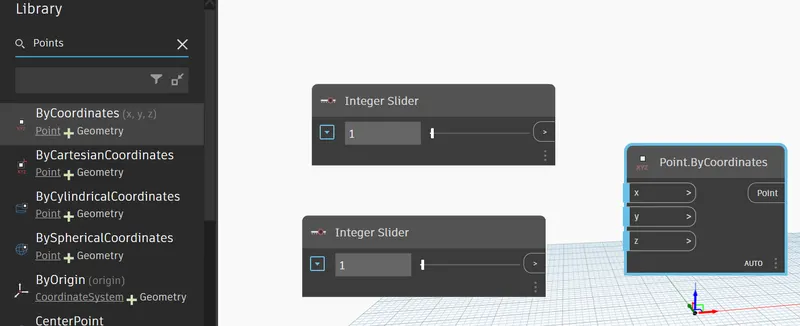

After that search for Point by coordinates

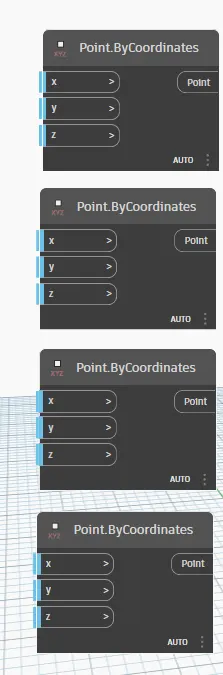

Copy the points by co-ordinate by using the copy paste command

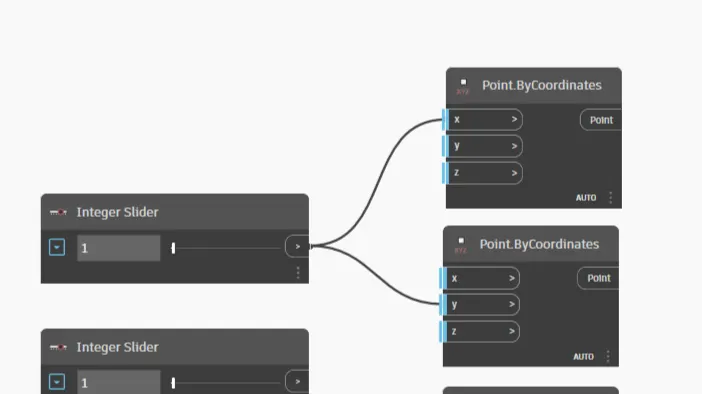

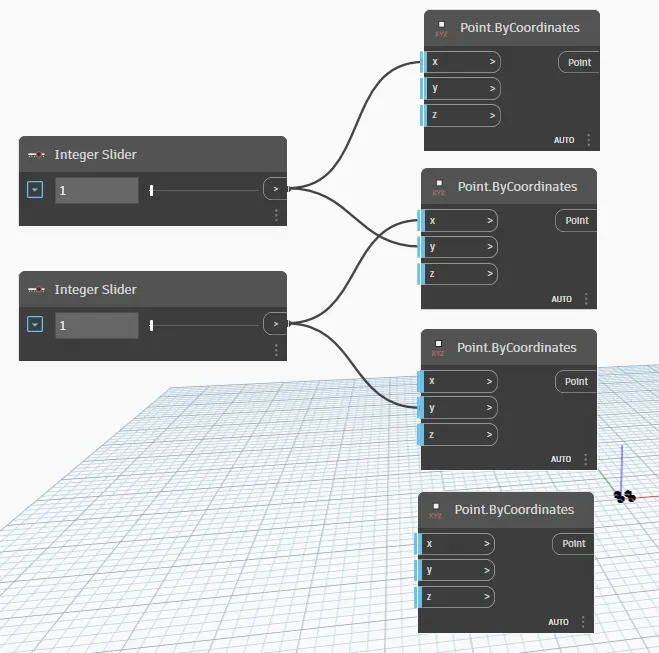

Then connect the first integers slider to the first Point by co-ordinate x and second point by coordinates Y

Similarly do the same for other integer slider also.

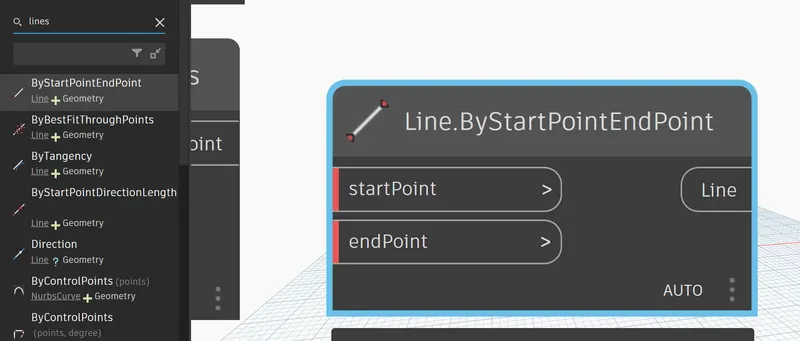

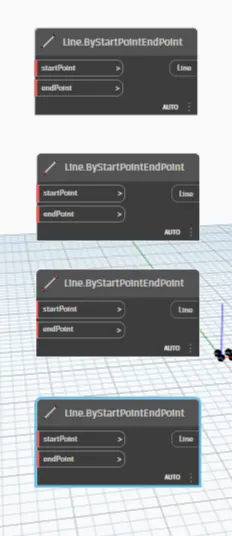

Go to search and search for line by start end point

0

Copy that using copy paste command

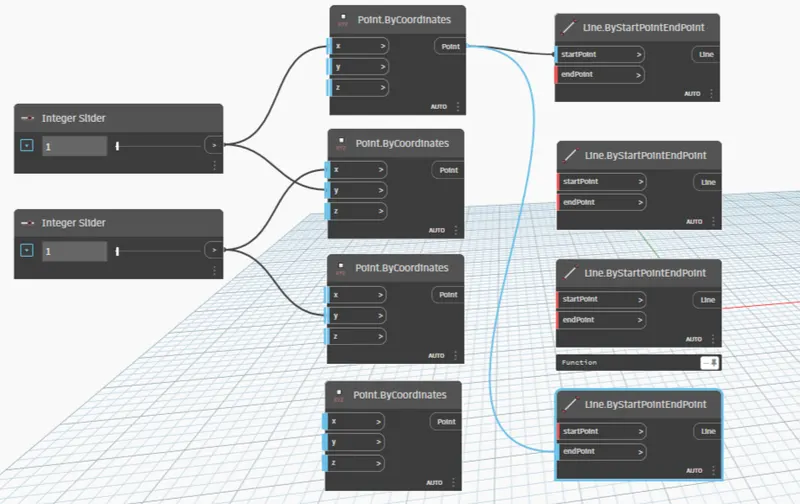

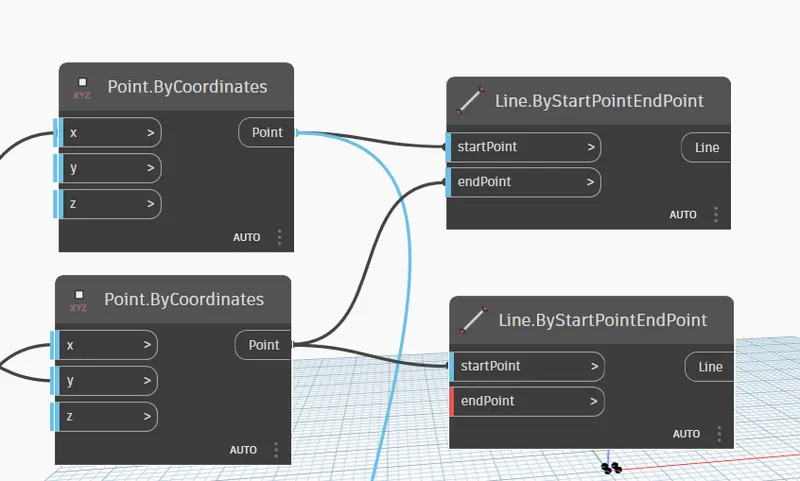

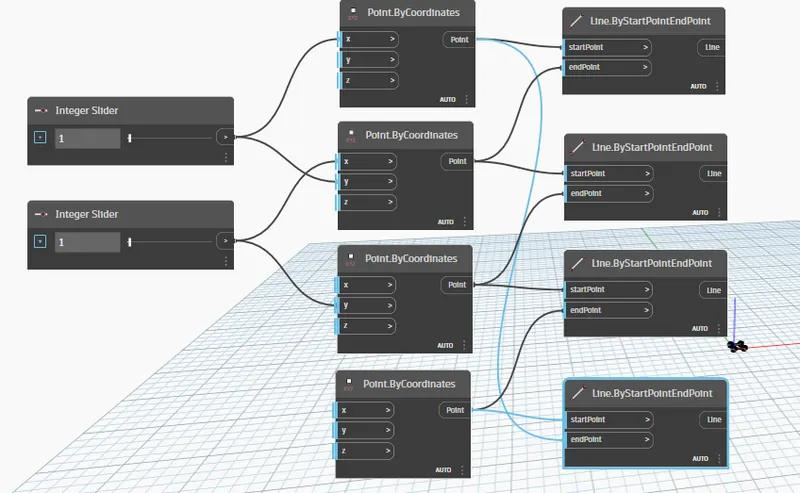

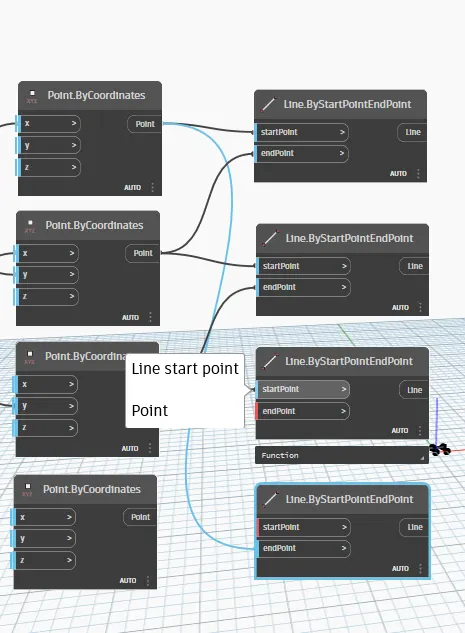

Then connect the first Point by coordinates point to the starting point of line by start and to the end of last line by start point

Do the same for other Point by coordinates and line by start point end point also.

Connect the other as shown below

Now everything is connected as per requirements

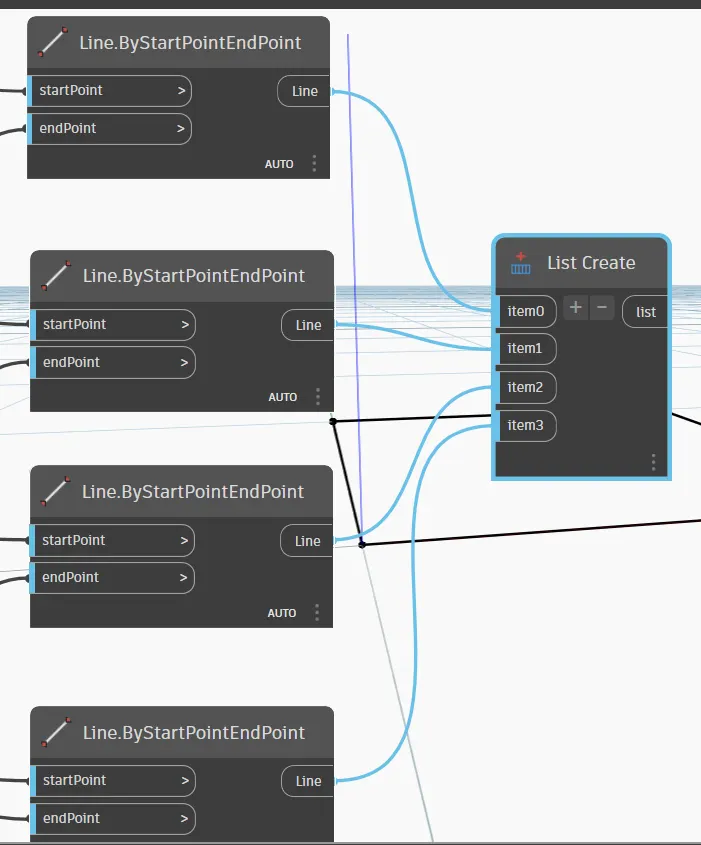

Go to search and search for list create

Click on the plus point to add number of items as 4

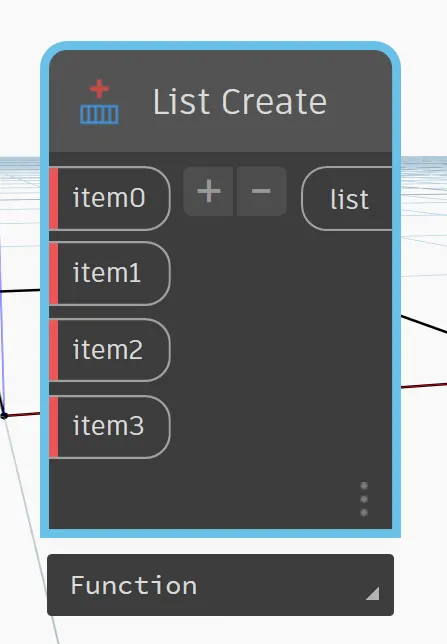

Then connect the line of the line by start end point to the item 0 , 1 , 2 and 3

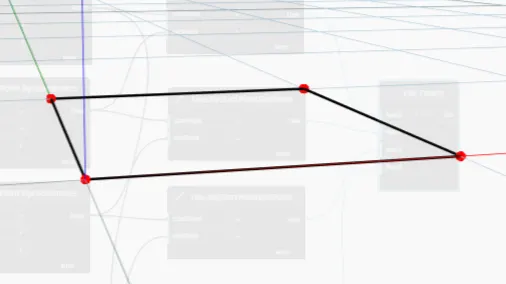

Hence our layout will look like this

Now go to search option in search for

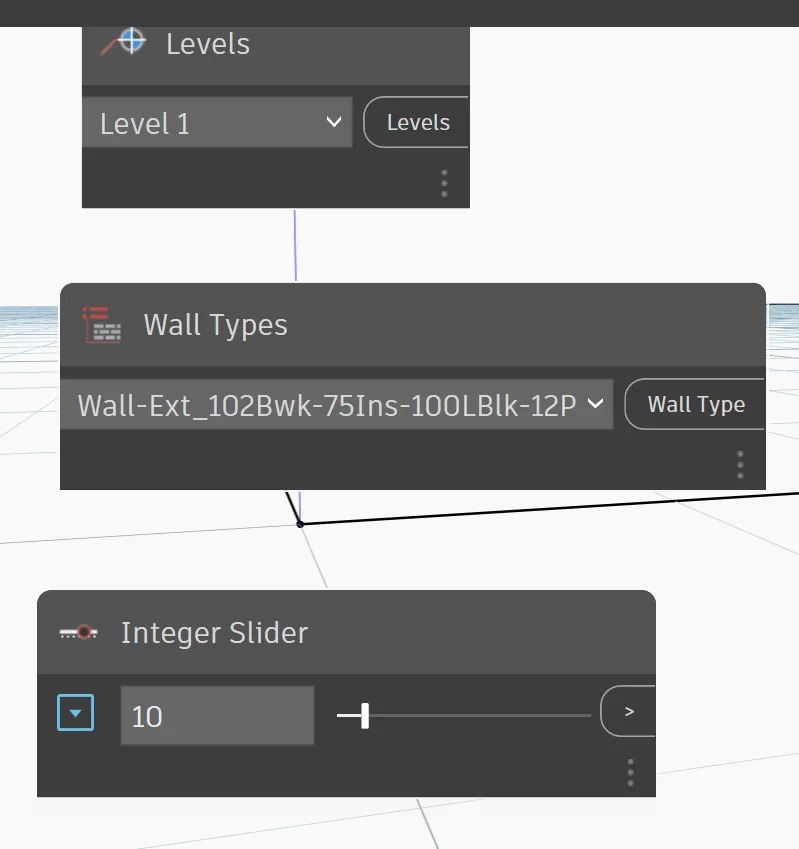

Levels, wall types and also add integer slider

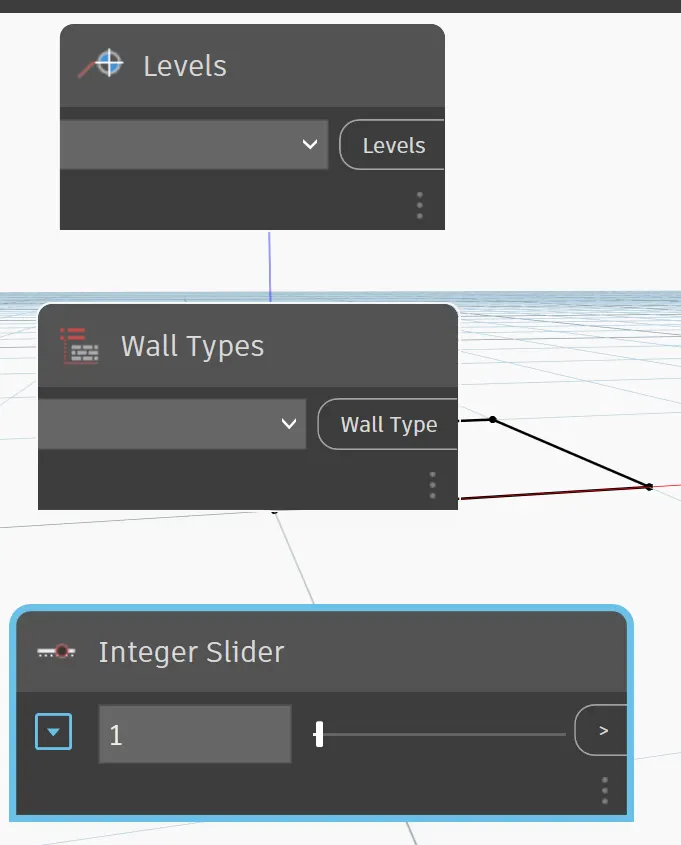

Type the level AS level 1 , give the appropriate wall type and then also provide the number to the integer side

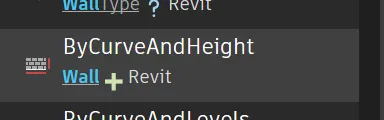

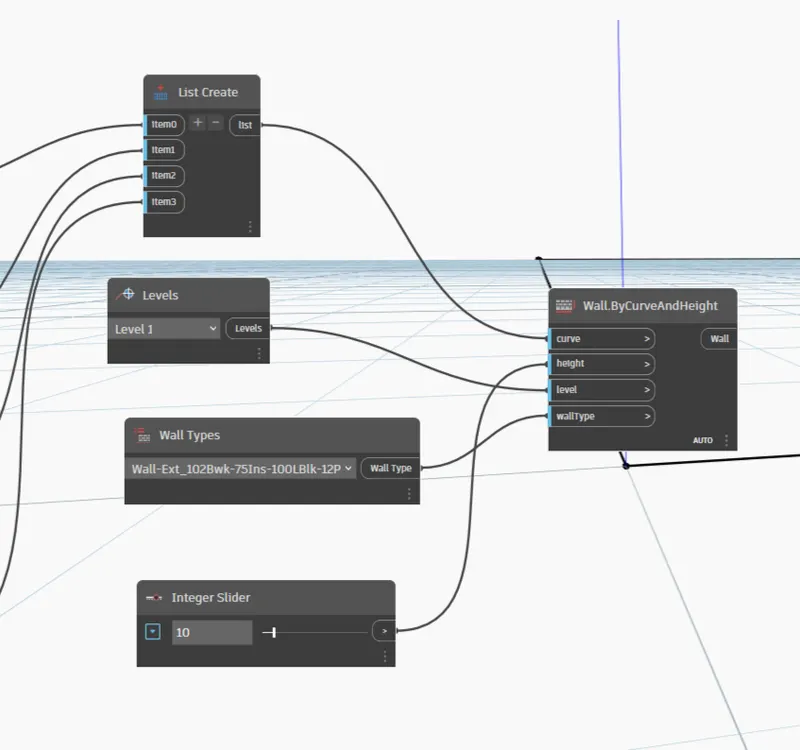

then go to the search option and select the by curve and height option

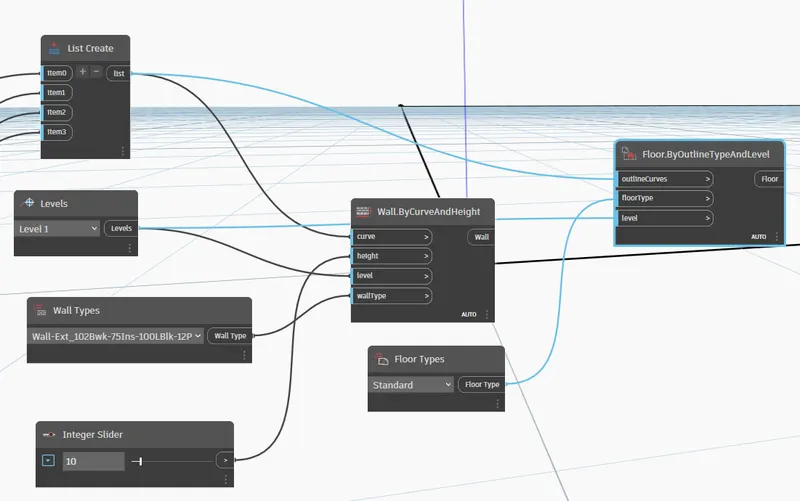

Then connect the list , levels , wall types and integers slider to the wall by curve and height as per the name

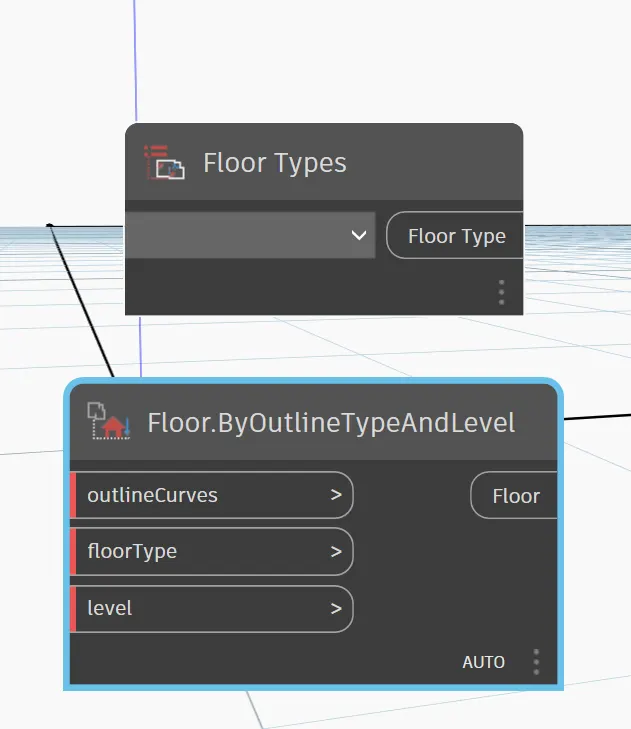

Then search for floor type and search for Floor by outline type and level

Then connect to the floor type to the Floor by outline type and level and also the list to the Floor by outline type and level

layout for floor plan is being created using dynamo

RESULT :-

Hence, layout of floor plan in dynamo is being created using the tools available in dynamo

ANS.3.

AIM :-

To create an array of model elements in Revit. Use dynamo to vary the properties of model elements by using the slider or code block

INTRODUCTION :-

Revit software from Autodesk can be used to capture design intent efficiently and accurately in 3D; producing consistent, coordinated, and complete model-based building designs and documentation.

Features

a.Automatically update floor plans, elevations, sections, and 3D views

b.Use 3D visualizations to see a building before it’s built

PROCEDURE :-

Open your revit software

Go to the architectural tab and click on the column to create the columns

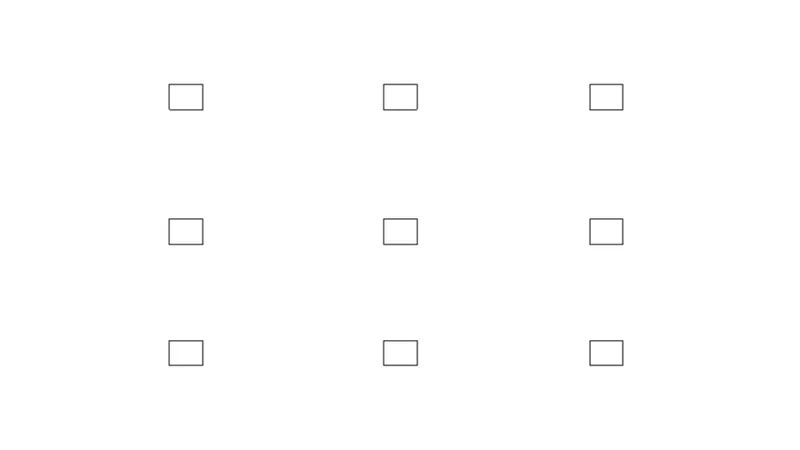

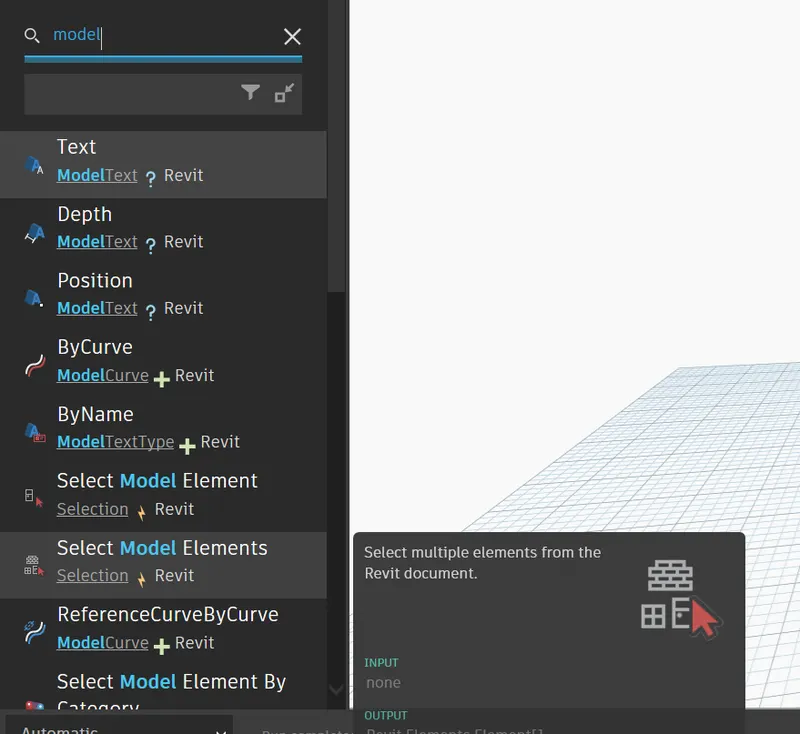

After creating the column go to the dynamo software and search for model element

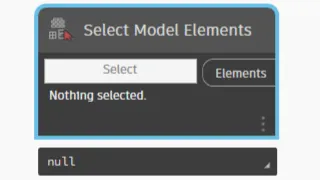

Then click on select the model element

Then go to your Revit software and select the columns that we have created

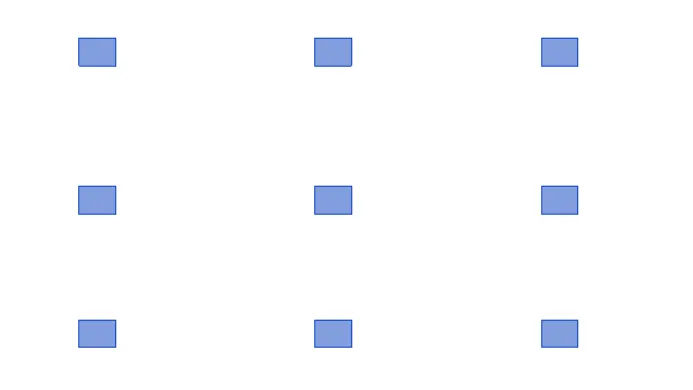

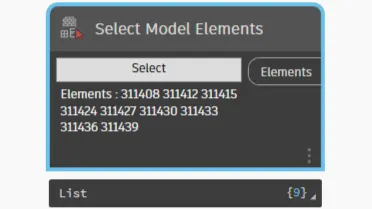

Then after coming in the dynamos software we can see that the elements elected have been assigned to the select model elements

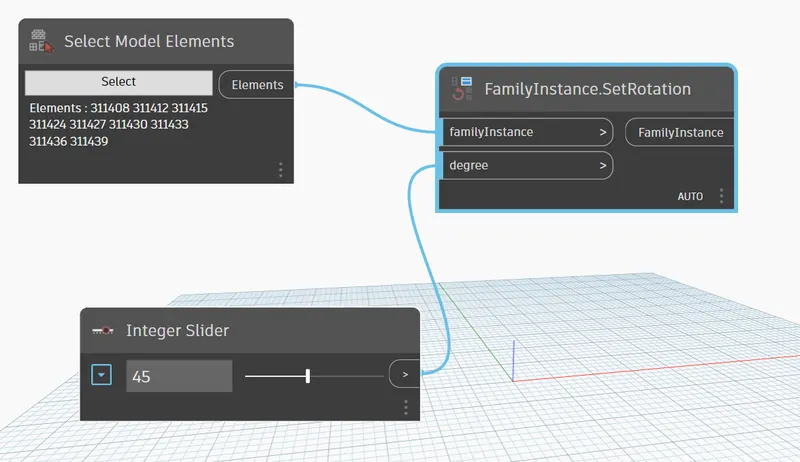

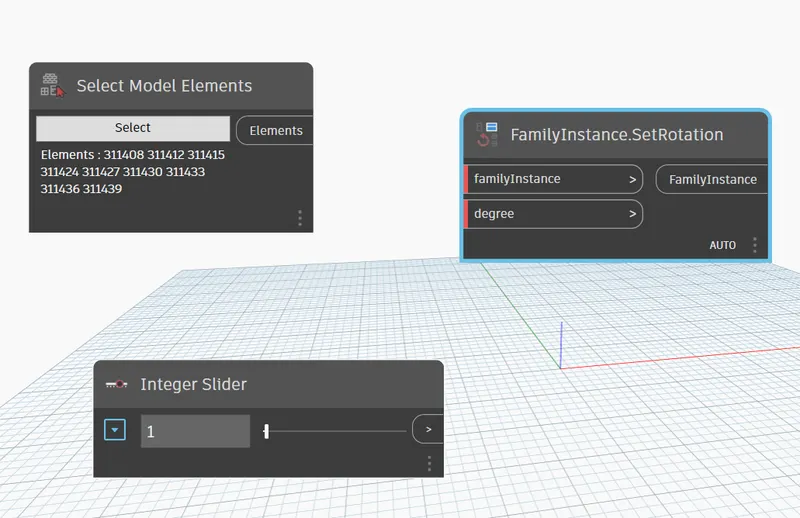

Go to the search box and search for family instance set rotation and integer slider and place them in the drawing section

Then connect the select model element to the family instance and integers the degree

Provide a degree of 45 in the integer section

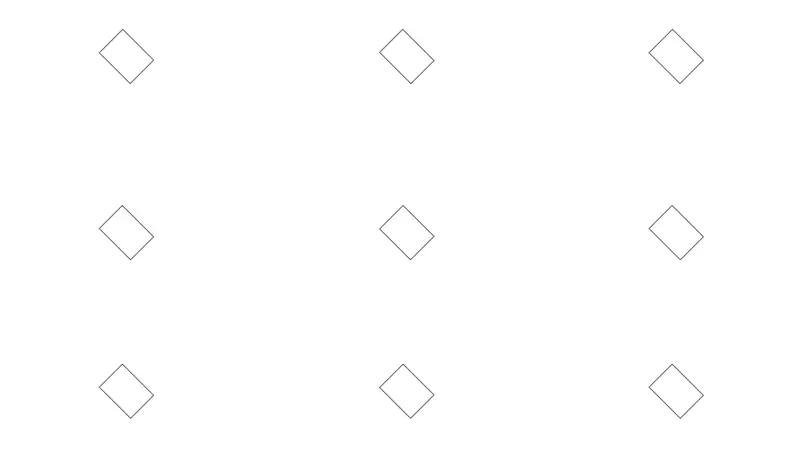

Now go back to revit software and we can see that the columns have been rotated to 45 degree in angle

RESULT :-

Hence array of a model element in Revit software is created and using the dynamo we have very the properties of the model element

ANS.4.

AIM :-

To create a conceptual mass in Revit and develop a parametric column by dividing the surfaces and apply the concepts similar to used in parametric walkway modelling. Use triangular bent or square shaped panels to add finish to the parametric column

INTRODUCTION :-

Revit software from Autodesk can be used to capture design intent efficiently and accurately in 3D; producing consistent, coordinated, and complete model-based building designs and documentation.

Features

a.Automatically update floor plans, elevations, sections, and 3D views

b.Use 3D visualizations to see a building before it’s built

PROCEDURE :-

Open Revit software and go to the file option

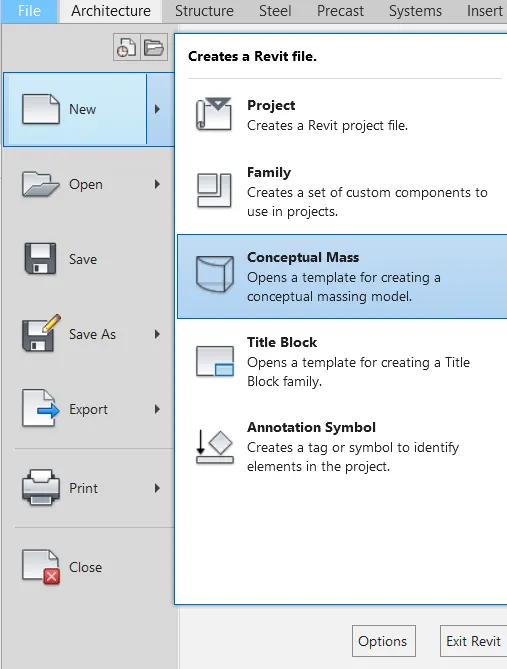

Then click on the new option and then select the conceptual mass option

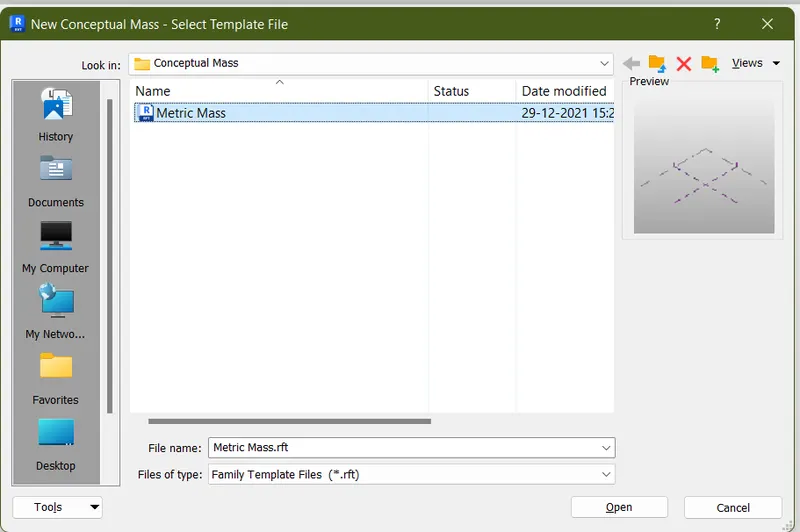

A new dialogue box will open click on the metric mass and then click open

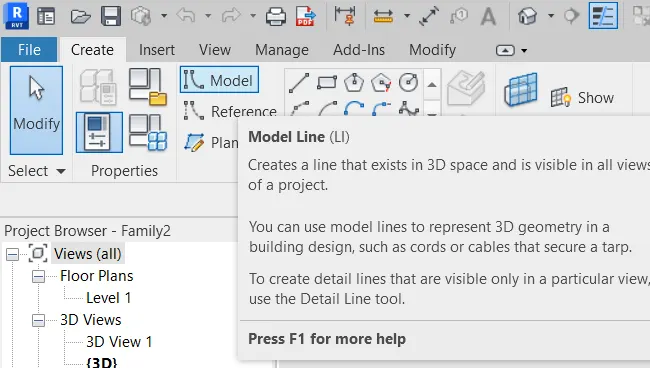

Now go to the create tab and they are will find a model line option

Click on that option

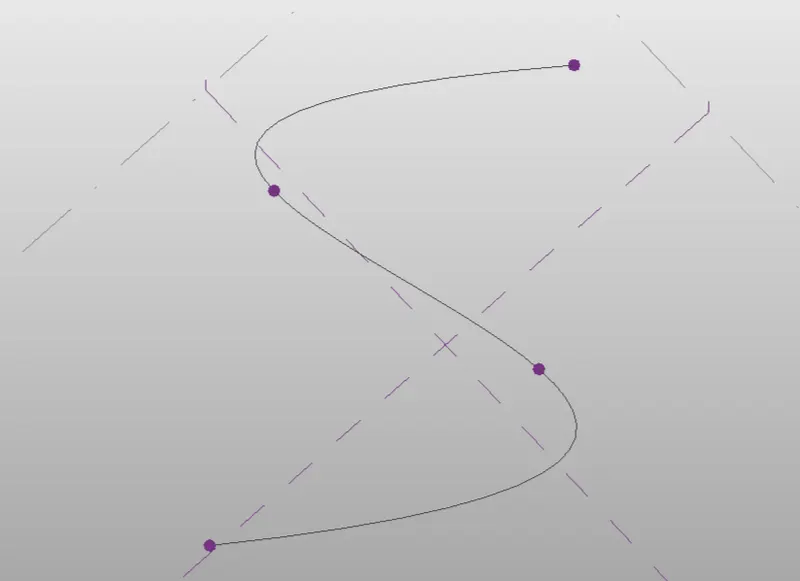

Then select the spline through points option to draw the spline

And draw the spline

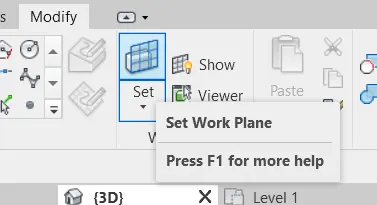

After drawing the spline go to the modified tab where you will find a set work plane option

Click on that option

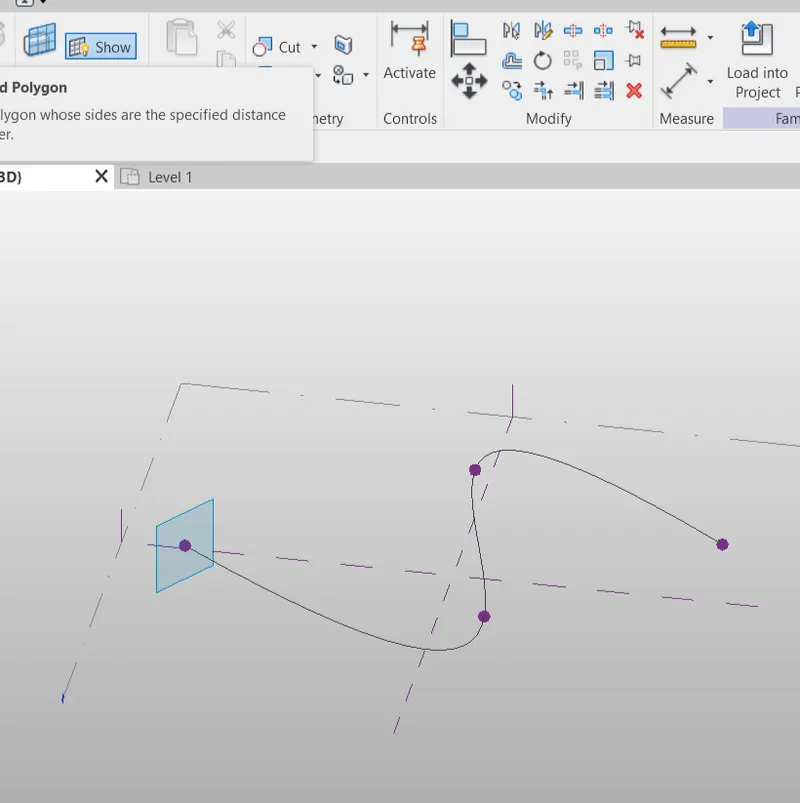

Then draw the workplain by clicking on the set plane option and to view the plane just click on the show option

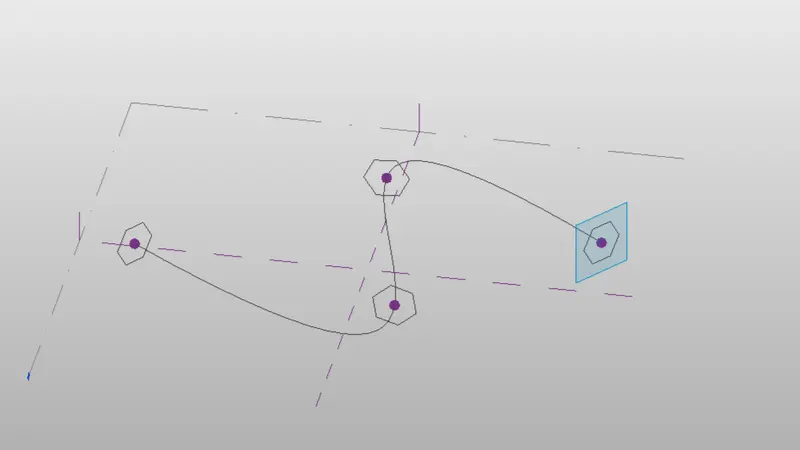

Now to create the polygon around the spline just click on the circumscribed polygon option and draw the polygons on the spline and draw the polygons on the created work plane

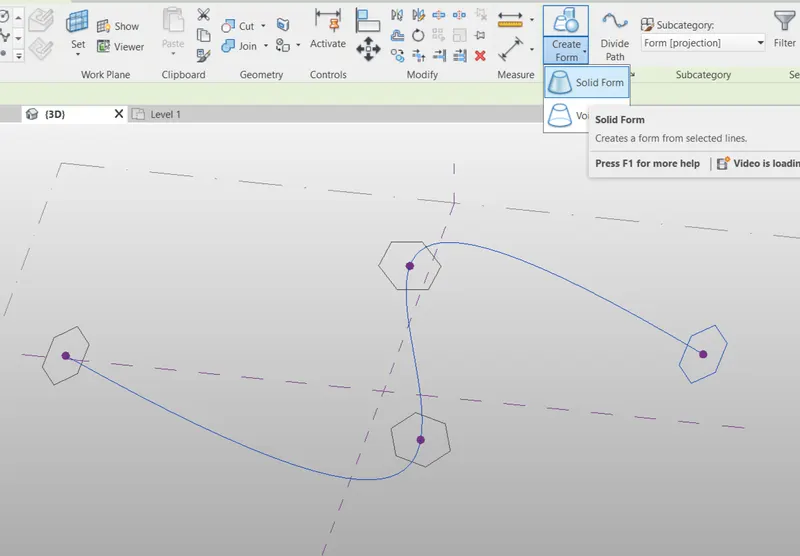

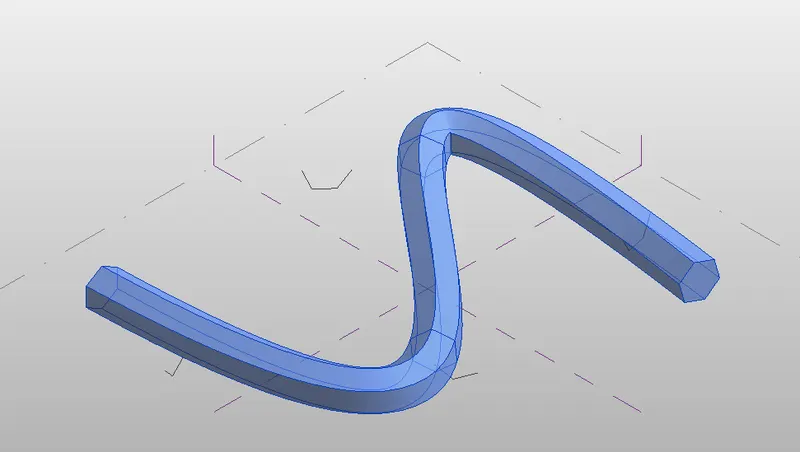

After that select the created splin and all the polygons that we have created and go to the create form option and click on the solid form to create the solid form

Hence solid form has been created

Select the solid form

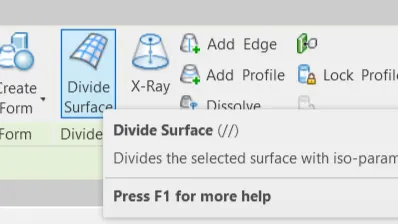

Then go to the divide surface option

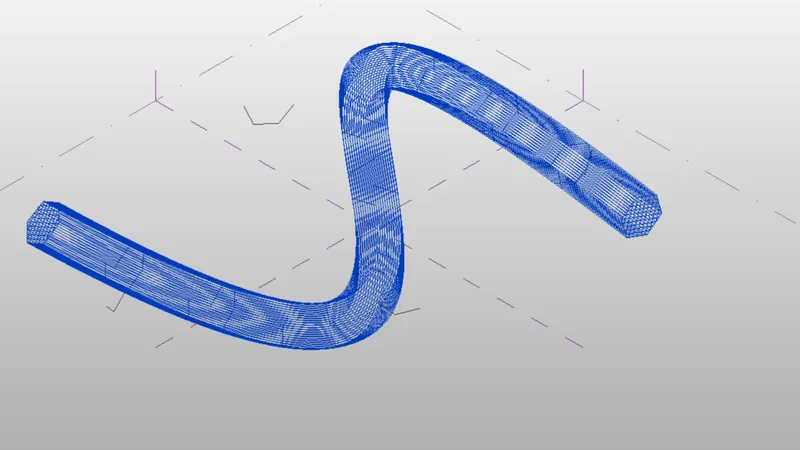

Hence now your surface will look like this after dividing

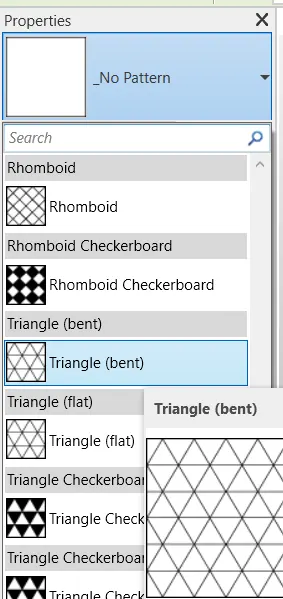

Then go to the properties browser and select the triangle Bent to apply the property

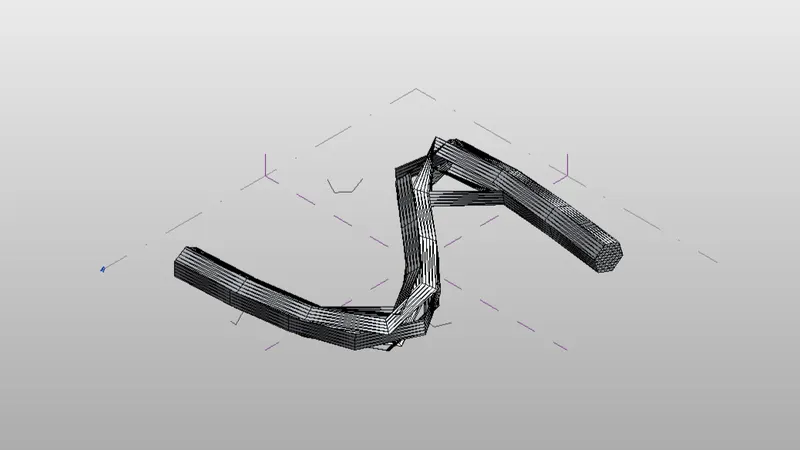

Hence now you can see that the triangular bent have been assigned to our conceptual mass

RESULT :-

Hence conceptual mass has been created and a parametric column by dividing the surface and also the triangular bent has been used to add finished to the parametric column

ANS.5.

AIM :-

To use Dynamo to work on developing a Parametric Stadium and also parameters and use the visual programming approach to complete the modelling.

INTRODUCTION :-

Revit software from Autodesk can be used to capture design intent efficiently and accurately in 3D; producing consistent, coordinated, and complete model-based building designs and documentation.

Features

a.Automatically update floor plans, elevations, sections, and 3D views

b.Use 3D visualizations to see a building before it’s built

PROCEDURE :-

Open the dynamo software

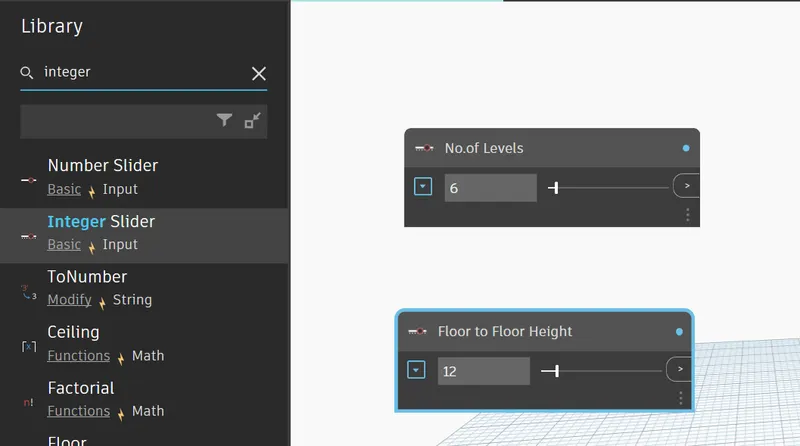

Go to search library and search for integer

Add two integers by copying it and rename it as number of levels and floor to floor height

also assign the value as per the requirement

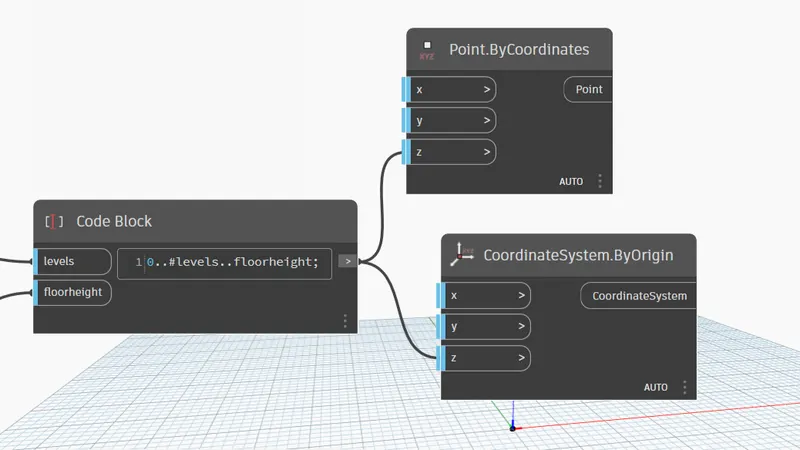

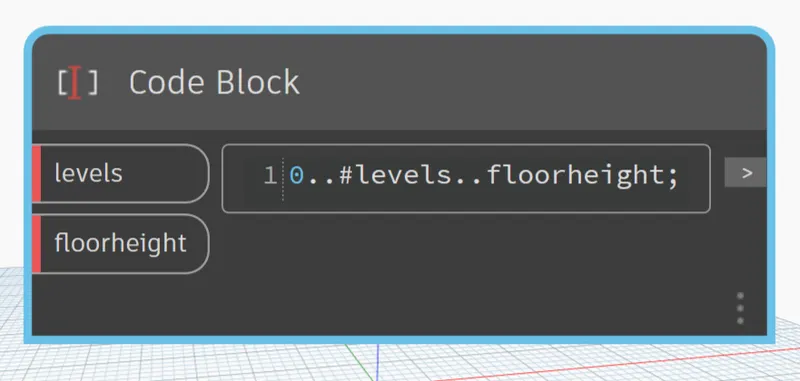

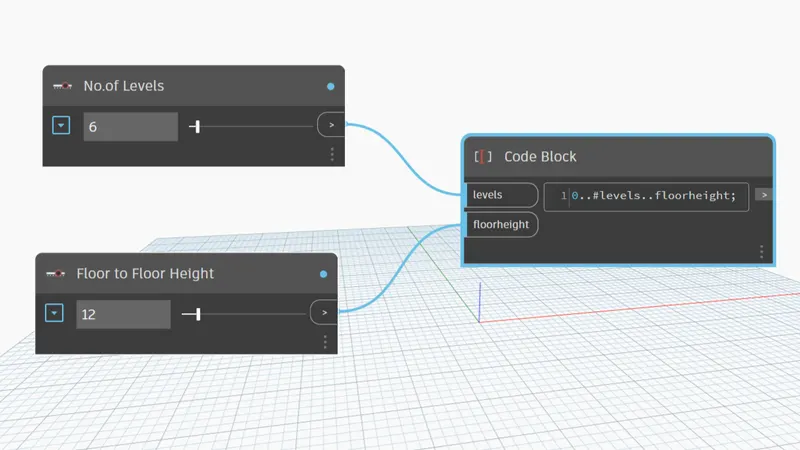

Now go to the search option and search for code block and in the court block enter the code as 0..#levels..floorheight

Then connect the number of levels and flow to floor height to the code block level and floor height

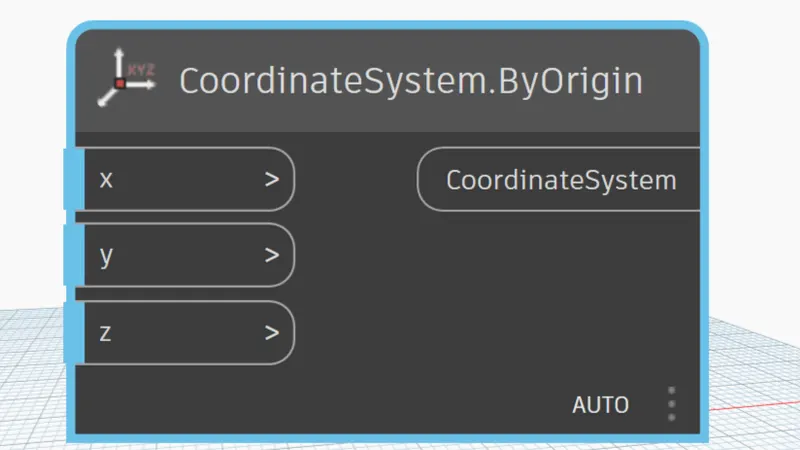

Go to the search box and search for co-ordinate system by origin

Also again go to the search box and search for Point by coordinates

Then connect to the code block to the point by coordinates and co-ordinate by origin

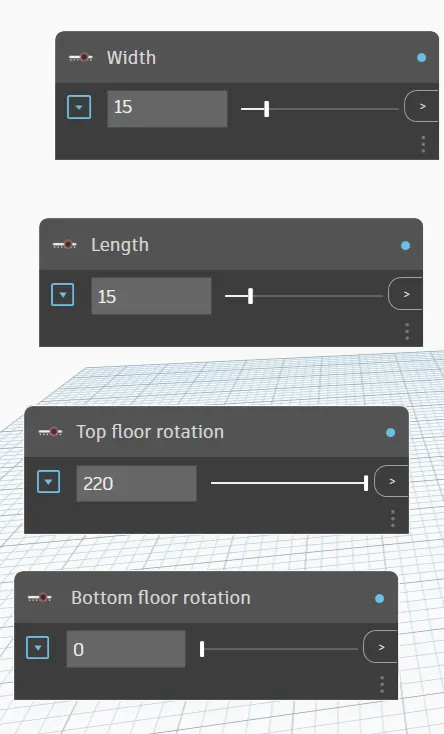

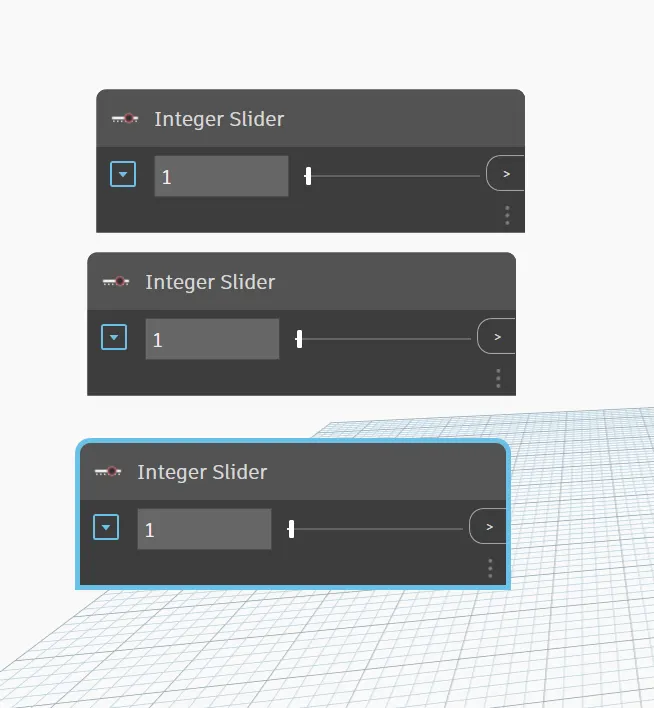

Go to the search and add integer slider and copy them using copy paste command and renamed them as width length , top floor rotation and bottom floor rotation

Also give the appropriate values for each

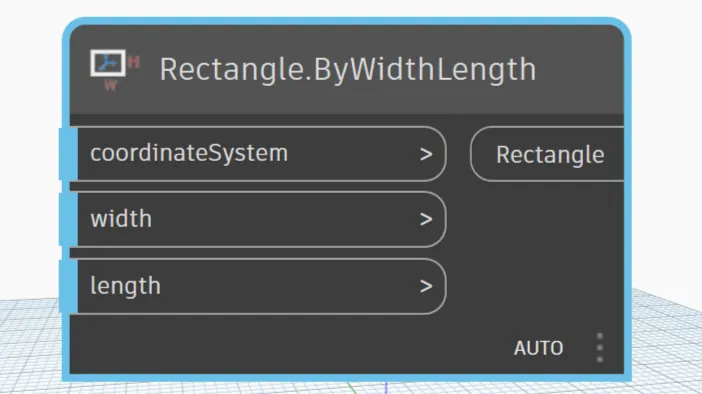

Search for rectangle by with the length

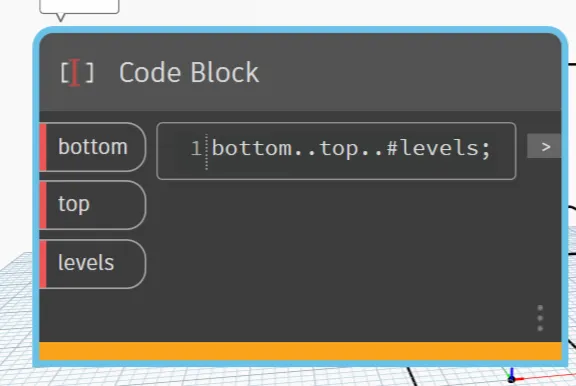

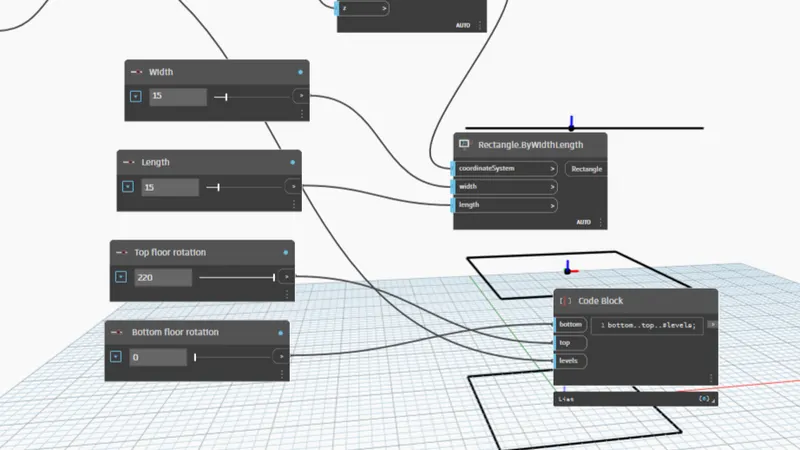

Then again search for code block and add it with a code of bottom..top..#levels

Now connect the width length top floor rotation and bottom floor rotation to the rectangle by with length and code block

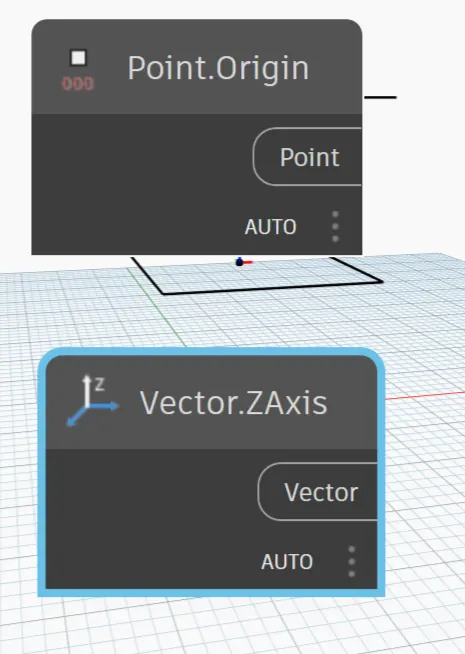

Now add point to origin and vector Z axis

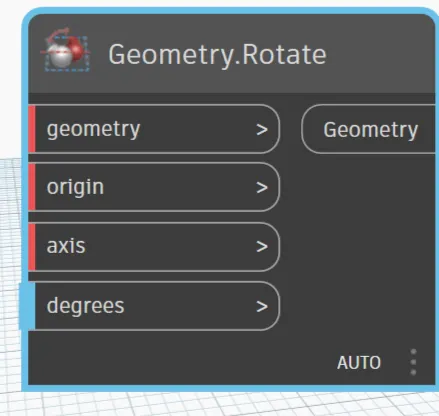

Also at the geometry rotate from the search library

Now connect the rectangle by width length,code block , point origin, vector z axis to the geometry rotate

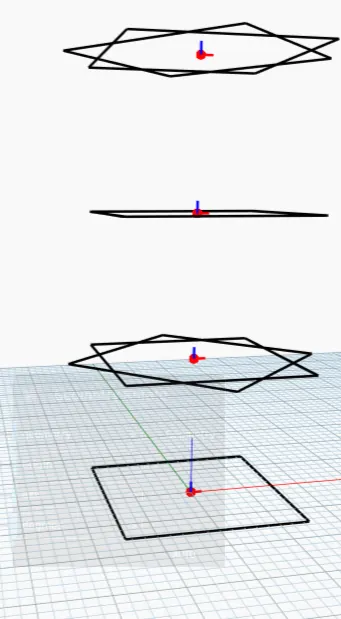

Now our geometry will look like this

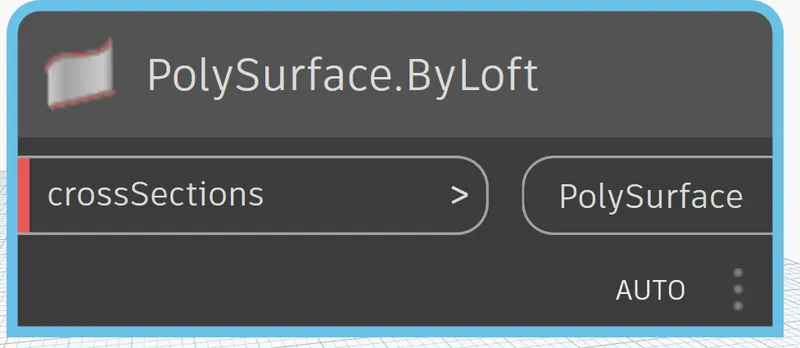

No add poly surface by loft option

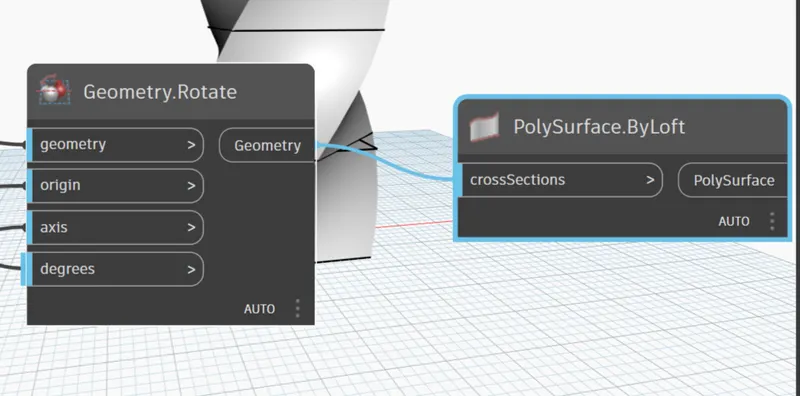

Then connect the geometry rotate to the poly surface by loft

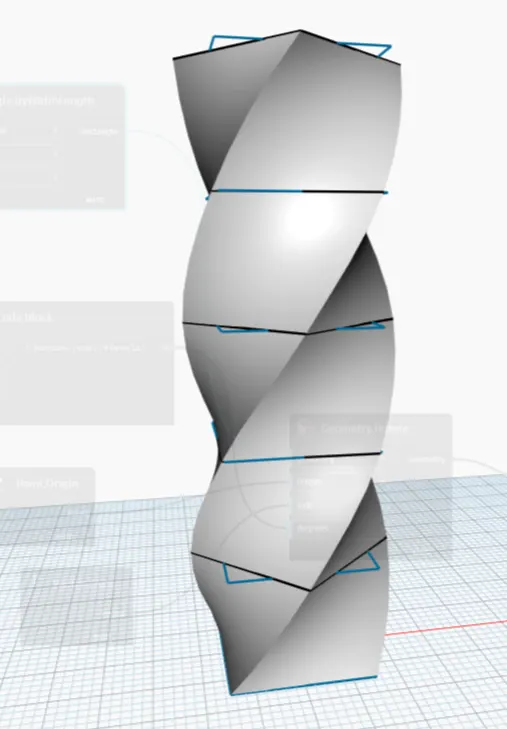

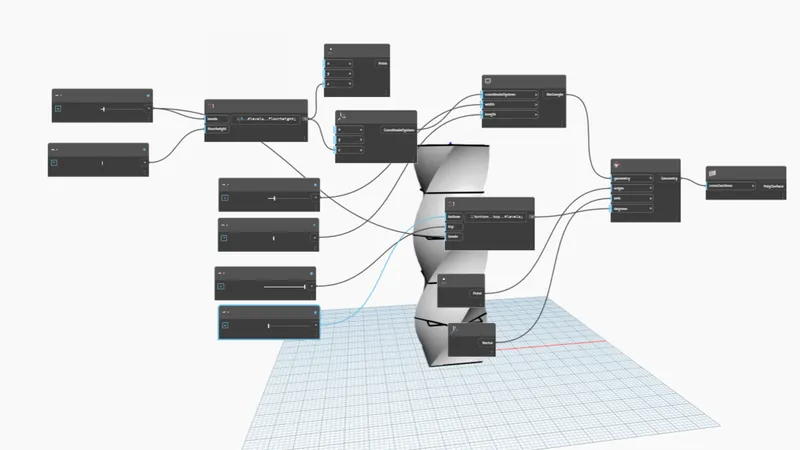

Hence our parametric Stadium will look like this

This is the code programming for the parametric stadium

RESULT :-

Our parametric Stadium has been created using the dynamo and also it has been rotated and the figure is being attached above
