Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo

1)

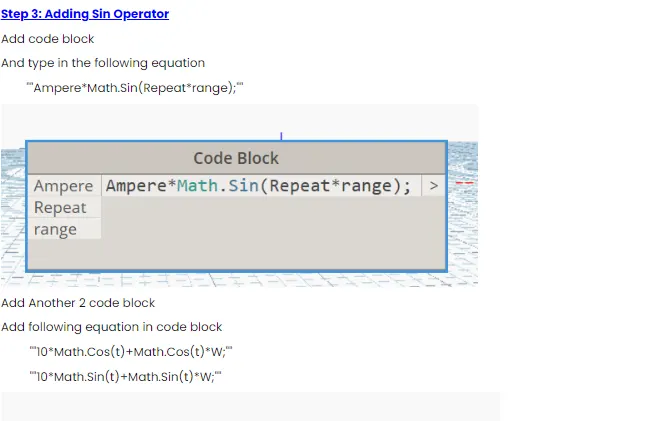

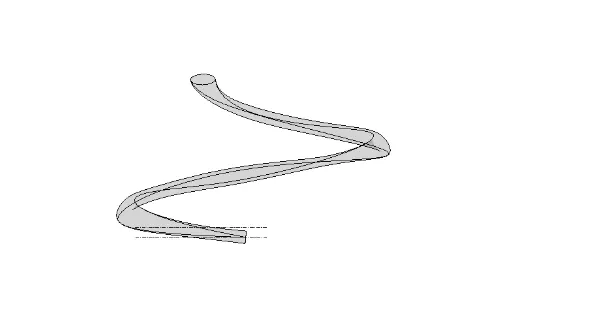

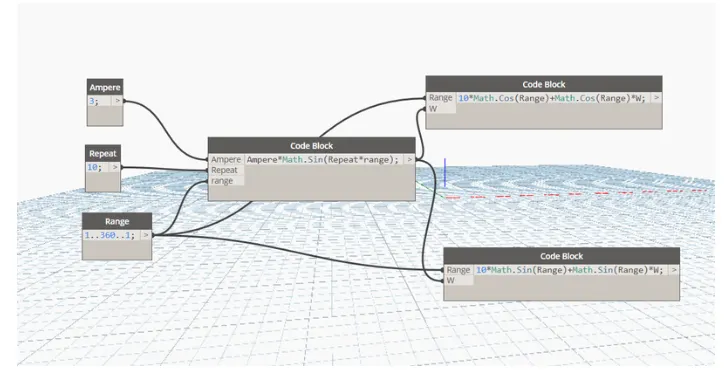

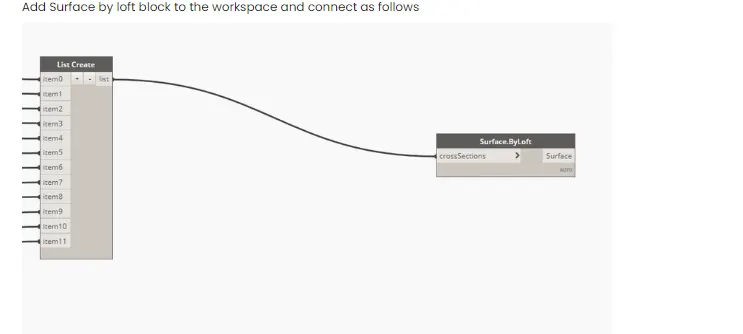

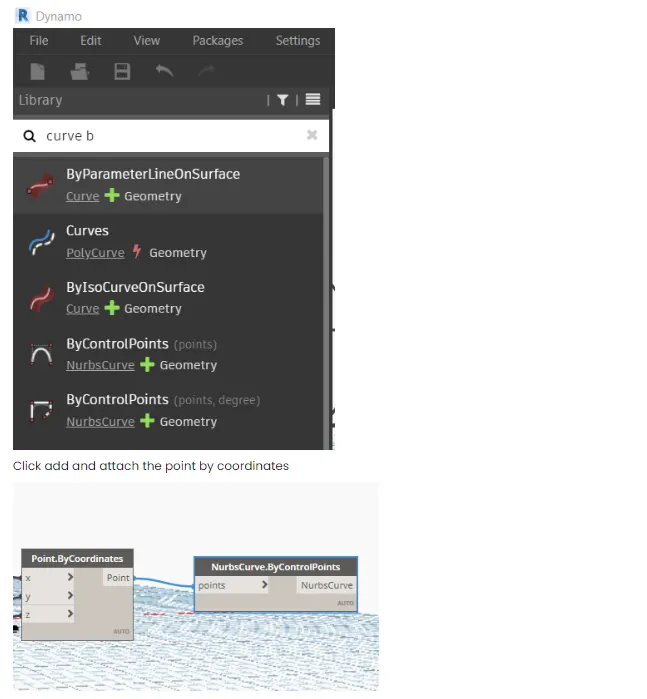

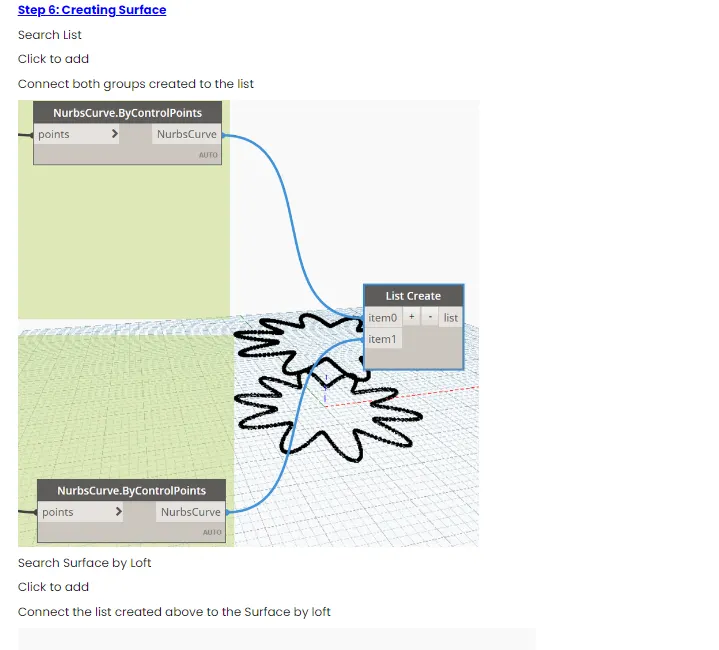

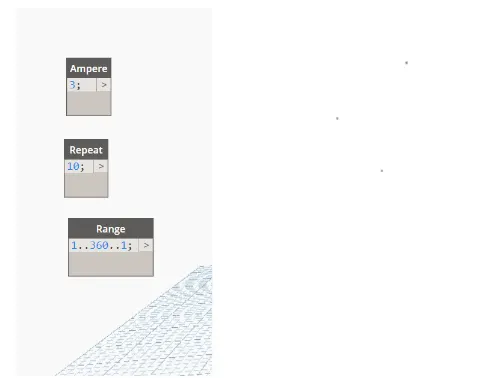

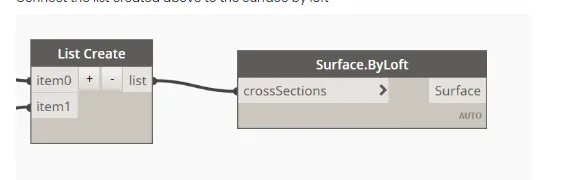

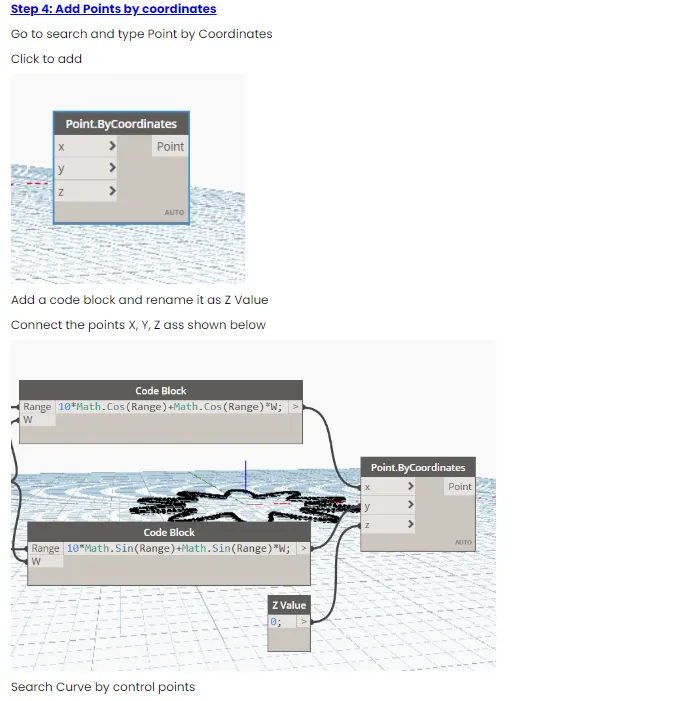

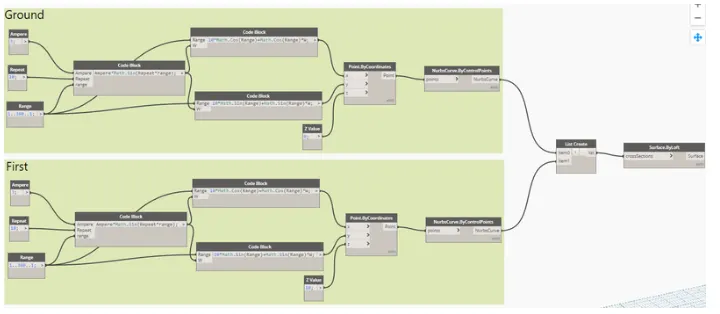

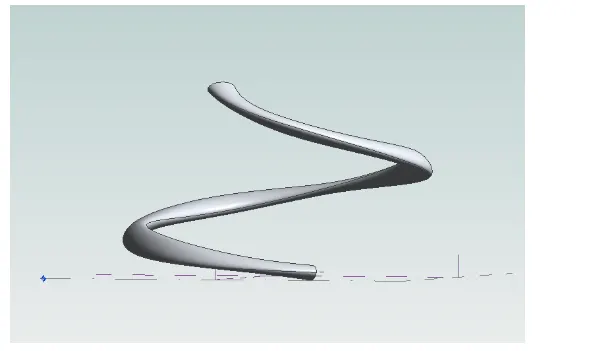

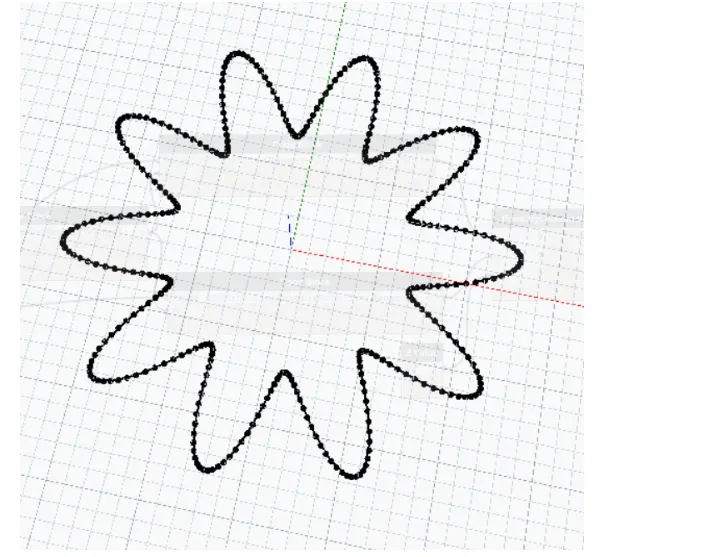

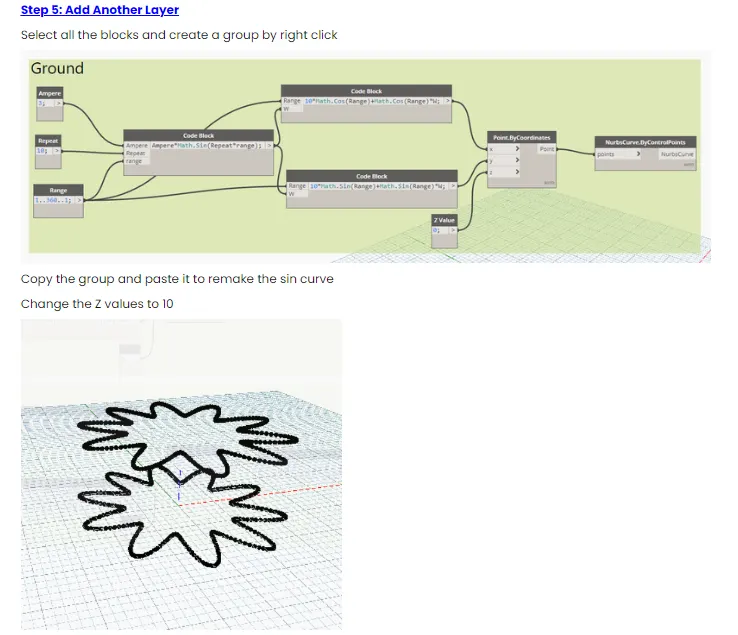

Aim: To create a set of sinusoidal points and create a curve and create a surface out of the curve

Introduction:

Dynamo is an open-source visudl programming language for Revit written by designers and construction
professionals. It is a programming language that allows you to type lines of code, while also creating an algorithm
that consists of nodes

Procedure:

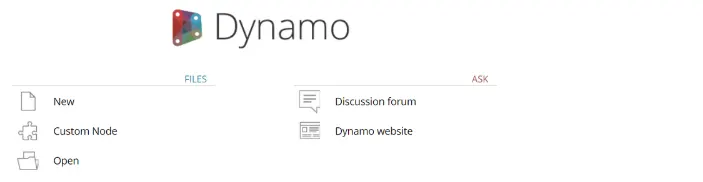

Step 1: open Dynamo
Open New Architectural Templdte

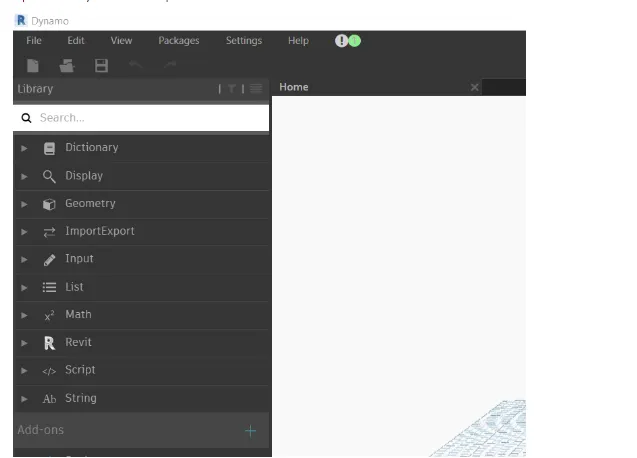

Go to the Manage tab and click on Dynamo

in Dynamo Click on New

results are follows

RESULTS:

2)

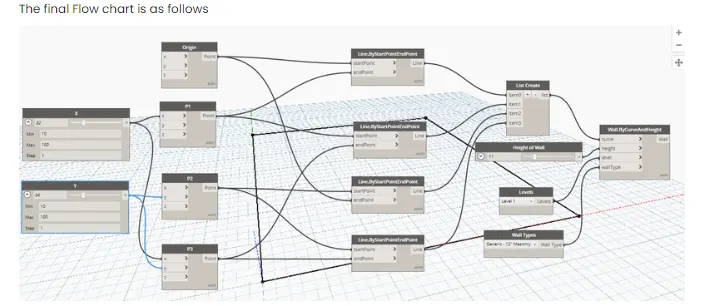

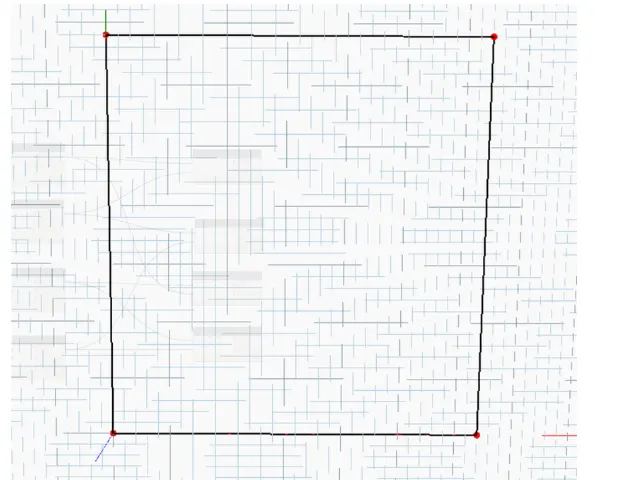

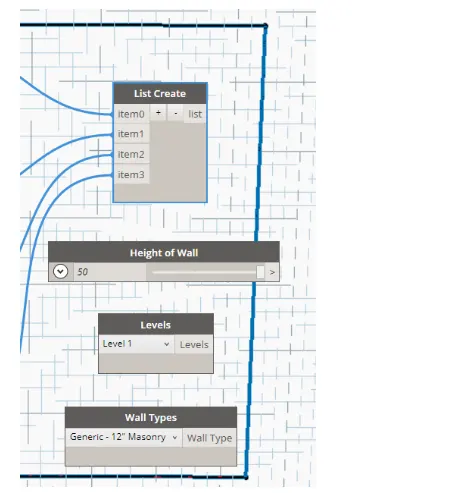

Aim: To create a conceptual layout of the floor plan in dynamo

Dynamo is an open-source visual programming language for Revit, wrltten by designers and construction
professionals., It is a programming lnguage that illows you to type lines of code; while also creating an algorithm
that consists of nodes

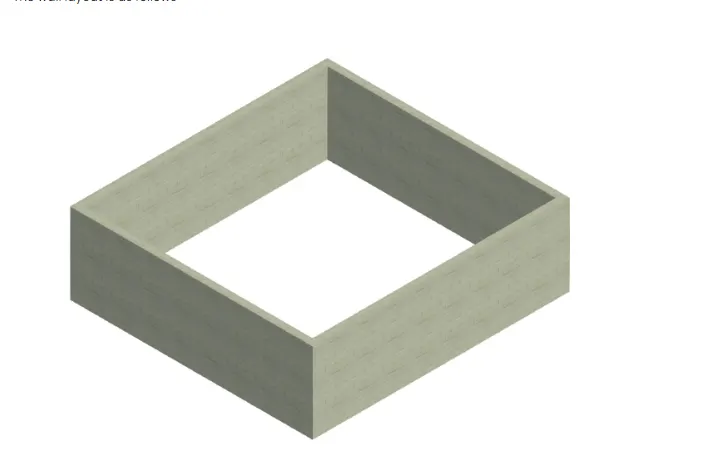

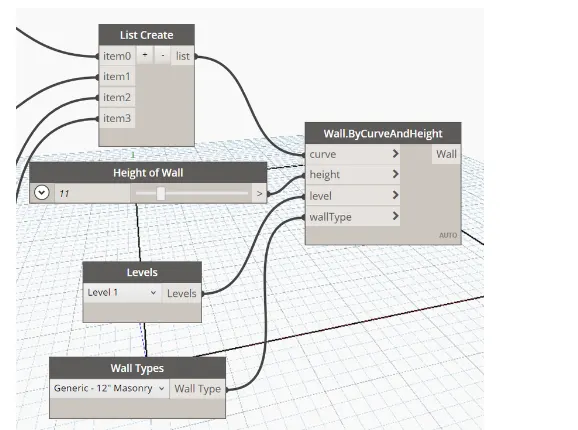

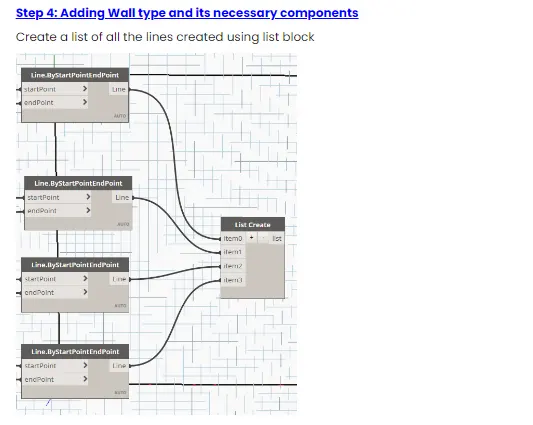

To create floor using wal types in dynamo. Tools used are Integer slider, code block, point by coordinates,

Procedure:

Step 1: Open Dynamo

Open New Revit Architectural project
Go to the Mandge tab and open Dynamo

Step 2: Adding Blocks

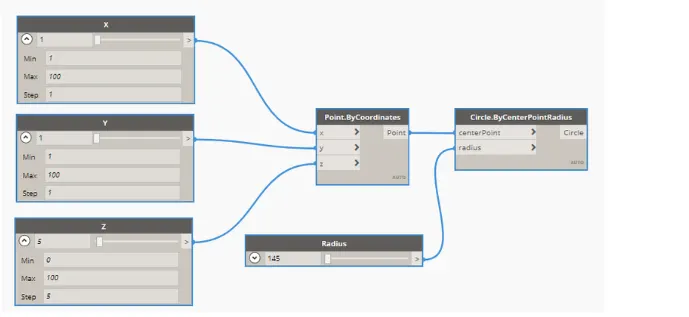

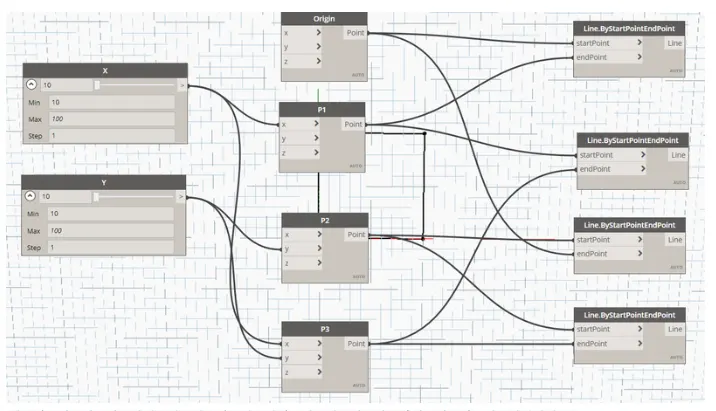

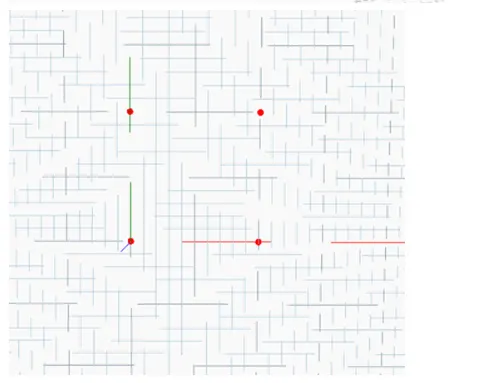

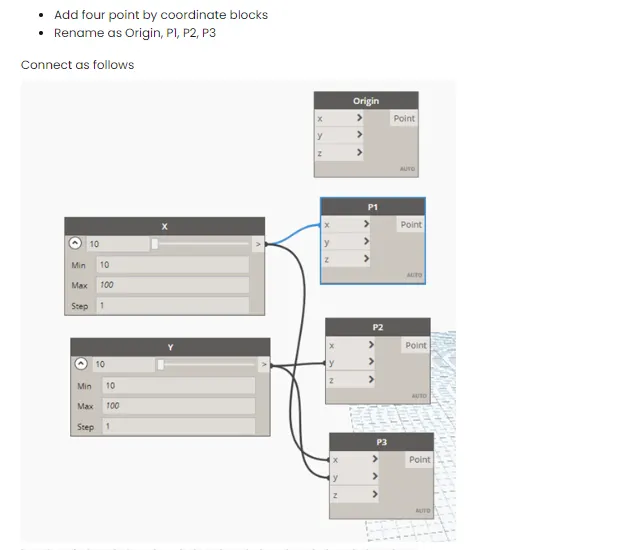

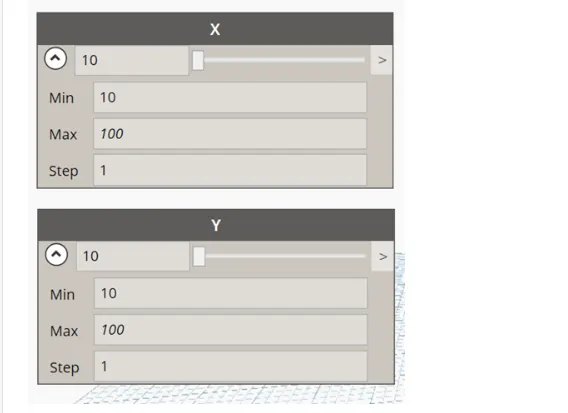

Add 2 integer sliders and rename them X and Y

RESULT:

3)

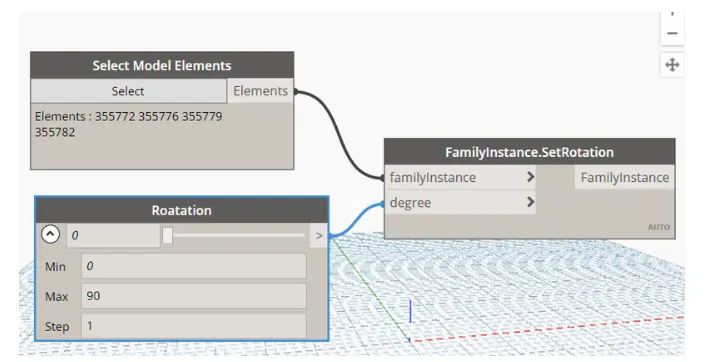

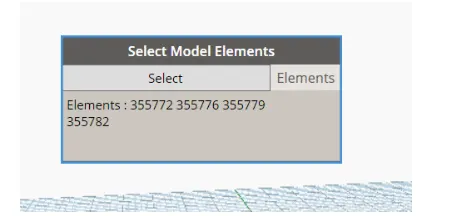

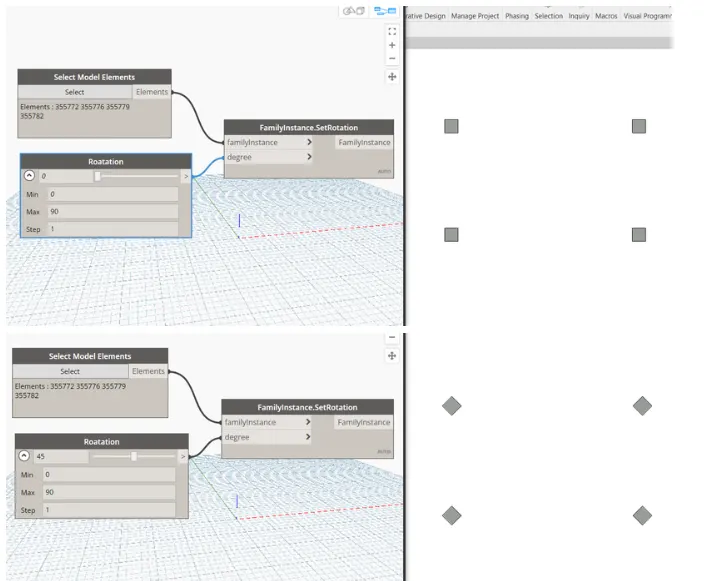

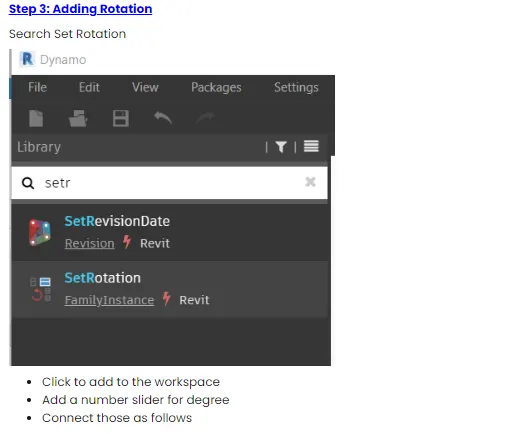

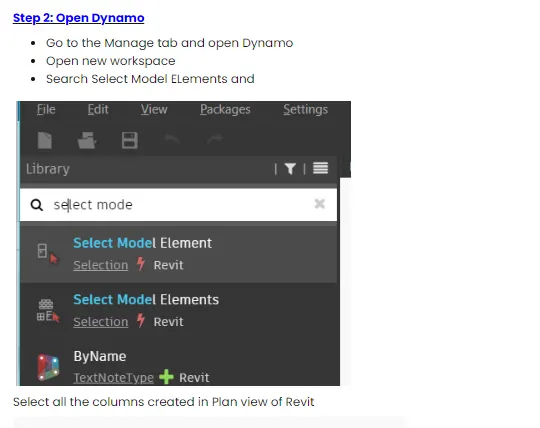

Alm:To create an array of model elements in Revit

Introduction:

Dynamo Is an open-source visual programming langudge for Revit, written by designers and construction
professionals. It is a programming language that allows you to type lines of code; while also creating an algorithm
that consists of nodes

The Array tool creates a linear or radialarray of selected elemests. Use the Array tool to create several instances of
one or more elements and manipulate them simultaneously. Array members can belong to a group; therefore, you
can add or remove items from the group

Procedure:

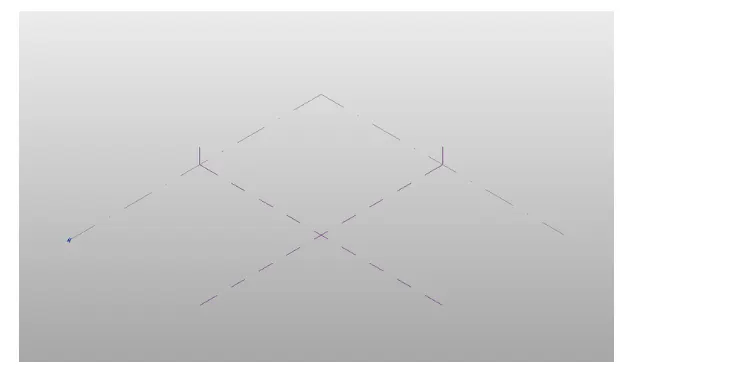

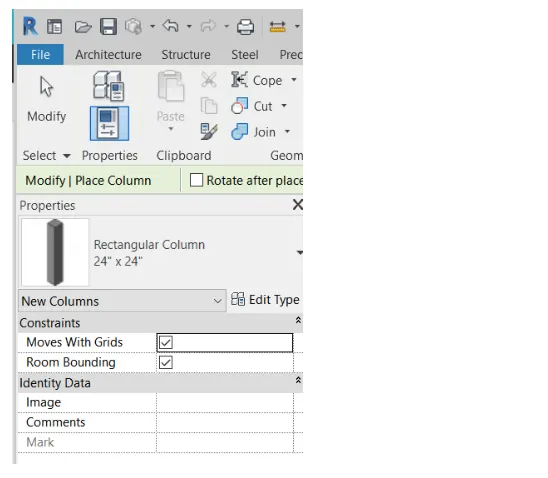

Step 1: Creating Elements in Revit

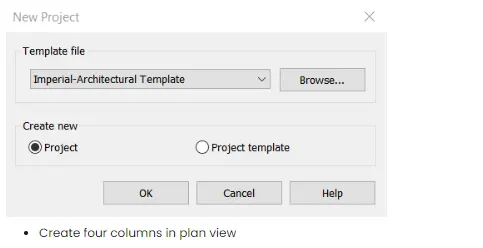

Open New Revit Architectural project

New Project

RESULT:

4)

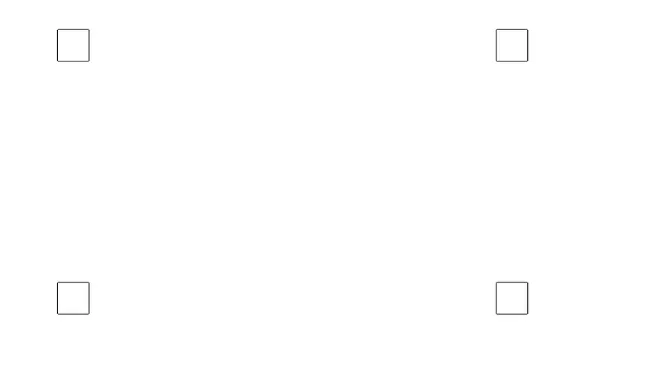

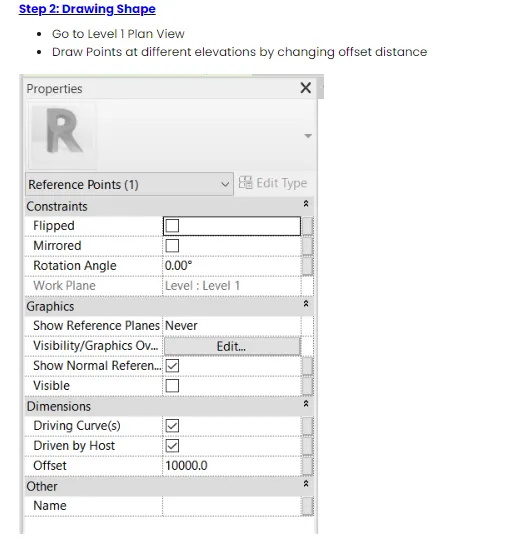

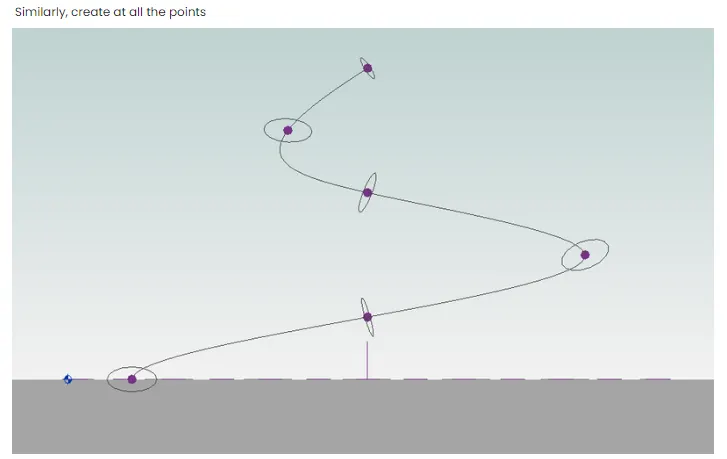

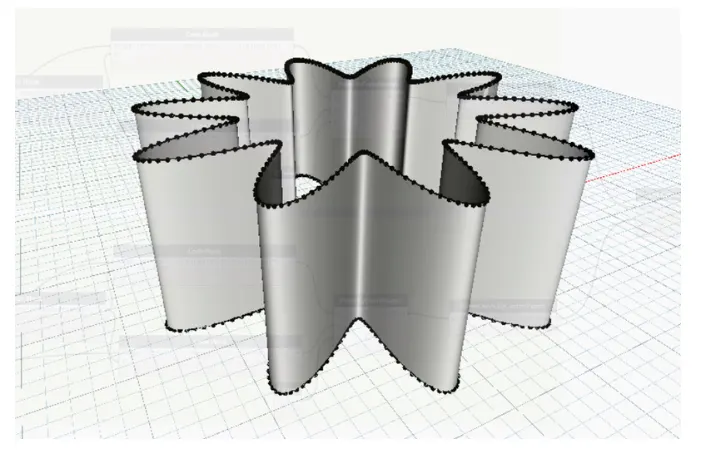

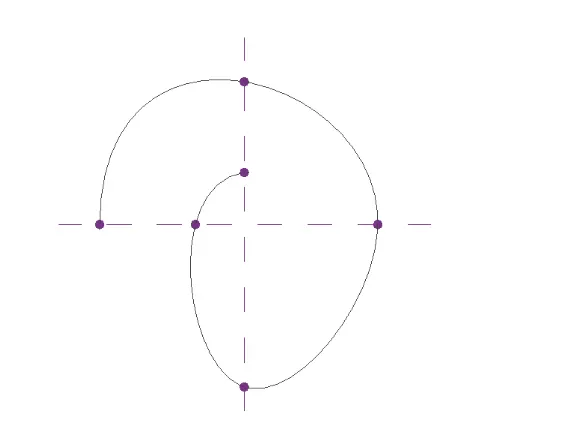

Alm:To create a conceptual mass in Revit and developa parametric column

Introduction:

Dynamo is an open-source visual programming language for Revit, written by designers and construction
professionals. it is a programming language that allows you to type lines of code, while dlso creating an algorithmn
that consists of nodes

Creating conceptual mass tamilies means t
the mass family, which is then saved and loaded into the project

the mass Is external t the project. It uses the same tools to create

Procedure

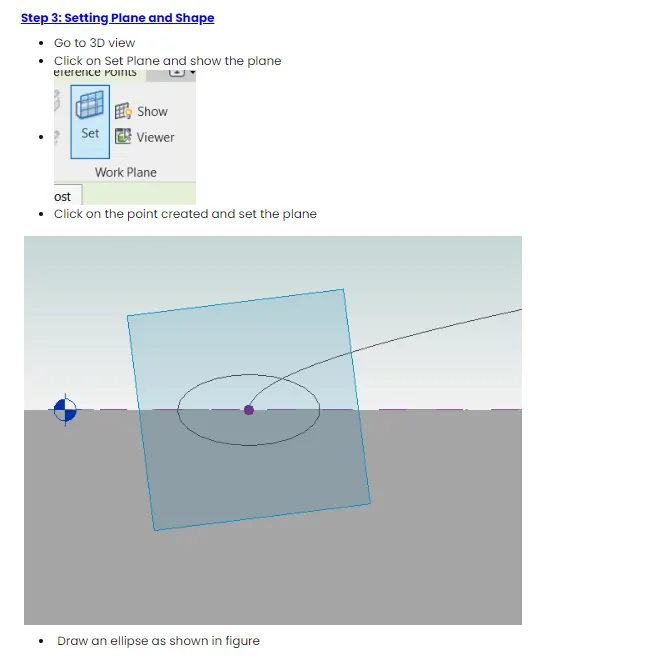

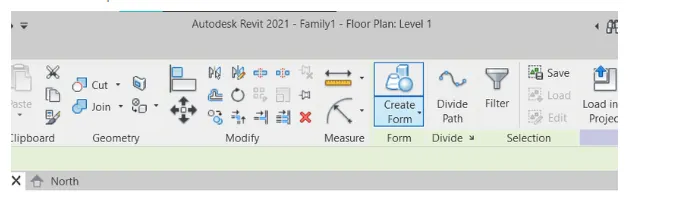

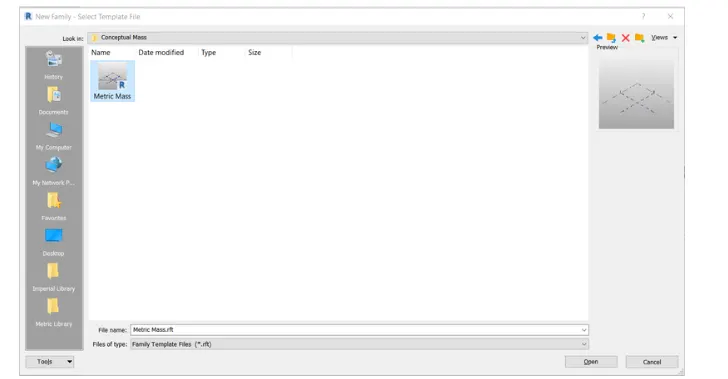

Step 1:open Conceptual Mass
Open New Revit Family
Go to FAMILIES and conceptualmass

RESULT:

5)

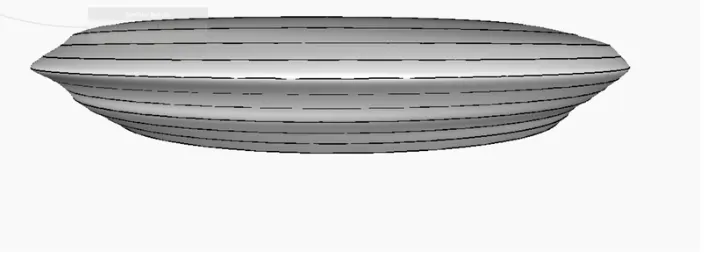

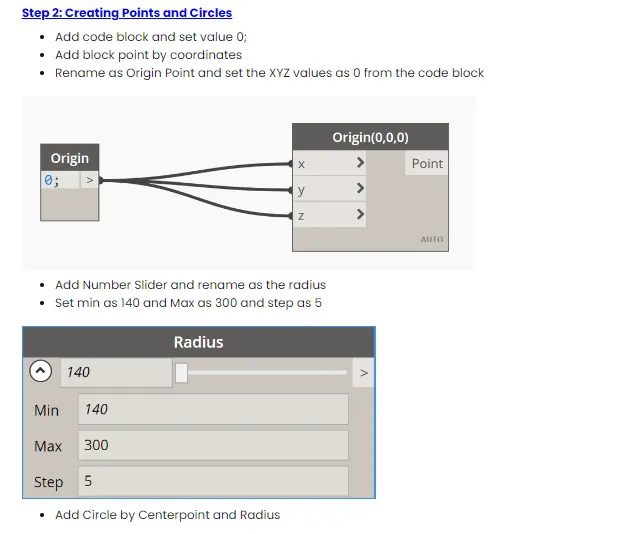

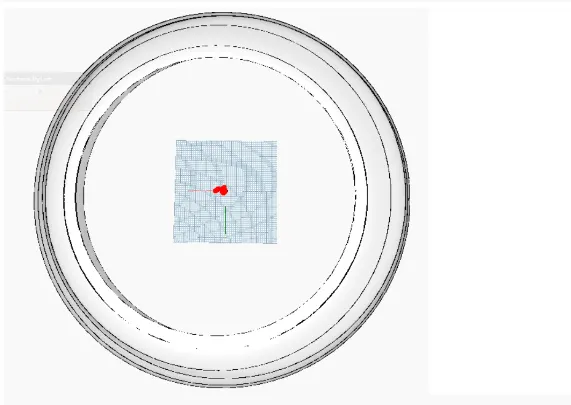

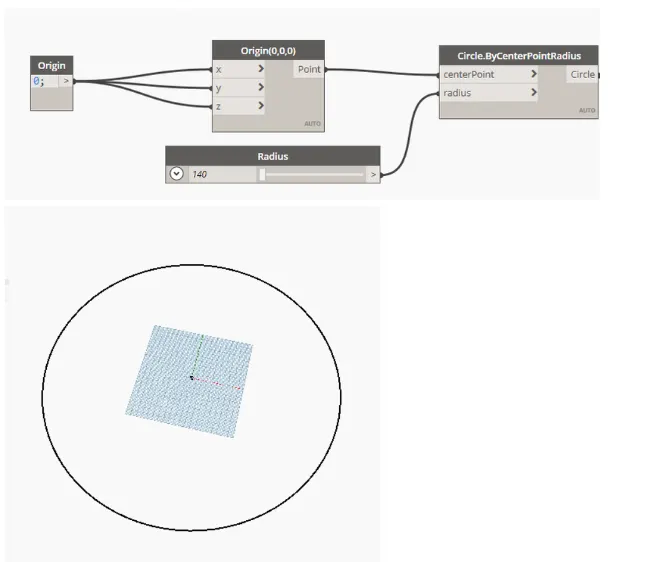

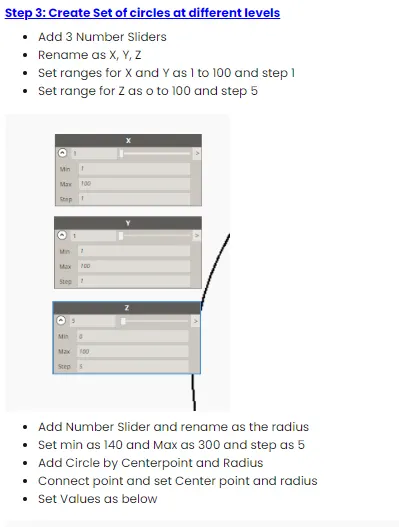

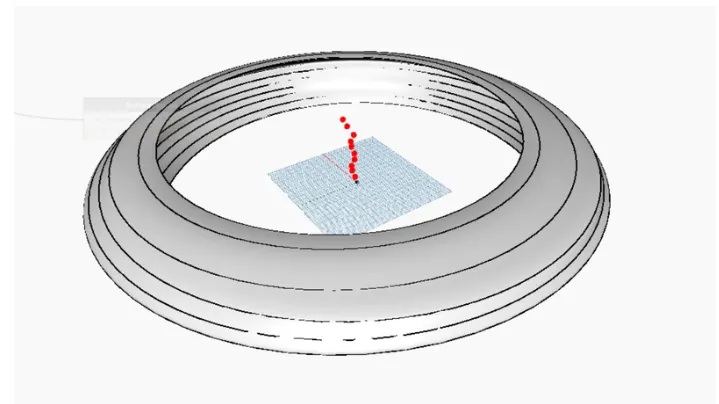

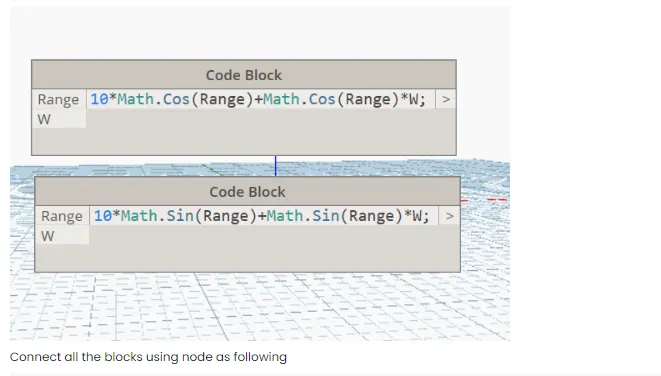

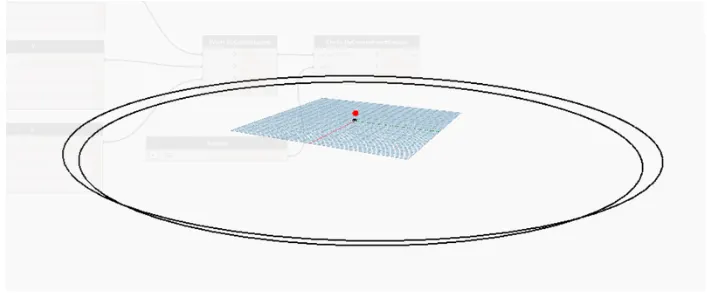

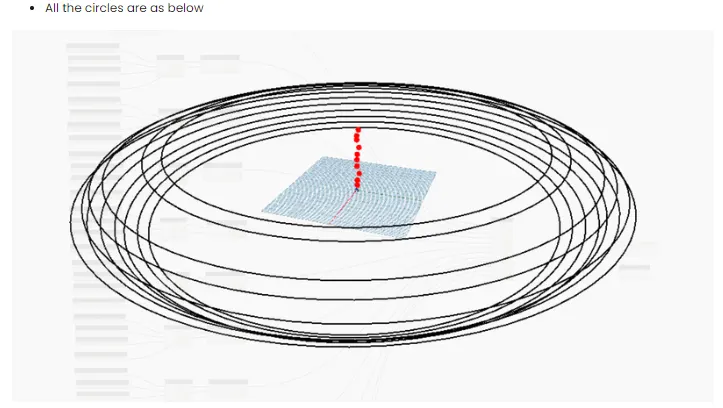

Aim:To Use bynamo to work on developinga Parametric stadium

Introduction:

Dynamo is an open-source visual programming language for Revit, written by designers and construction
professionals. It is a programming language that allows you to type lines of code; while also creating an d'gorithm
that consists of nodes.

Creating conceptualmass families means that the mass is external to the project. It uses the same tools to credte
the mass family, which is then saved and loaded into the project.

Procedure:

Step 1: Opening New Project

Open New Revit Architectural Template and save as Project 3

Go to Manage Tab and click on Dynamo

Open new Dynamo workspace

RESULT:
