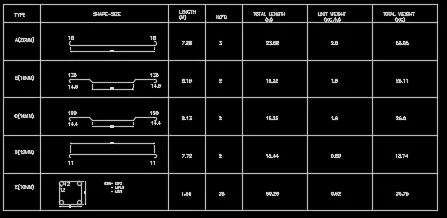

Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

AAdhisaya Raj16 Feb 2024

1. 1.Create the template as shown in figure.Take the size of the tittle block as per industry standards or you can Assume it as per size of paper. Use text and attributes wherever required. After creating the title block you need to save it as a block with names: Custom1_titleblock and Custom2_titleblock,

Aim:

To create Custom1_titleblock and custom2_title block using attributes and block command from Autocad software.

Procedure:

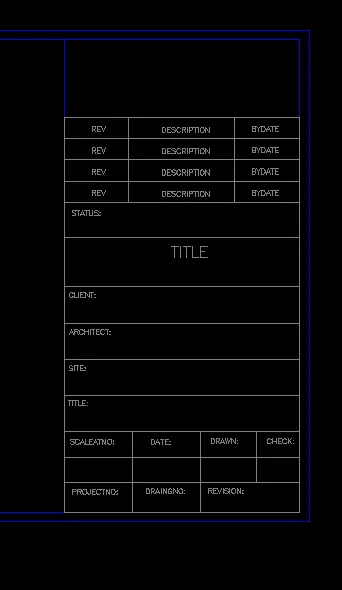

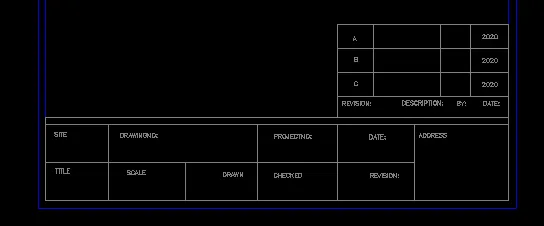

Step1 (Custom1_titleblock):

In the command prompt type L to draw the lines
In Ribben tab > Annotate> Mtext (To daft the text)
Go to properties tab to change the colour

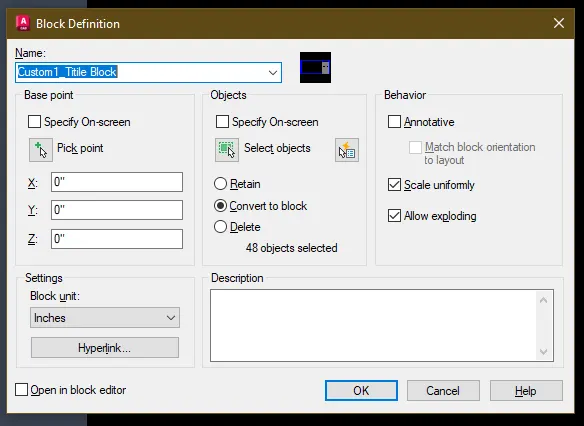

In the ribben Bar >block >Create block and name it Csutom1_Titleblock. Therefore the Block create

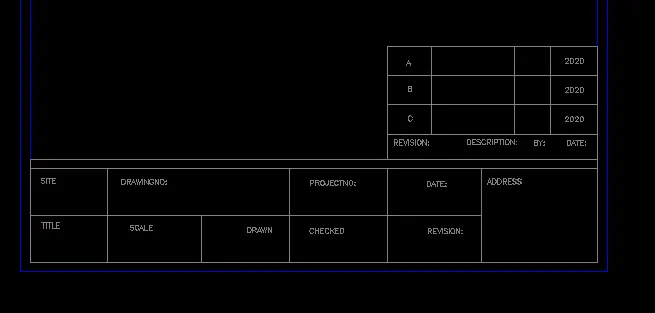

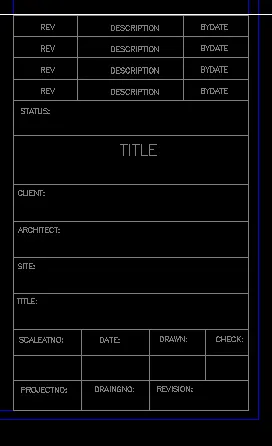

Step2 (Custom2_titleblock):

In the command prompt type L to draw the lines
In Ribben tab > Annotate> Mtext (To daft the text)
Go to properties tab to change the colour

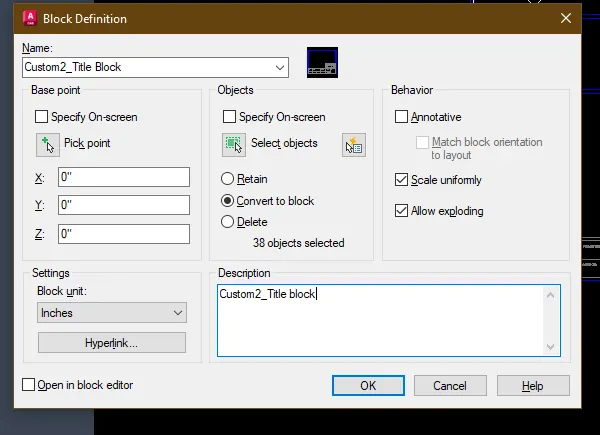

In the ribben Bar >block >Create block and name it Csutom2_Titleblock. Therefore the Block created

Result:

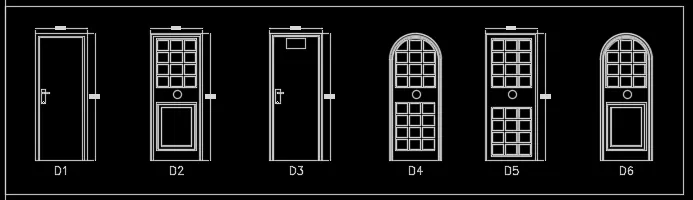

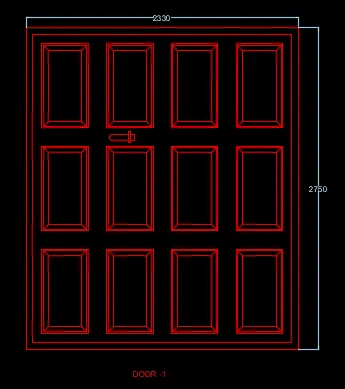

2. 2. Create the Doors type for warhouse as shown In the figure. You need to create each door type ass per standard size or given Dimensions. Create the blocks of this door type after creating them.

Aim:

To create the doors types for warehouse and to also create the block of this door type after creating them using Auto CAD.

Procedure:

Step1:

· In the command prompt type the units > mm

· In the command prompt type limax > 100,100

· In the command prompt type the Limits > 0,0

Step2:

· In the command prompt type l to Draft the lines

· In the command prompt type Rectangle to draft the boxes or rectangle

· In the command prompt type fillet to get the curve edges

· In the Ribbon bar >Dimensions (to give the dimension of the door)

· In the ribbon bar >Annotation >text (to give the text for the door)

· In the ribbon bar >Block > Create block (to create the door block)

Step3:

· In the command prompt type L to draft the lines

· In the command prompt type rec to draft the boxes or rectangle

· In the command prompt type fillet to get the curve edges

· In the ribbon bar > dimensions (To give the dimensions of the door)

· In the ribbon bar >annotation > Text (To give the text for the doors)

· In the ribbon bar > Block > Create block (to create the door block)

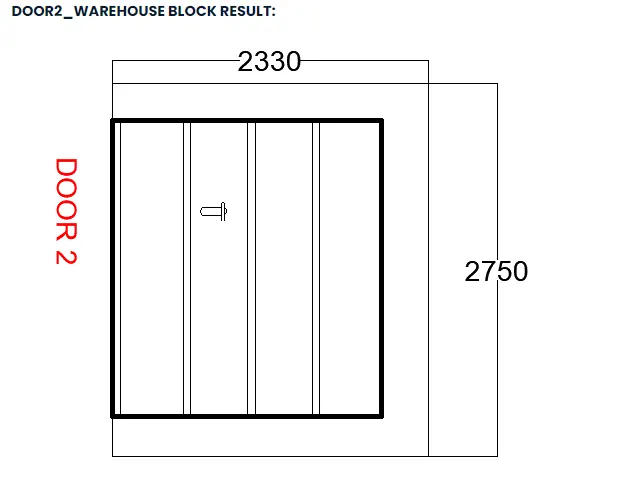

Result:

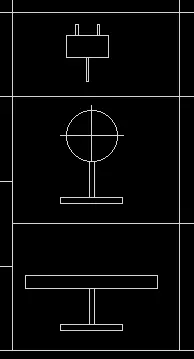

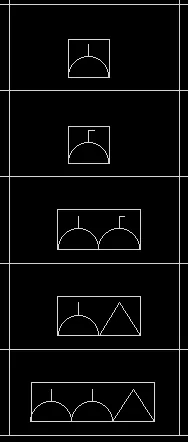

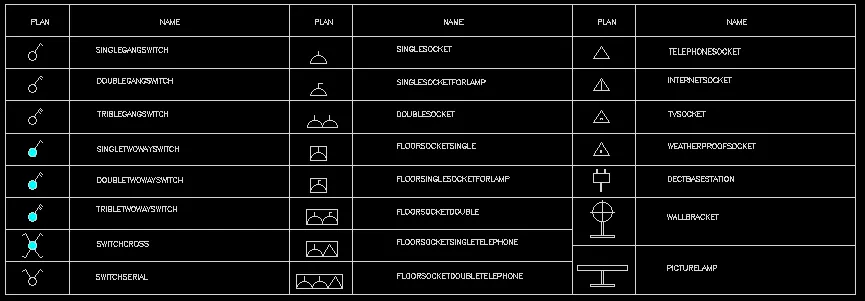

3. 3.Create the each symbol as a block with the name given in the legend. After creating the blocks arrange them in the legand as shown figure

Aim:

To create each symbol as a block with the name and then arrange them in the legend.

Procedure:

In the command prompt type C to get the circle
In the command prompt type L to get the lines.
In the ribbon bar > Annotation > Multiline text.
In the ribbon bar > block >Block edit.

Same commands and procedures are followed for all the symbols
In the commands prompt type L to draw the lines
In the command prompt type Arc to draw the arc
In the command prompt type Mtext
In the ribbon bar > Block > Block create block

In the commands prompt type L to draw the lines
In the command prompt type Mtext
In the ribbon bar > Block > Block create block

In the commands prompt type L to draw the lines
In the command prompt type fillet to draw the curves
In the command prompt type Mtext
In the ribbon bar > Block > Block create block
Result:

4. 4.Create the door type for residential building as a block. Save the name of the of blocks as type. Use given dimension or assume dimension as per industry standards.

Aim:

To create the Door type for residential building as a block

Step1:

· In the command prompt type the units > engineering >inches

· In the command prompt type the Limits > 0,0 ,limax > 100,100

· In the command prompt type zoom > a

Step2:

· In the command prompt type L to draw the lines

· In the command prompt type B to create a block
