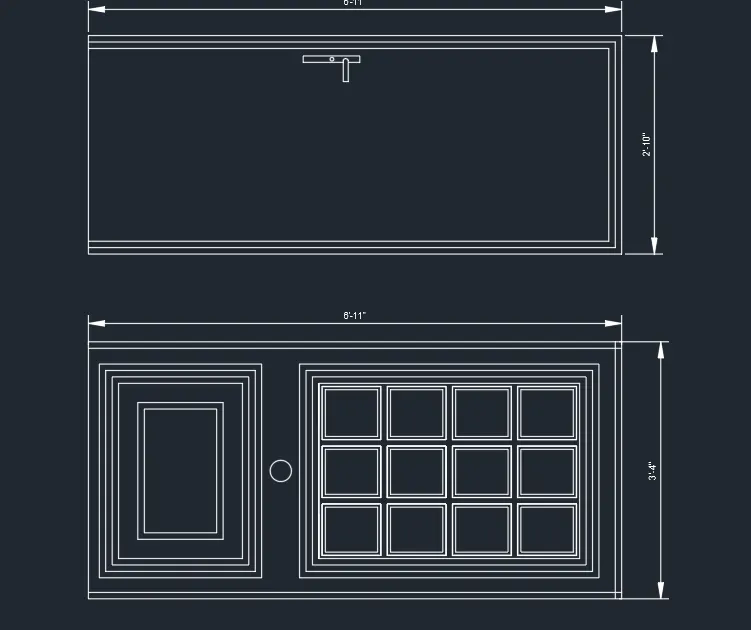

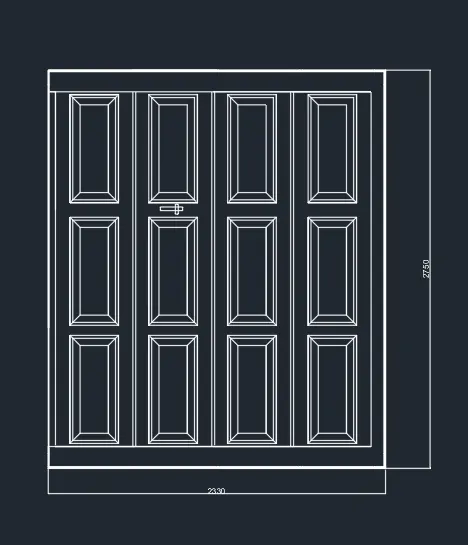

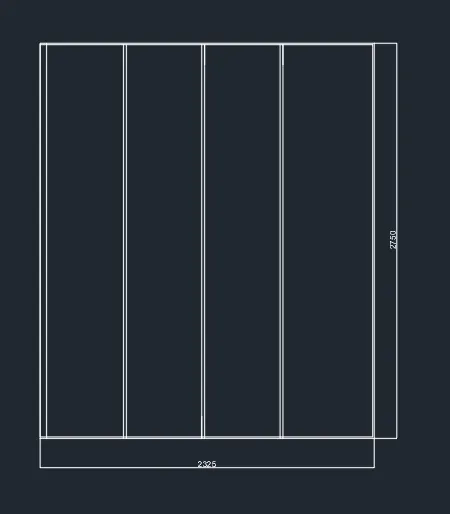

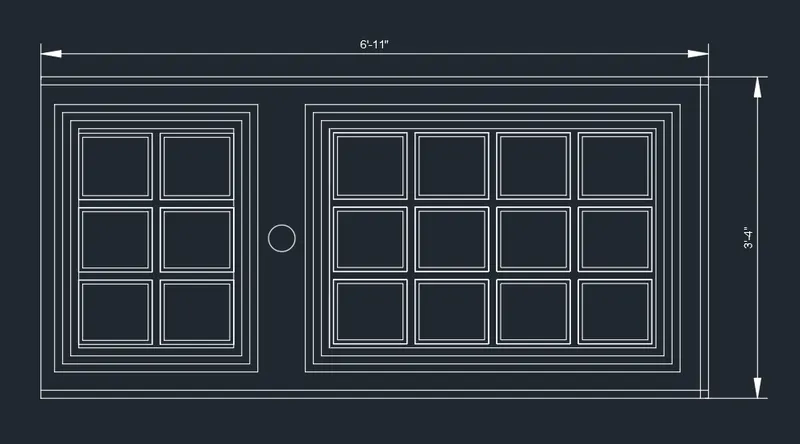

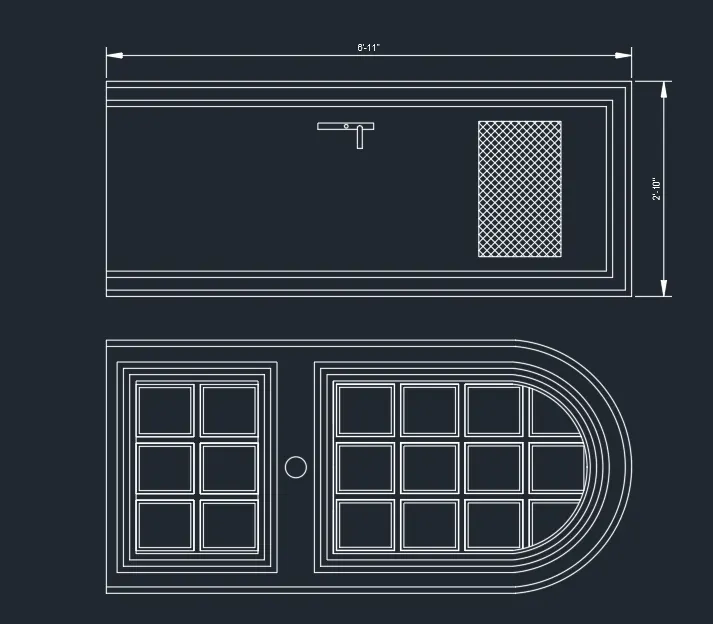

Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

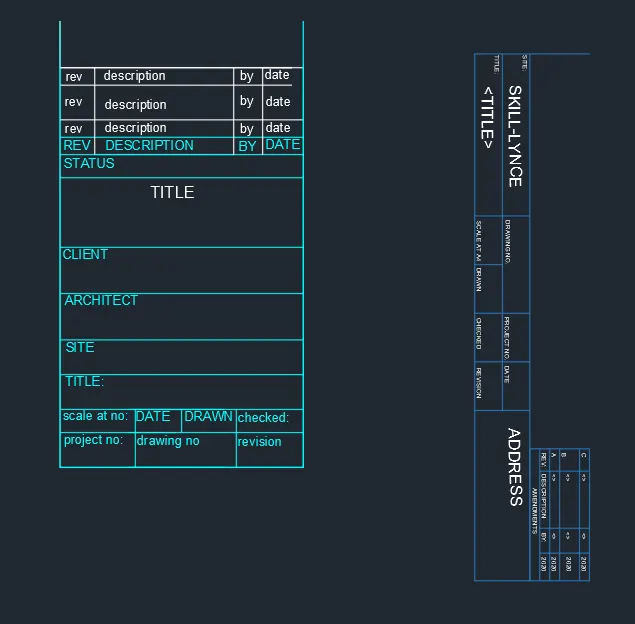

AIM=Create the templates as shown in Figures. Take the size of the title block as per industry standards or you can assume it as per the size of the paper. Use text and attributes wherever required

COMMAND=line,rectangle,circle,table,test,offset,copy,move,block,trim,,,etc

INTRODUCTION= Using some command creted given figure and saved as block.

PROCEDURE=

• Set a sheat with unit command
• using table command creat a table with perticular rows and column
• after using some command created required perfect table with helo of merge edit the table
• created test wherever required.
• using the block command select the block and gave the name ane select the object and click on ok the selected object will be save as block.
• save the drawn diagram.
