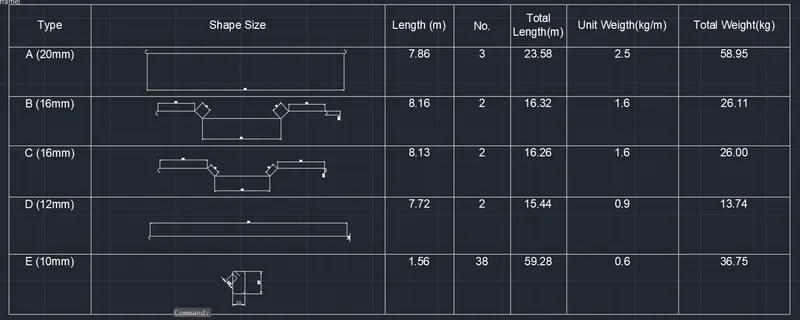

Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

AIM:

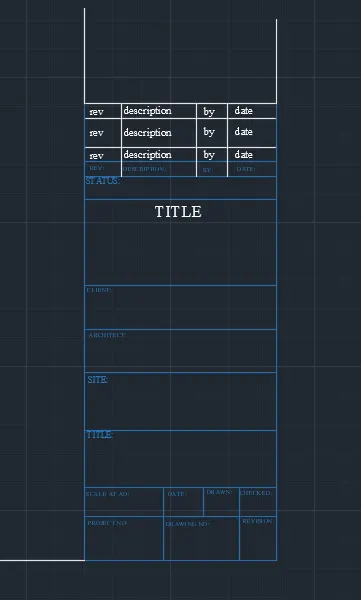

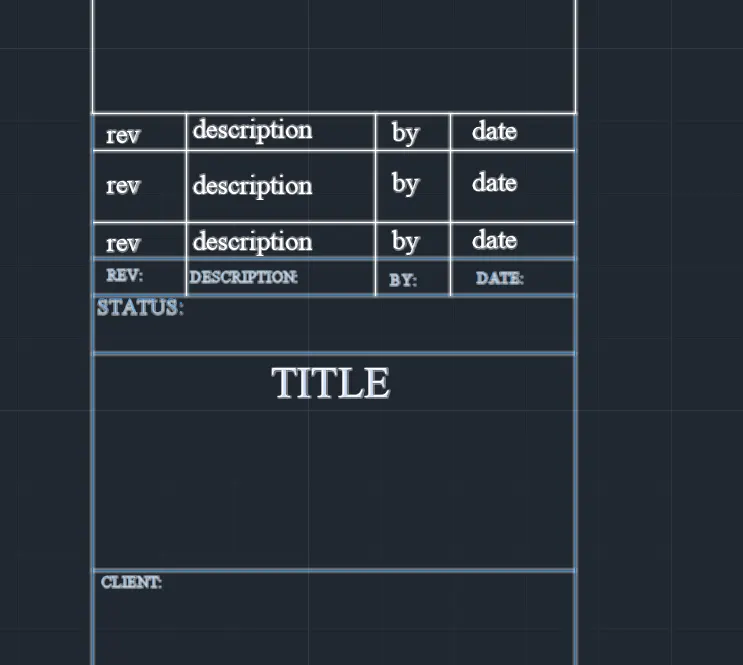

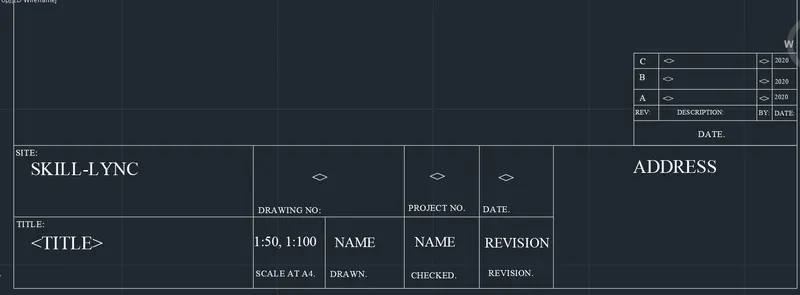

To Create Custom1_titleblock and Custom2_titleblock using Attributes and block command from Autocad software .

COMMANDS USED:

• Block.
• Insert.
• Attributes.
• Field.
• Rectangle.
• Line
• Text.
• Array.
• Mirror.
• Copy.
• Offset.

PROCEDURE:

Step 1 ( custom1_tittleblock)

• In the command prompt type rec to draw rectangle
• Then offset this rectangle in different sizes as needed.
• After that in the command prompt type L to draw the lines and draw the line where needed.
• Using the MLine command type all the text using appropiate font and size in the rectangle.
• go to properties tab to change the colour

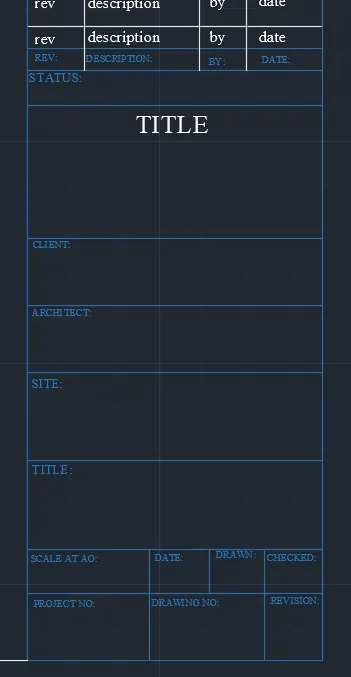

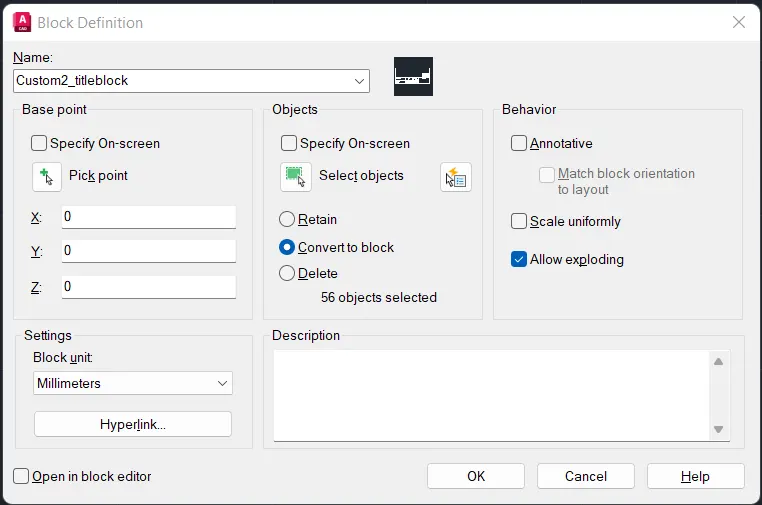

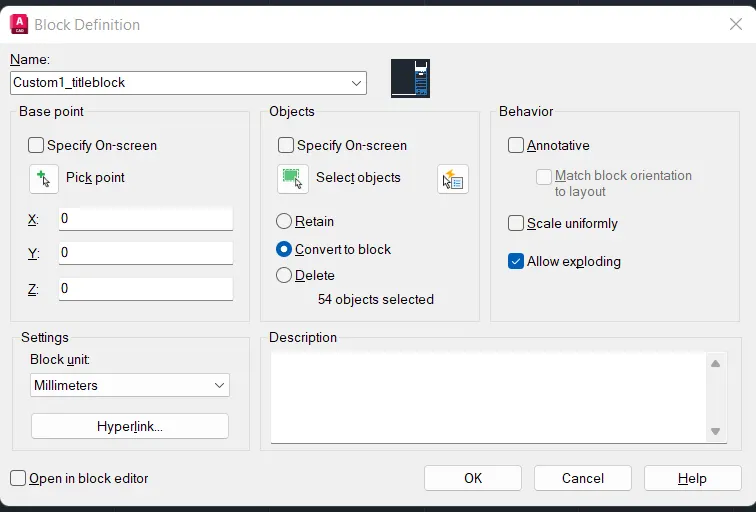

• In the riibon bar >block > create block and name it Custom1_titleblock.Therefore the block is created

RESULT:

STEP 2 (custom2_tittleblock)

• In the command prompt type rec to draw rectangle
• Then offset this rectangle in different sizes as needed.
• In the command prompt type L to draw the lines
• In ribbon tab > Annotate > Mtline ( to draft the text )
• go to properties tab to change the colour

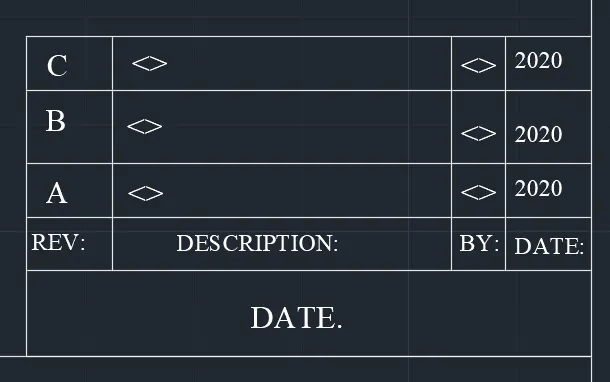

• In the riibon bar >block > create block and name it Custom2_titleblock.Therefore the block is created .

RESULT:

AIM:

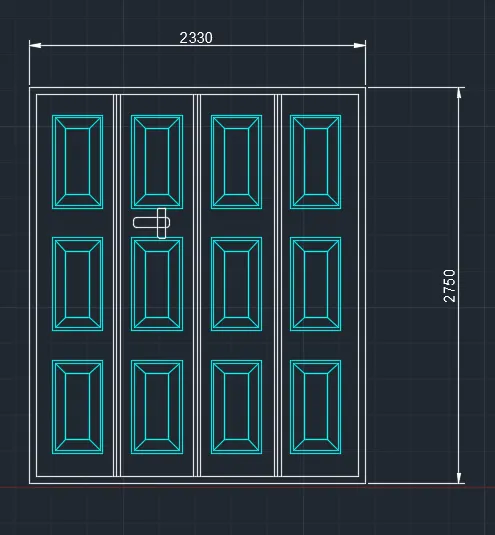

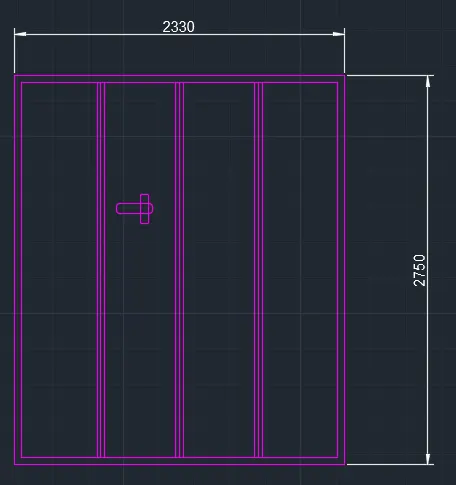

To create the doors type for warehouse and to also create the block of this door type after creating them using AutoCAD

PROCEDURE:

step 1:

• In the command prompt type the units > mm
• In the command prompt type the limax > 100,100
• In the command prompt type the limits >0,0

step 2 :

• In the command prompt type Rec to draft rectangle
• Then offset the rectangle using Offset command
• Select the rectangle and explode it to create seperate line
• Now using div commnad divide the upper side of rectangle in 4 parts
• Now draw lines from this divided parts and offset those lines
• In the command promt type rec to draft the boxes or rectangle inside the main rectangle
• Offset this rectangle
• Use the Array command for multiple rectangles
• In the command prompt type fillet to get the curve edges
• In the ribbon bar > dimensions ( to give the dimensions of the door )
• In the ribbon bar > annotation > text ( to give the text for the door )

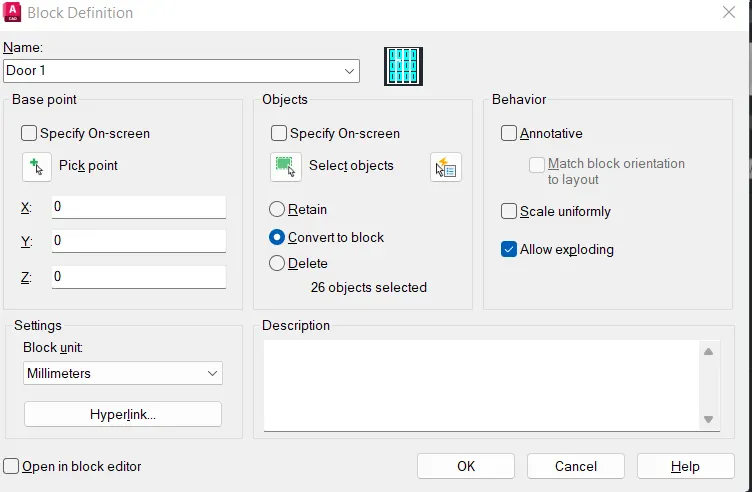

• In the ribbon bar >block >create block ( to create the door block )

RESULT:

step 3 :

• In the command prompt type Rec to draft rectangle
• Then offset the rectangle using Offset command
• Select the rectangle and explode it to create seperate line
• Now using div commnad divide the upper side of rectangle in 4 parts
• Now draw lines from this divided parts and offset those lines
• In the ribbon bar > dimensions ( to give the dimensions of the door )
• In the ribbon bar > annotation > text ( to give the text for the door)
• In the ribbon bar >block >create block ( to create the door block )

RESULT:

AIM:

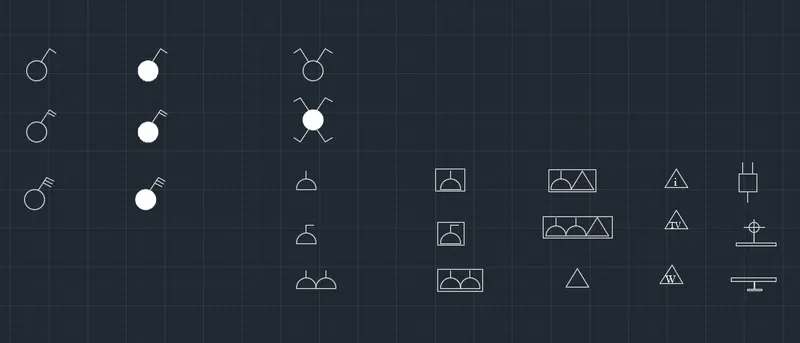

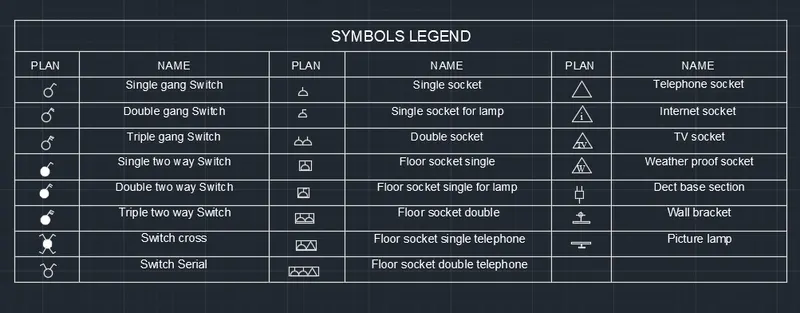

To create each symbol as a block with the name and then arrange them in the legend

PROCUDER:

• In the command prompt type C to get the circle
• In the command prompt type L to get the lines
• Using Line, Circle, mirror commands draw the structures
• In the ribbon bar > annotation> Multiline text
• In the ribbon bar > block>create block

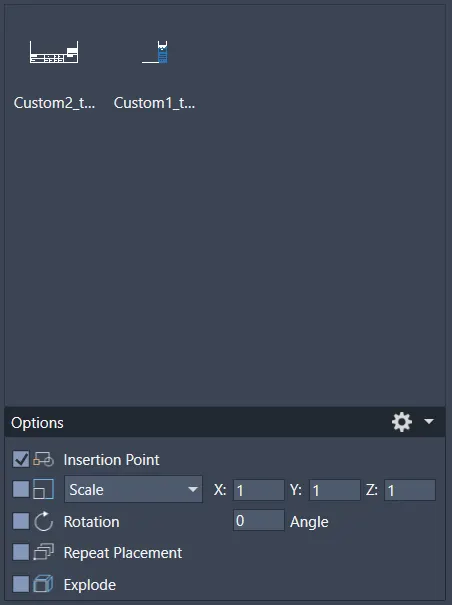

• In the coomant prompt type I to insert the blocks

RESULT:

AIM:

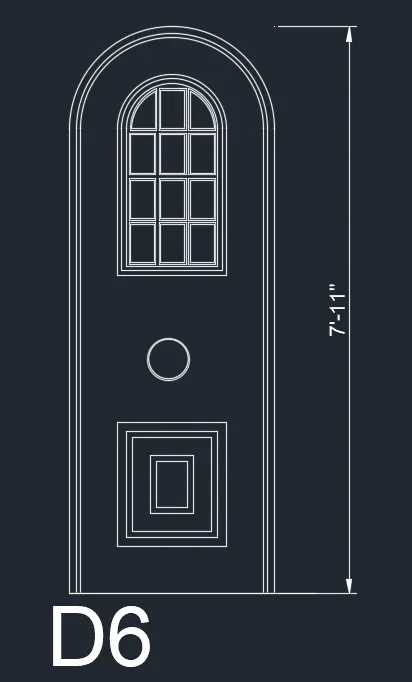

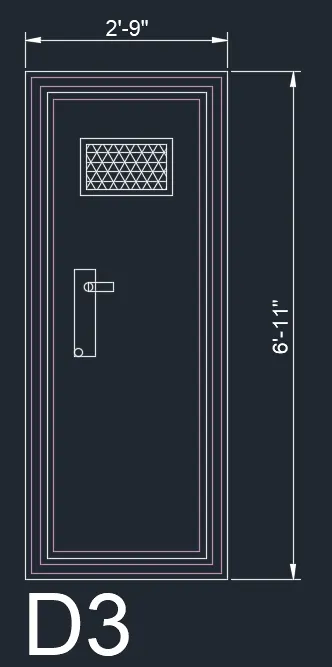

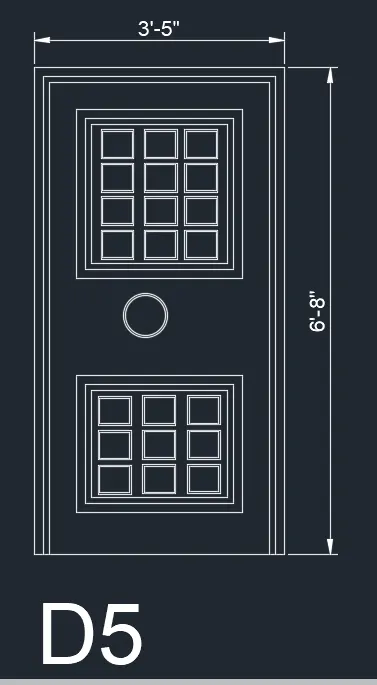

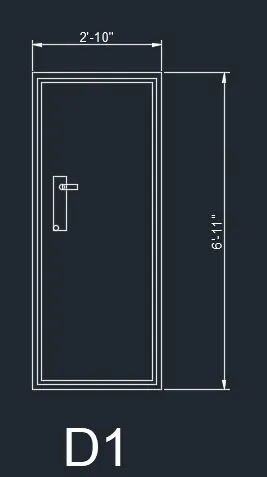

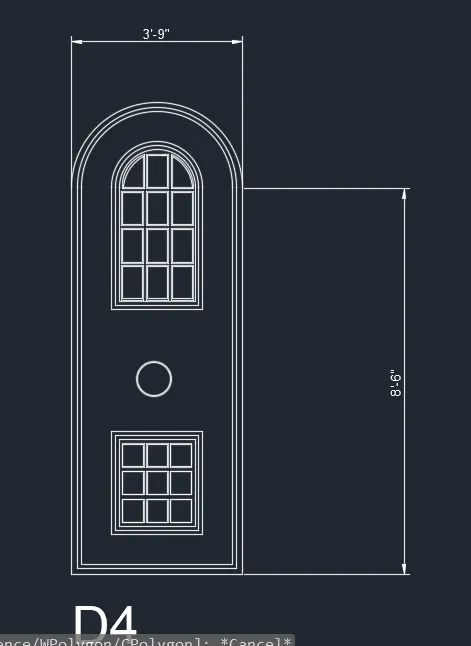

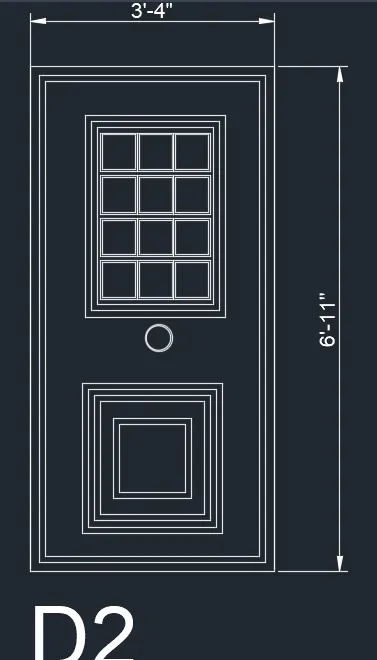

To Create the door type for residential building as a block .

PROCEDURE:

step 1:

• In the command prompt type units > engineering >inches
• In the command prompt type limits>0,0 , limax >100,100
• In the command prompt type zoom > a

step 2:

• In the command prompt type Rec to draw rectangle
• Offset this rectangle 3 times
• In the command prompt type l to draw the lines
• Draw the door nob using rectangle and line command

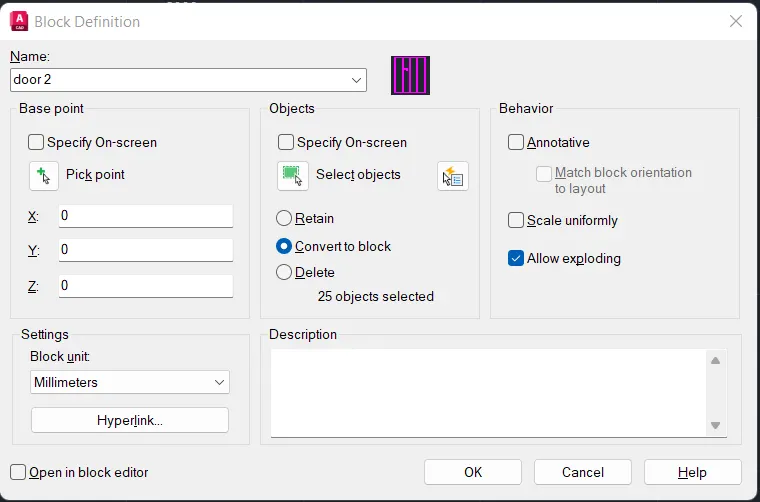

• In the command prompt type B to create a block
• Select the pick point and the obect giving the appropiate name

• Using same process create all other doors
• Create one rectangle and offset this rectangle
• Now using array command draw multiple rectangles.
• Type C for the circle command to create circle
• offset the circle
• Create the block using B command and select the object created.

• Similarlly create other doors using arc and fillet option.

RESULT:

AIM:

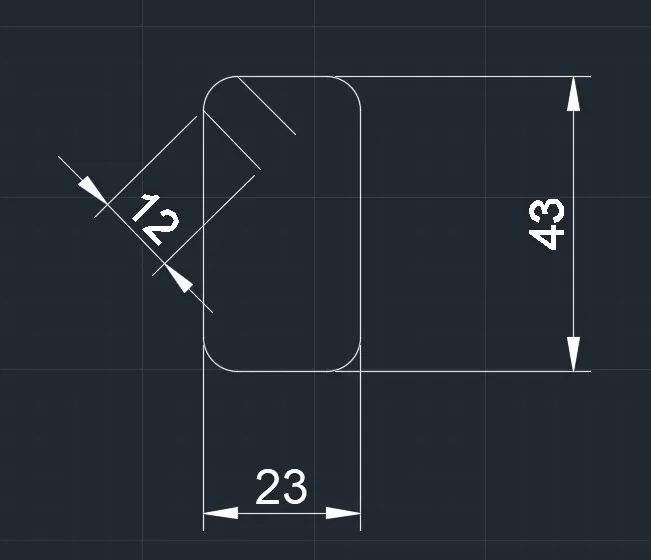

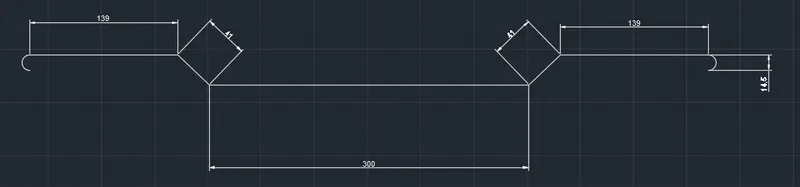

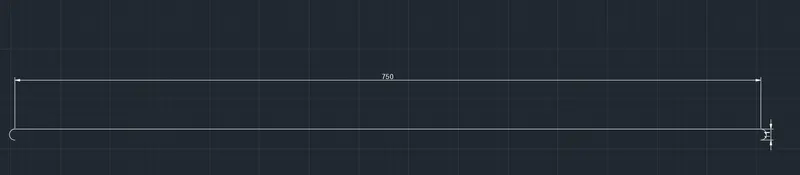

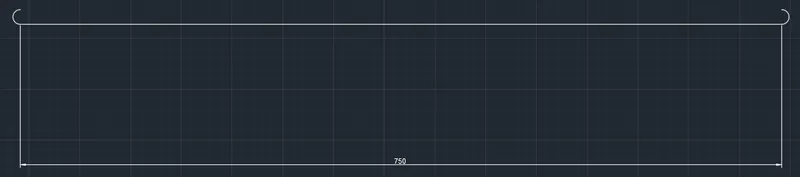

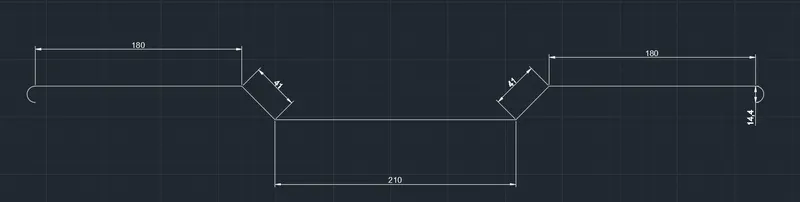

To Create each shape as ablock and insert them on the table as given in the picture

PROCEDURE:

step 1:

• In the command prompt type Unit>decimal>meters
• In the command prompt type limits>0,0
• In the command prompt type limax >100,100

step 2:

• In the command prompt type l to draw the desired lines
• In the command prompt type pl to draw the desired arc,poly lines
• In the command prompt type mt to give annotation and text
• In the command promt type B to create the block
• In the command promt type I to insert the created in the block

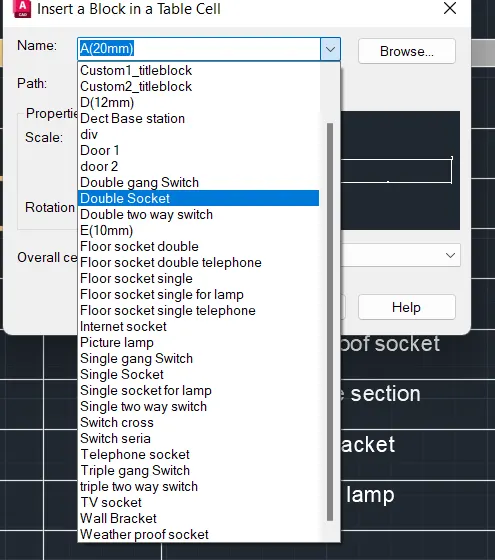

• In the command prompt type table to inset the table

RESULT:
