Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

AIM: To Create the Kitchen Layout and to Also, use proper dimension techniques to dimension the kitchen layout. Also, insert text wherever required.

All dimensions are in mm.

COMMANDS USED:

• Limits command
• Line command
• Offset command
• Hatch command
• Dimlinear command
• Dimstyle command
• Units command
• Extend command
• Fillet command
• Trim command
• Join command
• Line weight command
• Line type command
• Object snap command

PROCEDURE:

Step 1:

• units are set to mm
• limits and limax are also set
• zoom comand is also used

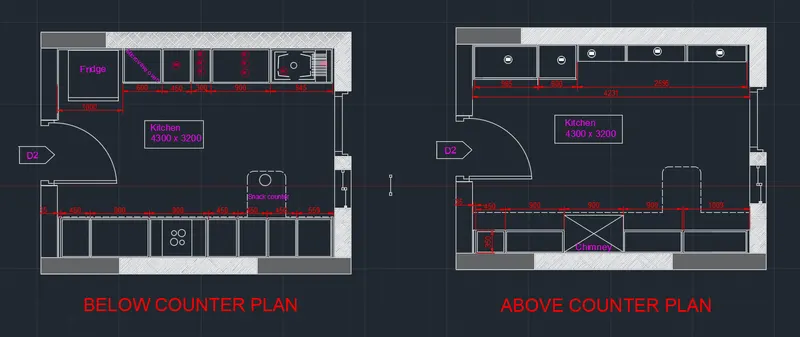

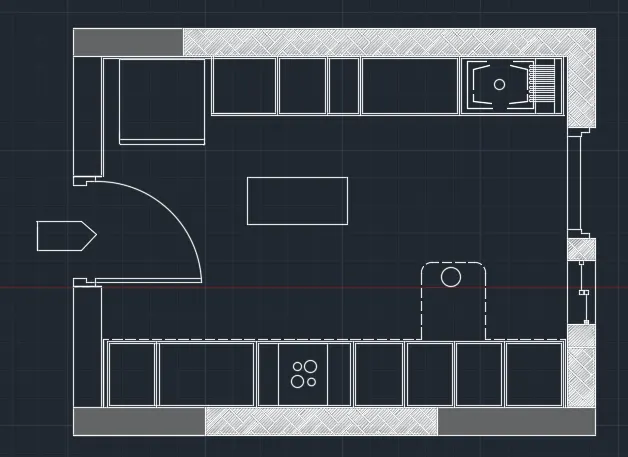

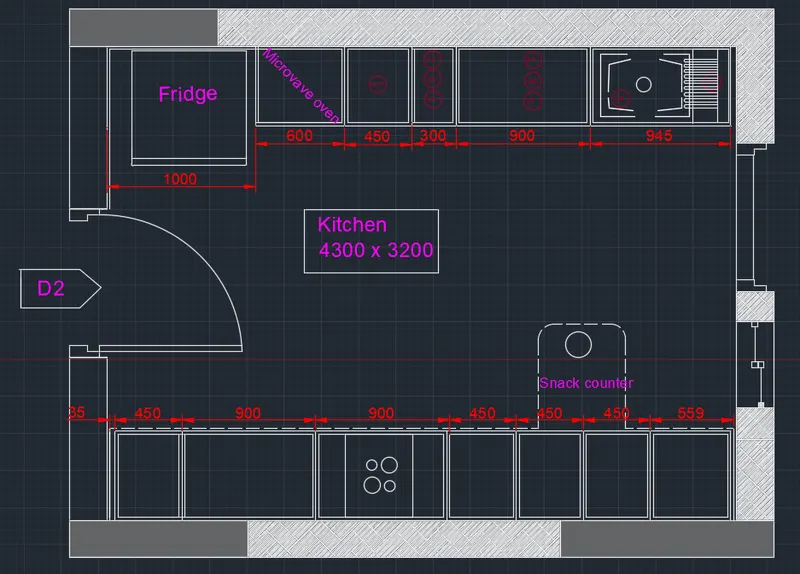

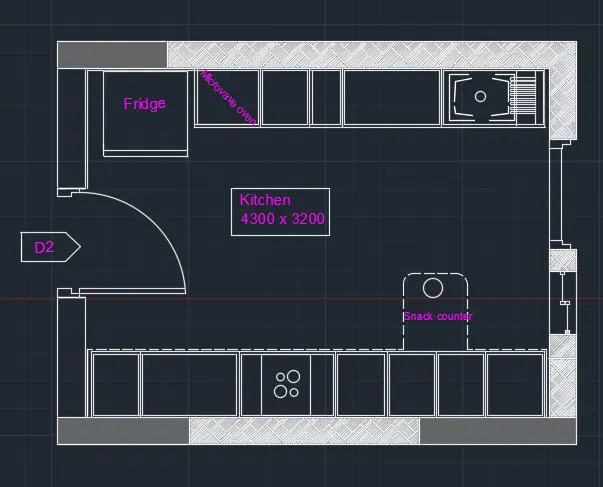

Steps for drawing Below Counter Plan

• Open Auto Cad and enter UN (units command) in command box and make the type as decimal.
• Select line command and draw a line of 4300 in X direction and a line of 3200 in Y direction and complete the rectangle.
• Offset 230 towards all sides of the rectangle outside the figure.
• Fillet all the offset edges.
• Offset of 600 from top of the room to draw the kitchen platform and otta.
• Give the offset as follows from left side 90 as first offset- 90mm as first offset, 1000mm for fridge, 600 for micro-oven, 450 for A1 part, 300 for A2/A3/A4, 900 for A5/A6/A7, and 300, 945 and 35 offsets.
• Offset 12 mm to both sides in each corner of the room.
• Offset 600mm from bottom in middle oF kitchen to draw platform.
• Now enter offset as follows- 900, 450, 900, 450, 450, 450, 560, 35.

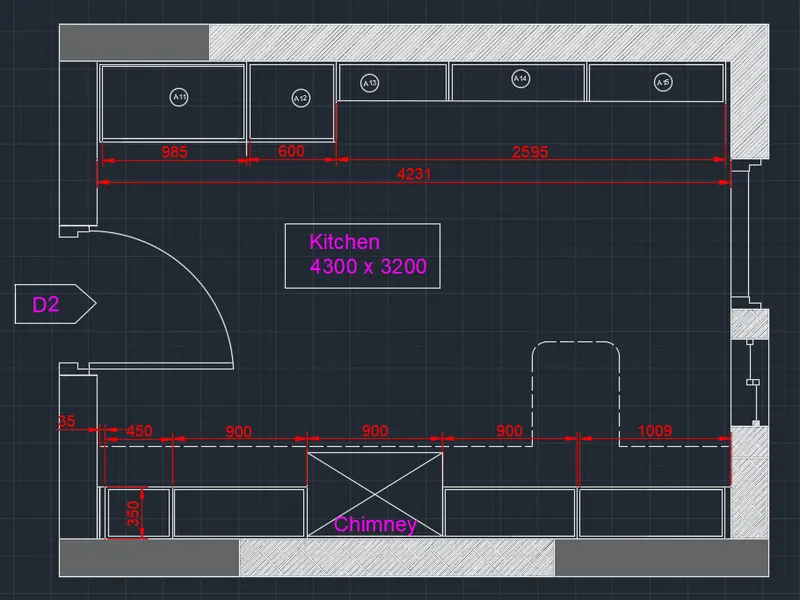

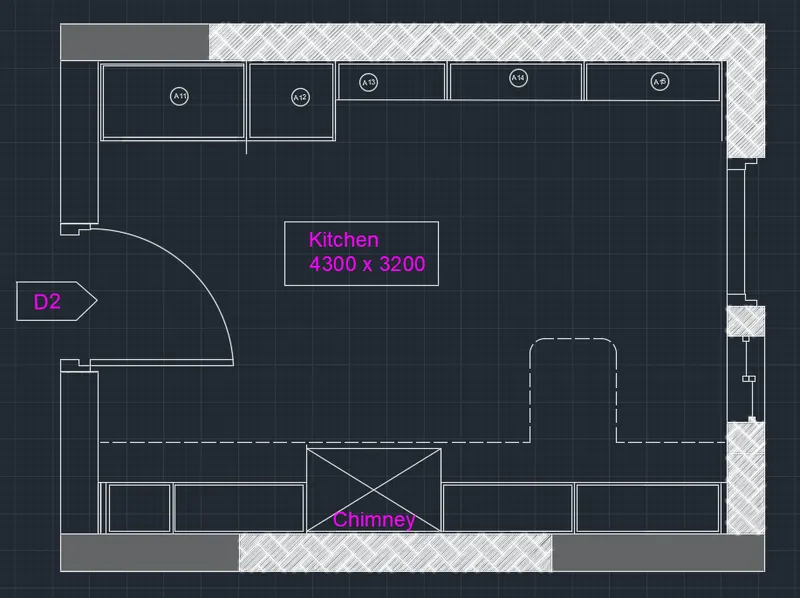

Repeat the same steps for the Above counter plan.

• Rectify small errors and differentiate them in layers.
• Give dimensions to the drawiing.

RESULT:

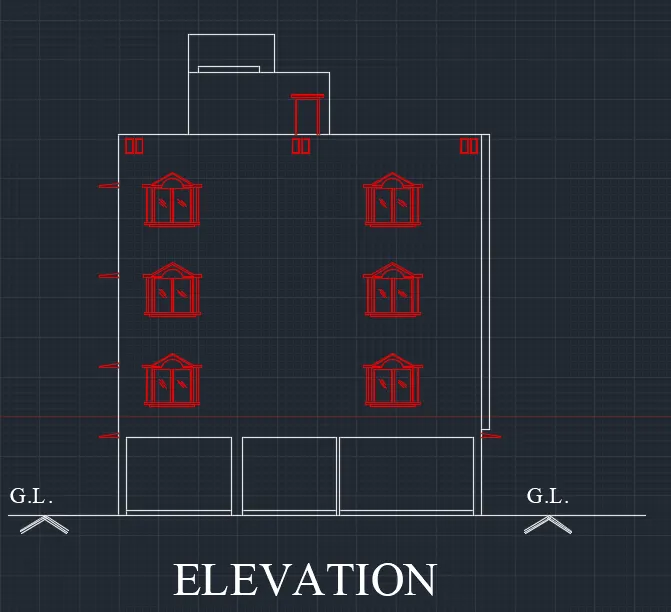

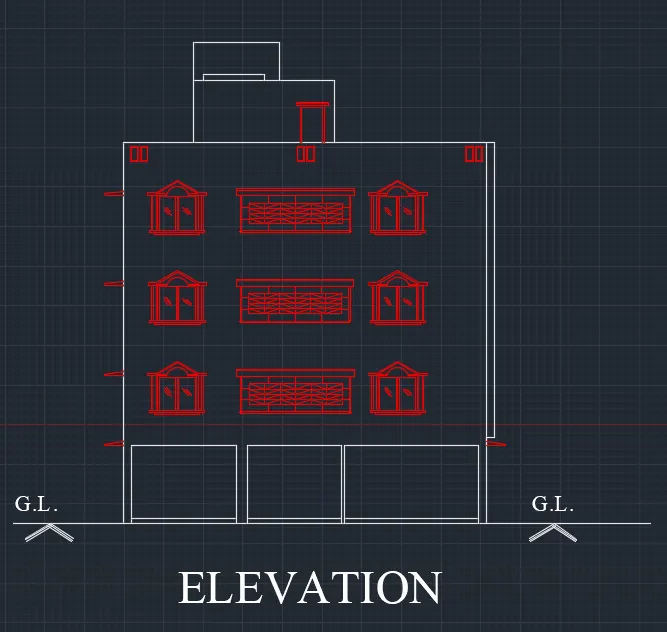

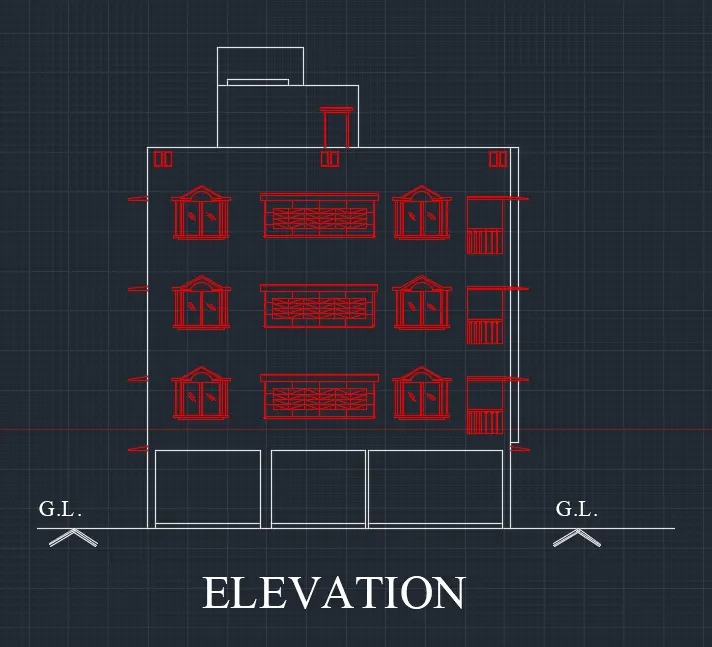

AIM:

To Create the elevation of the plan created in the Challenges 7.And need to apply proper hatchs in the walls, doors, windows, and other architectural elements

COMMANDS USED:

• Limits command
• Line command
• Offset command
• Hatch command
• Dimlinear command
• Dimstyle command
• Units command
• Extend command Fillet command
• Trim command
• Join command
• Line weight command
• Line type command
• Object snap command
• Rectangle command
• Zoom command

PROCEDURE:

STEPS:

• First we have to open the autocad and set the limits.

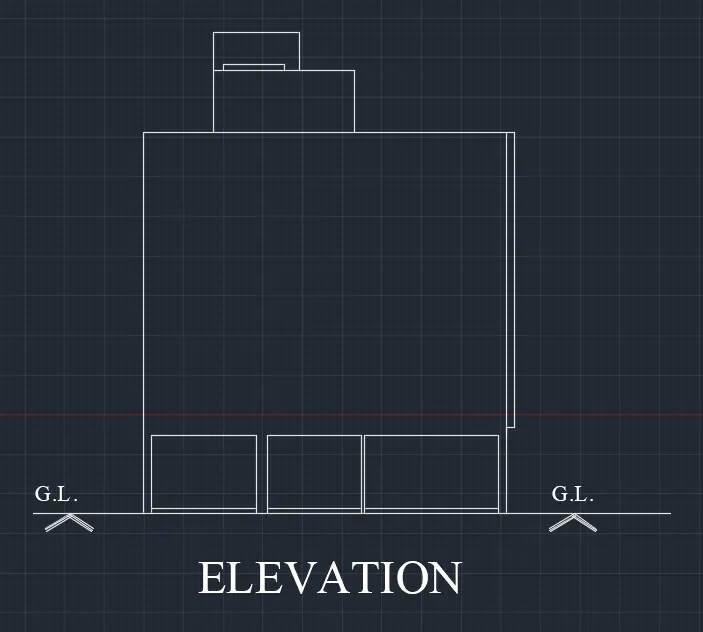

• Select Xline command and draw projections from the plan and trim the unwanted extra lines.
• Then Offset 150mm from the ground level..
• Next Offset 2450 for ground floor.
• After that Offset 2850 for second floor.
• Followed by 2850 for second floor.
• Offset 2850 for third floor.
• Offset 1000 for parapet wall.
• Offset 2500 from terrace level for mumty.
• Offset 450 from mumty for parapet wall of mumty.
• Offset 600 and offset 1200 for O.T.H.
• For drawing of staircase offset 1250 for tread and offset 143.75 for rse of staircase.
• Offset 125 below floor level for slab.

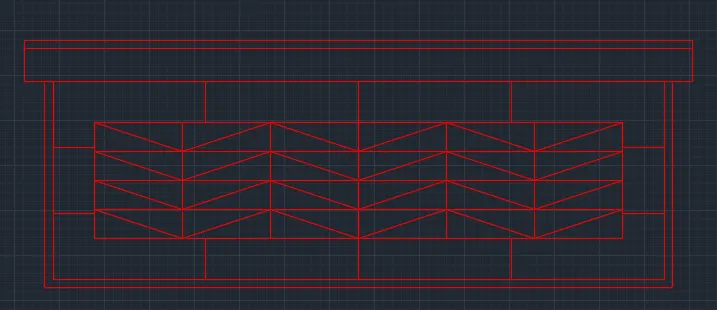

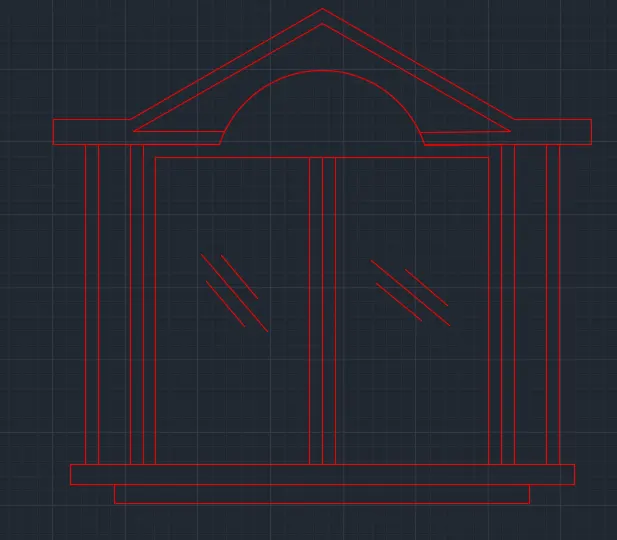

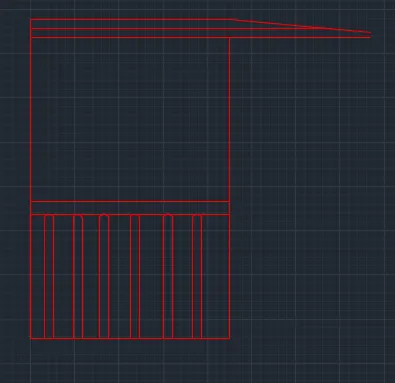

• Draw the chajjas and windows as per the sizes considered and standards.
• Give the dimensions by dim linear or dim continue command.
• Select the multiline text for naming of the section.

HATCHING OF OBJECTS:

• Give command H for the hatch.
• On the Properties panel Hatch Type list, select the type of hatch that you want to use.
• On the Pattern panel, click a hatch pattern or fill.
• On the Boundaries panel, specify the how the pattern boundary is selected:
• Pick Points. Inserts the hatch or fill within a closed area that is bounded by one or more objects.
• Select Boundary Objects. Inserts the hatch or fill within a closed object.

RESULT:

AIM:-

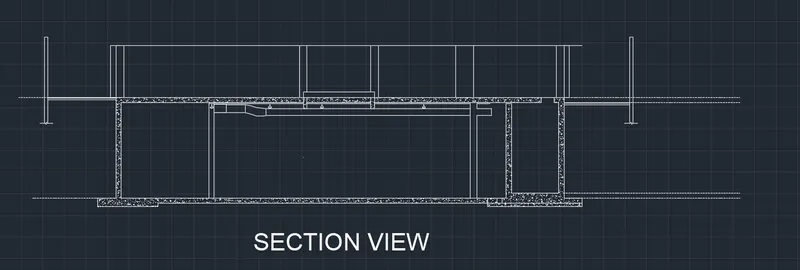

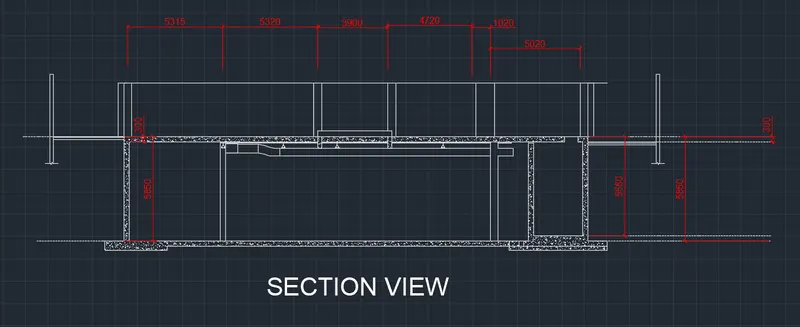

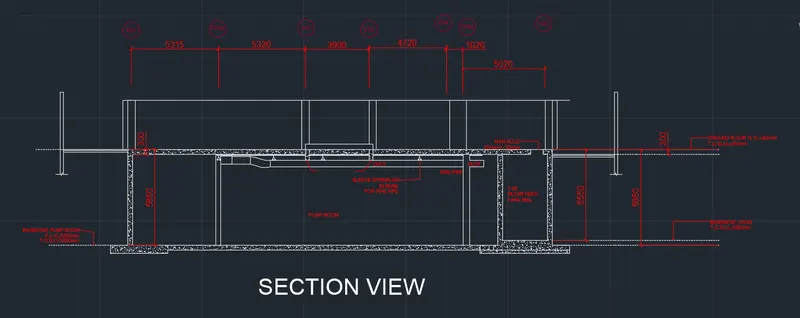

To create the section view of an industrial building. And need to provide appropriate hatches and dimensions where ever required.

COMMANDS USED:

• Limits command
• X-Line command
• Line command
• Offset command
• Hatch command
• Dimlinear command
• Dimstyle command
• Units command
• Extend command
• Fillet command
• Trim command
• Join command
• Line weight command
• Line type command
• Object snap command
• Rectangle command
• Zoom command

PROCEDURE:

• In the command prompt type L to draw the lines.
• Then offset the lines using Offset command
• Trim the unwanted lines using TR command.
• Type REC in the command prompt for creating Rectangle.
• Then for the Hatching type H in the command prompt and select the desired hatch pattern and select the portion which needs to be hatched.
• In the command prompt type LT to get the dotted line
• In the command prompt type Mt to draft the text
• In the command prompt type c to draw the circle
• In the command prompt type dim to draft the dimensions and give dimensions to the structure
• For multileader type ML in the command promt and use it wherever needed.

RESULT:
