Challenge

Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

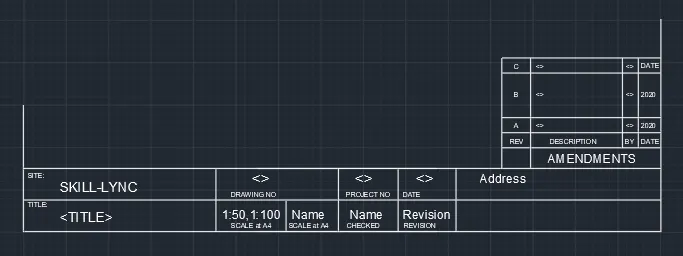

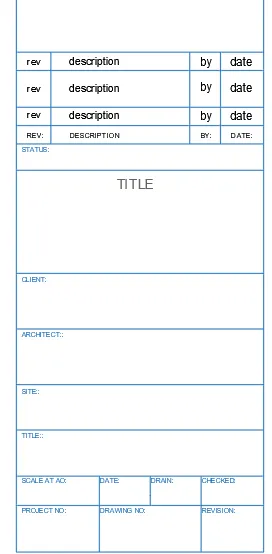

1)To create the templates title block and need to save it as a block with names.

Procedure:

Result:

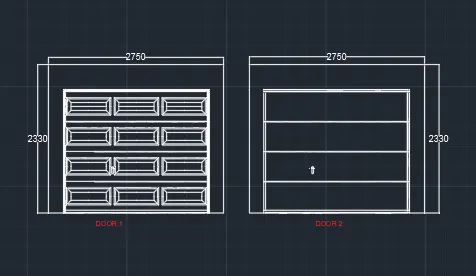

2.To Create the doors type for warehouse and after Creating the blocks of this door type

Procedure :

Take a rec command for rectangle and create a rectangle
Next take the offset command and make offset from the four side rectangle
Divide the into four segments
To Create the doors type for warehouse create a rectangle or creation of door
Next take the offset command first make the offset of 10mm and 30mm for next one.
Now take the copy command and select the object and place it
Use block command and select the object and pickup point and next click on for the creation of the block

Result:

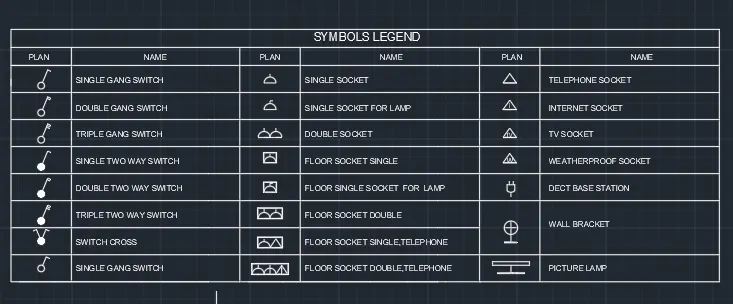

3.Create each symbol as a block with the name given in the legend. After creating the blocks arrange them in the legend.

Procedure :

Use circle command to draw the switch plans
Copy the plan and make modifications as per plan
Use arc command adn traingle command to make socket plans.
Use block command to select the object and pickup point and click on for the creation of the block
Draw tables as per the space
Use multitext command to type the text

Result :

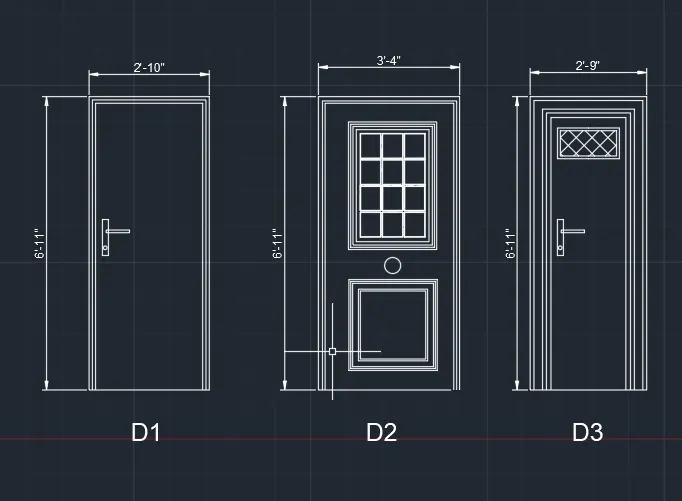

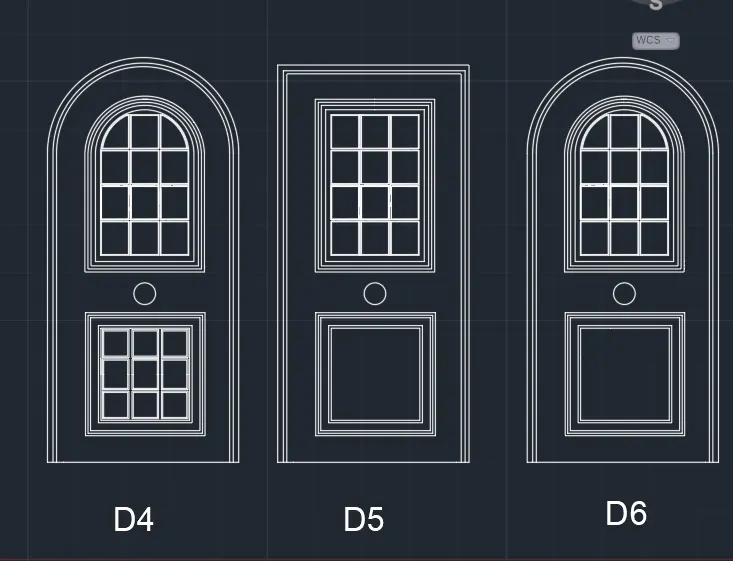

4.To create the door type for residential building as a block.

Procedure:

Take a rec command for rectangle and draw of 2'10"x6'11"
Use offset command of 2" to draw the first offsets and 4" offset to draw next offset
Take a rec command for rectangle and draw of 3'4"x6'11"
Use offset command of 2" to draw the first offsets and 4" offset to draw next offset
USe hatch command to make hatch inside the rectangle
Take a rectang command for rectangle and draw of 2'10"x6'11"
Next take a offset command of 2" and then 1" for the creation of frame
Next take a rectangle of 1'x1' and take offset of 1"
Use rectang command for rectangle and draw of 3'4""x6'11"
Use offset command of 2" and then 1" for the creation of frame
Next take thearc command and draw a arc from first end to second end
Next trim the bottom surface Next take a offset command of 2" and then 1" for the creation of frame
Take a rec command for rectangle and draw of 3'4""x6'11"
Use offset command of 2" and then 1" for the creation of frame
Draw another rectangle inside it and give the offset of 1" for the creation of frame
Take a rec command for rectangle and draw of 3'4""x6'11"
Next take a offset command of 2" and then 1" for the creation of frame
Now draw another rectangle inside it and give the offset of 1" for the creation of frame
Next take the arc command and draw a arc from first end to second end
Use block command to save it as block and choose pickup point and save it as door 1 , door 2 , door 3, door 4, door 5 and door 6.

Results :

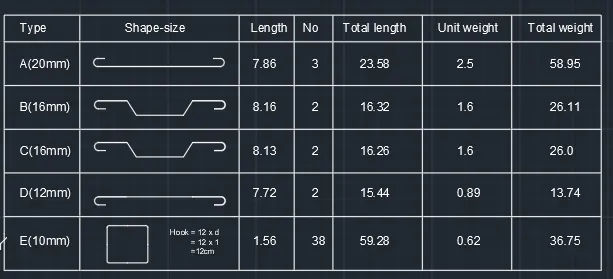

5.To create each shape of the as a block as shown and insert them on the table.

Procedure:

Shape A
Use line command of length 750
Make circles at the ends of the line with radius of 9 and trim the extra lines
Next take dim command dimension it and text it as per requirement
Shape B
Take line command of length 300
At the end draw a line with length of 41
Join the other with angle of 45 from the end point draw a line 139
Draw a circle of 14.5mm
Next trim the extra lines and mirror it on other side
Shape C
First take line command of length 210
At the end draw a line with length of 41mm and join the other with angle of 45mm
From the end point draw a line 160 length in horizontal and draw the circle of 14.4 and trim the extra lines command dimension it
Shape D
First take line command of length 750mm
Next make a circle at the end of the line with radius of 11 and trim the extra lines
Shape E
Take a rectangle command and draw a rectangle and take the filet command and take the radius of 12 mm
Use block command to save them as blocks.
Use rectangle command and draw the table and divide the cloumns and rows.
Insert blocks that were preiviously saved
Use multitext command to insert the text in table.

Result:
