Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad
1):
Aim: To create the templates title block and need to save it as a block with names: Custom1_titleblock and Custom2_titleblock, respectively.
Introduction: To create the templates title block and need to save it as a block with names: Custom1_titleblock and Custom2_titleblock, respectively. By using AutoCad.
Procedure:
Step1:

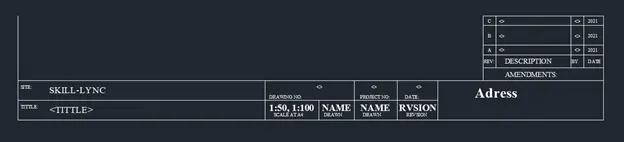

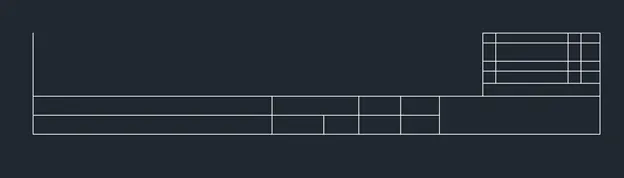

- CREATING OF CUSTOM1_TITLEBLOCK.
- Take a rec command for rectangle and create a rectangle
- Next take the explode command ex to break rectangle lines
- Next take the offset command and make a table for the placing of the text
Step2:
- take the command mtext select the base point write the text set the height of the text
- next copy the and place the text and then edit as per the required of the text.
Step3:

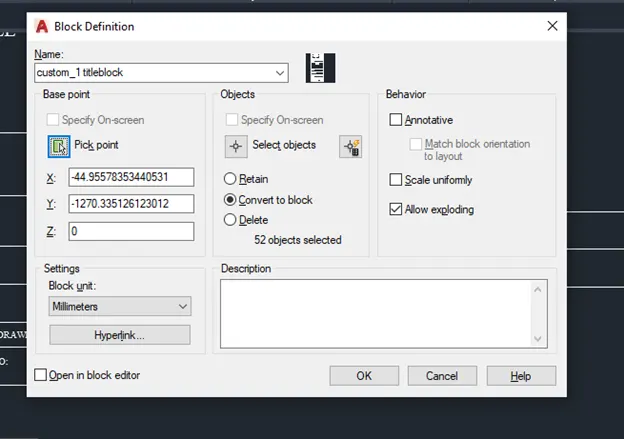

- Creating of block
- Type b in the command box for the block
- Next give the name of the block
- Next select the object and pickup point and next click on for the creation of the block
II):
Step1:

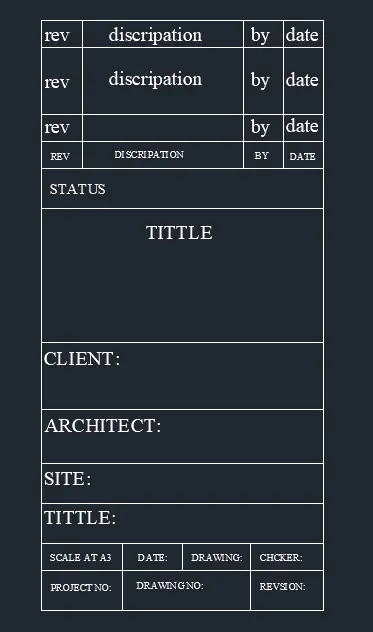

- CREATING OF CUSTOM2_TITLEBLOCK.
- Take a rec command for rectangle and create a rectangle
- Next take the explode command ex to break rectangle lines
- Next take the offset command and make a table for the placing of the text
Step2:
- take the command mtext select the base point write the text set the height of the text
- next copy the and place the text and then edit as per the required of the text.
Step3:

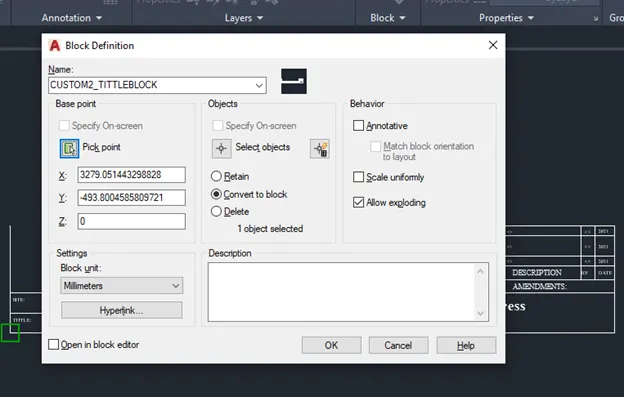

- Creating of block
- Type b in the command box for the block
- Next give the name of the block
- Next select the object and pickup point and next click on for the creation of the block
Result:
1): CREATING OF CUSTOM1_TITLEBLOCK.
II): CREATING OF CUSTOM2_TITLEBLOCK
2):
Aim: To Create the doors type for warehouse and after Creating the blocks of this door type
Introduction: To Create the doors type for warehouse and after Creating the blocks of this door type by using AutoCad
Procedure:
Step1:

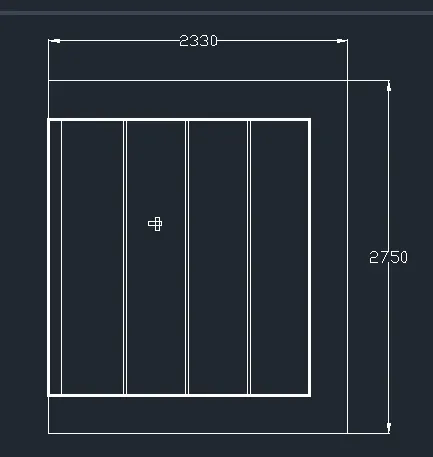

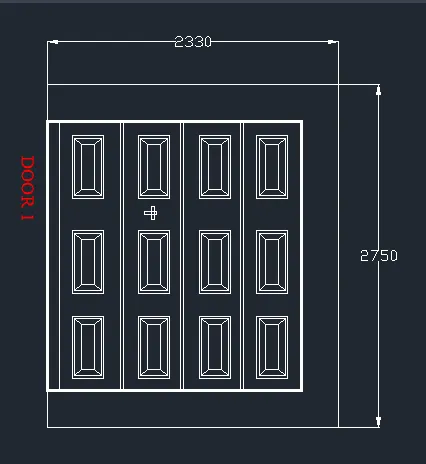

- Take a rec command for rectangle and create a rectangle of 2330x2750
- Take a rec command for rectangle and create a rectangle
- Next take the offset command and make a 300mm offset from the four side rectangle
- Now divided the into four segments
Step2:
- To Create the doors type for warehouse
- Take a rec command for rectangle and create a rectangle or creation of door
- Next take the offset command first make the offset of 20mm for creation of farm and 50mm of offset and next take the line command join the from edge of the rectangle
Step3:
- Now take the copy command and select the object and place it as per the requirement
- Creation of the text. Type the m.text in the command box and type the text as the door1.
Step4:

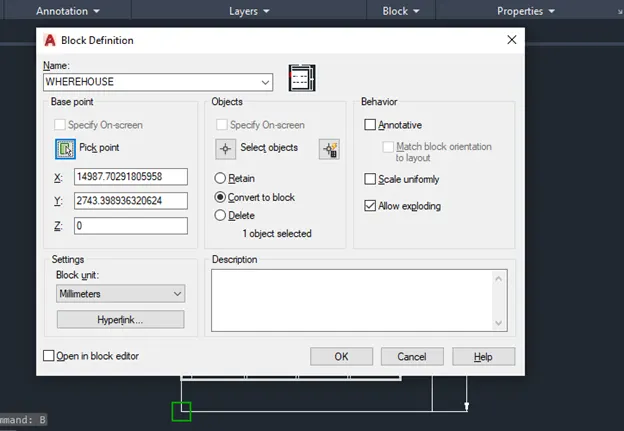

- Creating of block
- Type b in the command box for the block
- Next give the name of the block
- Next select the object and pickup point and next click on for the creation of the block
Result:
The doors type for warehouse
3):
Aim: Create each symbol as a block with the name given in the legend. After creating the blocks arrange them in the legend.
Introduction: Create each symbol as a block with the name given in the legend. After creating the blocks arrange them in the legend. By using AutoCad
Procedure:
Step1:
CREATION OF SYMBOLS:
1.Single gang switch:
2.Double gang switch:
3.Triple gang switch:
4.Single two way gang switch:
5.Double two way gang switch
6.Triple two way gang switch
7.Switch cross
8.Switch serial
9.Single socket
10.Single socket for lamp
11.Double socket
12.Floor socket single
13.Floor socket for lamp
14.Floor socket double
15.Floor socket single telephone
16.Floor socket double telephone
17.Telephone socket
18.Internet socket
19.TV socket
20.Weatherproof socket
21.Dect base section
22.Wall bracket
23.Picture lamp
Step2:

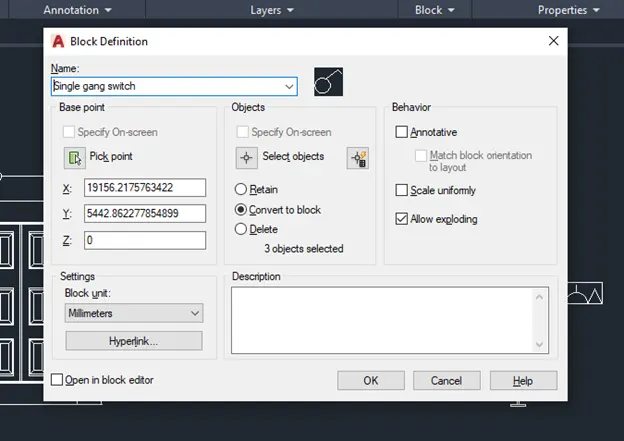

CREATION OF BLOCKS
- Type b in the command box for the block
- Next give the name of the block
- Next select the object and pickup point and click on for the creation of the block
- Similarly we can convert all the symbol into blocks as shown above.
Step3:

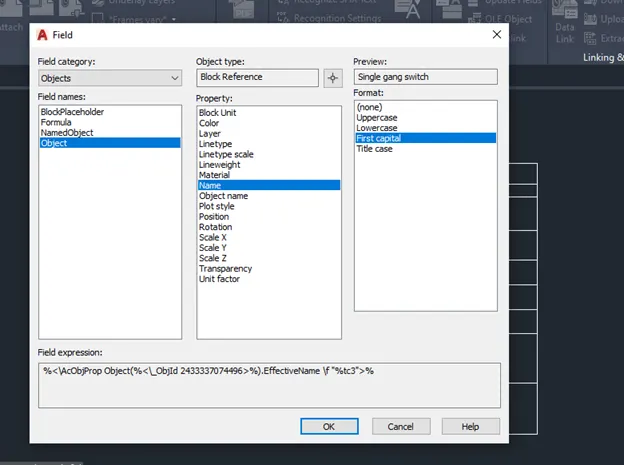

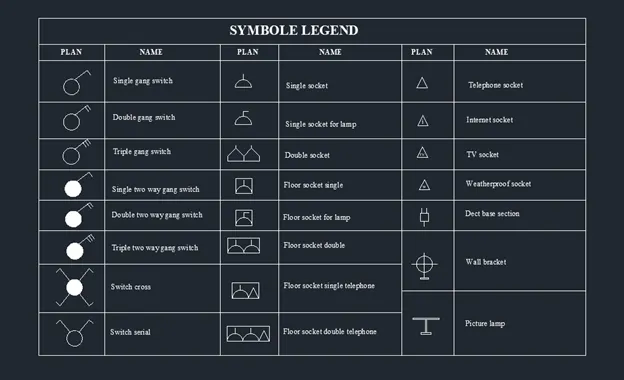

CREATION OF TABLE SYMBOL LEGEND
- Take the insert command by typing I in the command box
- Select the object option next take the select object and then go filed option from the ribbon
- Now select the object and place the name of the object
- Now similarly go for all the attributes
Result:
4):
Aim: To create the door type for residential building as a block.
Introduction: To create the door type for residential building as a block. By using AutoCad
Procedure:
Step1:

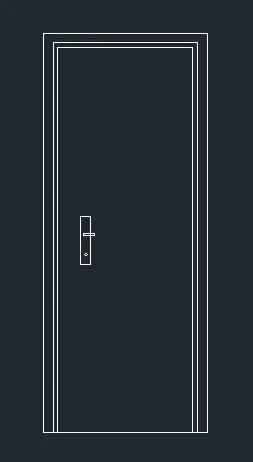

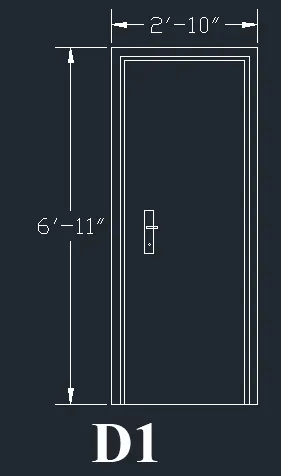

- CREATION OF DOOR D1:
- Take a rec command for rectangle and draw of 2’10”x6’11”
- Next take a offset command of 2” and then 1” for the creation of frame
Step2:

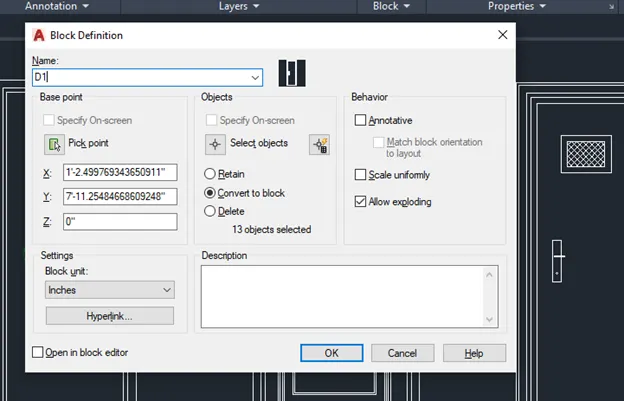

- CREATING OF BLOCK
- Type b in the command box for the block
- Next give the name of the block
- Next select the object and pickup point and next click on for the creation of the block
Step1:

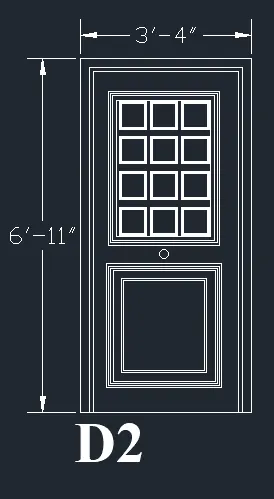

- CREATION OF DOOR D2:
- Take a rec command for rectangle and draw of 3’4””x6’11”
- Next take a offset command of 2” and then 1” for the creation of frame
- Now draw another rectangle inside it and give the offset of 1” for the creation of frame
- Next by increasing the line thickness draw a rectangle box of 6”x6” and copy it
Step2:

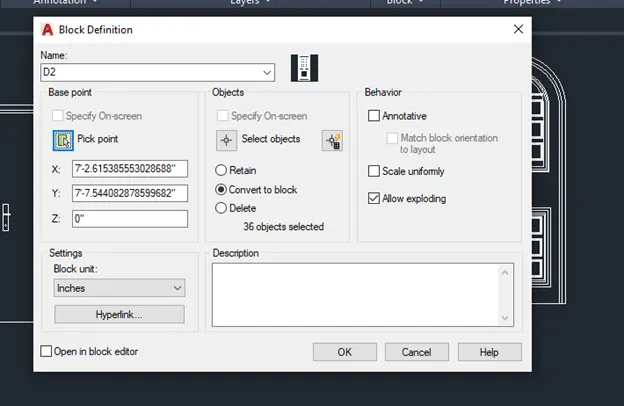

- CREATING OF BLOCK
- Type b in the command box for the block
- Next give the name of the block
- Next select the object and pickup point and next click on for the creation of the block
Step1:

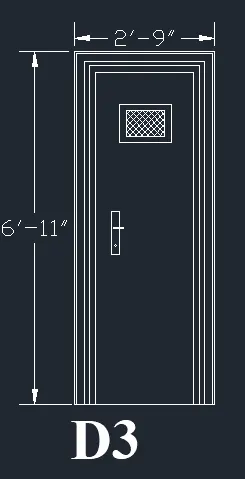

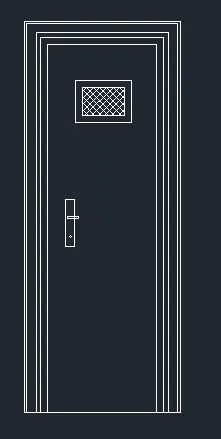

- CREATION OF DOOR D3:
- Take a rec command for rectangle and draw of 2’10”x6’11”
- Next take a offset command of 2” and then 1” for the creation of frame
- Next take a rectangle of 1’x1’ and take offset of 1”
- Now take hatch command and hatch inside the rectangle

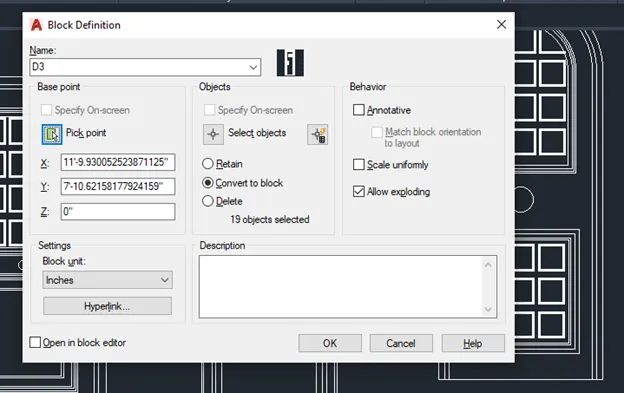

Step2:
- CREATING OF BLOCK
- Type b in the command box for the block
- Next give the name of the block
- Next select the object and pickup point and next click on for the creation of the block
Step1:

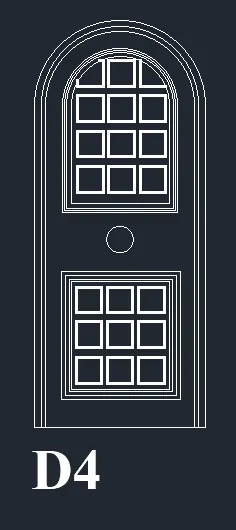

- CREATION OF DOOR D4:
- Take a rec command for rectangle and draw of 3’4””x6’11”
- Next take a offset command of 2” and then 1” for the creation of frame
- Now draw another rectangle inside it and give the offset of 1” for the creation of frame
- Next take the circle command and draw a circle from first end to second end
- Next trim the bottom surface Next take a offset command of 2” and then 1” for the creation of frame
- Next by increasing the line thickness draw a rectangle box of 6”x6” and copy it
Step2:

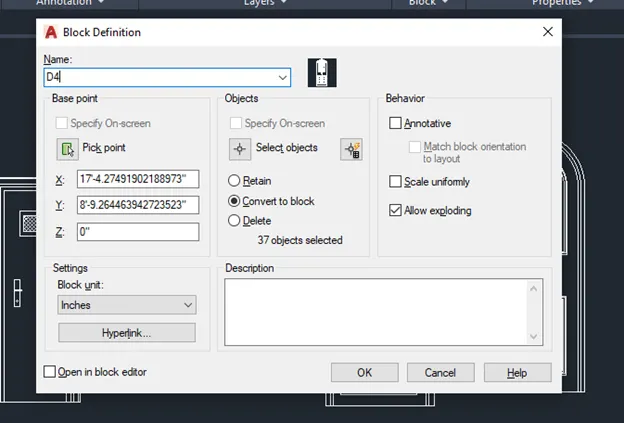

- CREATING OF BLOCK
- Type b in the command box for the block
- Next give the name of the block
- Next select the object and pickup point and next click on for the creation of the block
Step1:

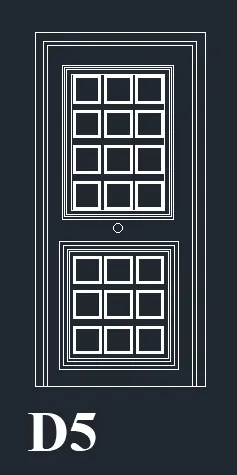

- CREATION OF DOOR D5:
- Take a rec command for rectangle and draw of 3’4””x6’11”
- Next take a offset command of 2” and then 1” for the creation of frame
- Now draw another rectangle inside it and give the offset of 1” for the creation of frame
- Next by increasing the line thickness draw a rectangle box of 6”x6” and copy it

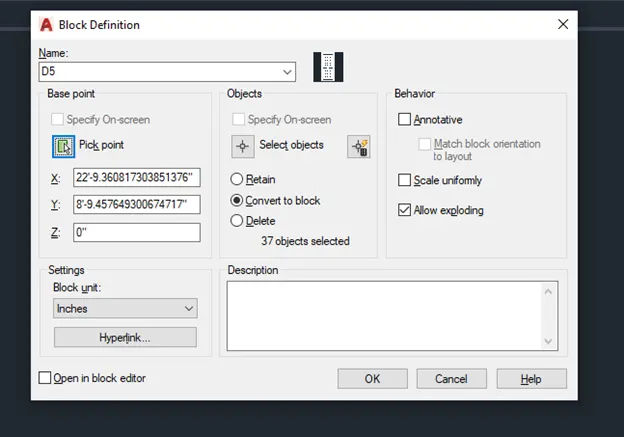

Step2:

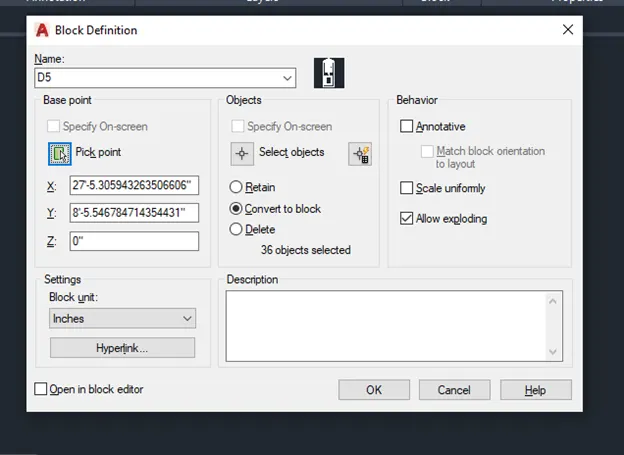

- CREATING OF BLOCK
- Type b in the command box for the block
- Next give the name of the block
- Next select the object and pickup point and next click on for the creation of the block

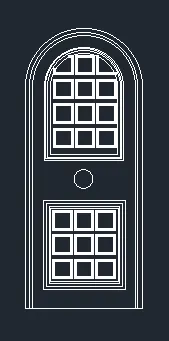

Step1:

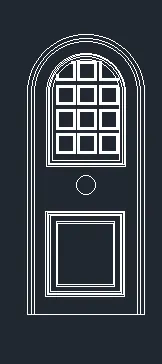

- CREATION OF DOOR D5:
- Take a rec command for rectangle and draw of 3’4””x6’11”
- Next take a offset command of 2” and then 1” for the creation of frame
- Now draw another rectangle inside it and give the offset of 1” for the creation of frame
- Next take the circle command and draw a circle from first end to second end
- Next trim the bottom surface Next take a offset command of 2” and then 1” for the creation of frame
- Next by increasing the line thickness draw a rectangle box of 6”x6” and copy it
Step2:
- CREATING OF BLOCK
- Type b in the command box for the block
- Next give the name of the block
- Next select the object and pickup point and next click on for the creation of the block
Result:
D1:
D2:
D3:
D4:
D5:

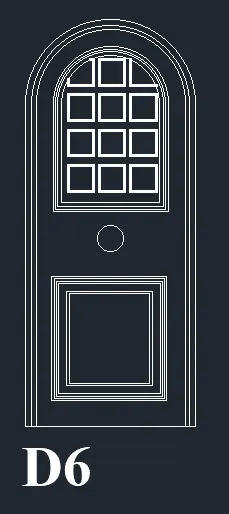

D6:
5):
Aim: To create each shape of the as a block as shown and insert them on the table
Introduction: To create each shape of the as a block as shown and insert them on the table. By using AutoCad.
Procedure:
Step1:

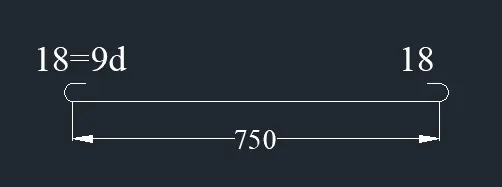

- Creating of shape A(20mm)
- First take line command of length 750
- Next make a circle at the end of the line with radius of 9
- Next trim the extra lines and mirror it on other side
- Next take dim command dimension it and text it as per requirement
- Creating of shape B (16mm)
- First take line command of length 300
- At the end draw a line with length of 41 and join the other with angle of 45
- From the end point draw a line 139 length in horizontal and draw the circle of 14.5
- Next trim the extra lines and mirror it on other side
- Next take dim command dimension it and text it as per requirement

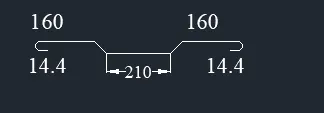

- Creating of shape C (16mm)
- First take line command of length 210
- At the end draw a line with length of 41 and join the other with angle of 45
- From the end point draw a line 160 length in horizontal and draw the circle of 14.4
- Next trim the extra lines and mirror it on other side
- Next take dim command dimension it and text it as per requirement
- Creating of shape D (12mm)
- First take line command of length 750
- Next make a circle at the end of the line with radius of 11
- Next trim the extra lines and mirror it on other side
- Next take dim command dimension it and text it as per requirement

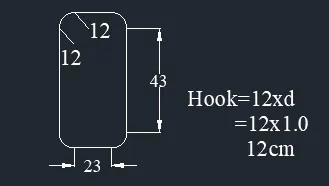

- Creating of shape E (10mm)
- Take a rectangle command and draw a rectangle 23x43
- Now take the filet command and take the radius of 12 filet it
- Now take the text command write the text as per the requirement
Step2:

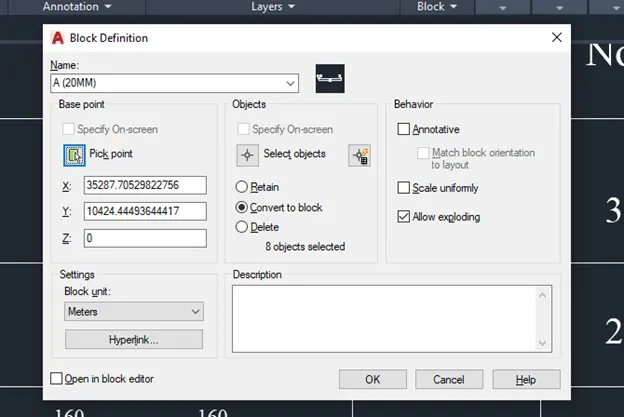

- CREATION OF BLOCKES
- Type b in the command box for the block
- Next give the name of the block
- Next select the object and pickup point and click on for the creation of the block
- Similarly we can convert all the symbol into blocks as shown above.
Step3:

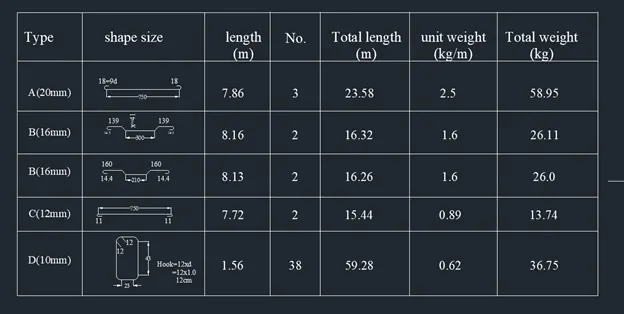

- Now take the rectangle command and a table
- Next take the text command write the text as given
- Now take the line command and draw the columns and rows
- Take the copy command and copy the text and edit the text and place it as per the required
Result:
