Challenge

Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

CHALLENGE 09

Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

1. CREATE TITLE BLOCKS:

Aim:

To create the titleblock named Custom1_titleblock (1.a) and Custom2_titleblock(1.b) using block and attributes command in AutoCAD.

Commands Used:

  1. Line
  2. Offset
  3. Trim
  4. Mtext

Procedure:

  • Initially set the units of the drawing as decimal (millimeters).
  • Now, set the limits of the drawing
    • Specify the lower left corner: (0,0)
    • Specify the upper right corner: (50000,50000)

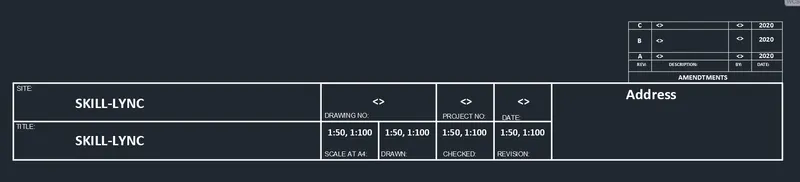

Custom1_titleblock:

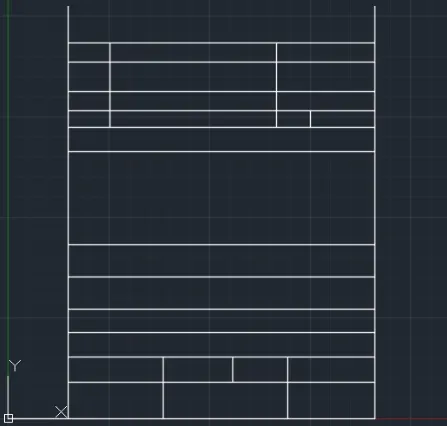

  • Now, choose the line command to draw the lines to complete the table.
  • Using the Mtext command draft the texts.
  • From the properties change the colour as required.

  • Then type the given text in table at required places as shown in fig.

  • Then next step is apply colours to line as shown in fig.

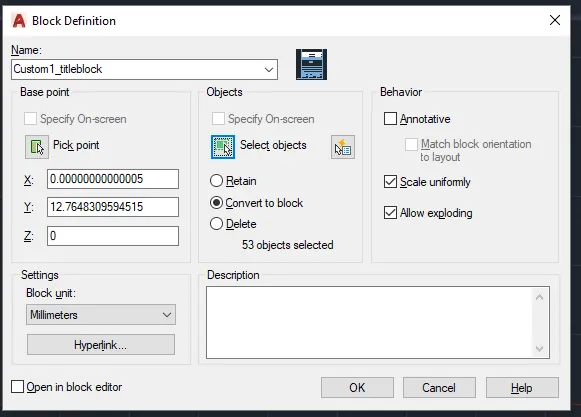

  • Now, the next step is to convert it into block.

  • Then click ok and it is converted into a block.

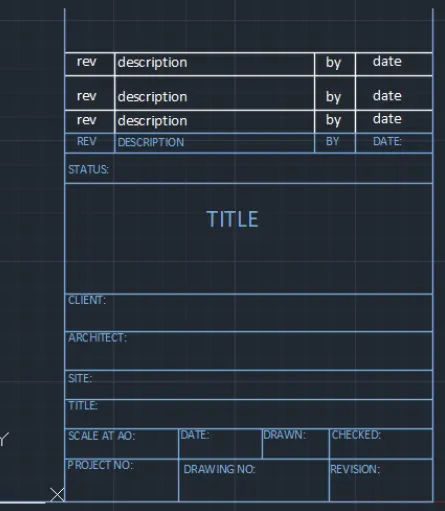

Custom2_titleblock:

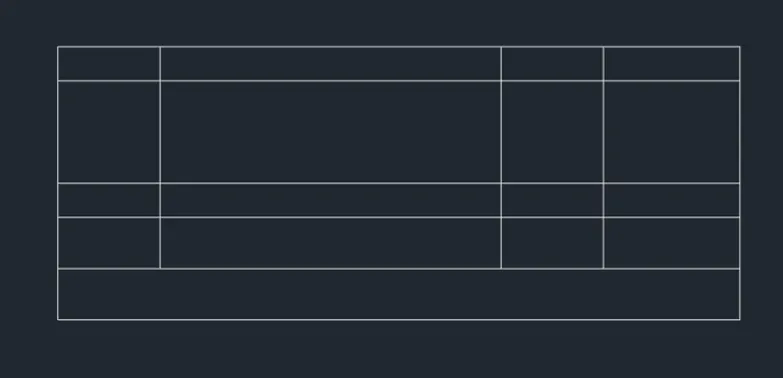

  • Again choose line command to draw the table.
  • To draft the layout of smaller blocks

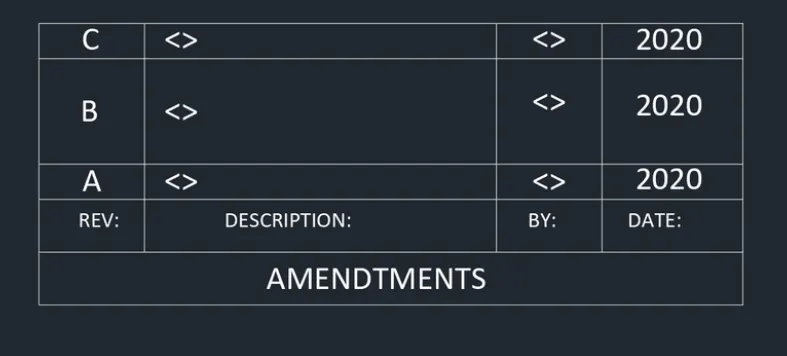

  • Add the Relevant Text to Complete the Smaller Block.

  • Prepare the Layout for Larger Title Block.

  • Add up the Required Texts.

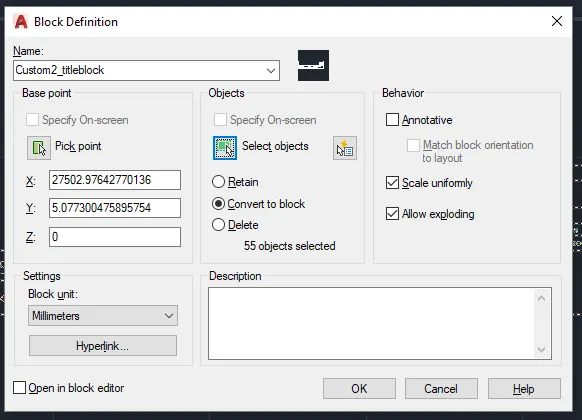

  • Now, the next step is to convert it into block.

  • Then click ok and it is converted into a block

RESULT:

The given Custom-1 and custom-2 title blocks are drawn as per standard sizes by using Autocad.

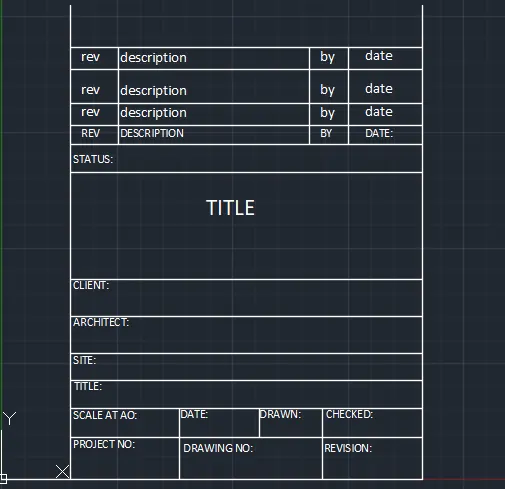

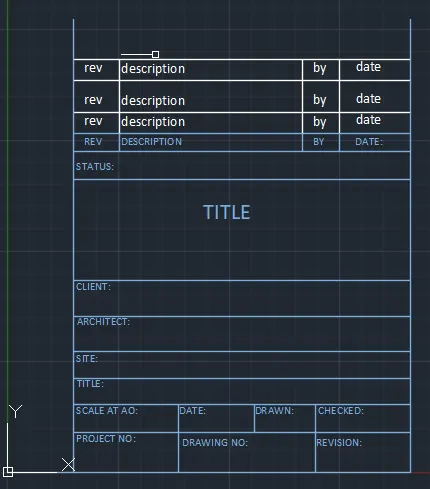

Custom 01 Title Block:

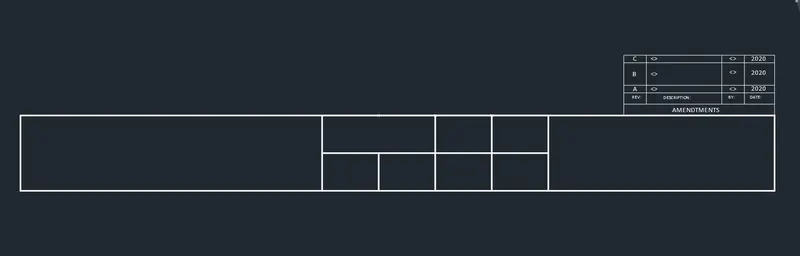

Custom 02 Title Block:

2. CREATE DOOR TYPES FOR WARE HOUSE:

Aim:

To create the door types for warehouse and to convert the same into blocks.

Commands Used:

  1. Line
  2. Offset
  3. Trim
  4. Mtext

Procedure:

  • Initially set the units of the drawing as decimal (millimeters).
  • Now, set the limits of the drawing
    • Specify the lower left corner: (0,0)
    • Specify the upper right corner: (8000,8000)

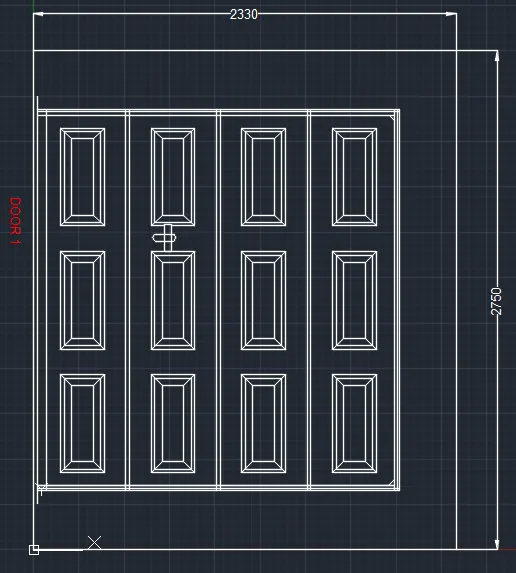

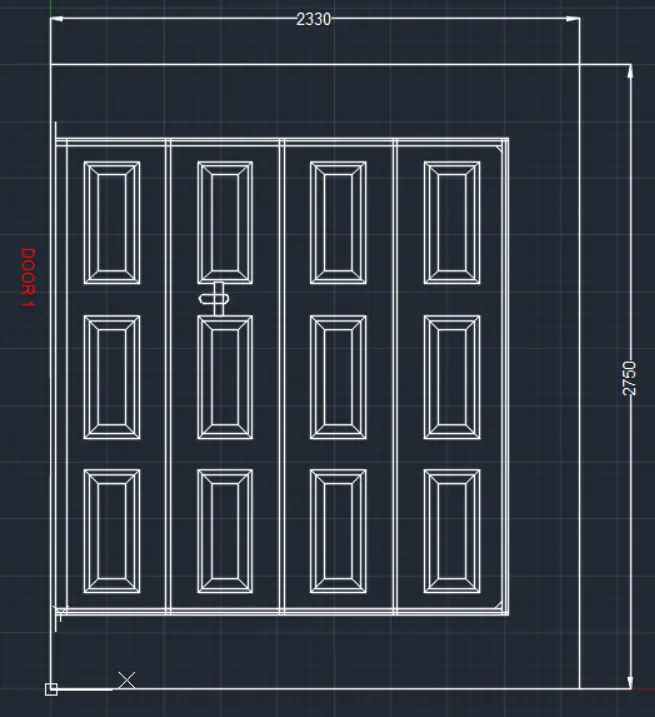

Door 1:

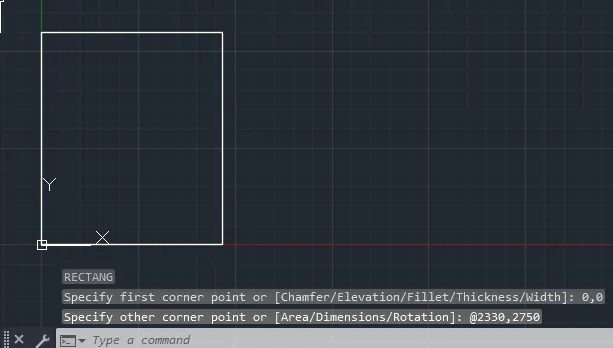

  • Draw a rectangle using the command rec having dimension 2330mmx2750mm.

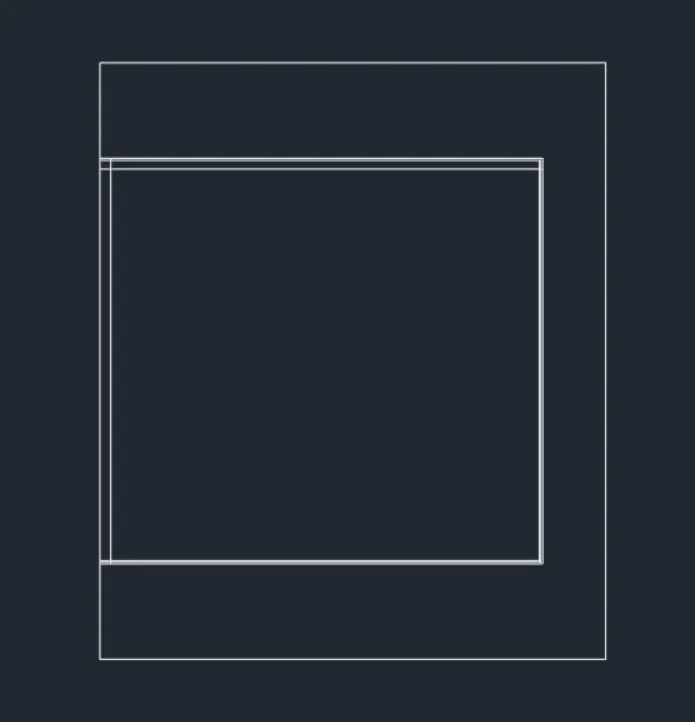

  • Then Create the overall Layout of the First Door.

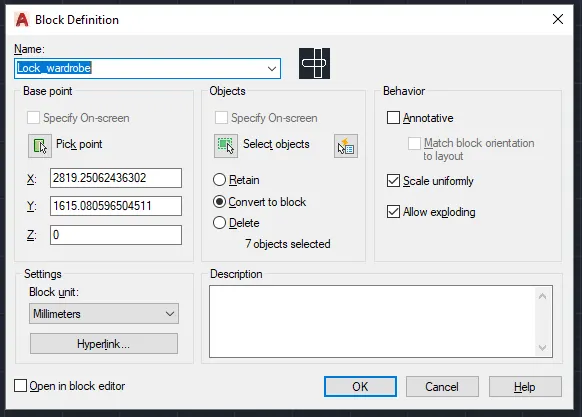

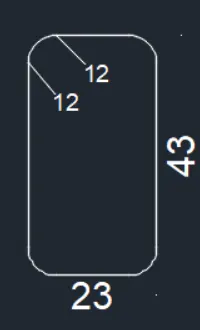

  • Now, we have to create the lock for the door, which created separately.
  • This can be created using rectancle and fillet command.
  • Then convert it to a block.

  • Now, place this lock on door at appropriate position.
  • Then provide the dimensions to complete the figure.

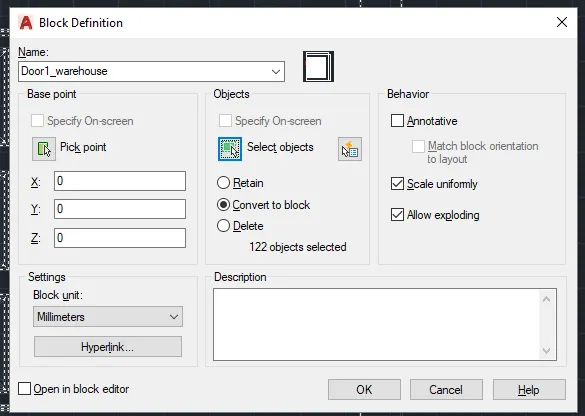

  • Now, we have to convert this door to a block. So for this, type block in command prompt and do the necessary steps to convert to block.

  • Then click ok and it is converted into a block.
  • Hence, the block has been created.

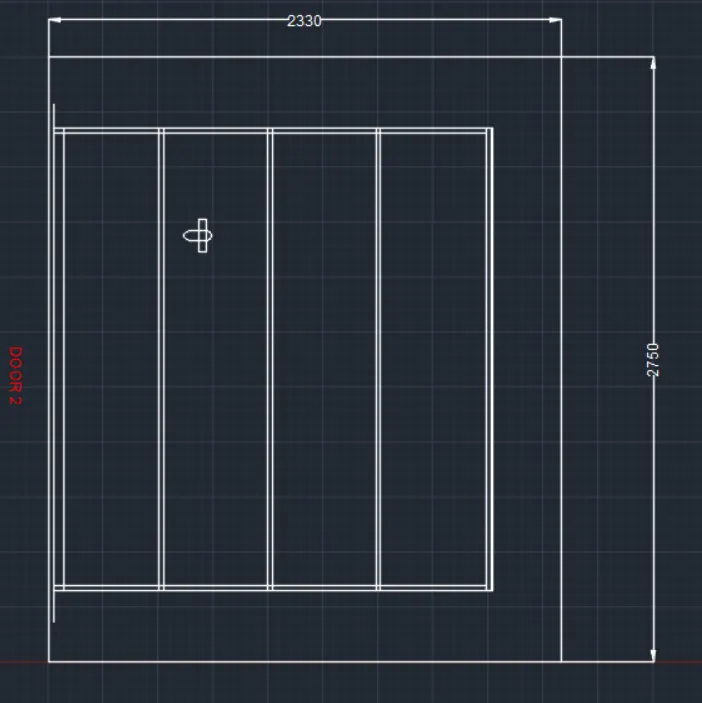

Door 2:

  • Draw a rectangle using the command rec having dimension 2330mmx2750mm

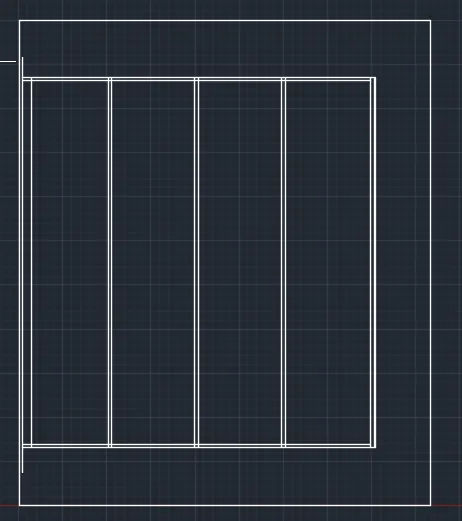

  • Now, using the line and offset command complete the door

  • Now, place the lock that is previously created in the current drawing by insert block option.
  • Now provide the dimensons and text to complete the drawing.

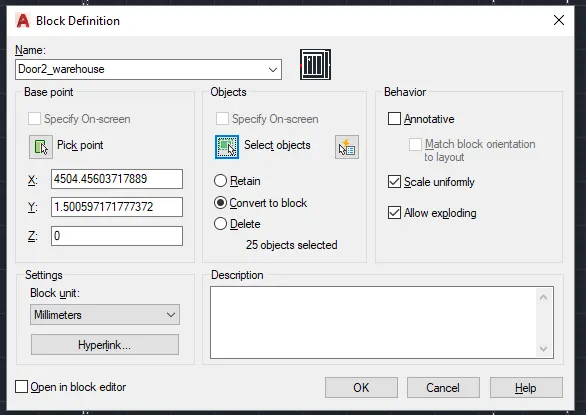

  • Now, we have to convert this door to a block. So for this, type block in command prompt and do the necessary steps to convert to block.

  • Then click ok and it is converted into a block.
  • Hence, the block has been created

RESULT:

The door types for warehouse is drawn as per standard sizes and given dimensions by using Autocad.

DOOR-1:

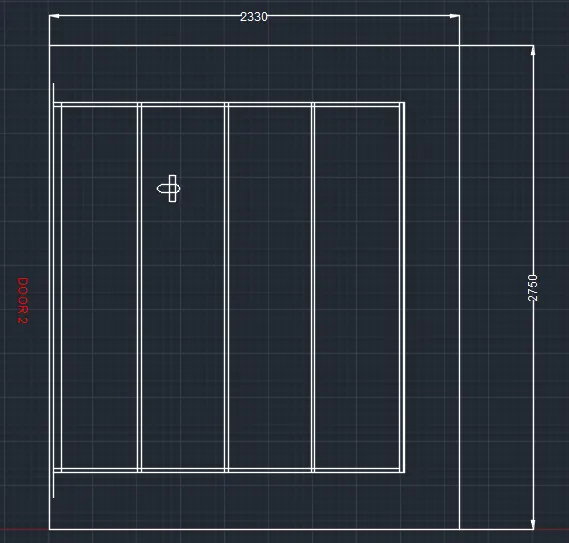

DOOR-2:

3. CREATING SYMBOLS:

Aim:

To create a symbol legend with each symbol as a block with the name .

Pocedure:

  • Initially set the units of the drawing as decimal (millimeters).
  • Now, set the limits of the drawing
    • Specify the lower left corner: (0,0)
    • Specify the upper right corner: (5000,5000).
  • Inorder to create a symbol legend, first of all create all the symbols individually and then convert them into blocks.
  • Draft all the symbols that are needed to be inserted inside the legend.

  • Draw a table to accommodate all symbols along with their designated block names

  • Use the insert command and start adding all symbols as per the numerical order

  • Use the field tool to insert all the relevant block names according to the designated symbols.
  • Explode the field and make all the names clearly visible.

Result:

The given Symbol is created as a block with the name in the legend.

4. CREATING DOOR TYPES FOR RESIDENTIAL BUILDINGS:

Aim:

To create the door types for resisdential building as a block.

Procedure:

  • Initially set the units of the drawing as Architectural (feet and inches).
  • Now, set the limits of the drawing
    • Specify the lower left corner: (0,0)
    • Specify the upper right corner: (100',100').

Aim:

To create the door types for resisdential building as a block.

Procedure:

  • Initially set the units of the drawing as Architectural (feet and inches).
  • Now, set the limits of the drawing
    • Specify the lower left corner: (0,0)
    • Specify the upper right corner: (100',100').

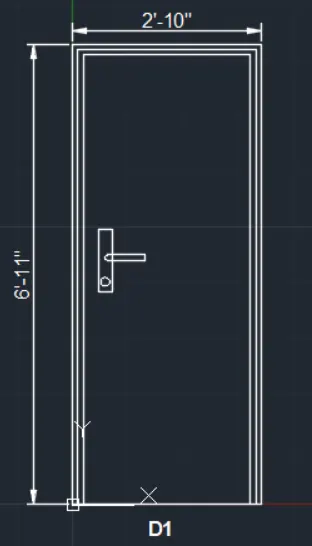

1.Door-1:

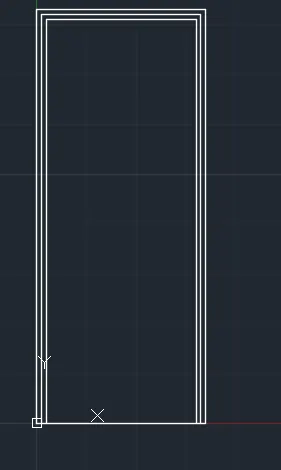

  • Choose line command and draw the outline of the door.
  • Choose offset command and complete the door.

  • Now create the lock for the door using circle rectangle line and arc option.
  • After drafting convert it into a block.

  • Then placing it within the door.
  • Then provide the dimensions and text.

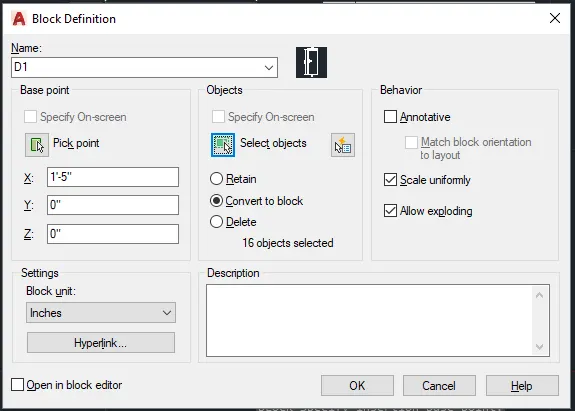

  • Now, convert this door to block named Door D1.

  • Click ok and then the entire door is converted to block.
  • Hence, the block created is given below.

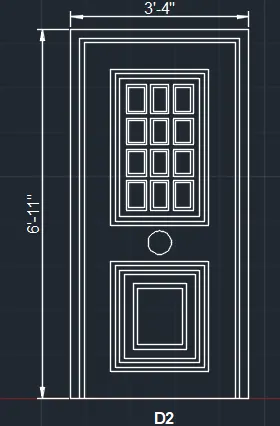

2.D2:

  • Again choose line command and draw the out line of the door.
  • Then using the offset command draw the panels of the door.

  • Provide the necessaary dimensions and texts.

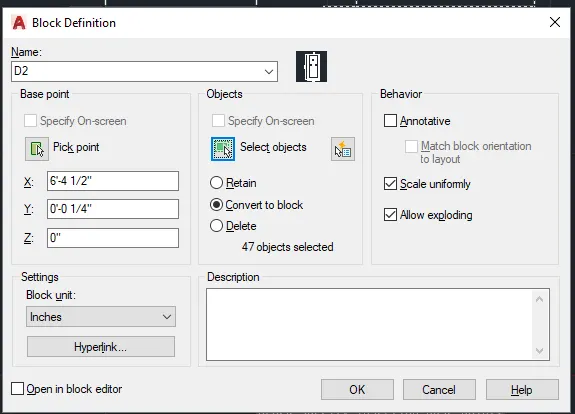

  • Now, we have to convert the door so created into block and is named as D2.

  • Then click ok, so that it is converted to block.
  • The block hence created is given below

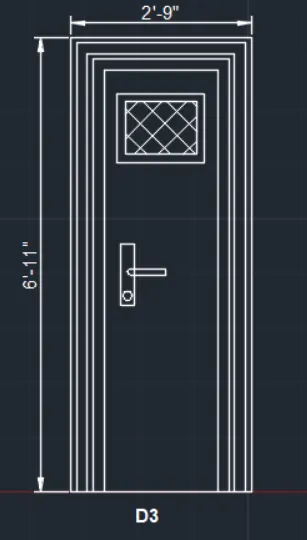

3. D3:

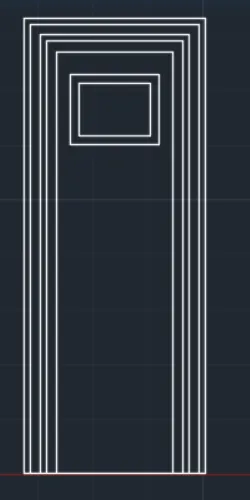

  • Using line command draw the outline of the door.
  • Within the center portion of the rectangle hatching is provided.

  • To place the lock in the door, the previously created bock can be utilised.
  • Now, provide the texts and dimensions to the doors.

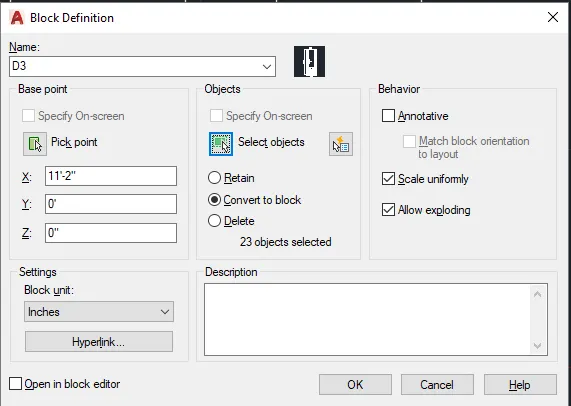

  • Now, convert the door so created to block.

  • Then click ok, so that it is converted to block.
  • The block hence created is given below.

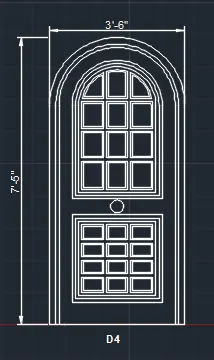

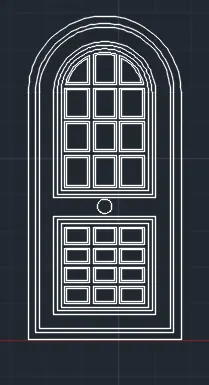

4) D4:

  • Initially, choose line command an draw an outline of door.
  • Then choose arc and make the top portion of the door curved.
  • Then using the offset command complete the panels of the door.

  • Trim the bottom unwanted lines.
  • Now, provide the dimensions and texts .

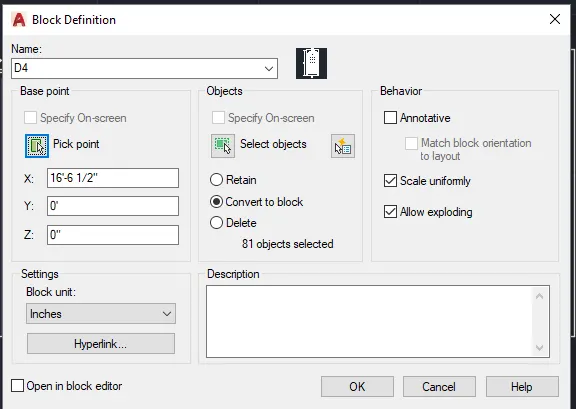

  • Convert the above door to block.

  • Then click ok, so that it is converted to block.
  • The block hence created is given below.

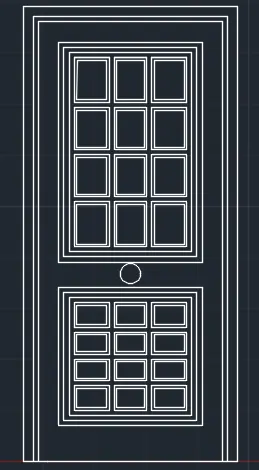

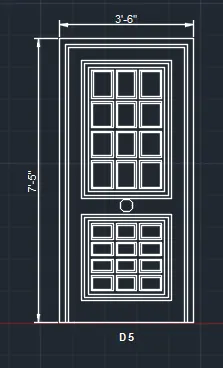

5) D5:

  • Using line command the outline of the door can be created.
  • Then by using offset and trim command the entire panels of the door can be created.

  • Now, provide the dimensions and texts.

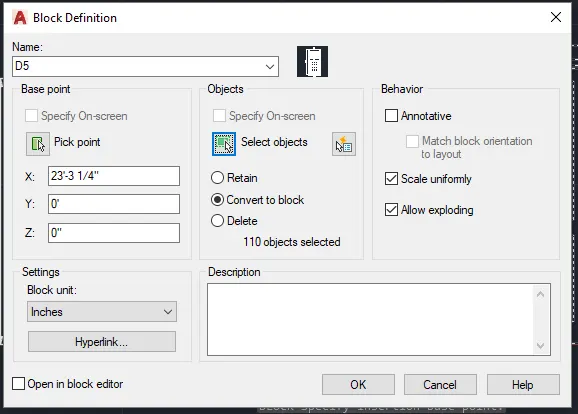

  • Now, convert this figure to block.

  • Then click ok, so that it is converted to block.
  • The block hence created is given below.

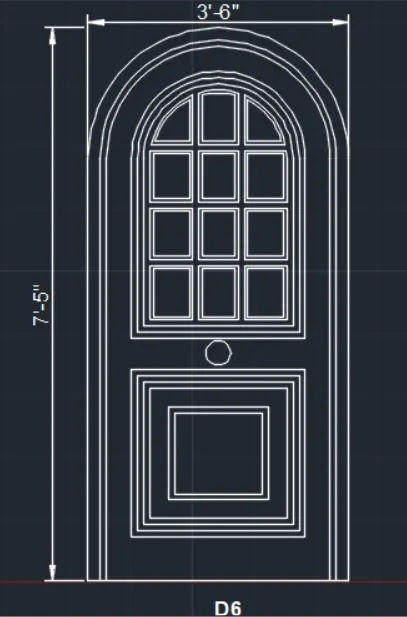

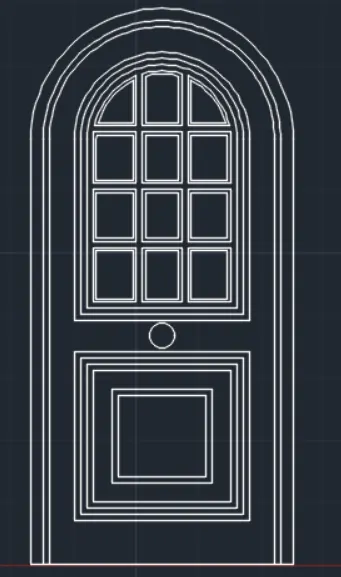

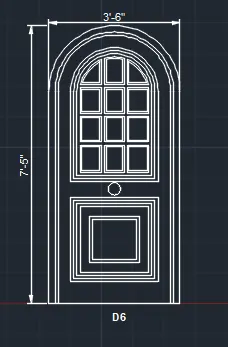

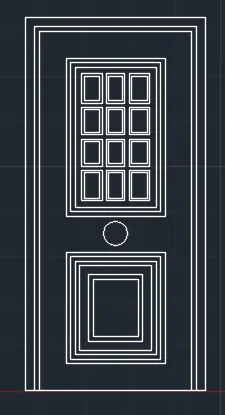

6) D6:

  • Inorder to draw this door, copy the D4 door and the explode it.
  • Then in the bottom rectangular panel of the door is altered to obtain the door D6.

  • Now, provide the dimensions and texts.

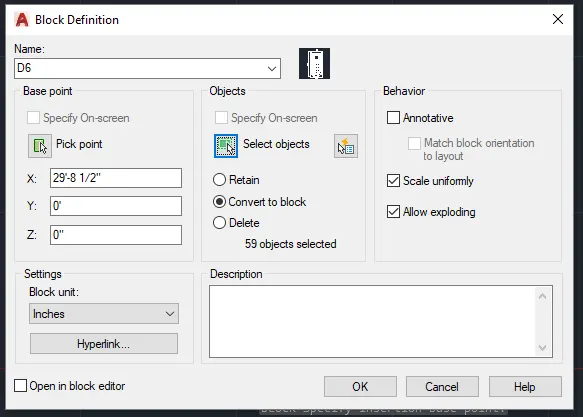

  • Now, convert the above created door to a block.

  • Then click ok, so that it is converted to block.
  • The block hence created is given below.

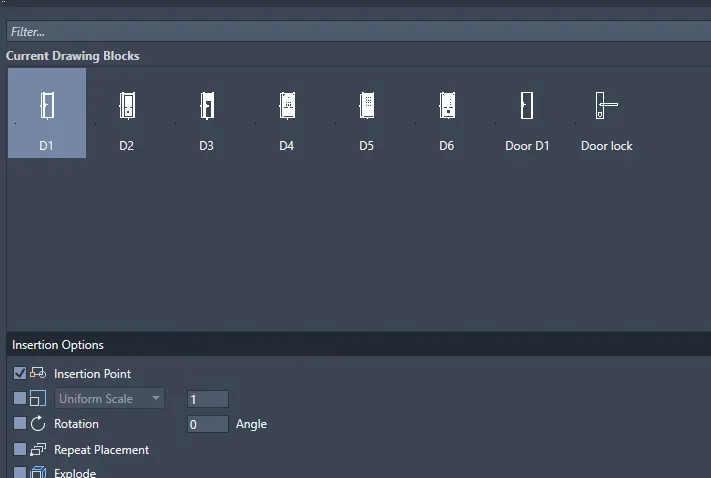

  • Hence, all the doors have been created as blocks.

5.

Aim:

To create each shape as a block as shown in the figure and insert these blocks into the table as shown below.

Procedure:

  • Initially set the units of the drawing as Decimal (meters).
  • Now, set the limits of the drawing
    • Specify the lower left corner: (0,0)
    • Specify the upper right corner: (100,100).
  • Choose line command to draw different types of reinforcements in the bar bending schedule.
  • Fillet command can also be used to draw the curves.
  • Initially create individual shapes and then after providing necessary dimensions, convert them into blocks.

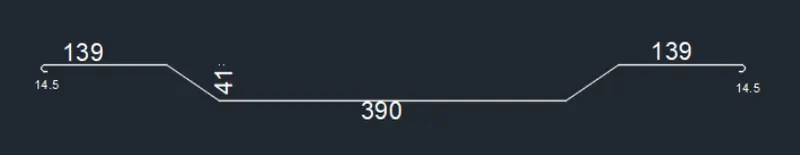

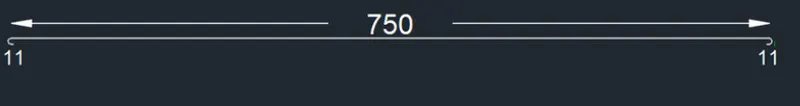

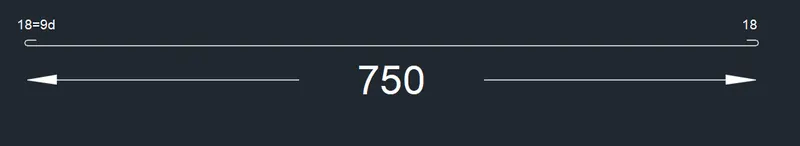

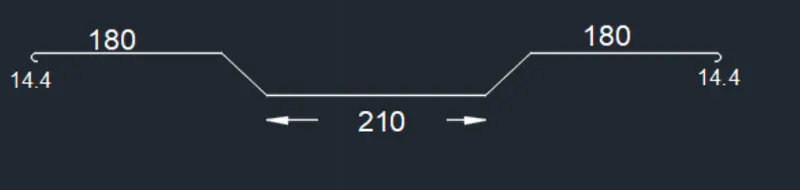

  • The first bar is created as given below.

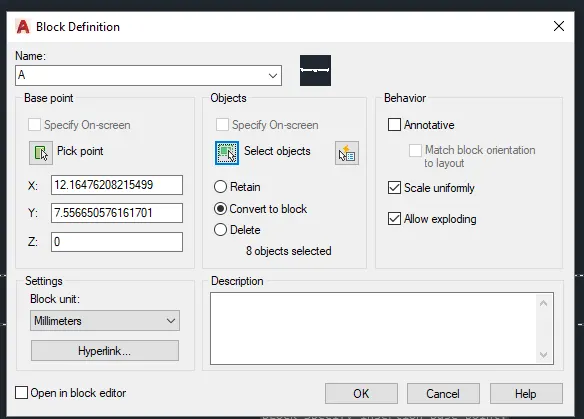

  • Now, convert this into blocks.

  • Then click ok, hence it is converted to blocks.
  • Similarly convert all the shapes to block.

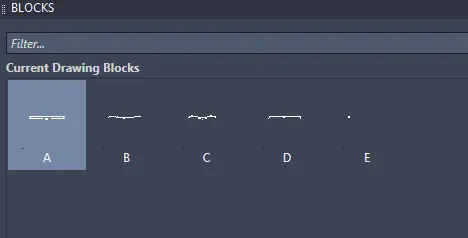

  • The above drawn shapes are converted to blocks.

  • Since the blocks have been created, now create the table from the annotation tab having 6 rows and 7 columns.
  • Then place these blocks into the table so created after appropriate scaling.

  • Hence, it is completed.

RESULT:

1. The two templates created are given below:

(a)Custom1_titleblock

1. (b) Custom2_titleblock

2.The door types for warehouses has been created as below:

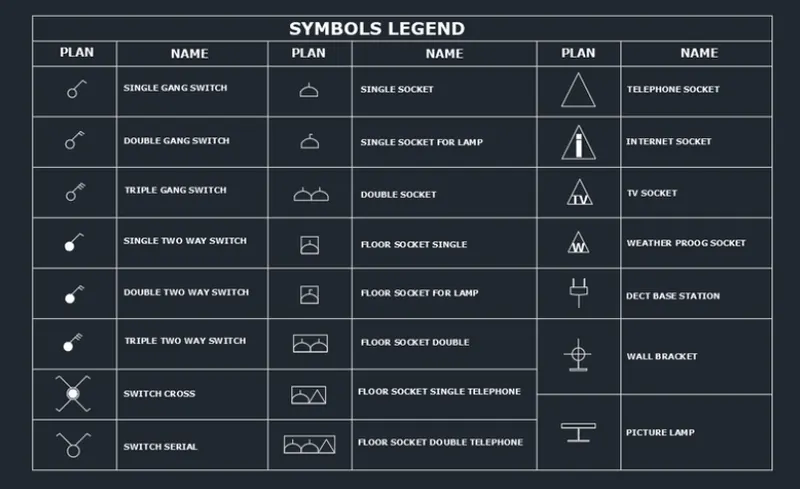

3. Symbol legend created is as follows:

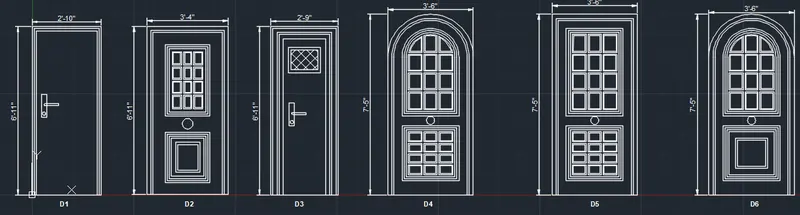

4. Different door types for residential buildings is created as below:

5. The bar bending schedule created using the blocks concept :
