Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

AIM:

• To create ,templete,inserting text and atteributes.
• Doors of warehouse and placing in the blocks.
• Electrical legend and making it blocks.
• Different types of door for residential project.
• Drawing bars,making it as block and making it as a table as bars bending schedule.

COMMANDS:

1. Block
2. Insert
3. Field
4. Rectangle
5. Line
6. Text
7. Mirror
8. Copy
9. Offset

Q1.Create the templates as shown in Figures. Take the size of the title block as per industry standards or you can assume it as per the size of the paper. Use text and attributes wherever required. After creating the title block you need to save it as a block with names: Custom1_titleblock and Custom2_titleblock, respectively.

AIM:

Creating templetes ,inserting text and block creation.

1. custum1_Tittle block.
2. Custum2_Tittle block.

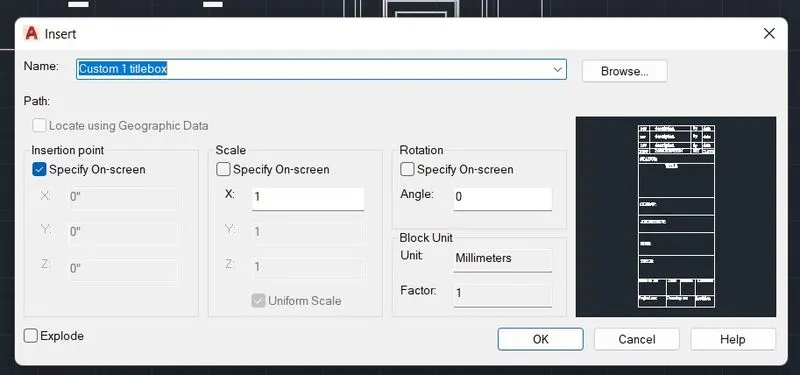

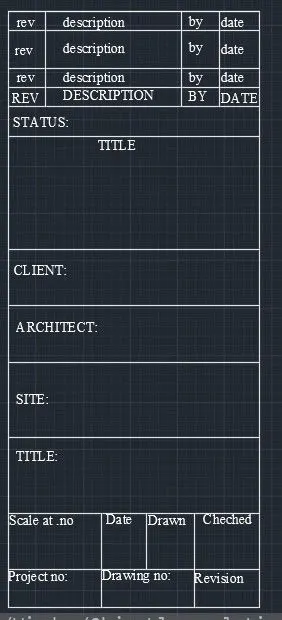

CUSTUM_TITTLE BLOCK:

• Create a rectangle.
• By multiline text,type,rev,description,by,date, on first row by 'text' height 2.5 and style- "Times New Roman."

CREATING BLOCK:

• COMMAND: "B" block definition dialogue box appears -give name as "CUSTUM1_TITTLE BLOCK".
• - Select pick point and - select a point in the table - select whole table including exploding. select convert to block option.

As we have selected retain the object it will be retain and some as the actual drawing and a block is created for the objects thats we have selected .If we want the block go to insert select the object and insert it.

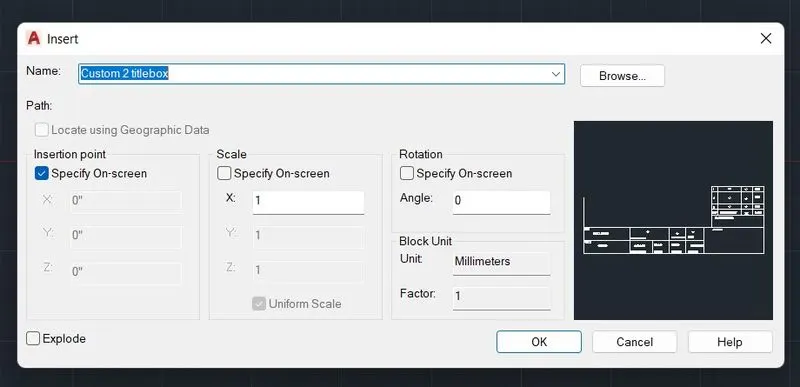

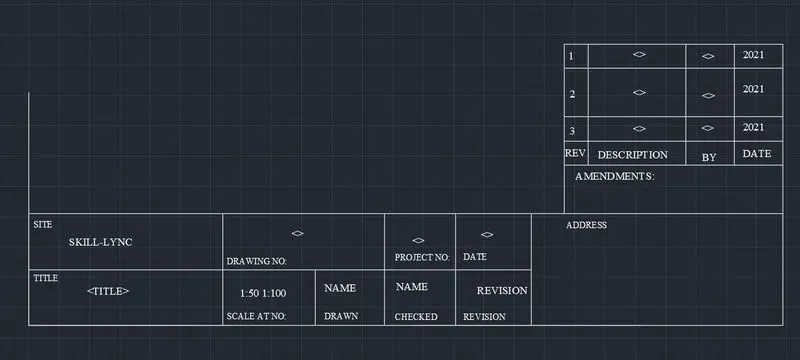

CUSTUM2_TITTLE BLOCK:

Draw rectangle and divide the to required rows and colums.

With the use of multilines text,insert the following:height 2.5

CREATING BLOCK:

Now create a block command "B" with name "CUSTUM2_TITTLE BLOCK" Select the whole tittle block and make it as a block. After creating it as a block we can see that all attributes will change to their default values.

RESULT:

CUSTUM1_TITTLE BLOCK:

CUSTUM2_TITTLE BLOCK:

Q2. Create the doors type for warehouse as shown in the Figure. You need to create each door type as per standard size or given dimensions. Create the blocks of this door type after creating them.

AIM:

1.DOOR-1 = 2330X2750mm

2.DOOR-2 = 2330X2750mm

PROCEDURE:

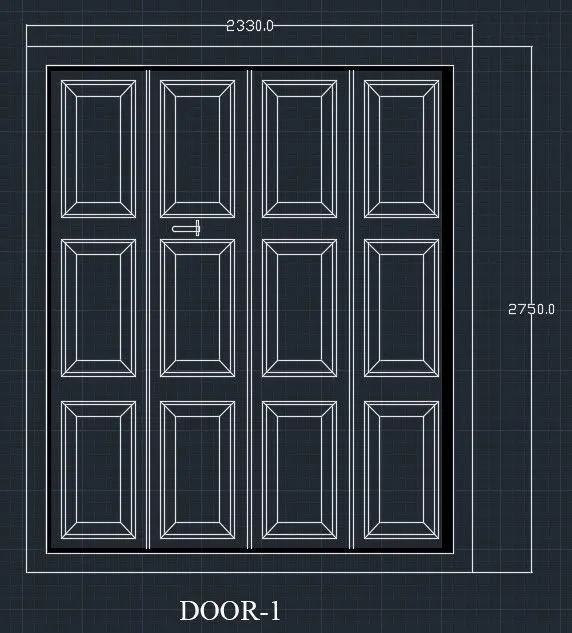

DOOR-1 = 2330X2750mm:

• Create a rectangle of size 2330x2750mm.Offset 50mm as a frame.90mm for the left side.explode the rectangle.
• By divide "DIV" the top line 4segments,from the division point ,draw lines vertically to divide it into shutters.
• Offset 25mm on both sides for the thickness, delete the centre line.
• Create a rectangle to show the panels, offset 20mm from the 1st rectangle and offset 100mm from the 2nd rectangle. draw lines joining the corners of the out side and inside rectangle.
• Create the panel as ablock, so that it is easy to copy .Create lock by rectangle command,and fillet the cornerswith radius 5mm.
• By using the copy all the frames are copied.

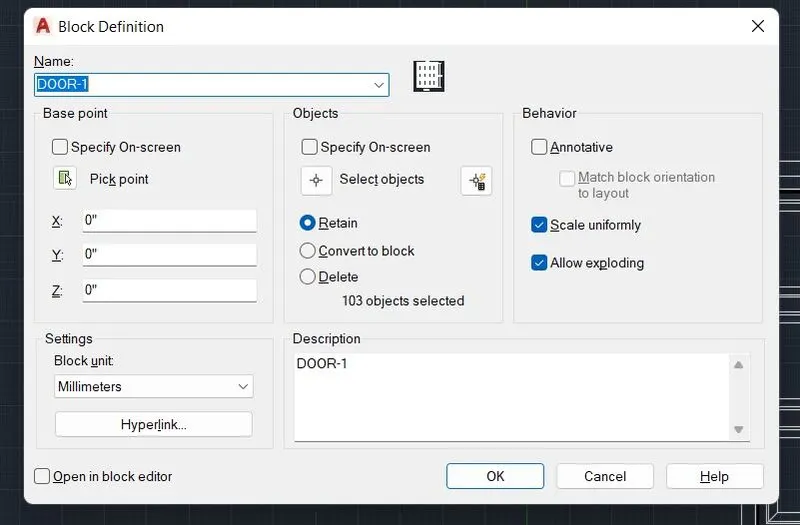

CREATING BLOCK:

Command "B" -Give name - pick point - select corner point - select object - select the full object - ok.

RESULT:

DOOR-1 IS CREATED.

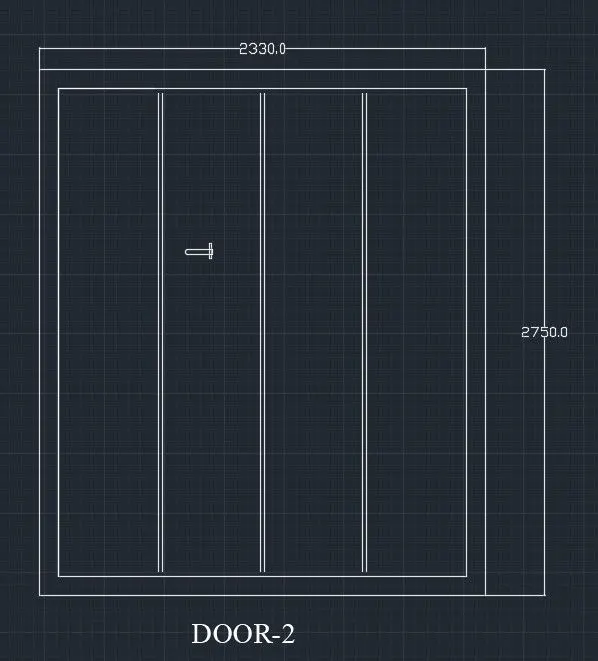

DOOR-2 = 2330X2750mm:

• Create a rectangle of size 2330x2750mm.Offset 50mm as a frame.90mm for the left side.explode the rectangle.
• By divide "DIV" the top line 4segments,from the division point ,draw lines vertically to divide it into shutters.
• Offset 25mm on both sides for the thickness, delete the centre line.
• Create a rectangle to show the panels, offset 20mm from the 1st rectangle and offset 100mm from the 2nd rectangle. draw lines joining the corners of the out side and inside rectangle.
• Create the panel as ablock, so that it is easy to copy .Create lock by rectangle command,and fillet the cornerswith radius 5mm.
• By using the copy all the frames are copied.

CREATING BLOCK:

Command "B" -Give name - pick point - select corner point - select object - select the full object - ok.

RESULT:

DOOR-2 Is created.

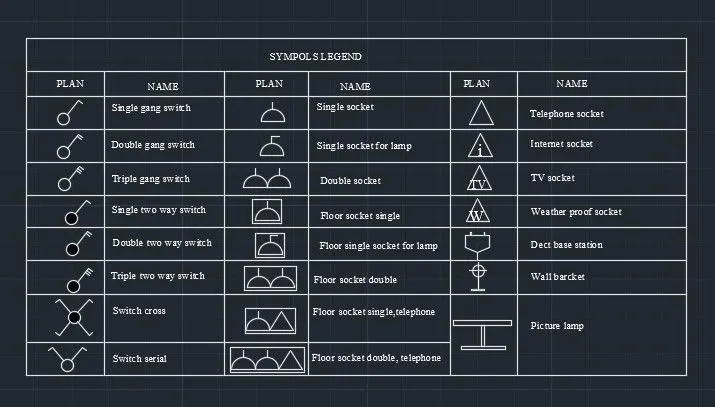

Q3. Create each symbol as a block with the name given in the legend. After creating the blocks arrange them in the legend as shown in the Figure.

AIM:

• To create electrical legend.
• Create each electrical symbol.
• Creating them as block.
• Arranging them in legends.

PROCEDURE:

Creating electrical symbols:

Single gang switch:

Draw a circle of radius 64mm and with line draw an inclined line vertical and horizontal line perpendicular to the inclined as required.

Double gang switch:

Draw circle and draw two horizontal lines and a vertical incline line.

Triple gang switch:

Draw circle, 1 vertical incline line and three horizontal lines.

Single two-way switch:

Draw same as single gang switch and with donout command give internal dia as zero and for external diameter select it in the circle.

Double two way switch:

Draw same as double gang switch and create donout .

Triple two-way switch:

Draw same as triple gang switch and create donout.

Switch cross:

Create a circle and donout inside and with line command draw an inclined vertical and perpendicular horizontal. Mirror the line in both directions.

Switch serial:

Copy the switch cross and delete two bottom lines, remove the donout also.

Single socket:

Create a circle, divide it into half and draw a line at the top.

Single socket for lamp:

From the single socket, draw a horizontal line perpendicular to vertical.

Double socket:

Draw the single socket and copy it to create same and place it using snap on.

Floor socket single:

Draw a rectangle surrounding single socket.

Floor single socket for lamp:

Draw a rectangle surrounding single socket for lamp

Floor socket double:

Create two single socket and place a rectangle surrounding it.

Floor socket single telephone:

Draw a single socket, a triangle and surrounded by a rectangle.

Floor socket double, telephone:

draw 2 single socket and a triangle surrounded by a rectangle.

Telephone socket:

Draw a triangle

Internet socket:

Insert text "i" in the triangle.

Tv socket:

Insert text “TV' in the triangle.

Weatherproof socket:

Insert text "w" in the triangle.

Duct base section:

Draw a rectangle - select the bottom grip point - select add vertex - then pull the vertex to create a bend, with line draw the lines.

Wall bracket:

With rectangle draw the base, create a circle, draw a line connecting the rectangle and circle, draw a cross line inside the circle.

Picture lamp:

draw two rectangles connected by a line.

Creating them as block:

Command "B" give name as single gang switch - pick a point - select object (created single gang switch) - tick scale uniformly and allow exploding options.

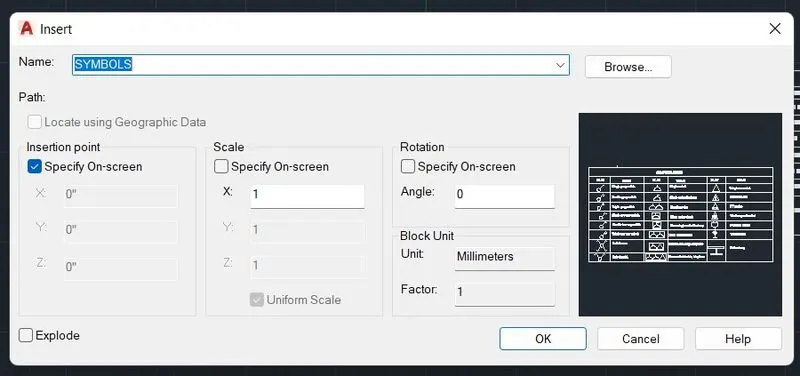

RESULT:

Q4. Create the door type for residential building as a block. Save the name of the blocks as type. Use given dimensions or assume dimensions as per industry standards.

AIM:

To draw the doors of residential project and create it as block.

1. D1
2. D2
3. D3
4. D4
5. D5
6. D6

Procedure:

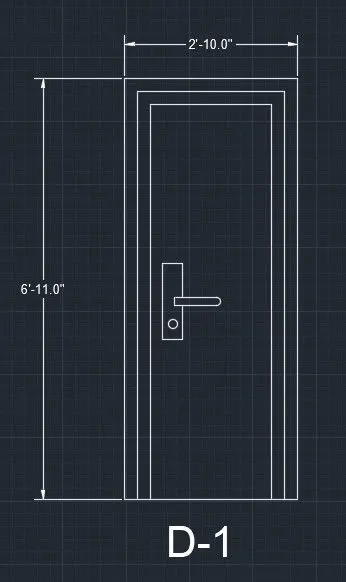

1) D1 - 2'10" x 6'11" :

• Draw rectangle with dimension 2'10" and 6'11".Draw offset 1.5" for frame.Draw offset 1" for shutter.
• Draw lock by two rectangles perpendicular to each other and fillet the corners with radius 0.1"and circle.Write text by multiline text "D1".
• Create it as block "B"- give name as "type-D1" -pick a corner point- select the object. then block is created.

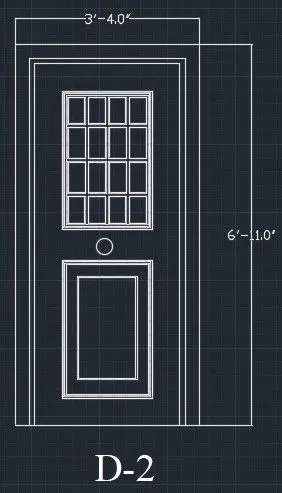

2) D2 - 3'4" x 6'11" :

• Draw rectangle with dimension 3'4" and 6'11".Draw offset 1.5" for frame.Draw offset 1" for shutter.
• Draw rectangle for panel 1'11" and 2'9.1", then offset 1" two times.Draw a rectangle 5.4" x 5.7", offset 0.3".
• Copy it with copy command "co" - select mode - select the rectangle- select array-enter no: of array as 3 -place it as required.Copy the 3 rectangles to 4 rows.
• For the second panel draw a rectangle of 1'11" x 2'0.6". Offset 1" 3 timesDraw another rectangle inside this of 1'0.8" x 1' 1.2" and offset 1".
• Draw lock by circle in between the two panels.Write text by multiline text "D2".

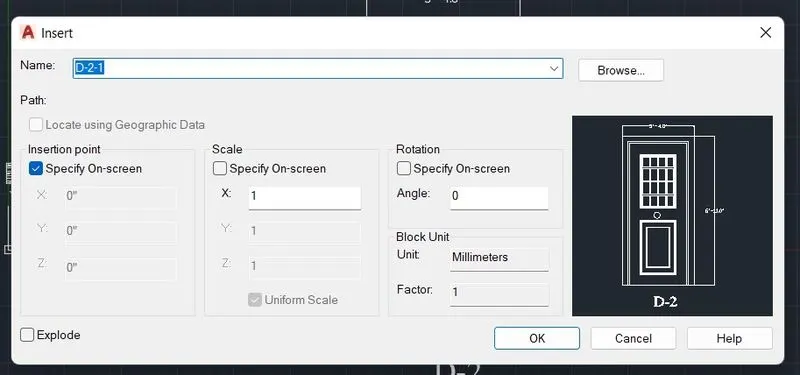

• Create it as block "B"- give name as "type-D2" -pick a corner point- select the object, then block is created.

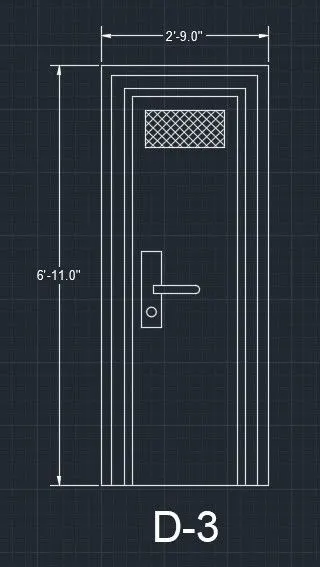

3) D3 -2'9" x 6'11" :

• Draw a rectangle of 2'9" x 6'11".
• Offset 1" for thickness ,2"offset for frame, 1" thickness. Offset 1.5" as shutter thickness.
• Draw a rectangle at the top for ventilation 1'3" x 9.3", give offset 1" for thickness.Hatch inside the rectangle.
• Create lock by rectangle two of them, perpendicular to each other and a circle.
• Create it as a block Command "B" - give name as type d3 -pick point- select object -tick scale uniformly and explode all.

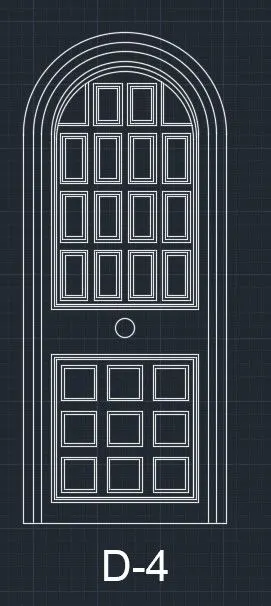

4) D4 - 3'9" x 8'7" :

• Draw rectangle "REC" of dimension 3'9" x 6'10".Explode it and create an arc with 2-point method with both point as the endpoints.
• Offset the arc and the line with 1.5" and then 1".
• Offset 8" from arc and rectangle for panel and divide it into two .Take 1" offset 2 times to show the thickness on top figure and bottom rectangle.Create rectangles inside the panel.
• For lock, create a circle.
• Make it a block, name as type D4 - pick a point and select the object tick the dialogue box of uniform scale and explode all.

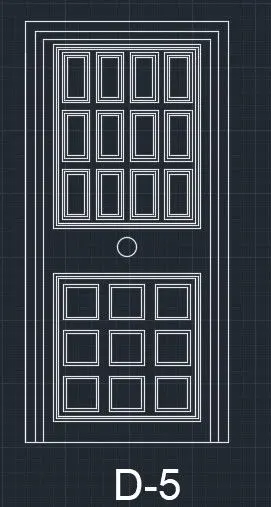

5) D5 - 3'5" x 6'8" :

• Draw a rectangle of 3'5" x 6'8".Offset 1.5" for frame.Offset 1" as shutter thickness.Create another rectangle inside with offset 4.4".
• Create another rectangle on the bottom 2'2.9" x 2'2.6".Offset 1" two times for both rectangles.
• Create rectangle inside for panels with offset 0.5".Copy it for 3 columns and 4 rows.Similarly copy it in bottom rectangle for 3 rows and 3 columns.
• Create it as a block Command "B" - give name as type D5 -pick point- select object -tick scale uniformly and explode all.

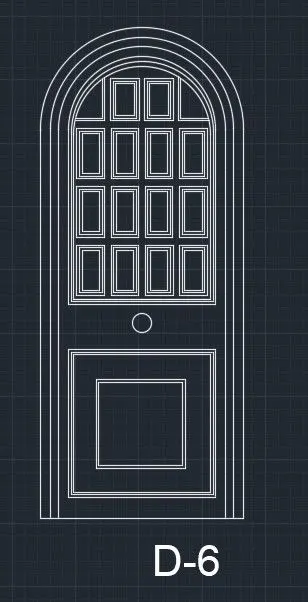

6) D6 - 3'5" x 7' 11.6" :

• Draw rectangle "REC" of dimension 3'5" x 7'11.6".Explode it and create an arc with 2-point method with both point as the endpoints.Offset the arc and the line with 1.5" and then 1" for frame.
• Offset 8" from arc and rectangle for panel and divide it into two.Take 1" offset 2 times to show the thickness on top figure and bottom rectangle.Create rectangles inside the top panel, 3 row and 4 columns.
• For bottom panel, offset the rectangles by 1" 3 time as and 3.3" and again 1".For lock, create a circle.
• Make it a block ,name as type D6 - pick a point and select the object tick the dialgue box of uniform scale and explode all.

RESULT:

The doors are created and are made into blocks.

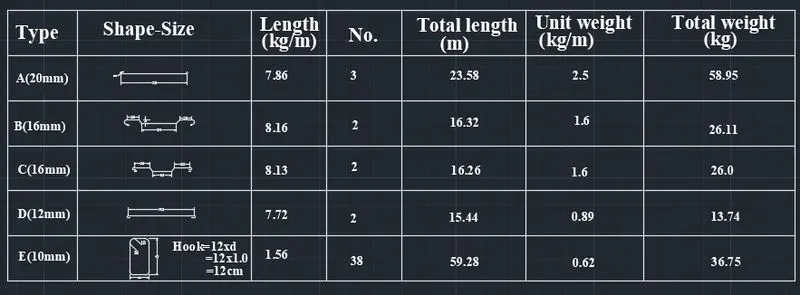

Q5. Create each shape as a block as shown in the Figure. Save the block and insert them on the table as shown in the Figure.

AIM:

To create bar bending schedule and insert it as block.

1. Drawing each shape.
2. Creating it as block.
3. Inserting it in table as Bar bending schedule.

Procedure:

1)Drawing each shape:

A -20mm :

Draw a line of 750cm for straight bar.Create arc for the bend. Create on one side and mirror it on another side.

B-16mm :

Draw line of 300mm for straight bar.Draw vertical line of 41cm and extend a horizontal line and draw a line inclined at 45 degree from the base of vertical line up to horizontal line.

Trim off the unwanted lines.Copy the same on the other side.Draw a horizontal line of 139cm and copy it on other side .Draw bend with arc and mirror the same on other side.

C -16mm :

Draw a line of 210cm .Draw vertical line of 41cm and extend a horizontal line and draw a line inclined at 45 degree from the base of vertical line up to horizontal line.

Trim off the unwanted lines.Copy the same on the other side.Draw a horizontal line of 180cm and copy it on other side.Draw bend with arc and mirror the same on other side.

D -12mm :

Draw a line of 750cm for straight bar.Draw an arc downwards.Mirror it on the other side.

E- 10mm :

Draw a rectangle of 23cm and 43 cm.Fillet the corner with fillet radius 5cm.Draw two line of 120cm.

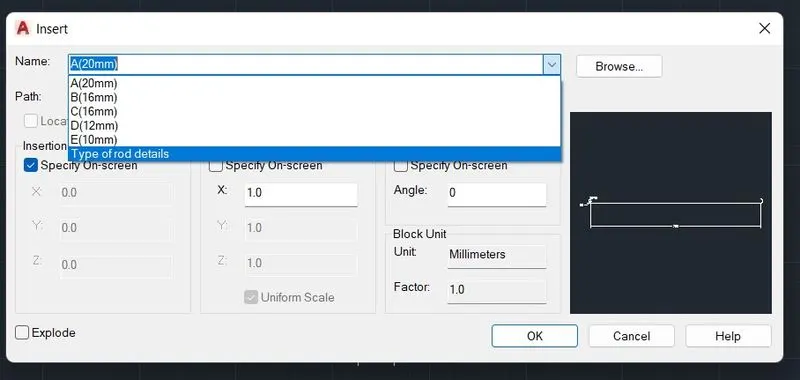

CREATING BLOCK:

Creating each of them as block by using Command -"B'- give name as A - pick a point- select the object - select delete - tick box of scale uniformly and explode all.

RESULT:
