Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

AIM:To Create the templates,different doors,electrical legends and structural reinforcement and make them in to blocks .

software that i used : AUTOCAD

Tools that i used :

line

arc

mirror

rectangle

array

dimension

offset

lengthen

circle

text

attribute

block

trim

copy

scale

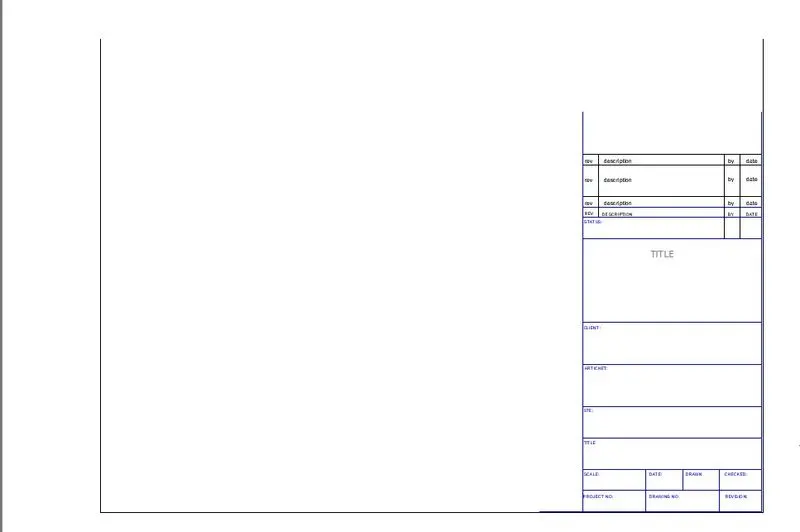

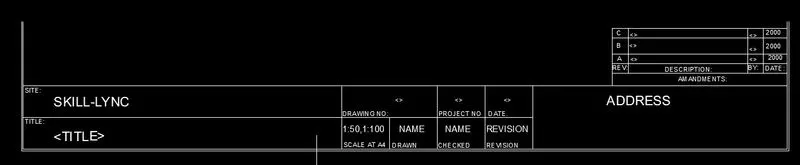

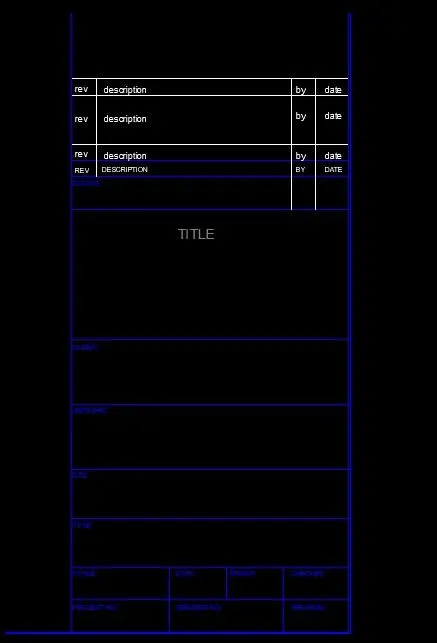

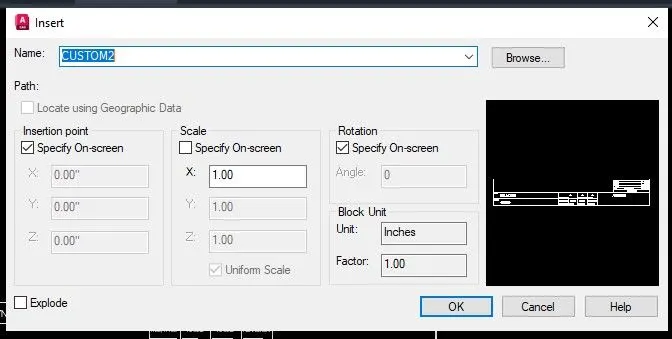

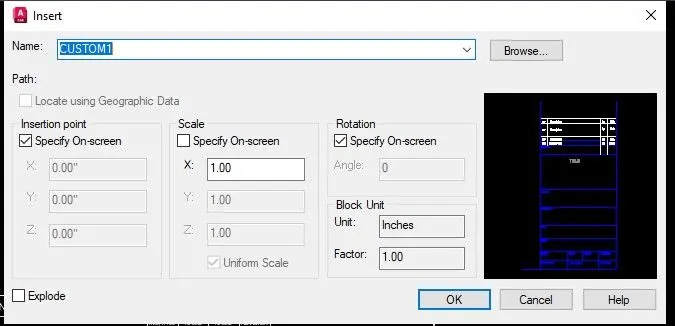

Templates

procedure:

• draw a line 9units in the horizontal direction.
• At the endpoint i draw the line in y-axis with a distance 1'6"
• Take an offset draw the lines with a distance of 3.50",3.50",2" in x-axis.
• again in the y-axis with a distance of 1",2",3.50",5",7",9",1'10",1'2",1'2.50",1'3",1'4.5"1'5",1'6".
• take mtext make annotations where its required three text height are taken in this text block 0.15",0.2",0.30".
• i used layer for distinguish in the text block.
• i used B command for invoking block
• i assign the pick point and select object.
• block units are in the inches.

same procedure is repeated for the another template.

but taking different distance and anotations.

Different doors:

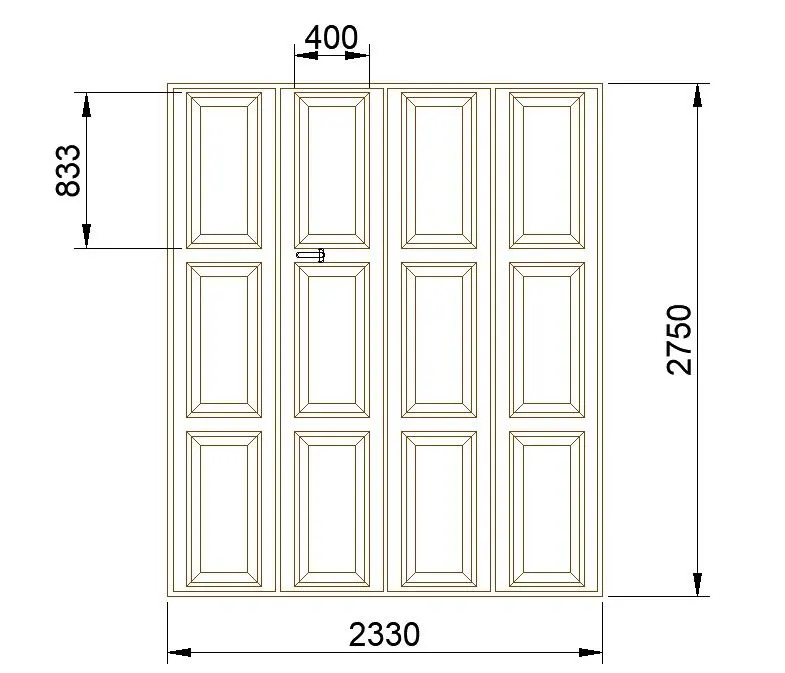

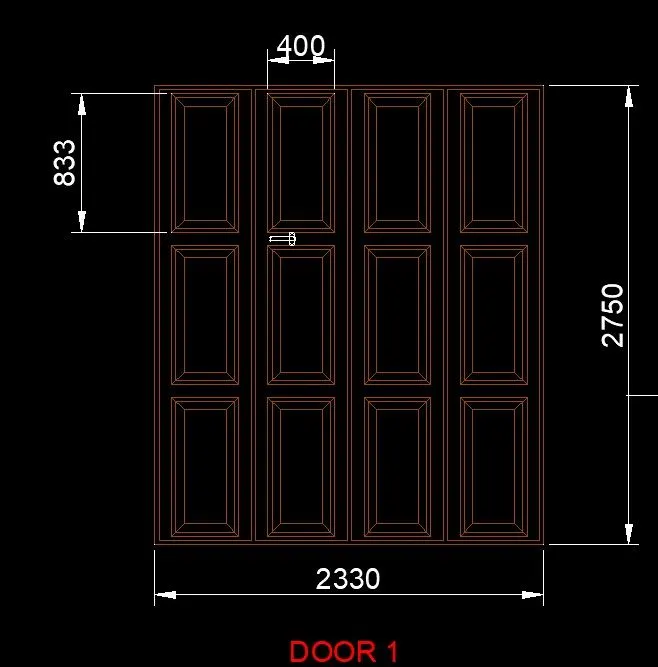

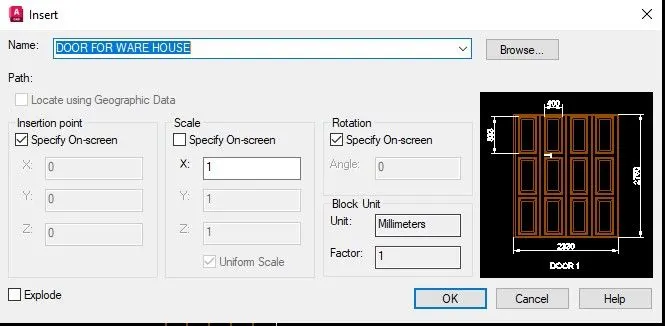

Door1

• draw a line with adistance of 2330 units in x-axis.
• draw a line from right end of previous line with a distance of 2750 units.
• repeat the same procedure in opposite direction it forms a rectangle in explode condition.
• take an offset command draw a lines with a distance of 25,75,400 in y-axis
• in x-axis 25,25,833.
• i made the first panel by using offset and line .
• by using array command make the remaining panels .
• i take upper left corner of the panel as the base point.
• distribution with a distance of 575 in column side and -908 in row side.
• make them associative for furtther use.
• handle is provided to the door made by using rectangle .
• dimension are provided to it.

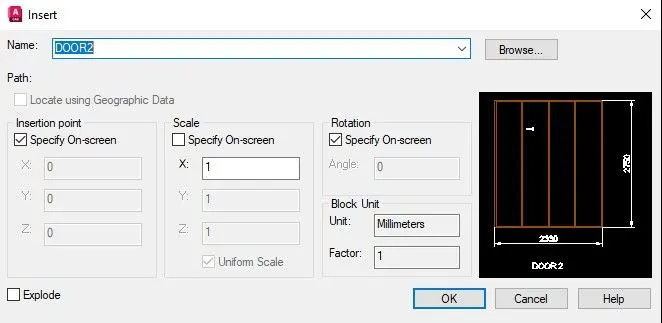

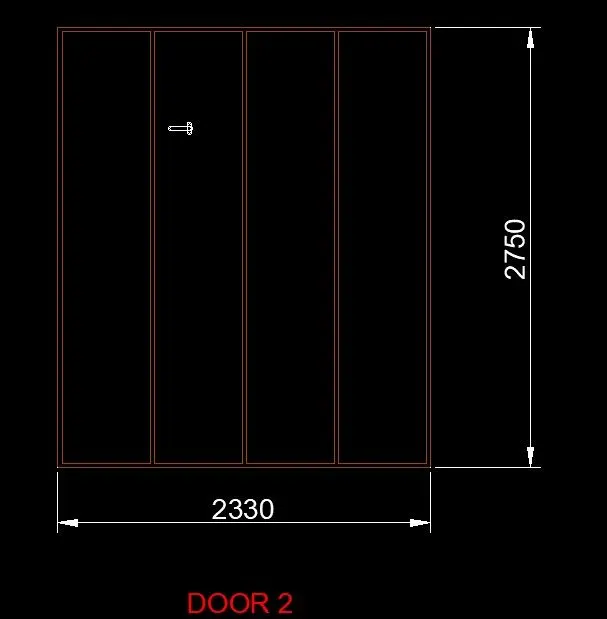

Door2:

• i projected the above door with the help of ray comand.
• projected the mulins lines.
• made the door with the dimension of 2750x 2330.
• tools that i have used are offset ,ray trim.

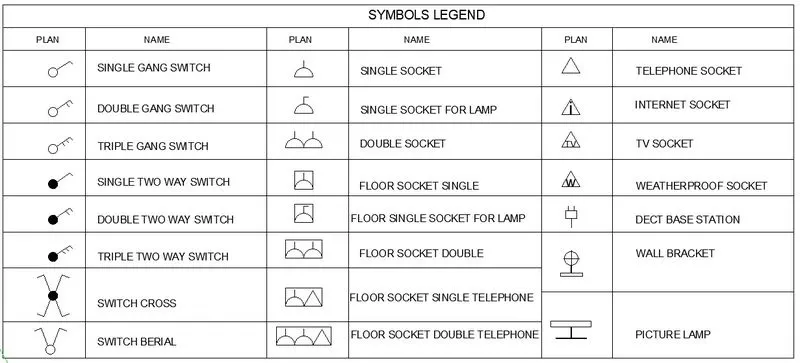

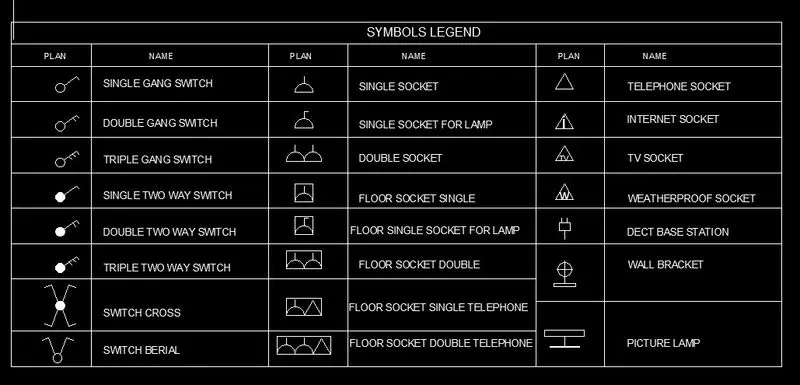

Electrical legends:

• single gang switch: circle, line tools are used.

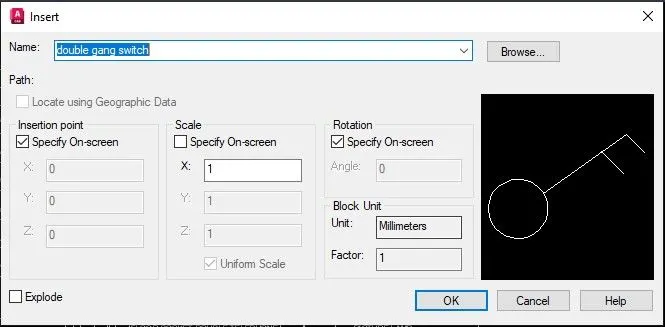

• double gang switch:circle, line tools are used.
• triple gang switch:circle, line tools are used.

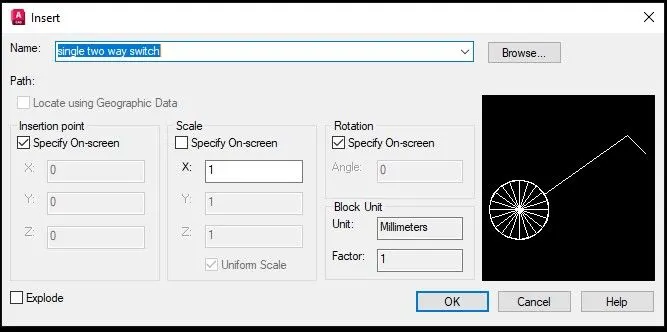

• single two way switch: donut, line tools are used (diameter of circle =10 units)

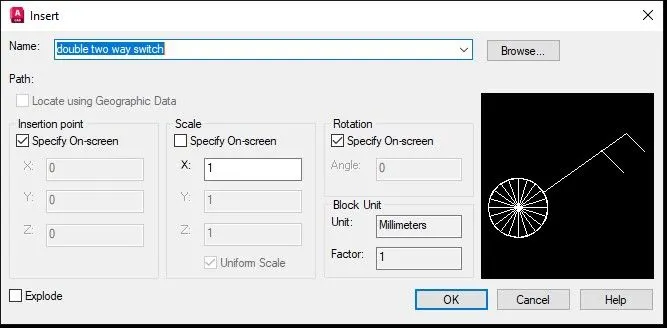

• double two way switch:donut, line tools are used

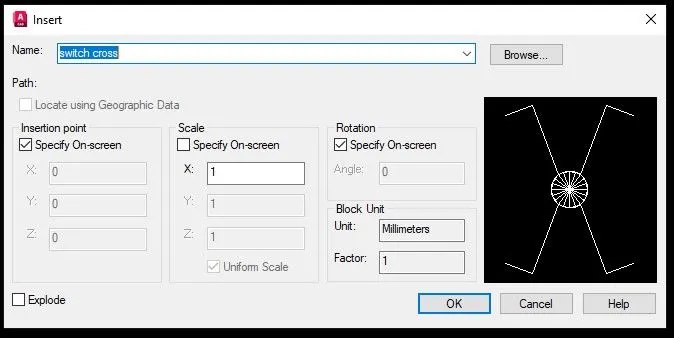

• switch cross:donut, line,mirror tools are used.

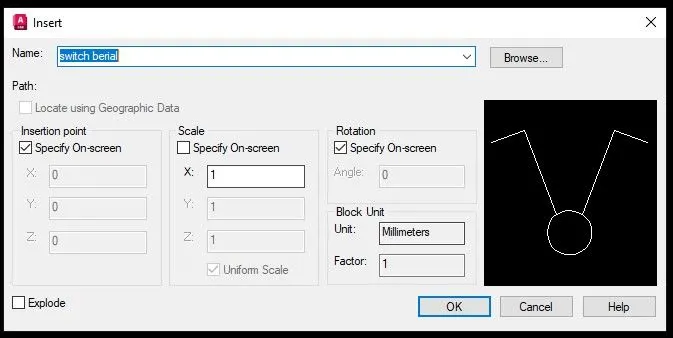

• switch berial :circle , line, mirror tools are used.

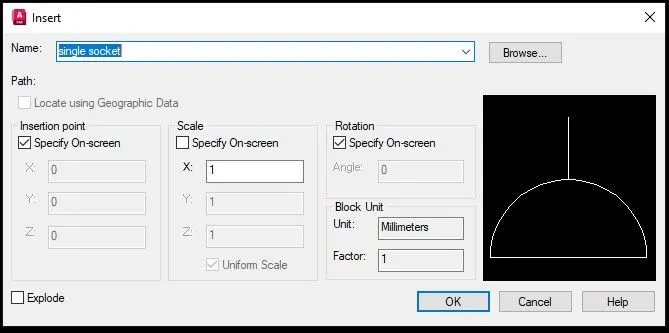

• single socket:line,arc tools are used. (radius of arc=10 units)

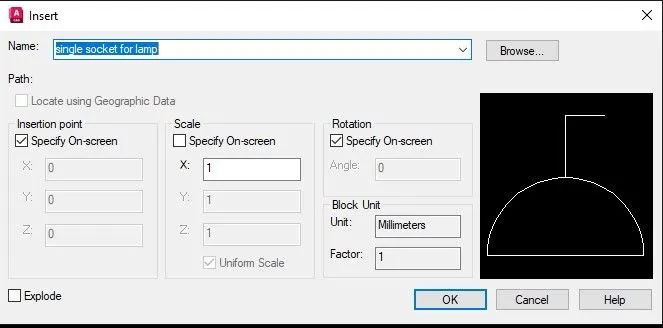

• single socket for lamp:line,arc tools are used.

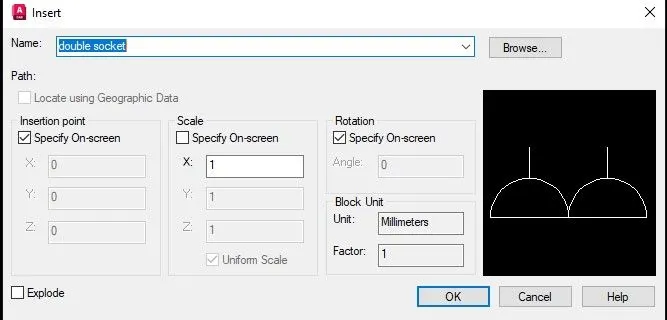

• double socket:line,arc ,mirror tools are used.

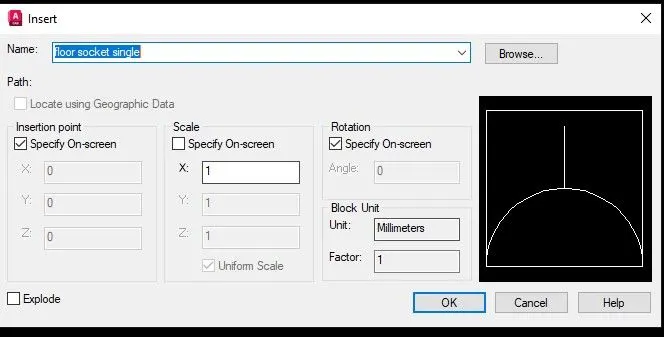

• floor socket single:line,arc ,rectangle tools are used. (length=20,width=20)

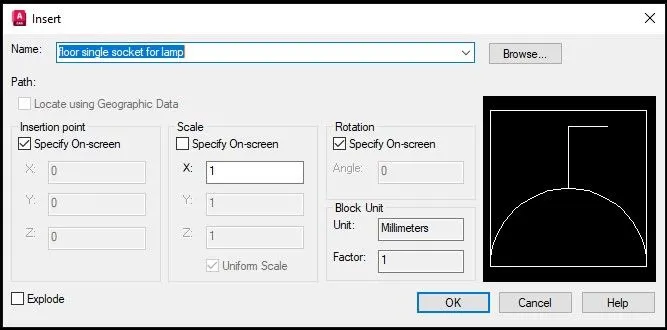

• floor single socket for lamp:line,arc ,mirror,rectangle tools are used.

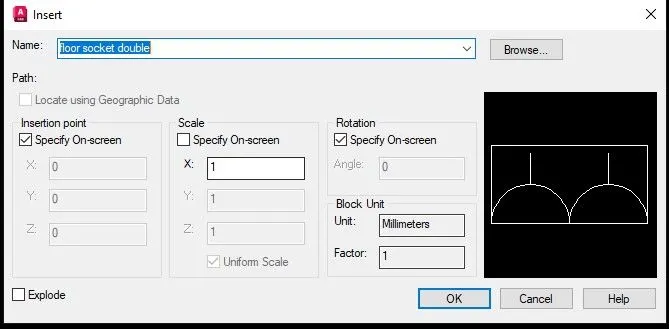

• floor socket double:line,arc ,mirror,rectangle tools are used.

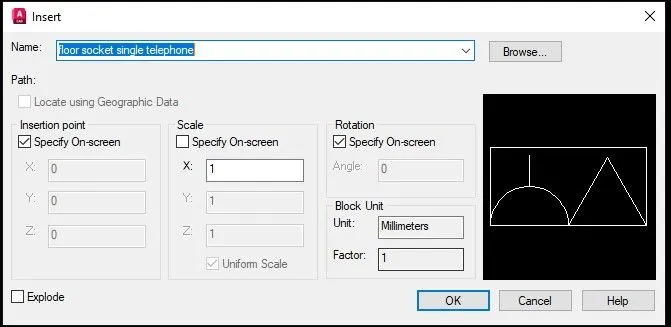

• floor socket single telephone:line,arc ,polygon,rectangle tools are used.

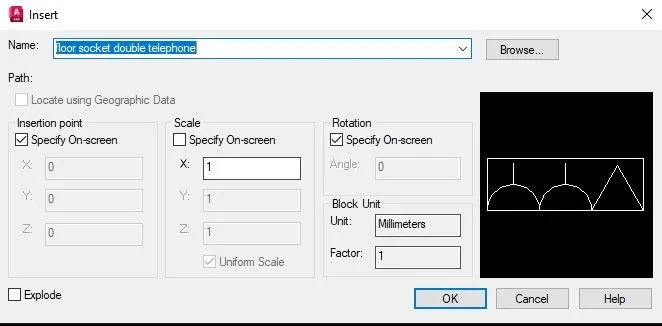

• floor socket double telephone:line,arc ,mirror,polygon,rectangle tools are used.
• telephone socket:polygon tool is used. (polgon side=20)

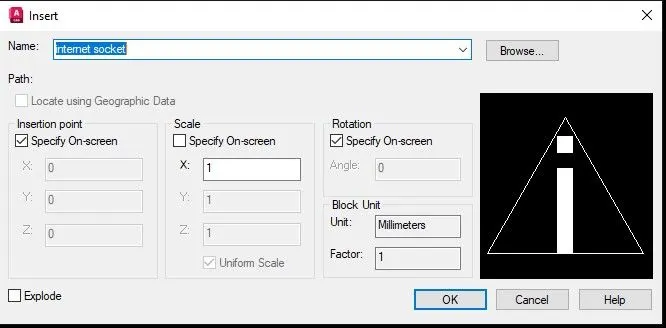

• internet socket:polygon and text tools are used.

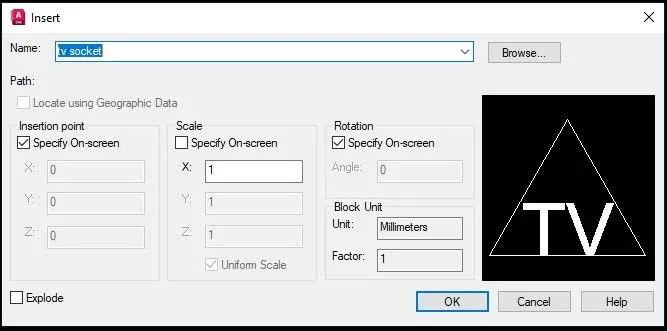

• TV socket:polygon and text tools are used.

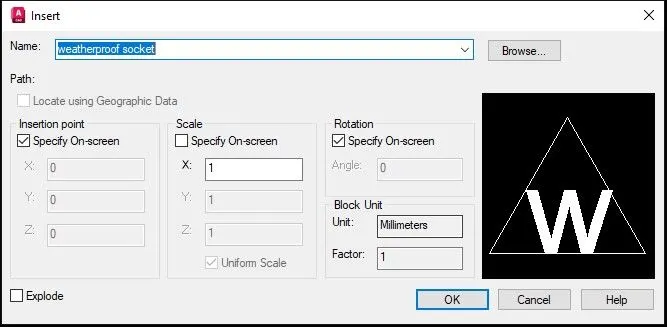

• weatherproof socket:polygon and text tools are used
• dect base station:rectangle ,line tools are used
• wall bracket::circle,rectangle ,line tools are used.
• picture lamp: :rectangle ,line tools are used.
• make each of them in to block with thier specified name.
• make a table using line
• insert the blocks in to the table.
• by using field text is placed.
• remaining is text our own.

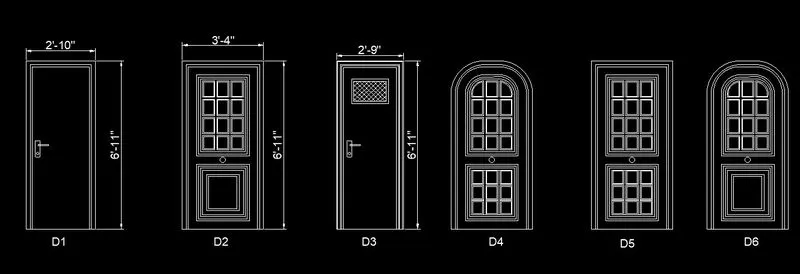

DIFFERENT DOORS:

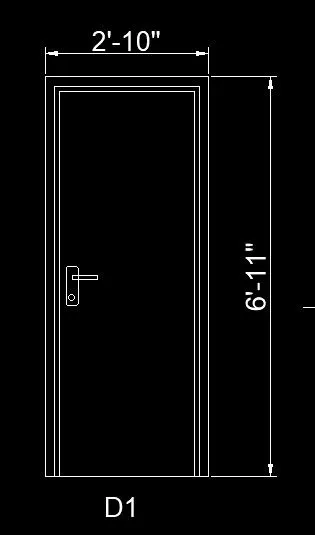

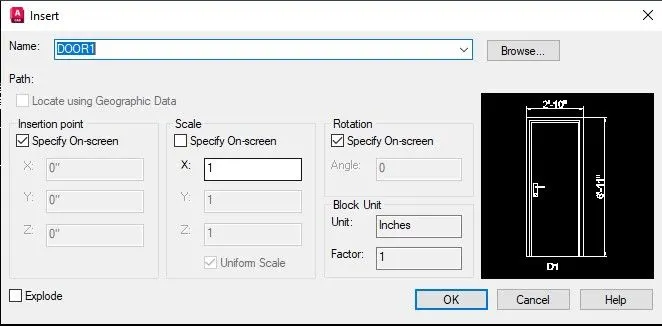

DOOR1:

• Draw the rectangle with dimension of 2'10"x6'11".
• explode it.
• take offset command draw the line with offset distance 2",3"2'7",2'8" in x -axis .
• for handle use the rectangle ,circle.fillet is used.
• dimensions are provided.

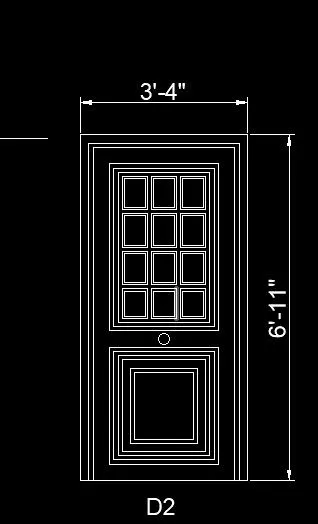

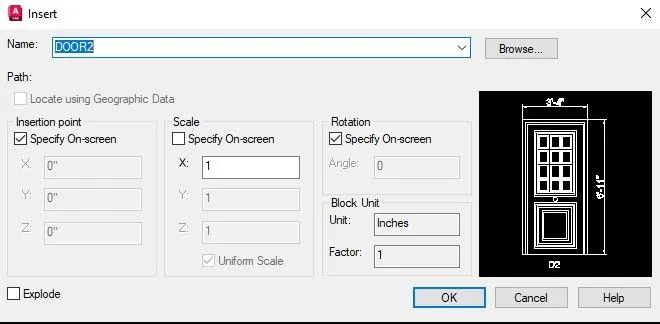

DOOR2

• draw a rectangle with dimension of 3'4"x6'11".
• using offset draw the lines with a offset distance 2",3",7"8",9",10",2'6",2'7",2'8",2'9",3'11",3'2",3'4" in x-axis.
• same procedure is repeated but some exempions are there start in the top rectangle in negative y-axis.
• draw one box and use array make another with a specified distance in column and row side.
• In the bottom again do with the offset with offset distance 1" and 2".
• provided the dimension to it.

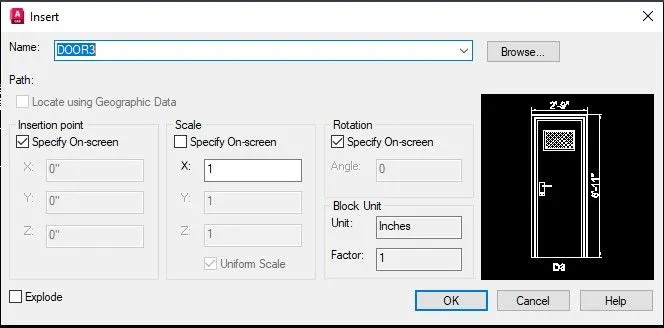

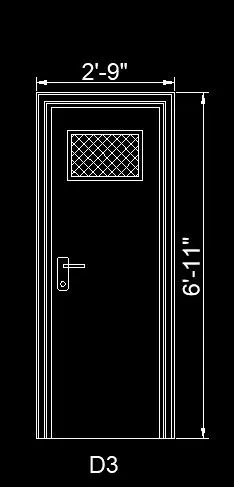

door 3:

• Draw the rectangle with dimension of 2'9"x6'11".
• explode it.
• using offset draw the lines with a offset distance0.5",2",2.5"3.5"2'5.5",2'6.5",2'7",2'8.5"in x-axis.
• same procedure is repeated but some exempions are there start in the top rectangle in negative y-axis.
• lock is copied from the first door by using copy tool.
• fence are provided by using hatch command.dimensions are provided to it.

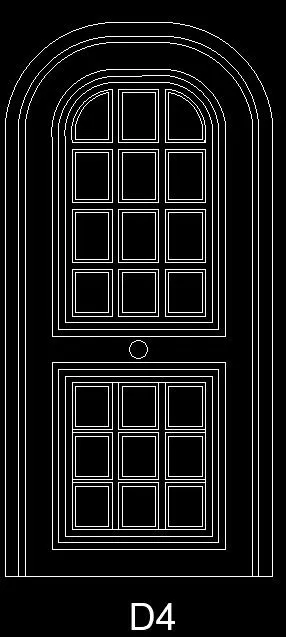

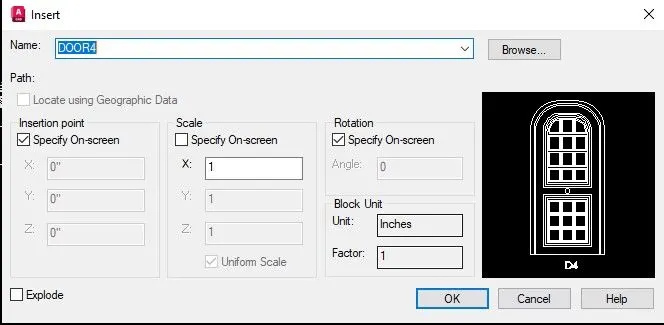

Door4:

• sizes are taken from the door 2 and procedure is same as the door 2.
• but some portion is removed in the top make it arc shape by using arc ,line ,blend command.
• whatever steps done in door 2 same repeated in this door.
• some changes are take place in the bottom panel.
• using array,line,offset,trim are draw that panel
• take circle draw the circle at the mulion.

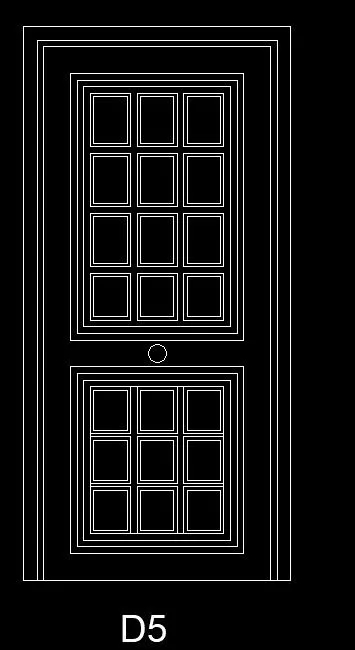

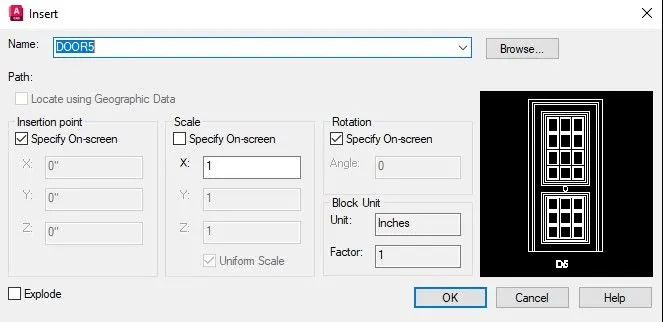

Door5:

• sizes are taken from the door 2 and procedure is same as the door 2.
• whatever steps done in door 2 same repeated in this door.
• some changes are take place in the bottom panel.
• using array,line,offset,trim are draw that panel
• take circle draw the circle at the mulion.

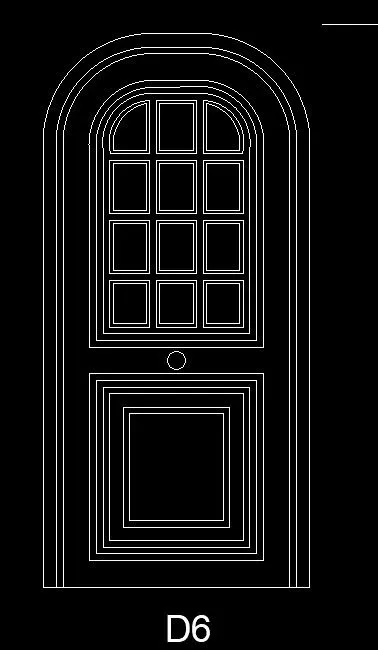

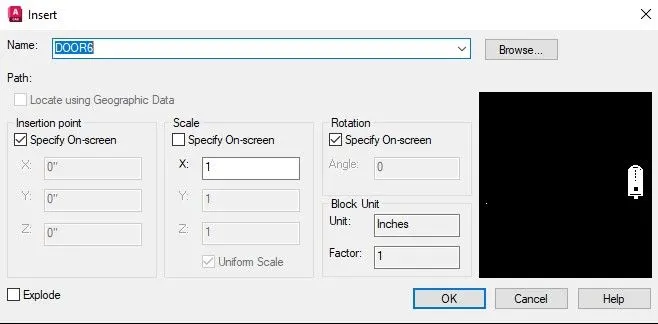

Door6:

• sizes are taken from the door 2 and procedure is same as the door 2.
• but some portion is removed in the top make it arc shape by using arc ,line ,blend command.
• whatever steps done in door 2 same repeated in this door.

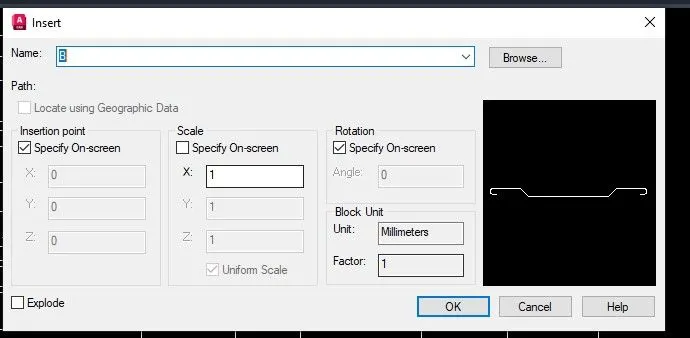

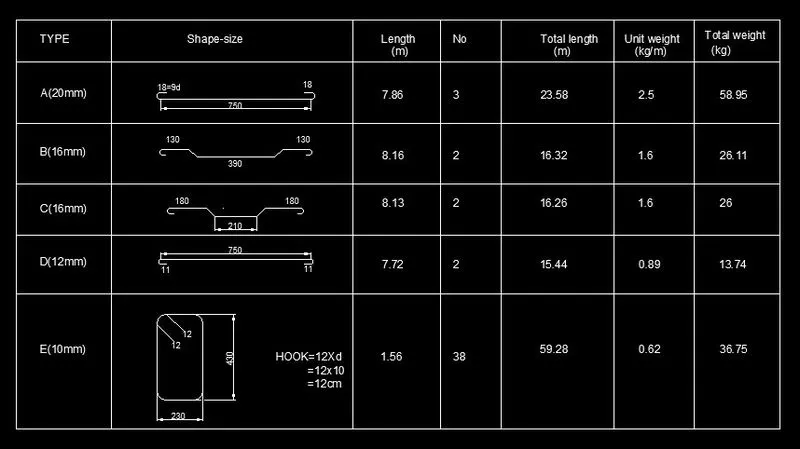

Structural reinforcement shape details:

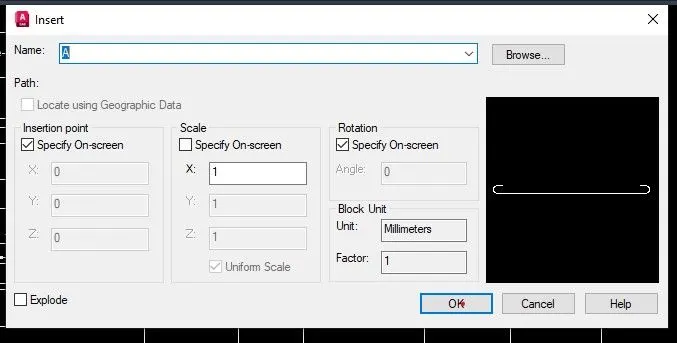

• 20 mm dia bar: line,polyline dimensions ,text tools are used.

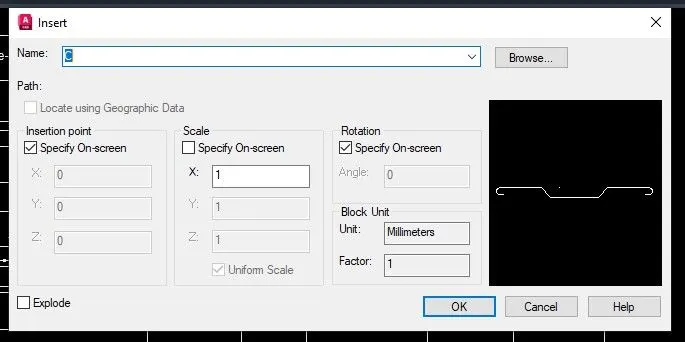

• 16 mm dia bar: line,polyline,chamfer, dimensions ,text tools are used.
• 16 mm dia bar: line,polyline,chamfer, dimensions ,text tools are used.
• 12 mm dia bar: line,polyline dimensions ,text tools are used.

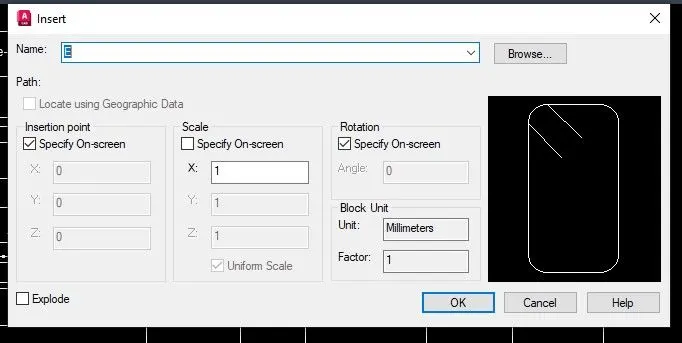

• 10 mm dia bar: rectangle,fillet, dimensions ,text tools are used.
• make each of them in to block with thier specified name.
• make a table using line
• insert the blocks in to the table.
• by using field text is placed.
• remaining is text our own.

RESULT:

I have Created the templates,different doors,electrical legends and structural reinforcement and make them in to blocks .

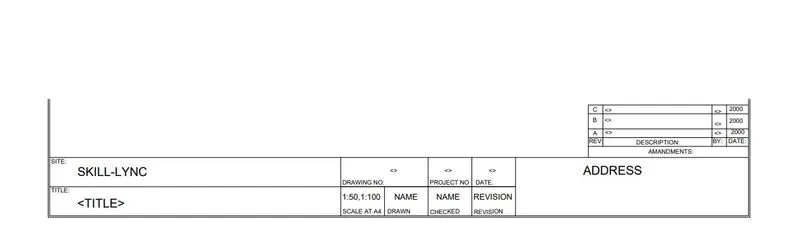

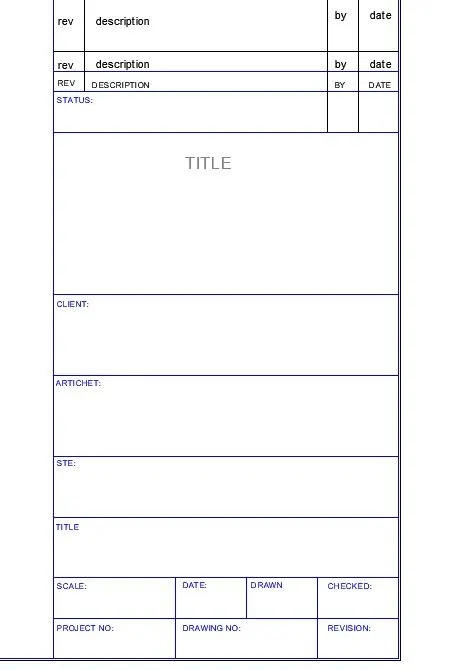

TEMPLATES

DIFFERENT DOORS

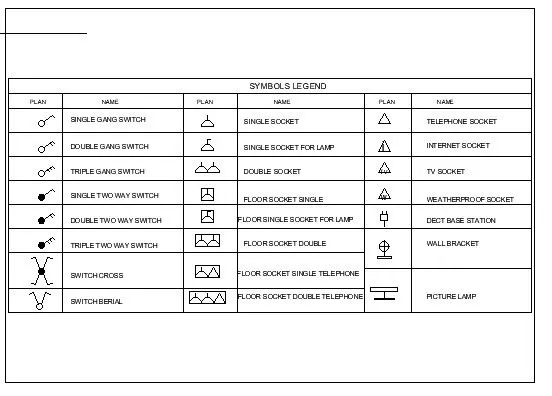

ELECTRICAL LEGENDS

\

DIFFERENT DOORS

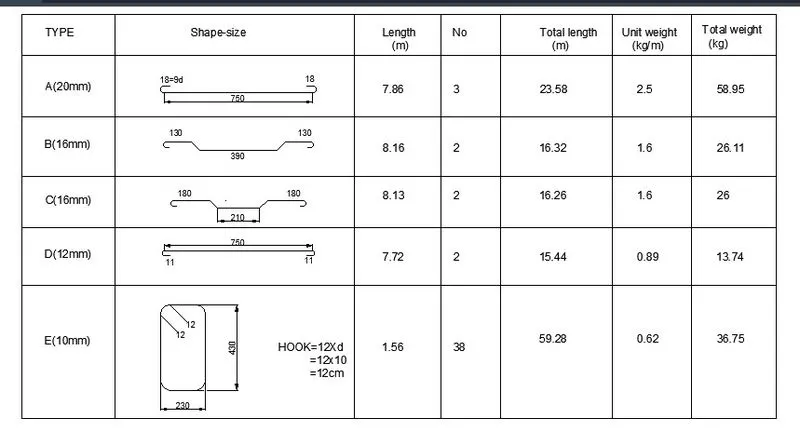

Structural reinforcement shape details:
